The TEDIVO Vessel Designer allows you to create and download your own vessel
definitions.
CAIYUNHE
9228758 | H3MN | 9228758 by ********* Last update: Mon Jul 22 2024
General Info
Ship Name:CAIYUNHE
IMO Code:9228758
Call Sign:H3MN
Line Operator:9228758
Class Name for Sister Ships:COS
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:041
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,556
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

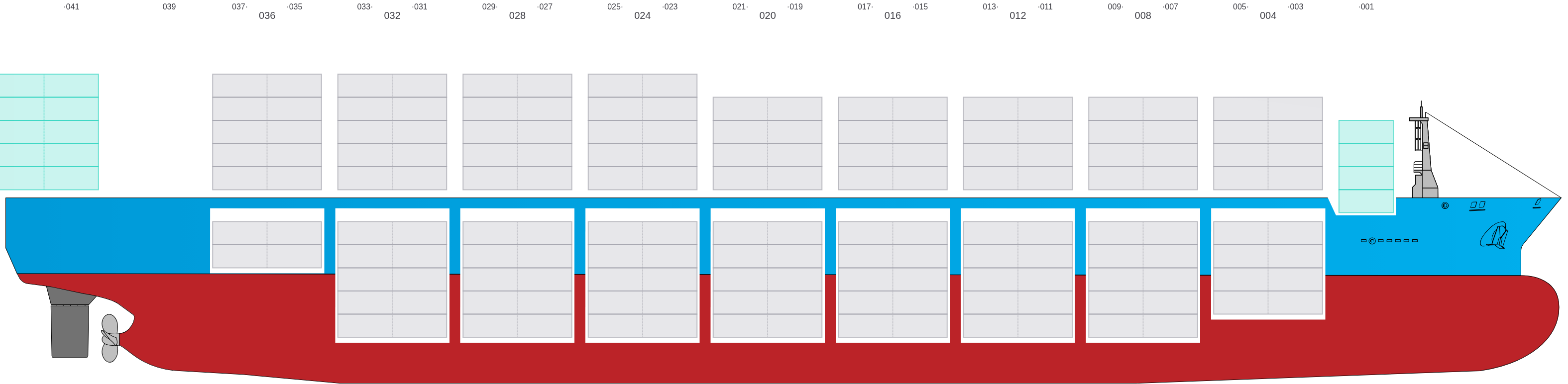

Side View
Hatch-Covers View

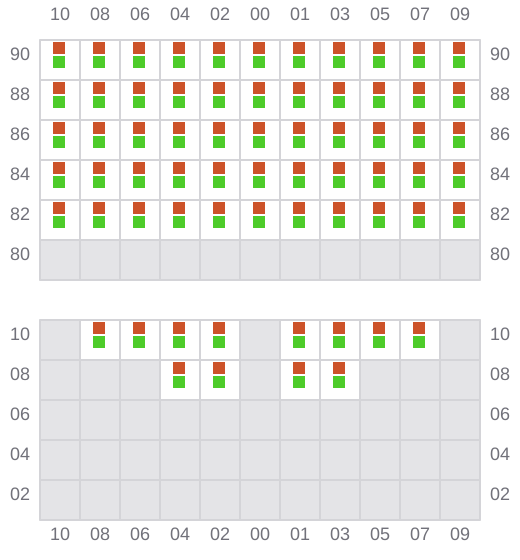

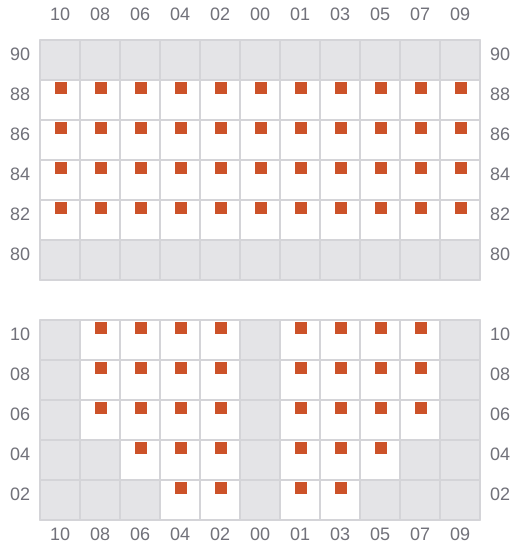

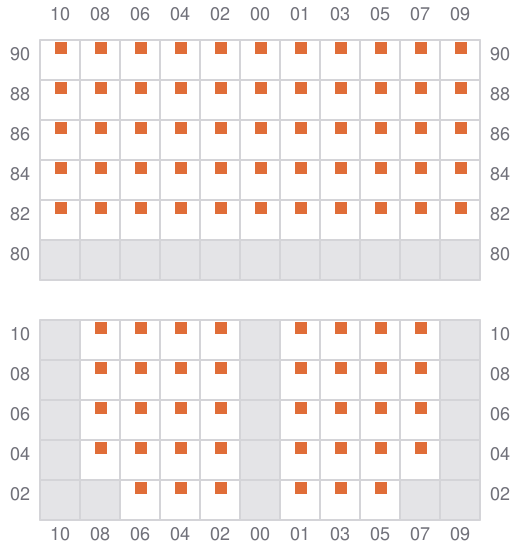

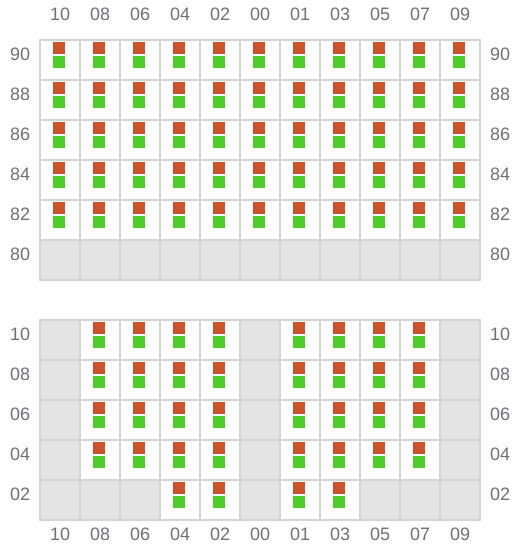

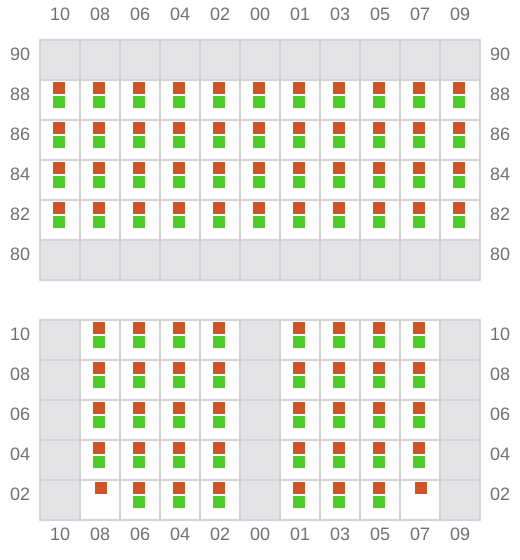

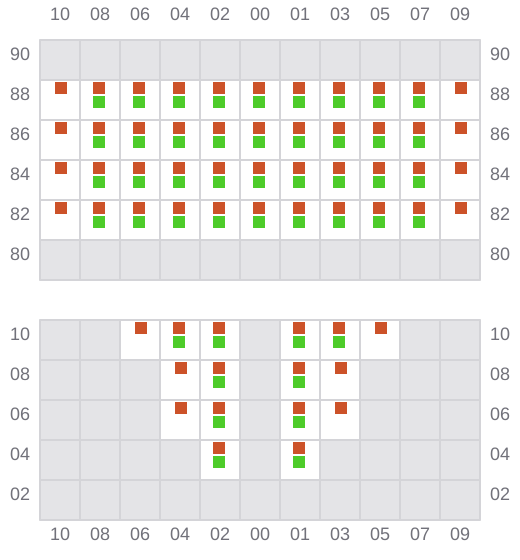

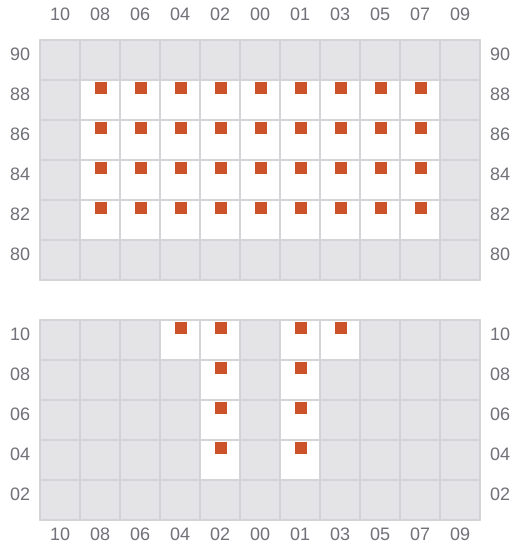

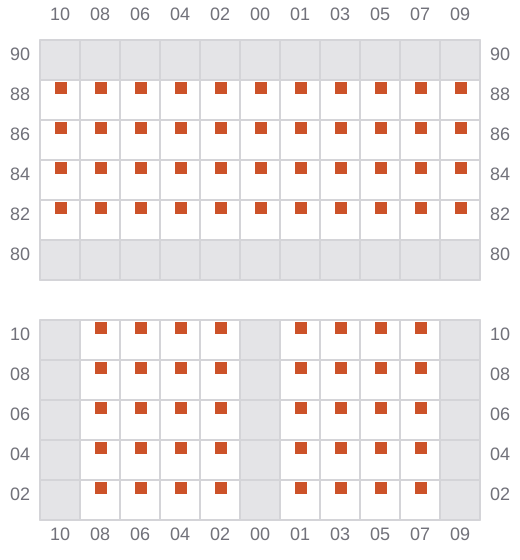

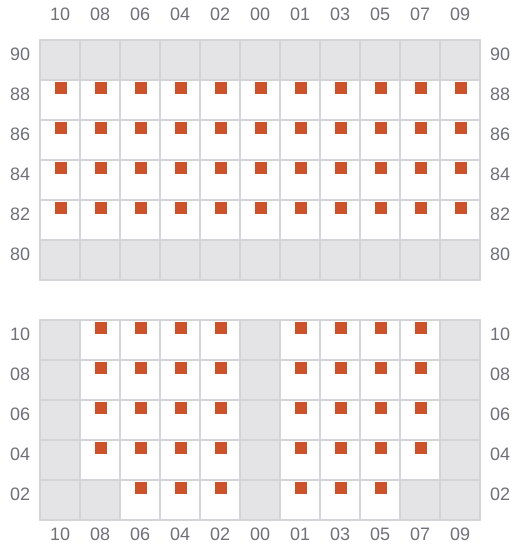

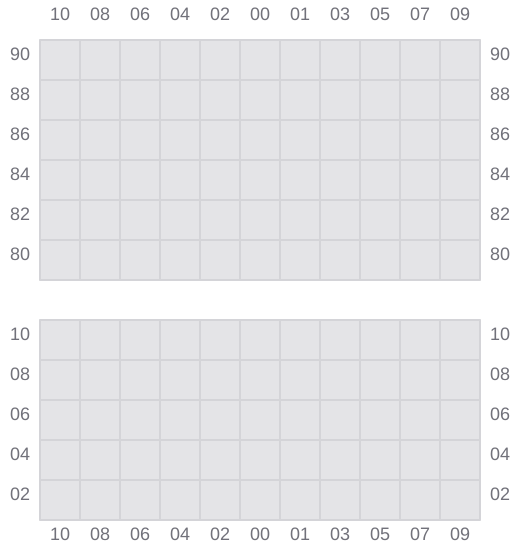

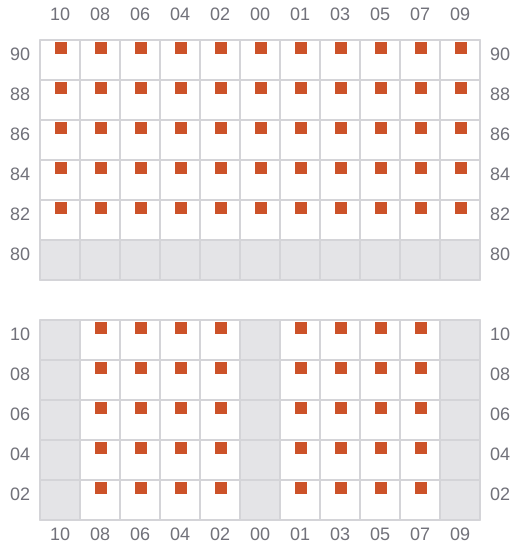

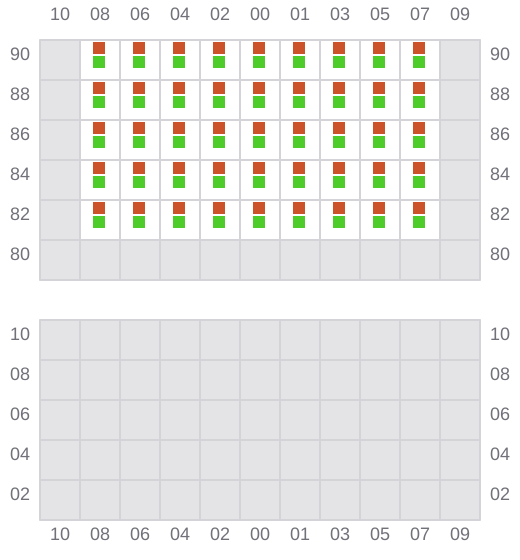

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

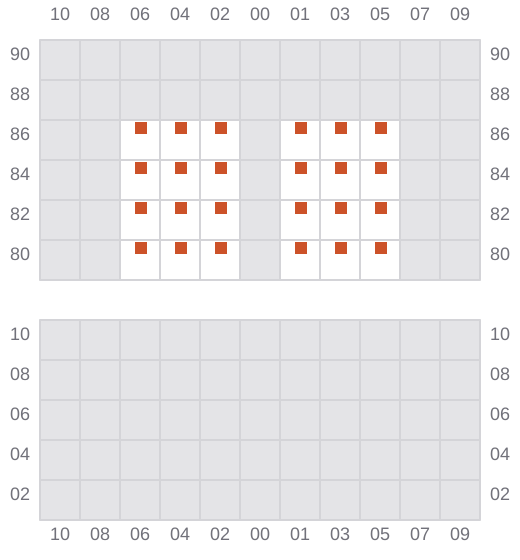

001
- → / ?
003
- →
005 (004)
- ←

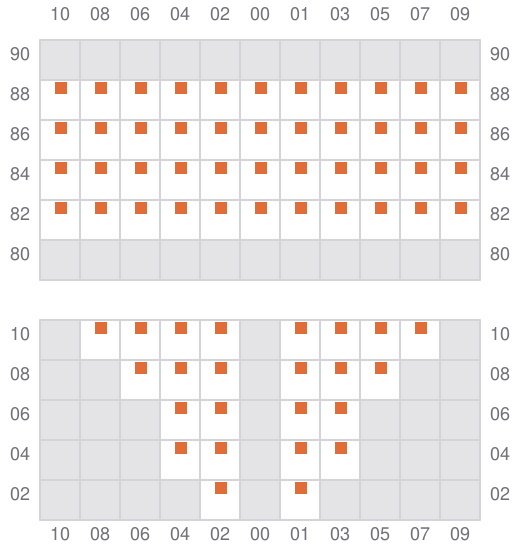

007
- →

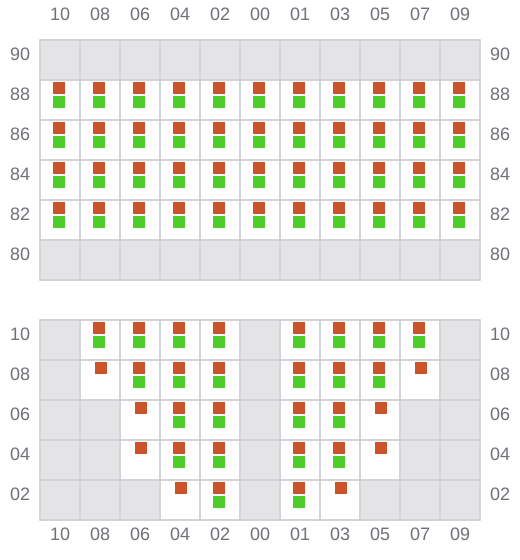

009 (008)
- ←
011
- →

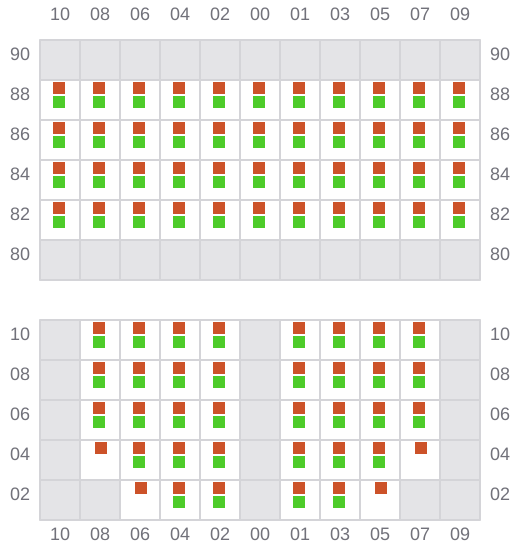

013 (012)
- ←
015
- →
017 (016)
- ←
019
- →
021 (020)
- ←
023
- →

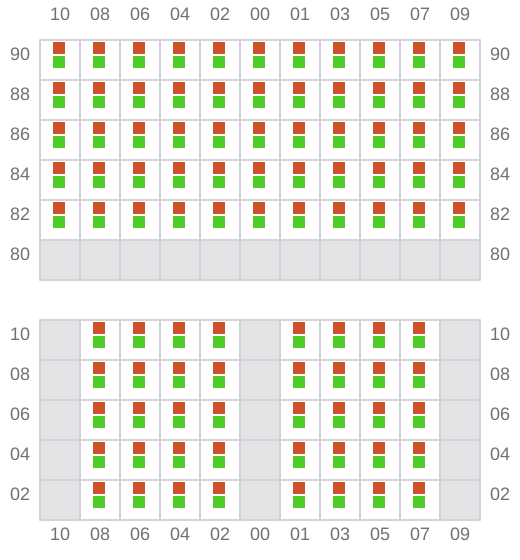

025 (024)
- ←
027
- →

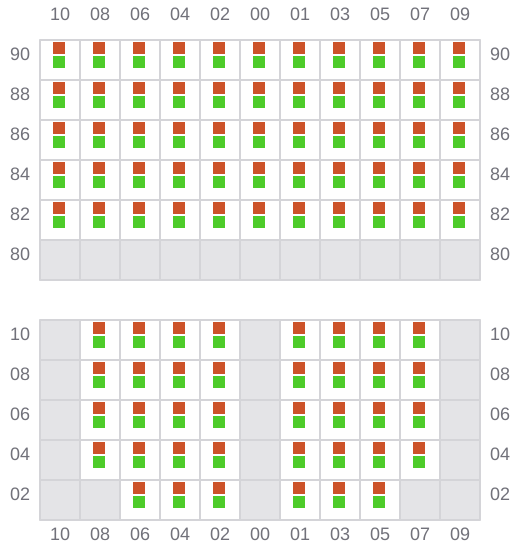

029 (028)
- ←
031
- →

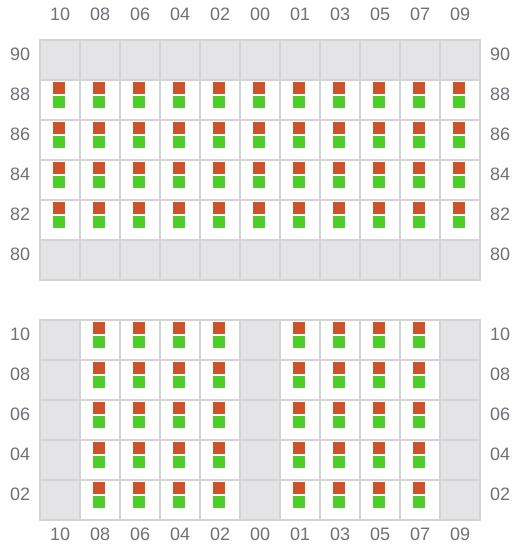

033 (032)
- ←

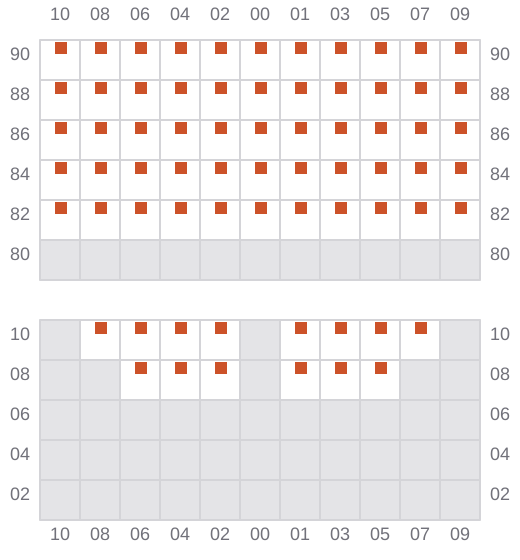

035
- →
037 (036)
- ←
039
041 (042)
- → / ?
