CALISTO
9306067 | CQEX6 | 9306067 by ********* Last update: Fri Jul 26 2024
General Info
Ship Name:CALISTO
IMO Code:9306067
Call Sign:CQEX6
Line Operator:9306067
Class Name for Sister Ships:HAP
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:041
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,578
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

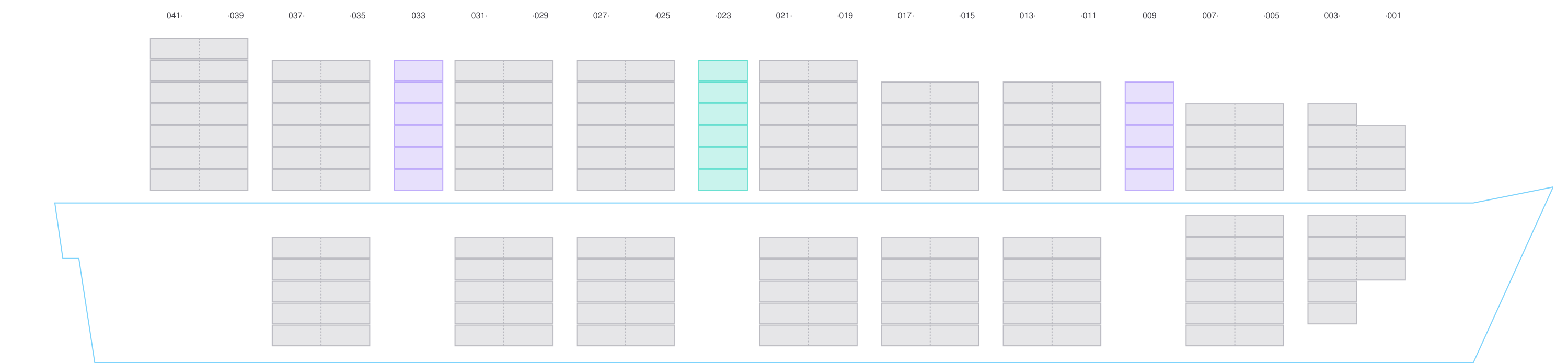

Side View

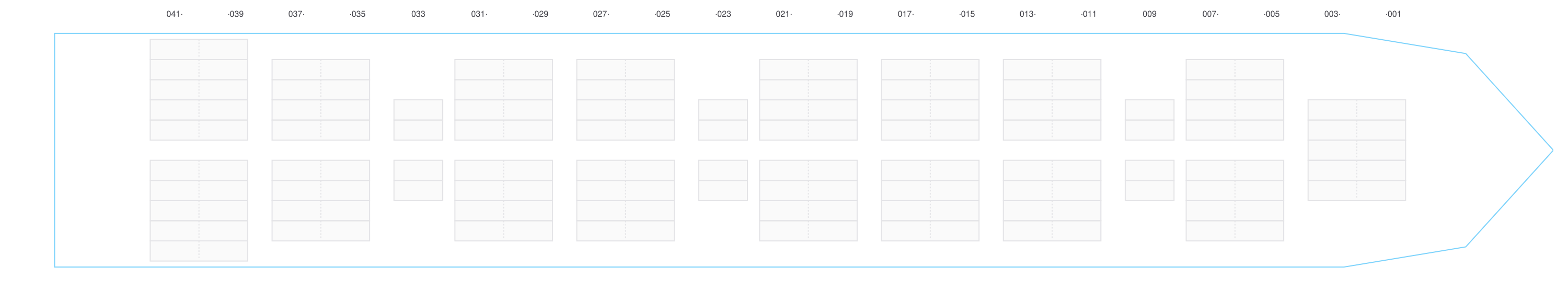

Hatch-Covers View

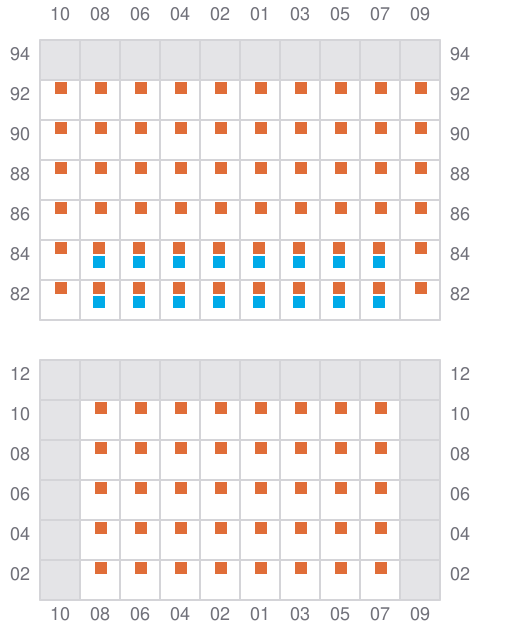

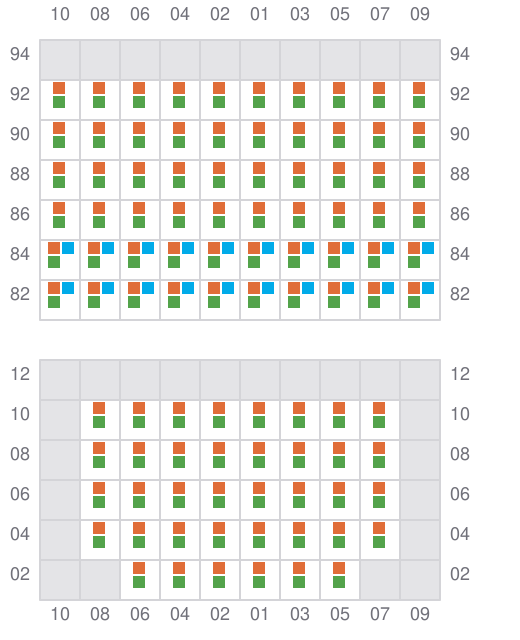

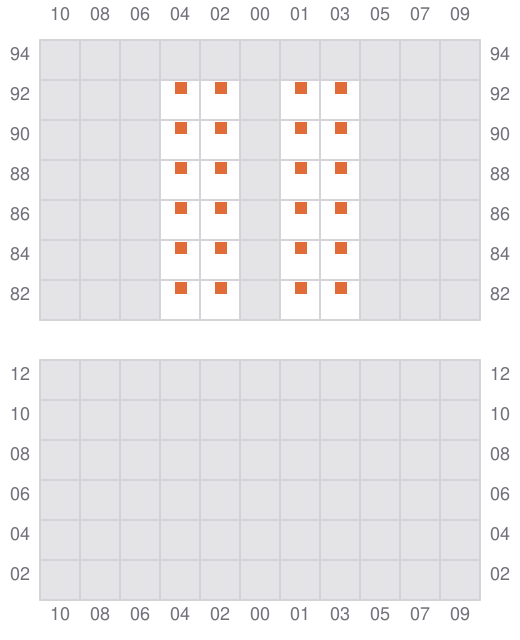

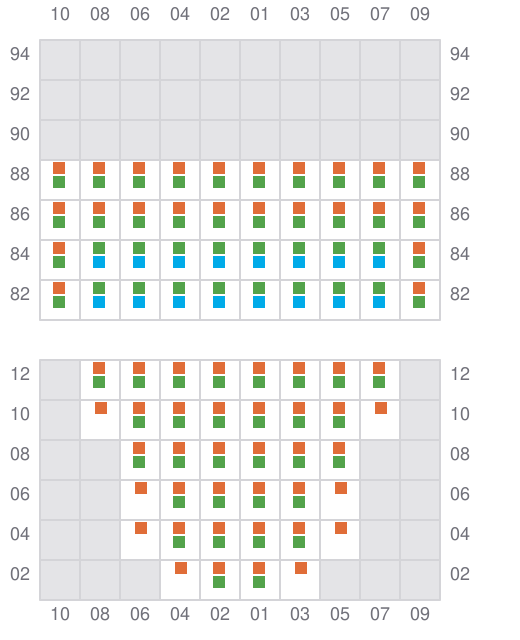

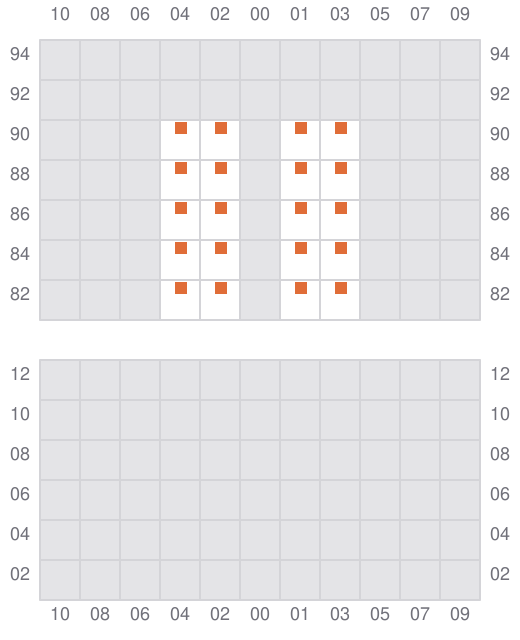

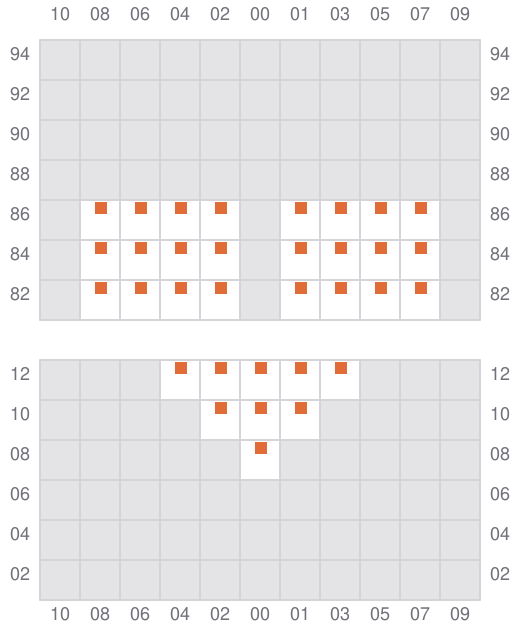

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- →

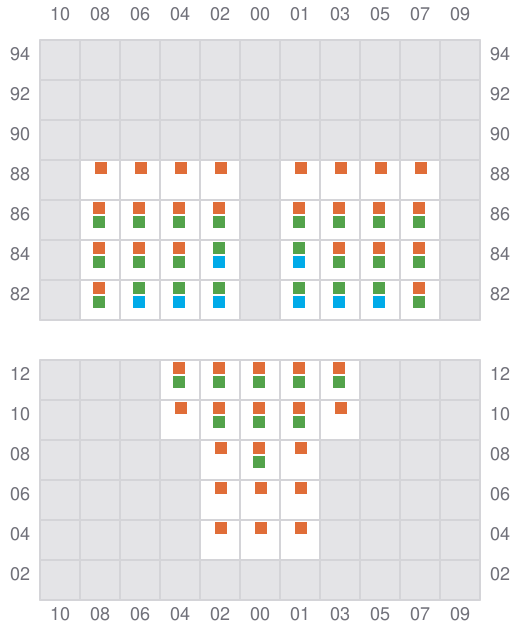

003 (002)
- ←

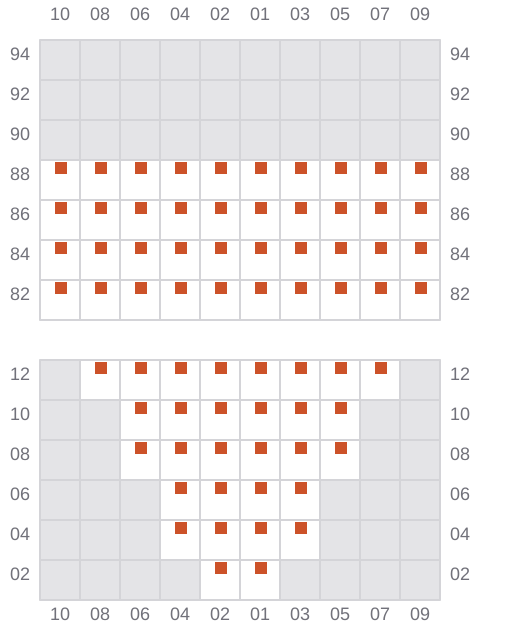

005
- →
007 (006)
- ←
009
011
- →

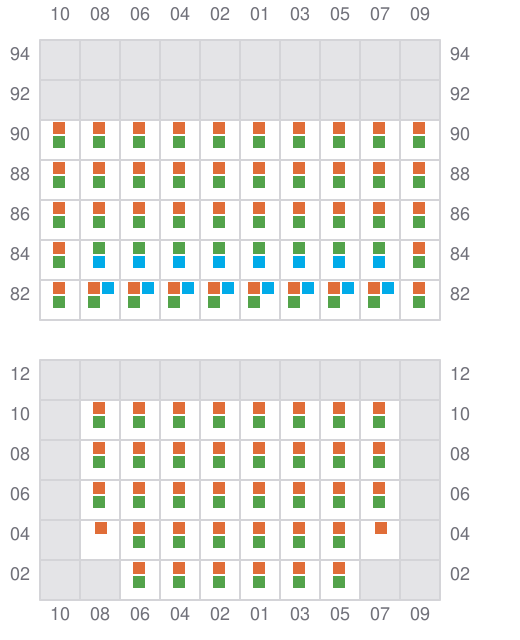

013 (012)
- ←
015
- →

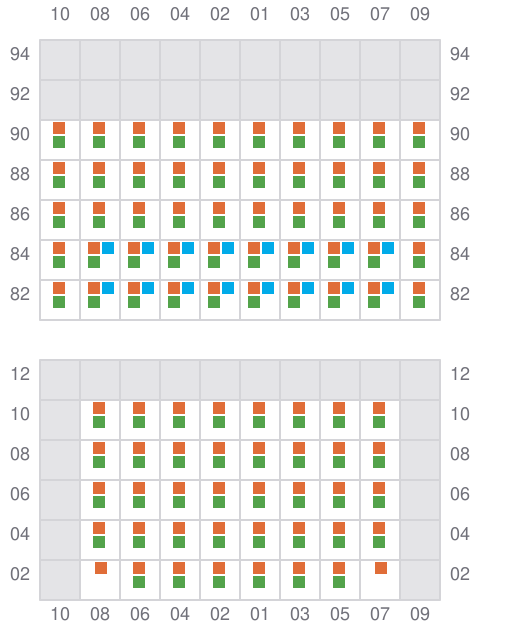

017 (016)
- ←
019
- →
021 (020)
- ←
023
- → / ?
025
- →

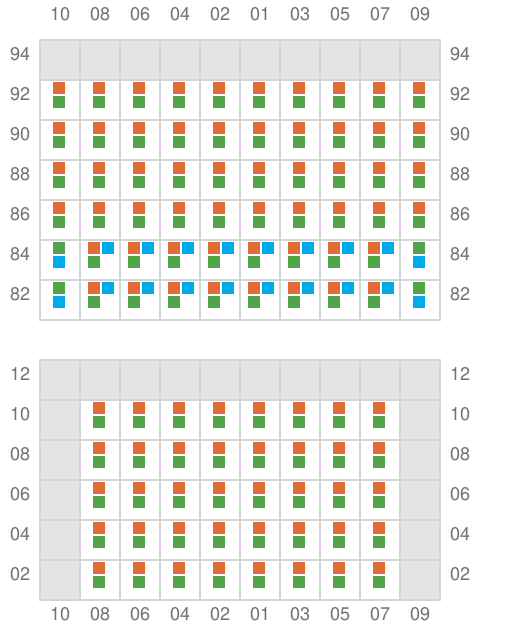

027 (026)
- ←
029
- →
031 (030)
- ←
033
035
- →

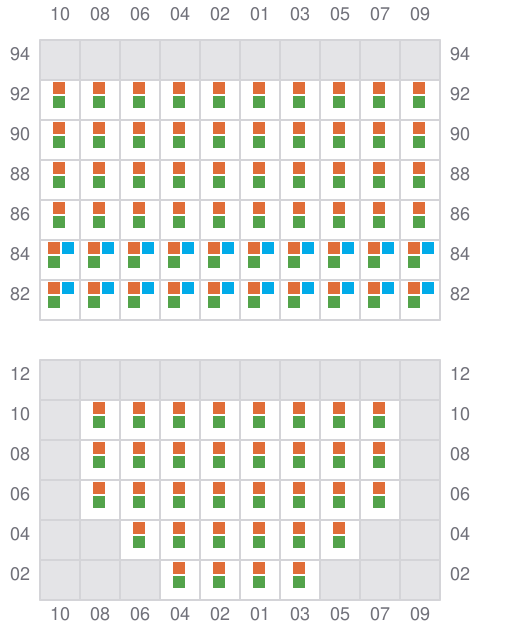

037 (036)
- ←

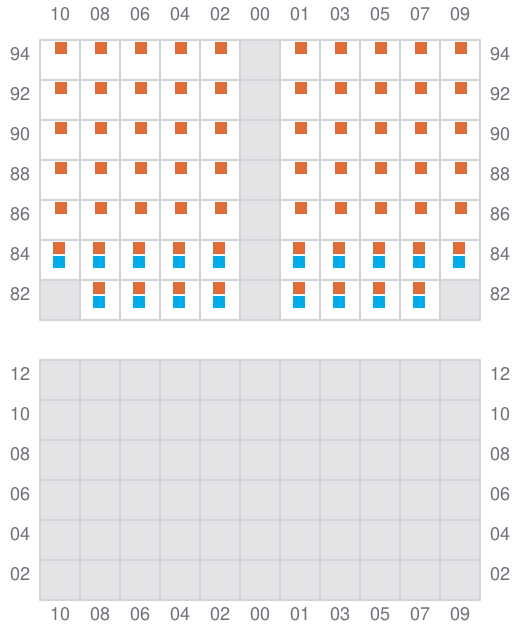

039
- → / ?

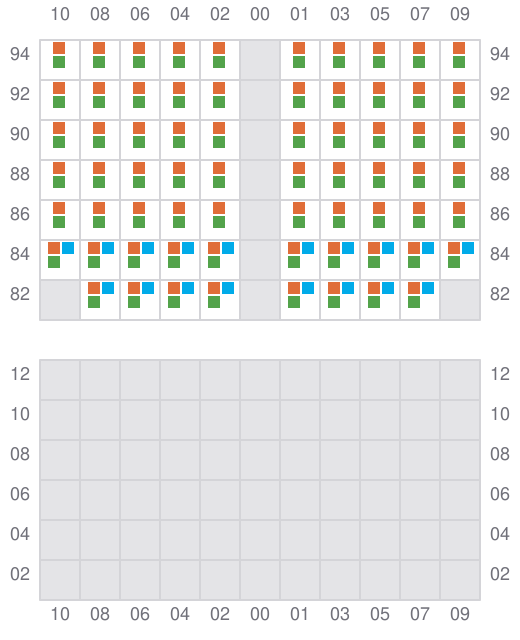

041 (040)
- ← / ?
