CALLAO BRIDGE
9451496 | 3FGY3 | 9451496 by ********* Last update: Fri May 03 2024
General Info
Ship Name:CALLAO BRIDGE
IMO Code:9451496
Call Sign:3FGY3
Line Operator:9451496
Class Name for Sister Ships:CALLAO BRIDGE
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:043
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,468
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

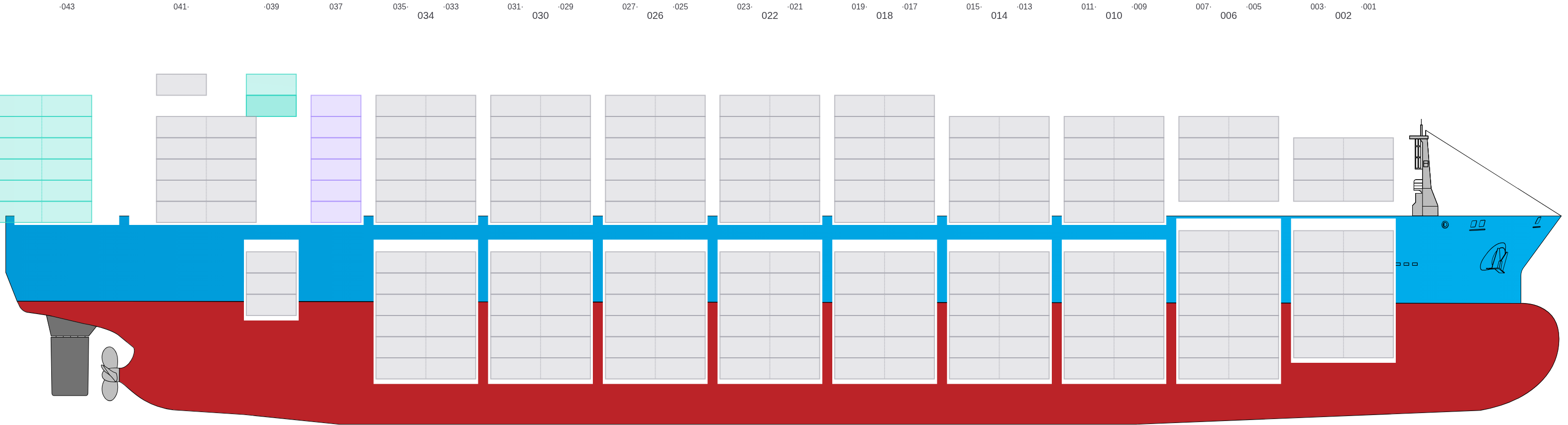

Side View

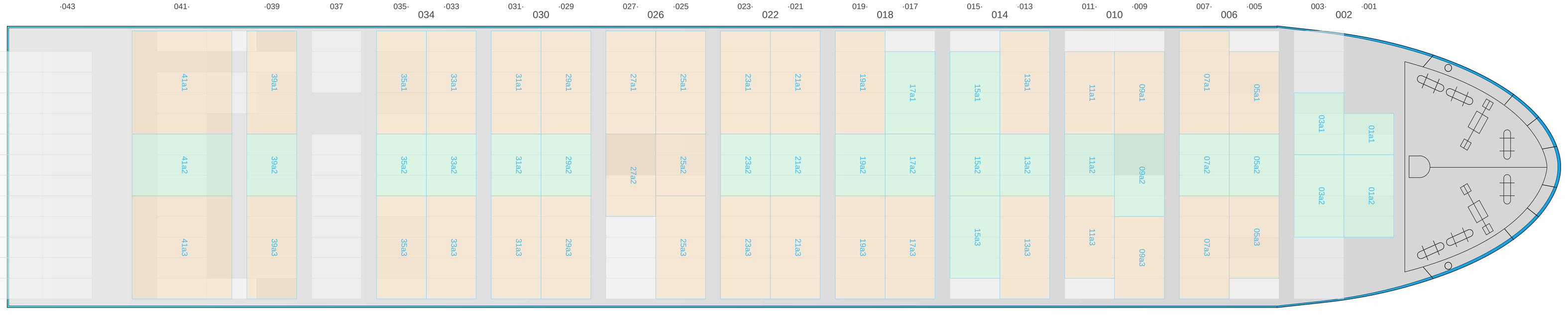

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

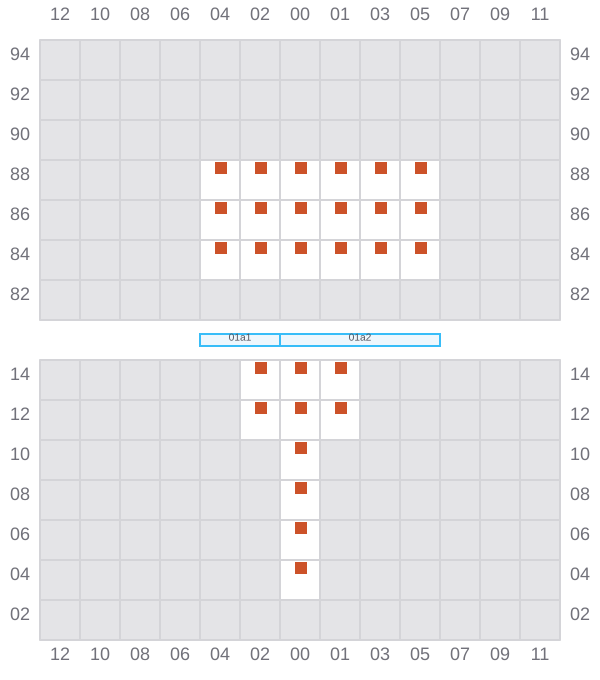

001
- →

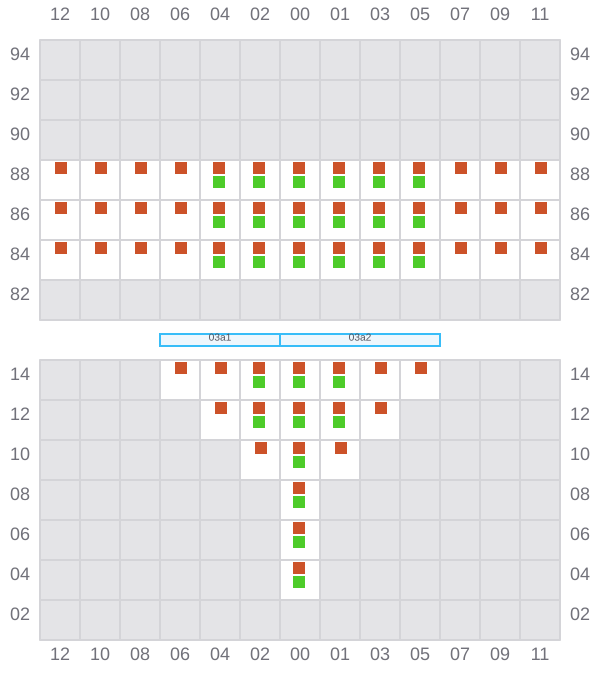

003 (002)
- ←

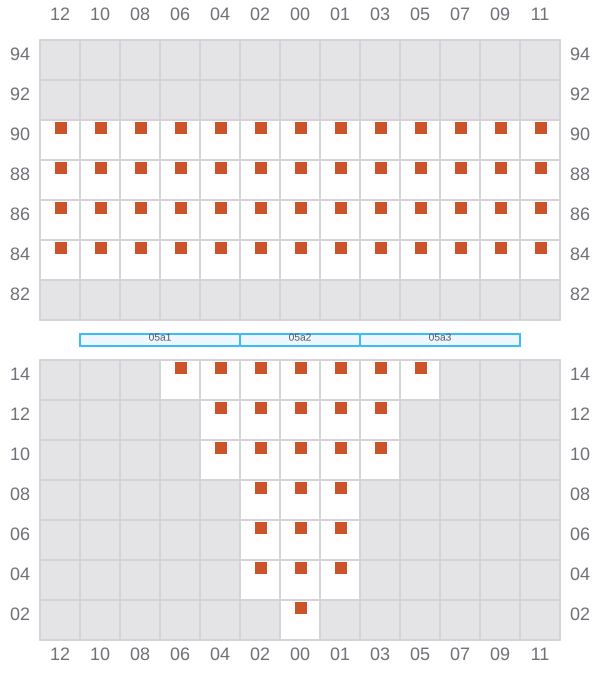

005
- →

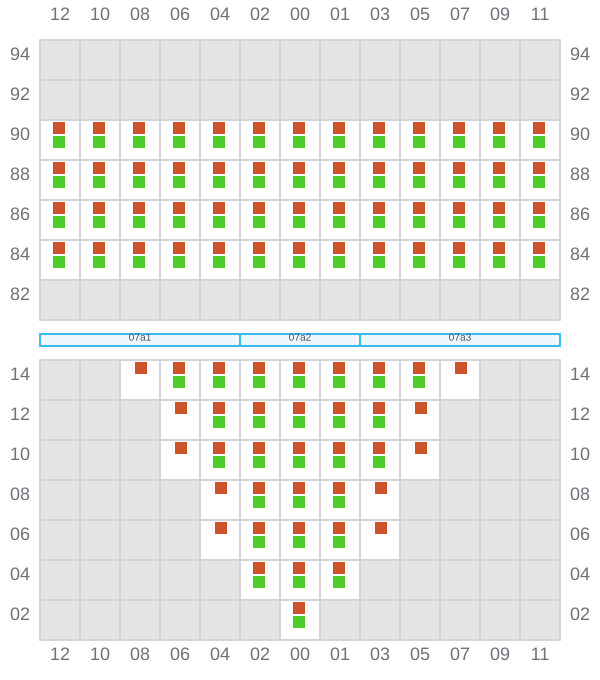

007 (006)
- ←

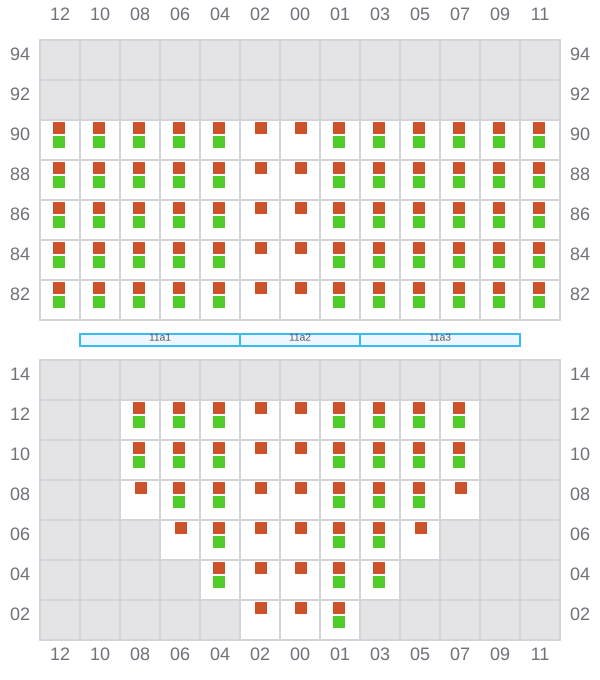

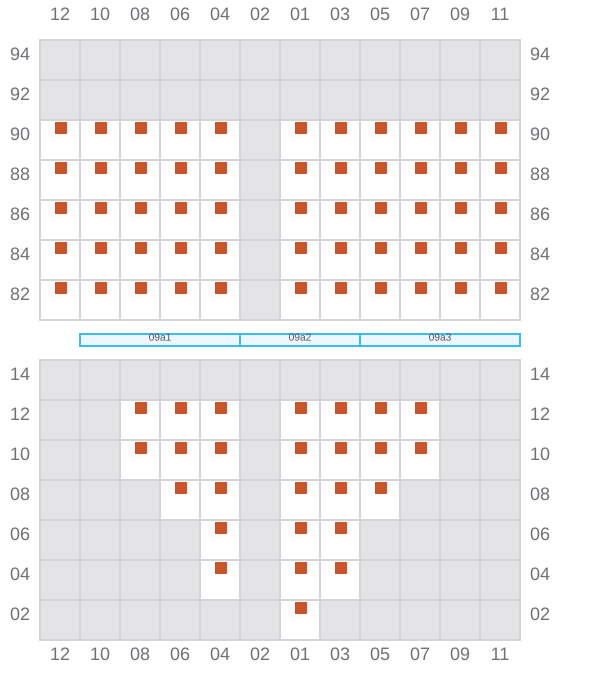

009
- →
011 (010)
- ←

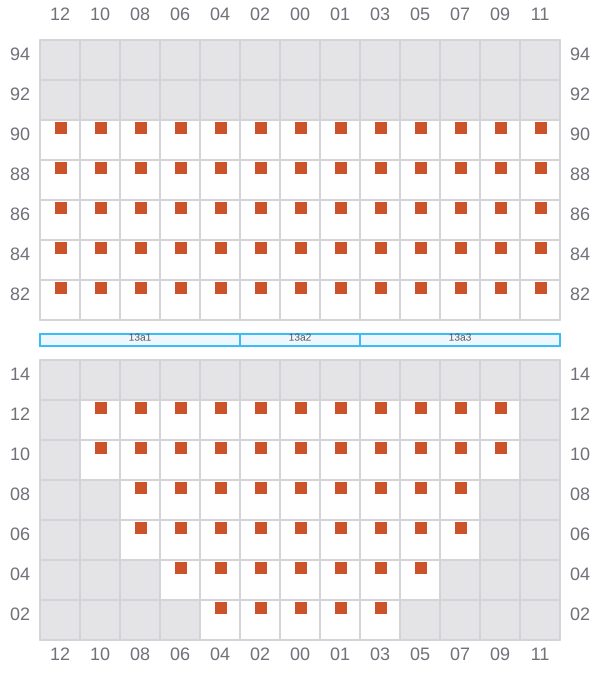

013
- →

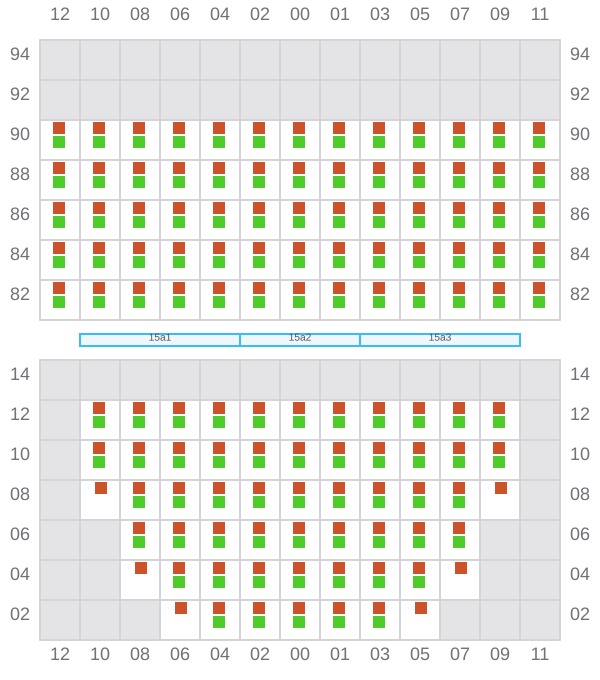

015 (014)
- ←

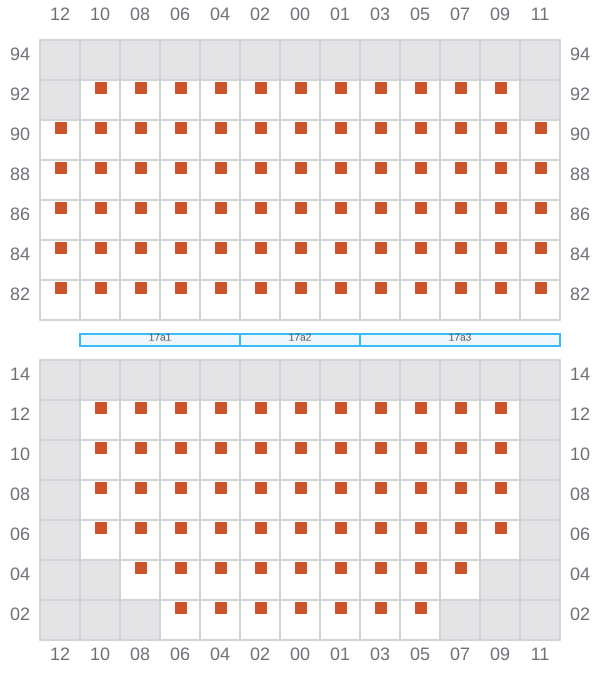

017
- →

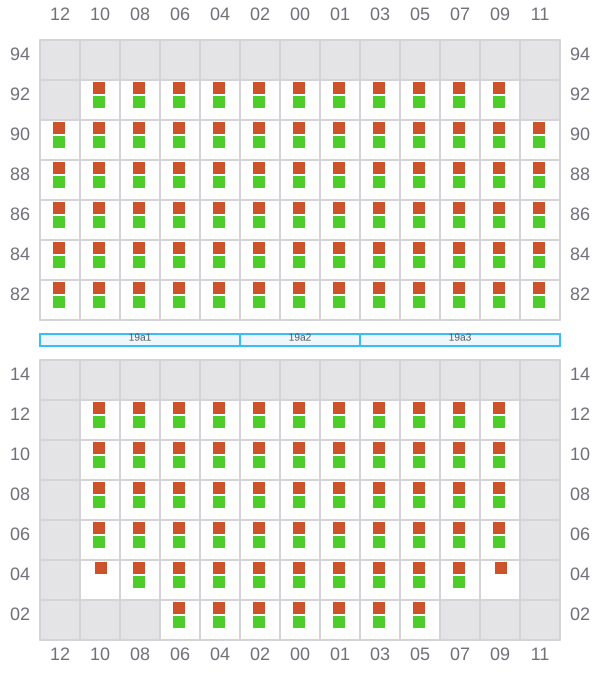

019 (018)
- ←
021
- →
023 (022)
- ←

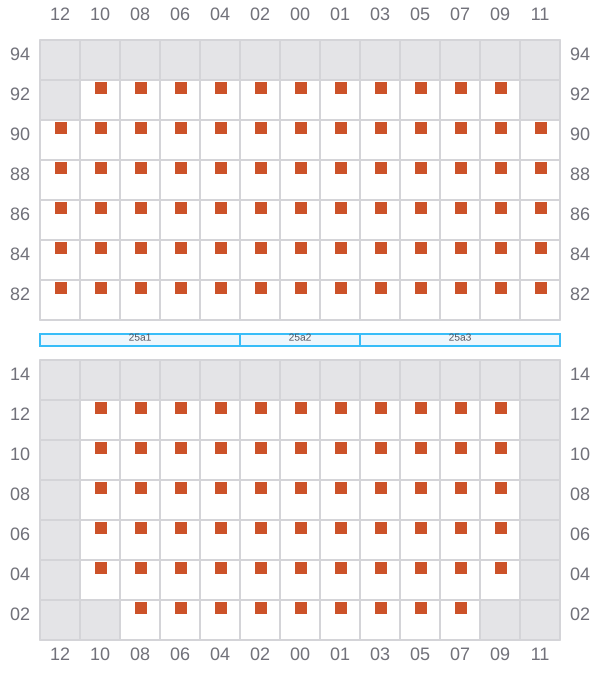

025
- →

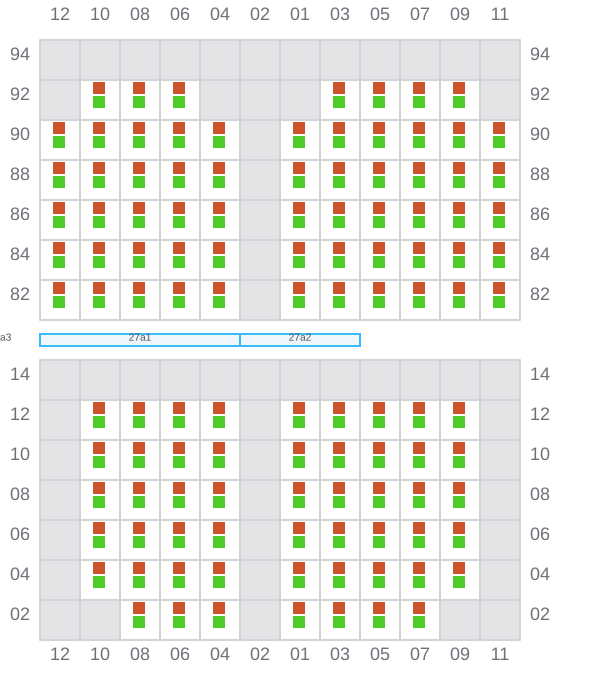

027 (026)
- ←

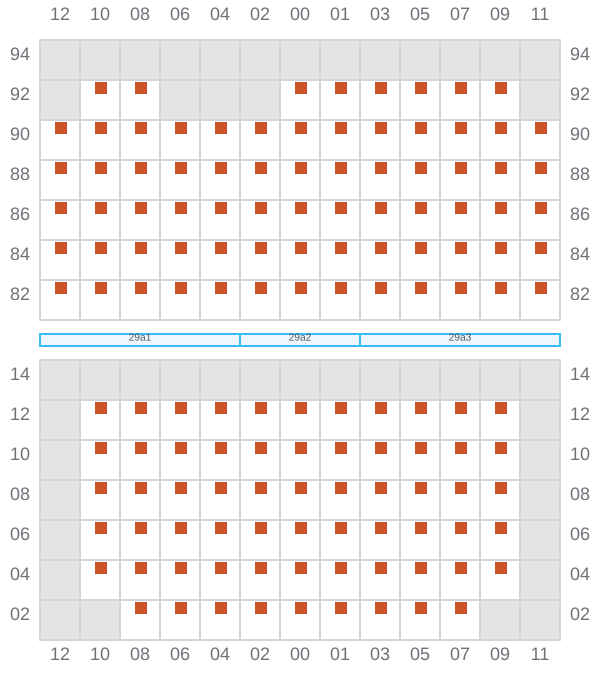

029
- →

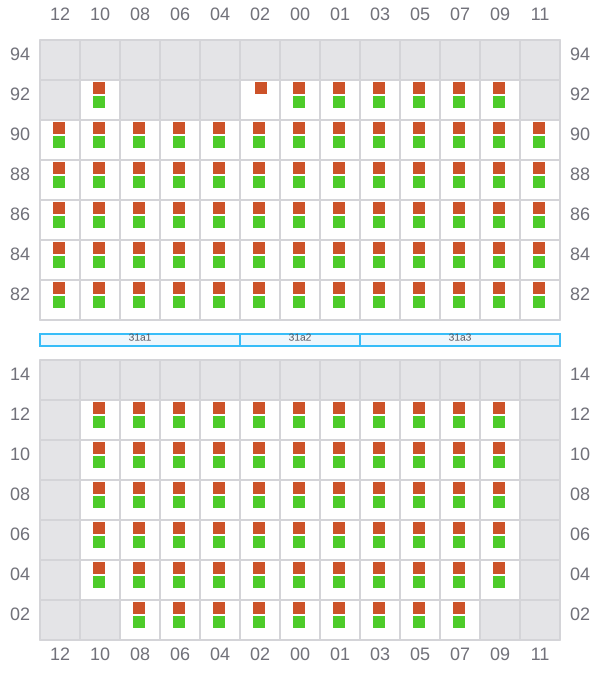

031 (030)
- ←

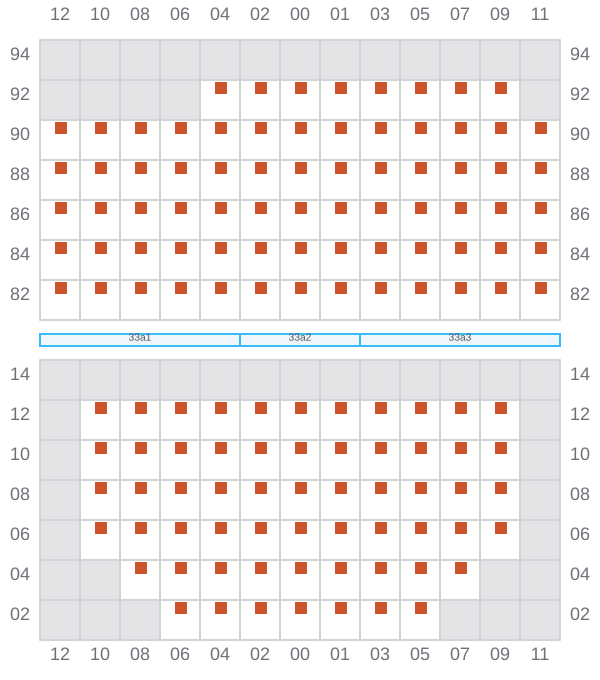

033
- →

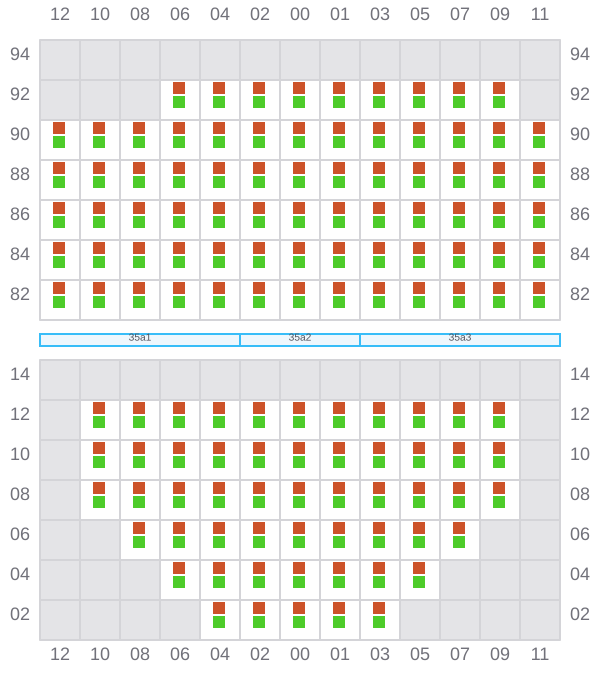

035 (034)
- ←
037

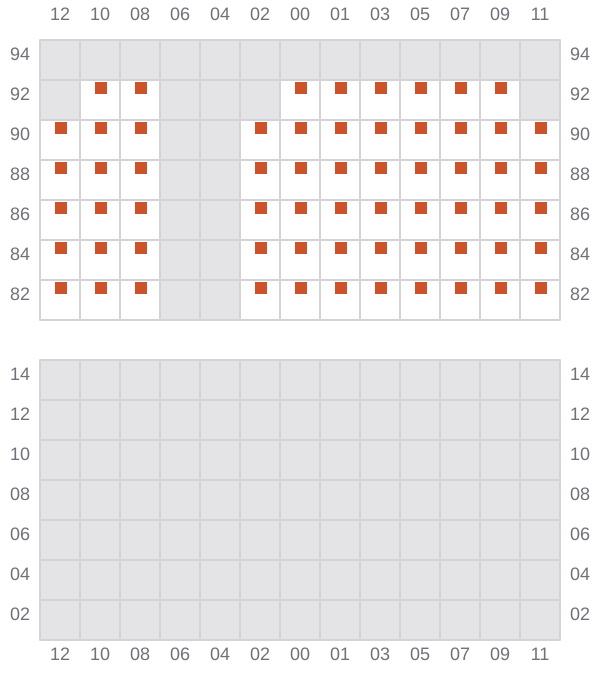

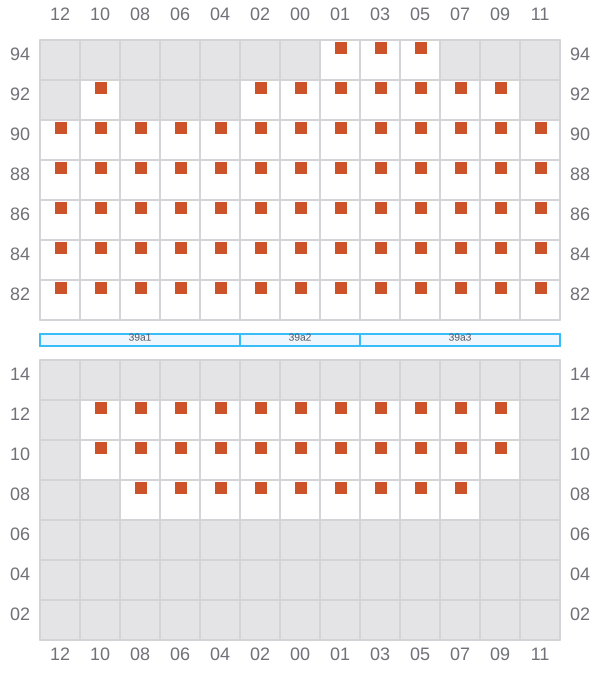

039
- → / ←

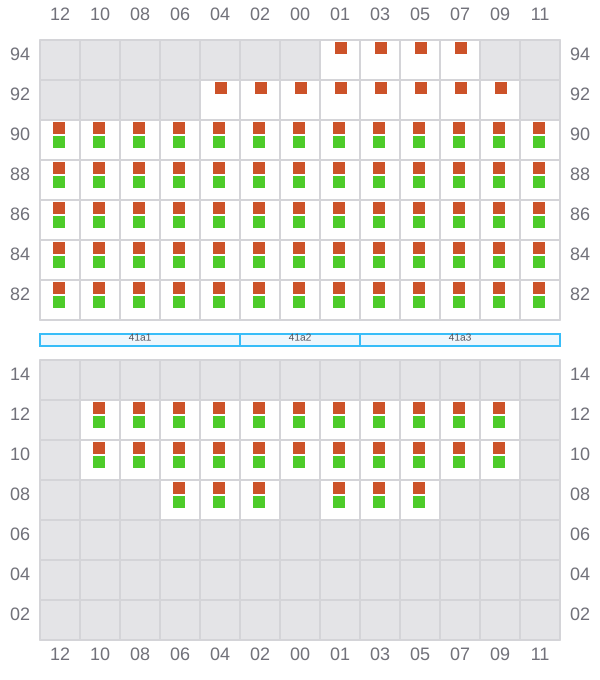

041 (040)
- ←

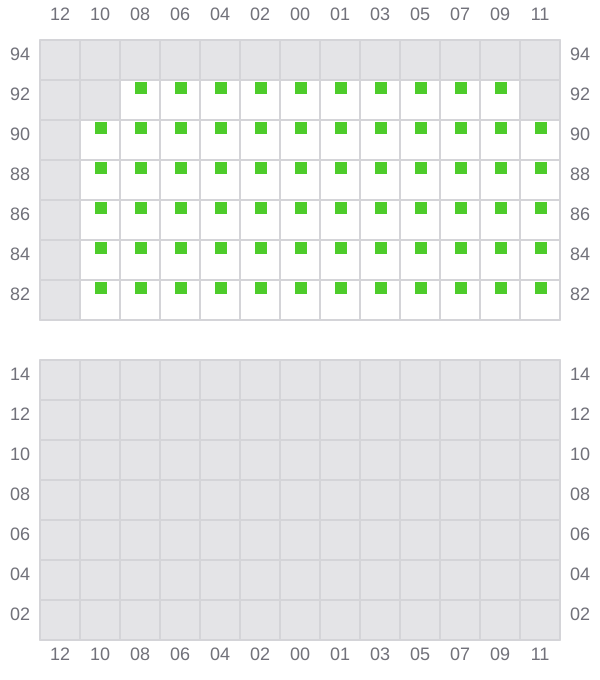

043 (044)
- → / ?
