CALLIOPE
9252981 | D5OW8 | 9252981 by ********* Last update: Sat Mar 16 2024

General Info

Ship Name:CALLIOPE
IMO Code:9252981
Call Sign:D5OW8
Line Operator:9252981
Class Name for Sister Ships:15Z
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,526

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

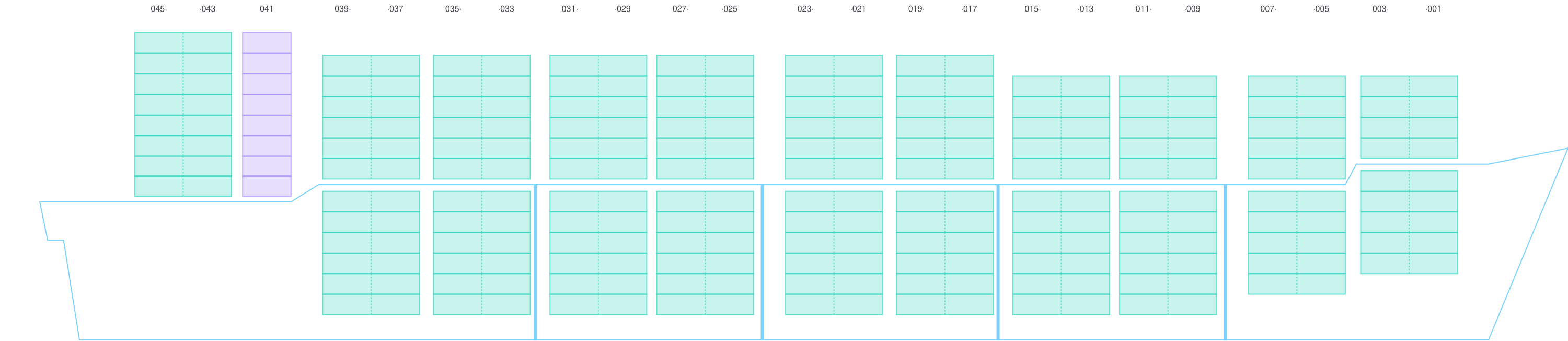

Side view of CALLIOPE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

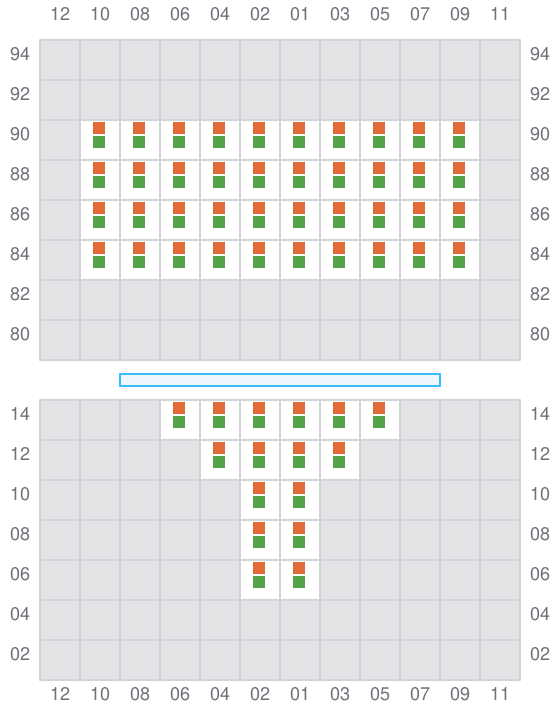

Bay 001 view and slots of CALLIOPE

003

  • / ?

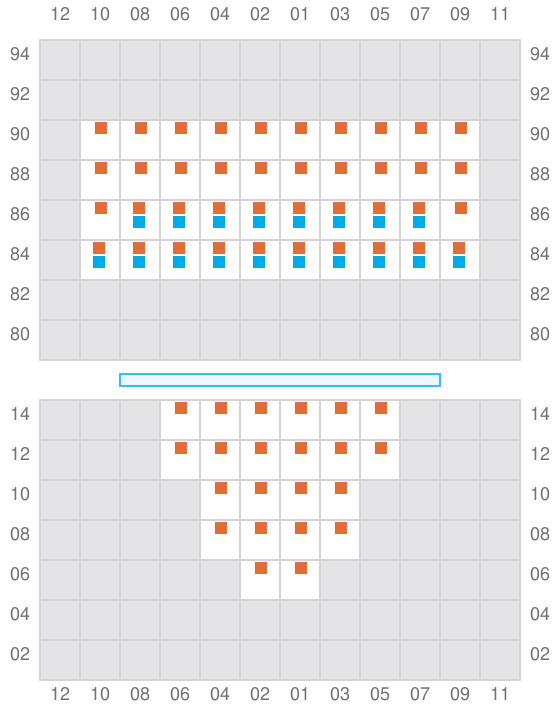

Bay 003 view and slots of CALLIOPE

005 (006)

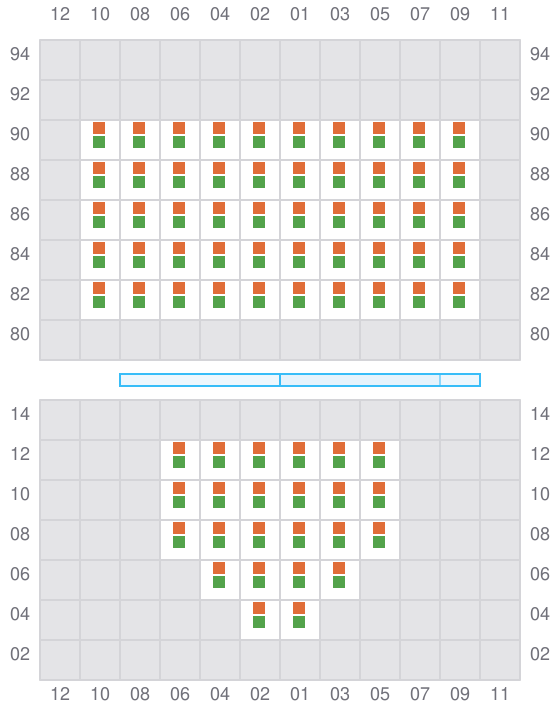

Bay 005 view and slots of CALLIOPE

007

  • / ?

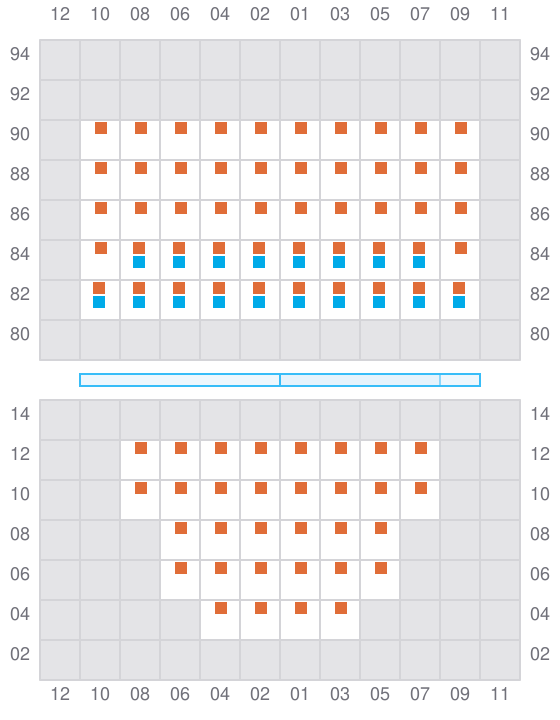

Bay 007 view and slots of CALLIOPE

009 (010)

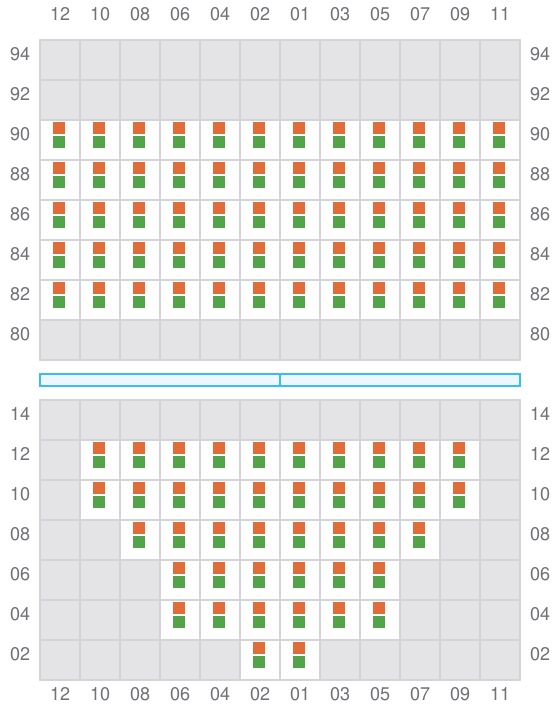

Bay 009 view and slots of CALLIOPE

011

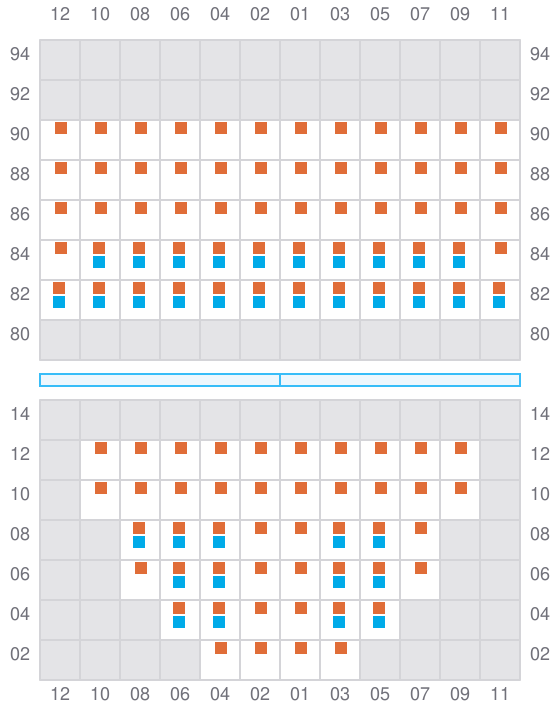

Bay 011 view and slots of CALLIOPE

013 (014)

  • ? /

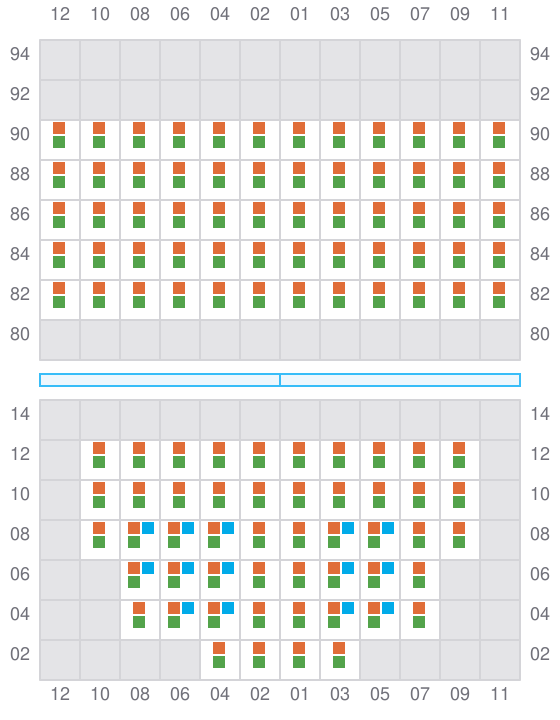

Bay 013 view and slots of CALLIOPE

015

  • / ?

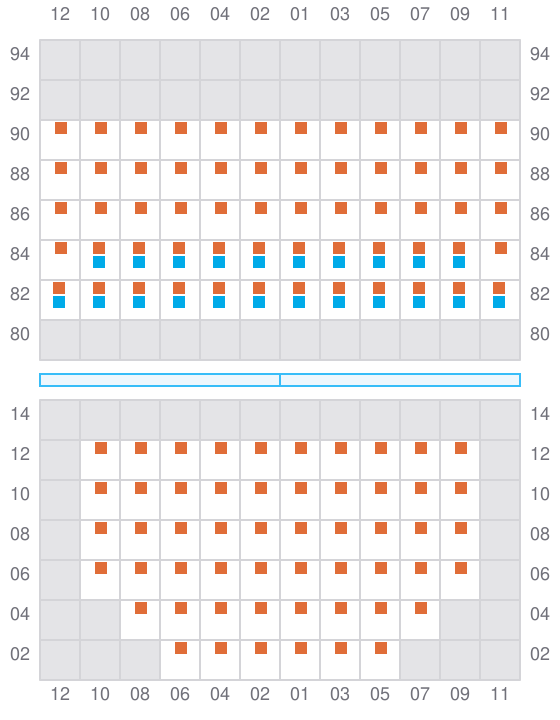

Bay 015 view and slots of CALLIOPE

017 (018)

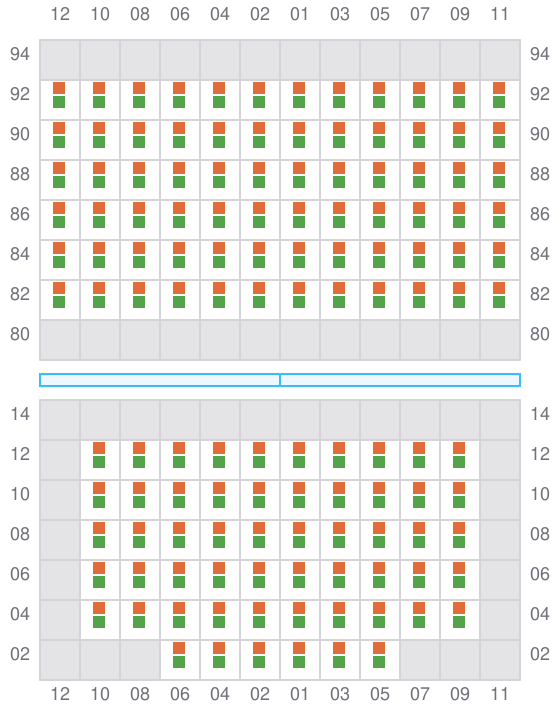

Bay 017 view and slots of CALLIOPE

019

Bay 019 view and slots of CALLIOPE

021 (022)

  • ? /
Bay 021 view and slots of CALLIOPE

023

  • / ?
Bay 023 view and slots of CALLIOPE

025 (026)

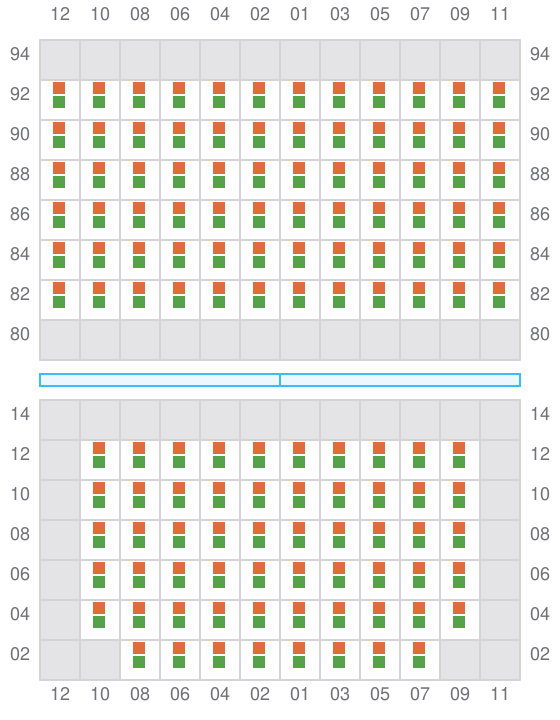

Bay 025 view and slots of CALLIOPE

027

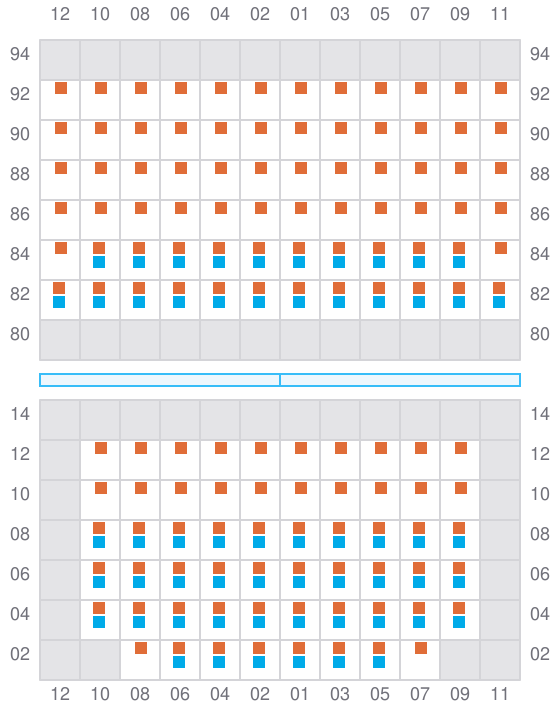

Bay 027 view and slots of CALLIOPE

029 (030)

  • ? /

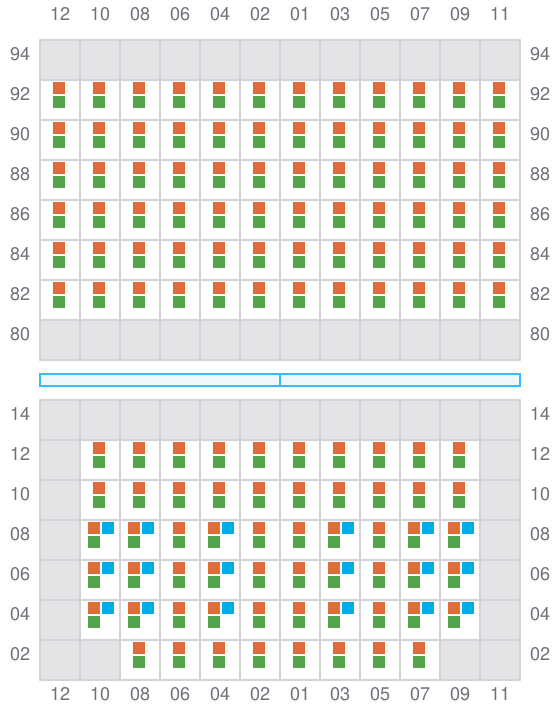

Bay 029 view and slots of CALLIOPE

031

  • / ?

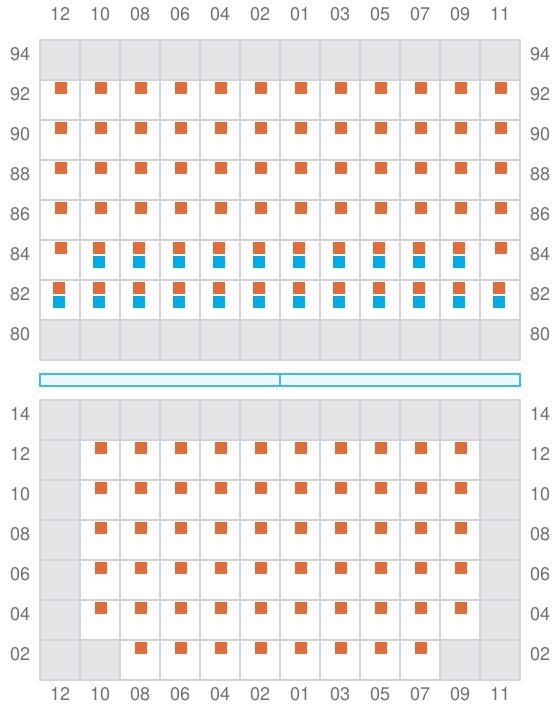

Bay 031 view and slots of CALLIOPE

033 (034)

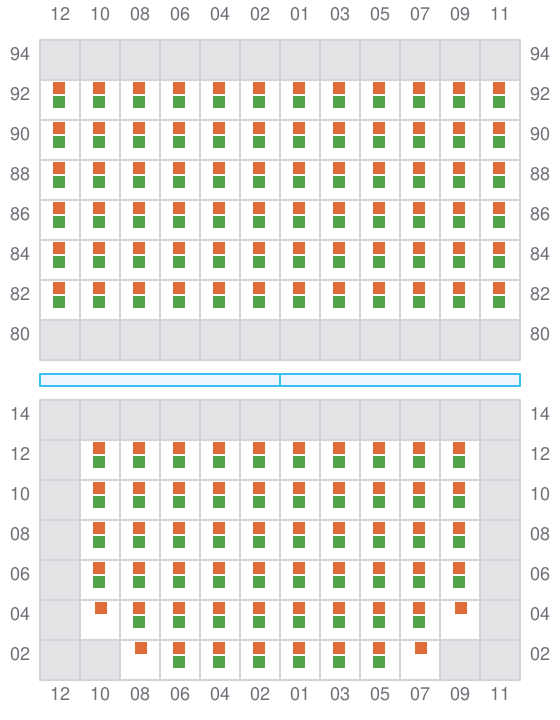

Bay 033 view and slots of CALLIOPE

035

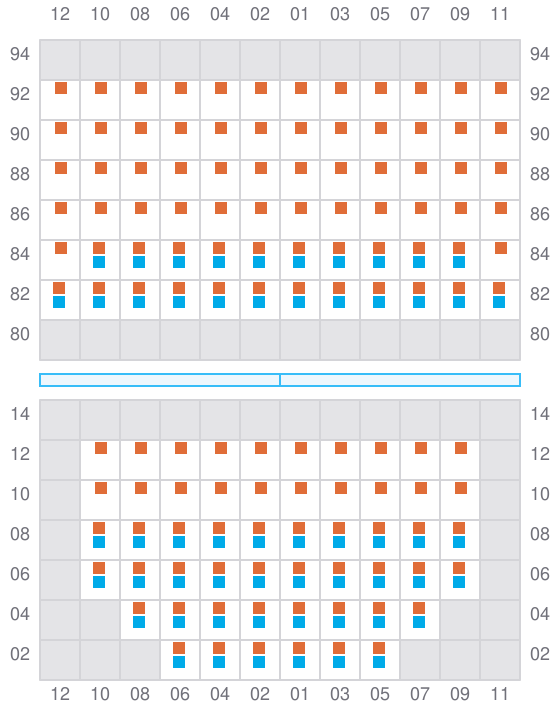

Bay 035 view and slots of CALLIOPE

037 (038)

  • ? /

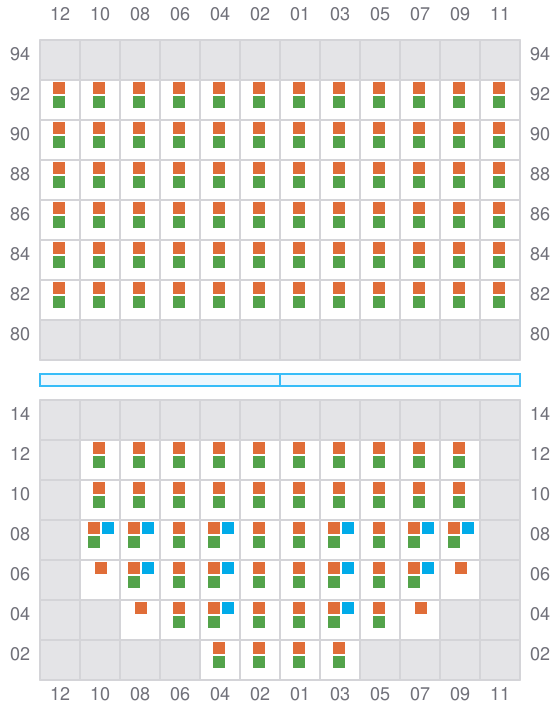

Bay 037 view and slots of CALLIOPE

039

  • / ?

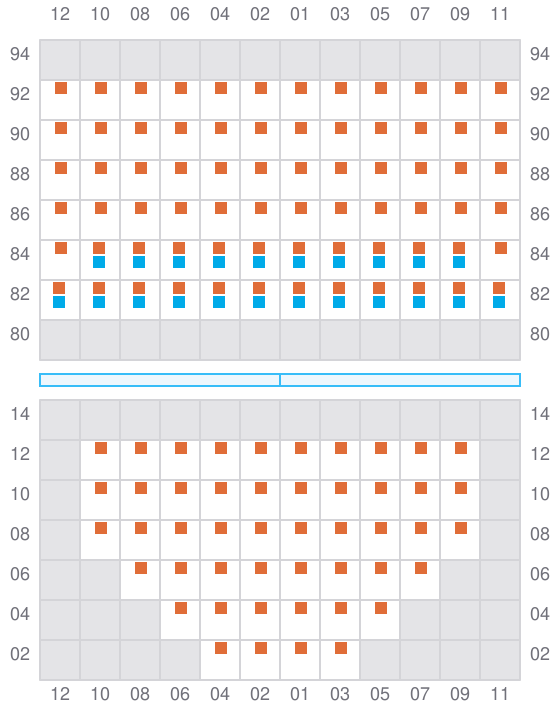

Bay 039 view and slots of CALLIOPE

041

  • / ?

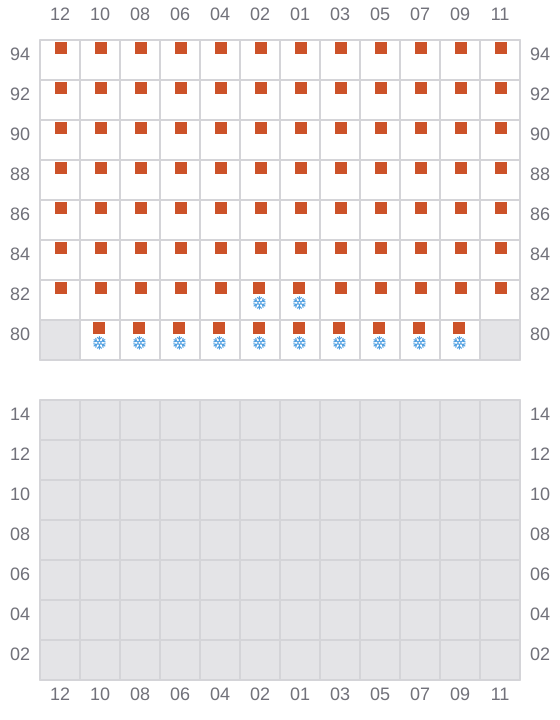

Bay 041 view and slots of CALLIOPE

043 (044)

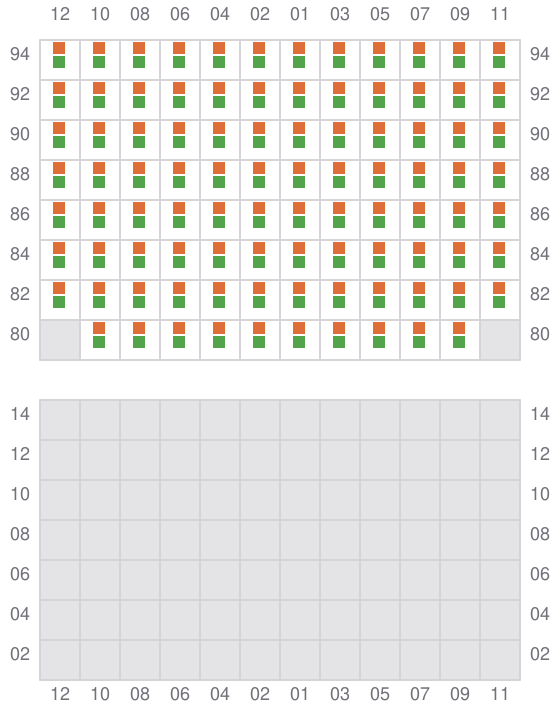

Bay 043 view and slots of CALLIOPE

045

  • / ?

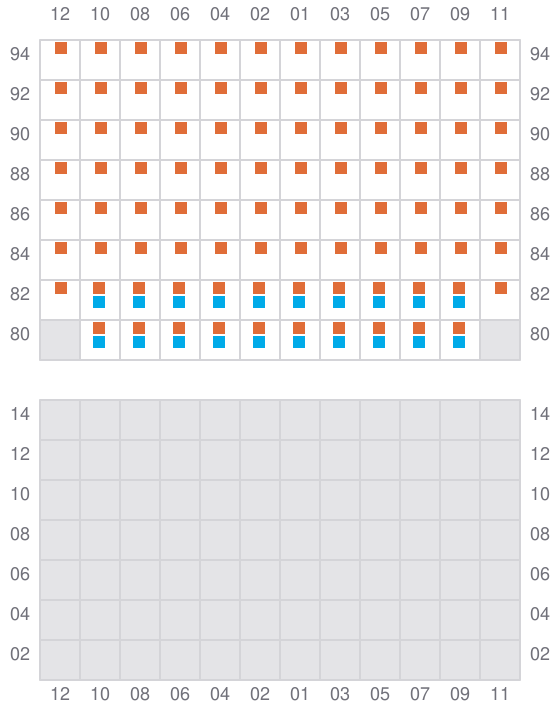

Bay 045 view and slots of CALLIOPE
