CAP SAN ANTONIO
9622241 | OXCQ2 | SUD by ************************** Last update: Fri Jun 30 2023
General Info
Ship Name:CAP SAN ANTONIO
IMO Code:9622241
Call Sign:OXCQ2
Line Operator:SUD
Class Name for Sister Ships:SNT
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:1,936
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View

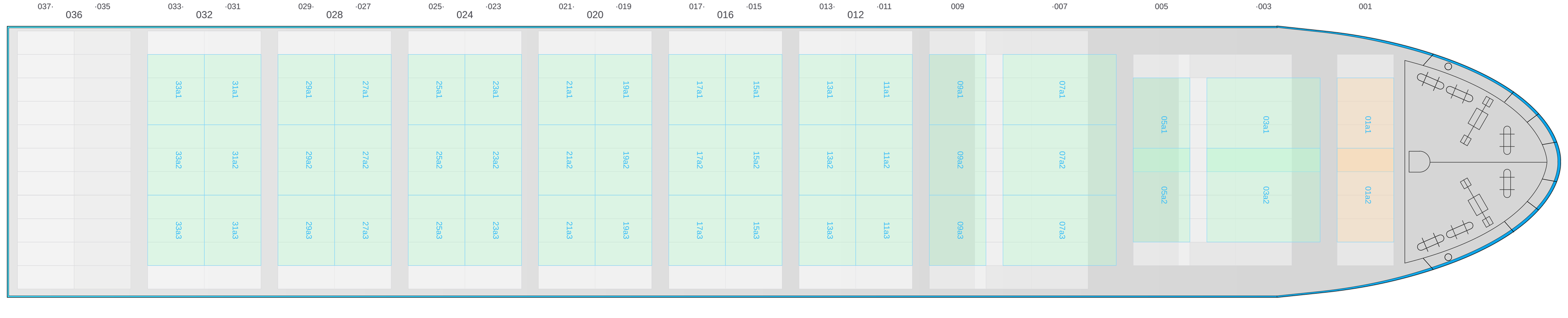

Hatch-Covers View

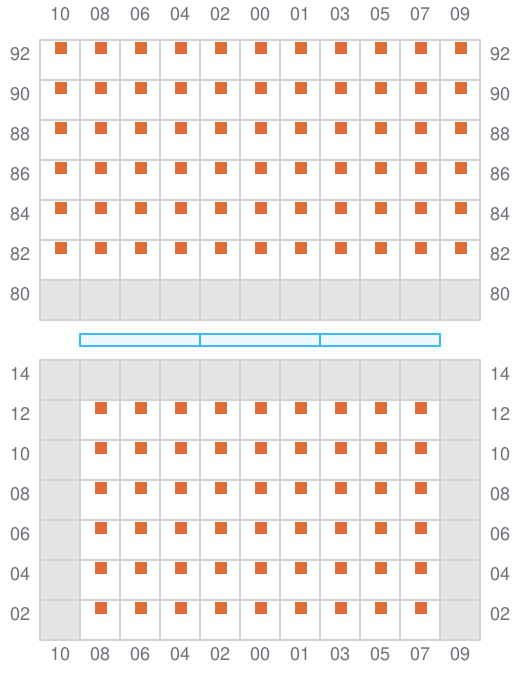

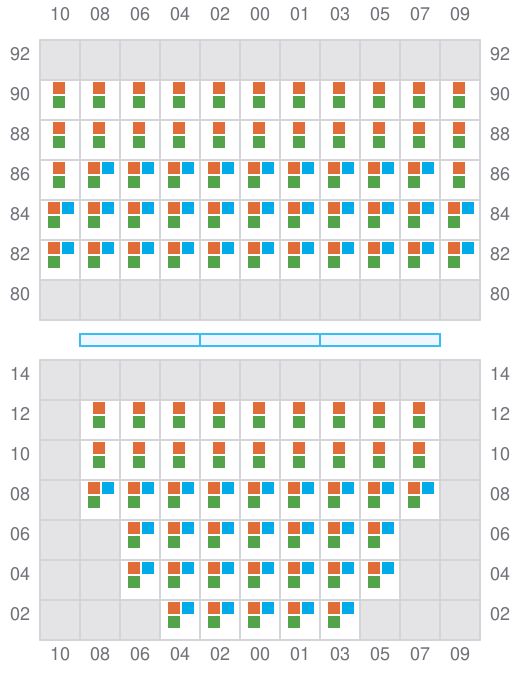

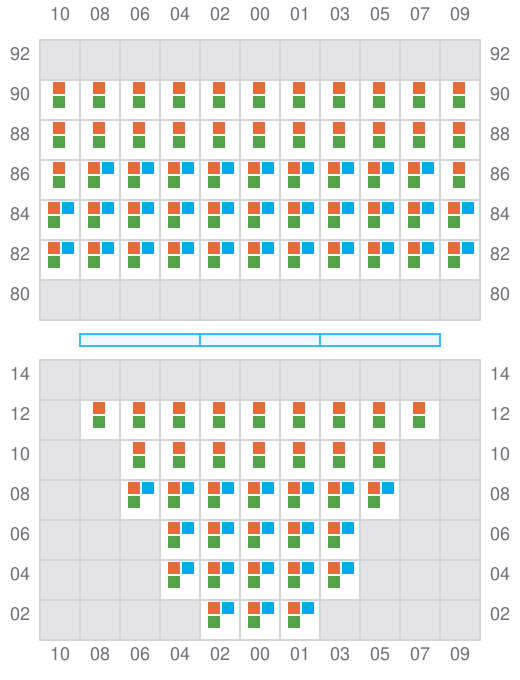

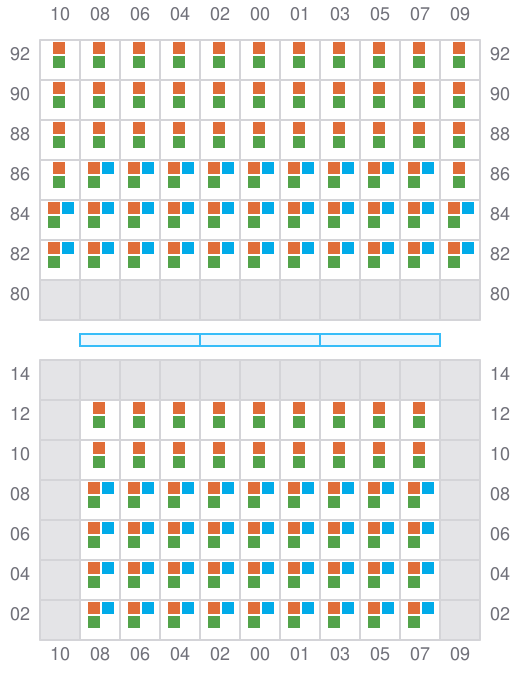

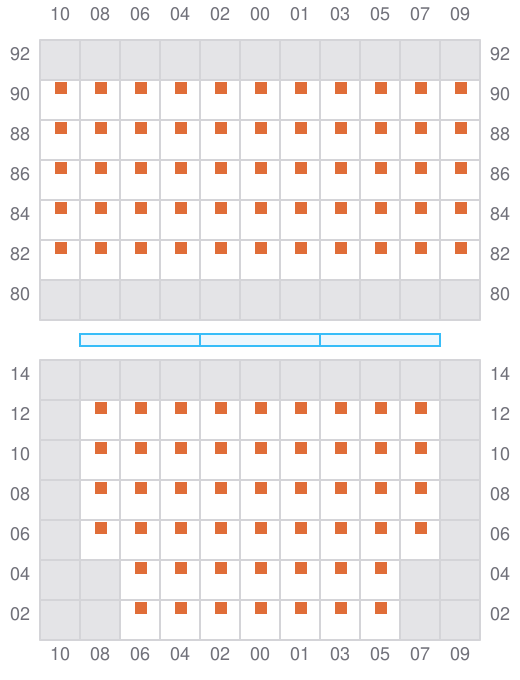

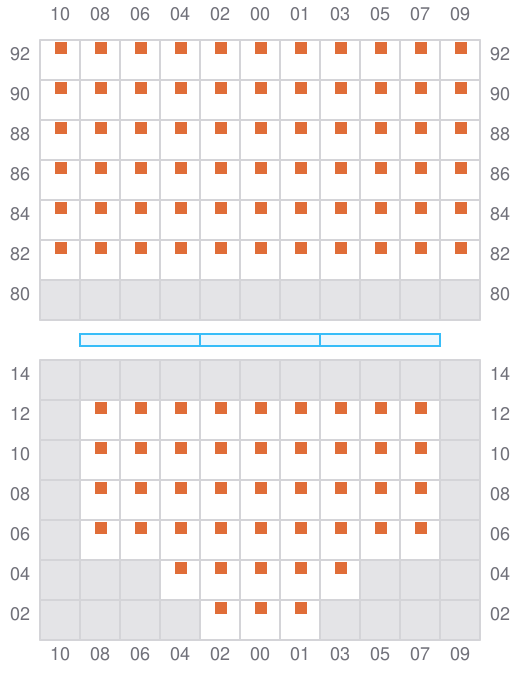

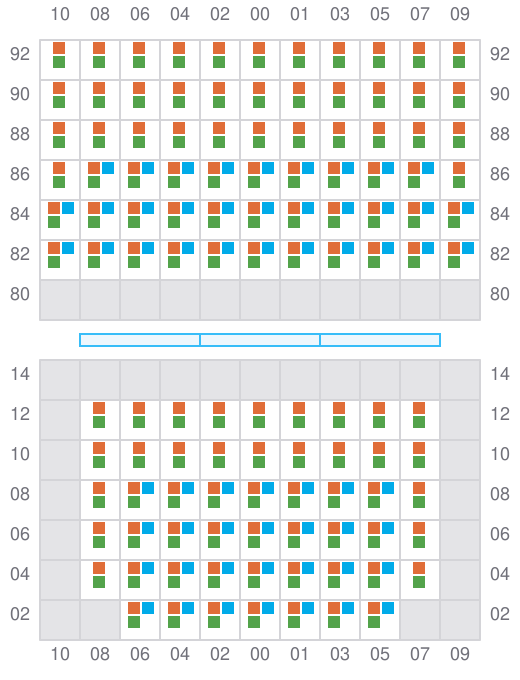

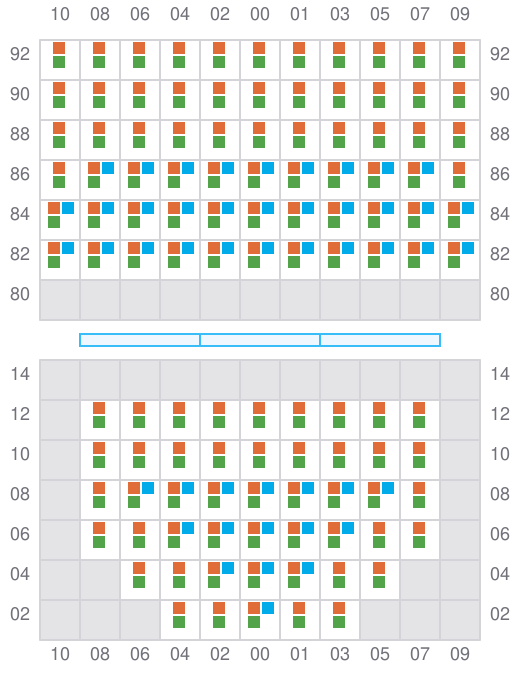

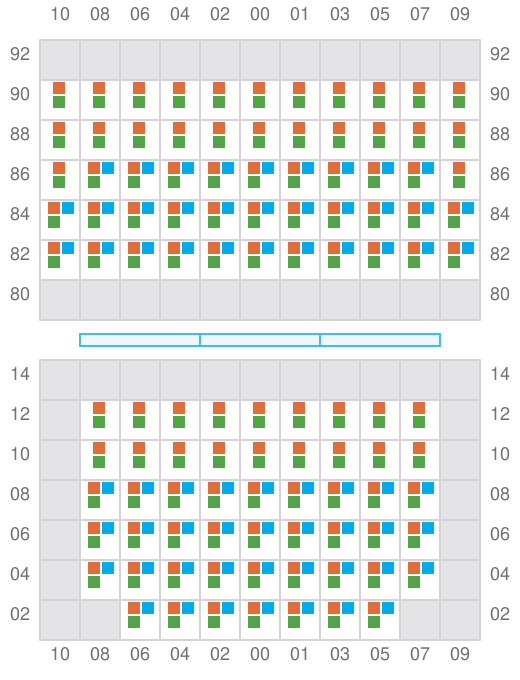

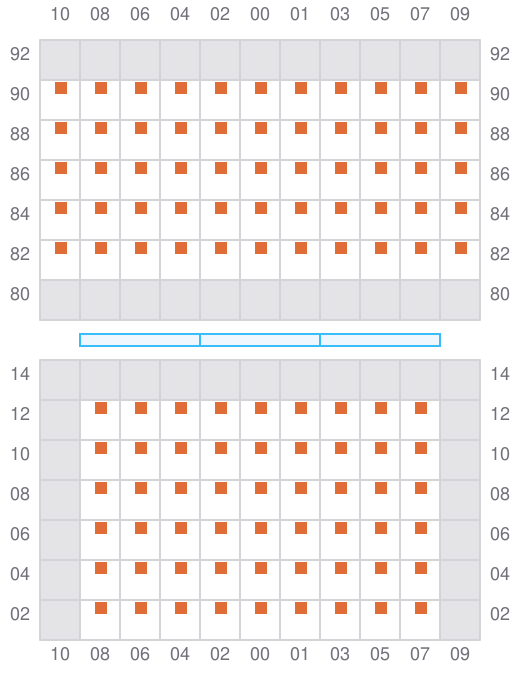

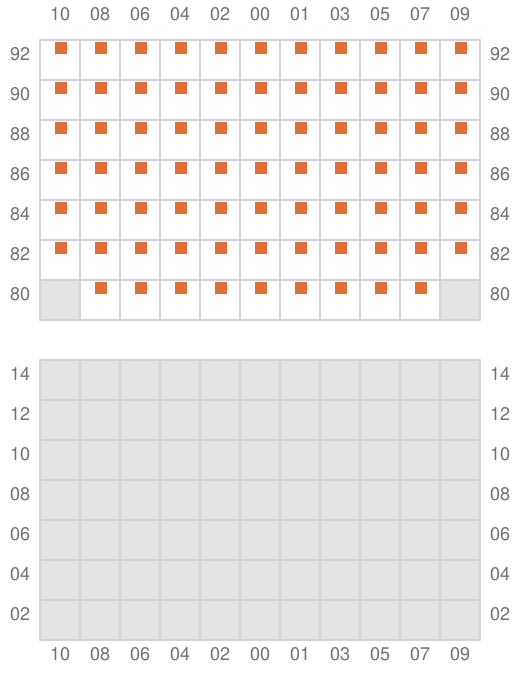

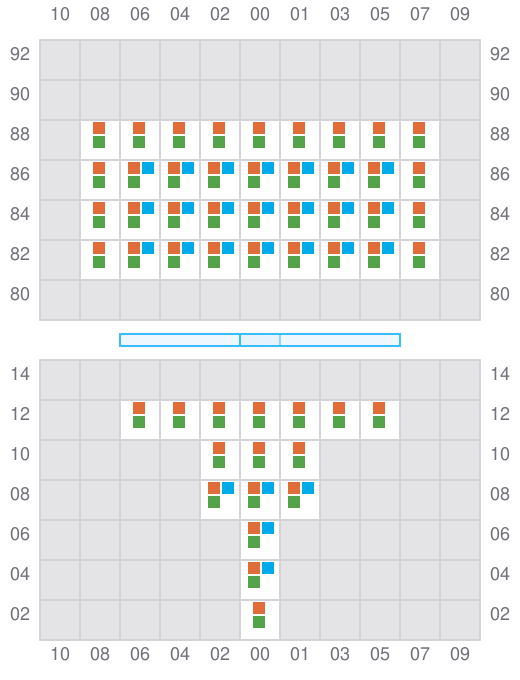

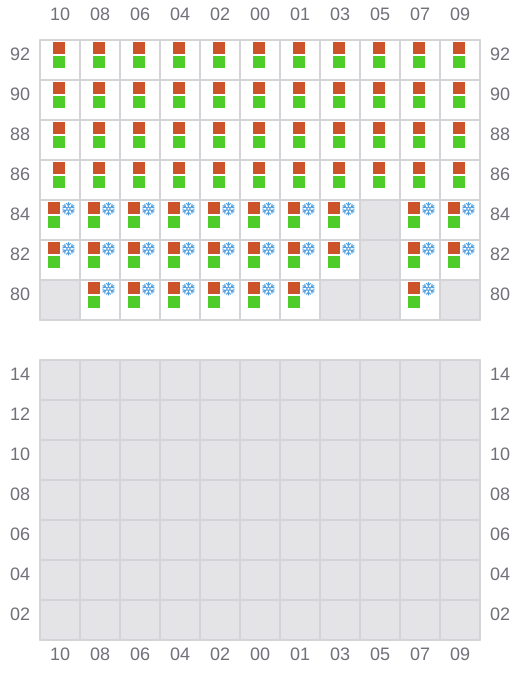

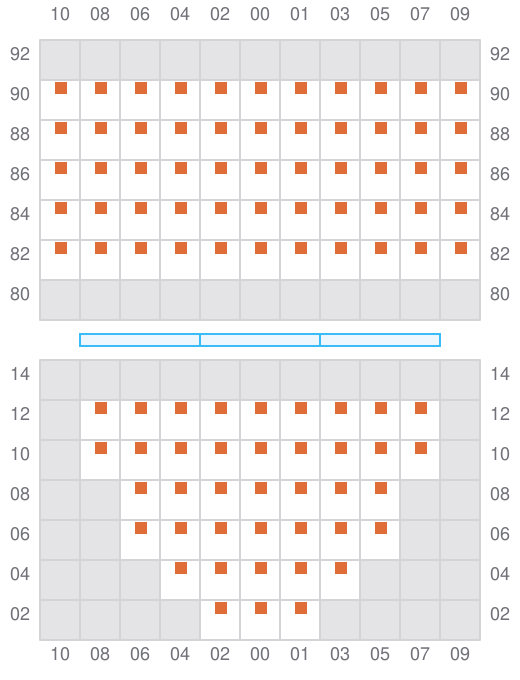

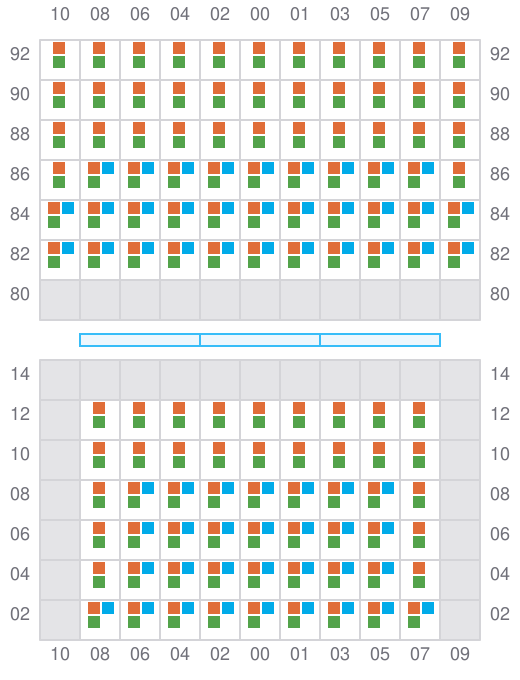

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

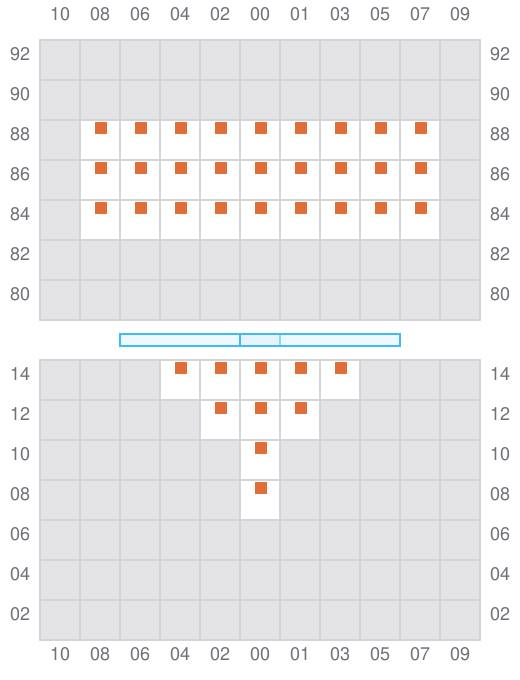

001
003 (004)
- →

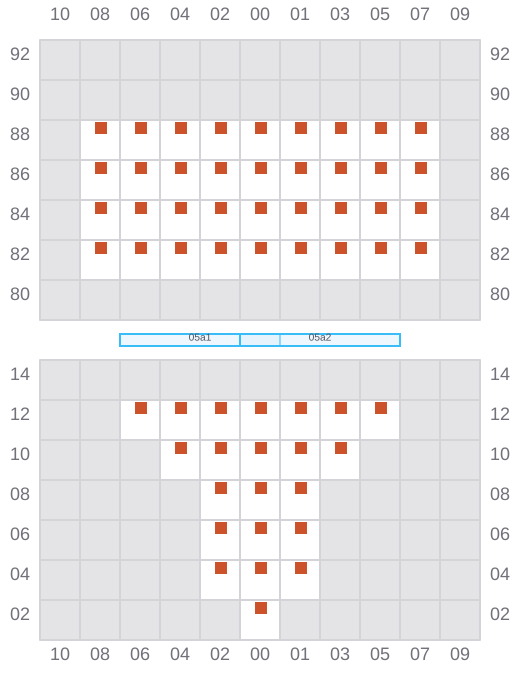

005
- ? / ←
007 (008)
- →
009
- ? / ←
011 (012)
- →
013
- ←
015 (016)
- →
017
- ←
019 (020)
- →
021
- ←
023 (024)
- →
025
- ←
027 (028)
- →

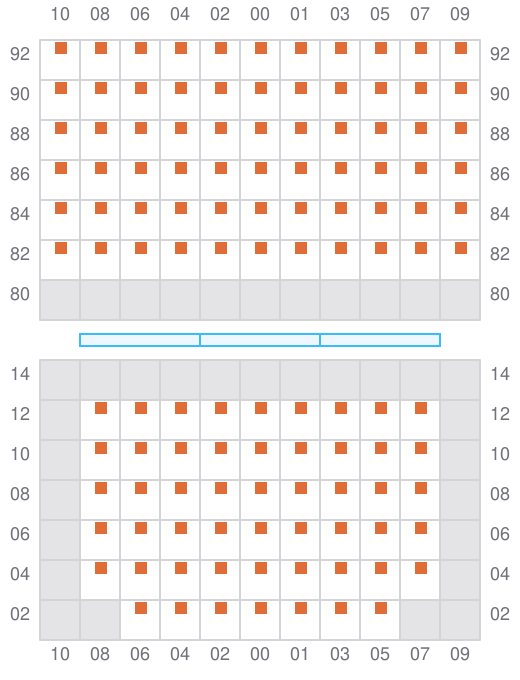

029
- ←
031 (032)
- →
033
- ←
035 (036)
- → / ?
037
- ← / ?
