CAP SAN SOUNIO
9633953 | H8IE | 9633953 by ********* Last update: Thu Jun 20 2024

General Info

Ship Name:CAP SAN SOUNIO
IMO Code:9633953
Call Sign:H8IE
Line Operator:9633953
Class Name for Sister Ships:HSG
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:079
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:11,121

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

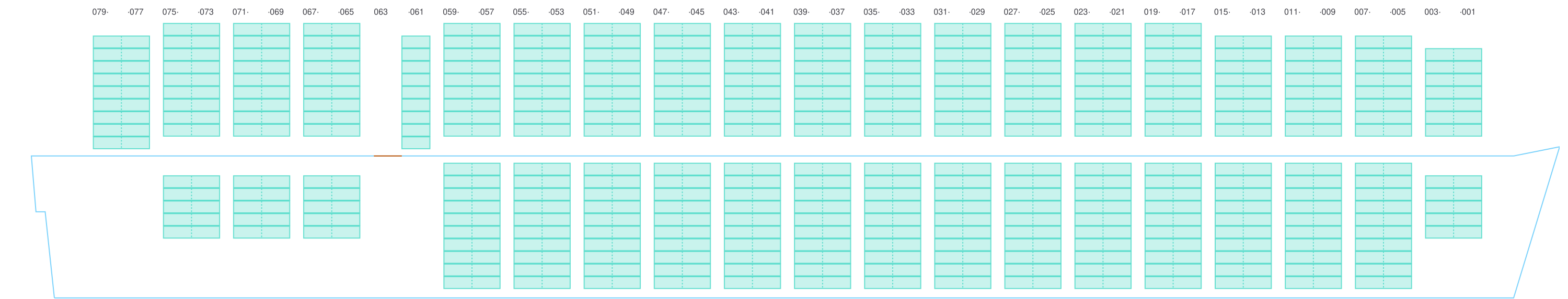

Side View

Side view of CAP SAN SOUNIO

Hatch-Covers View

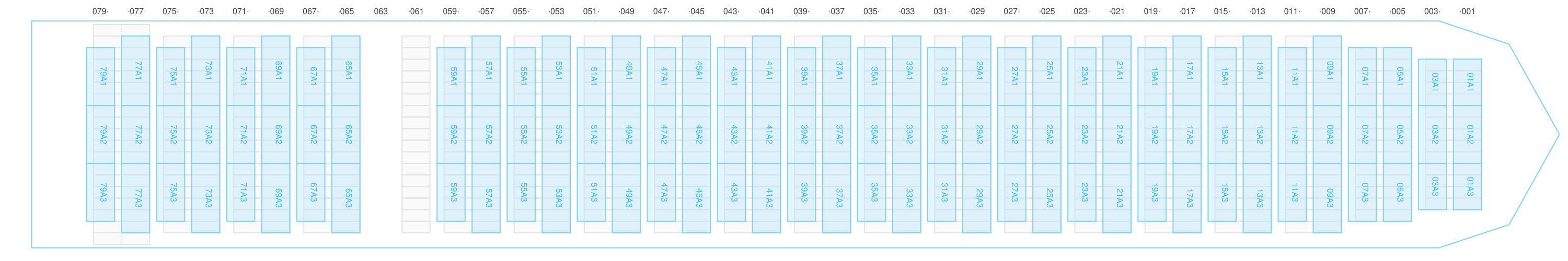

Deck view of CAP SAN SOUNIO

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

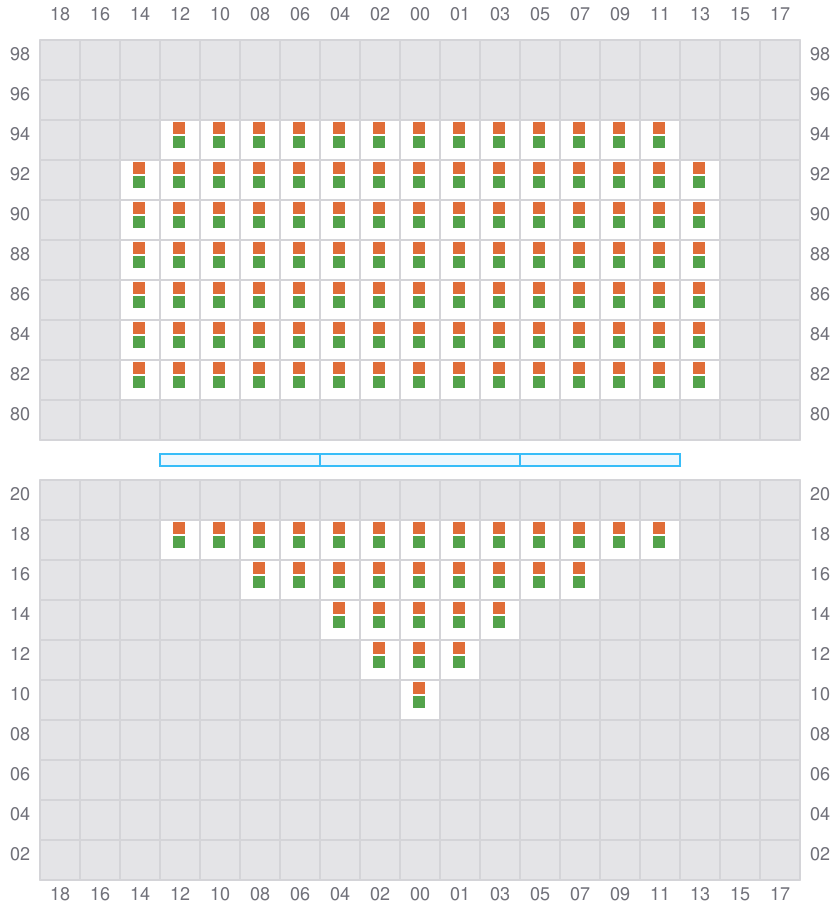

Bay 001 view and slots of CAP SAN SOUNIO

003

  • ←

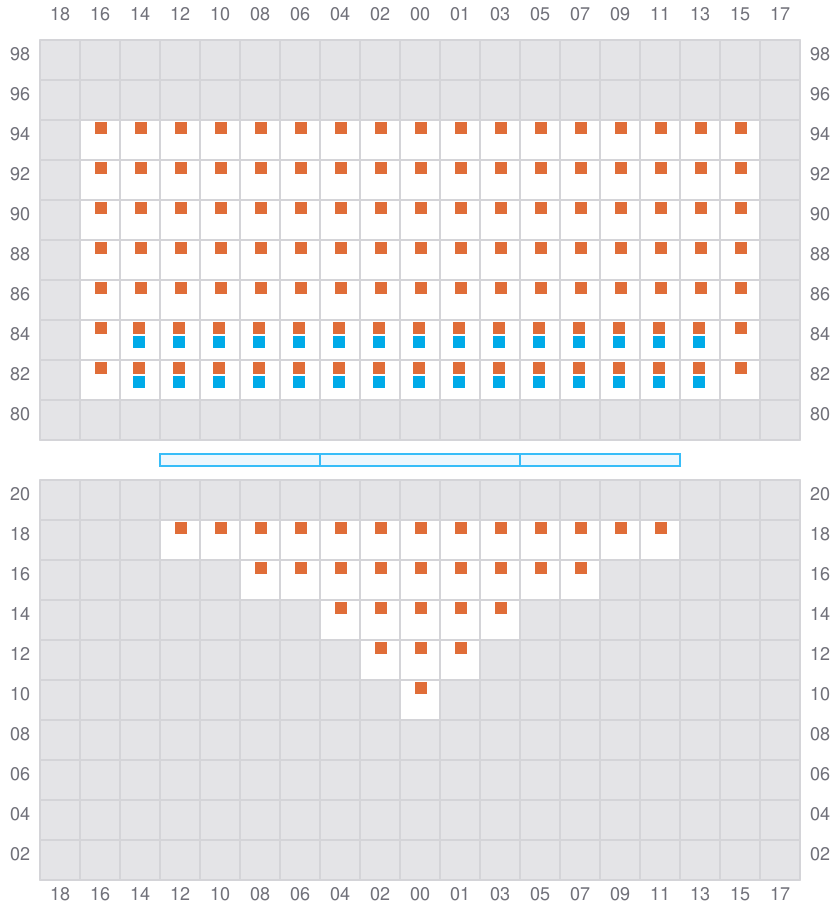

Bay 003 view and slots of CAP SAN SOUNIO

005 (006)

  • →

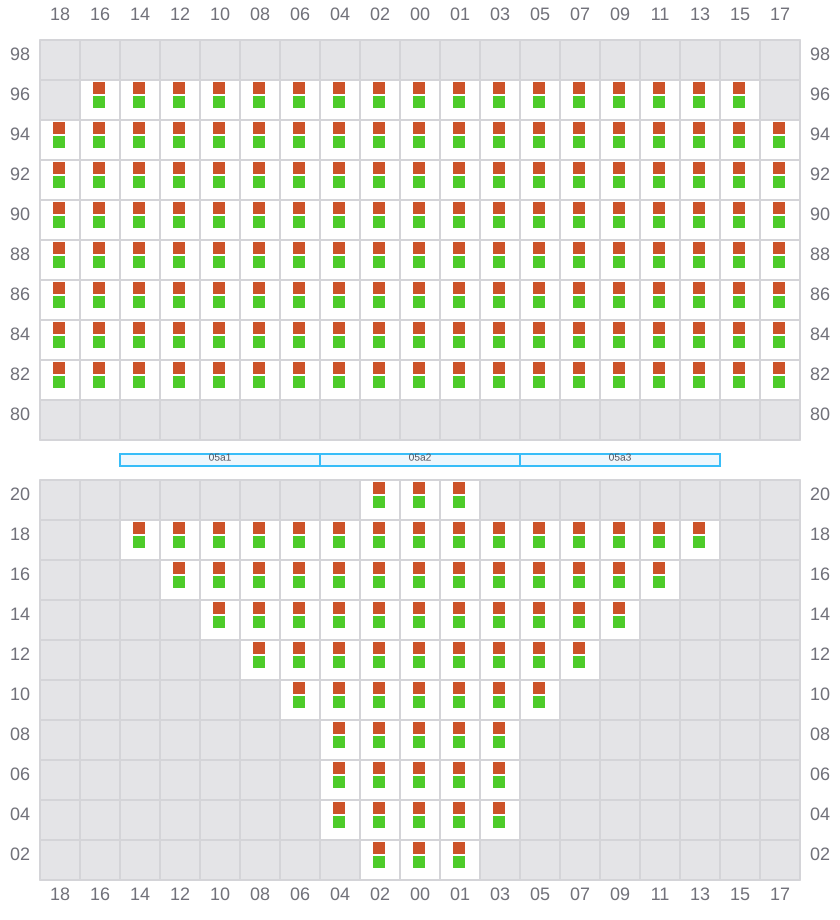

Bay 005 view and slots of CAP SAN SOUNIO

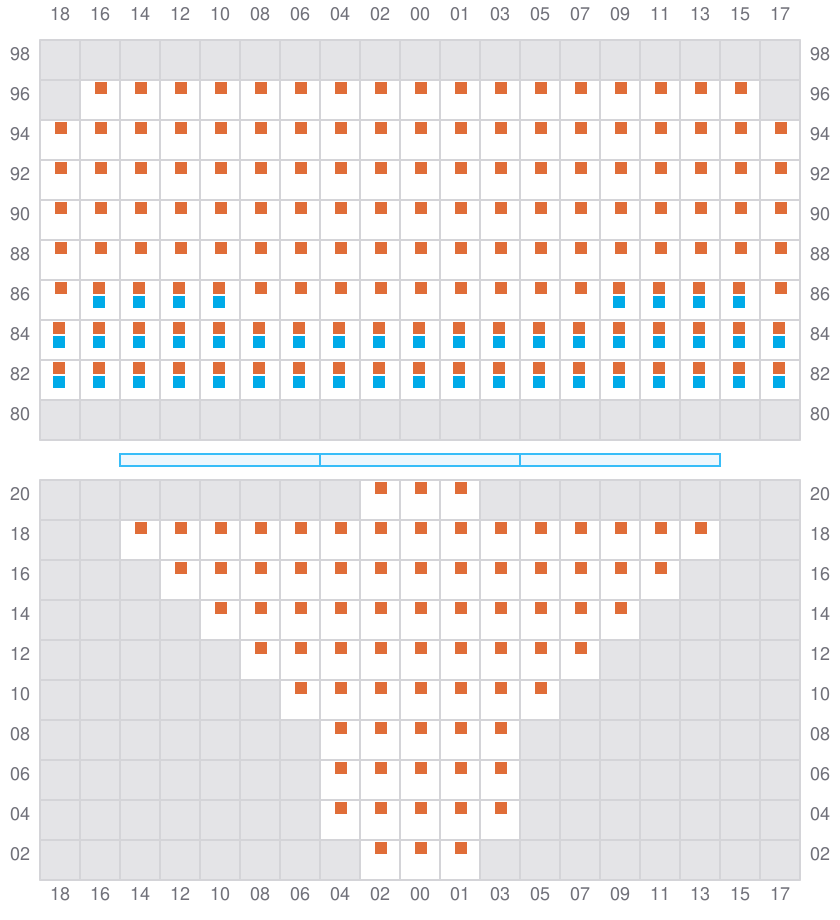

007

  • ←
Bay 007 view and slots of CAP SAN SOUNIO

009 (010)

  • →

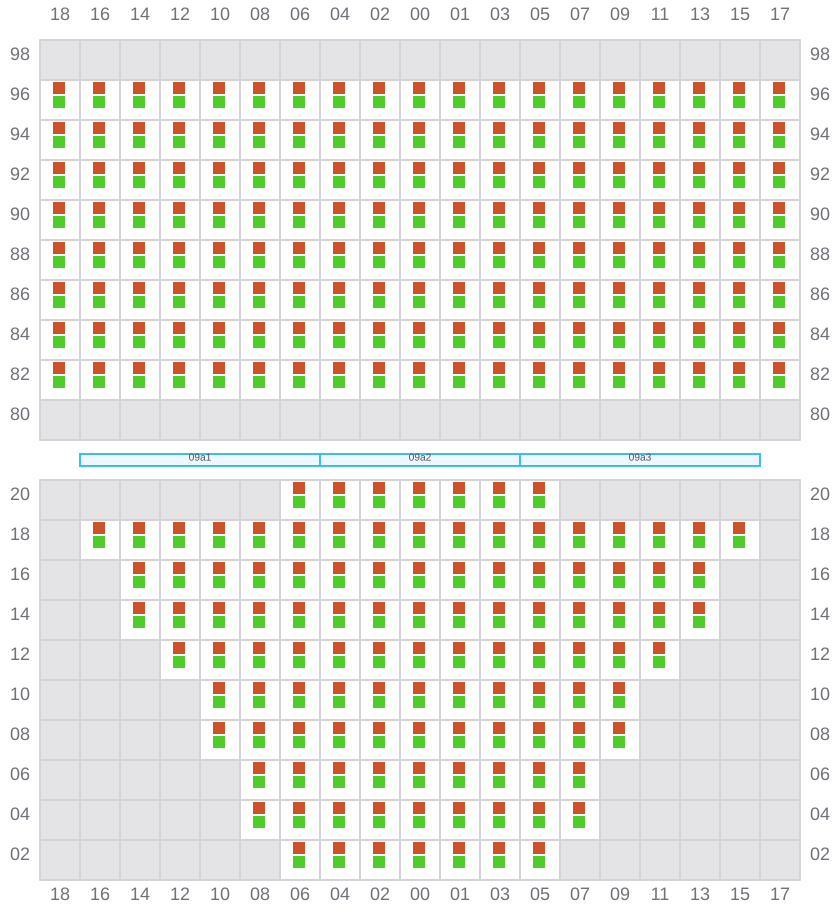

Bay 009 view and slots of CAP SAN SOUNIO

011

  • ←
Bay 011 view and slots of CAP SAN SOUNIO

013 (014)

  • →
Bay 013 view and slots of CAP SAN SOUNIO

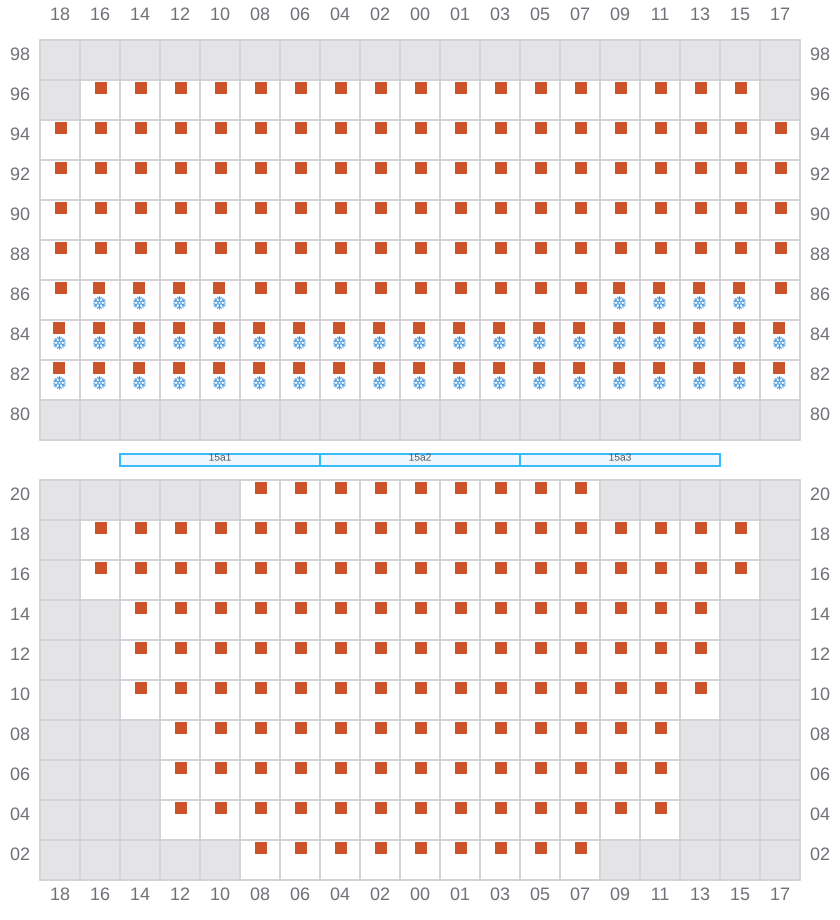

015

  • ←
Bay 015 view and slots of CAP SAN SOUNIO

017 (018)

  • →
Bay 017 view and slots of CAP SAN SOUNIO

019

  • ←
Bay 019 view and slots of CAP SAN SOUNIO

021 (022)

  • →

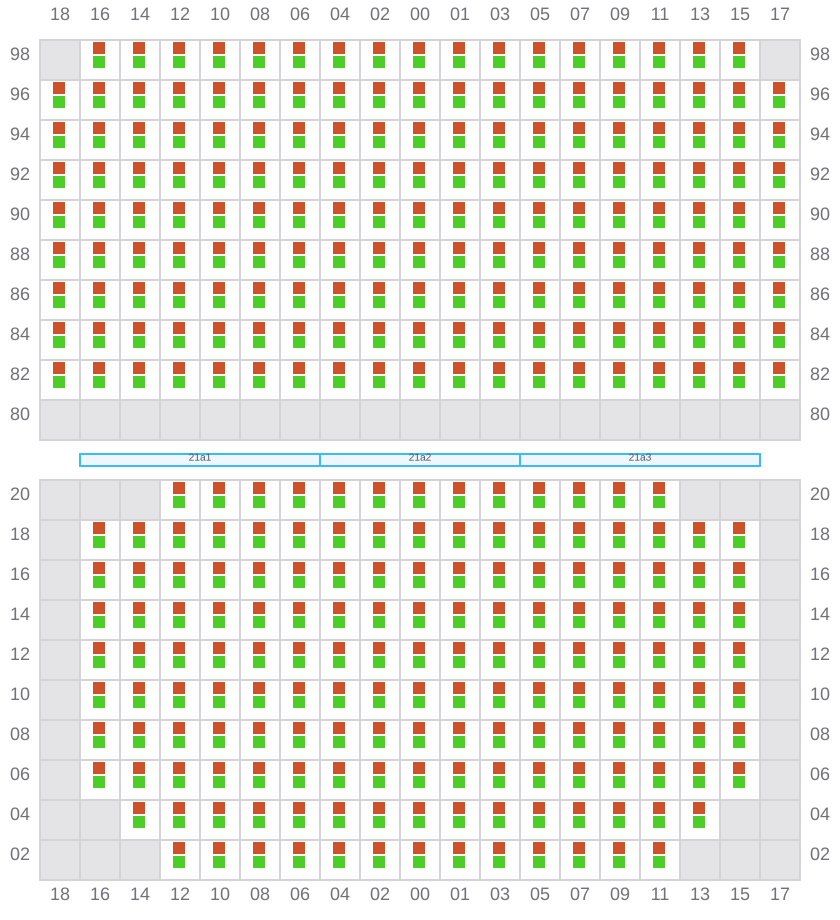

Bay 021 view and slots of CAP SAN SOUNIO

023

  • ←
Bay 023 view and slots of CAP SAN SOUNIO

025 (026)

  • →
Bay 025 view and slots of CAP SAN SOUNIO

027

  • ←
Bay 027 view and slots of CAP SAN SOUNIO

029 (030)

  • →
Bay 029 view and slots of CAP SAN SOUNIO

031

  • ←
Bay 031 view and slots of CAP SAN SOUNIO

033 (034)

  • →

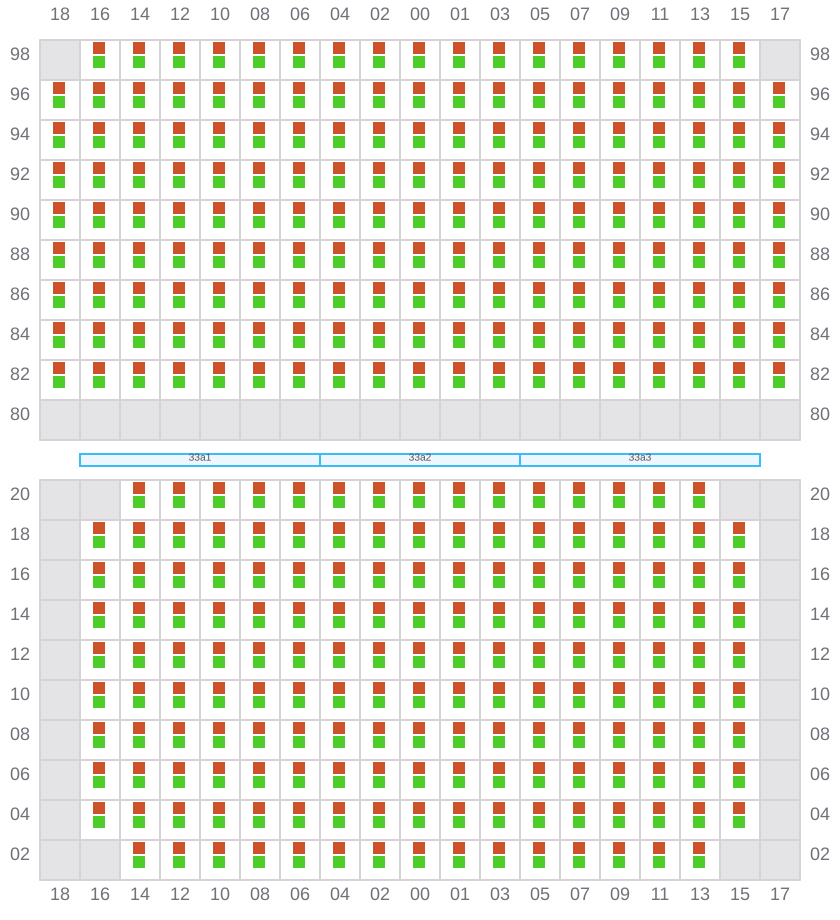

Bay 033 view and slots of CAP SAN SOUNIO

035

  • ←
Bay 035 view and slots of CAP SAN SOUNIO

037 (038)

  • →
Bay 037 view and slots of CAP SAN SOUNIO

039

  • ←
Bay 039 view and slots of CAP SAN SOUNIO

041 (042)

  • →
Bay 041 view and slots of CAP SAN SOUNIO

043

  • ←
Bay 043 view and slots of CAP SAN SOUNIO

045 (046)

  • →
Bay 045 view and slots of CAP SAN SOUNIO

047

  • ←
Bay 047 view and slots of CAP SAN SOUNIO

049 (050)

  • →
Bay 049 view and slots of CAP SAN SOUNIO

051

  • ←

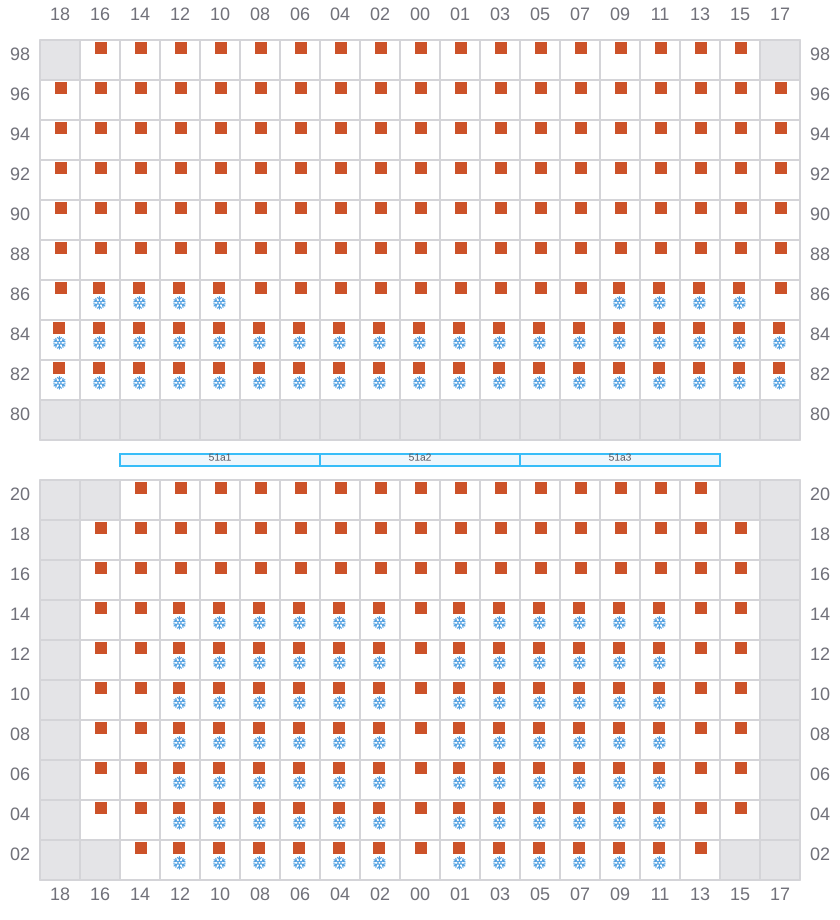

Bay 051 view and slots of CAP SAN SOUNIO

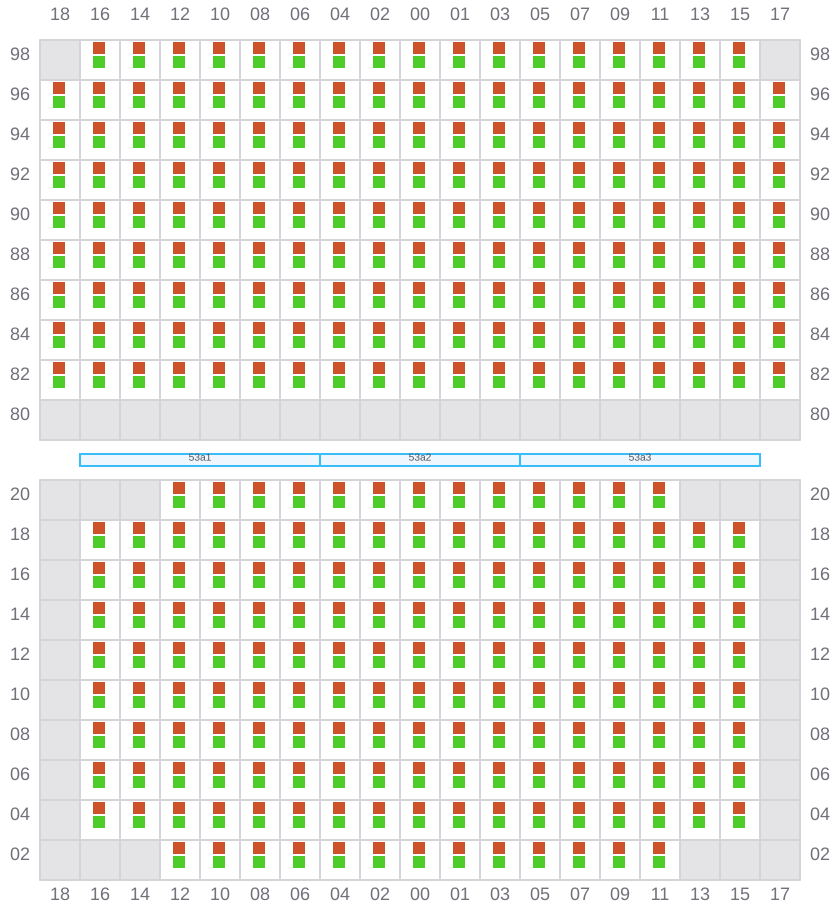

053 (054)

  • →
Bay 053 view and slots of CAP SAN SOUNIO

055

  • ←

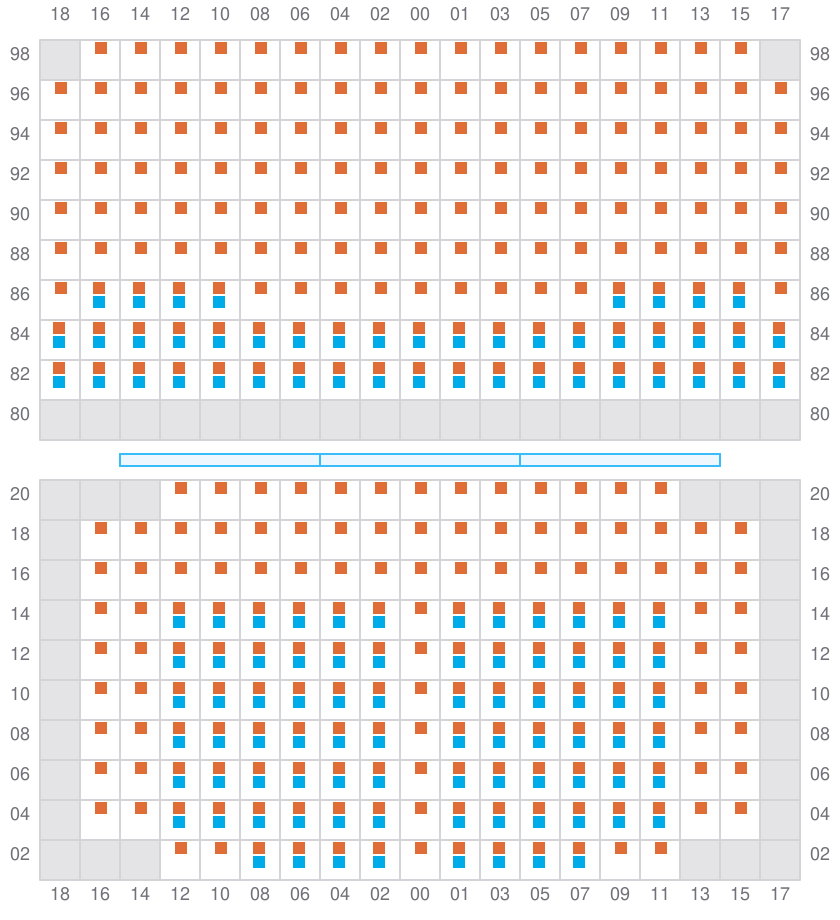

Bay 055 view and slots of CAP SAN SOUNIO

057 (058)

  • →
Bay 057 view and slots of CAP SAN SOUNIO

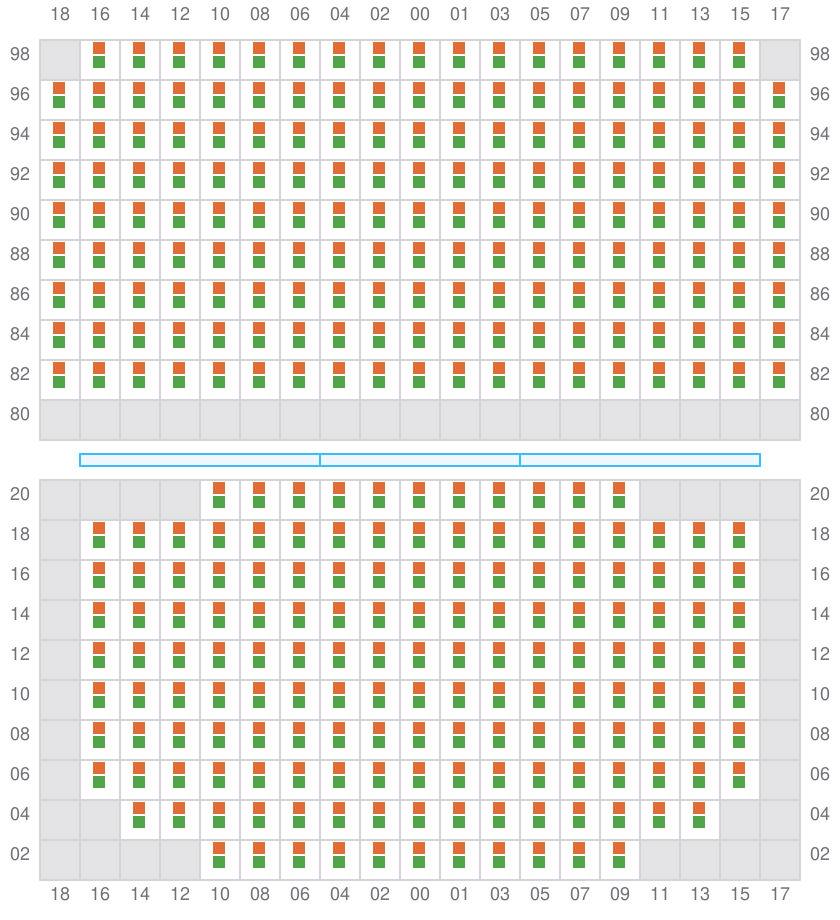

059

  • ←

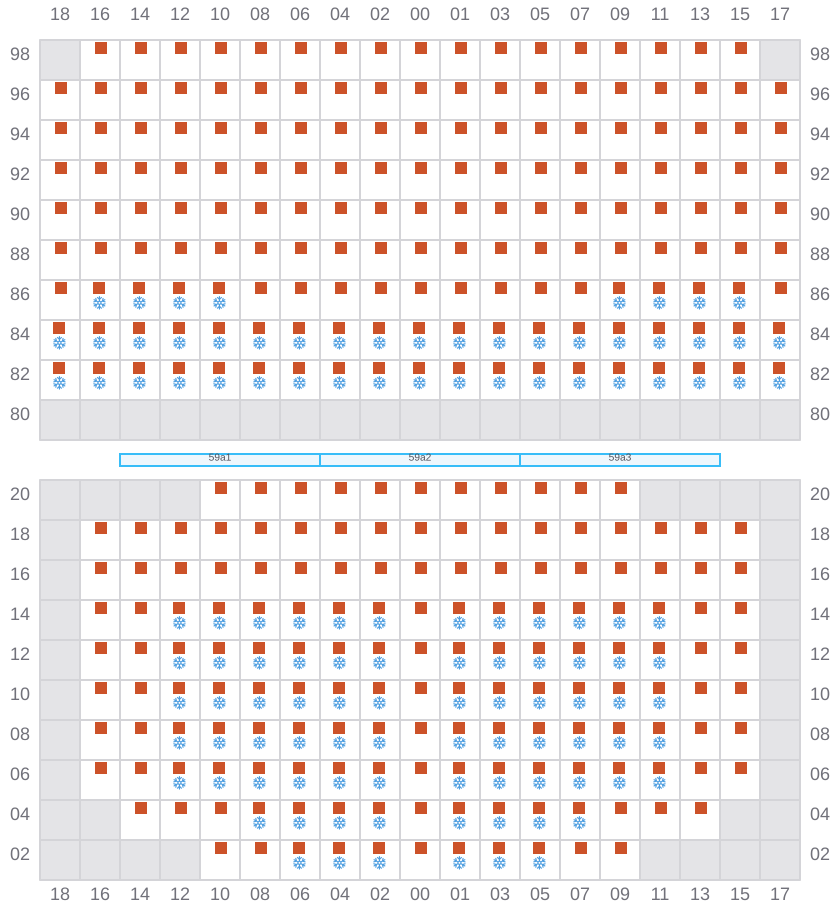

Bay 059 view and slots of CAP SAN SOUNIO

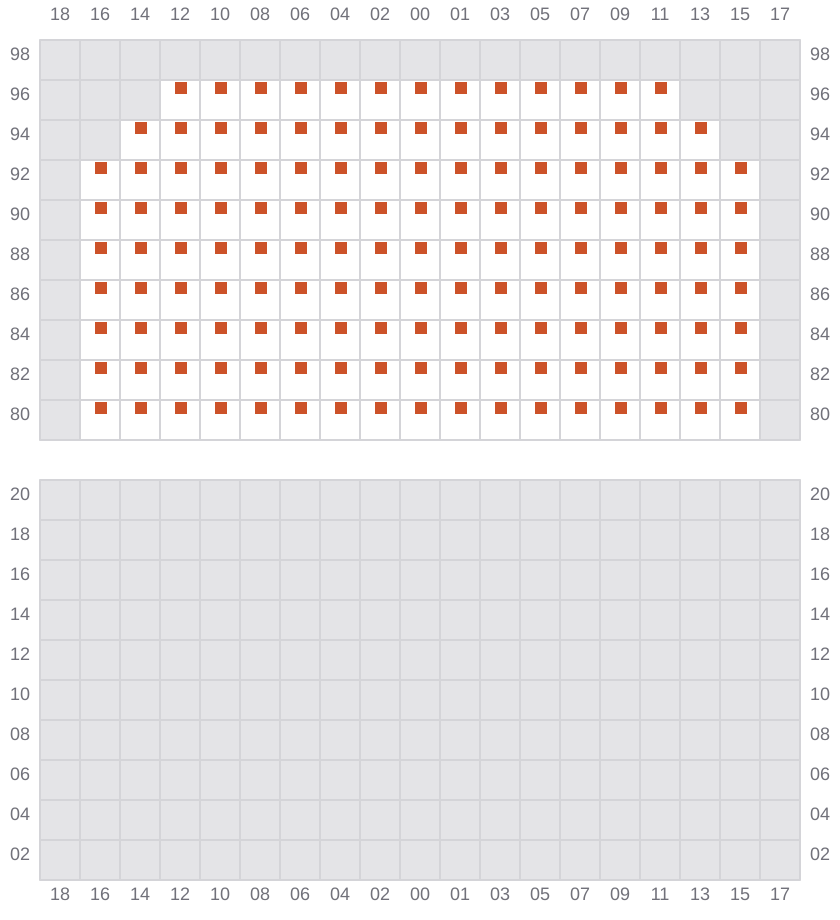

061

  • → / ?
Bay 061 view and slots of CAP SAN SOUNIO

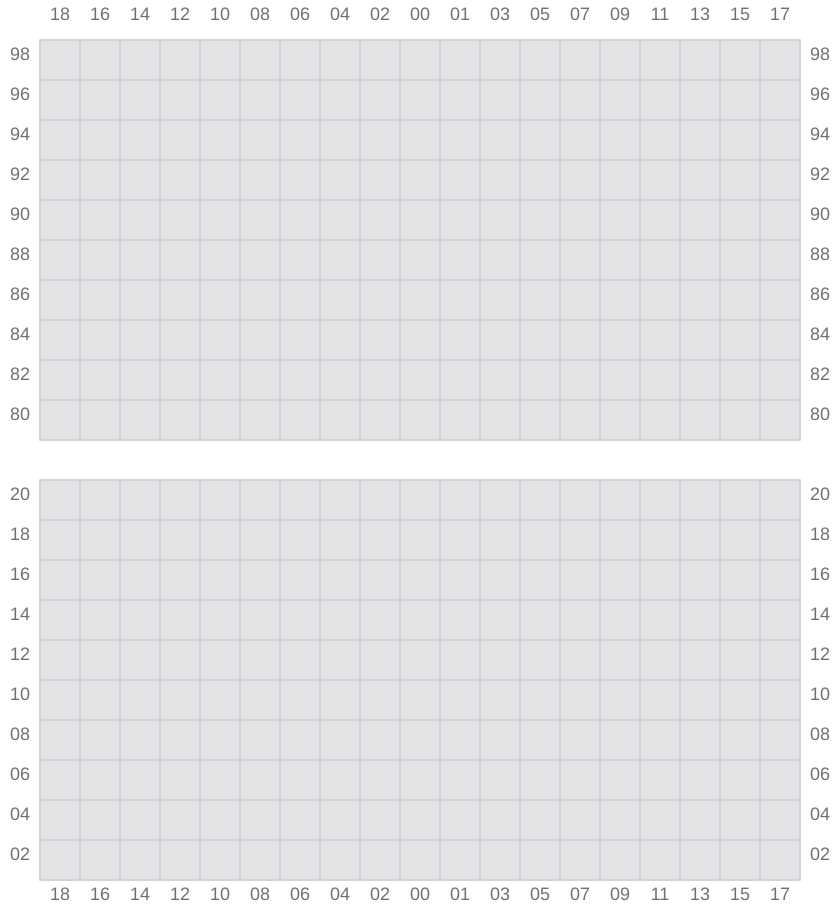

063

Bay 063 view and slots of CAP SAN SOUNIO

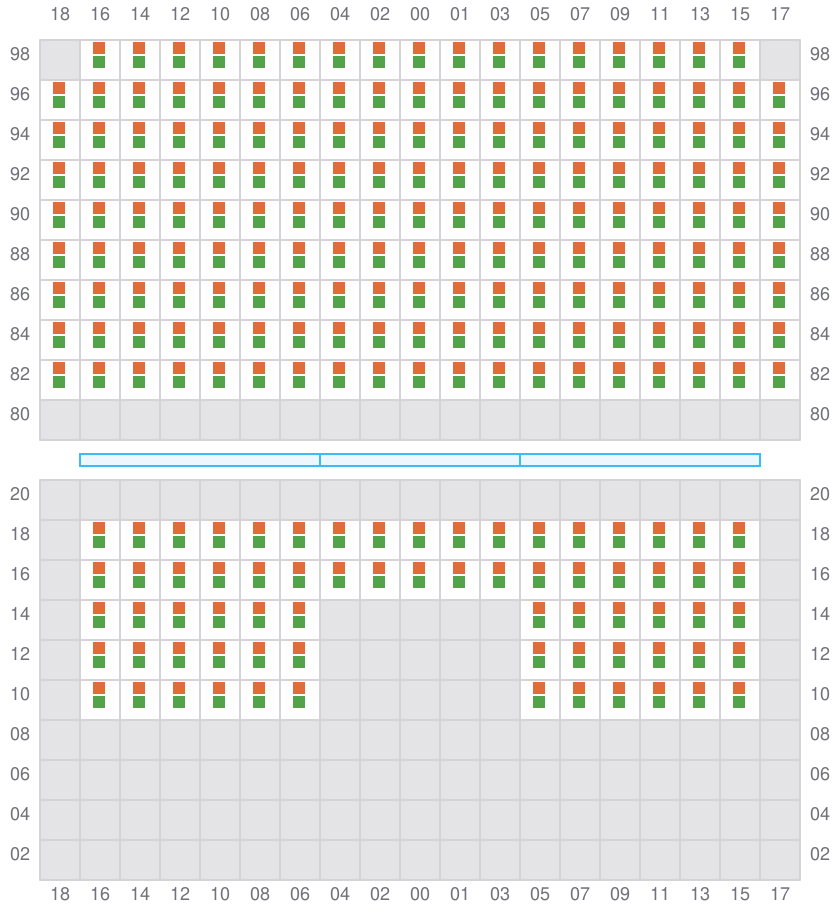

065 (066)

  • →
Bay 065 view and slots of CAP SAN SOUNIO

067

  • ←

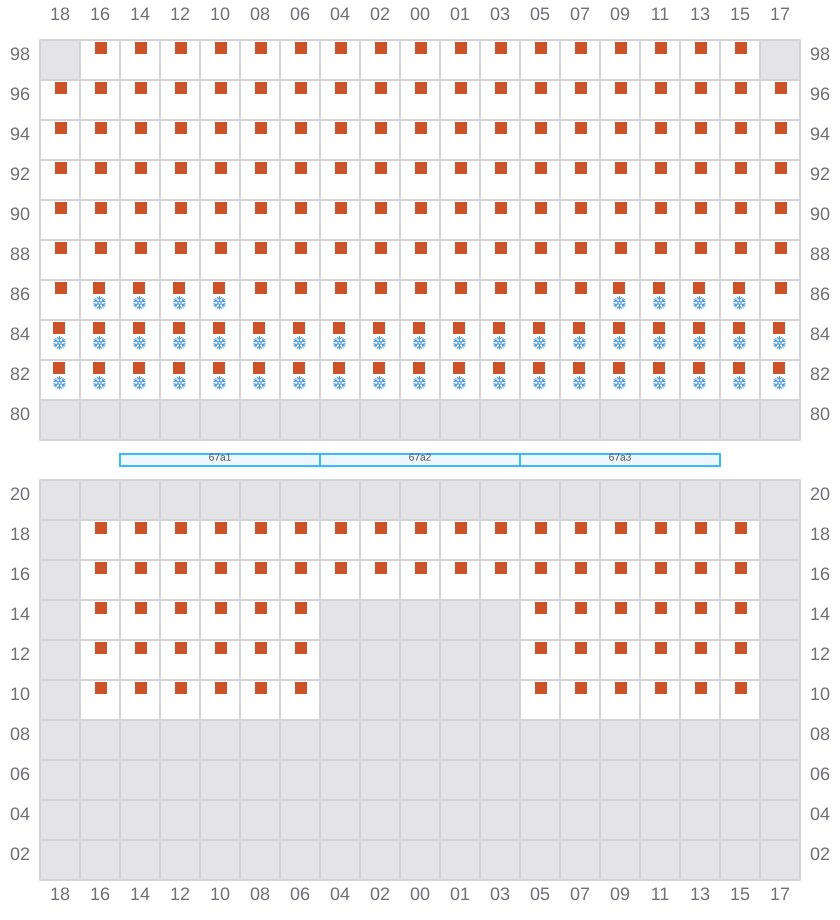

Bay 067 view and slots of CAP SAN SOUNIO

069 (070)

  • →

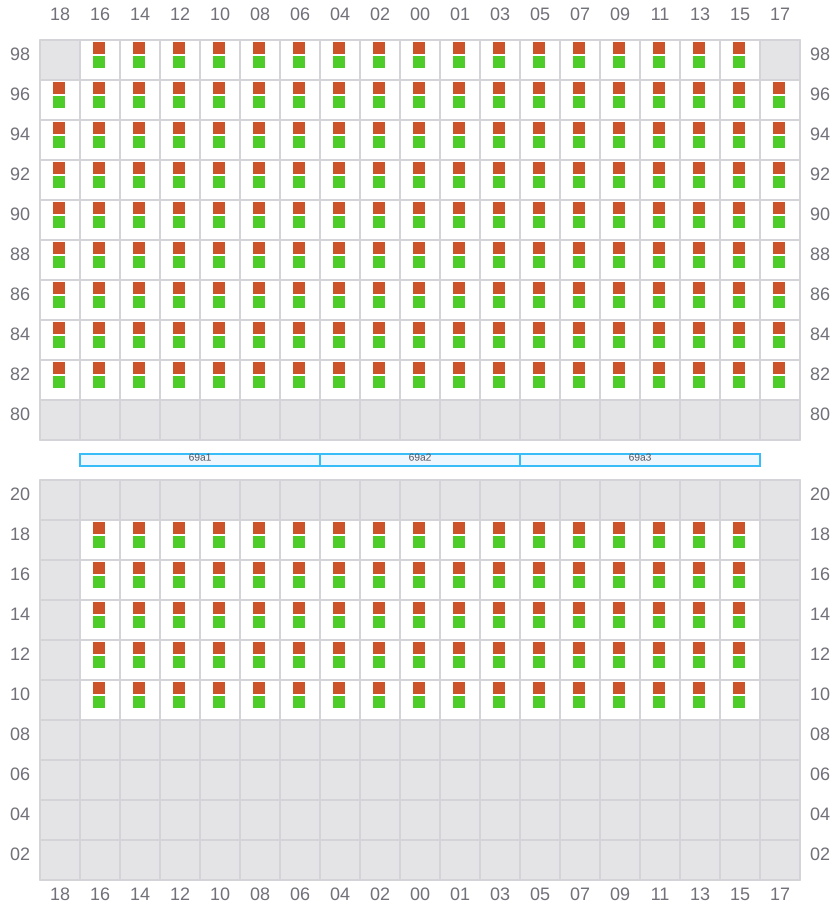

Bay 069 view and slots of CAP SAN SOUNIO

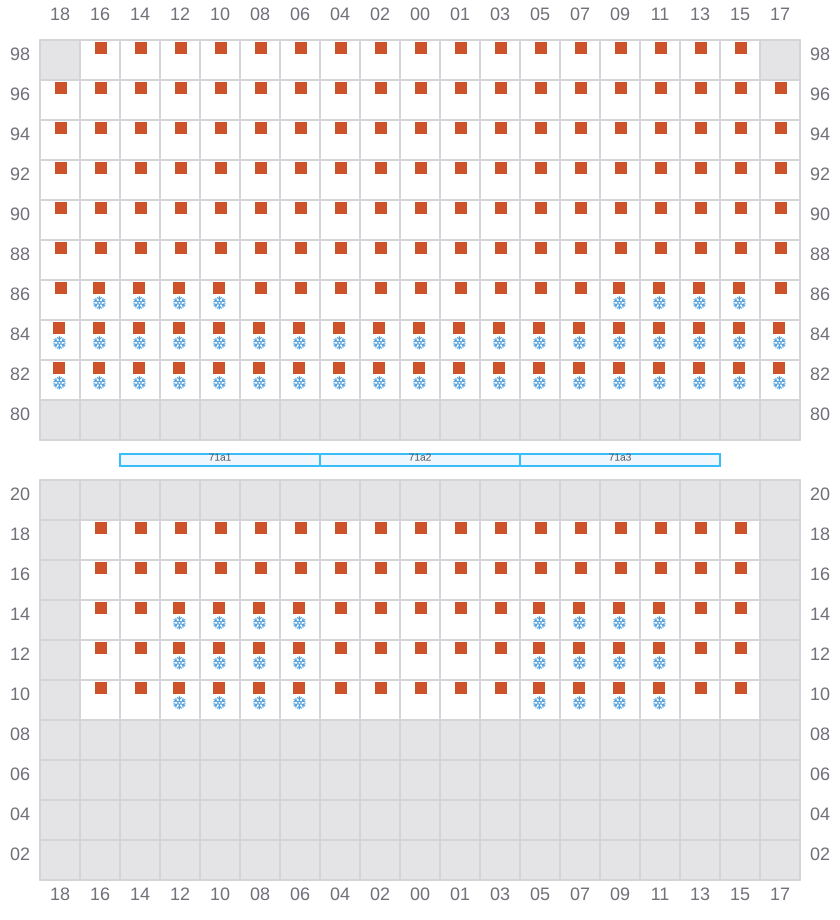

071

  • ←
Bay 071 view and slots of CAP SAN SOUNIO

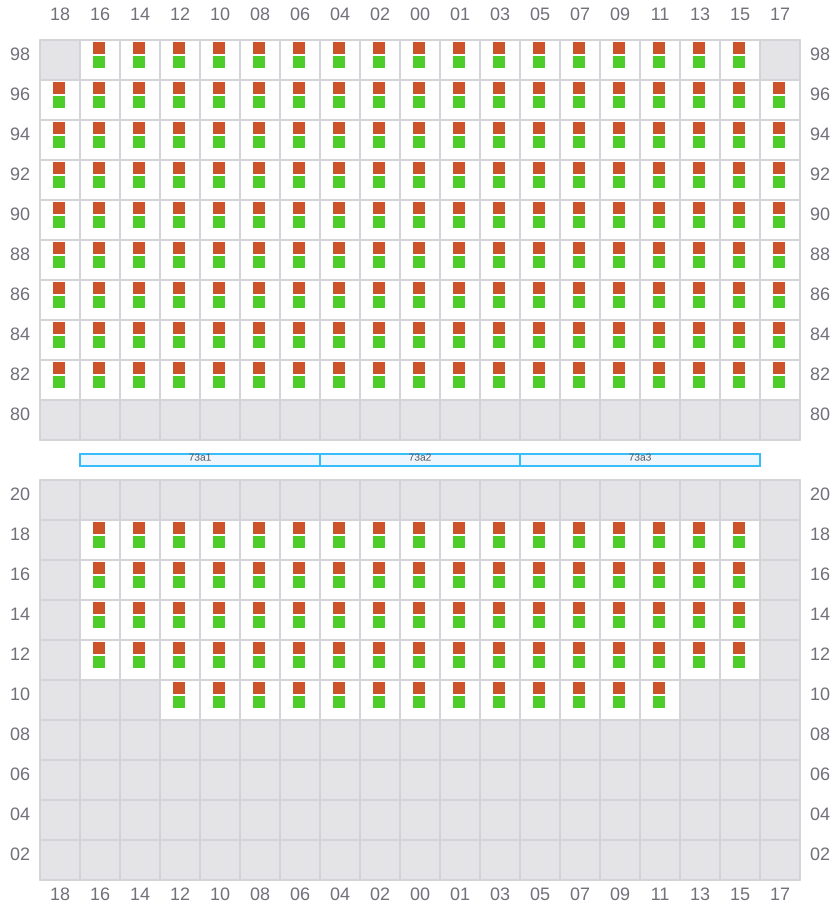

073 (074)

  • →
Bay 073 view and slots of CAP SAN SOUNIO

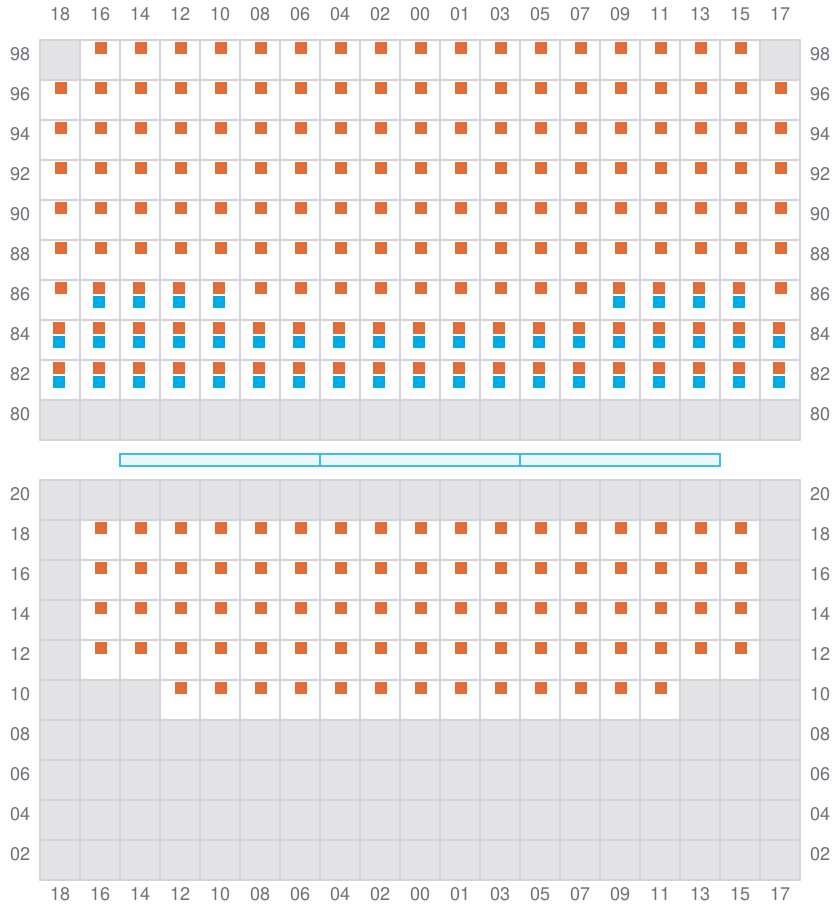

075

  • ←
Bay 075 view and slots of CAP SAN SOUNIO

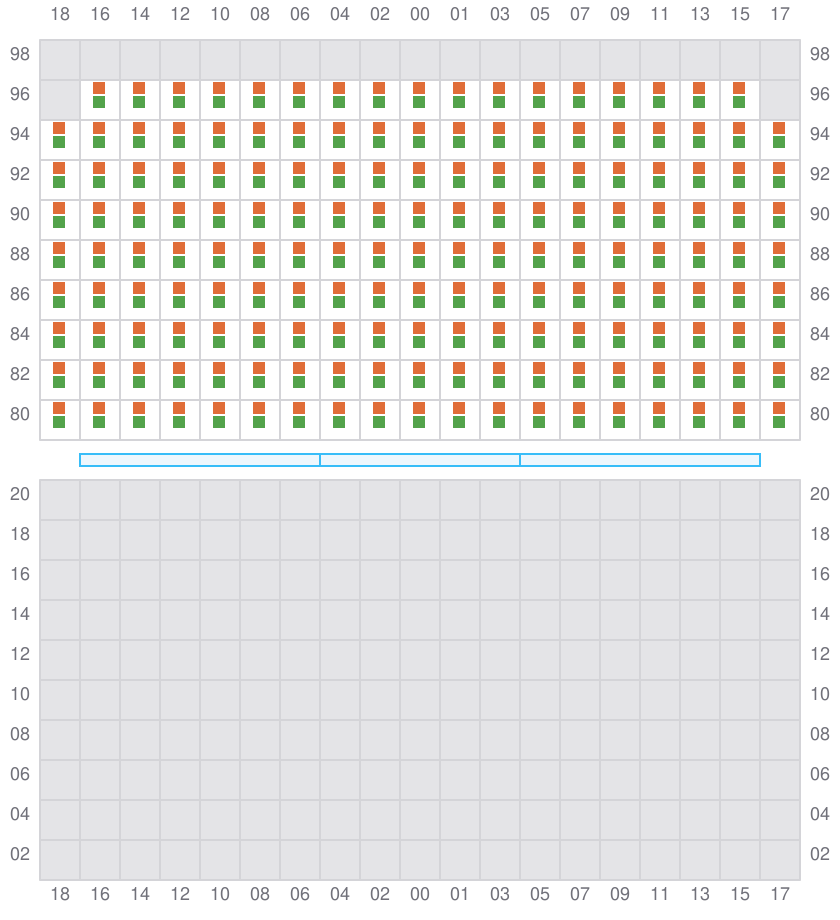

077 (078)

  • → / ?
Bay 077 view and slots of CAP SAN SOUNIO

079

  • ← / ?

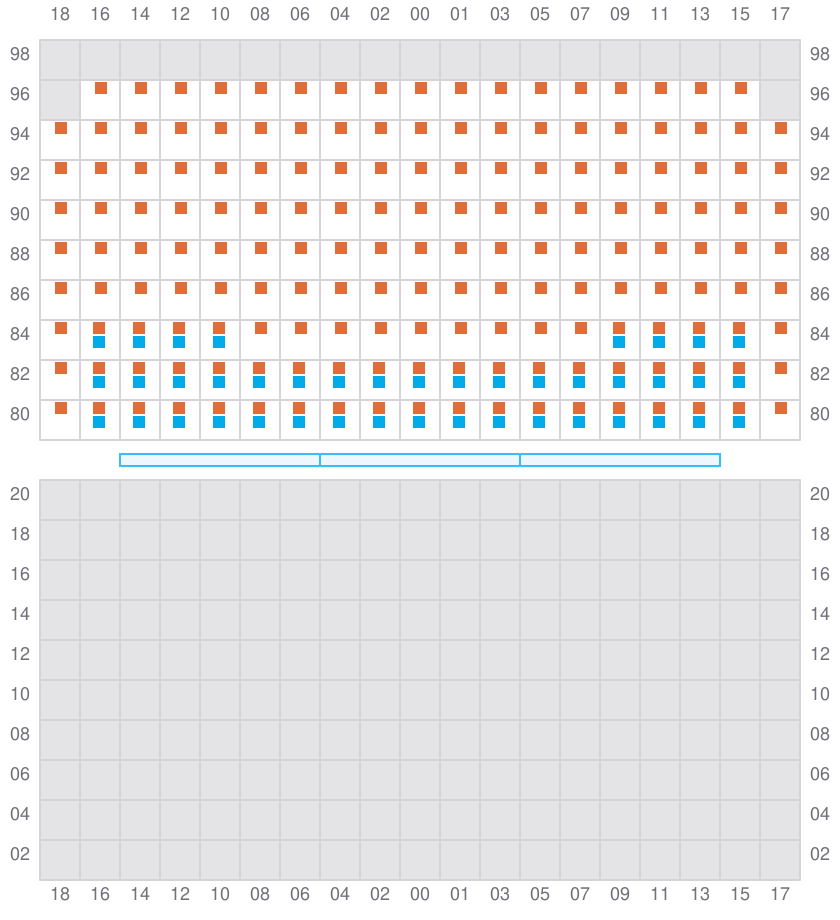

Bay 079 view and slots of CAP SAN SOUNIO
