CAPE ALTIUS
9848730 | 5BLF5 | HLC by *********************** Last update: Wed Feb 12 2025

General Info

Ship Name:CAPE ALTIUS

IMO Code:9848730

Call Sign:5BLF5

Line Operator:HLC

Class Name for Sister Ships:HCAL

Year Built:2020

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:039

Max ISO Row:14

Center Line Row:No

Max Above ISO Tier:96

Min Above ISO Tier:80

Max Below ISO Tier:12

Min Below ISO Tier:02

Total TEU:2,816

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

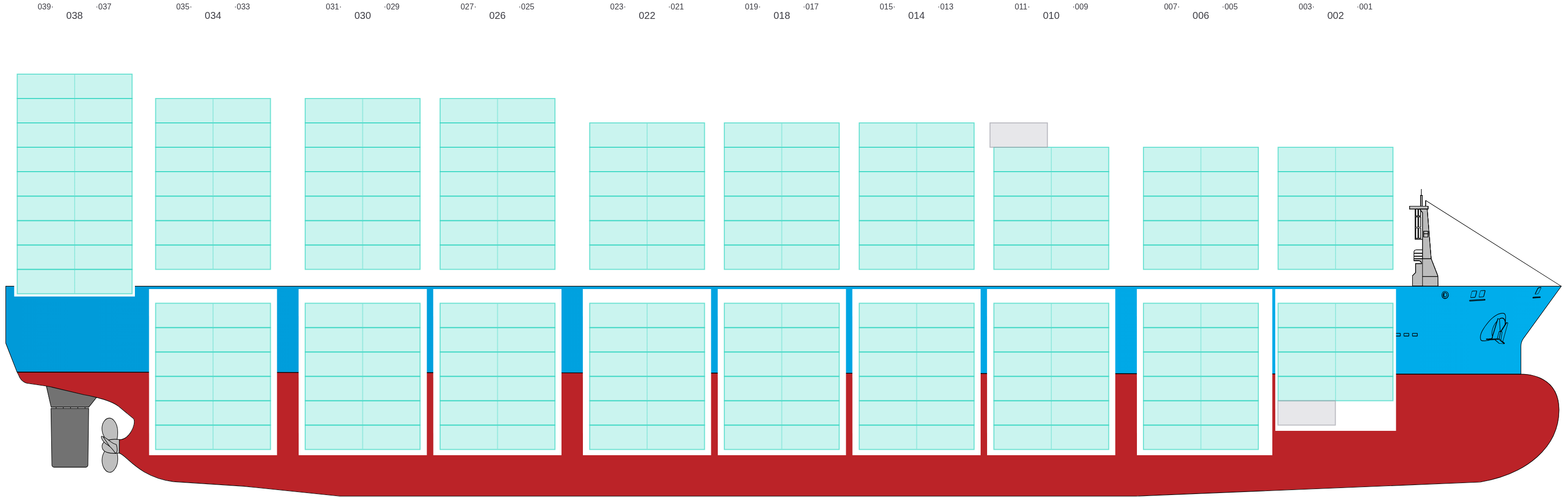

Side view of CAPE ALTIUS

Hatch-Covers View

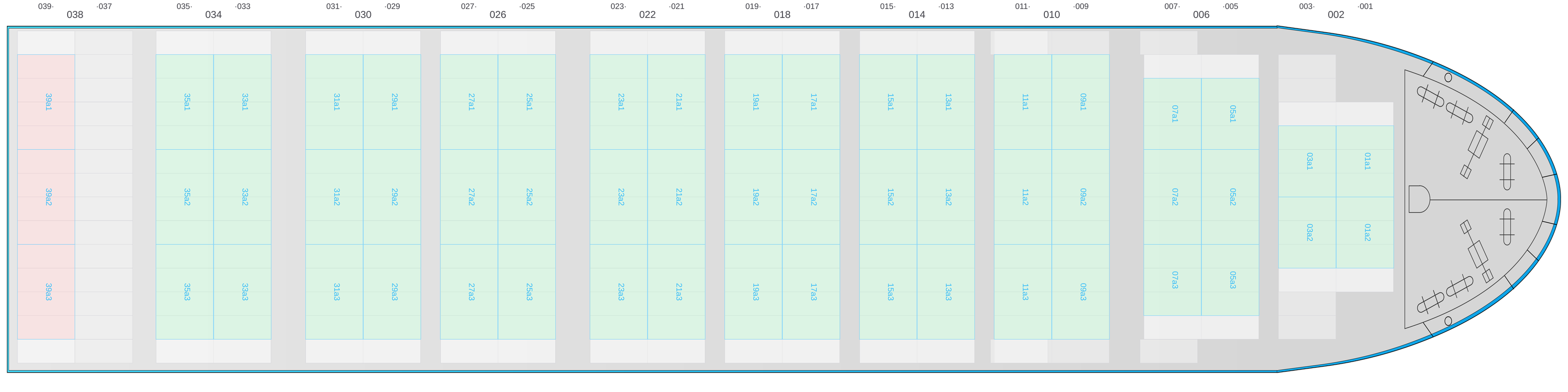

Deck view of CAPE ALTIUS

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→
^→ / _?
→

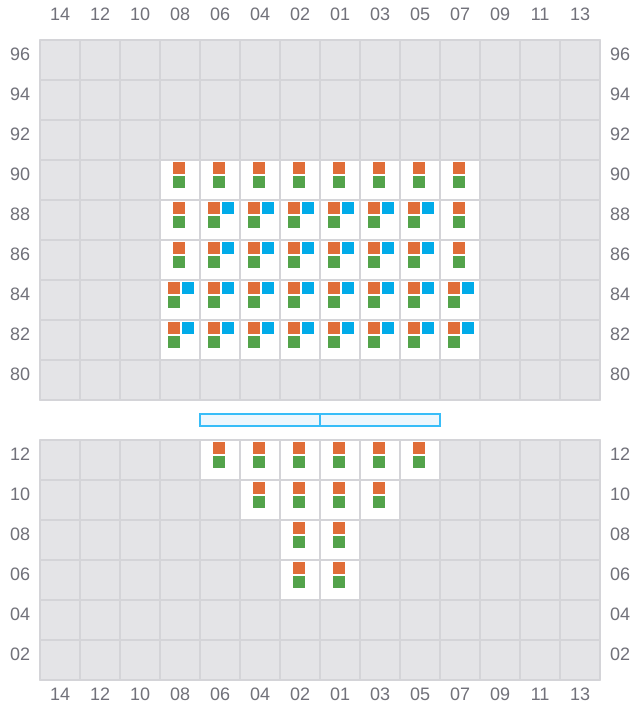

Bay 001 view and slots of CAPE ALTIUS

003

←
^→ / _?
→

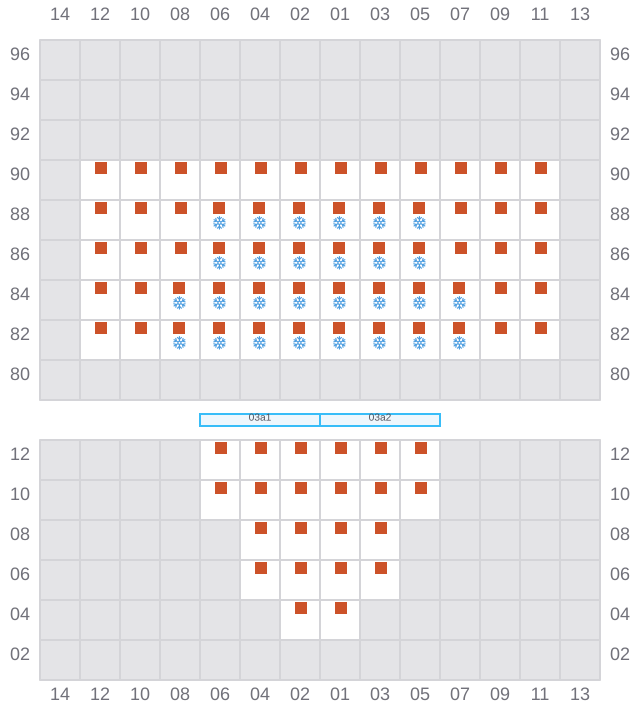

Bay 003 view and slots of CAPE ALTIUS

005 (006)

→
→
→

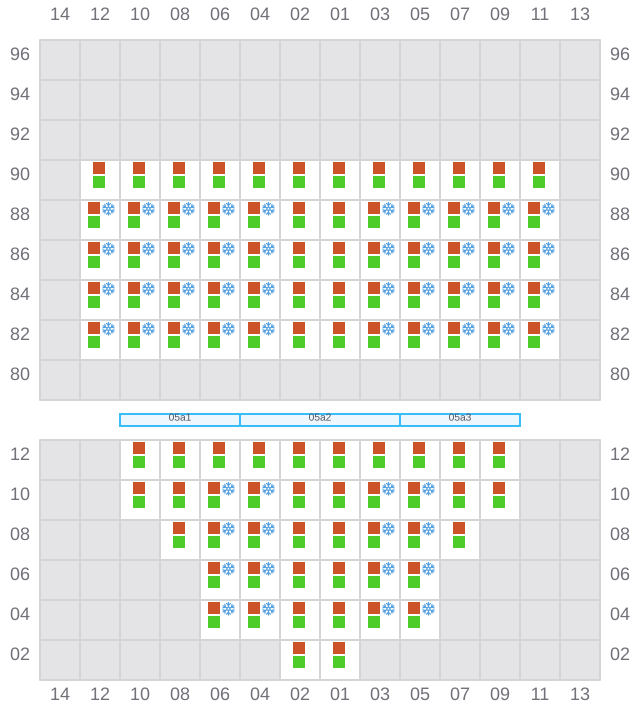

Bay 005 view and slots of CAPE ALTIUS

007

←
→
→

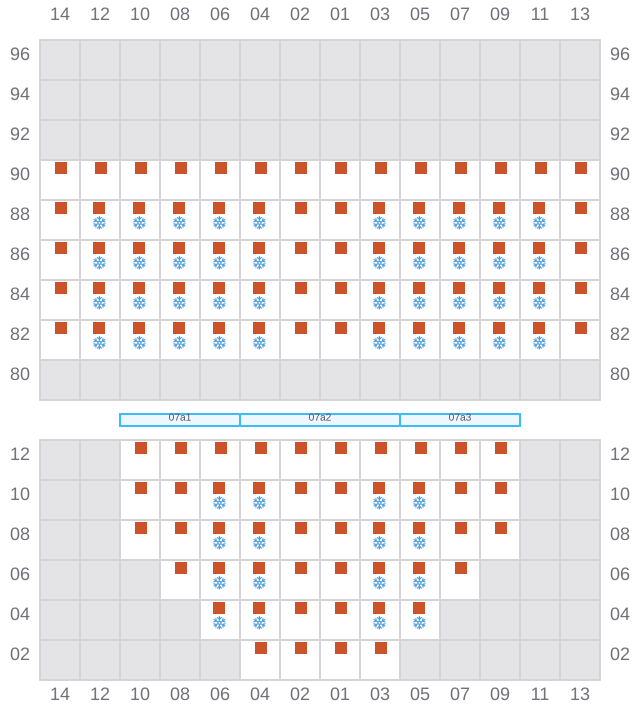

Bay 007 view and slots of CAPE ALTIUS

009 (010)

→
→
→

Bay 009 view and slots of CAPE ALTIUS

011

←
→
→

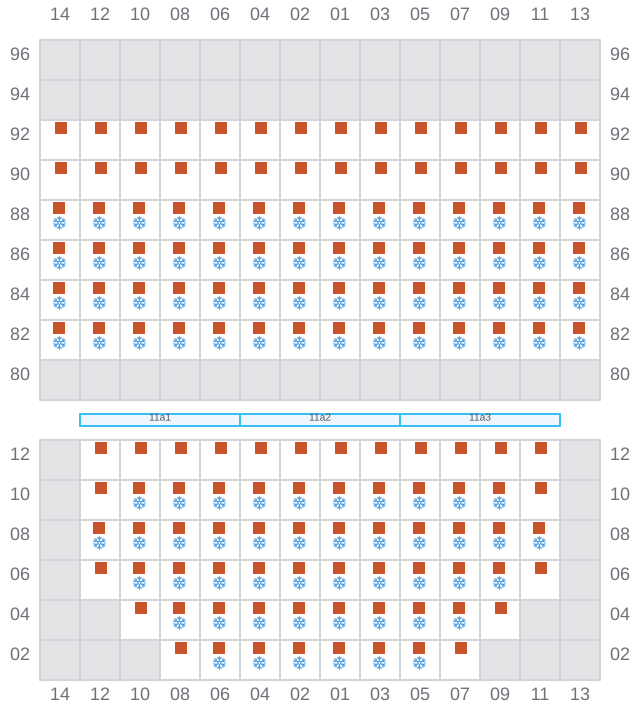

Bay 011 view and slots of CAPE ALTIUS

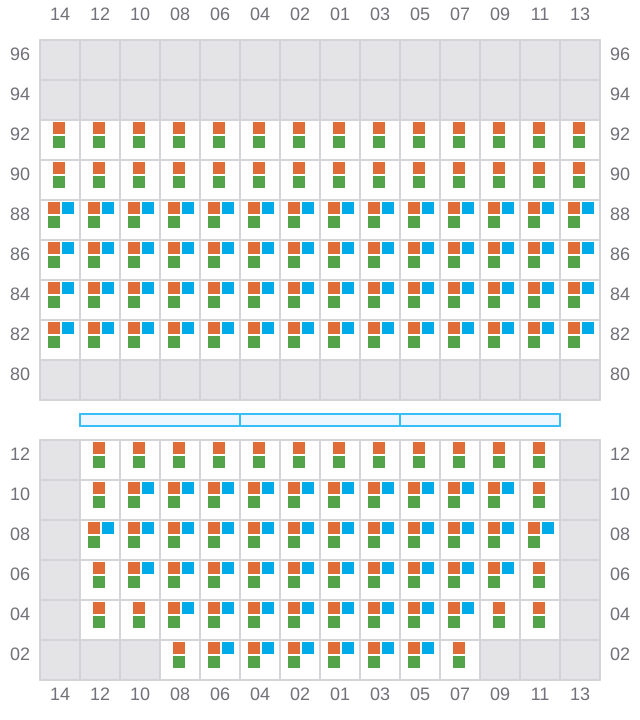

013 (014)

→
→
→

Bay 013 view and slots of CAPE ALTIUS

015

←
→
→

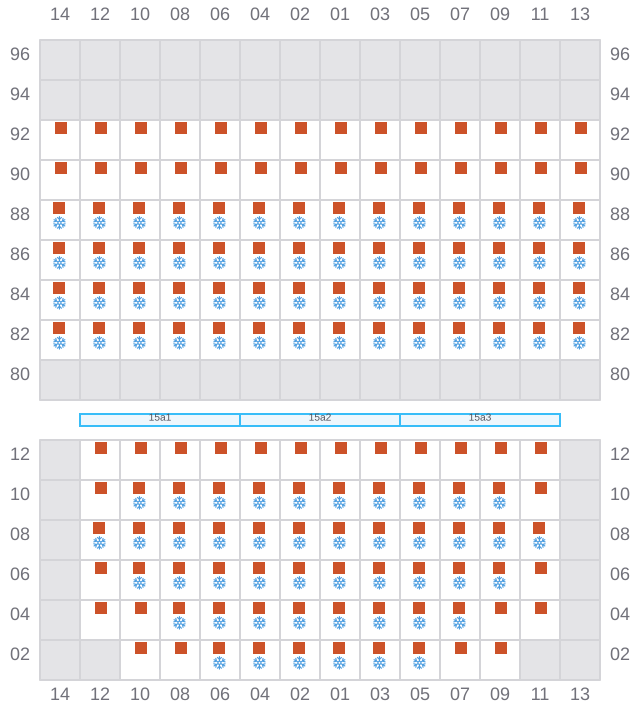

Bay 015 view and slots of CAPE ALTIUS

017 (018)

→
→
→

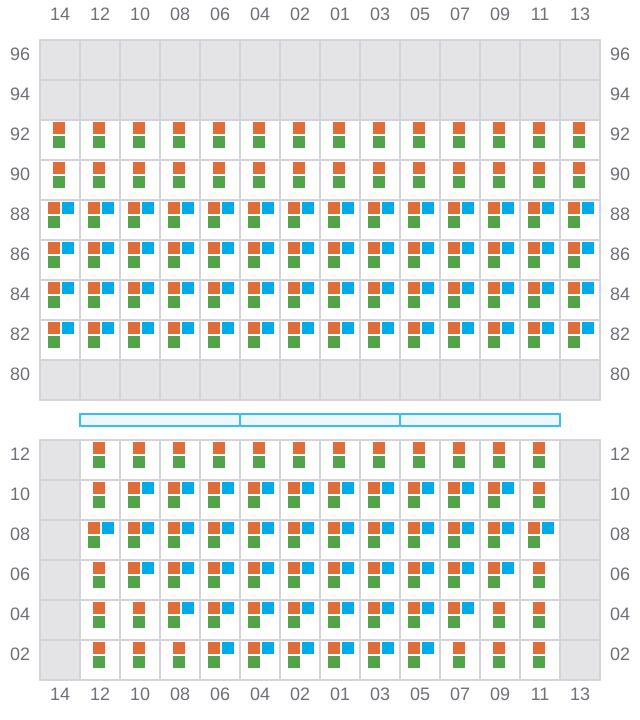

Bay 017 view and slots of CAPE ALTIUS

019

←
→
→

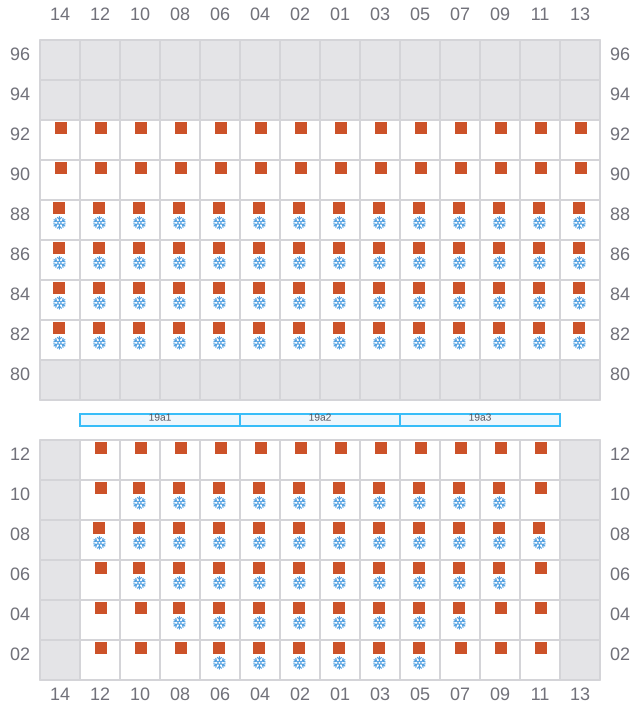

Bay 019 view and slots of CAPE ALTIUS

021 (022)

→
→
→

Bay 021 view and slots of CAPE ALTIUS

023

←
→
→

Bay 023 view and slots of CAPE ALTIUS

025 (026)

→
→
→

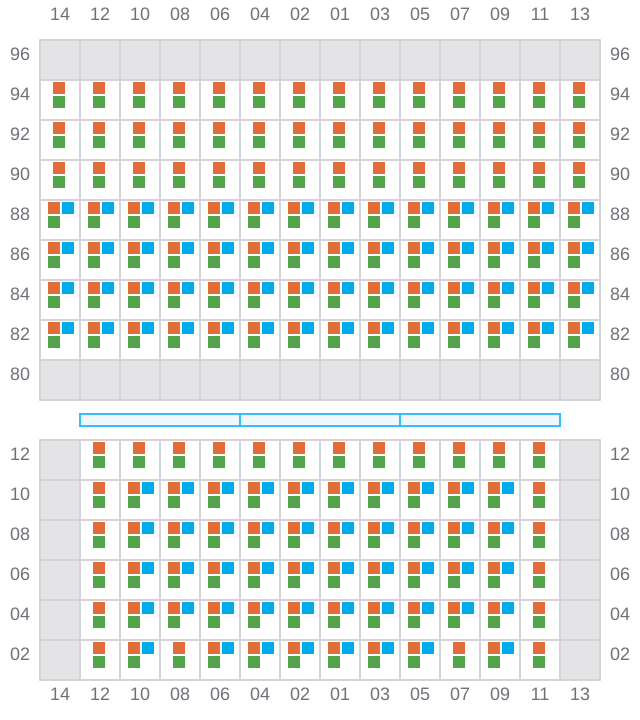

Bay 025 view and slots of CAPE ALTIUS

027

←
→
→

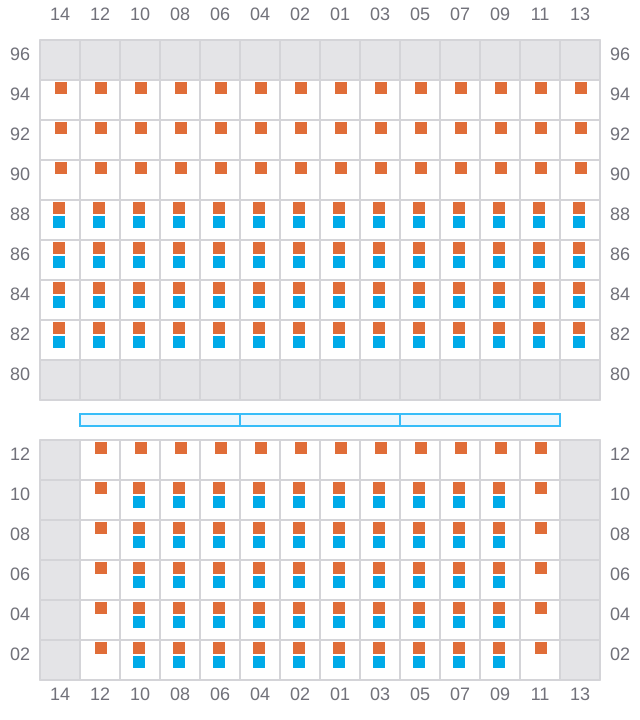

Bay 027 view and slots of CAPE ALTIUS

029 (030)

→
→
→

Bay 029 view and slots of CAPE ALTIUS

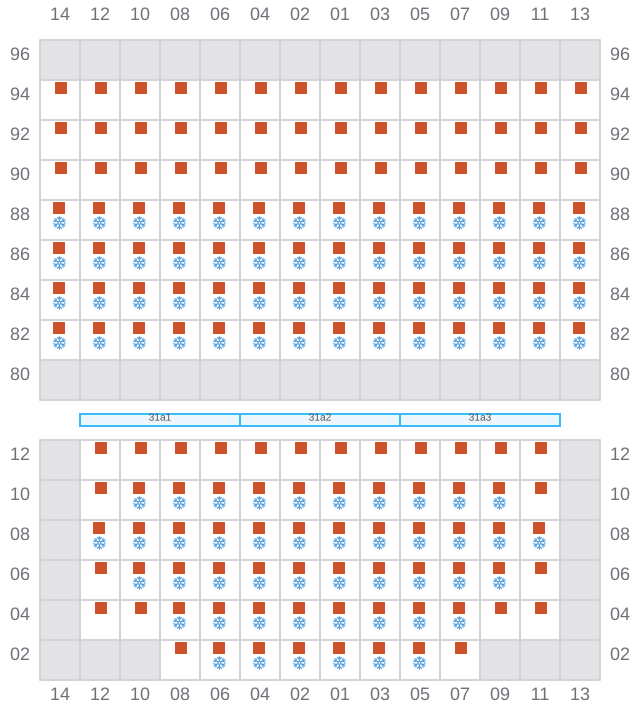

031

←
→
→

Bay 031 view and slots of CAPE ALTIUS

033 (034)

→
→
→

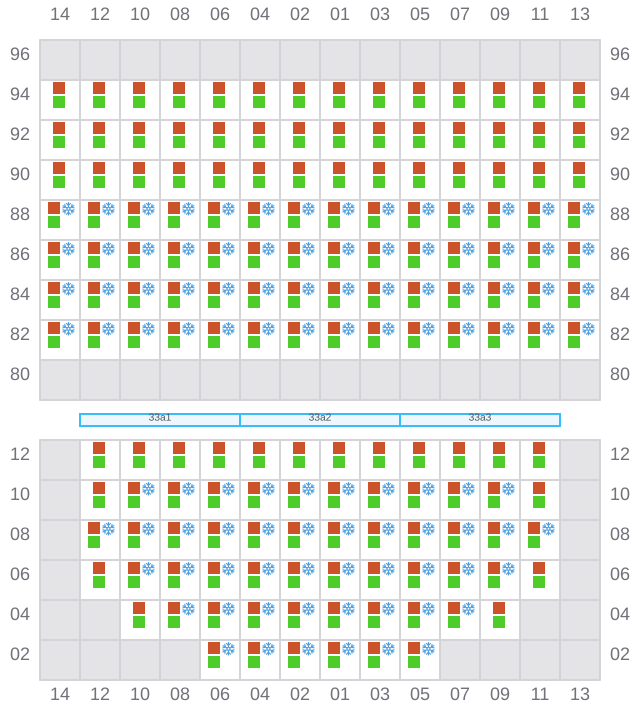

Bay 033 view and slots of CAPE ALTIUS

035

←
→
→

Bay 035 view and slots of CAPE ALTIUS

037 (038)

^→ / _?
^→ / _?

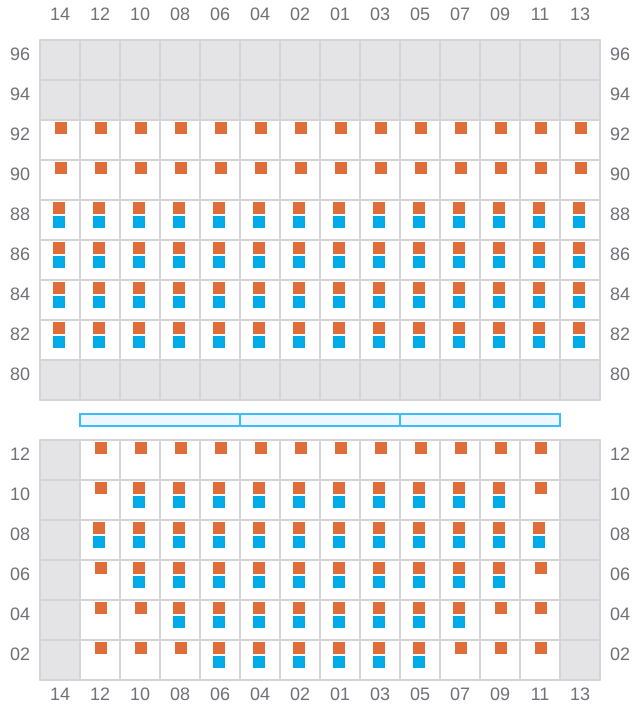

^→ / _?

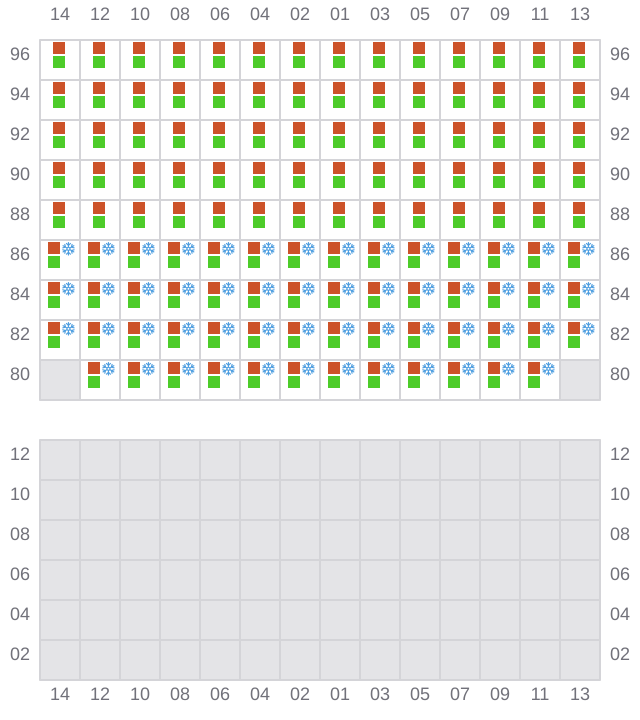

Bay 037 view and slots of CAPE ALTIUS

039

^← / _?
^→ / _?
^→ / _?

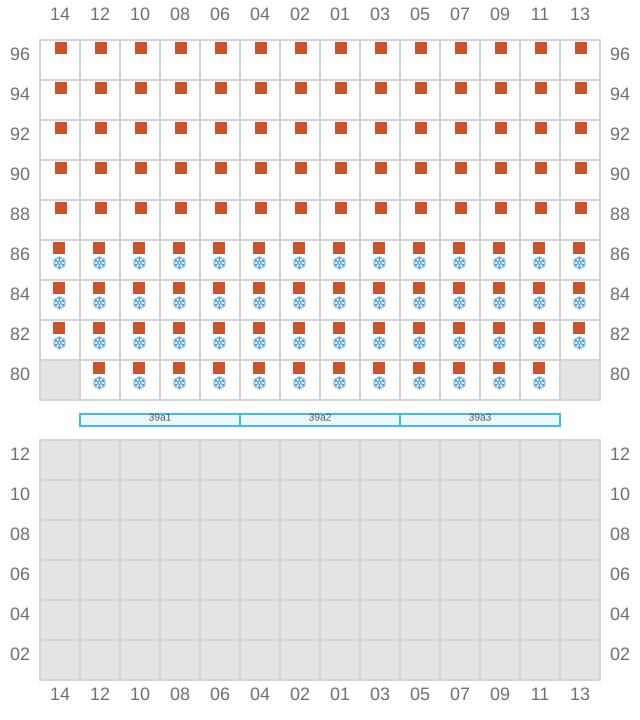

Bay 039 view and slots of CAPE ALTIUS
