CAPE CITIUS
9848742 | 5BPN5 | ZIM by ************************** Last update: Sun May 28 2023
General Info
Ship Name:CAPE CITIUS
IMO Code:9848742
Call Sign:5BPN5
Line Operator:ZIM
Class Name for Sister Ships:CITI
Year Built:2021
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:039
Max ISO Row:14
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,768
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

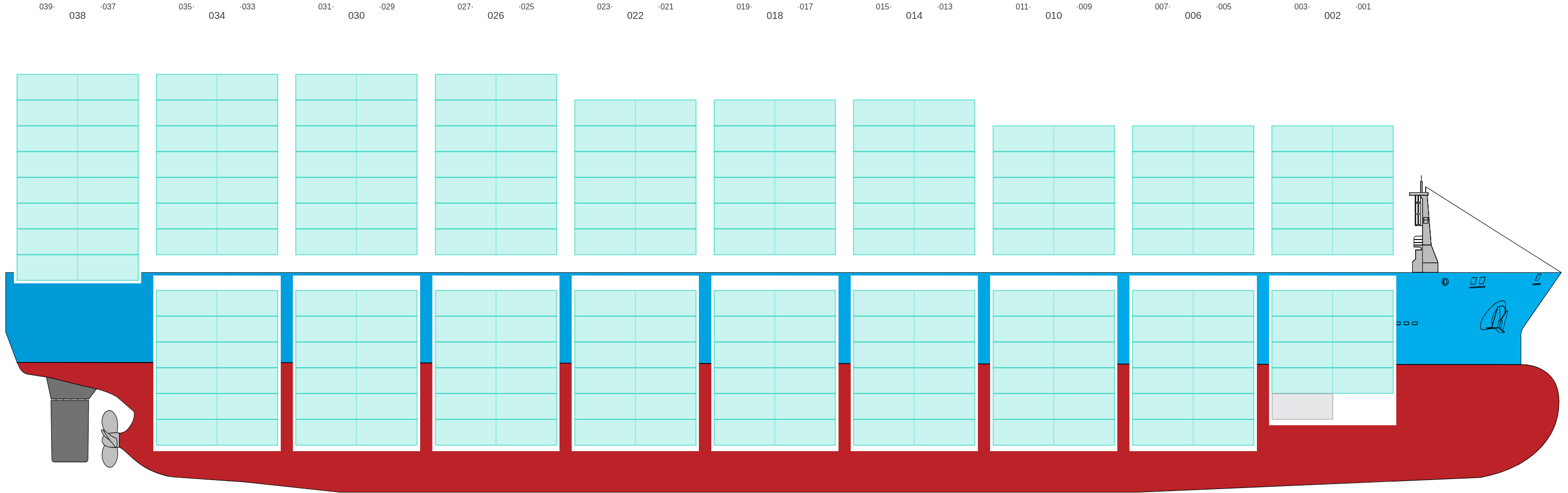

Side View
![Side view of CAPE CITIUS](/vessel-images/61446a17-07bf-4257-b720-d9f8eac03e2f-sideView.png?v=1685311132988)
Hatch-Covers View
![Deck view of CAPE CITIUS](/vessel-images/61446a17-07bf-4257-b720-d9f8eac03e2f-deckView.png?v=1685311132988)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

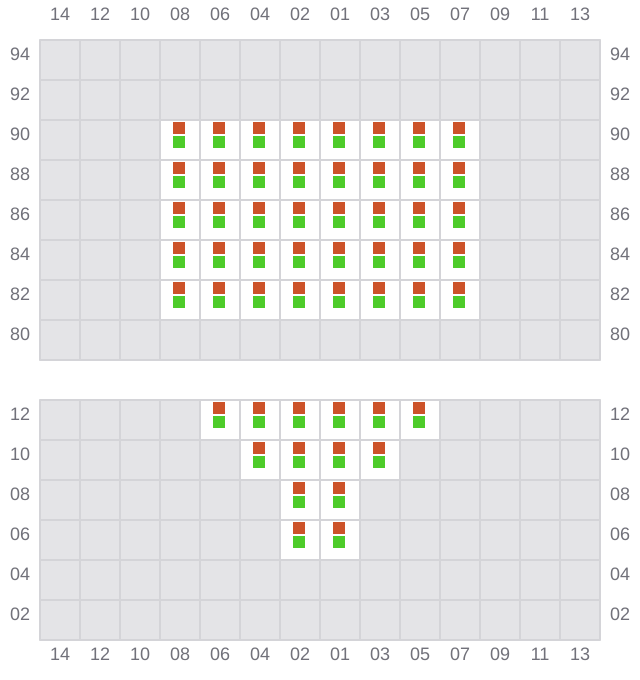

001 (002)
- →
![Bay 001 view and slots of CAPE CITIUS](/vessel-images/61446a17-07bf-4257-b720-d9f8eac03e2f-b001.png?v=1685311132988)

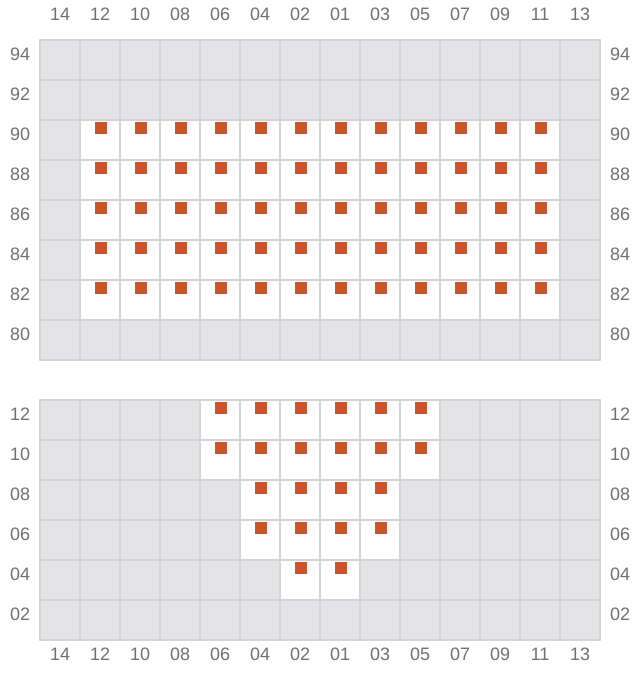

003
- ←
![Bay 003 view and slots of CAPE CITIUS](/vessel-images/61446a17-07bf-4257-b720-d9f8eac03e2f-b003.png?v=1685311132988)

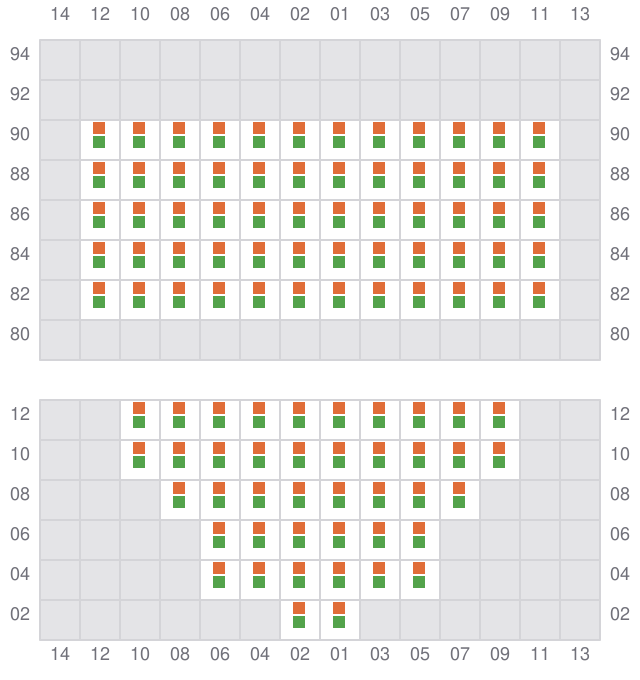

005 (006)
- →
![Bay 005 view and slots of CAPE CITIUS](/vessel-images/61446a17-07bf-4257-b720-d9f8eac03e2f-b005.png?v=1685311132988)

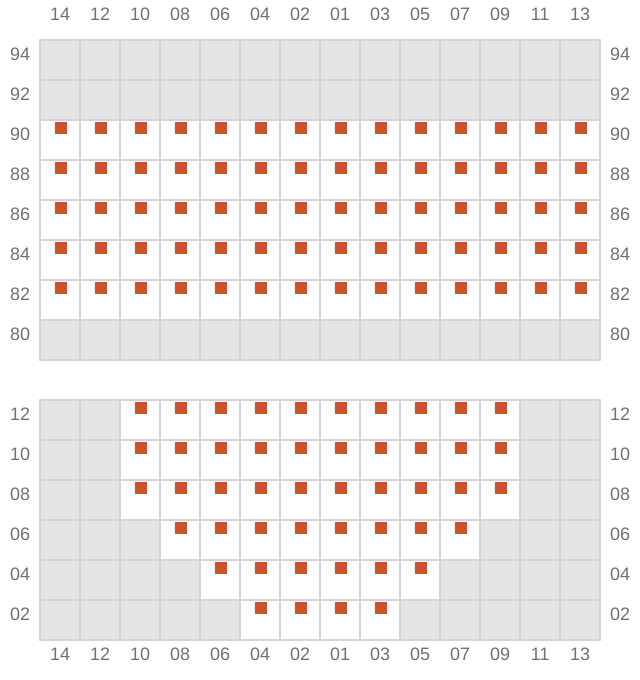

007
- ←
![Bay 007 view and slots of CAPE CITIUS](/vessel-images/61446a17-07bf-4257-b720-d9f8eac03e2f-b007.png?v=1685311132988)

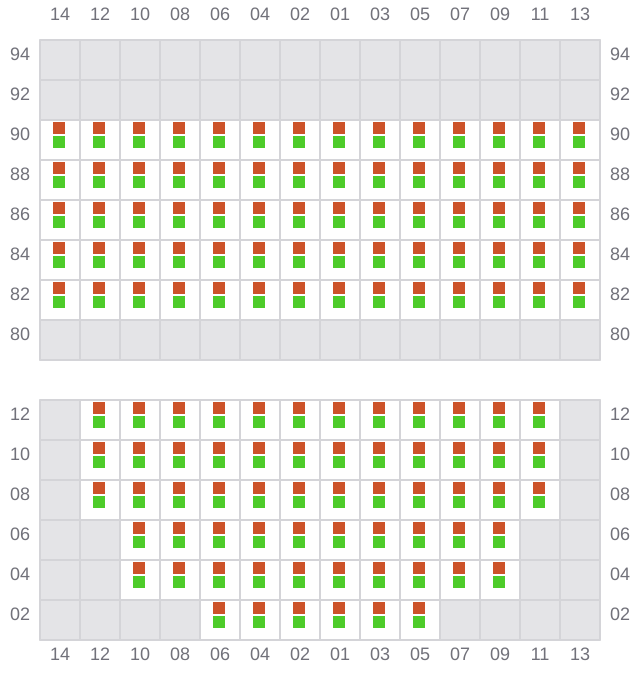

009 (010)
- →
![Bay 009 view and slots of CAPE CITIUS](/vessel-images/61446a17-07bf-4257-b720-d9f8eac03e2f-b009.png?v=1685311132988)

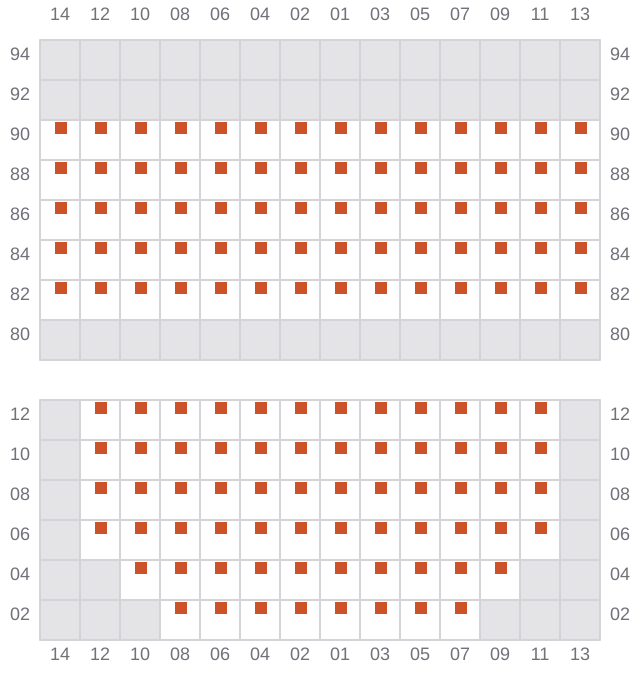

011
- ←
![Bay 011 view and slots of CAPE CITIUS](/vessel-images/61446a17-07bf-4257-b720-d9f8eac03e2f-b011.png?v=1685311132988)

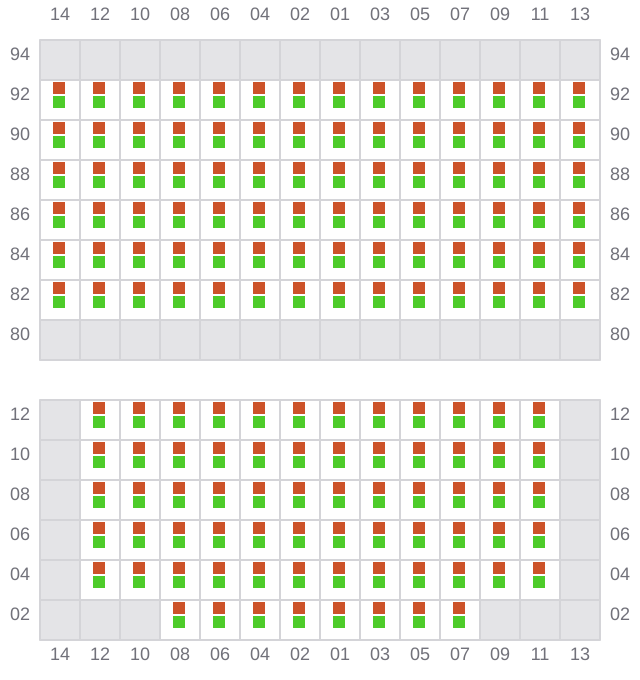

013 (014)
- →
![Bay 013 view and slots of CAPE CITIUS](/vessel-images/61446a17-07bf-4257-b720-d9f8eac03e2f-b013.png?v=1685311132988)
015
- ←
![Bay 015 view and slots of CAPE CITIUS](/vessel-images/61446a17-07bf-4257-b720-d9f8eac03e2f-b015.png?v=1685311132988)
017 (018)
- →
![Bay 017 view and slots of CAPE CITIUS](/vessel-images/61446a17-07bf-4257-b720-d9f8eac03e2f-b017.png?v=1685311132988)
019
- ←
![Bay 019 view and slots of CAPE CITIUS](/vessel-images/61446a17-07bf-4257-b720-d9f8eac03e2f-b019.png?v=1685311132988)
021 (022)
- →
![Bay 021 view and slots of CAPE CITIUS](/vessel-images/61446a17-07bf-4257-b720-d9f8eac03e2f-b021.png?v=1685311132988)

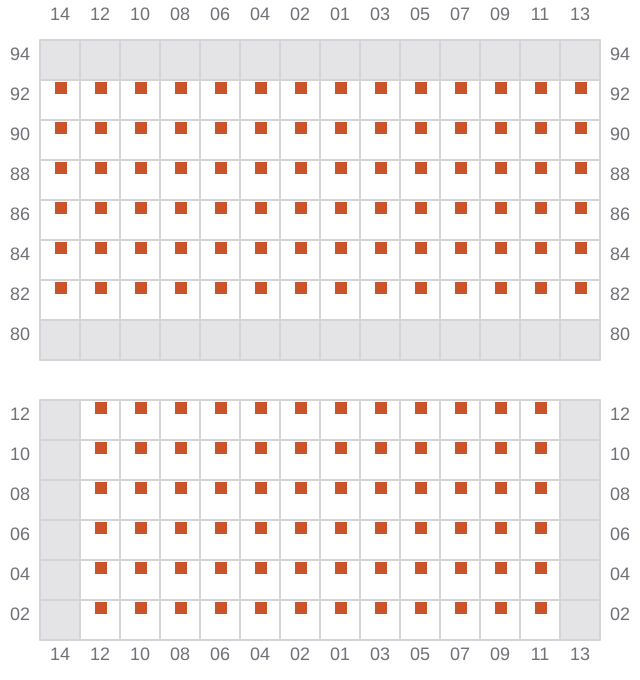

023
- ←
![Bay 023 view and slots of CAPE CITIUS](/vessel-images/61446a17-07bf-4257-b720-d9f8eac03e2f-b023.png?v=1685311132988)
025 (026)
- →
![Bay 025 view and slots of CAPE CITIUS](/vessel-images/61446a17-07bf-4257-b720-d9f8eac03e2f-b025.png?v=1685311132988)

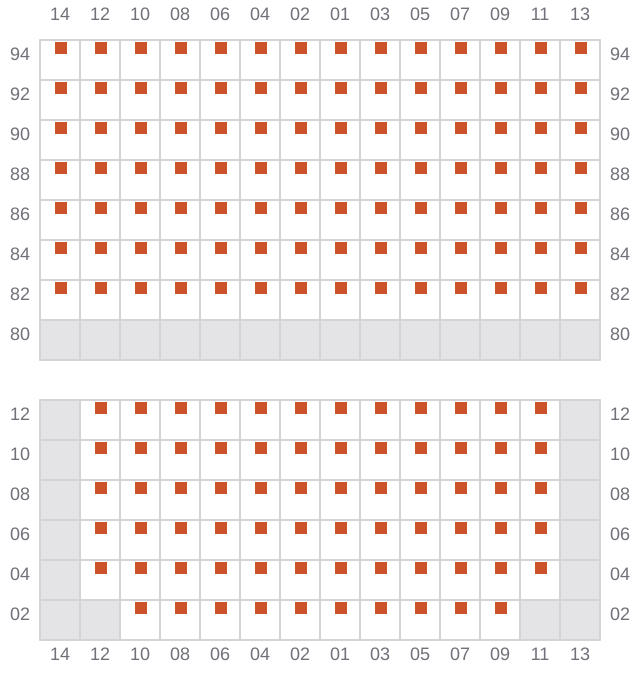

027
- ←
![Bay 027 view and slots of CAPE CITIUS](/vessel-images/61446a17-07bf-4257-b720-d9f8eac03e2f-b027.png?v=1685311132988)

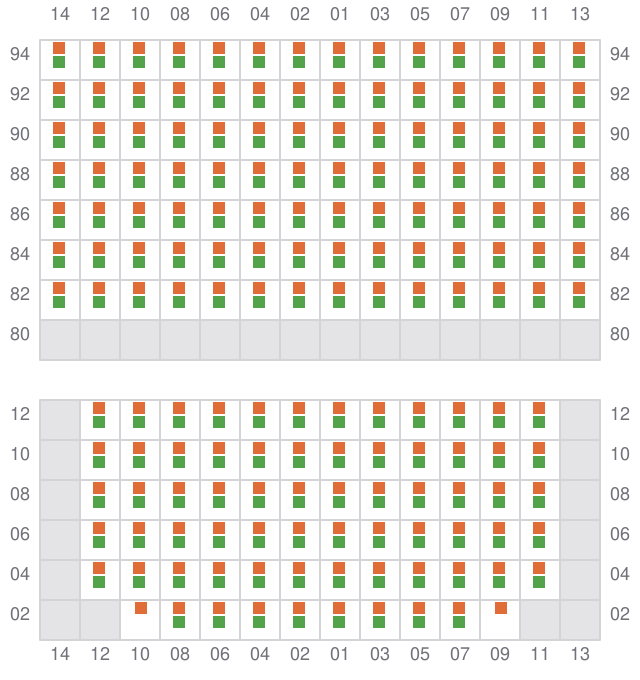

029 (030)
- →
![Bay 029 view and slots of CAPE CITIUS](/vessel-images/61446a17-07bf-4257-b720-d9f8eac03e2f-b029.png?v=1685311132988)

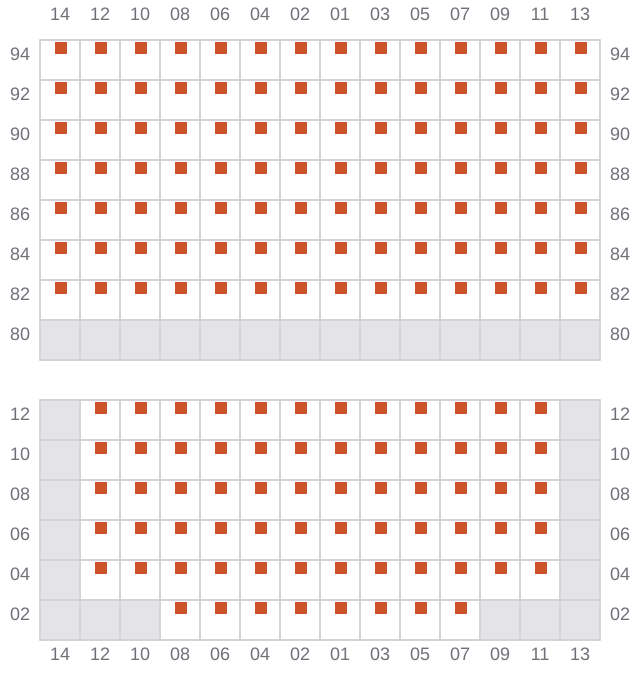

031
- ←
![Bay 031 view and slots of CAPE CITIUS](/vessel-images/61446a17-07bf-4257-b720-d9f8eac03e2f-b031.png?v=1685311132988)

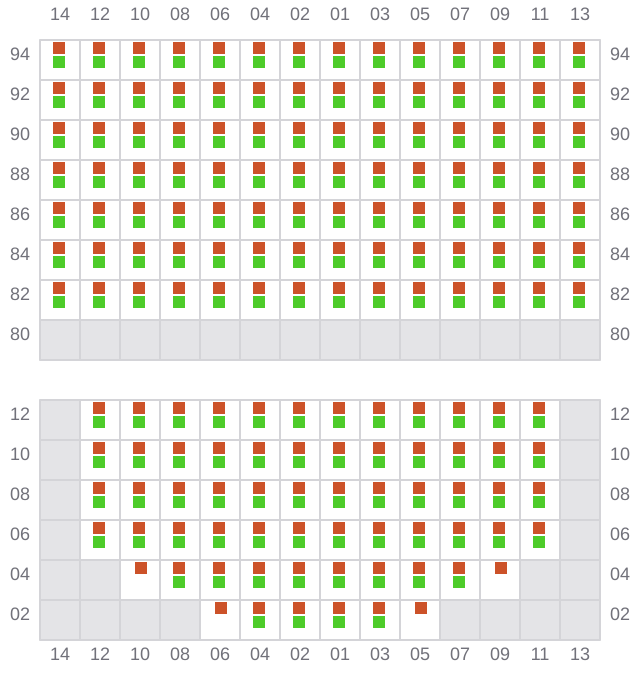

033 (034)
- →
![Bay 033 view and slots of CAPE CITIUS](/vessel-images/61446a17-07bf-4257-b720-d9f8eac03e2f-b033.png?v=1685311132988)

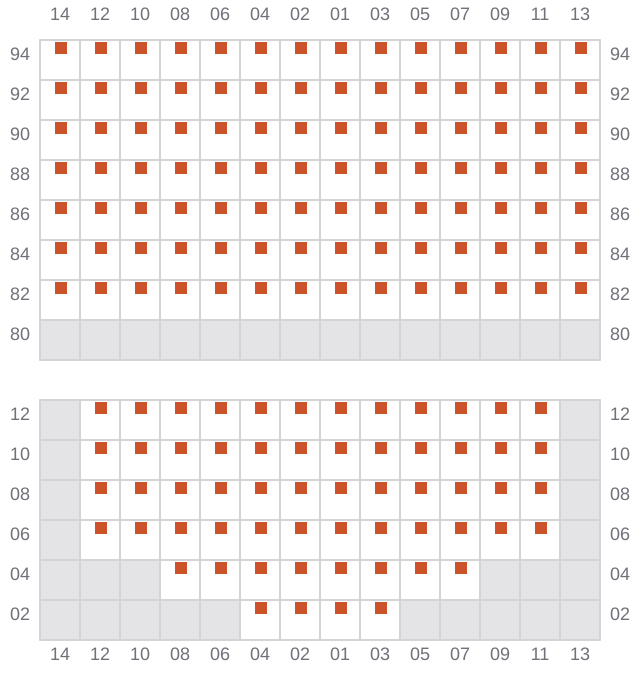

035
- ←
![Bay 035 view and slots of CAPE CITIUS](/vessel-images/61446a17-07bf-4257-b720-d9f8eac03e2f-b035.png?v=1685311132988)

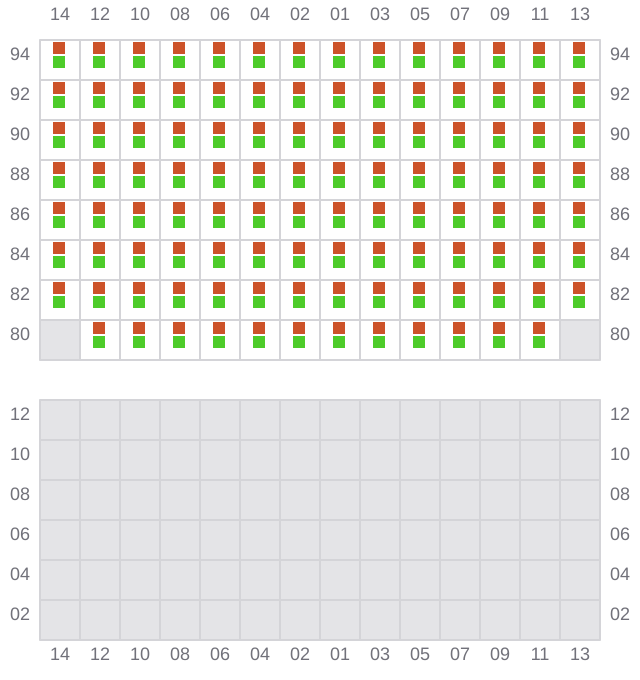

037 (038)
- → / ?
![Bay 037 view and slots of CAPE CITIUS](/vessel-images/61446a17-07bf-4257-b720-d9f8eac03e2f-b037.png?v=1685311132988)

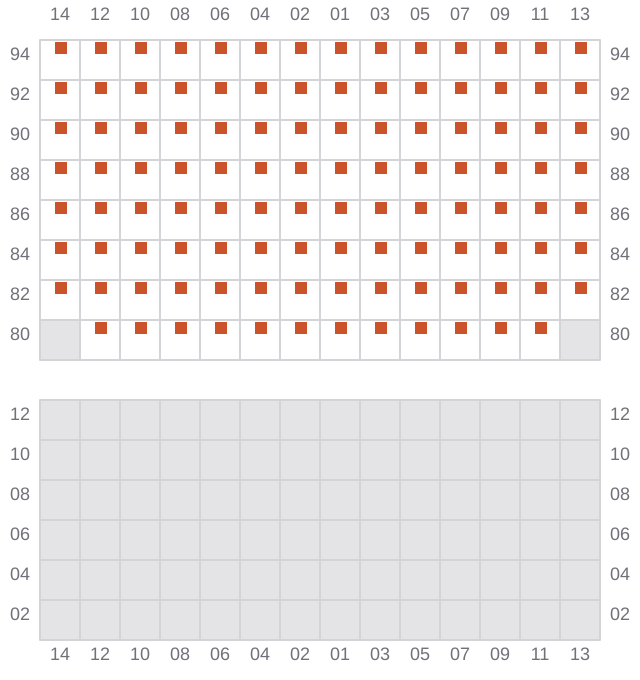

039
- ← / ?
![Bay 039 view and slots of CAPE CITIUS](/vessel-images/61446a17-07bf-4257-b720-d9f8eac03e2f-b039.png?v=1685311132988)
