CAPE CORFU
9857432 | 5BTK5 | HLC by *********************** Last update: Wed Feb 12 2025

General Info

Ship Name:CAPE CORFU
IMO Code:9857432
Call Sign:5BTK5
Line Operator:HLC
Class Name for Sister Ships:HCAC
Year Built:2021
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:039
Max ISO Row:14
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,788

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

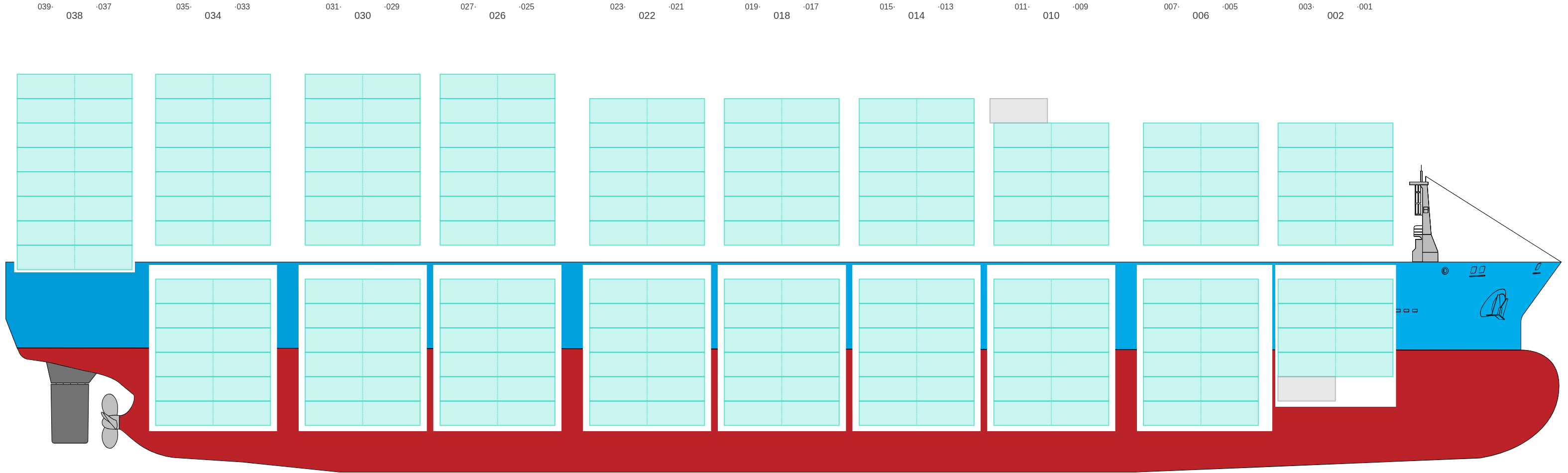

Side View

Side view of CAPE CORFU

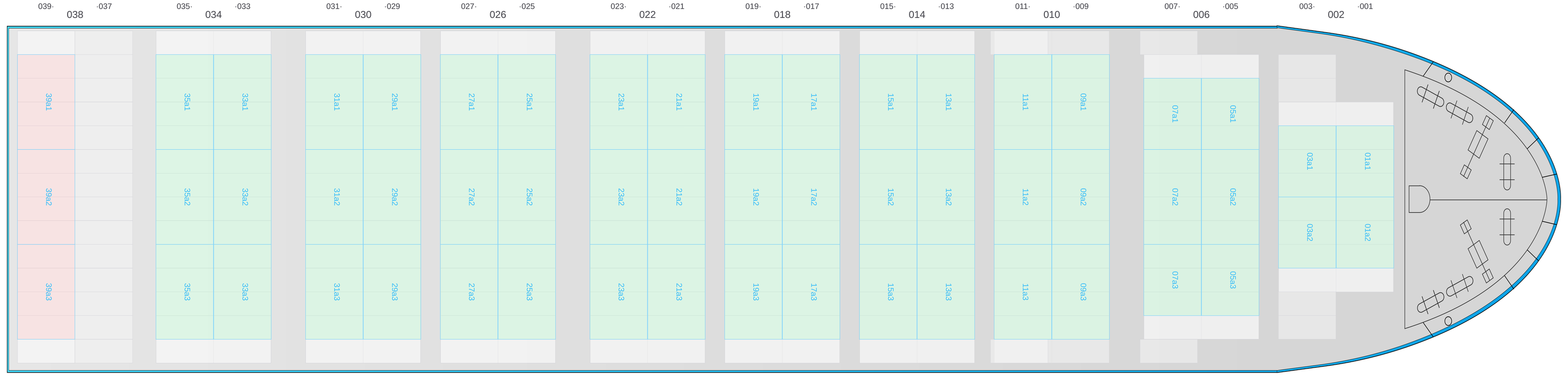

Hatch-Covers View

Deck view of CAPE CORFU

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • → / ?
  • →

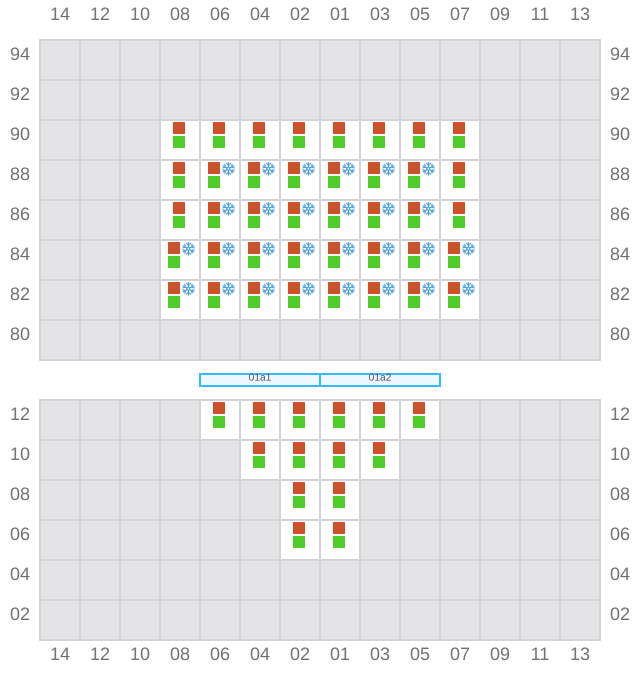

Bay 001 view and slots of CAPE CORFU

003

  • ←
  • → / ?
  • →

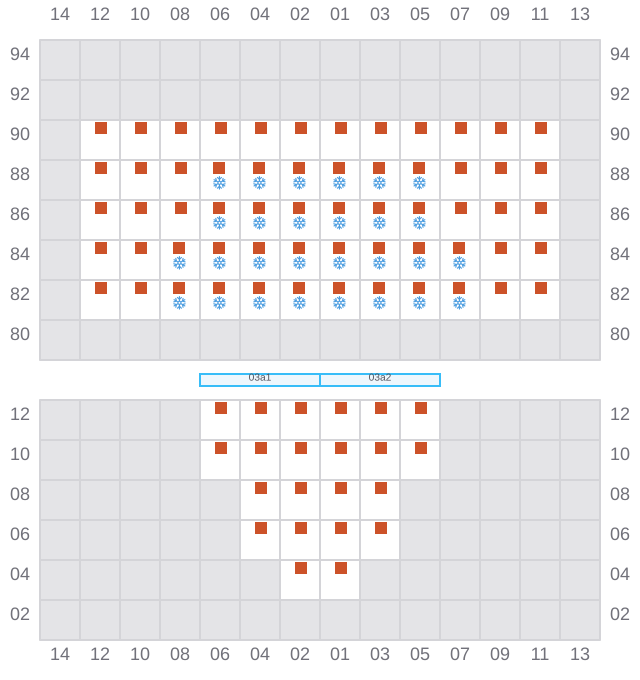

Bay 003 view and slots of CAPE CORFU

005 (006)

  • →
  • →
  • →

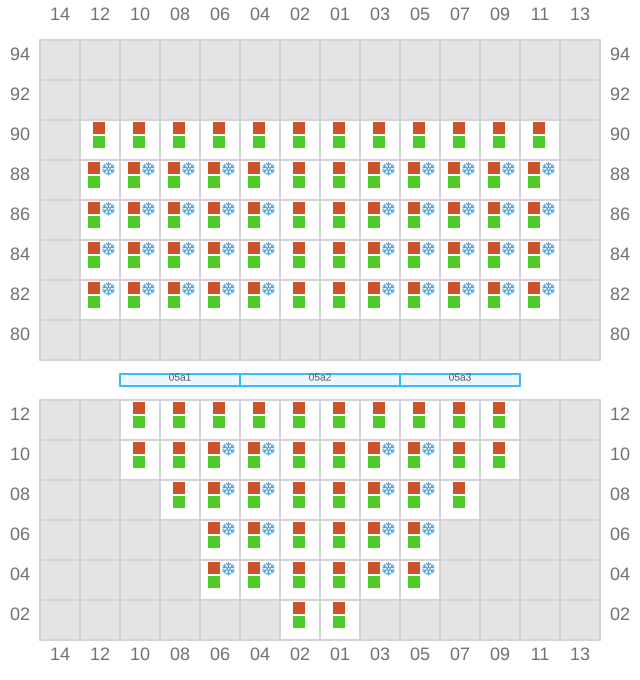

Bay 005 view and slots of CAPE CORFU

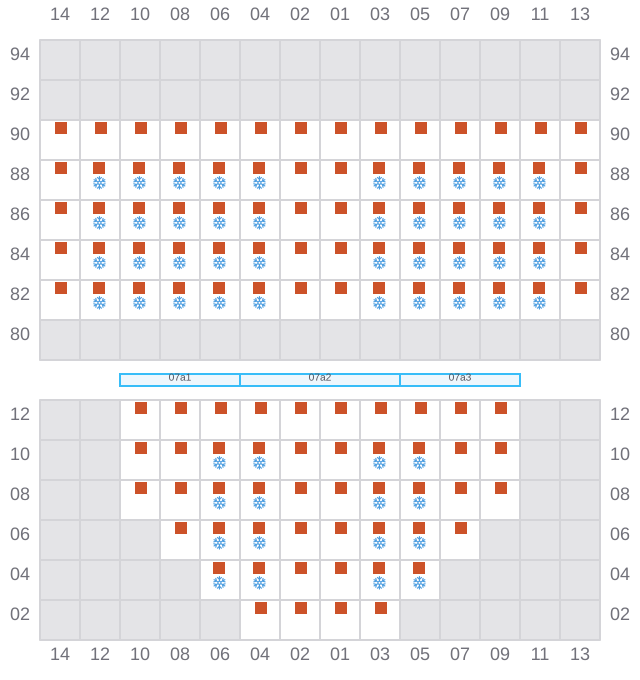

007

  • ←
  • →
  • →
Bay 007 view and slots of CAPE CORFU

009 (010)

  • →
  • →
  • →

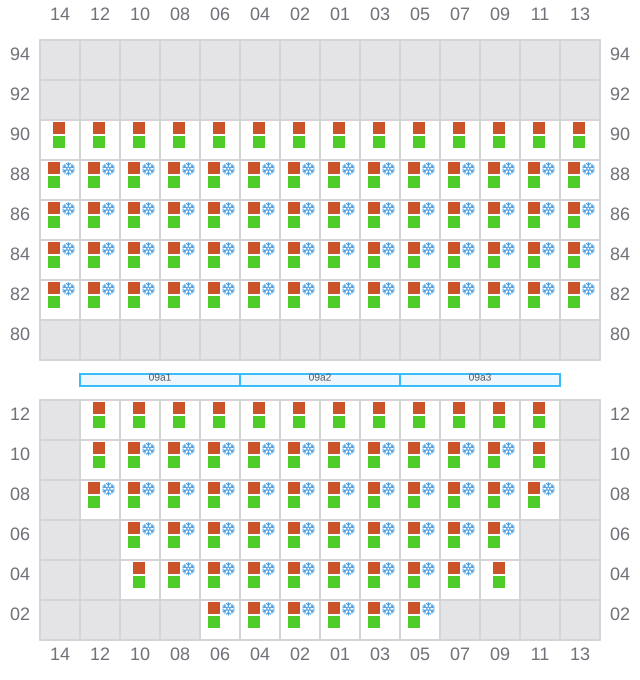

Bay 009 view and slots of CAPE CORFU

011

  • ←
  • →
  • →

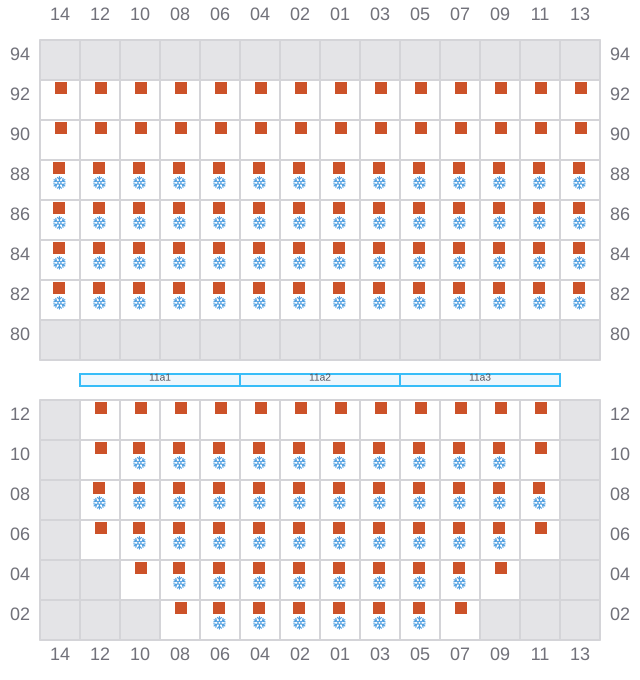

Bay 011 view and slots of CAPE CORFU

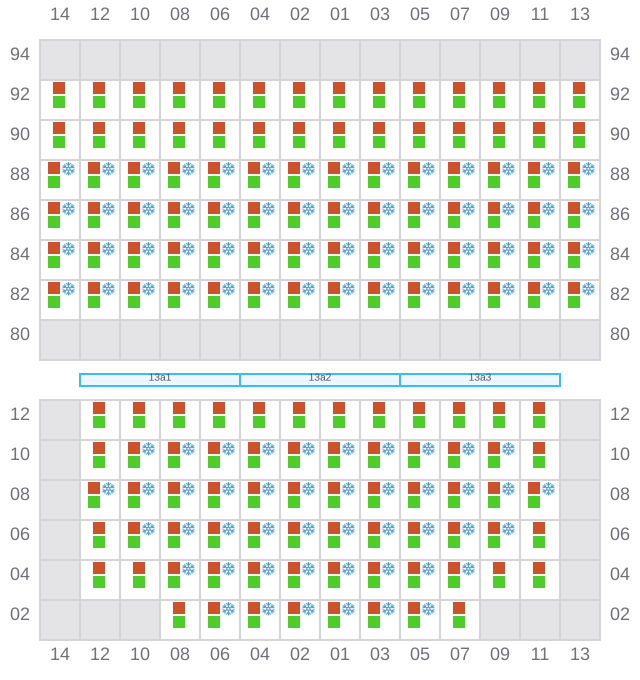

013 (014)

  • →
  • →
  • →
Bay 013 view and slots of CAPE CORFU

015

  • ←
  • →
  • →

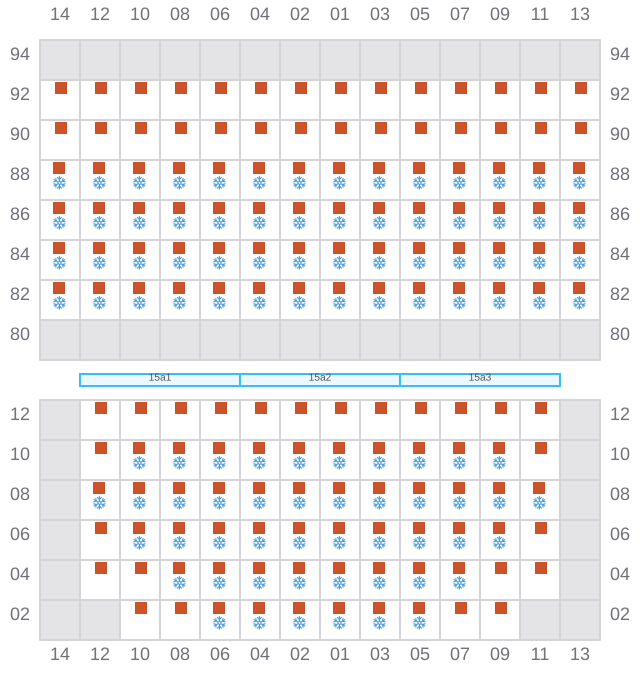

Bay 015 view and slots of CAPE CORFU

017 (018)

  • →
  • →
  • →

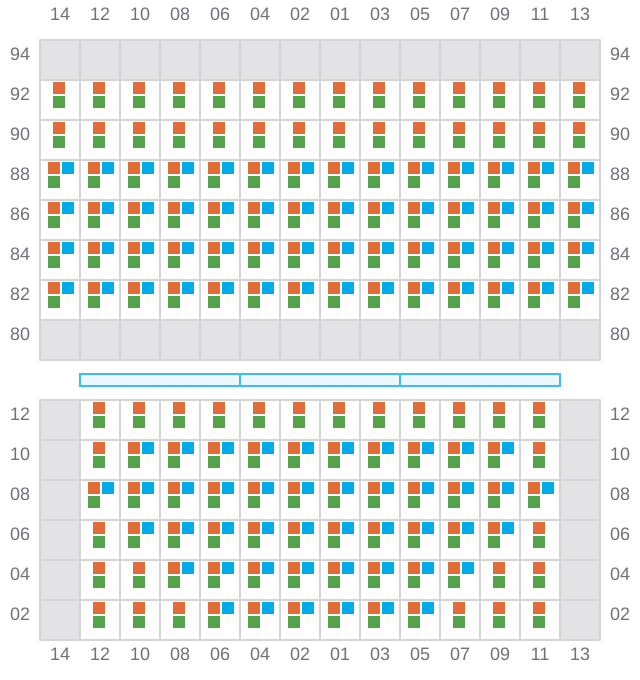

Bay 017 view and slots of CAPE CORFU

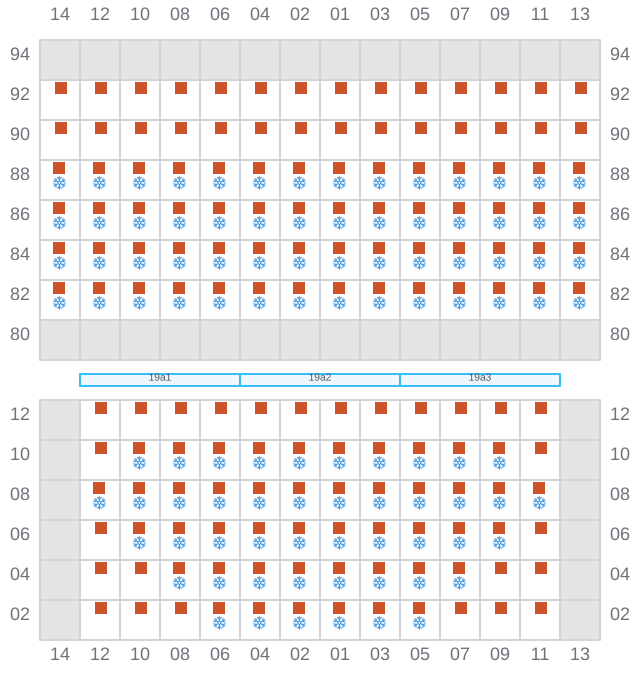

019

  • ←
  • →
  • →
Bay 019 view and slots of CAPE CORFU

021 (022)

  • →
  • →
  • →

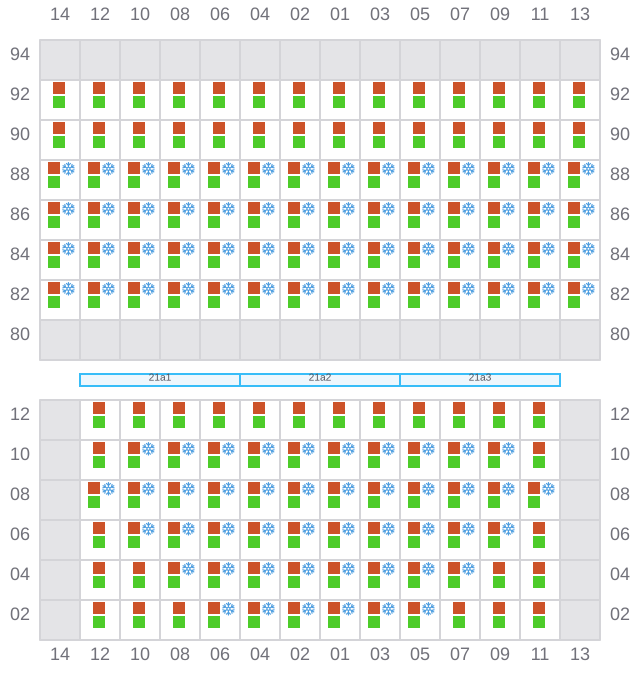

Bay 021 view and slots of CAPE CORFU

023

  • ←
  • →
  • →
Bay 023 view and slots of CAPE CORFU

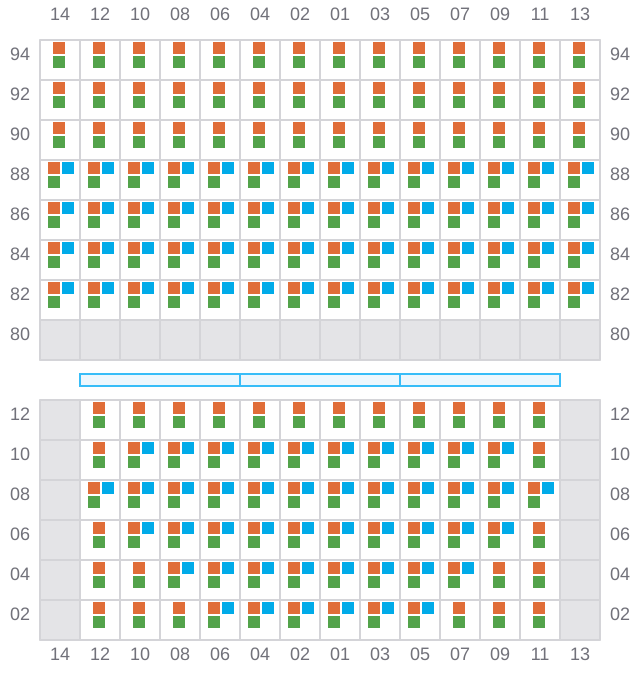

025 (026)

  • →
  • →
  • →
Bay 025 view and slots of CAPE CORFU

027

  • ←
  • →
  • →

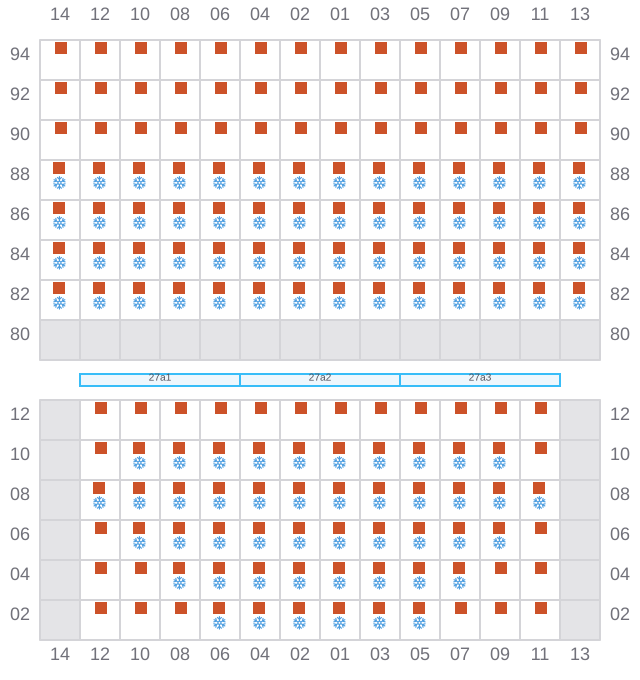

Bay 027 view and slots of CAPE CORFU

029 (030)

  • →
  • →
  • →

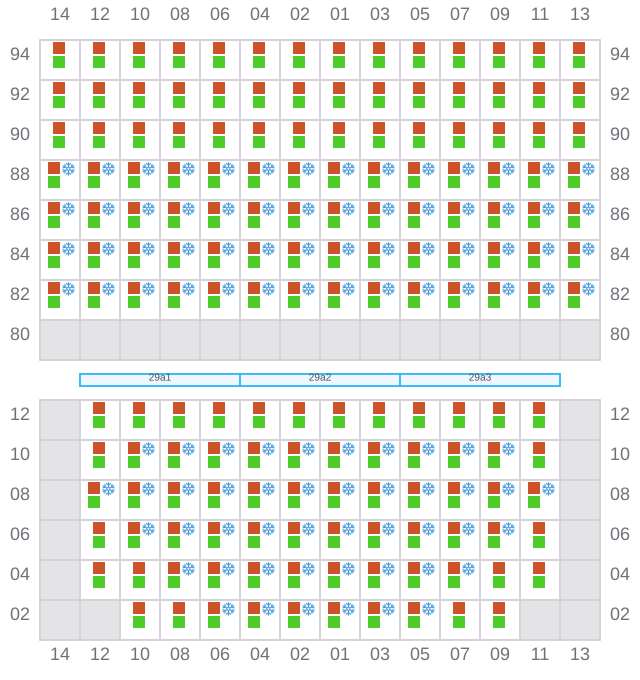

Bay 029 view and slots of CAPE CORFU

031

  • ←
  • →
  • →

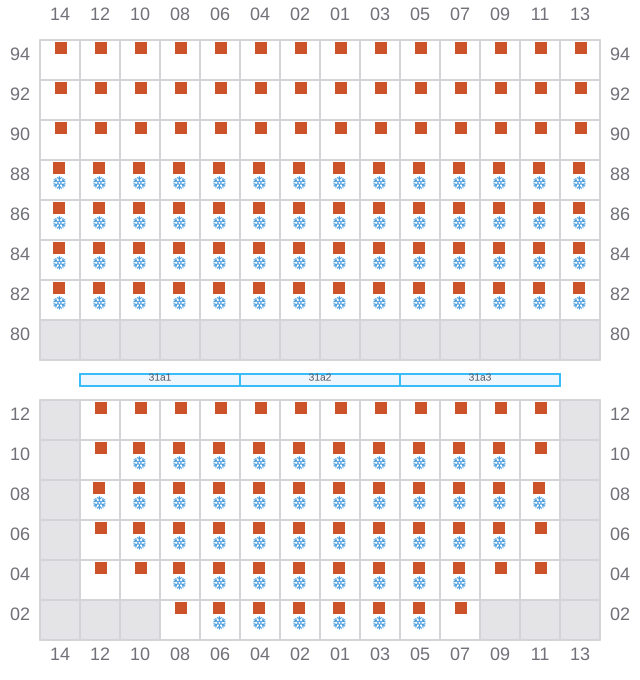

Bay 031 view and slots of CAPE CORFU

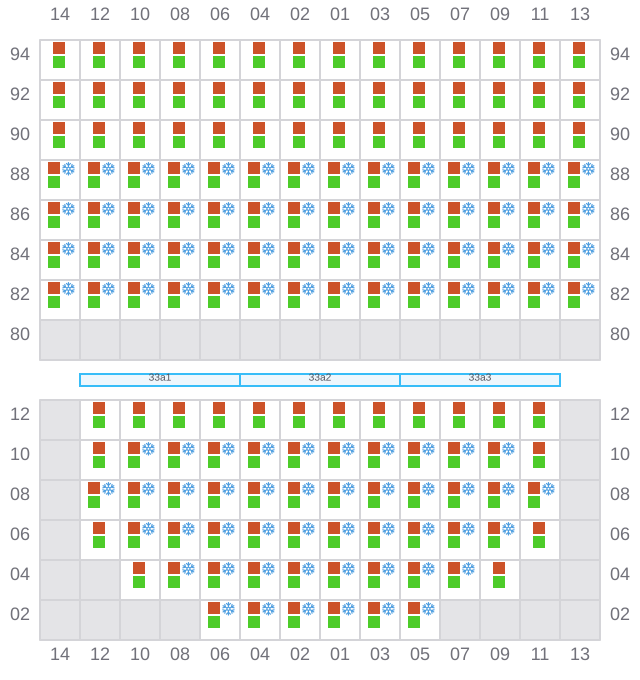

033 (034)

  • →
  • →
  • →
Bay 033 view and slots of CAPE CORFU

035

  • ←
  • →
  • →

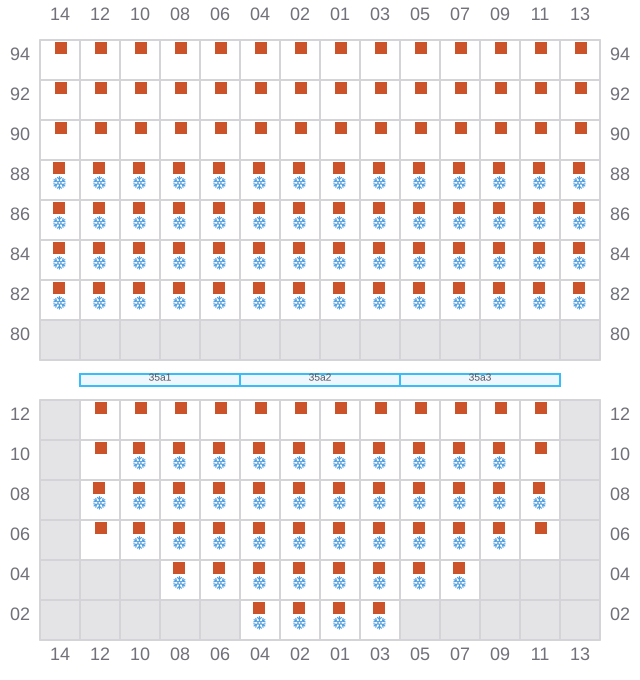

Bay 035 view and slots of CAPE CORFU

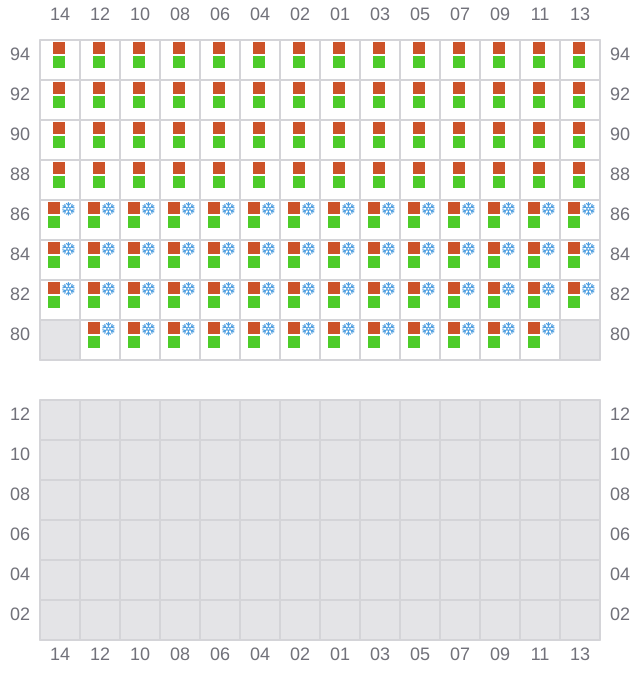

037 (038)

  • → / ?
  • → / ?
  • → / ?
Bay 037 view and slots of CAPE CORFU

039

  • ← / ?
  • → / ?
  • → / ?

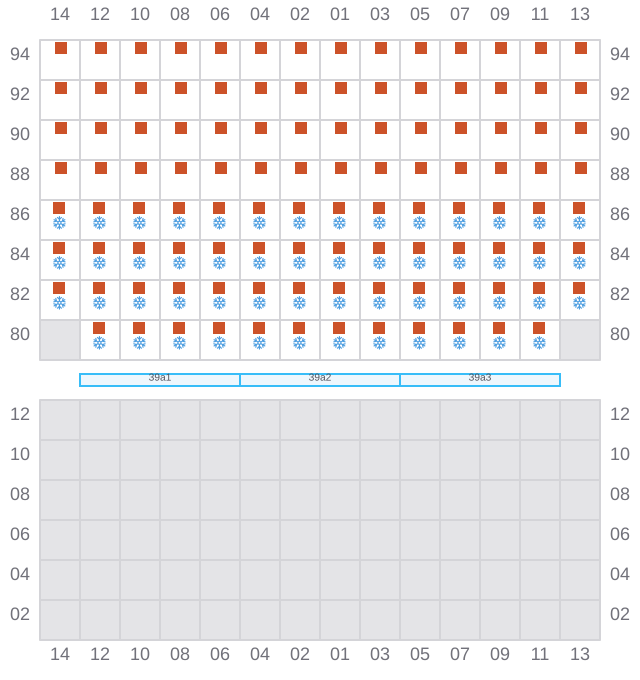

Bay 039 view and slots of CAPE CORFU
