CAPE FARO
9347712 | V7JZ2 | 9347712 by ********* Last update: Fri Jun 14 2024

General Info

Ship Name:CAPE FARO
IMO Code:9347712
Call Sign:V7JZ2
Line Operator:9347712
Class Name for Sister Ships:MCC
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:035
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,440

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of CAPE FARO

Hatch-Covers View

Deck view of CAPE FARO

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

Bay 001 view and slots of CAPE FARO

003

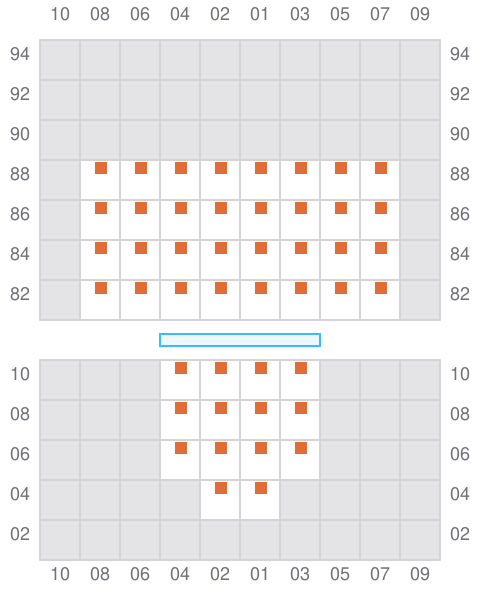

Bay 003 view and slots of CAPE FARO

005 (006)

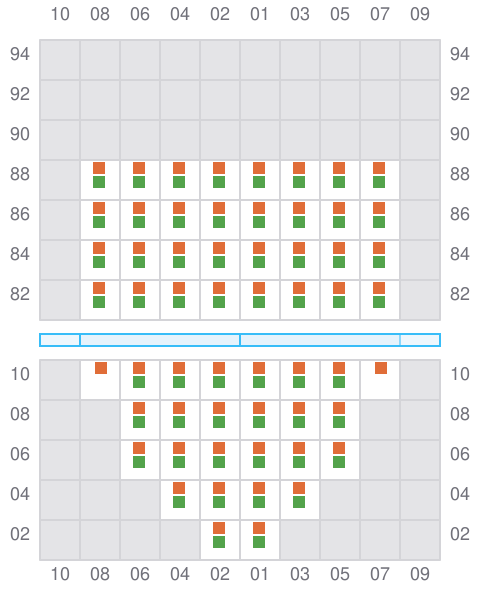

Bay 005 view and slots of CAPE FARO

007

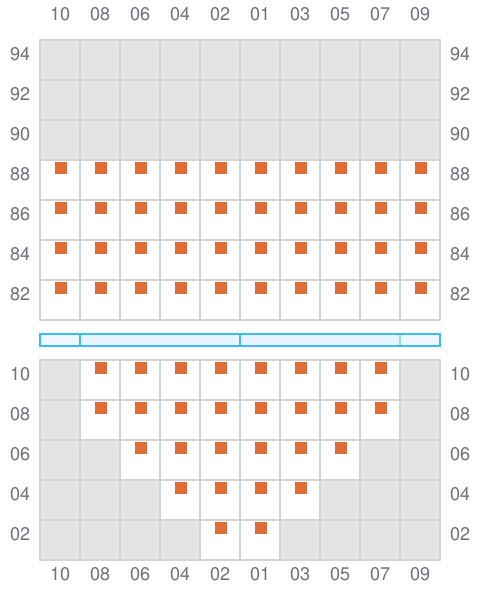

Bay 007 view and slots of CAPE FARO

009 (010)

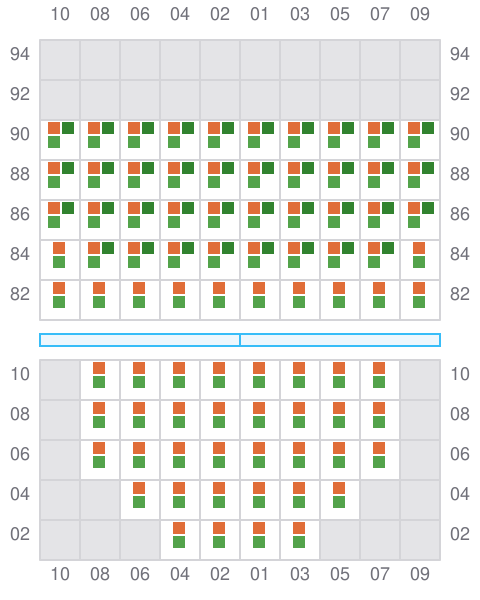

Bay 009 view and slots of CAPE FARO

011

  • / ?

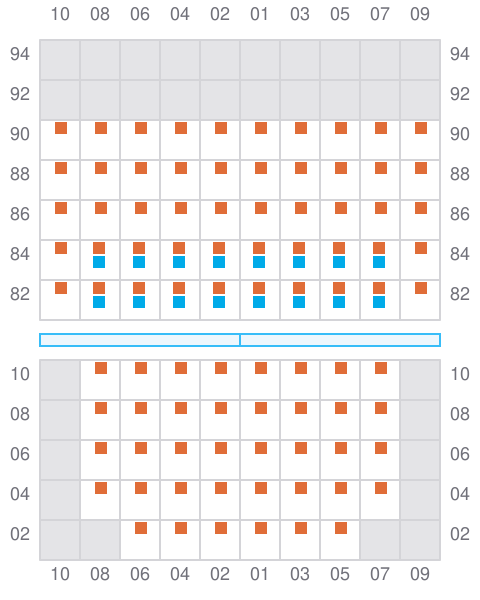

Bay 011 view and slots of CAPE FARO

013 (014)

  • / ?

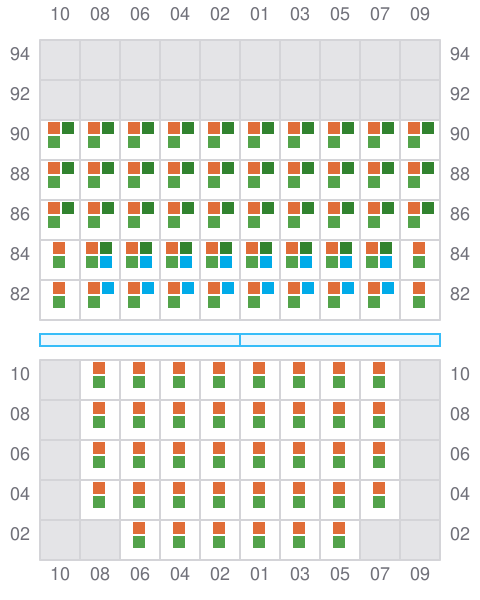

Bay 013 view and slots of CAPE FARO

015

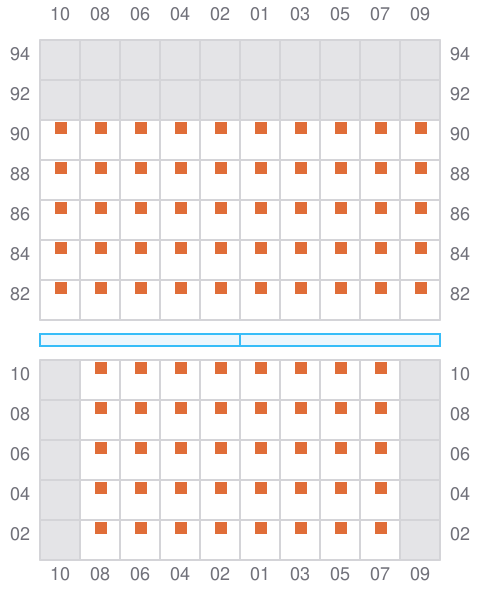

Bay 015 view and slots of CAPE FARO

017 (018)

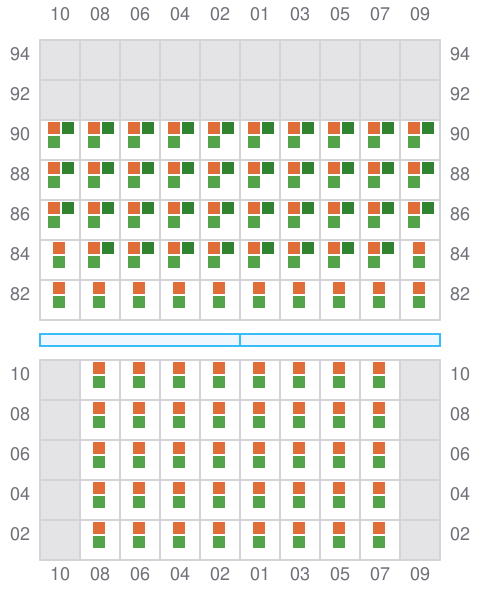

Bay 017 view and slots of CAPE FARO

019

  • / ?

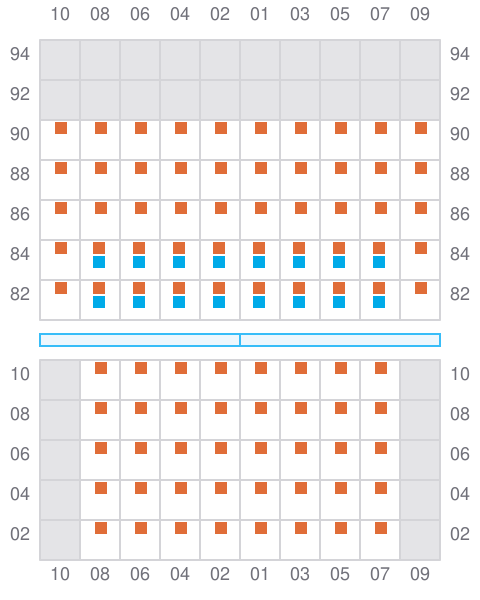

Bay 019 view and slots of CAPE FARO

021 (022)

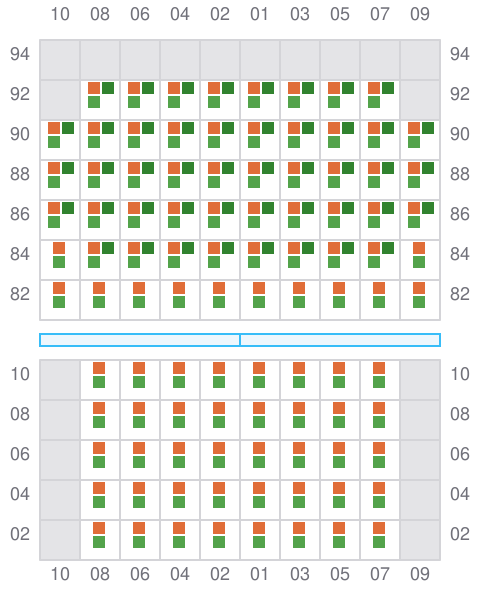

Bay 021 view and slots of CAPE FARO

023

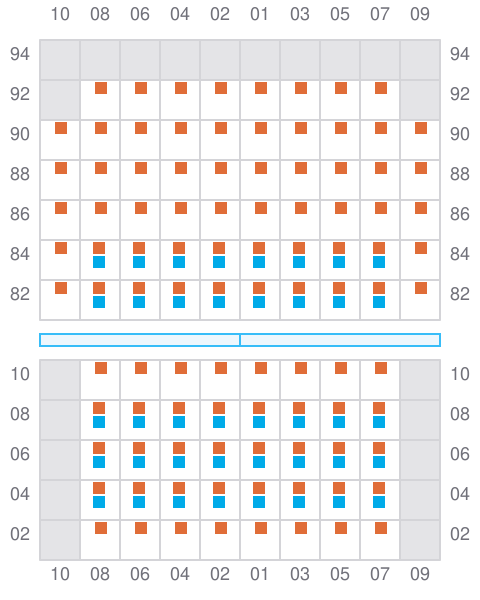

Bay 023 view and slots of CAPE FARO

025 (026)

  • ? /

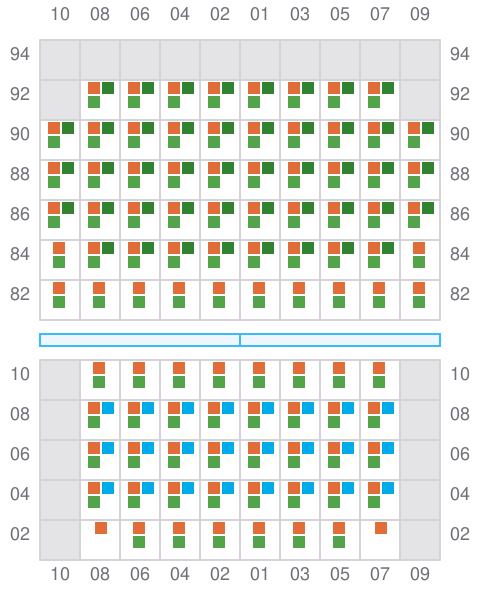

Bay 025 view and slots of CAPE FARO

027

  • / ?

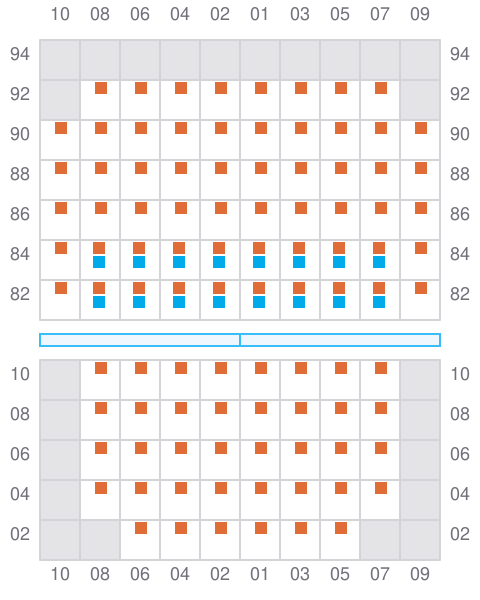

Bay 027 view and slots of CAPE FARO

029 (030)

  • / ?

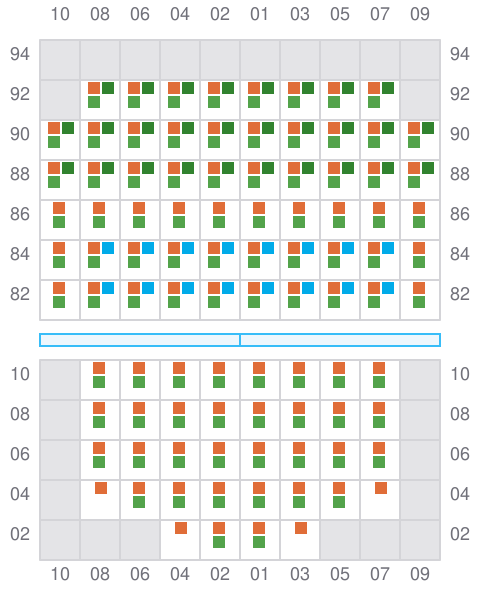

Bay 029 view and slots of CAPE FARO

031

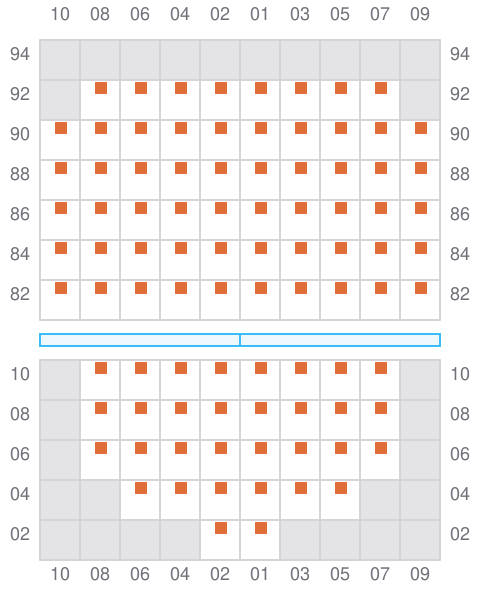

Bay 031 view and slots of CAPE FARO

033 (034)

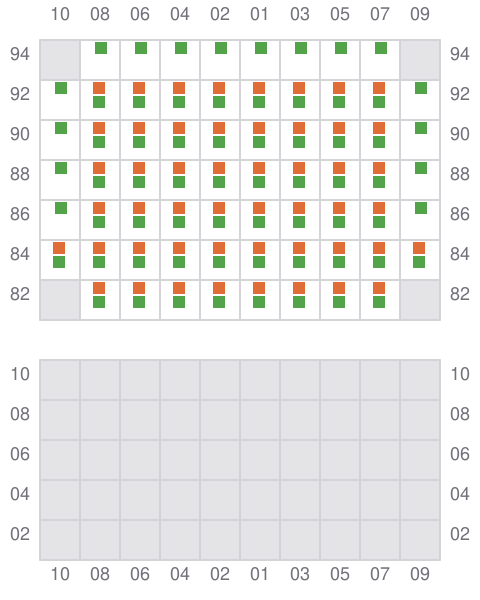

Bay 033 view and slots of CAPE FARO

035

  • / ?

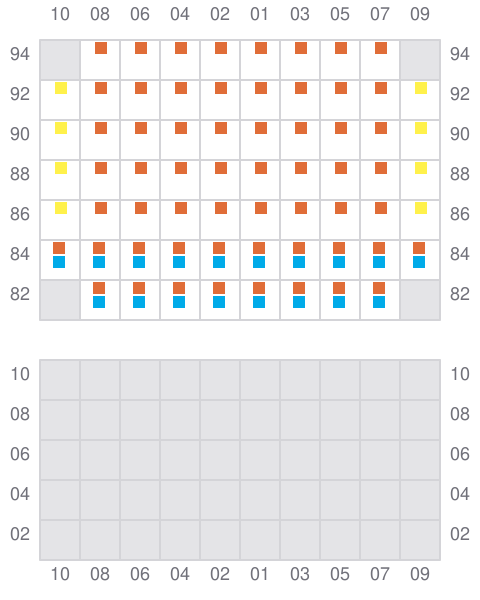

Bay 035 view and slots of CAPE FARO
