CAPE FAWLEY
9379363 | V7ON6 | 9379363 by ********* Last update: Tue Jun 18 2024

General Info

Ship Name:CAPE FAWLEY
IMO Code:9379363
Call Sign:V7ON6
Line Operator:9379363
Class Name for Sister Ships:MCC
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:035
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,440

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of CAPE FAWLEY

Hatch-Covers View

Deck view of CAPE FAWLEY

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

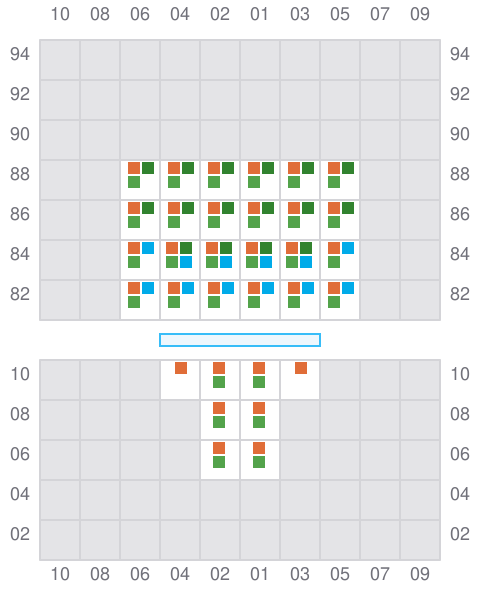

Bay 001 view and slots of CAPE FAWLEY

003

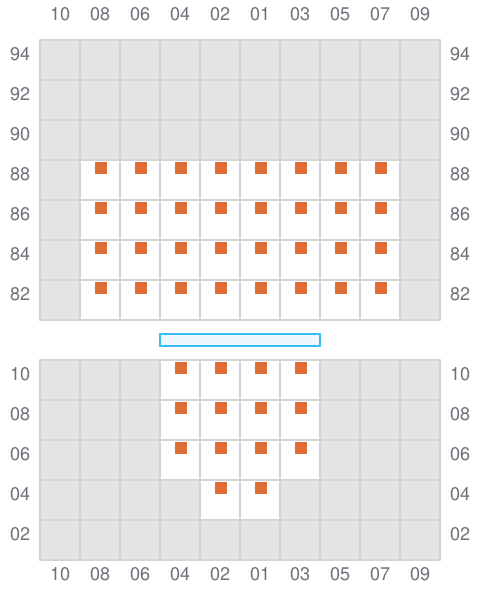

Bay 003 view and slots of CAPE FAWLEY

005 (006)

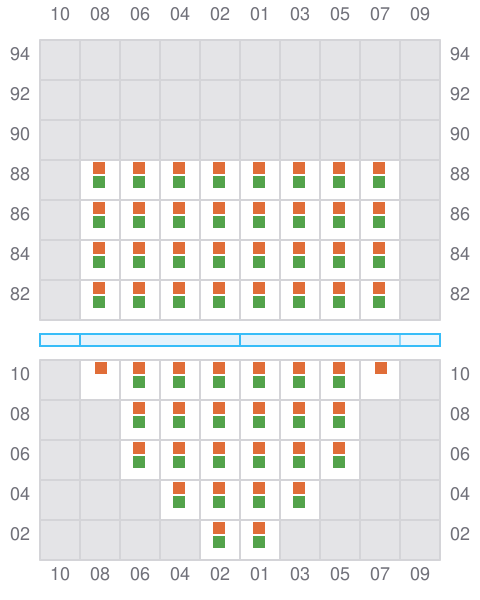

Bay 005 view and slots of CAPE FAWLEY

007

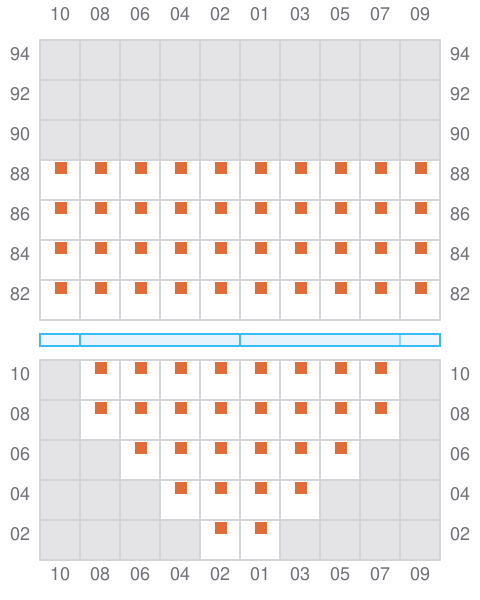

Bay 007 view and slots of CAPE FAWLEY

009 (010)

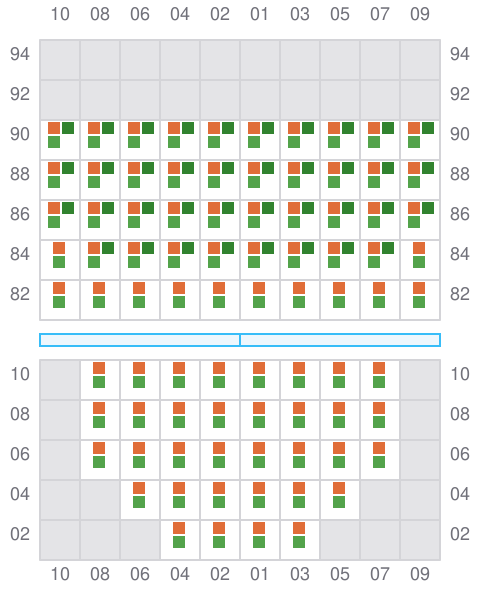

Bay 009 view and slots of CAPE FAWLEY

011

  • / ?

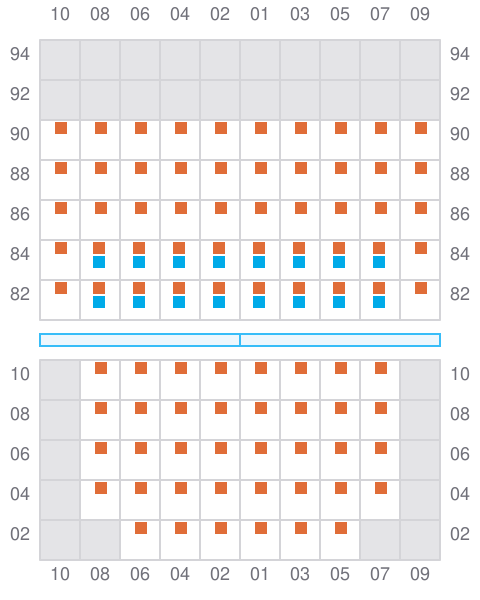

Bay 011 view and slots of CAPE FAWLEY

013 (014)

  • / ?

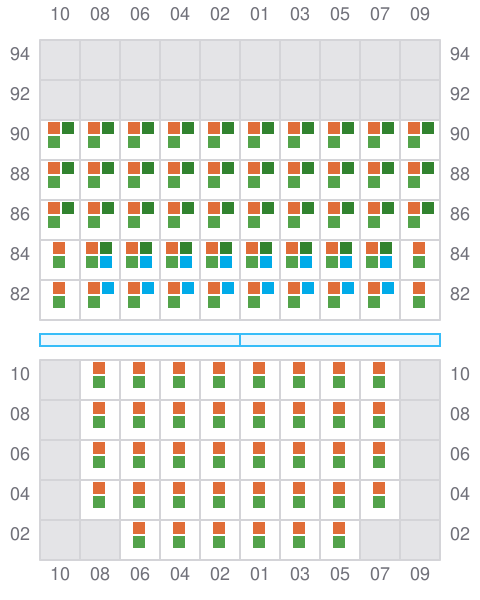

Bay 013 view and slots of CAPE FAWLEY

015

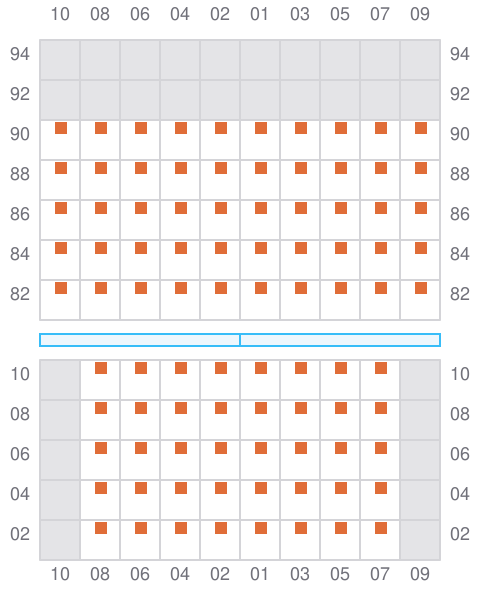

Bay 015 view and slots of CAPE FAWLEY

017 (018)

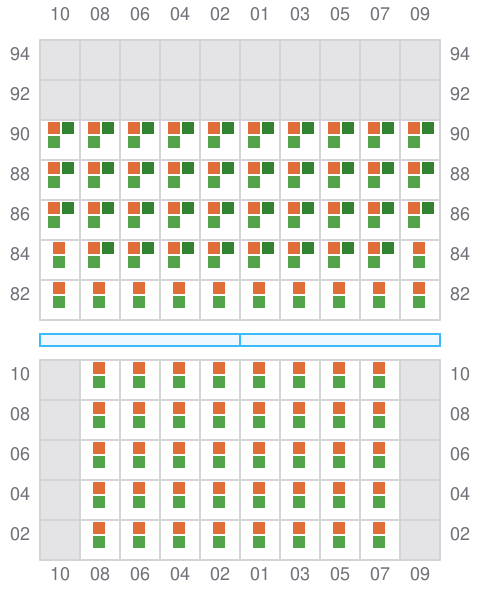

Bay 017 view and slots of CAPE FAWLEY

019

  • / ?

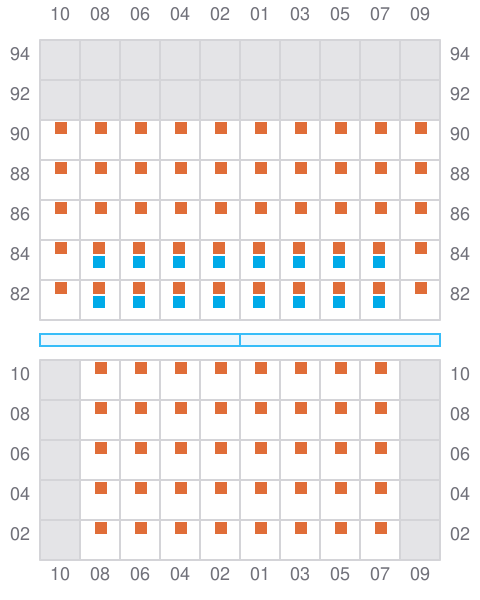

Bay 019 view and slots of CAPE FAWLEY

021 (022)

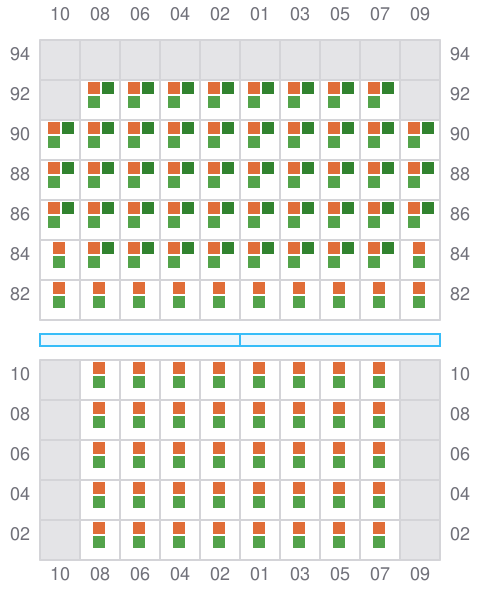

Bay 021 view and slots of CAPE FAWLEY

023

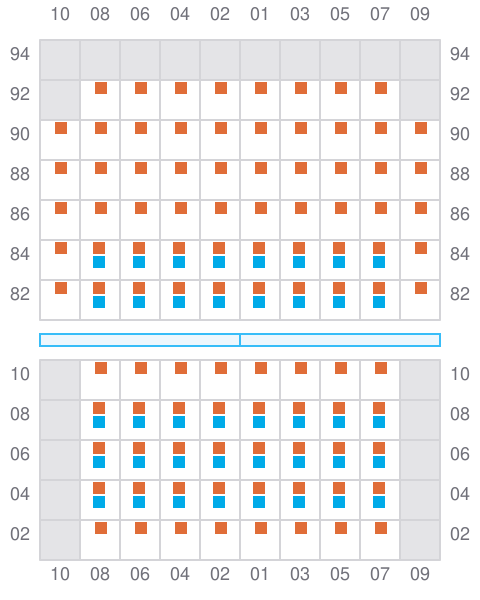

Bay 023 view and slots of CAPE FAWLEY

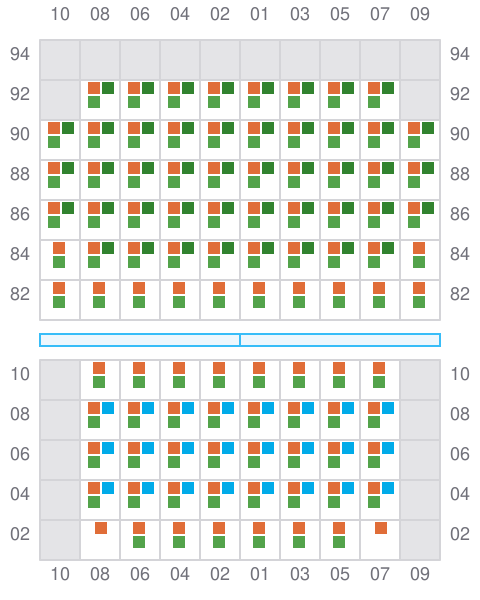

025 (026)

  • ? /
Bay 025 view and slots of CAPE FAWLEY

027

  • / ?

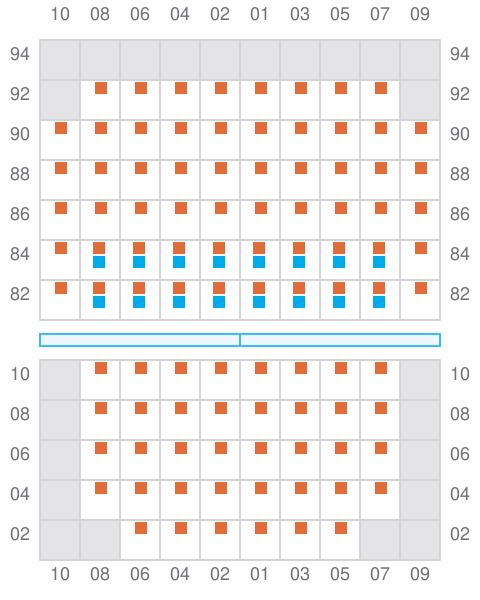

Bay 027 view and slots of CAPE FAWLEY

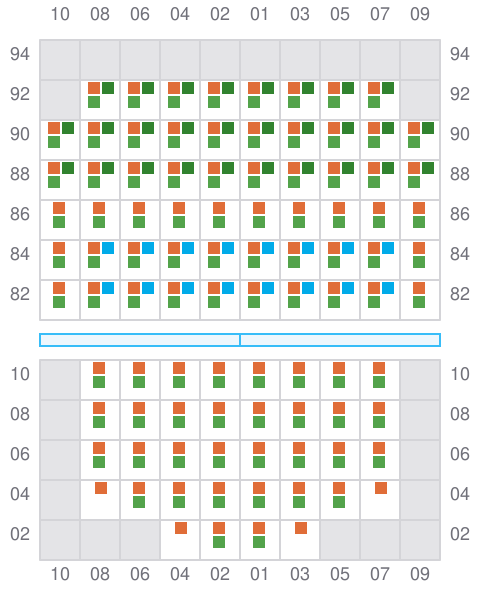

029 (030)

  • / ?
Bay 029 view and slots of CAPE FAWLEY

031

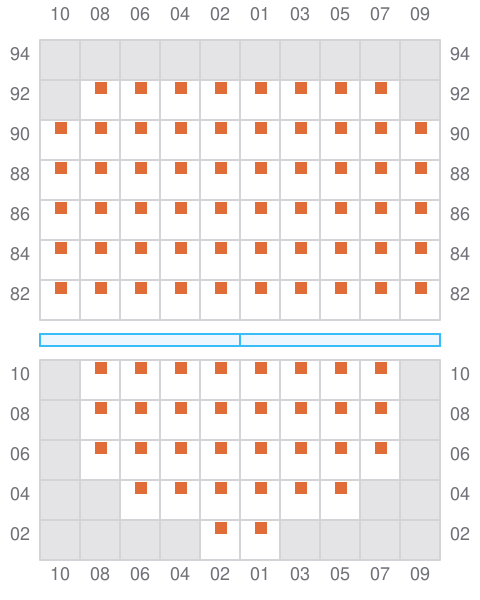

Bay 031 view and slots of CAPE FAWLEY

033 (034)

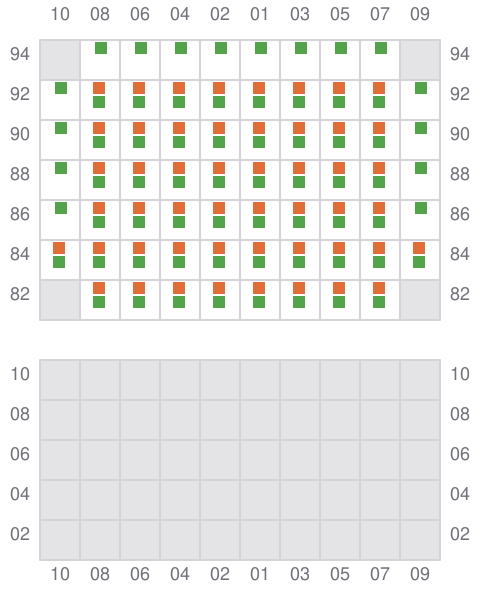

Bay 033 view and slots of CAPE FAWLEY

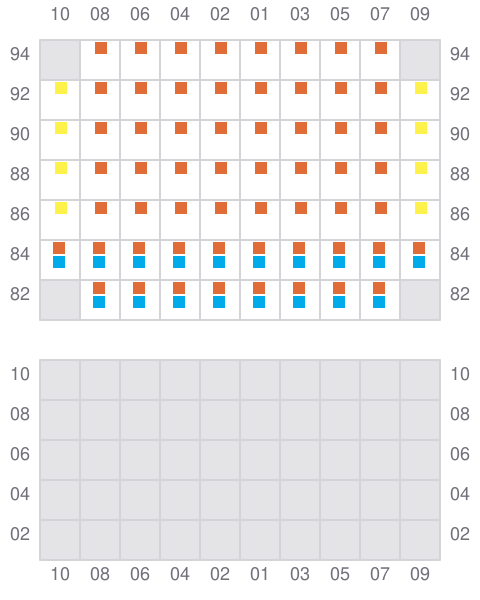

035

  • / ?
Bay 035 view and slots of CAPE FAWLEY
