CAPE FERROL
9359325 | V7PF6 | ONE by *********************** Last update: Mon Jan 27 2025

General Info

Ship Name:CAPE FERROL

IMO Code:9359325

Call Sign:V7PF6

Line Operator:ONE

Class Name for Sister Ships:FCFR

Year Built:2008

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:035

Max ISO Row:10

Center Line Row:No

Max Above ISO Tier:94

Min Above ISO Tier:82

Max Below ISO Tier:10

Min Below ISO Tier:02

Total TEU:1,480

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

Side view of CAPE FERROL

Hatch-Covers View

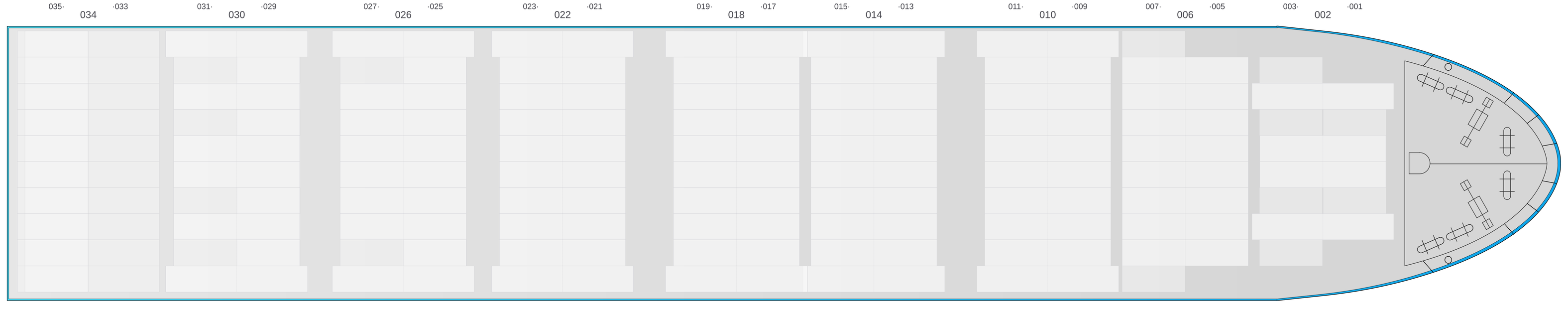

Deck view of CAPE FERROL

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

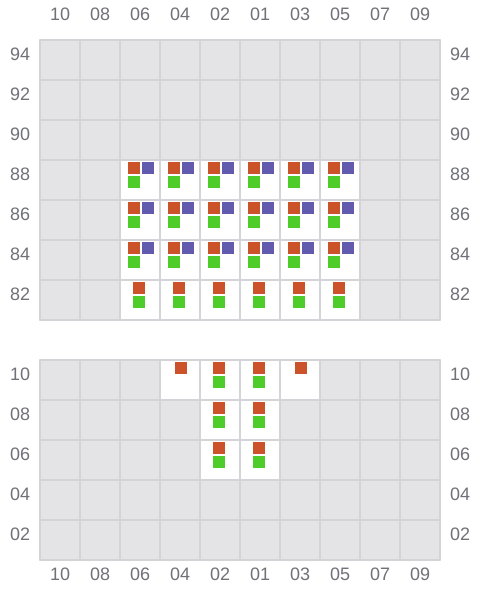

001 (002)

→
→

Bay 001 view and slots of CAPE FERROL

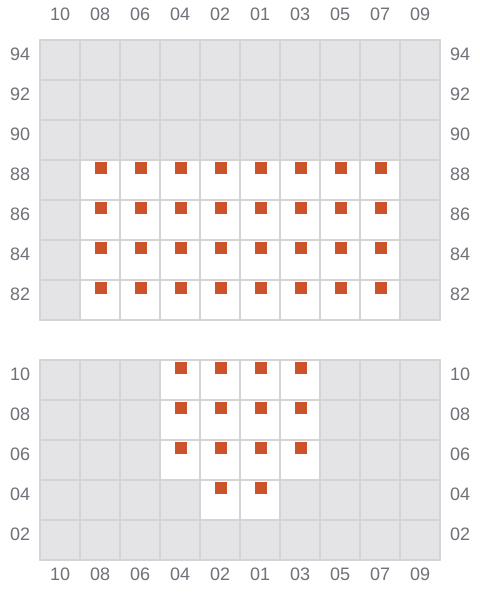

003

←
→

Bay 003 view and slots of CAPE FERROL

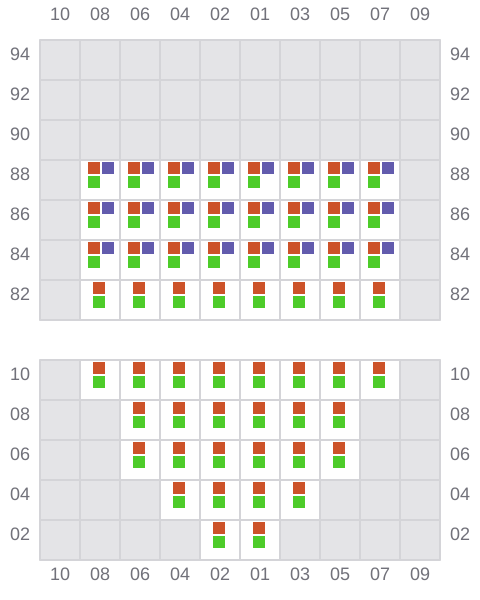

005 (006)

→
→

Bay 005 view and slots of CAPE FERROL

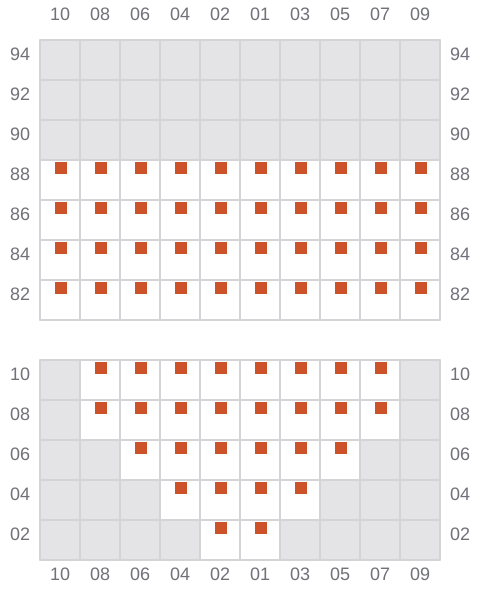

007

←
→

Bay 007 view and slots of CAPE FERROL

009 (010)

→
→

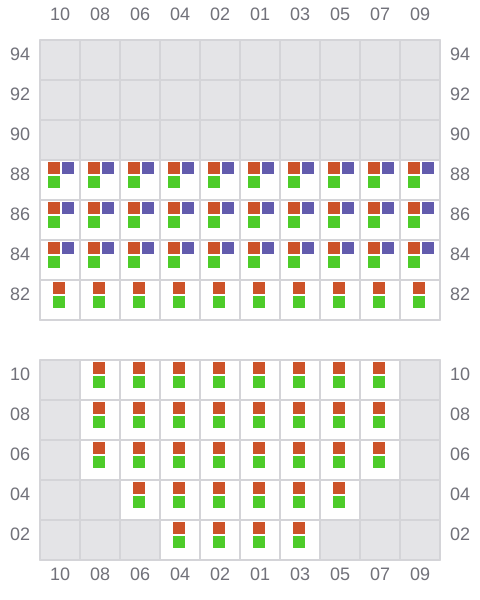

Bay 009 view and slots of CAPE FERROL

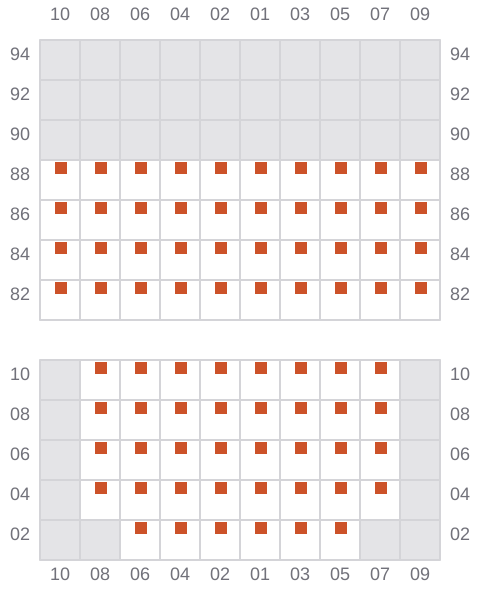

011

←
→

Bay 011 view and slots of CAPE FERROL

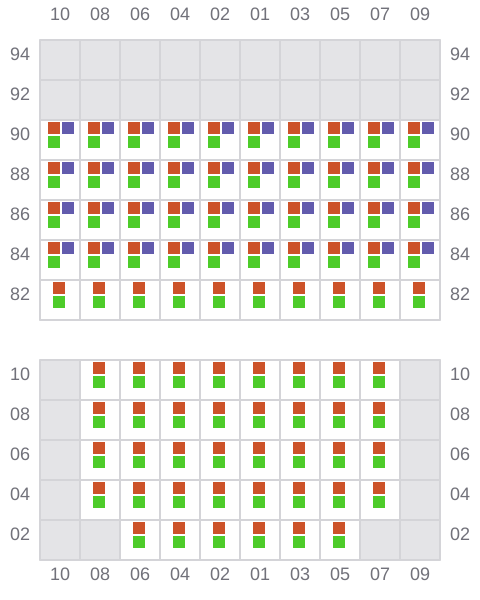

013 (014)

→
→

Bay 013 view and slots of CAPE FERROL

015

←
→

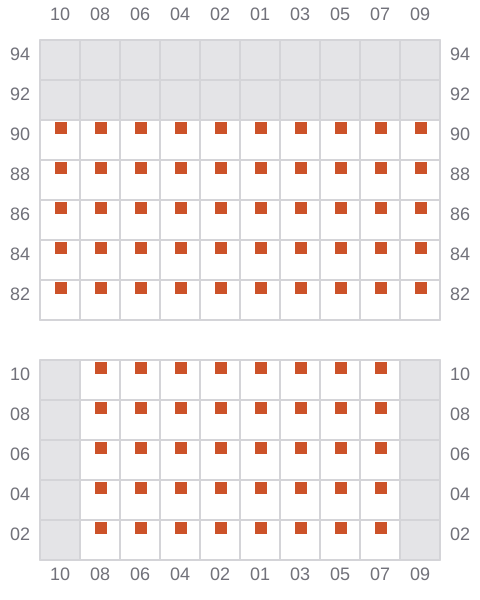

Bay 015 view and slots of CAPE FERROL

017 (018)

→
→

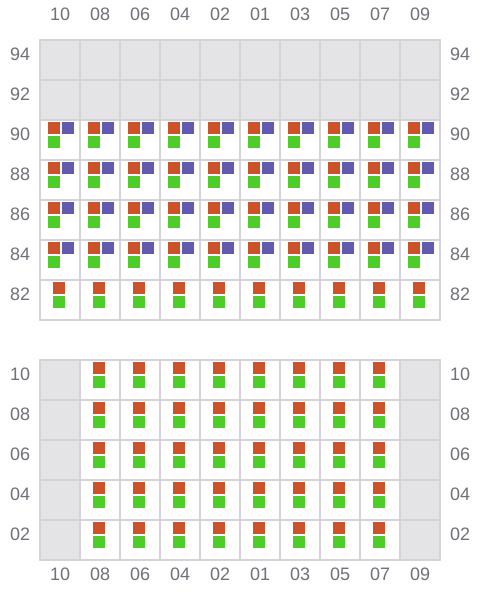

Bay 017 view and slots of CAPE FERROL

019

←
→

Bay 019 view and slots of CAPE FERROL

021 (022)

→
→

Bay 021 view and slots of CAPE FERROL

023

←
→

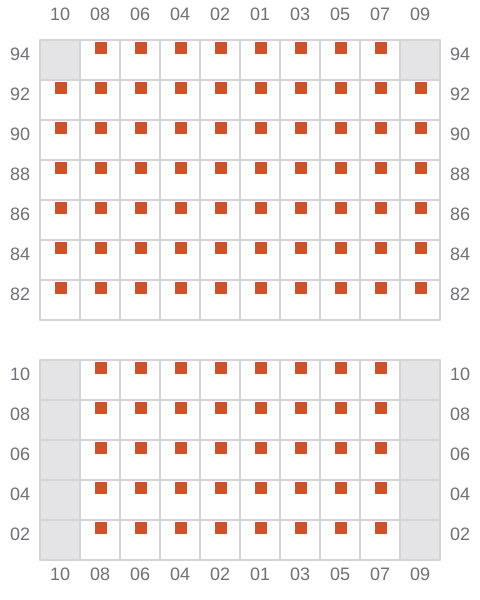

Bay 023 view and slots of CAPE FERROL

025 (026)

→
→

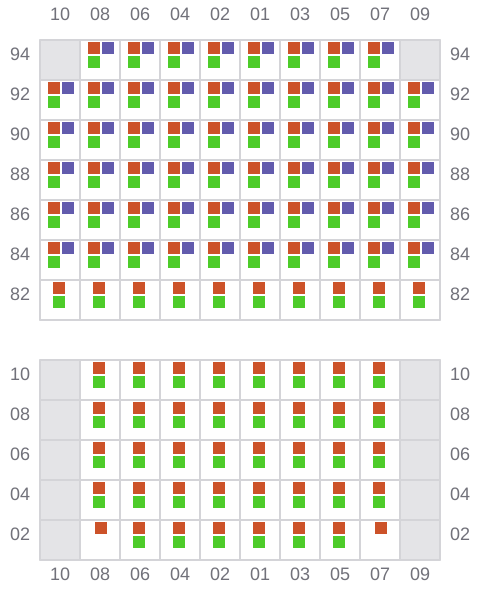

Bay 025 view and slots of CAPE FERROL

027

←
→

Bay 027 view and slots of CAPE FERROL

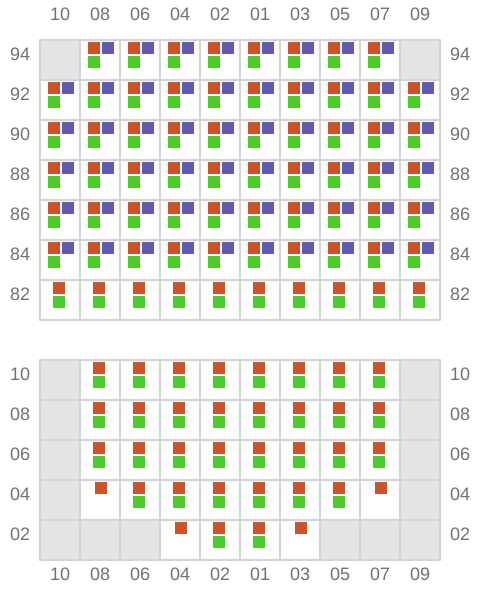

029 (030)

→
→

Bay 029 view and slots of CAPE FERROL

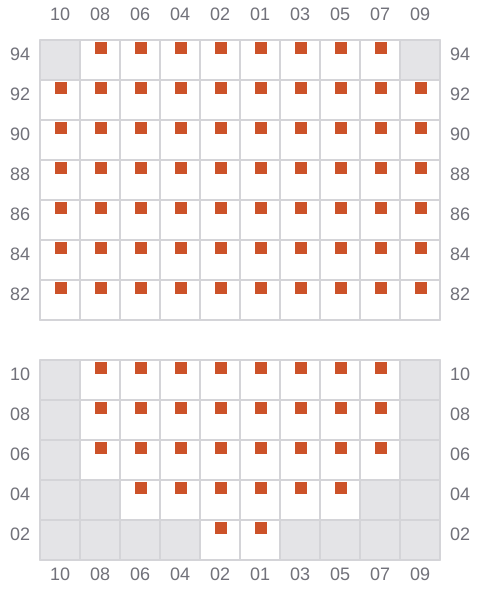

031

←
→

Bay 031 view and slots of CAPE FERROL

033 (034)

^→ / _?
^→ / _?

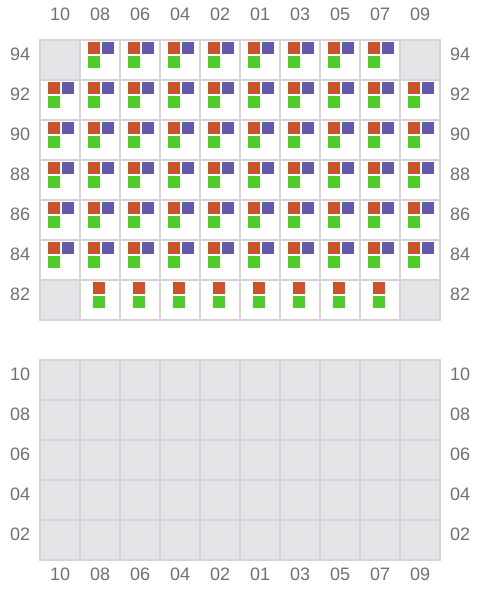

Bay 033 view and slots of CAPE FERROL

035

^← / _?
^→ / _?

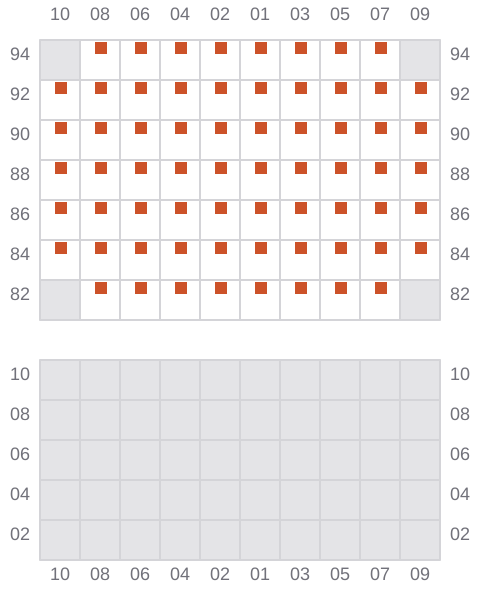

Bay 035 view and slots of CAPE FERROL
