CAPE FERROL
9359325 | V7PF6 | MCC by ********* Last update: Wed Jun 19 2024

General Info

Ship Name:CAPE FERROL
IMO Code:9359325
Call Sign:V7PF6
Line Operator:MCC
Class Name for Sister Ships:CAPEFERROL
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:035
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,440

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

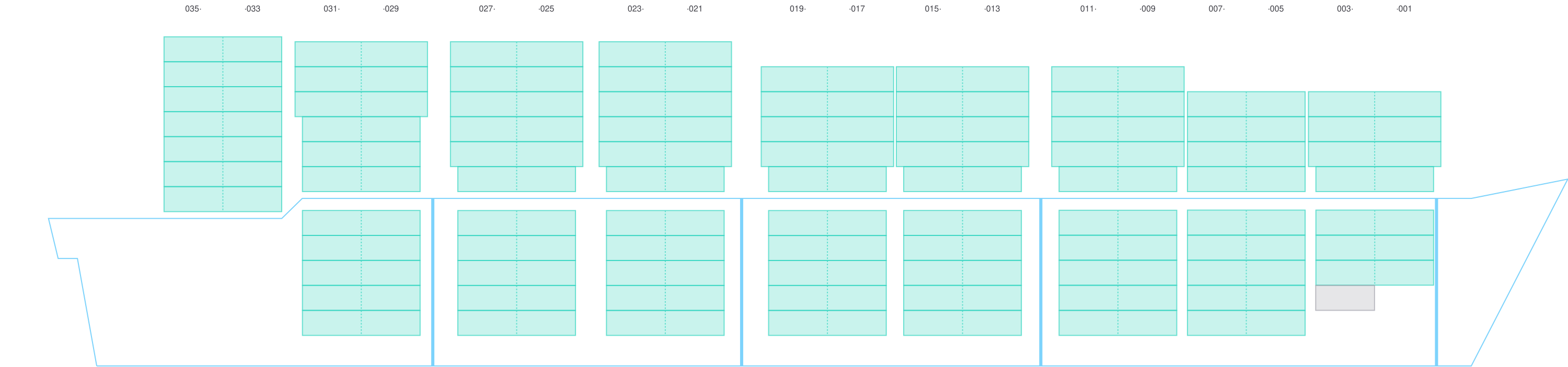

Side View

Side view of CAPE FERROL

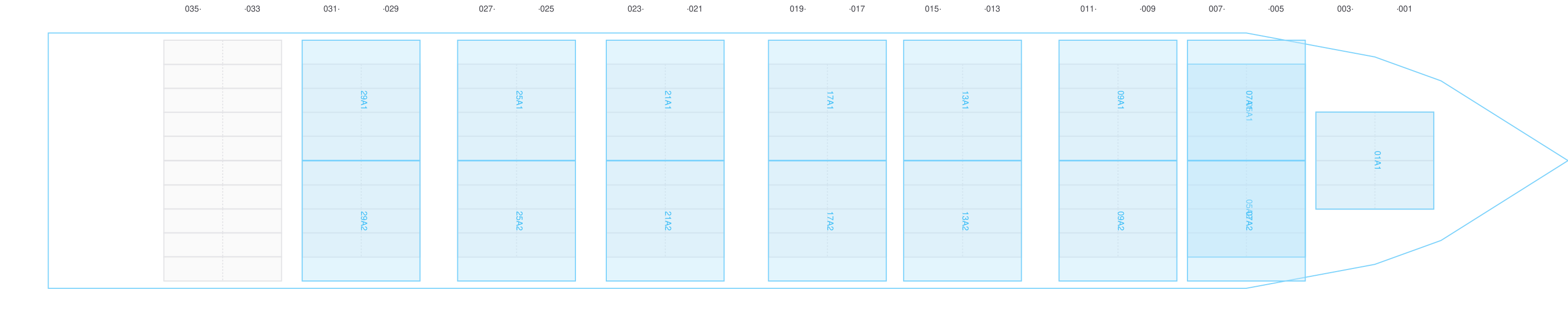

Hatch-Covers View

Deck view of CAPE FERROL

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

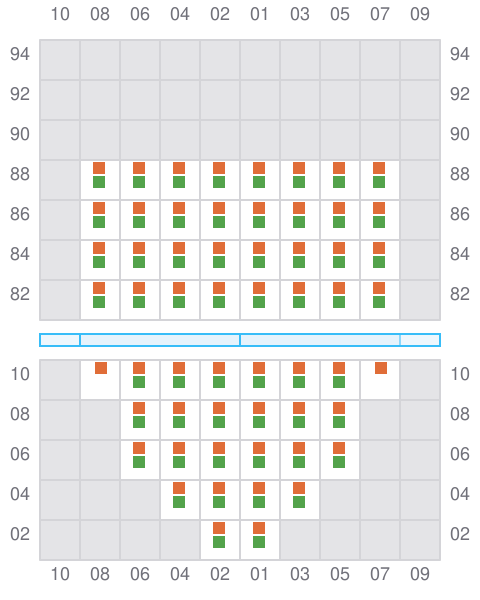

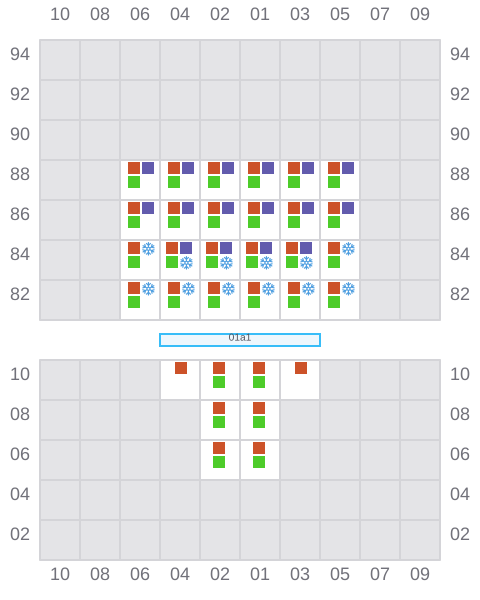

001 (002)

Bay 001 view and slots of CAPE FERROL

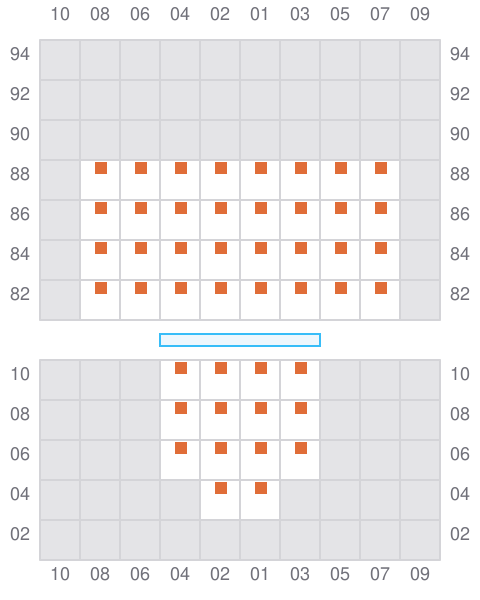

003

Bay 003 view and slots of CAPE FERROL

005 (006)

Bay 005 view and slots of CAPE FERROL

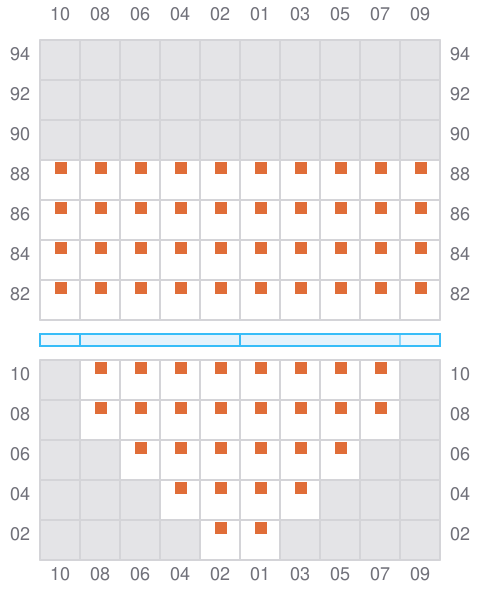

007

Bay 007 view and slots of CAPE FERROL

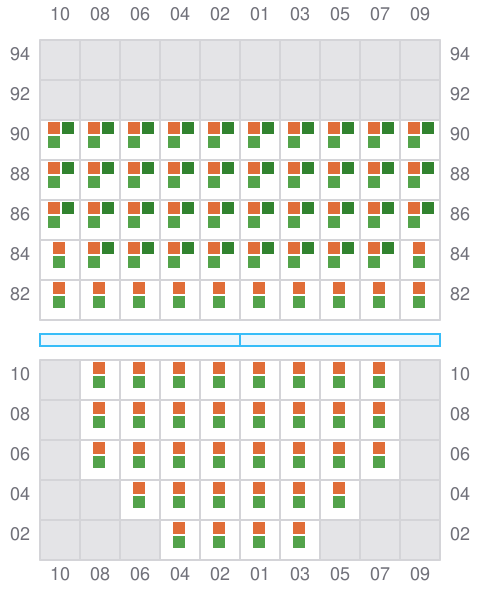

009 (010)

Bay 009 view and slots of CAPE FERROL

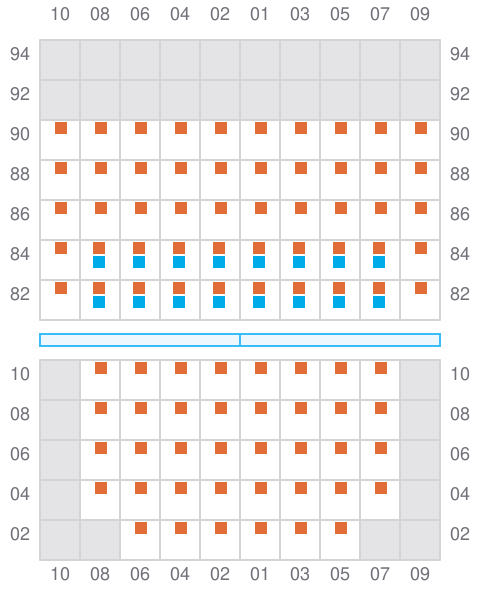

011

  • / ?
Bay 011 view and slots of CAPE FERROL

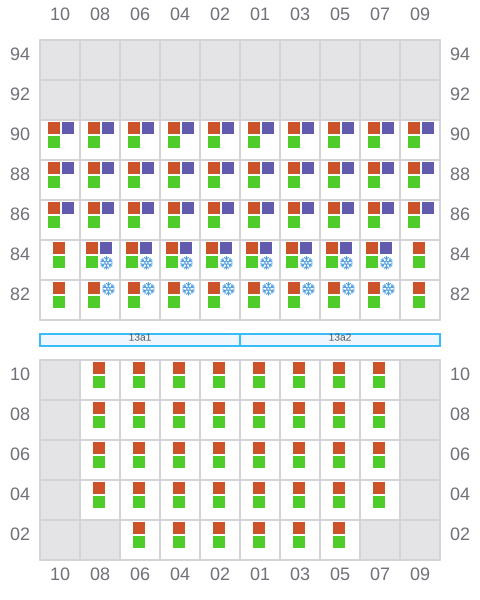

013 (014)

  • / ?
Bay 013 view and slots of CAPE FERROL

015

Bay 015 view and slots of CAPE FERROL

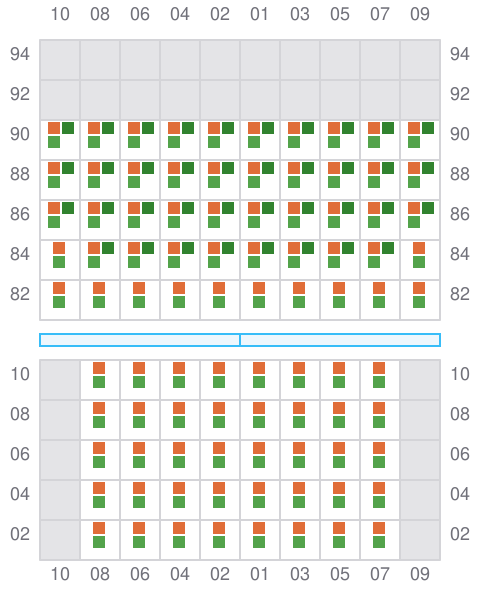

017 (018)

Bay 017 view and slots of CAPE FERROL

019

  • / ?
Bay 019 view and slots of CAPE FERROL

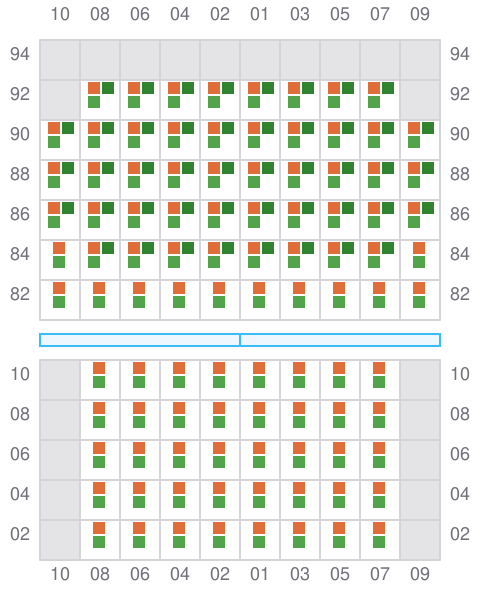

021 (022)

Bay 021 view and slots of CAPE FERROL

023

Bay 023 view and slots of CAPE FERROL

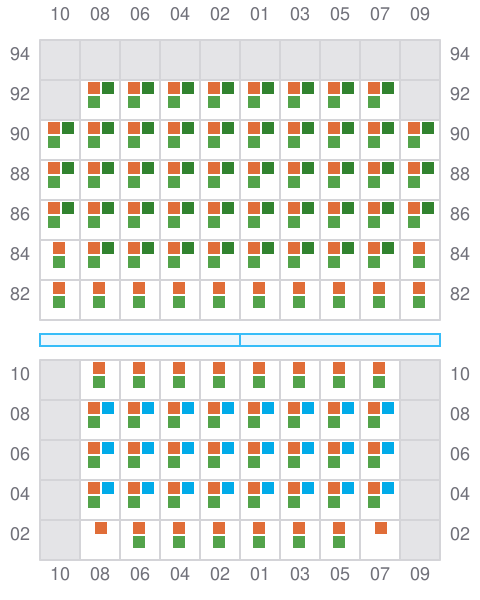

025 (026)

  • ? /
Bay 025 view and slots of CAPE FERROL

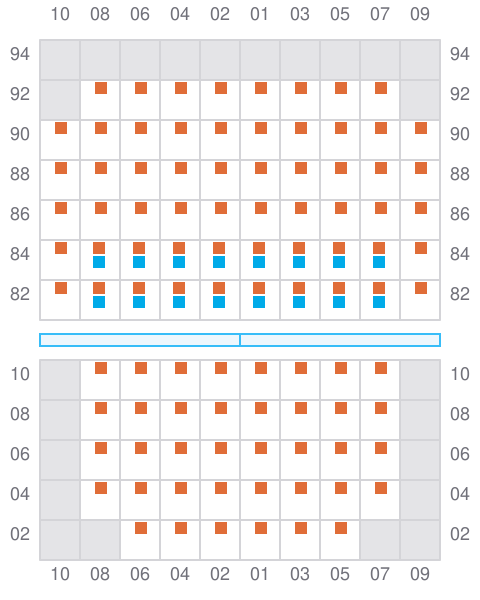

027

  • / ?
Bay 027 view and slots of CAPE FERROL

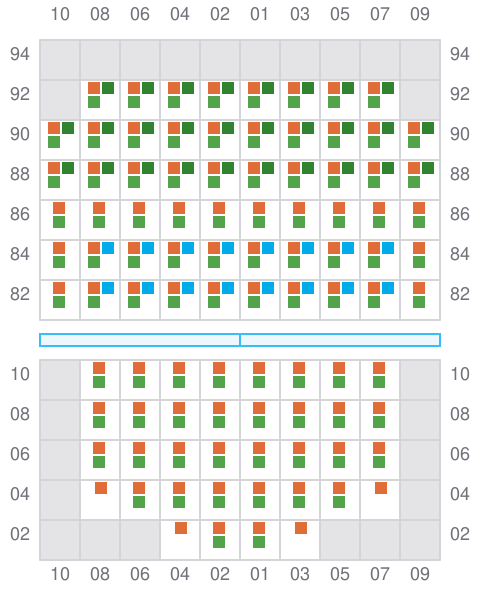

029 (030)

  • / ?
Bay 029 view and slots of CAPE FERROL

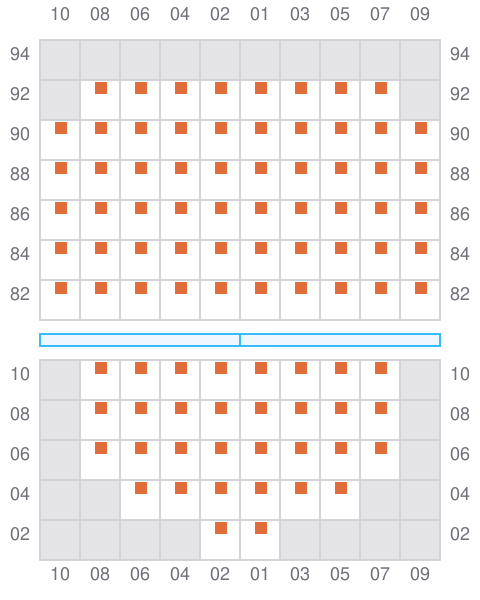

031

Bay 031 view and slots of CAPE FERROL

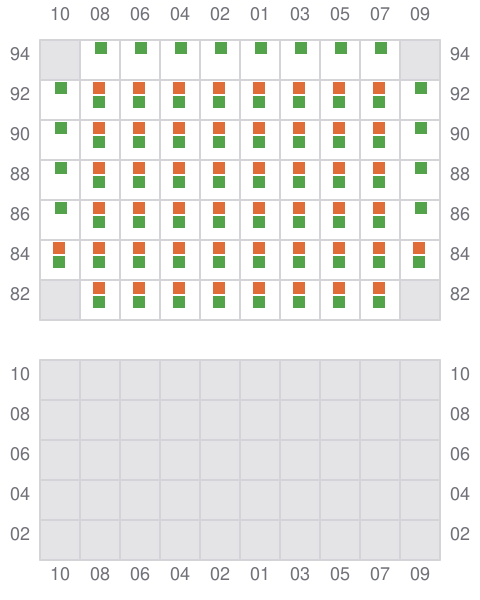

033 (034)

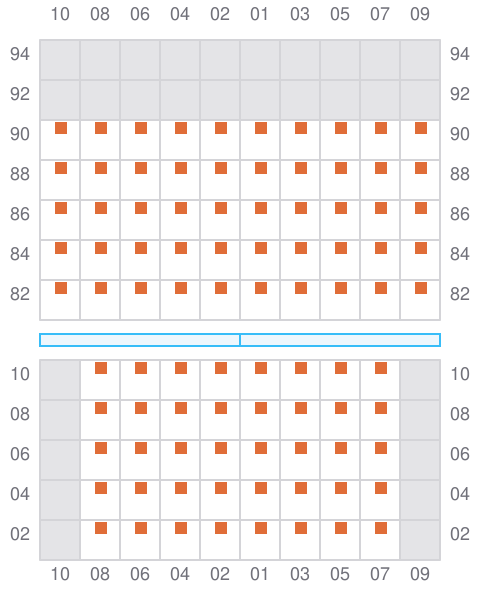

Bay 033 view and slots of CAPE FERROL

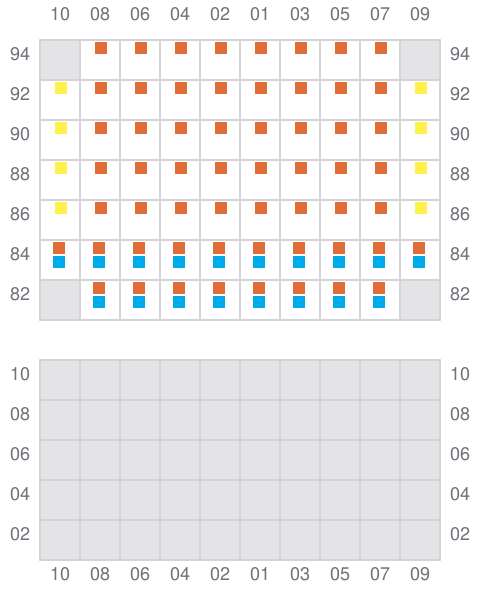

035

  • / ?
Bay 035 view and slots of CAPE FERROL
