CAPE FLINT
9347724 | V7KI8 | 9347724 by ********* Last update: Fri Mar 22 2024
General Info
Ship Name:CAPE FLINT
IMO Code:9347724
Call Sign:V7KI8
Line Operator:9347724
Class Name for Sister Ships:2JZ
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:035
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,440
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

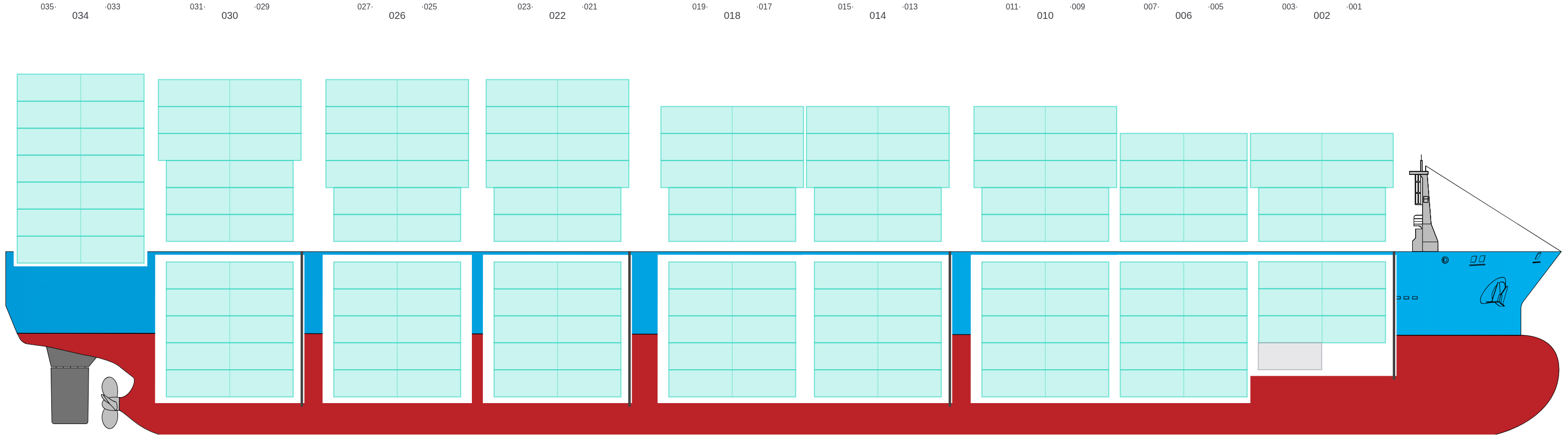

Side View

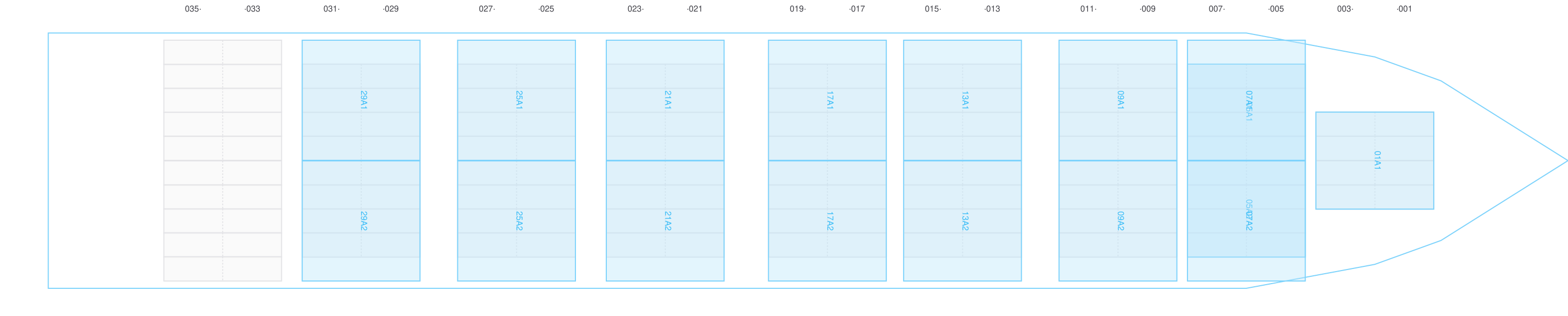

Hatch-Covers View

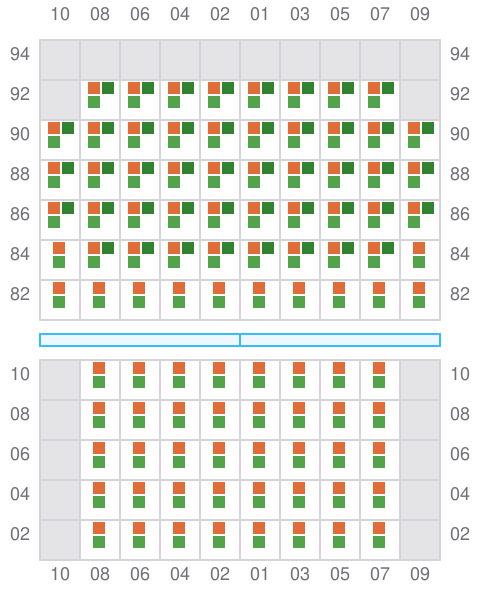

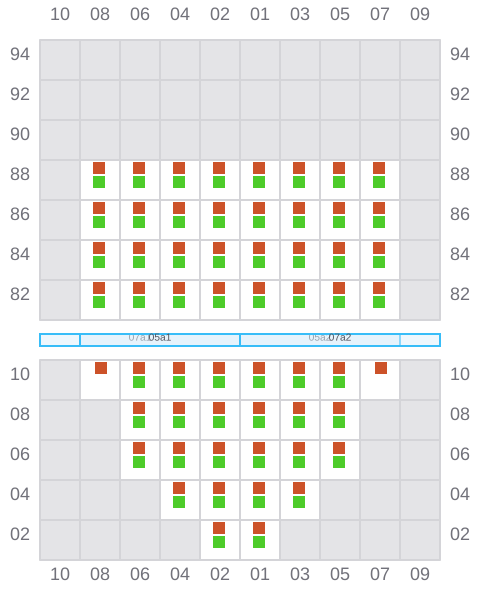

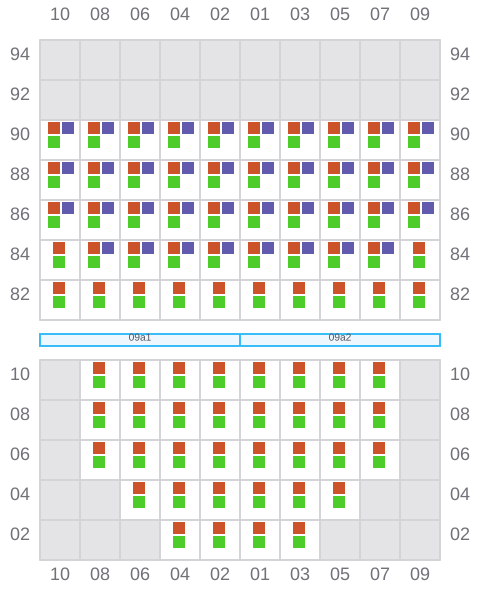

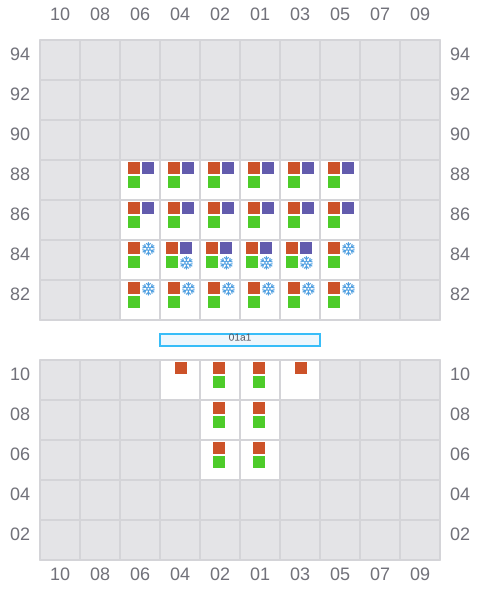

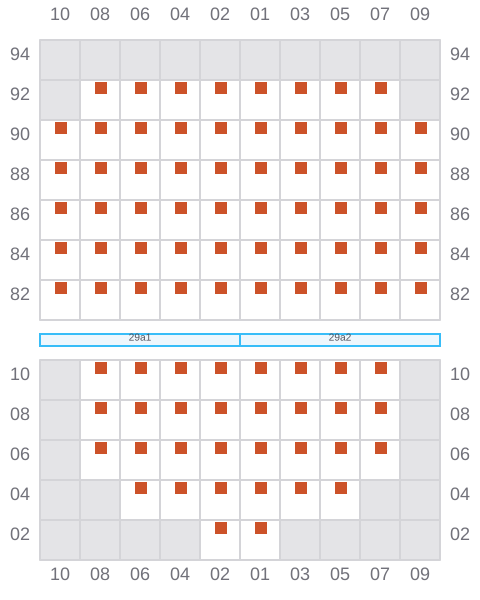

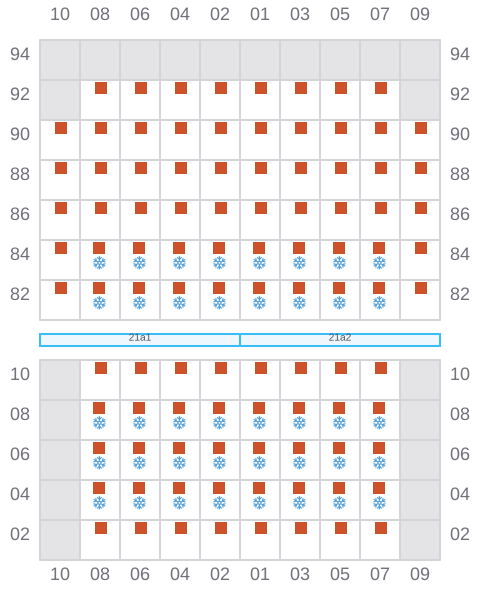

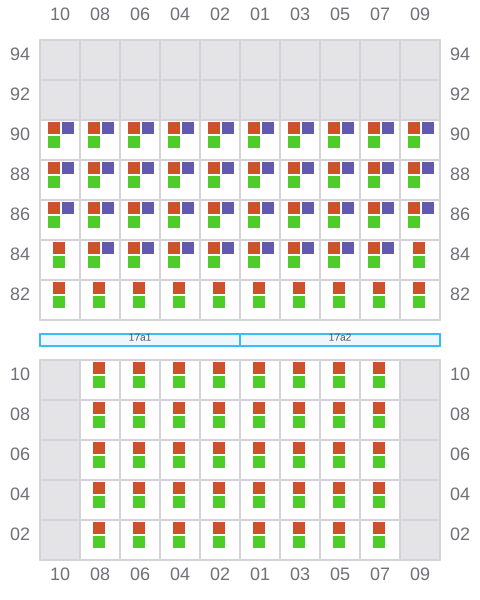

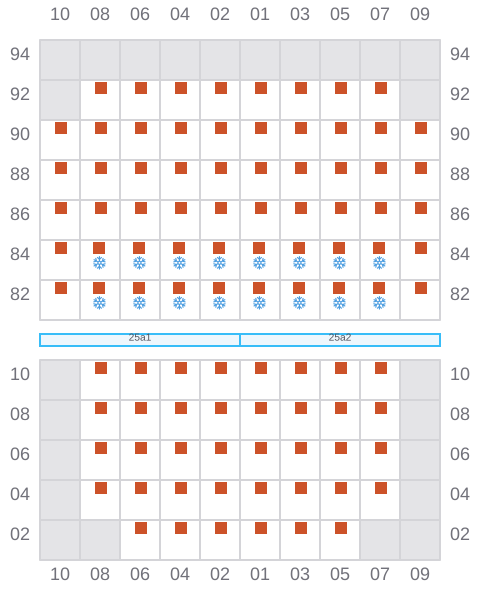

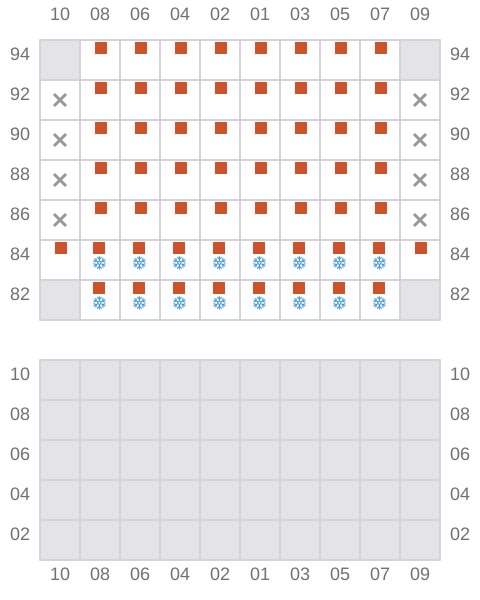

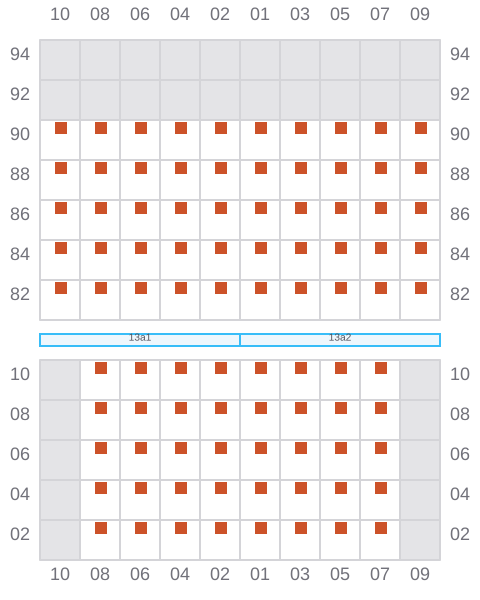

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

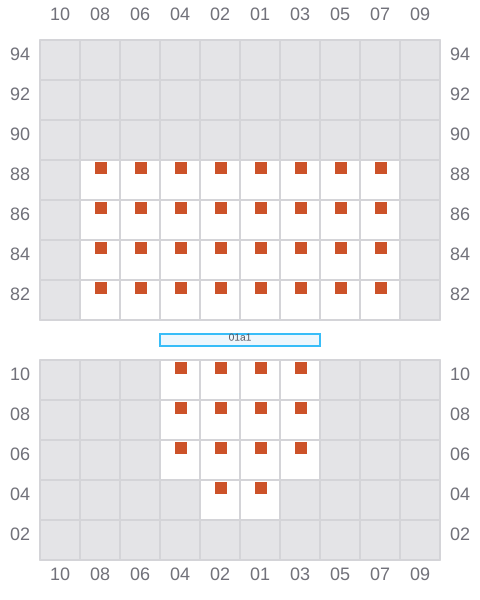

001 (002)
- →
- ← / ?
003
- ←

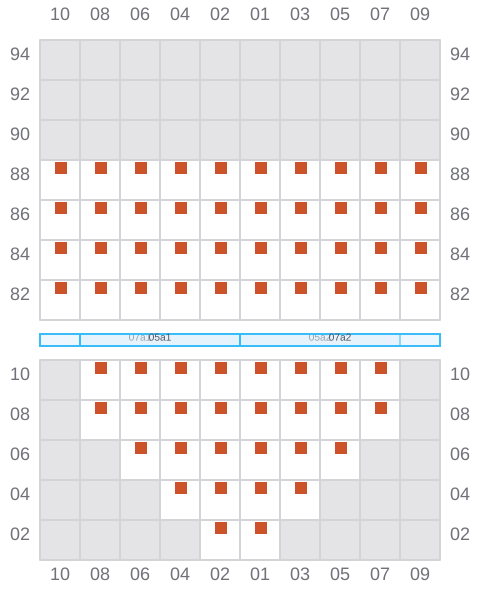

005 (006)
- →
007
- ←

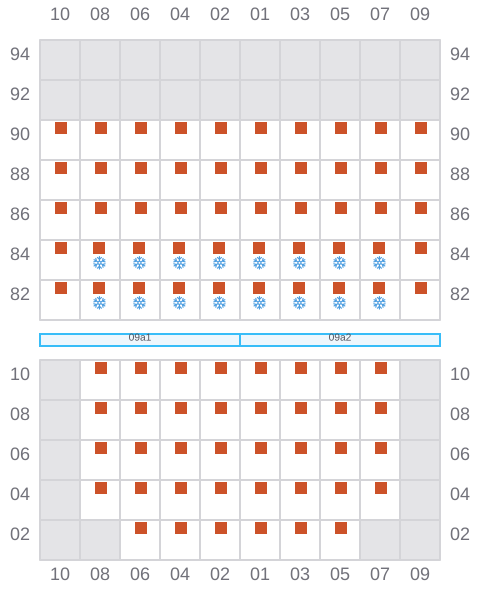

009 (010)
- →
011
- ←
- → / ?

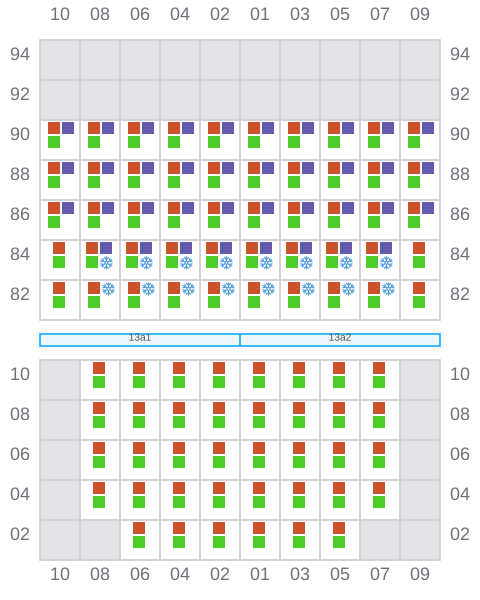

013 (014)
- →
- ← / ?
015
- ←

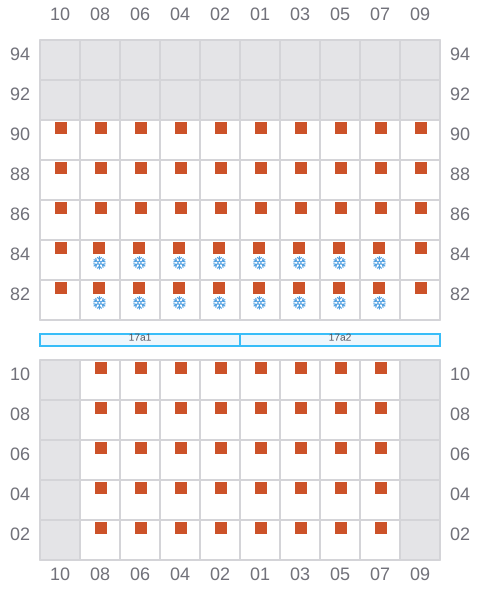

017 (018)
- →
019
- ←
- → / ?
021 (022)
- →
023
- ←
- →

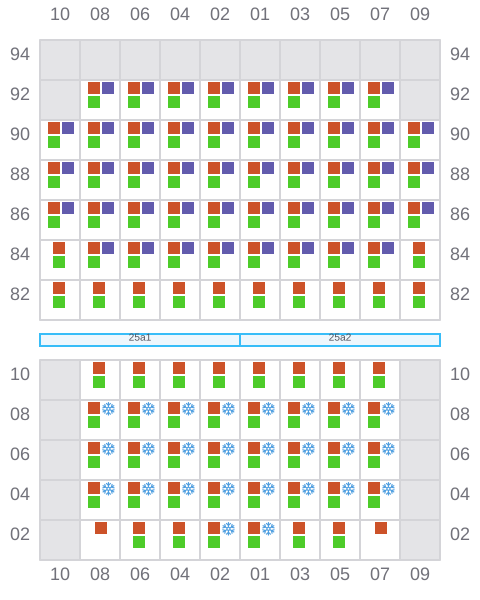

025 (026)
- →
- ? / ←
027
- ←
- → / ?

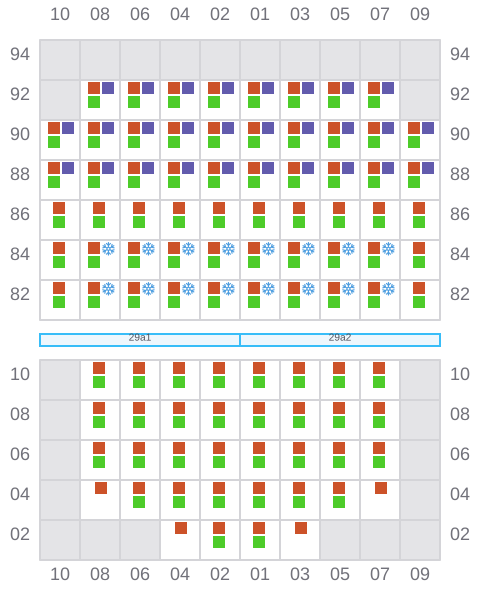

029 (030)
- →
- ← / ?
031
- ←
033 (034)
- → / ?

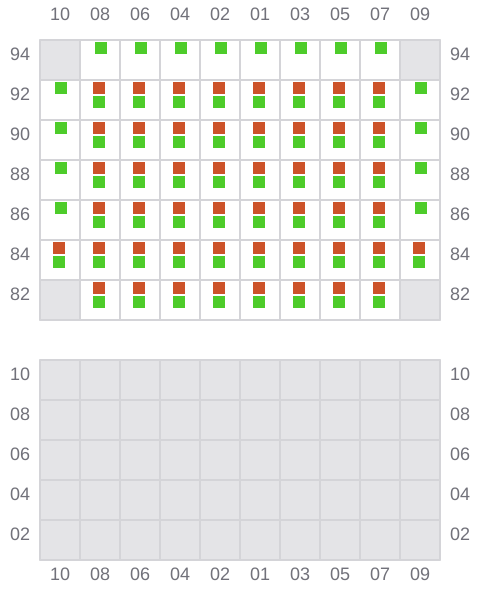

035
- ← / ?
- → / ?
