CAPE FLORES
9324162 | V7JA9 | 9324162 by ********* Last update: Mon May 20 2024
General Info
Ship Name:CAPE FLORES
IMO Code:9324162
Call Sign:V7JA9
Line Operator:9324162
Class Name for Sister Ships:CAPE FLORES
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:031
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,180
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

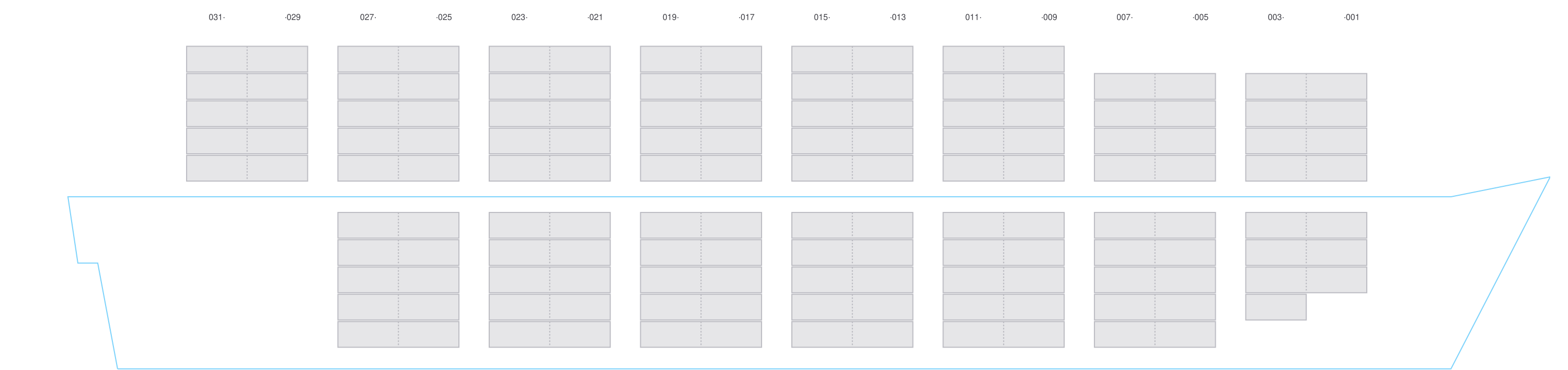

Side View
![Side view of CAPE FLORES](/vessel-images/4610f5db-0922-45c6-925f-c4f828e1ac69-sideView.png?v=1716230755249)
Hatch-Covers View
![Deck view of CAPE FLORES](/vessel-images/4610f5db-0922-45c6-925f-c4f828e1ac69-deckView.png?v=1716230755249)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

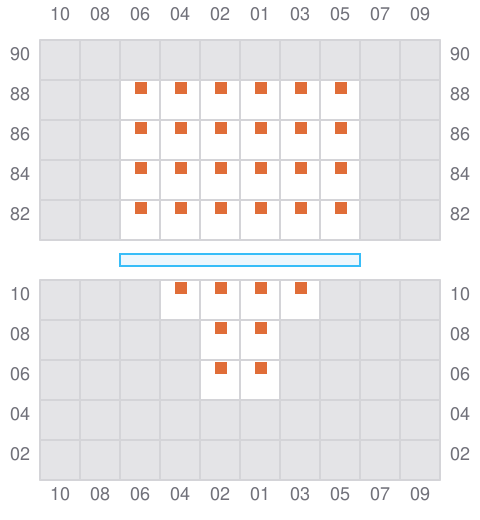

001
- →
![Bay 001 view and slots of CAPE FLORES](/vessel-images/4610f5db-0922-45c6-925f-c4f828e1ac69-b001.png?v=1716230755249)
003 (002)
- ←
![Bay 003 view and slots of CAPE FLORES](/vessel-images/4610f5db-0922-45c6-925f-c4f828e1ac69-b003.png?v=1716230755249)

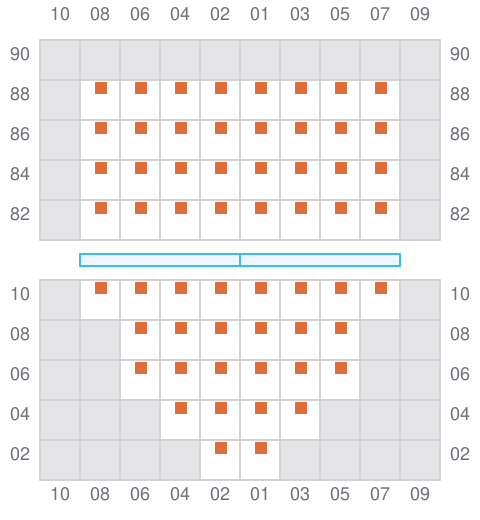

005
- →
![Bay 005 view and slots of CAPE FLORES](/vessel-images/4610f5db-0922-45c6-925f-c4f828e1ac69-b005.png?v=1716230755249)

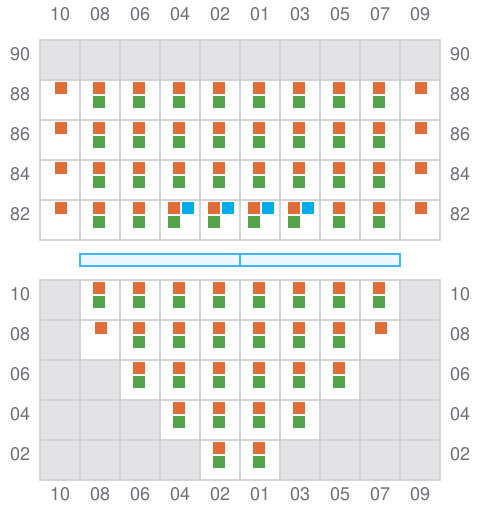

007 (006)
- ←
![Bay 007 view and slots of CAPE FLORES](/vessel-images/4610f5db-0922-45c6-925f-c4f828e1ac69-b007.png?v=1716230755249)

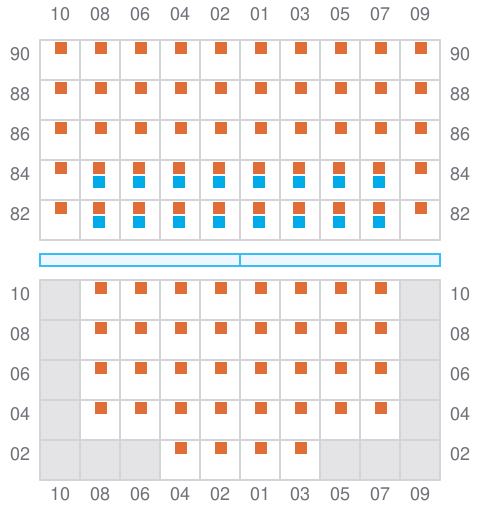

009
- →
![Bay 009 view and slots of CAPE FLORES](/vessel-images/4610f5db-0922-45c6-925f-c4f828e1ac69-b009.png?v=1716230755249)
011 (010)
- ←
![Bay 011 view and slots of CAPE FLORES](/vessel-images/4610f5db-0922-45c6-925f-c4f828e1ac69-b011.png?v=1716230755249)
013
- →
![Bay 013 view and slots of CAPE FLORES](/vessel-images/4610f5db-0922-45c6-925f-c4f828e1ac69-b013.png?v=1716230755249)

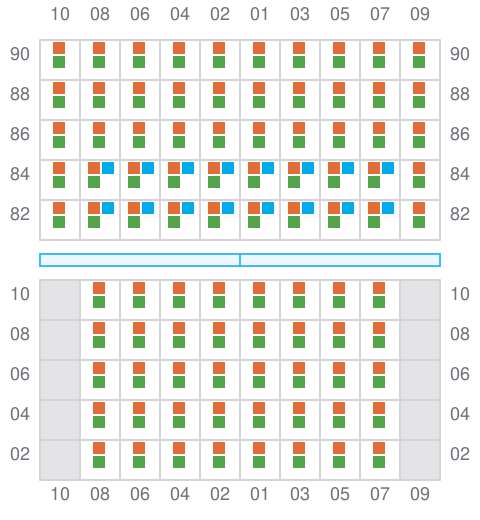

015 (014)
- ←
![Bay 015 view and slots of CAPE FLORES](/vessel-images/4610f5db-0922-45c6-925f-c4f828e1ac69-b015.png?v=1716230755249)
017
- →
![Bay 017 view and slots of CAPE FLORES](/vessel-images/4610f5db-0922-45c6-925f-c4f828e1ac69-b017.png?v=1716230755249)
019 (018)
- ←
![Bay 019 view and slots of CAPE FLORES](/vessel-images/4610f5db-0922-45c6-925f-c4f828e1ac69-b019.png?v=1716230755249)

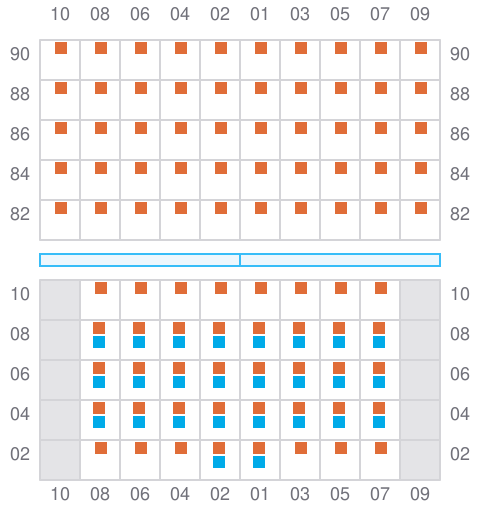

021
- →
![Bay 021 view and slots of CAPE FLORES](/vessel-images/4610f5db-0922-45c6-925f-c4f828e1ac69-b021.png?v=1716230755249)
023 (022)
- ←
![Bay 023 view and slots of CAPE FLORES](/vessel-images/4610f5db-0922-45c6-925f-c4f828e1ac69-b023.png?v=1716230755249)
025
- →
![Bay 025 view and slots of CAPE FLORES](/vessel-images/4610f5db-0922-45c6-925f-c4f828e1ac69-b025.png?v=1716230755249)
027 (026)
- ←
![Bay 027 view and slots of CAPE FLORES](/vessel-images/4610f5db-0922-45c6-925f-c4f828e1ac69-b027.png?v=1716230755249)
029
- → / ?
![Bay 029 view and slots of CAPE FLORES](/vessel-images/4610f5db-0922-45c6-925f-c4f828e1ac69-b029.png?v=1716230755249)
031 (030)
- ← / ?
![Bay 031 view and slots of CAPE FLORES](/vessel-images/4610f5db-0922-45c6-925f-c4f828e1ac69-b031.png?v=1716230755249)
