CAPE FORBY
9356842 | V7KR5 | 9356842 by ********* Last update: Wed Jun 19 2024

General Info

Ship Name:CAPE FORBY
IMO Code:9356842
Call Sign:V7KR5
Line Operator:9356842
Class Name for Sister Ships:MCC
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:035
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,440

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

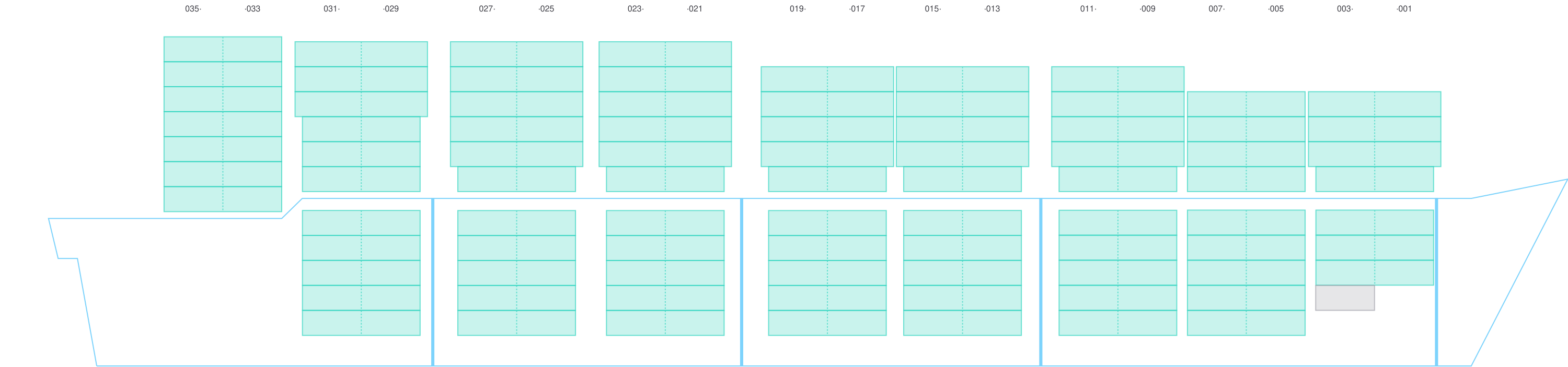

Side View

Side view of CAPE FORBY

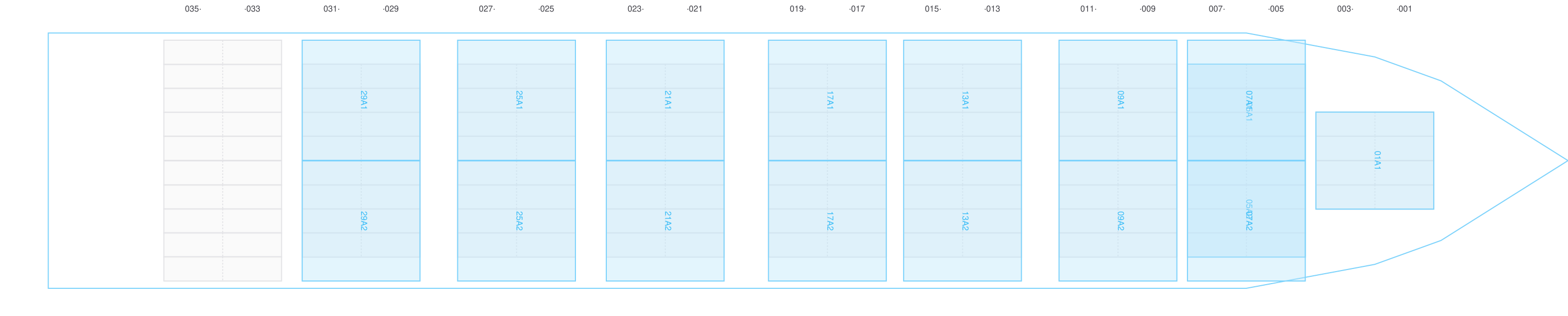

Hatch-Covers View

Deck view of CAPE FORBY

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

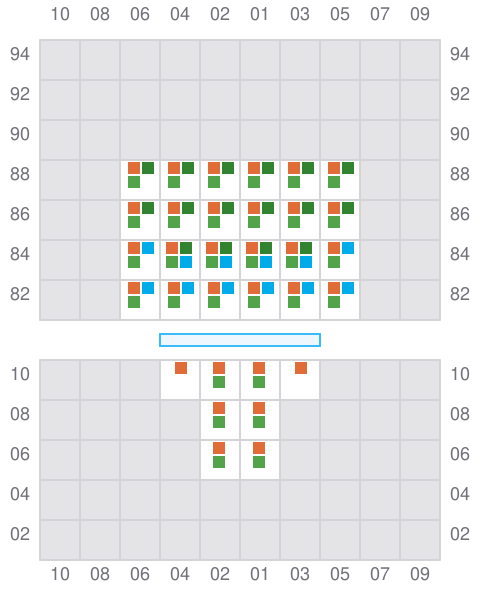

Bay 001 view and slots of CAPE FORBY

003

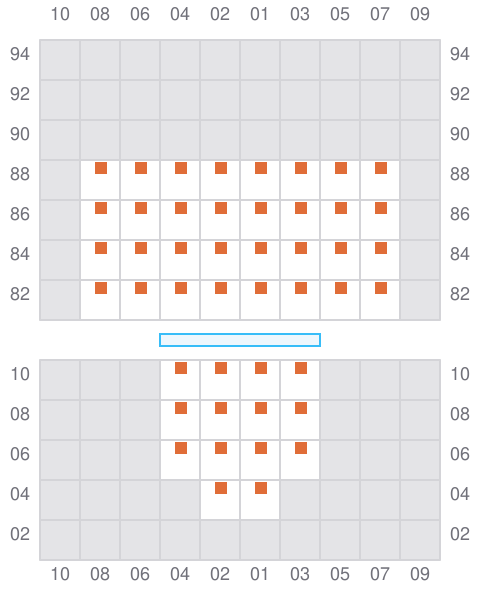

Bay 003 view and slots of CAPE FORBY

005 (006)

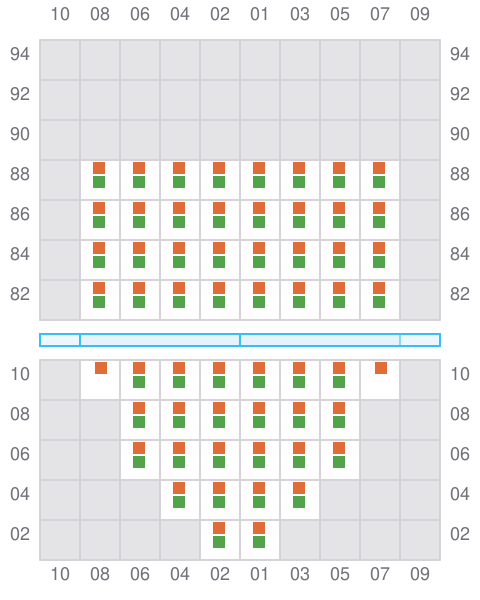

Bay 005 view and slots of CAPE FORBY

007

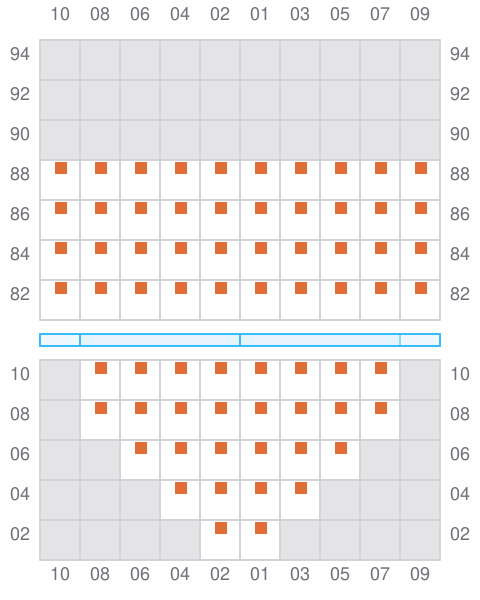

Bay 007 view and slots of CAPE FORBY

009 (010)

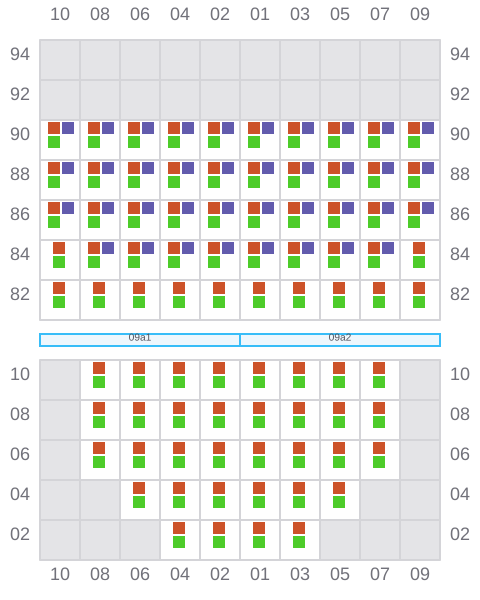

Bay 009 view and slots of CAPE FORBY

011

  • / ?
Bay 011 view and slots of CAPE FORBY

013 (014)

  • / ?

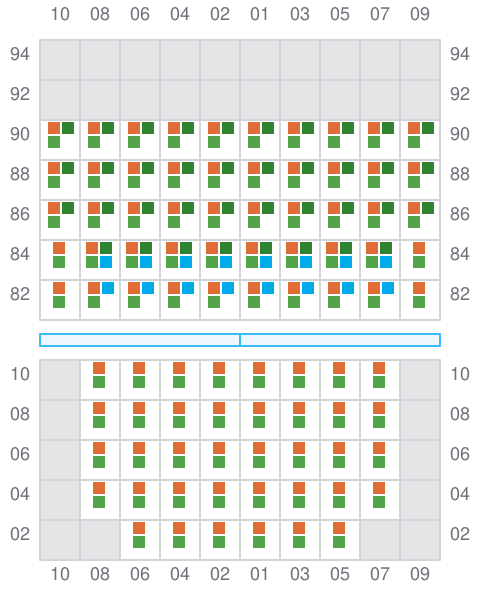

Bay 013 view and slots of CAPE FORBY

015

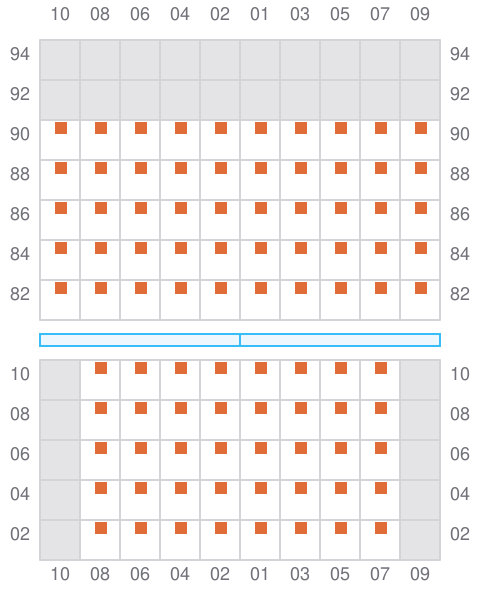

Bay 015 view and slots of CAPE FORBY

017 (018)

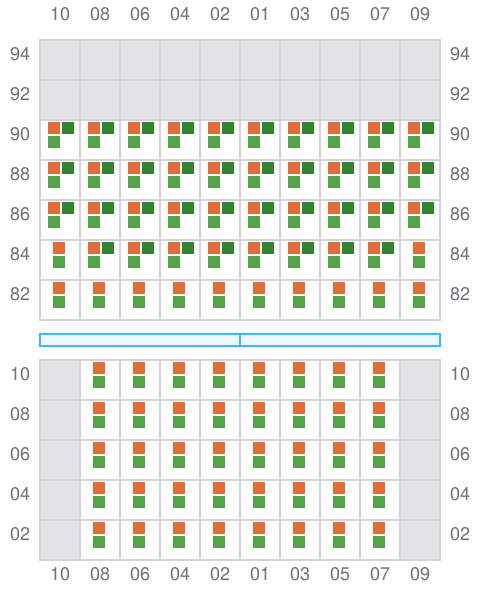

Bay 017 view and slots of CAPE FORBY

019

  • / ?

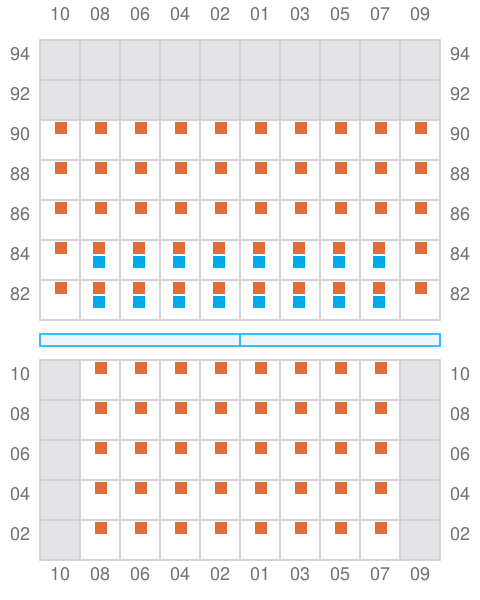

Bay 019 view and slots of CAPE FORBY

021 (022)

Bay 021 view and slots of CAPE FORBY

023

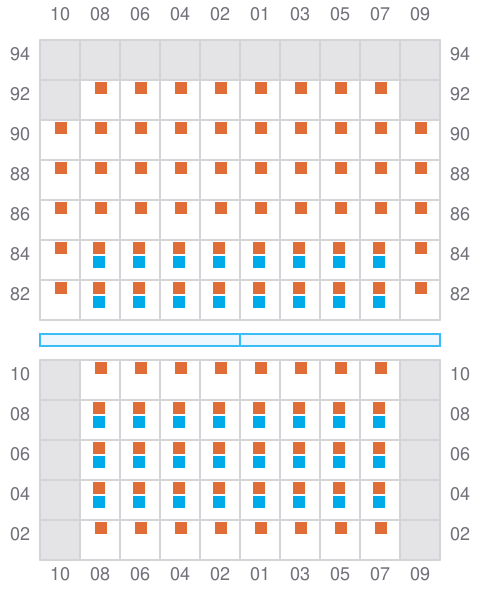

Bay 023 view and slots of CAPE FORBY

025 (026)

  • ? /

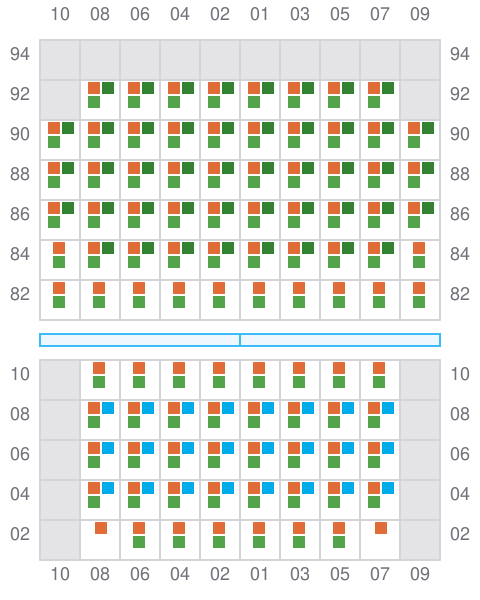

Bay 025 view and slots of CAPE FORBY

027

  • / ?
Bay 027 view and slots of CAPE FORBY

029 (030)

  • / ?

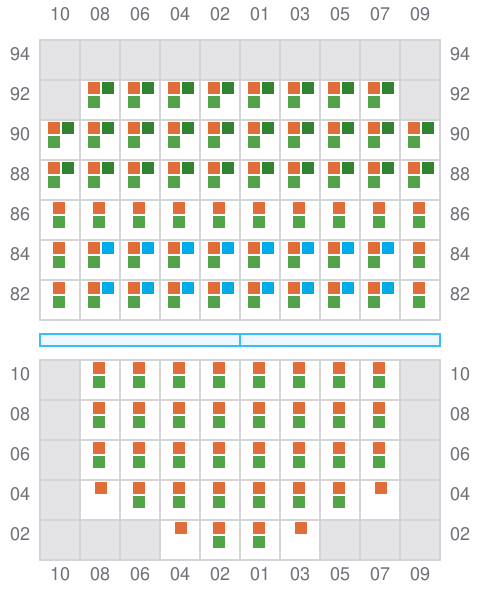

Bay 029 view and slots of CAPE FORBY

031

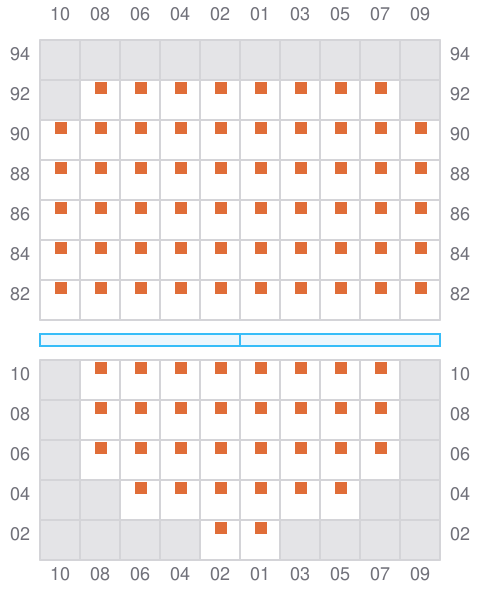

Bay 031 view and slots of CAPE FORBY

033 (034)

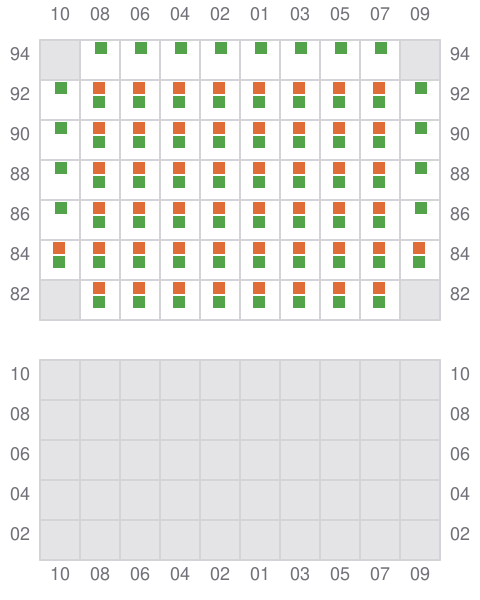

Bay 033 view and slots of CAPE FORBY

035

  • / ?

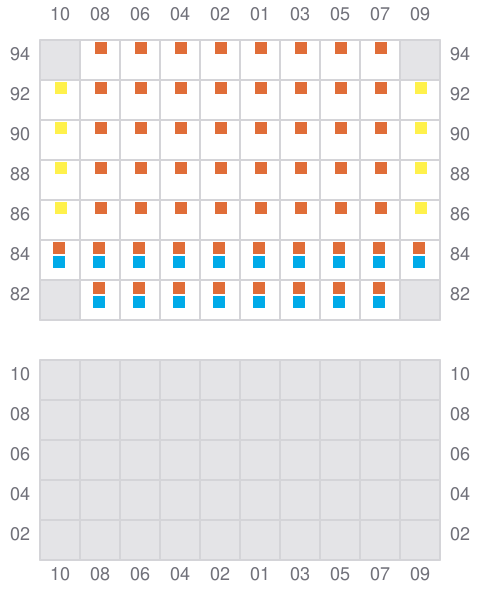

Bay 035 view and slots of CAPE FORBY
