CAPE FRANKLIN
9359301 | V7LH7 | 9359301 by ********* Last update: Sat Mar 23 2024
General Info
Ship Name:CAPE FRANKLIN
IMO Code:9359301
Call Sign:V7LH7
Line Operator:9359301
Class Name for Sister Ships:2KZ
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:035
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,440
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

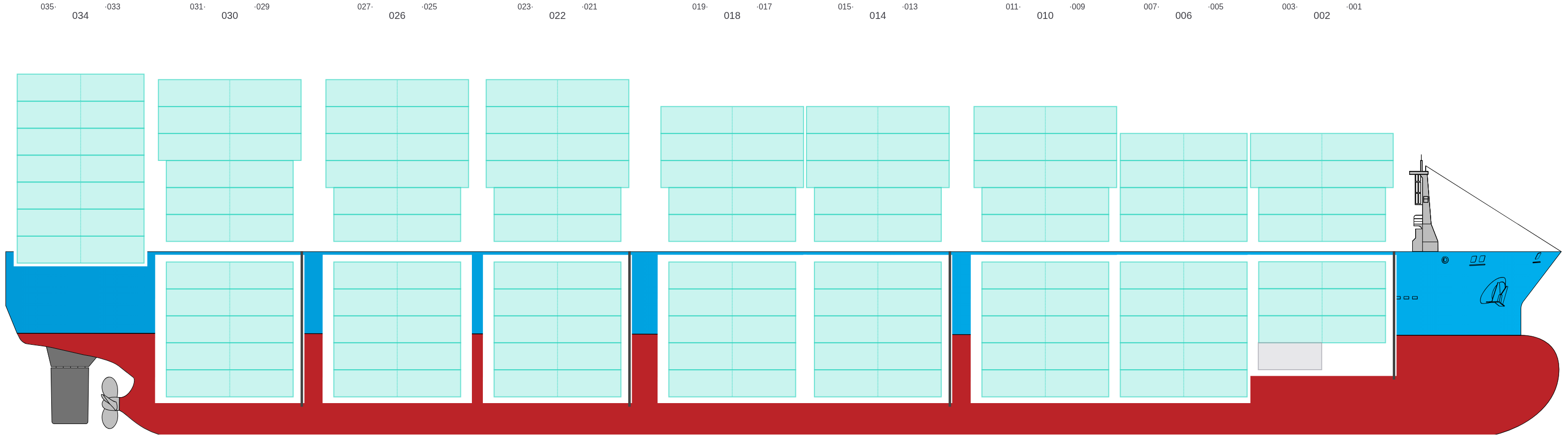

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

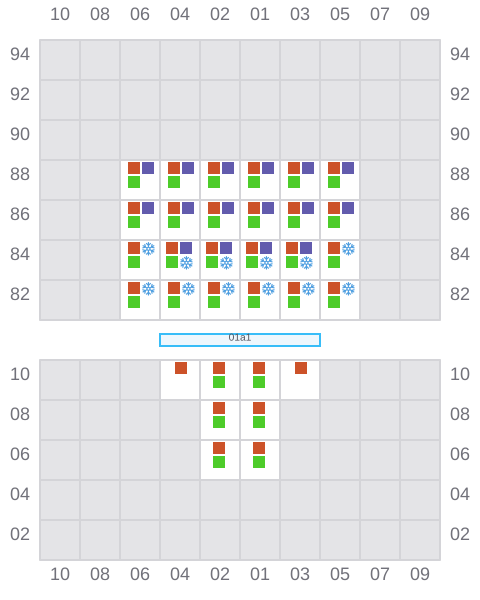

001 (002)
- →

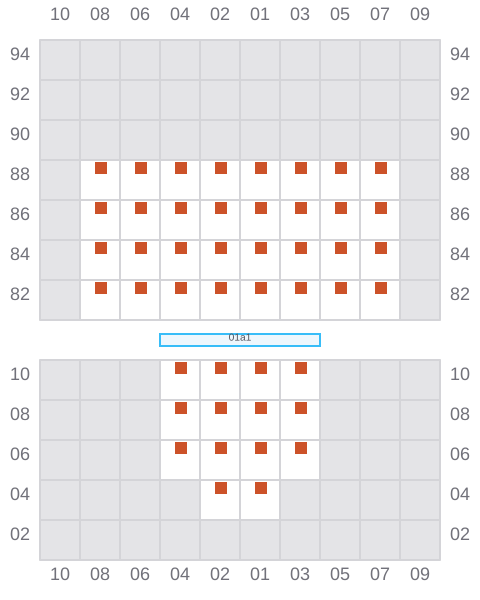

003
- ←

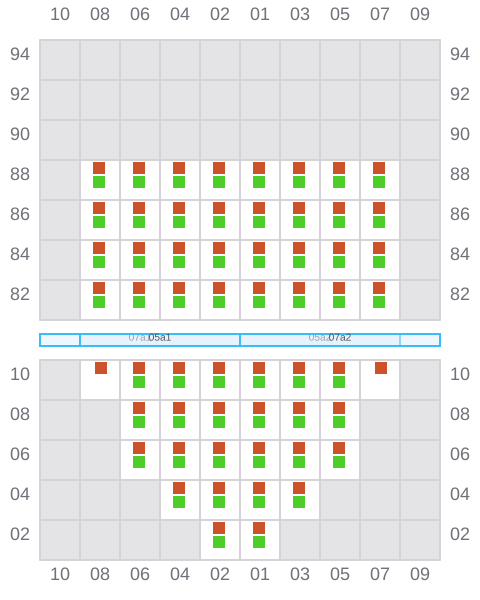

005 (006)
- →

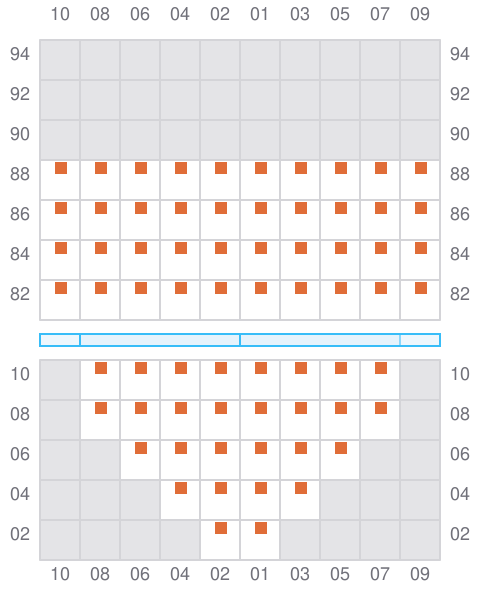

007
- ←

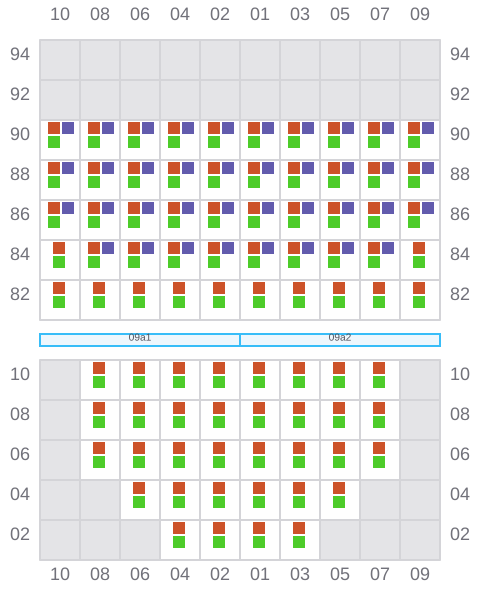

009 (010)
- →

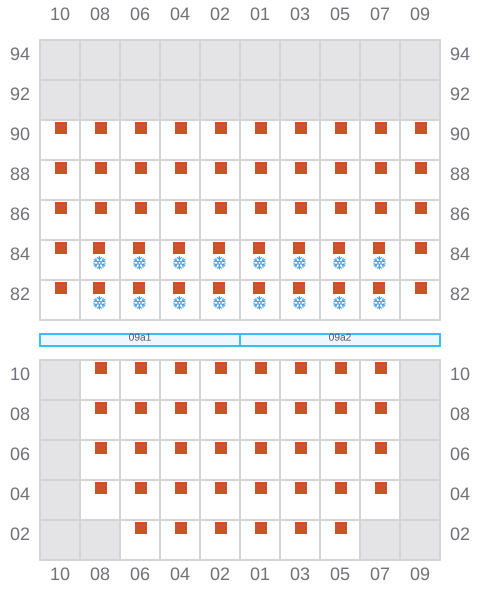

011
- ←
- → / ?

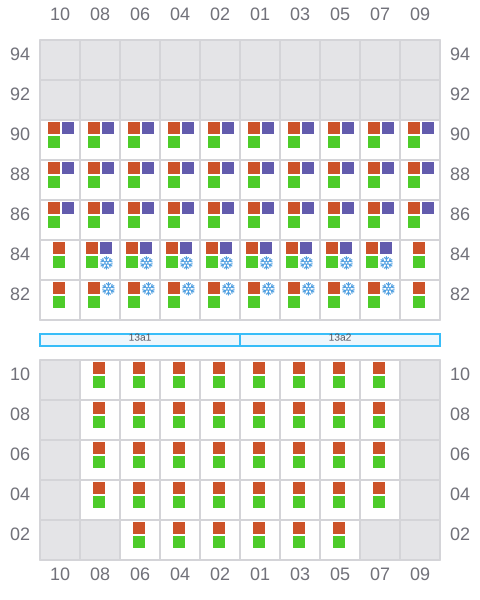

013 (014)
- →
- ← / ?

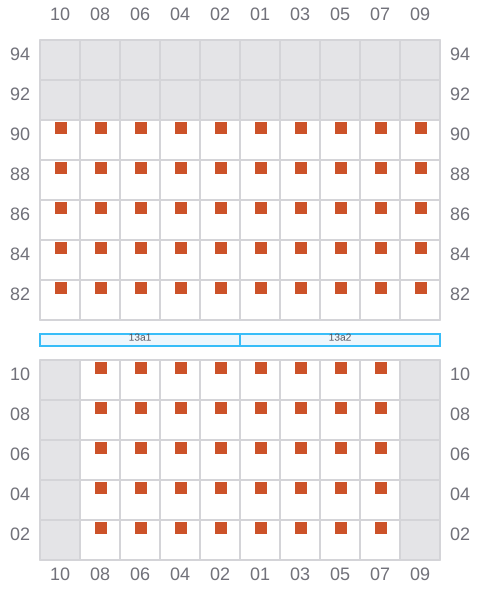

015
- ←

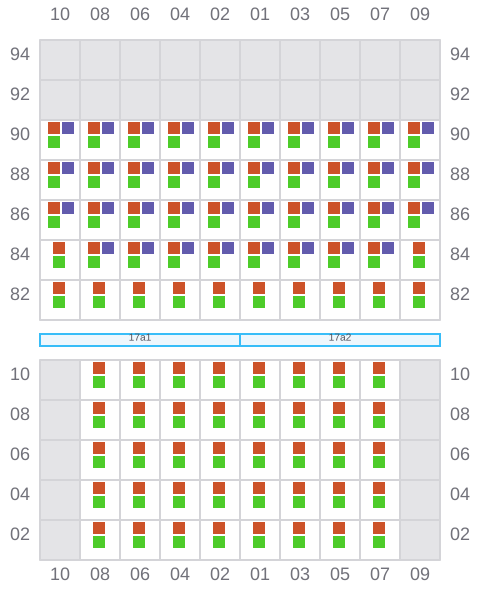

017 (018)
- →

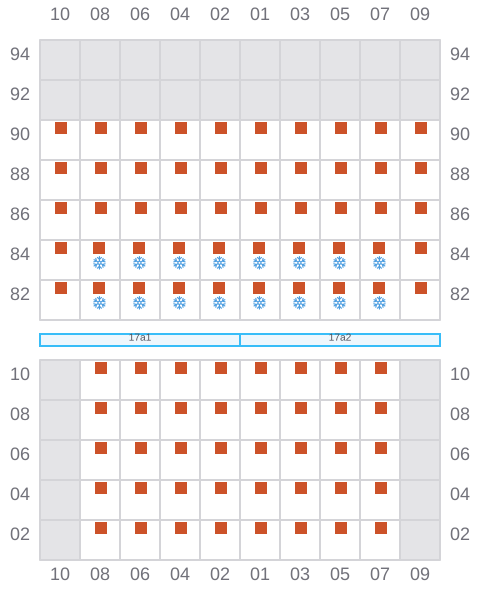

019
- ←
- → / ?

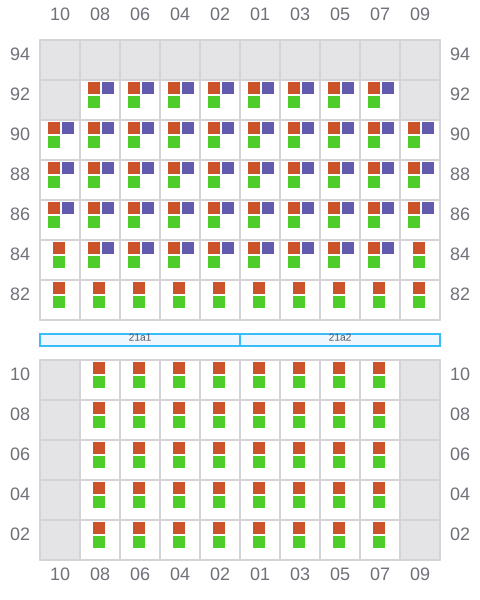

021 (022)
- →

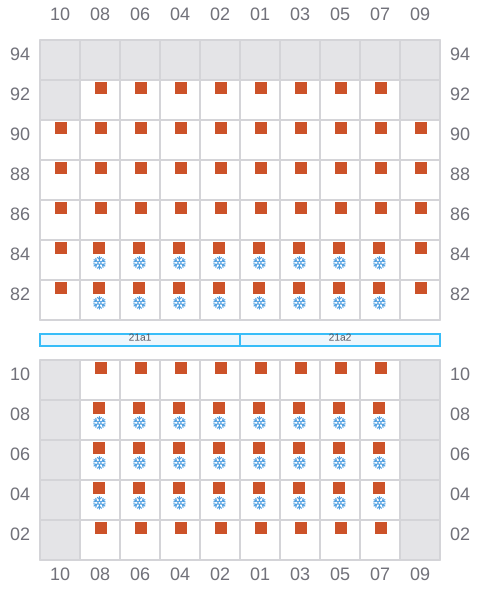

023
- ←
- →

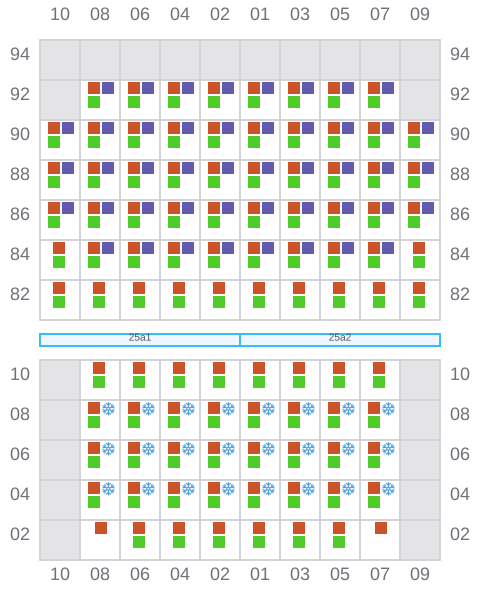

025 (026)
- →
- ? / ←

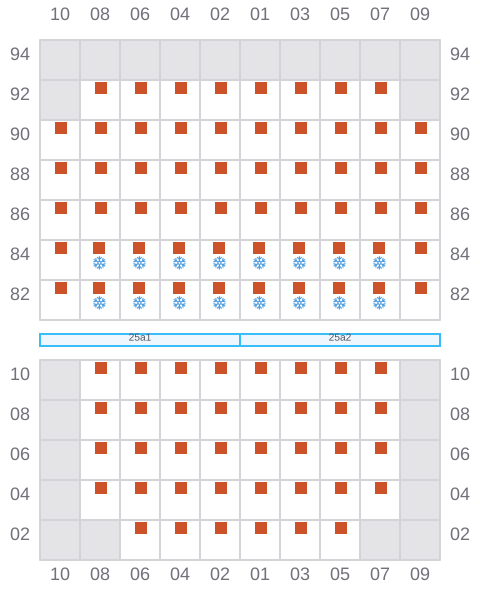

027
- ←
- → / ?

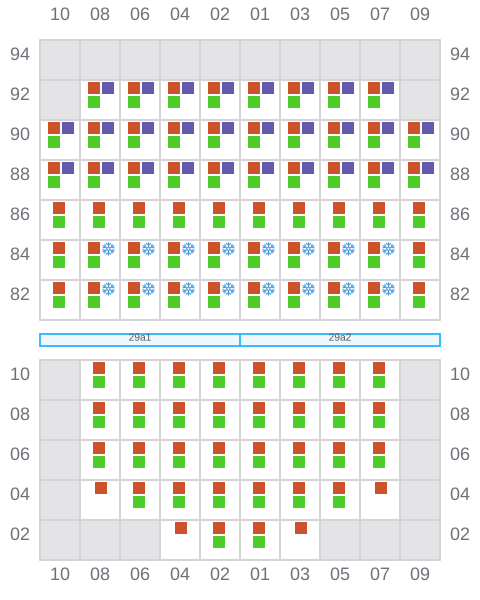

029 (030)
- →
- ← / ?

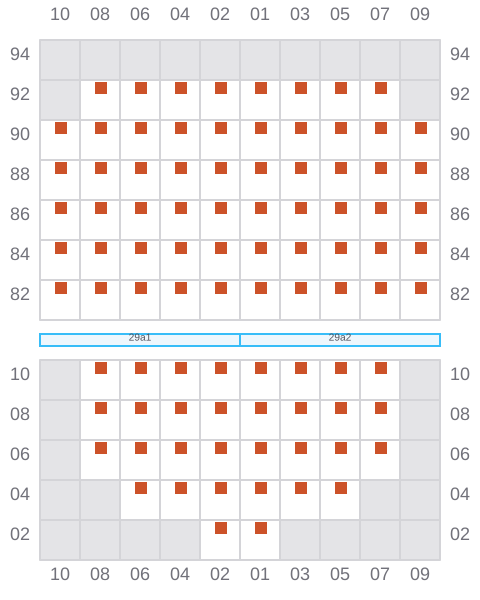

031
- ←

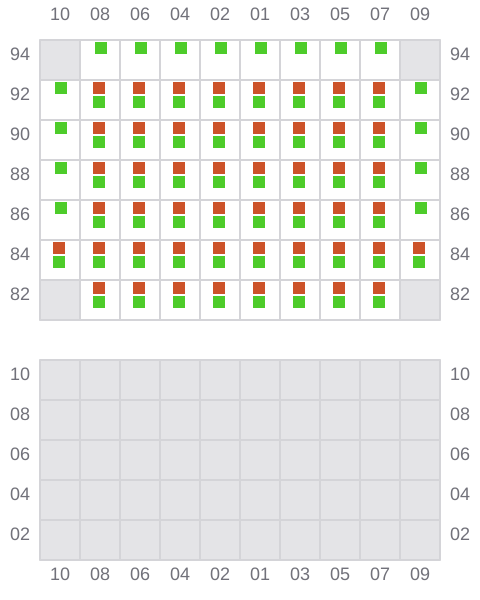

033 (034)
- → / ?

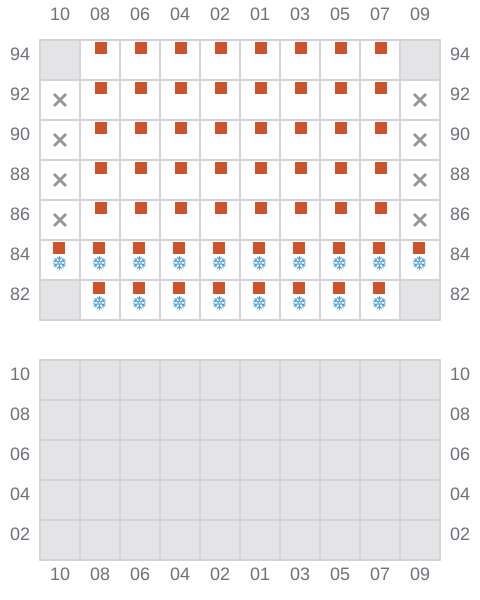

035
- ← / ?
- → / ?
