CAPE FULMAR
9359313 | V7LX8 | 9359313 by ********* Last update: Tue Apr 09 2024

General Info

Ship Name:CAPE FULMAR
IMO Code:9359313
Call Sign:V7LX8
Line Operator:9359313
Class Name for Sister Ships:CAPE FULMAR
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:035
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,420

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

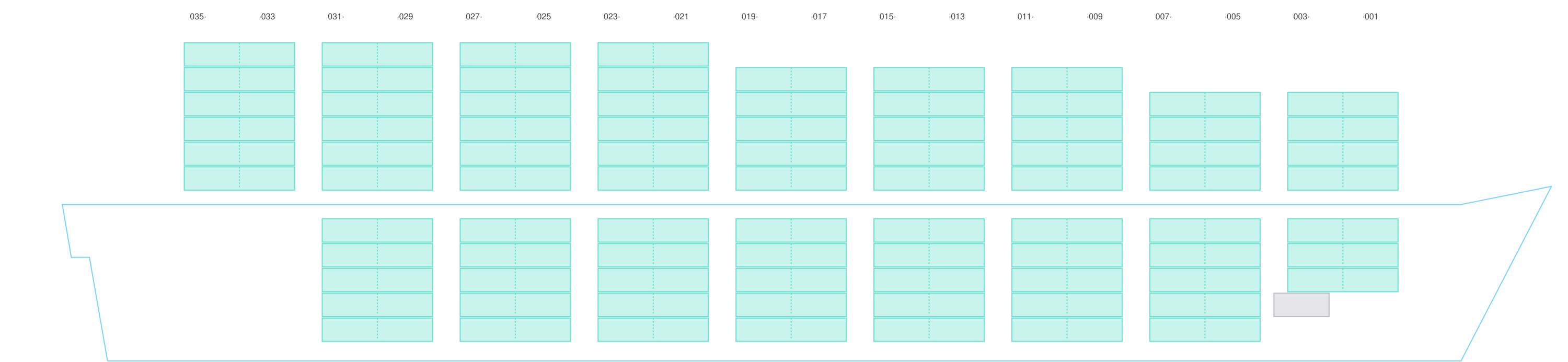

Side View

Side view of CAPE FULMAR

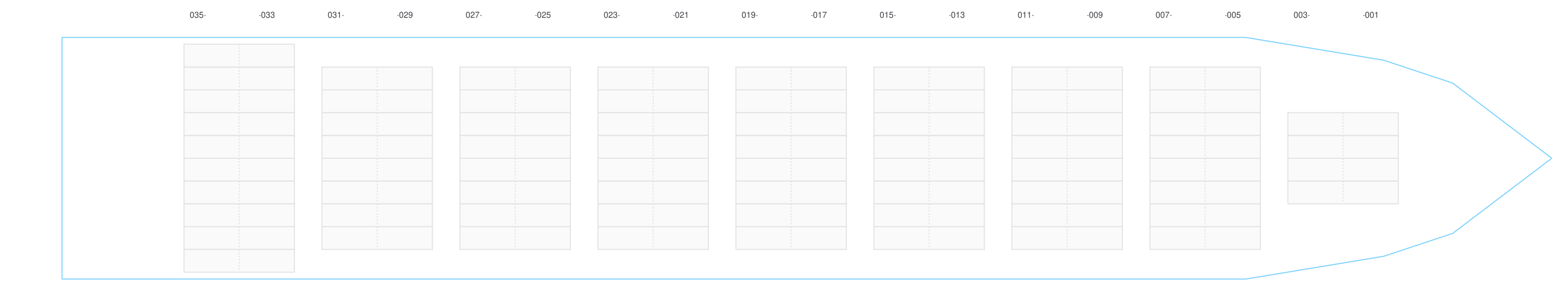

Hatch-Covers View

Deck view of CAPE FULMAR

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

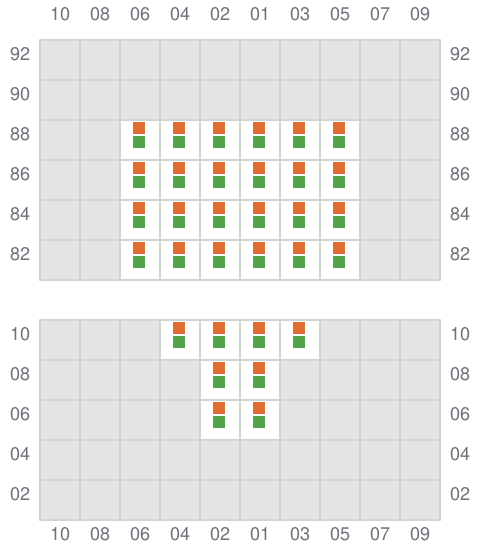

001 (002)

  • →
Bay 001 view and slots of CAPE FULMAR

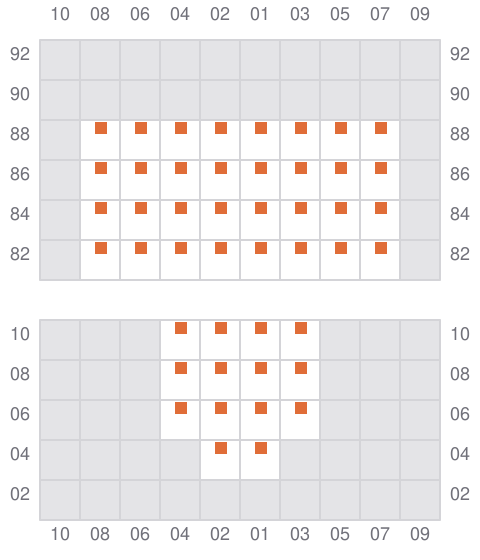

003

  • ←
Bay 003 view and slots of CAPE FULMAR

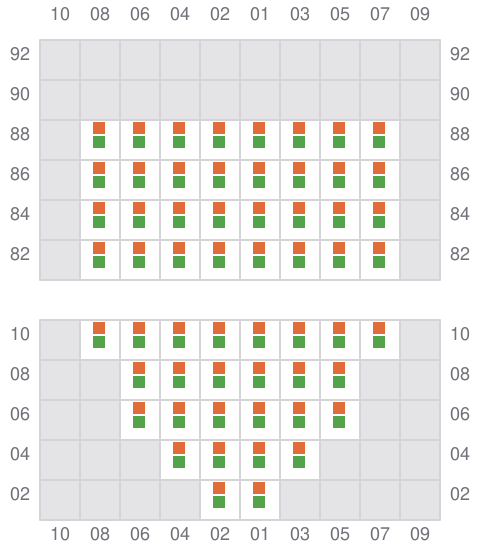

005 (006)

  • →
Bay 005 view and slots of CAPE FULMAR

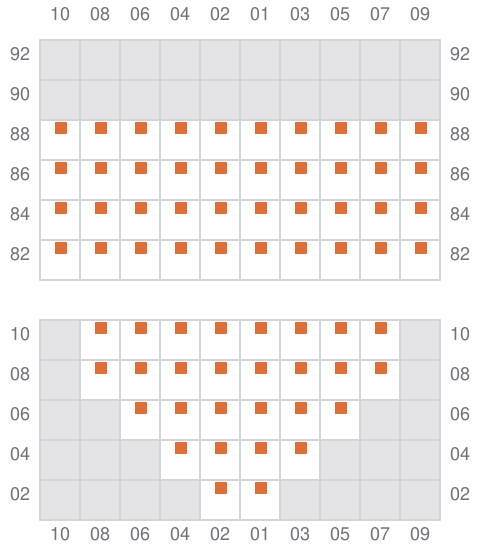

007

  • ←
Bay 007 view and slots of CAPE FULMAR

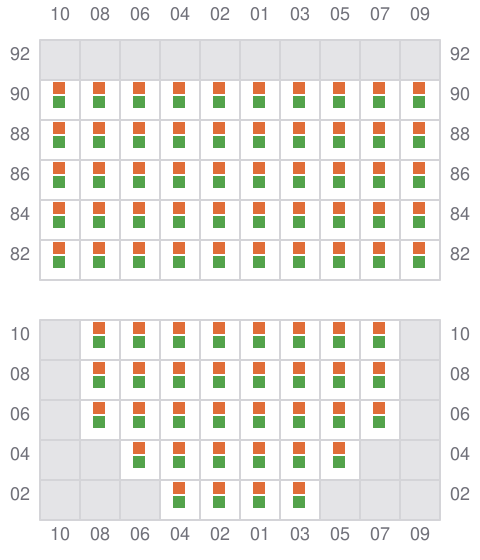

009 (010)

  • →
Bay 009 view and slots of CAPE FULMAR

011

  • ←
Bay 011 view and slots of CAPE FULMAR

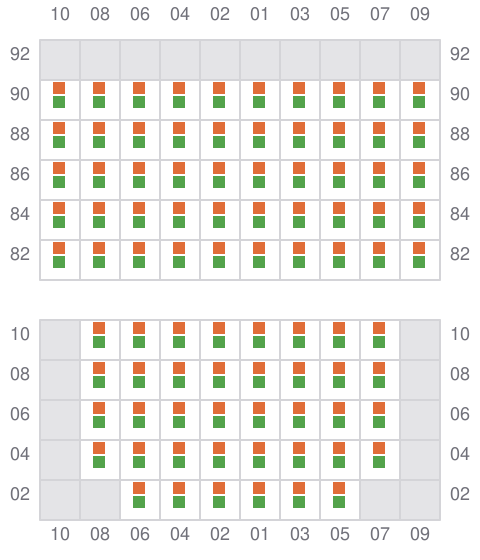

013 (014)

  • →
Bay 013 view and slots of CAPE FULMAR

015

  • ←
Bay 015 view and slots of CAPE FULMAR

017 (018)

  • →

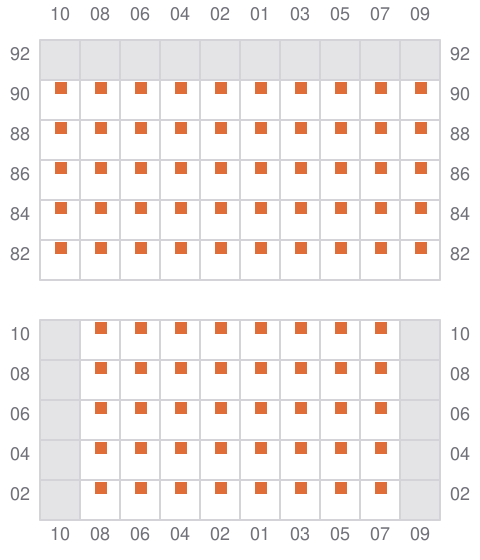

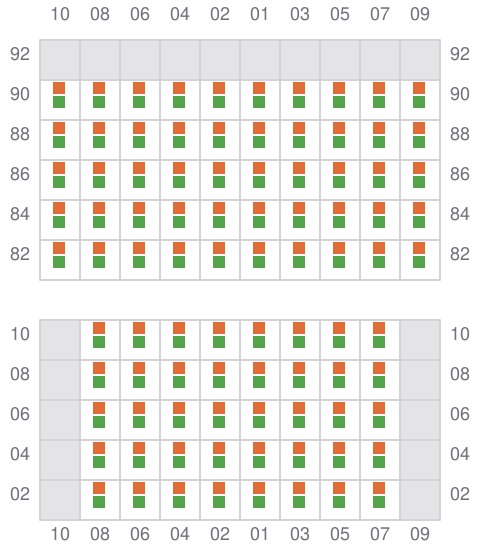

Bay 017 view and slots of CAPE FULMAR

019

  • ←
Bay 019 view and slots of CAPE FULMAR

021 (022)

  • →

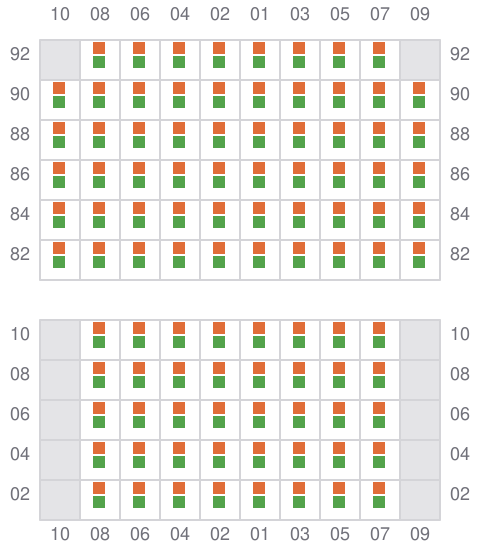

Bay 021 view and slots of CAPE FULMAR

023

  • ←

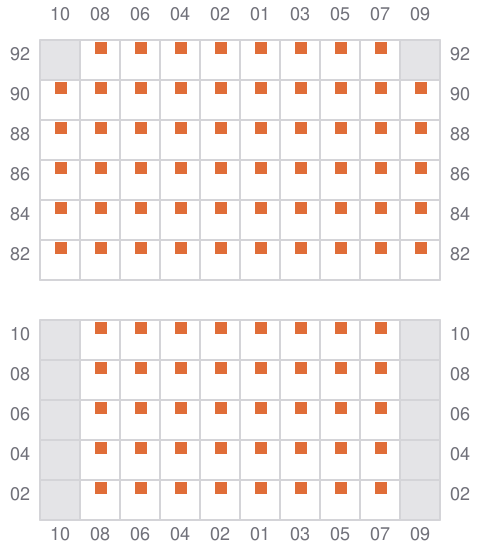

Bay 023 view and slots of CAPE FULMAR

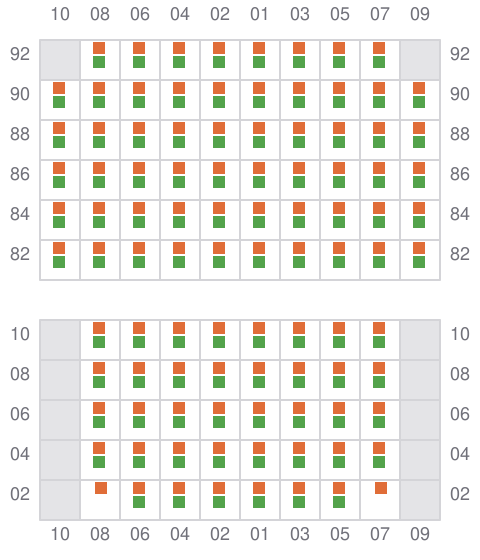

025 (026)

  • →
Bay 025 view and slots of CAPE FULMAR

027

  • ←
Bay 027 view and slots of CAPE FULMAR

029 (030)

  • →

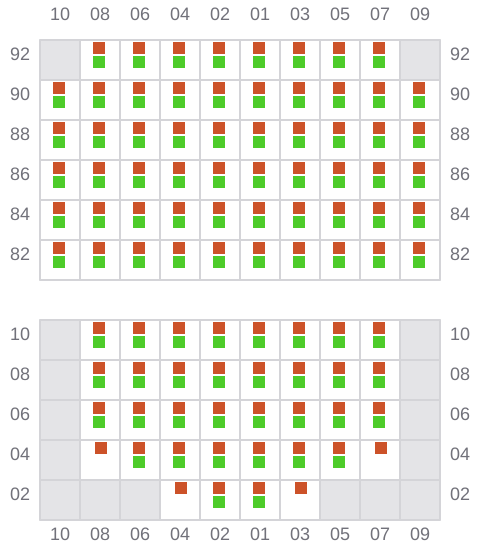

Bay 029 view and slots of CAPE FULMAR

031

  • ←

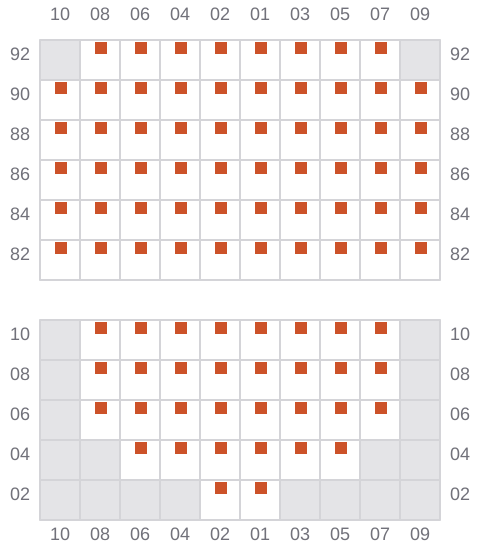

Bay 031 view and slots of CAPE FULMAR

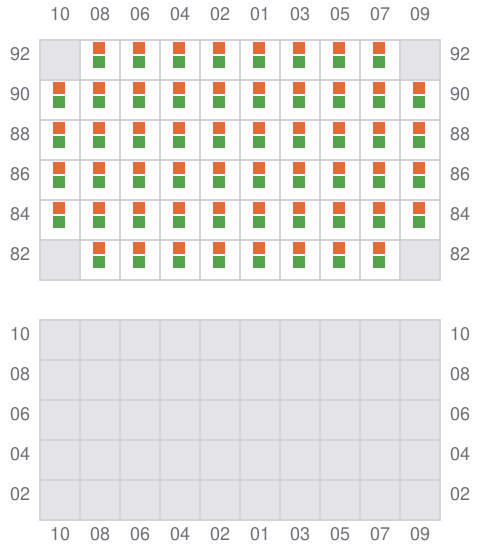

033 (034)

  • → / ?
Bay 033 view and slots of CAPE FULMAR

035

  • ← / ?

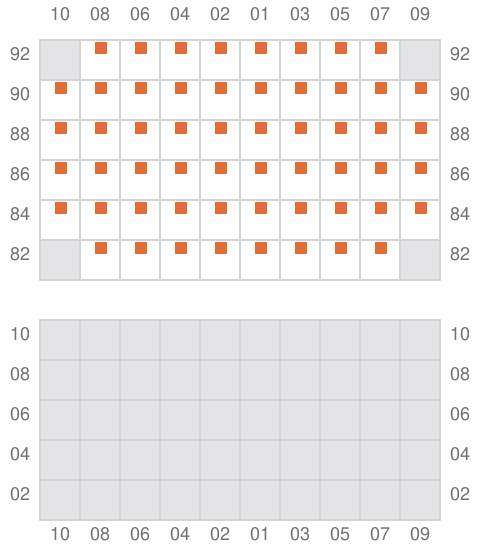

Bay 035 view and slots of CAPE FULMAR
