CAPE MONTEREY
9676199 | 5BDW4 | 9676199 by ********* Last update: Wed Jun 19 2024

General Info

Ship Name:CAPE MONTEREY
IMO Code:9676199
Call Sign:5BDW4
Line Operator:9676199
Class Name for Sister Ships:MCC
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:039
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,204

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

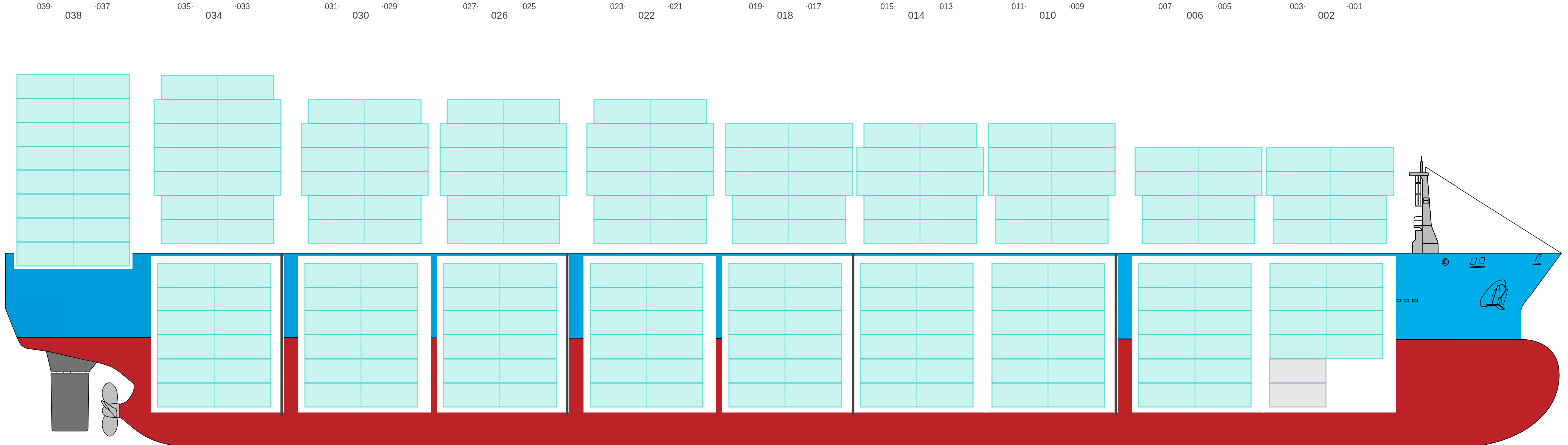

Side View

Side view of CAPE MONTEREY

Hatch-Covers View

Deck view of CAPE MONTEREY

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

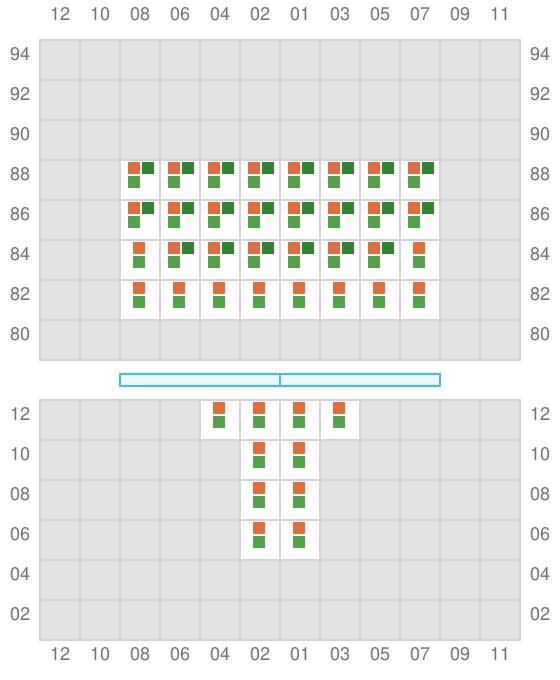

Bay 001 view and slots of CAPE MONTEREY

003

  • ? /
Bay 003 view and slots of CAPE MONTEREY

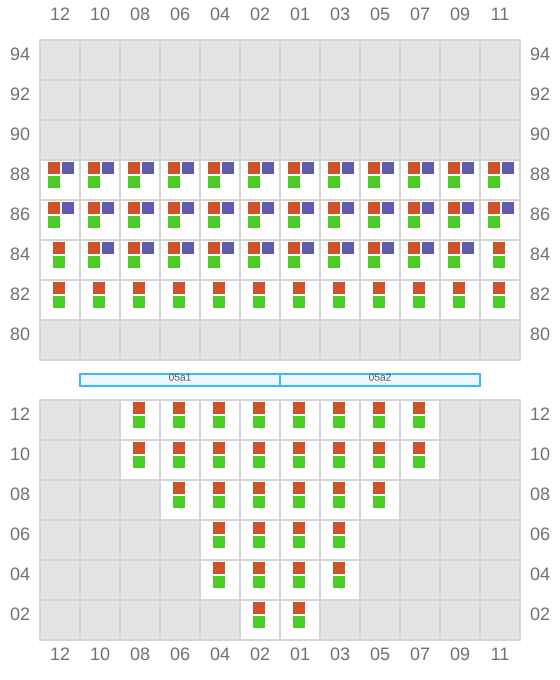

005 (006)

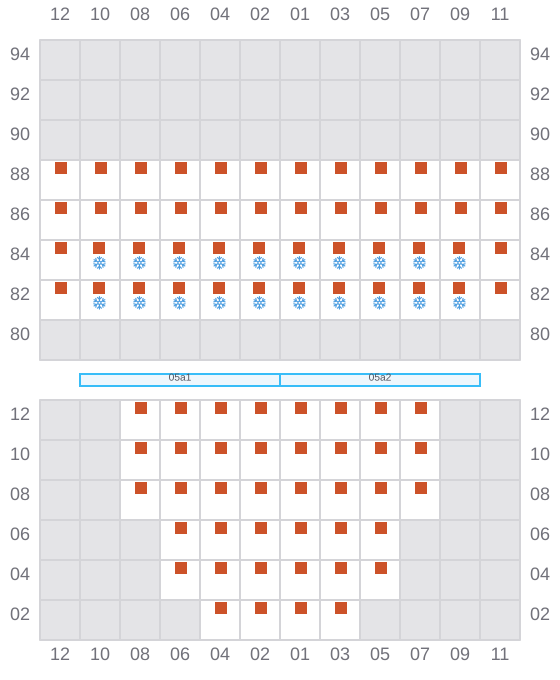

Bay 005 view and slots of CAPE MONTEREY

007

Bay 007 view and slots of CAPE MONTEREY

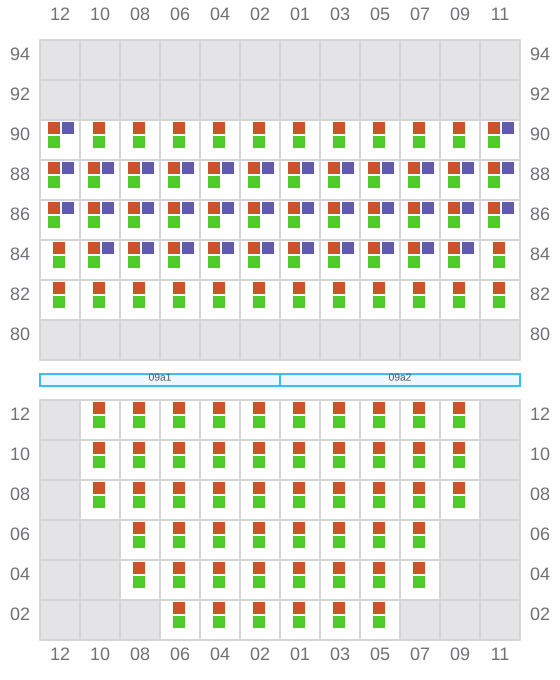

009 (010)

  • ? /
Bay 009 view and slots of CAPE MONTEREY

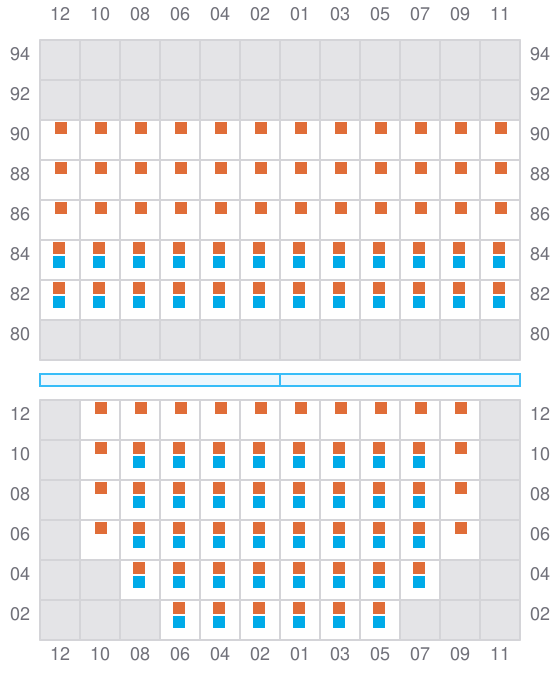

011

  • / ?
Bay 011 view and slots of CAPE MONTEREY

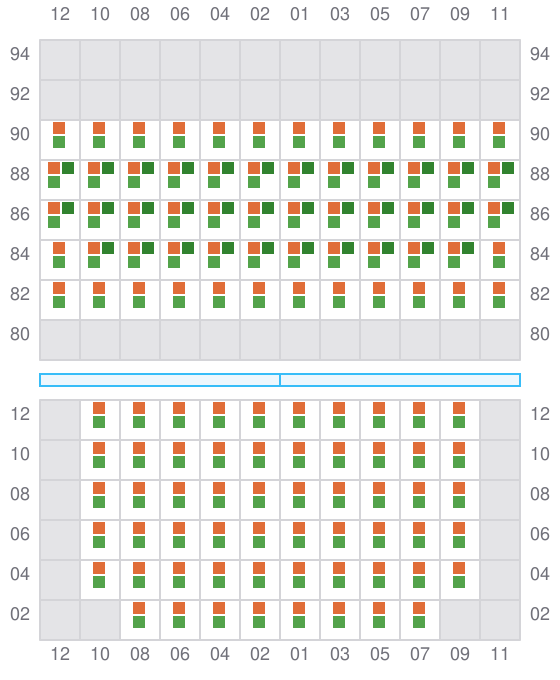

013 (014)

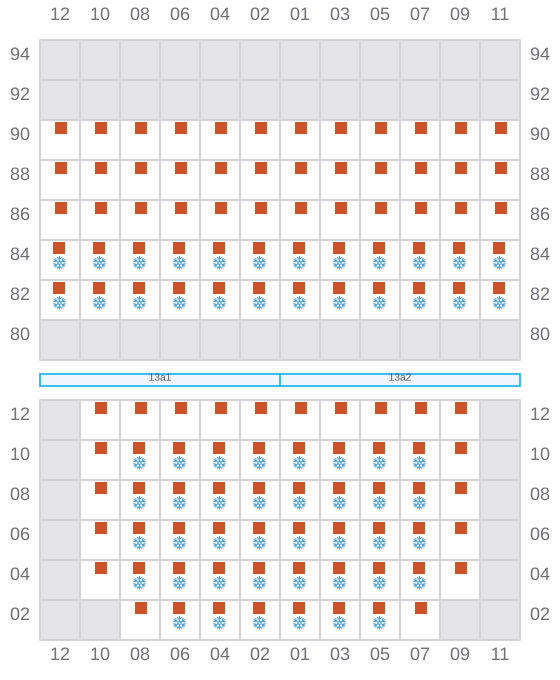

Bay 013 view and slots of CAPE MONTEREY

015

Bay 015 view and slots of CAPE MONTEREY

017 (018)

  • ? /

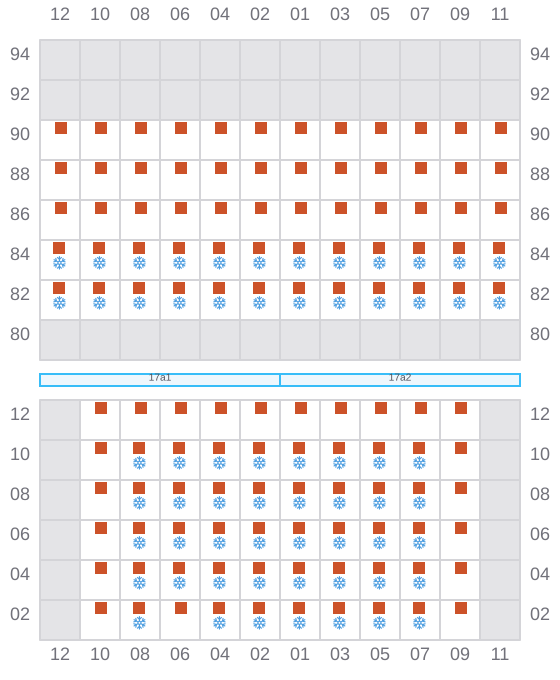

Bay 017 view and slots of CAPE MONTEREY

019

Bay 019 view and slots of CAPE MONTEREY

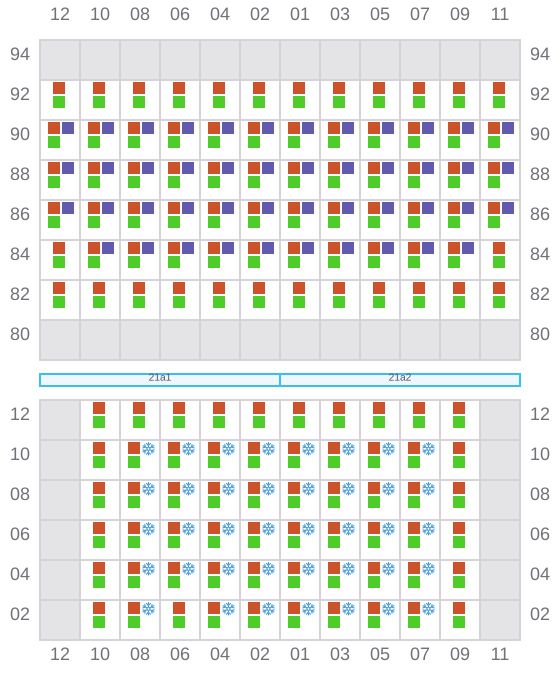

021 (022)

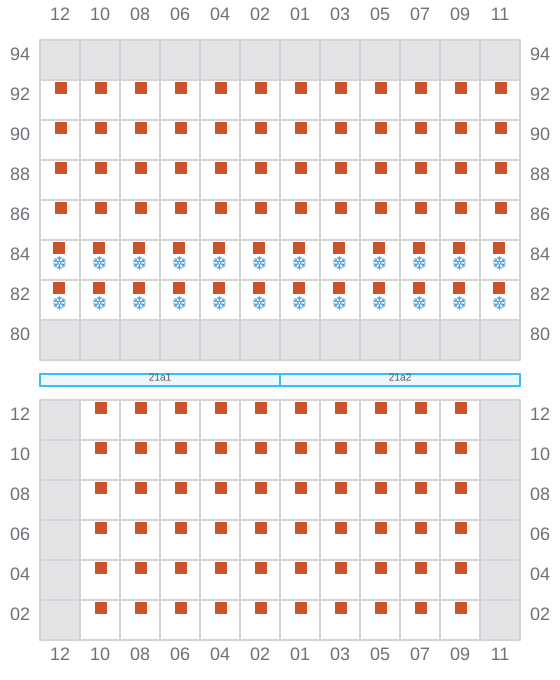

Bay 021 view and slots of CAPE MONTEREY

023

Bay 023 view and slots of CAPE MONTEREY

025 (026)

  • ? /
Bay 025 view and slots of CAPE MONTEREY

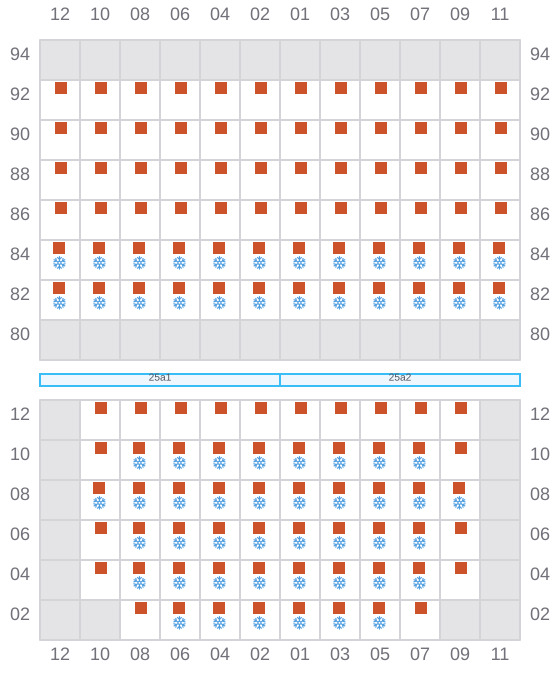

027

Bay 027 view and slots of CAPE MONTEREY

029 (030)

Bay 029 view and slots of CAPE MONTEREY

031

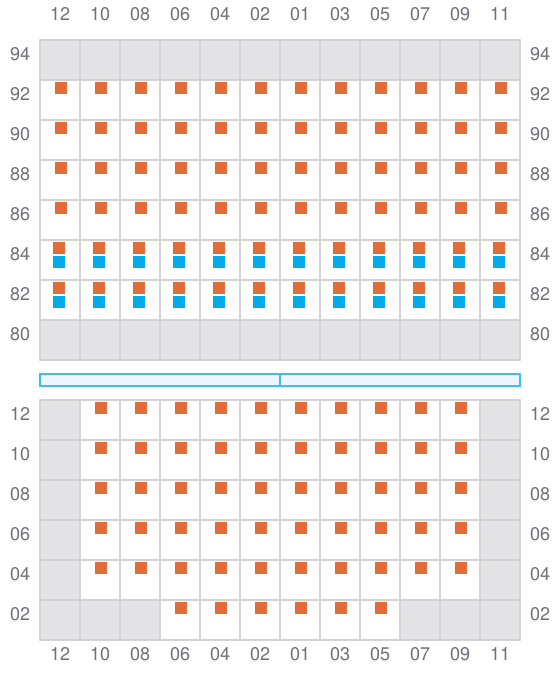

Bay 031 view and slots of CAPE MONTEREY

033 (034)

  • ? /

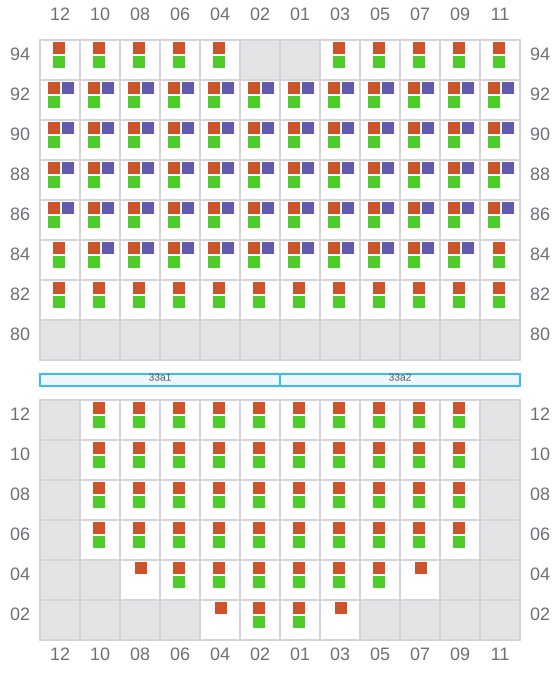

Bay 033 view and slots of CAPE MONTEREY

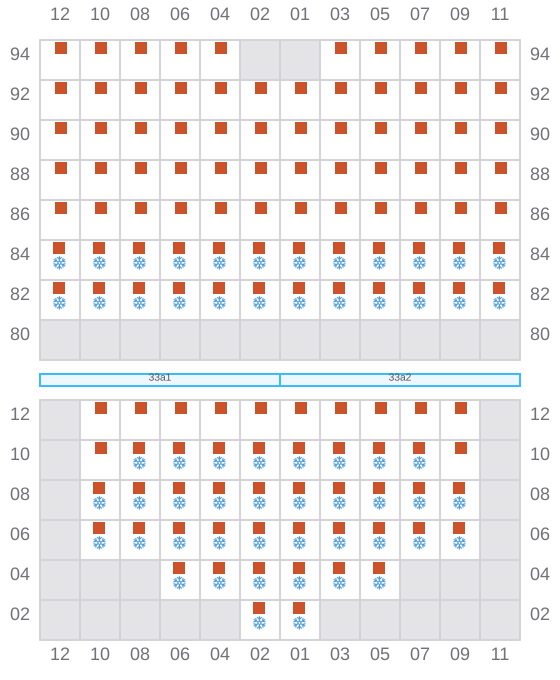

035

  • / ?
Bay 035 view and slots of CAPE MONTEREY

037 (038)

  • / ?

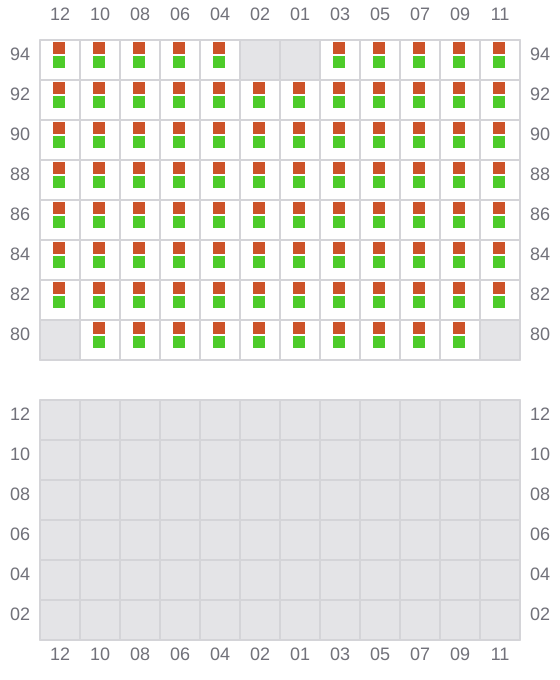

Bay 037 view and slots of CAPE MONTEREY

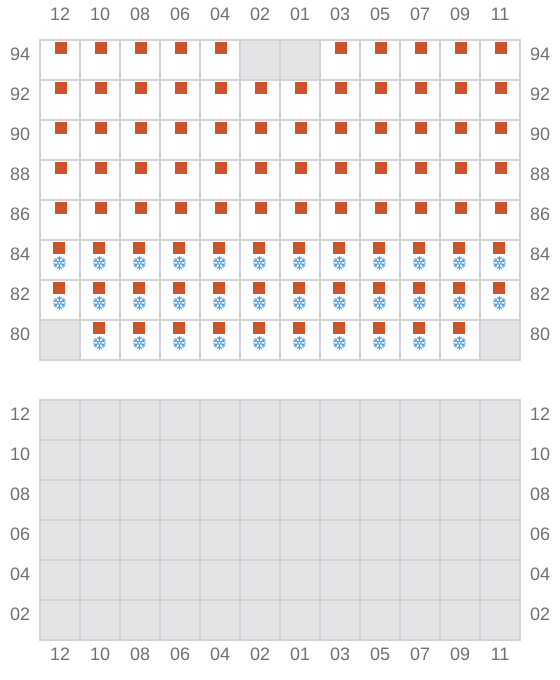

039

Bay 039 view and slots of CAPE MONTEREY
