CAPE MOSS
9445916 | V7VN5 | MSC by ************************** Last update: Sun Jun 18 2023
General Info
Ship Name:CAPE MOSS
IMO Code:9445916
Call Sign:V7VN5
Line Operator:MSC
Class Name for Sister Ships:MSS
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:2,899
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-sideView.png?v=1687123931550)

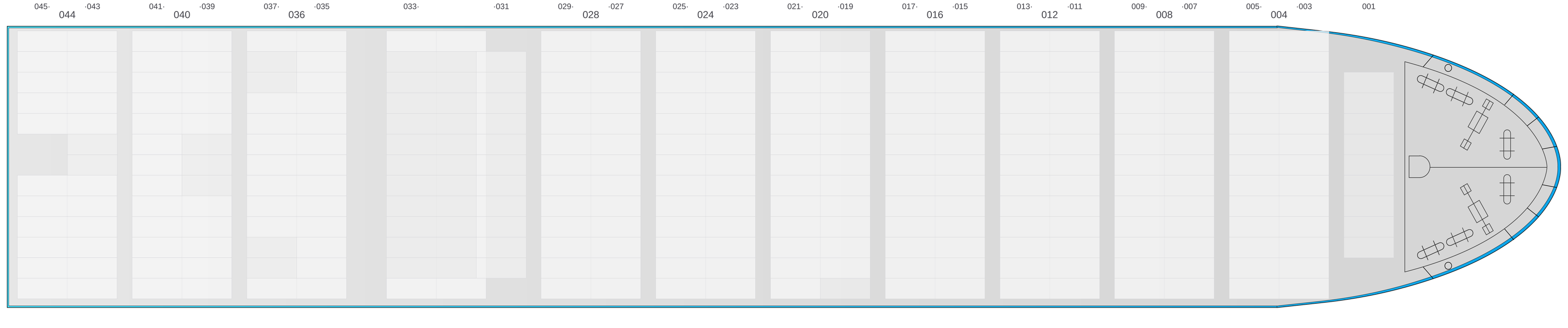

Hatch-Covers View
![Deck view of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-deckView.png?v=1687123931550)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

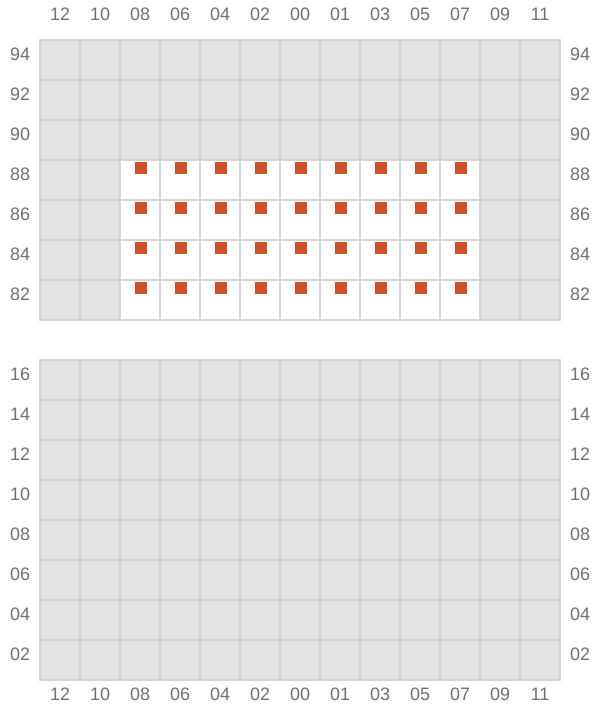

001
![Bay 001 view and slots of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-b001.png?v=1687123931550)

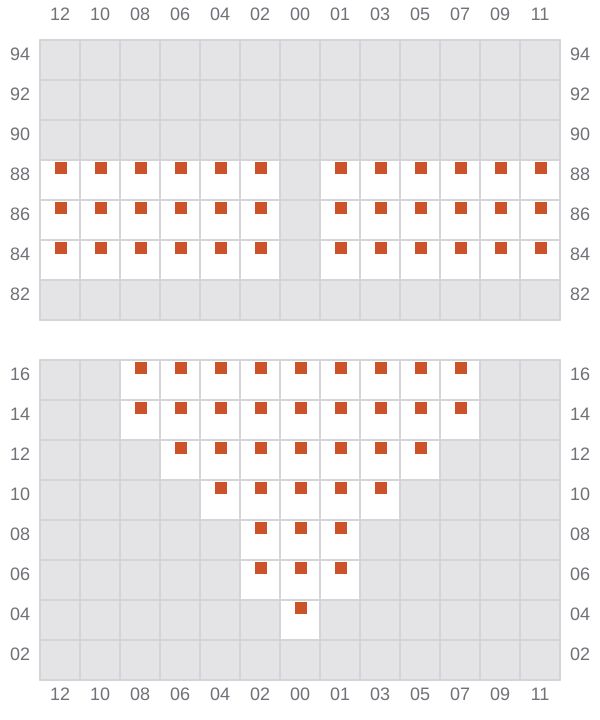

003
- →
![Bay 003 view and slots of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-b003.png?v=1687123931550)

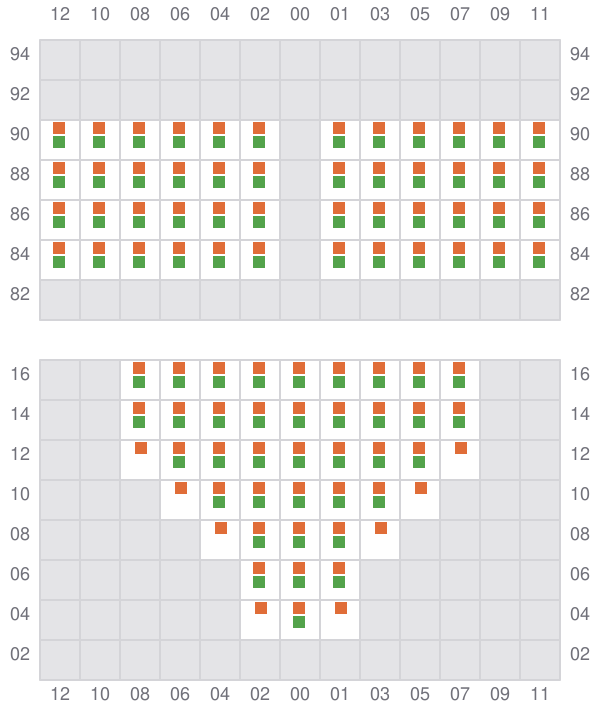

005 (004)
- ←
![Bay 005 view and slots of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-b005.png?v=1687123931550)
007
- →
![Bay 007 view and slots of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-b007.png?v=1687123931550)
009 (008)
- ←
![Bay 009 view and slots of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-b009.png?v=1687123931550)

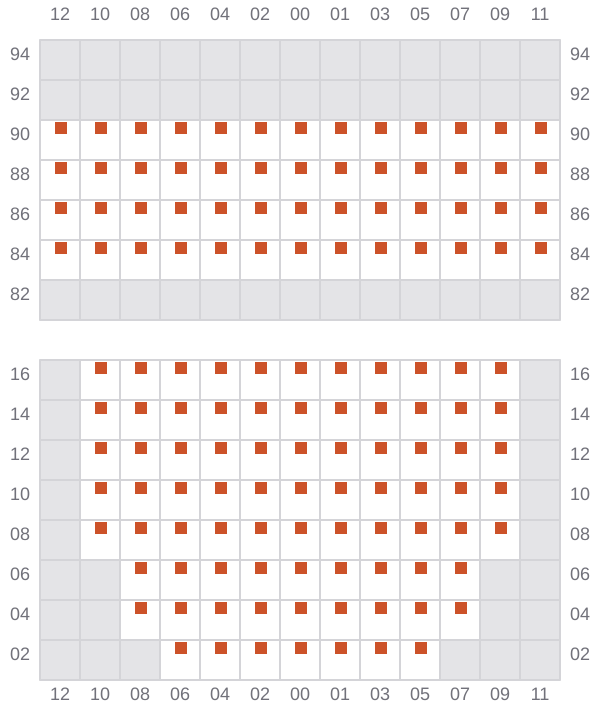

011
- →
![Bay 011 view and slots of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-b011.png?v=1687123931550)

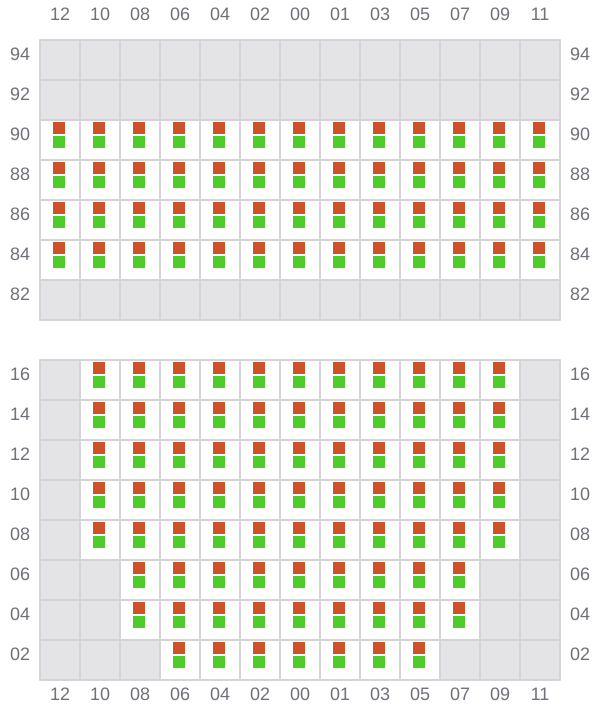

013 (012)
- ←
![Bay 013 view and slots of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-b013.png?v=1687123931550)

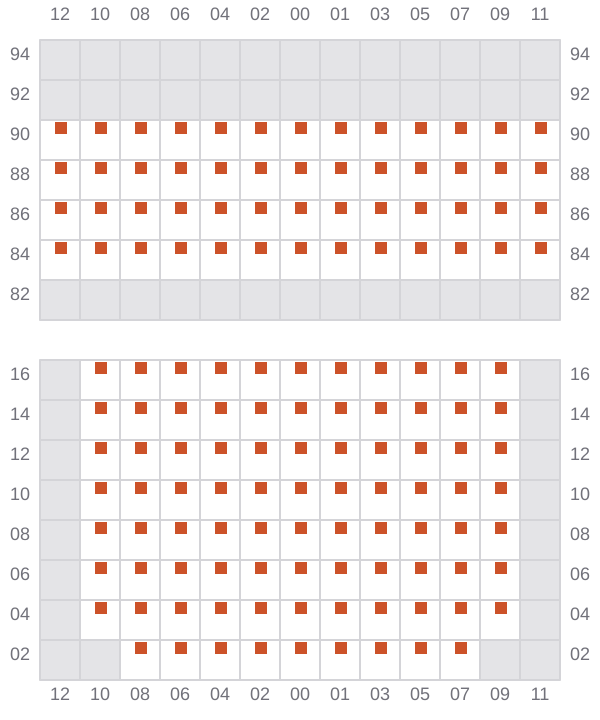

015
- →
![Bay 015 view and slots of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-b015.png?v=1687123931550)

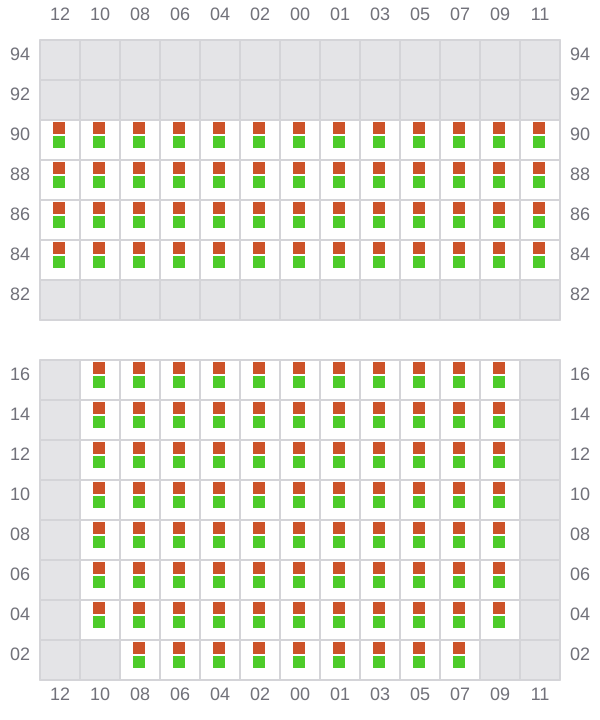

017 (016)
- ←
![Bay 017 view and slots of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-b017.png?v=1687123931550)
019
- →
![Bay 019 view and slots of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-b019.png?v=1687123931550)
021 (020)
- ←
![Bay 021 view and slots of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-b021.png?v=1687123931550)

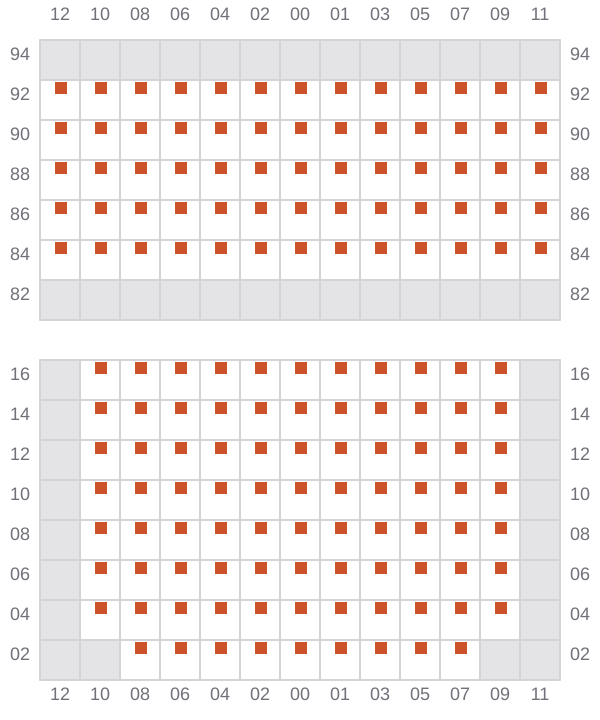

023
- →
![Bay 023 view and slots of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-b023.png?v=1687123931550)
025 (024)
- ←
![Bay 025 view and slots of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-b025.png?v=1687123931550)
027
- →
![Bay 027 view and slots of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-b027.png?v=1687123931550)

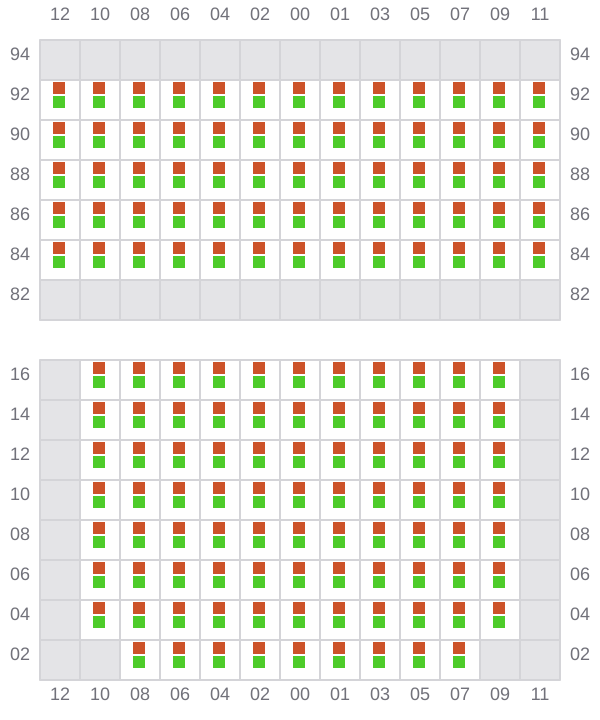

029 (028)
- ←
![Bay 029 view and slots of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-b029.png?v=1687123931550)
031
- → / ←
![Bay 031 view and slots of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-b031.png?v=1687123931550)

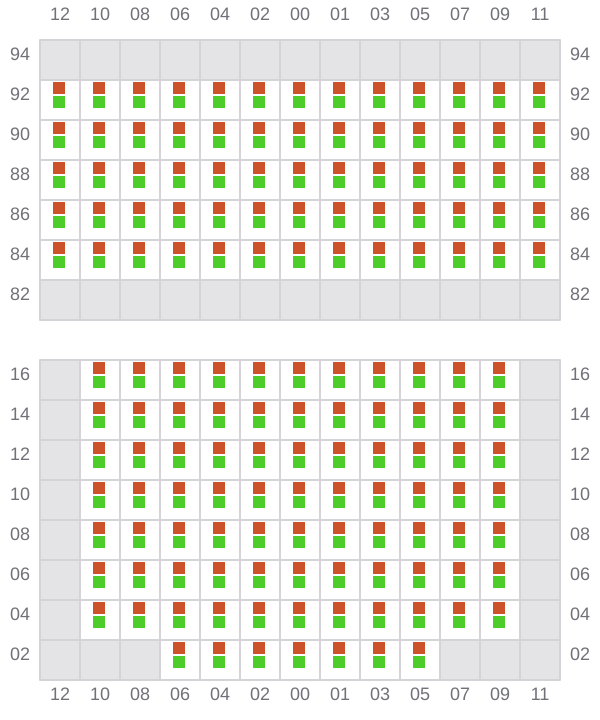

033 (032)
- ←
![Bay 033 view and slots of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-b033.png?v=1687123931550)

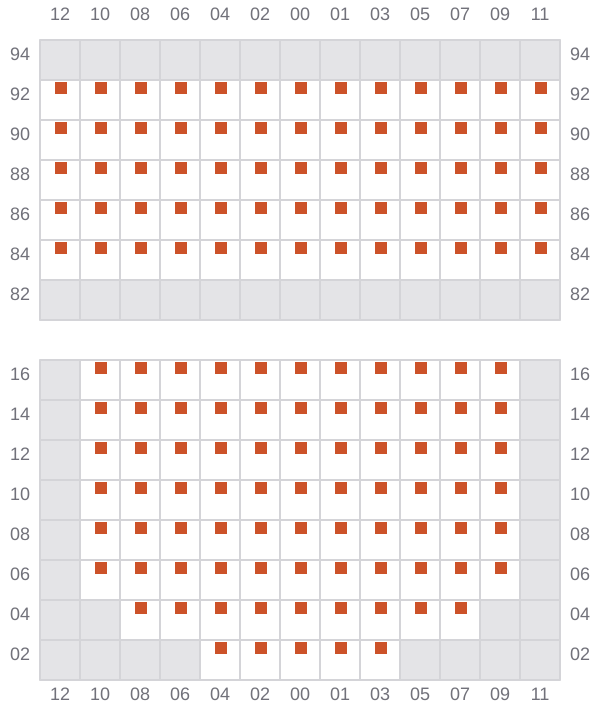

035
- →
![Bay 035 view and slots of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-b035.png?v=1687123931550)
037 (036)
- ←
![Bay 037 view and slots of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-b037.png?v=1687123931550)

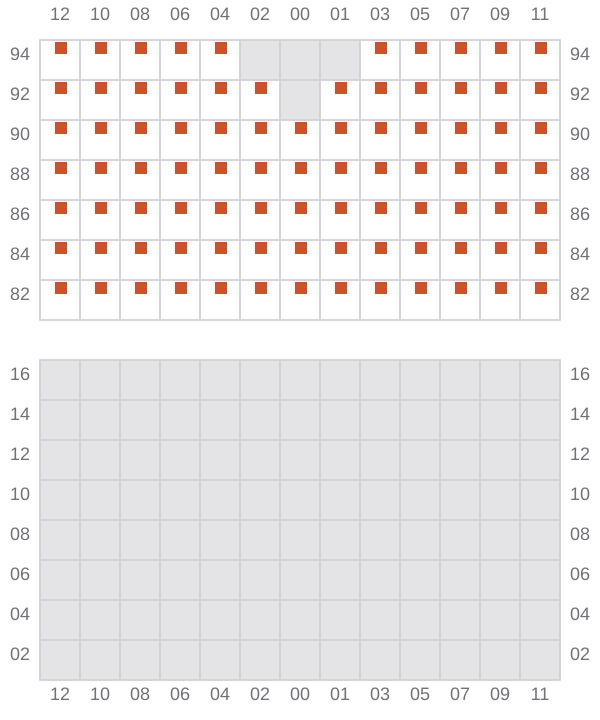

039
- → / ?
![Bay 039 view and slots of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-b039.png?v=1687123931550)

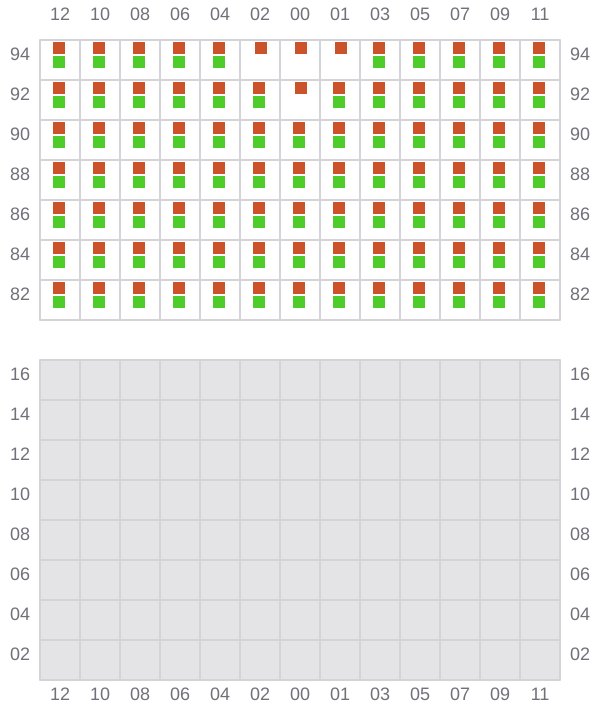

041 (040)
- ← / ?
![Bay 041 view and slots of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-b041.png?v=1687123931550)

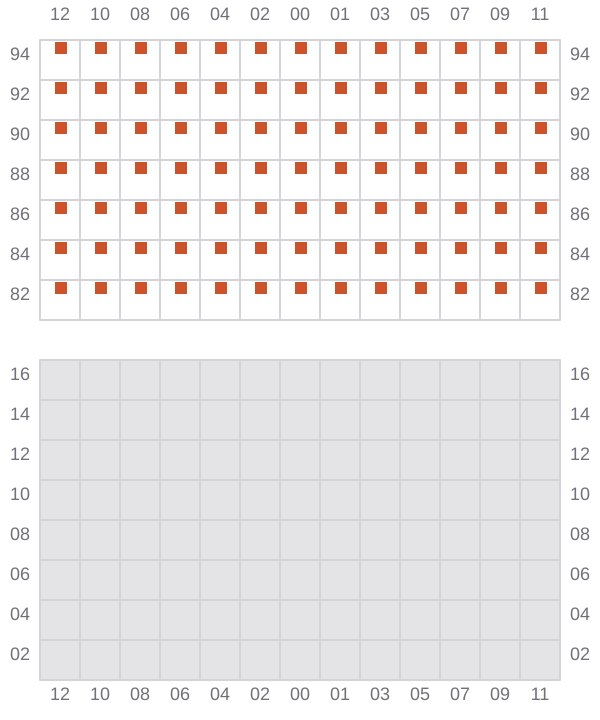

043
- → / ?
![Bay 043 view and slots of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-b043.png?v=1687123931550)
045 (044)
- ← / ?
![Bay 045 view and slots of CAPE MOSS](/vessel-images/5fa0303e-9f04-4ec0-a0be-05c0038a3344-b045.png?v=1687123931550)
