CAPE MOSS
9445916 | V7VN5 | 9445916 by ********* Last update: Tue Jun 18 2024

General Info

Ship Name:CAPE MOSS
IMO Code:9445916
Call Sign:V7VN5
Line Operator:9445916
Class Name for Sister Ships:MCC
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):195.20
LOA (Length Overall):212.51
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:2,788

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

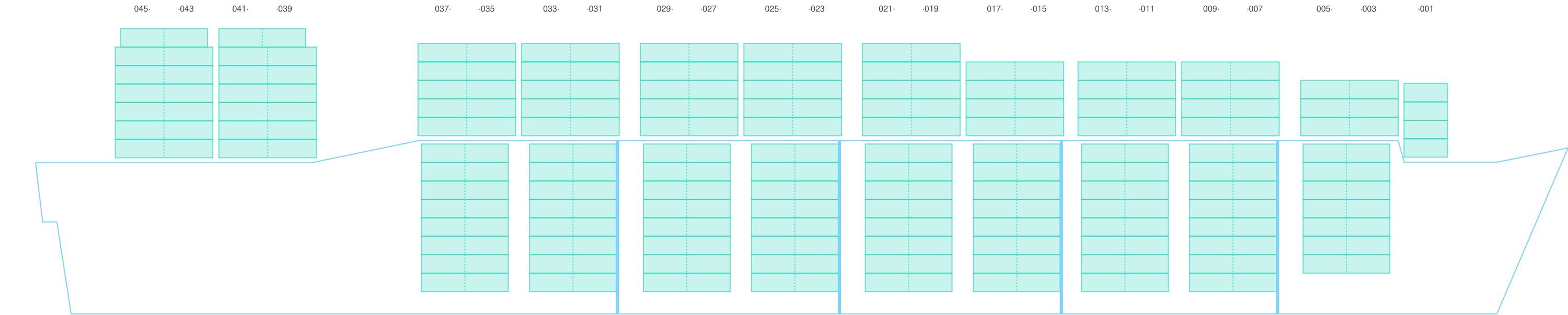

Side view of CAPE MOSS

Hatch-Covers View

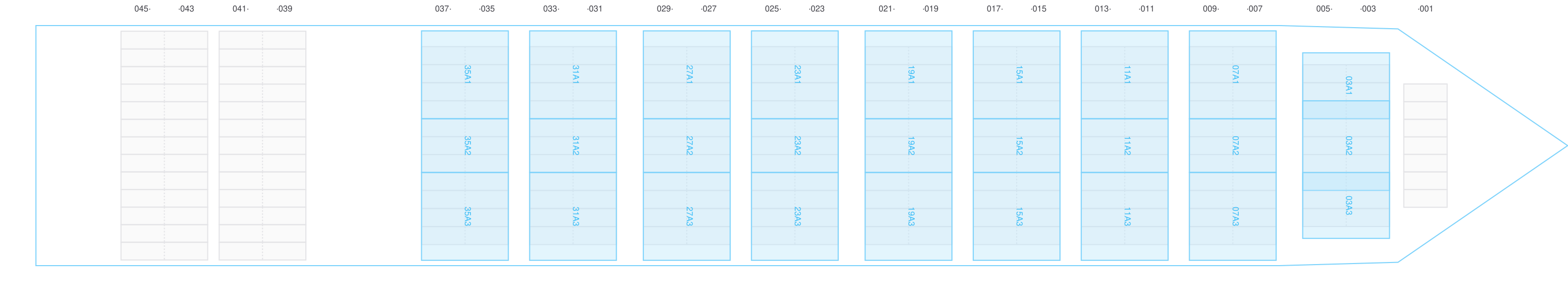

Deck view of CAPE MOSS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

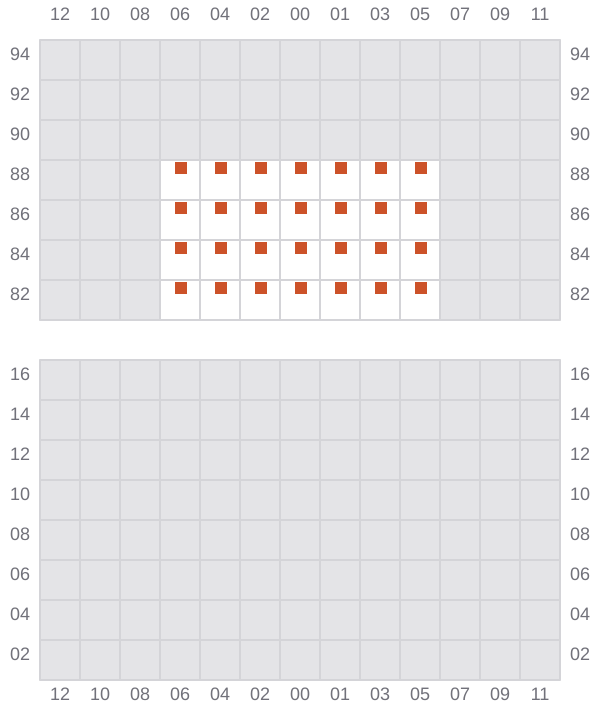

Bay 001 view and slots of CAPE MOSS

003 (004)

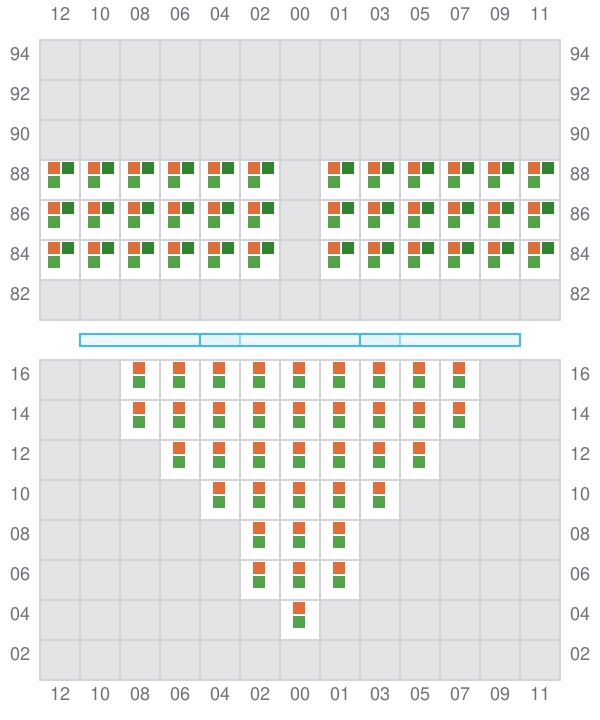

Bay 003 view and slots of CAPE MOSS

005

  • / ?

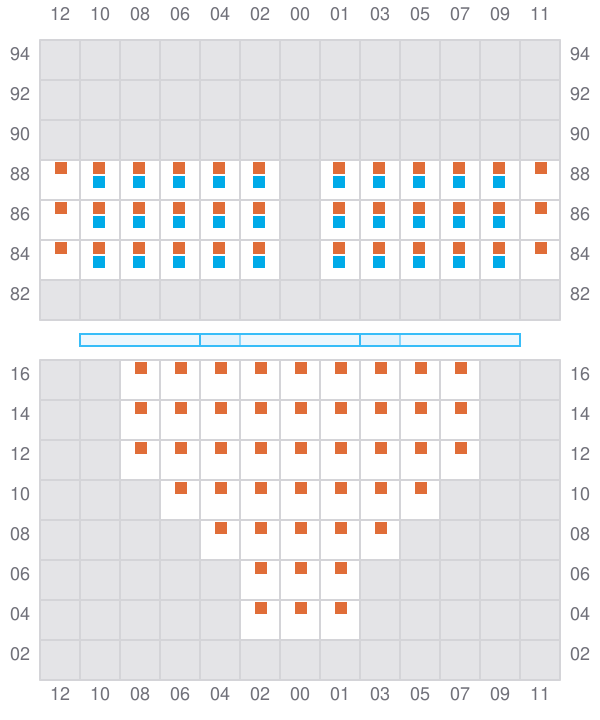

Bay 005 view and slots of CAPE MOSS

007 (008)

  • / ?

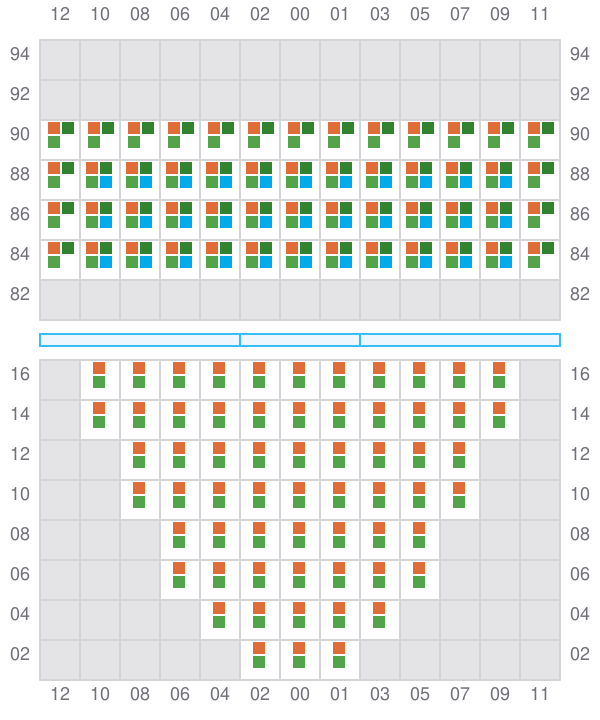

Bay 007 view and slots of CAPE MOSS

009

  • ? /

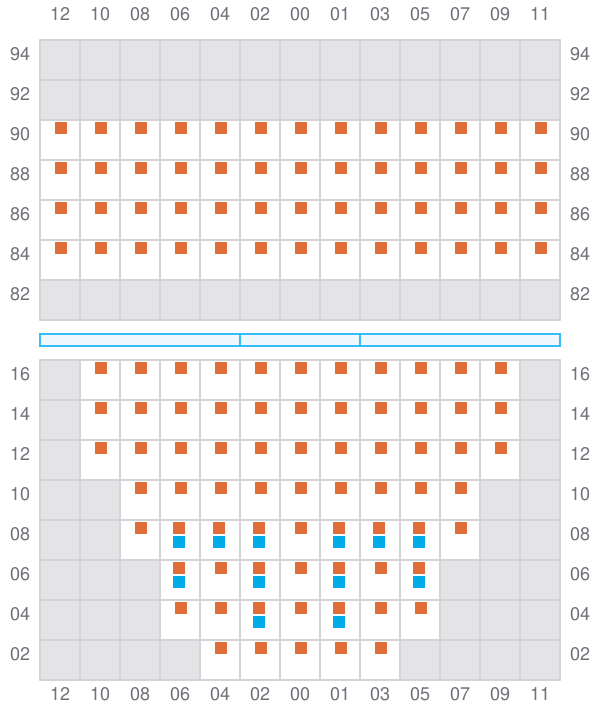

Bay 009 view and slots of CAPE MOSS

011 (012)

  • ? /

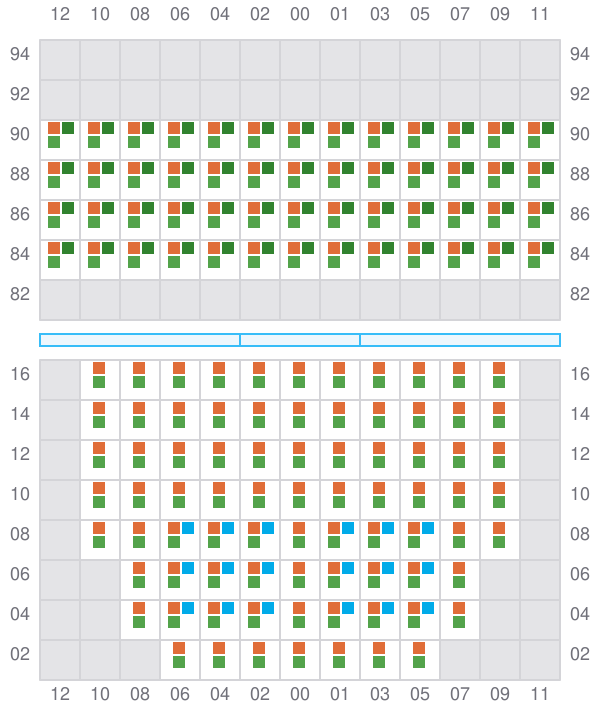

Bay 011 view and slots of CAPE MOSS

013

  • / ?

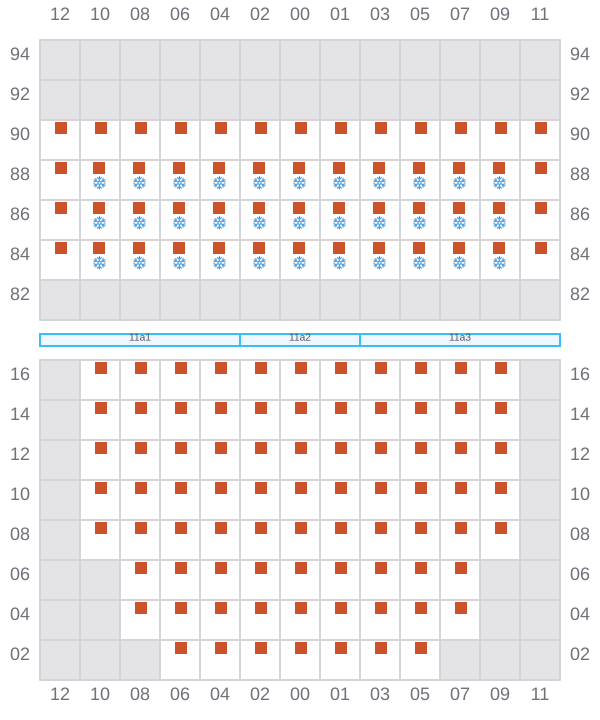

Bay 013 view and slots of CAPE MOSS

015 (016)

  • / ?

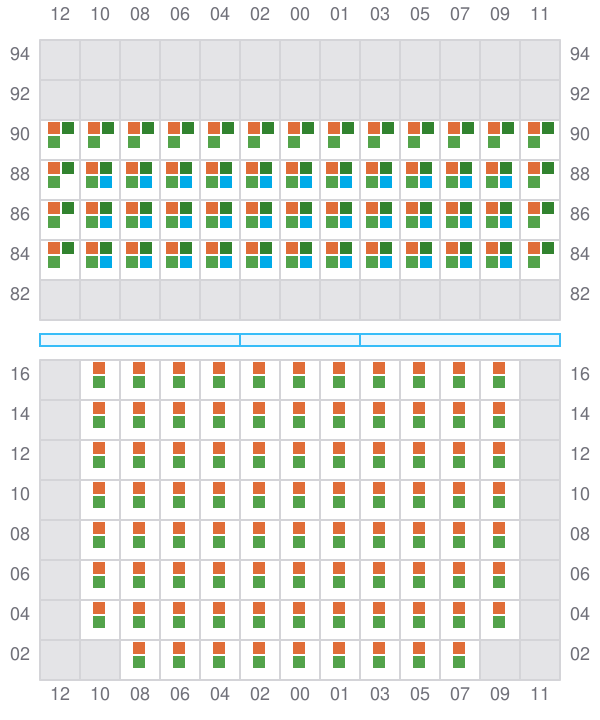

Bay 015 view and slots of CAPE MOSS

017

  • ? /

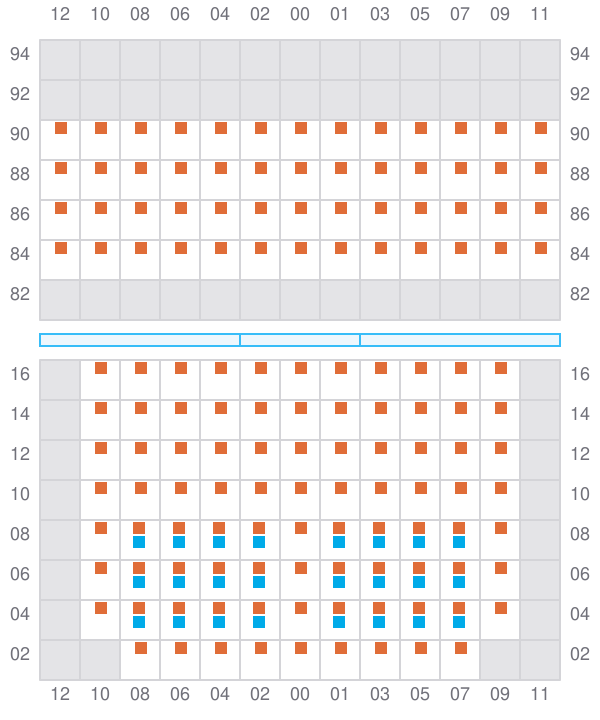

Bay 017 view and slots of CAPE MOSS

019 (020)

  • ? /

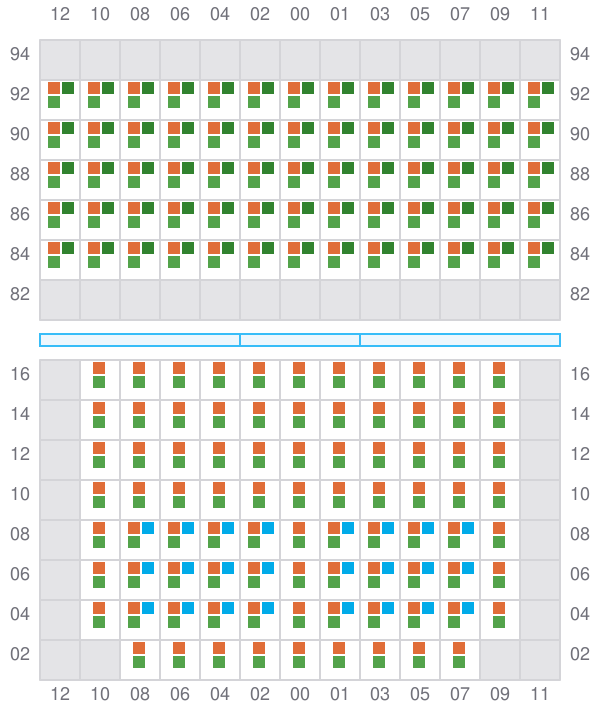

Bay 019 view and slots of CAPE MOSS

021

  • / ?
Bay 021 view and slots of CAPE MOSS

023 (024)

  • / ?
Bay 023 view and slots of CAPE MOSS

025

  • ? /
Bay 025 view and slots of CAPE MOSS

027 (028)

  • ? /
Bay 027 view and slots of CAPE MOSS

029

  • / ?
Bay 029 view and slots of CAPE MOSS

031 (032)

  • / ?

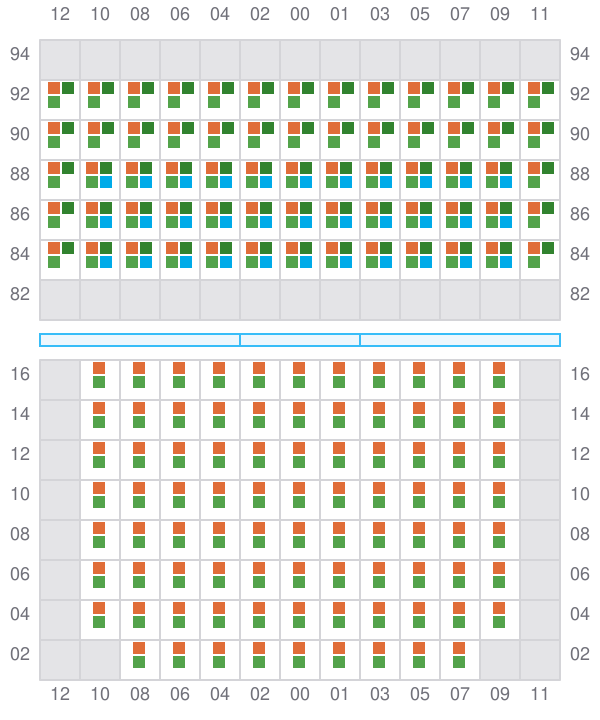

Bay 031 view and slots of CAPE MOSS

033

  • ? /

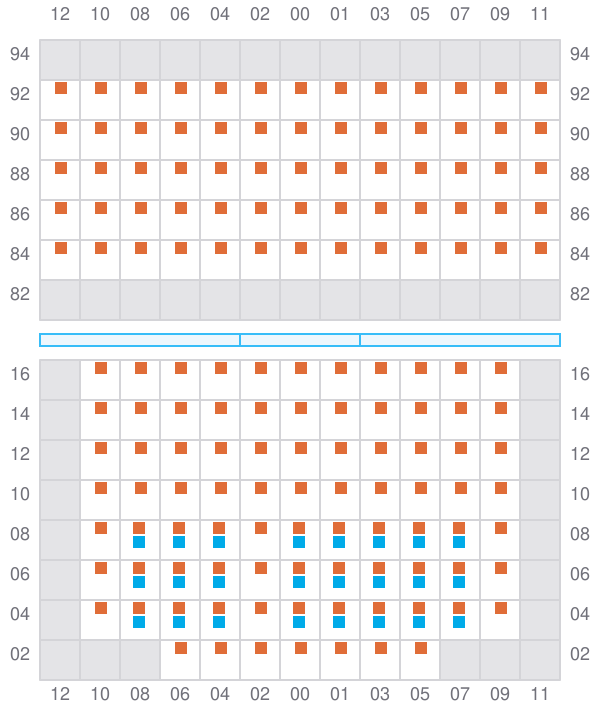

Bay 033 view and slots of CAPE MOSS

035 (036)

  • ? /

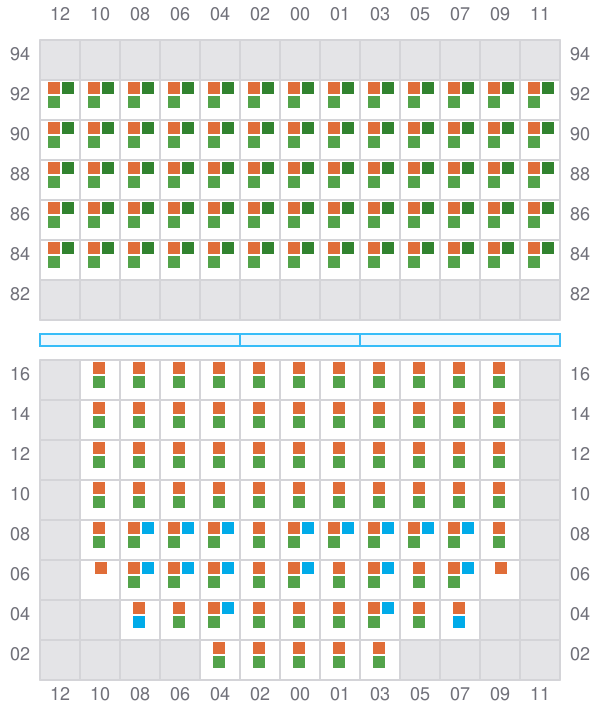

Bay 035 view and slots of CAPE MOSS

037

  • / ?

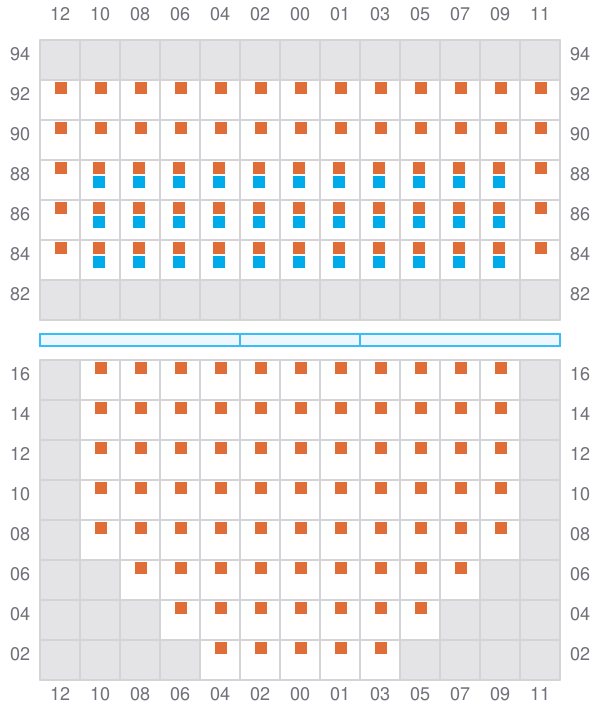

Bay 037 view and slots of CAPE MOSS

039 (040)

  • / ?

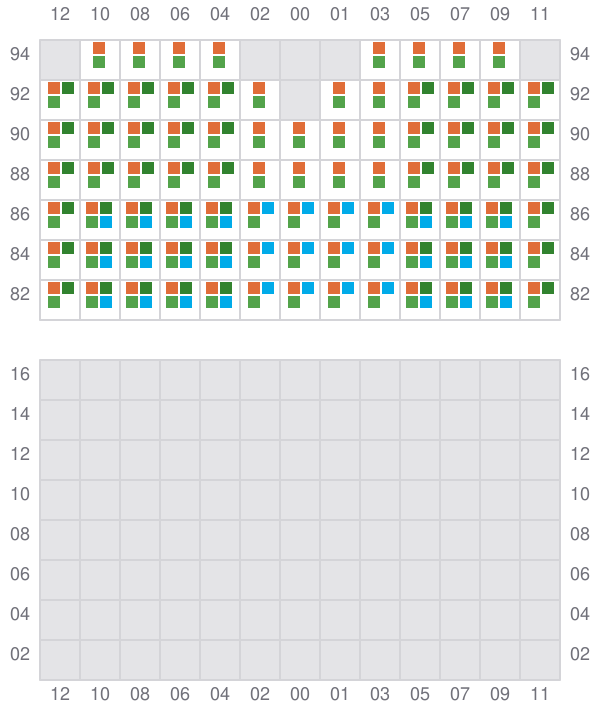

Bay 039 view and slots of CAPE MOSS

041

  • / ?
Bay 041 view and slots of CAPE MOSS

043 (044)

  • / ?

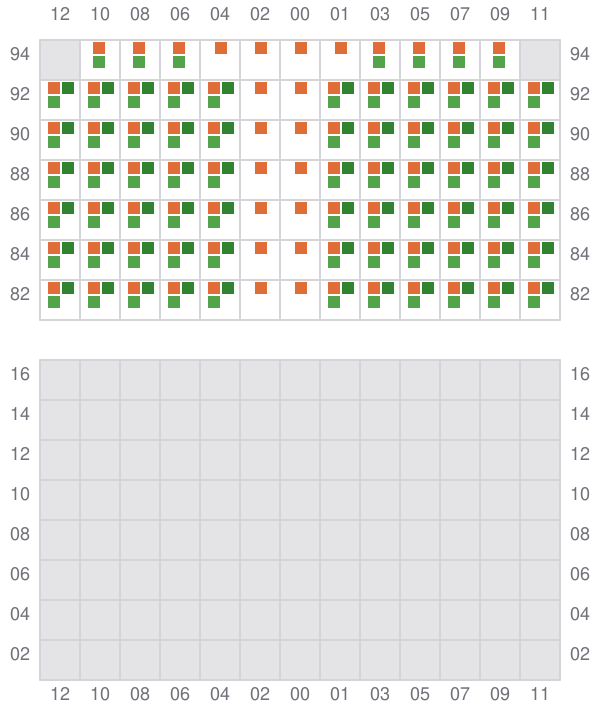

Bay 043 view and slots of CAPE MOSS

045

  • / ?

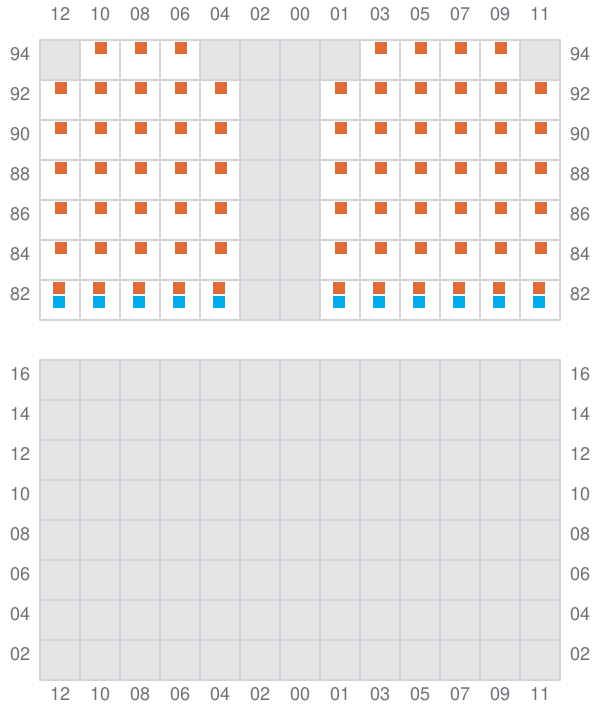

Bay 045 view and slots of CAPE MOSS
