CAPE SAN JUAN
9578971 | WDO2005 | 9578971 by ********* Last update: Thu May 16 2024
General Info
Ship Name:CAPE SAN JUAN
IMO Code:9578971
Call Sign:WDO2005
Line Operator:9578971
Class Name for Sister Ships:JOLLY CRISTALLO
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:047
Max ISO Row:20
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,624
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-sideView.png?v=1715879411913)

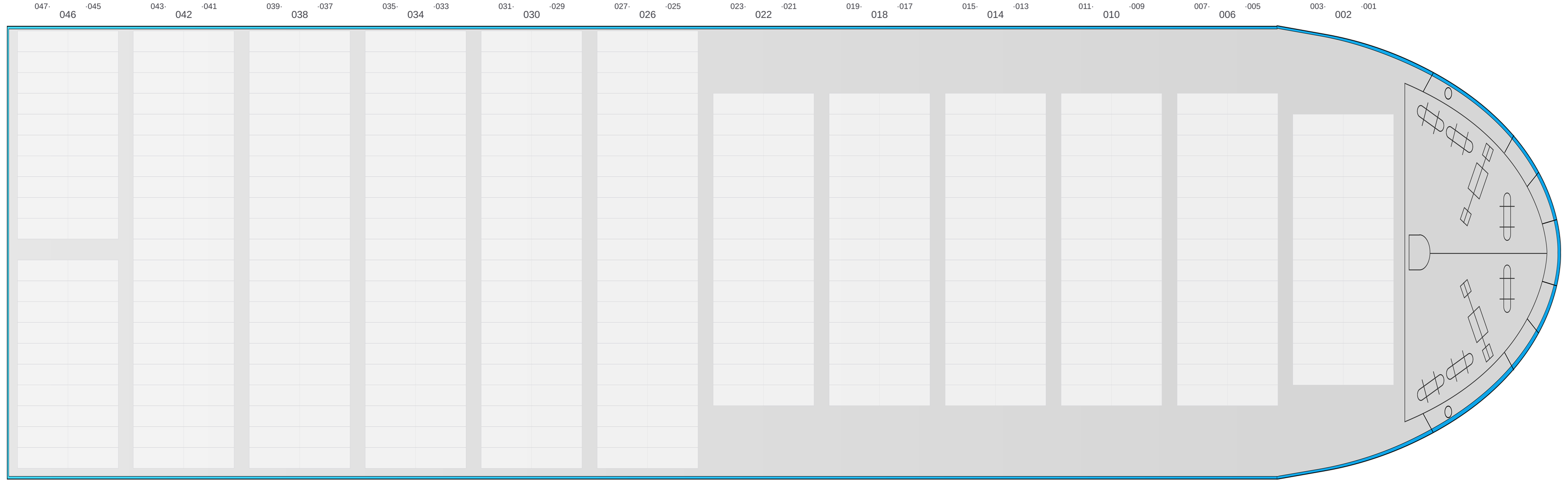

Hatch-Covers View
![Deck view of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-deckView.png?v=1715879411913)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

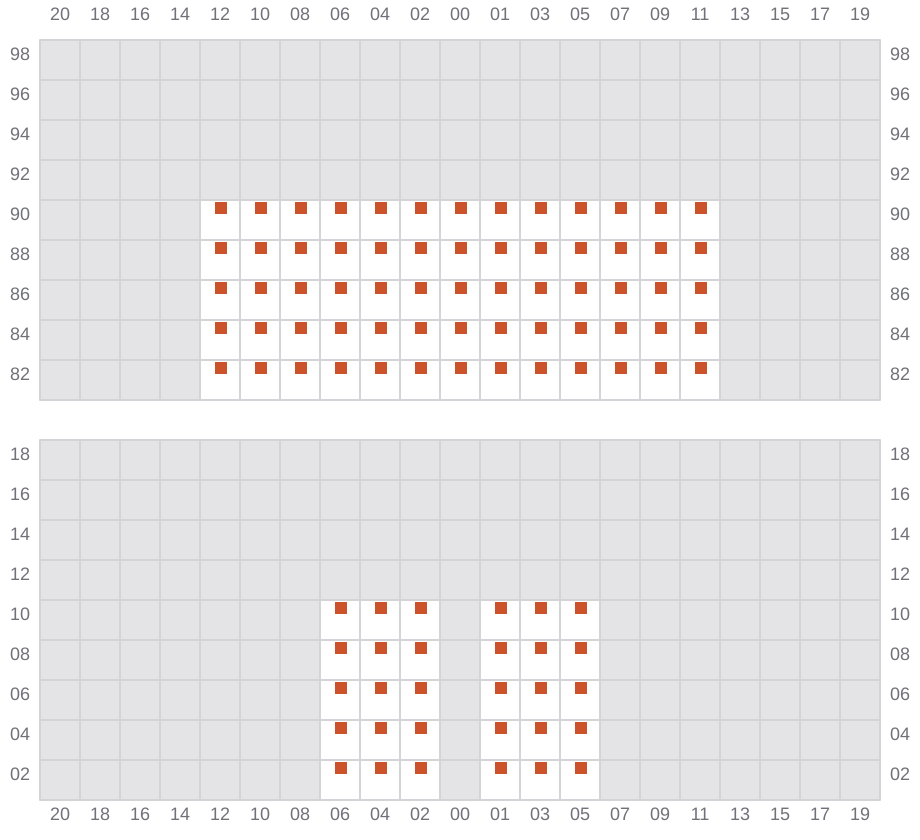

001
- →
![Bay 001 view and slots of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-b001.png?v=1715879411913)

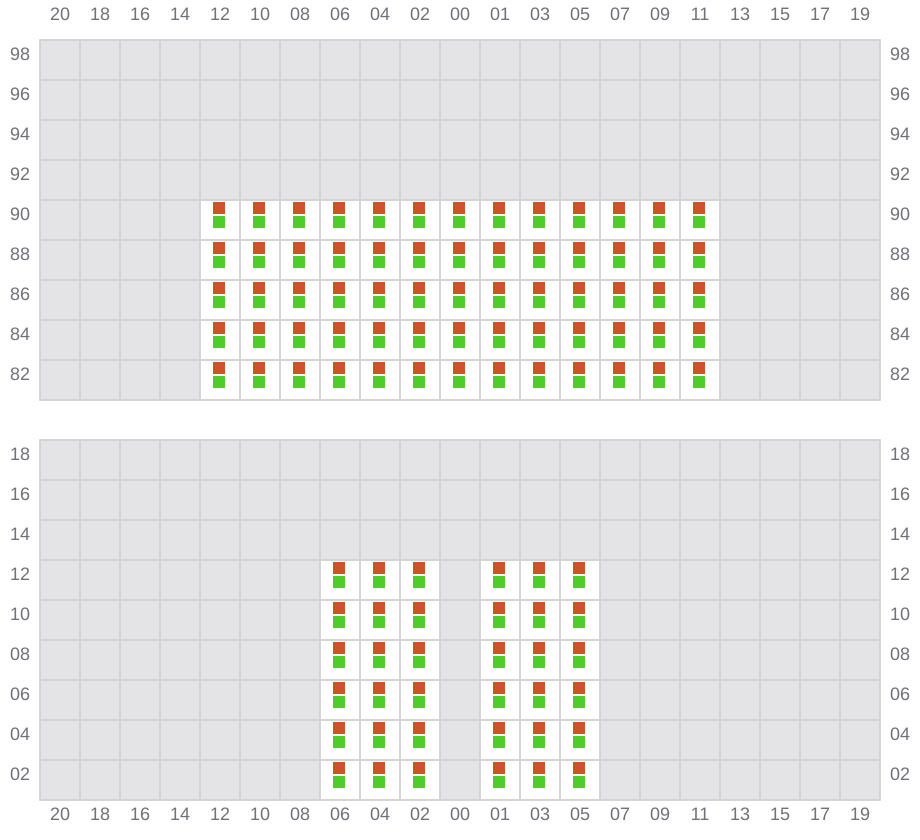

003 (002)
- ←
![Bay 003 view and slots of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-b003.png?v=1715879411913)

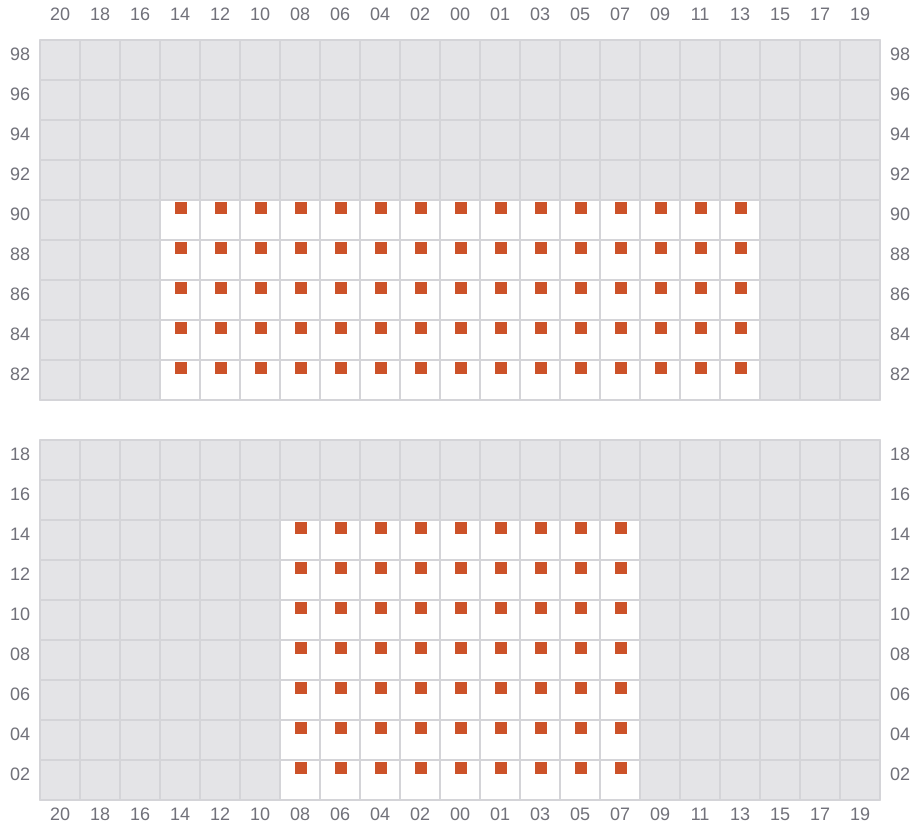

005
- →
![Bay 005 view and slots of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-b005.png?v=1715879411913)
007 (006)
- ←
![Bay 007 view and slots of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-b007.png?v=1715879411913)
009
- →
![Bay 009 view and slots of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-b009.png?v=1715879411913)

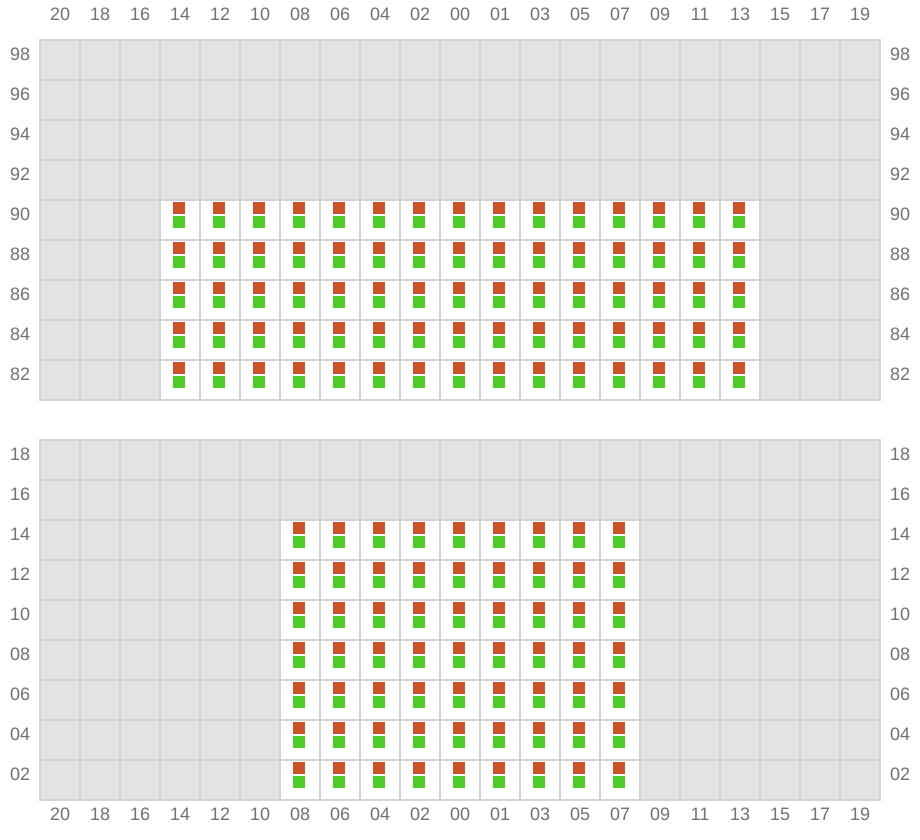

011 (010)
- ←
![Bay 011 view and slots of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-b011.png?v=1715879411913)
013
- →
![Bay 013 view and slots of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-b013.png?v=1715879411913)
015 (014)
- ←
![Bay 015 view and slots of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-b015.png?v=1715879411913)
017
- →
![Bay 017 view and slots of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-b017.png?v=1715879411913)
019 (018)
- ←
![Bay 019 view and slots of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-b019.png?v=1715879411913)

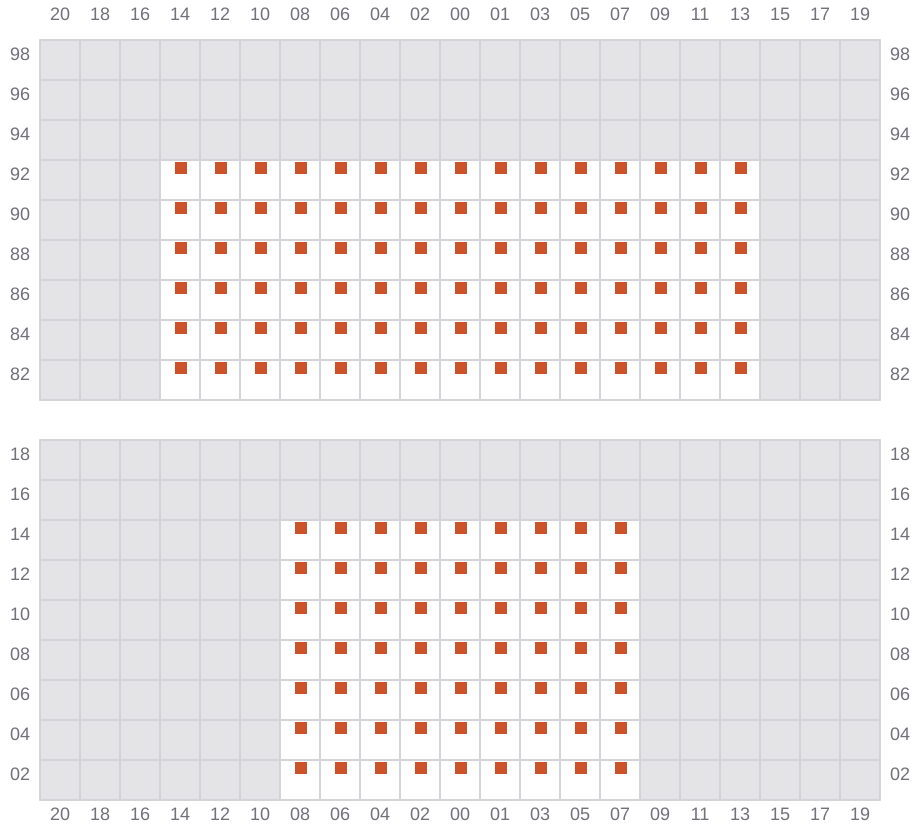

021
- →
![Bay 021 view and slots of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-b021.png?v=1715879411913)
023 (022)
- ←
![Bay 023 view and slots of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-b023.png?v=1715879411913)

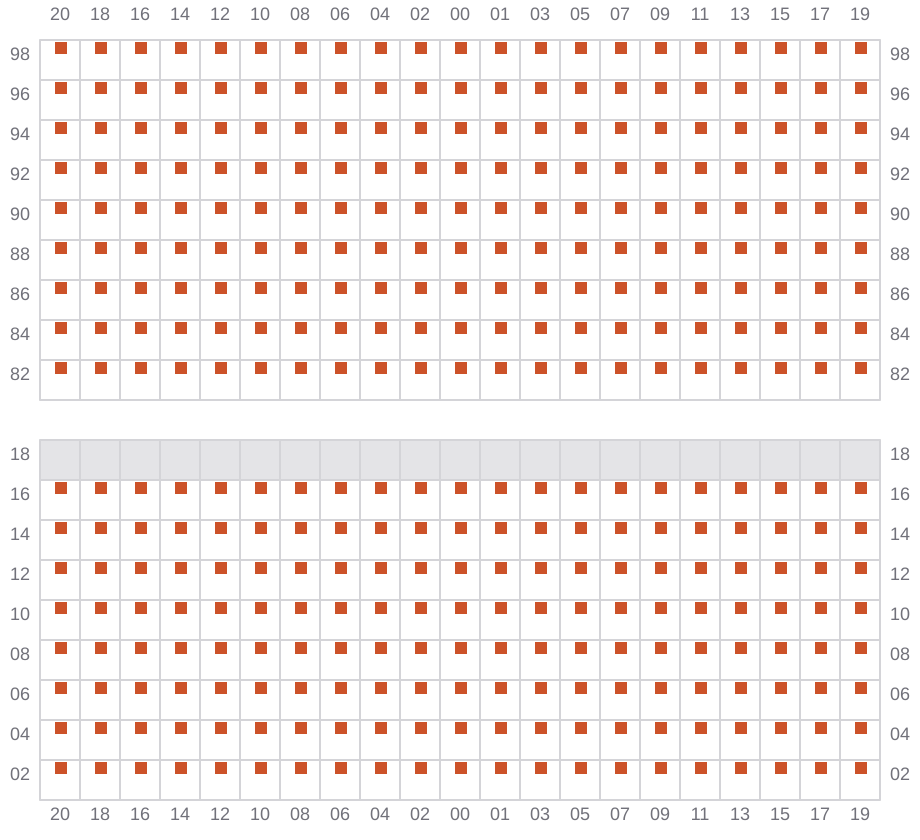

025
- →
![Bay 025 view and slots of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-b025.png?v=1715879411913)

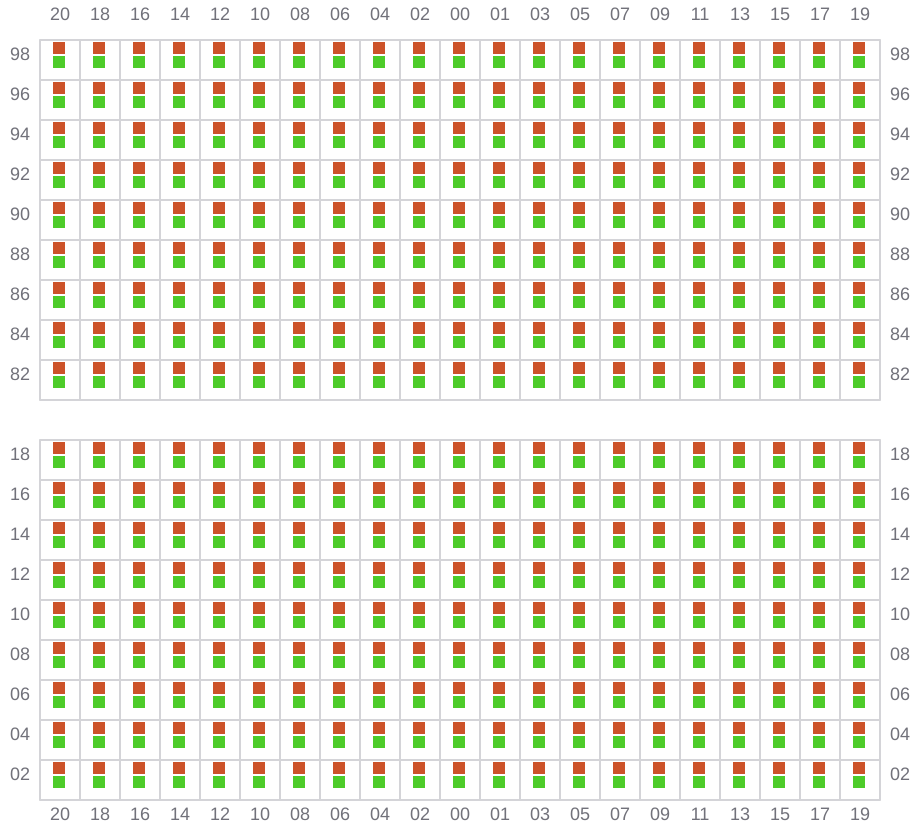

027 (026)
- ←
![Bay 027 view and slots of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-b027.png?v=1715879411913)

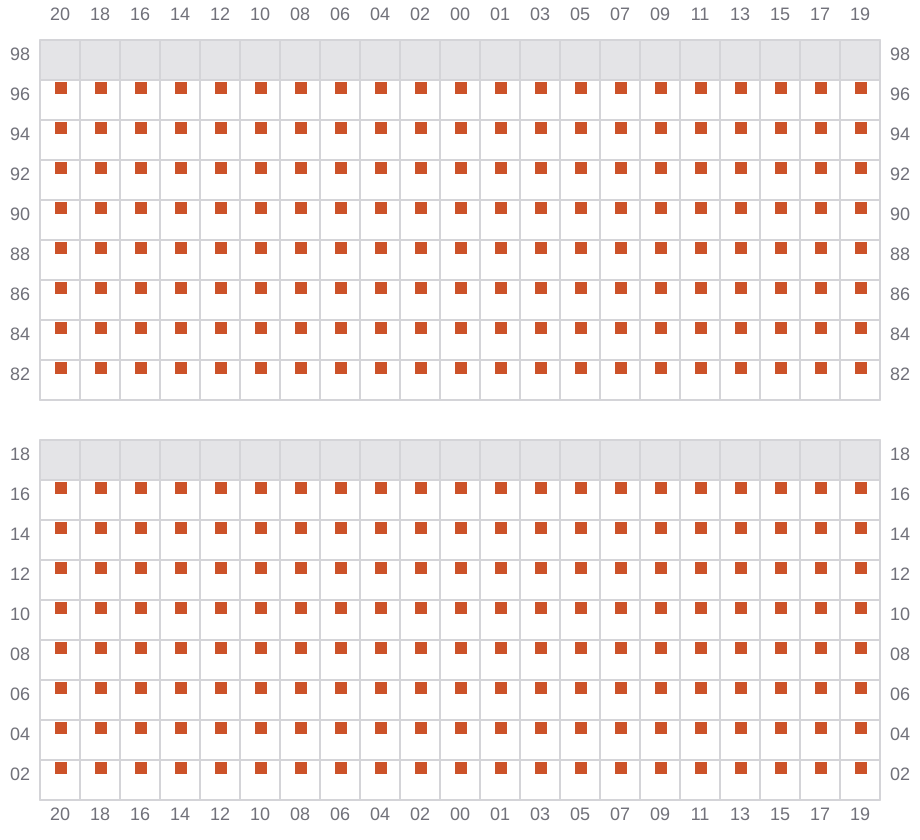

029
- →
![Bay 029 view and slots of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-b029.png?v=1715879411913)
031 (030)
- ←
![Bay 031 view and slots of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-b031.png?v=1715879411913)

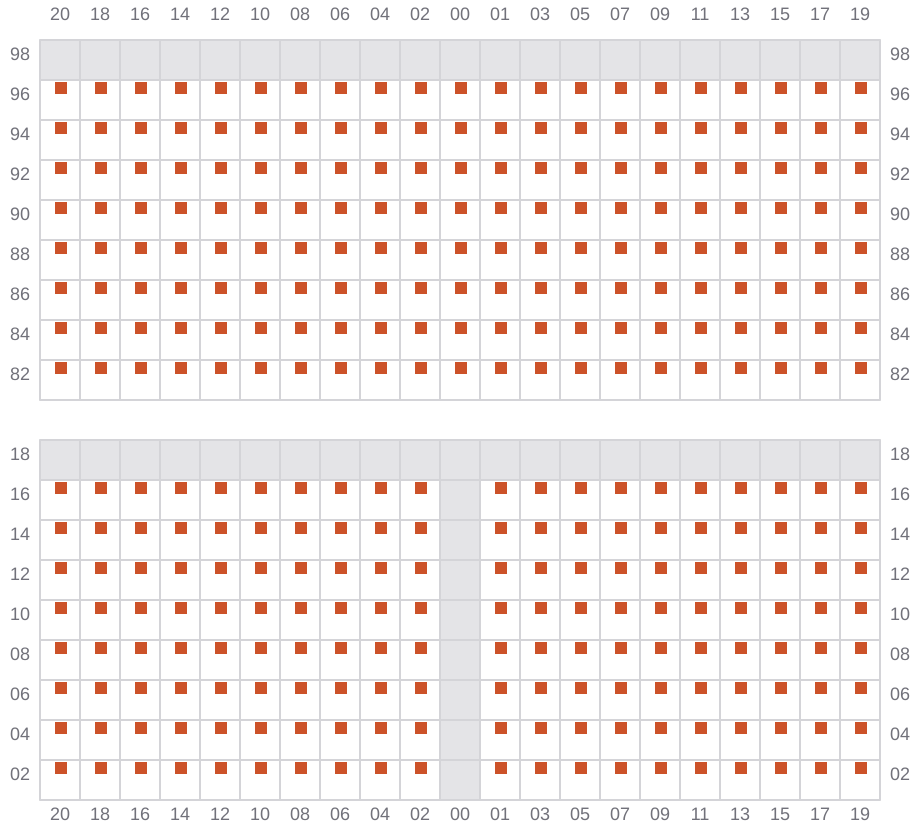

033
- →
![Bay 033 view and slots of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-b033.png?v=1715879411913)

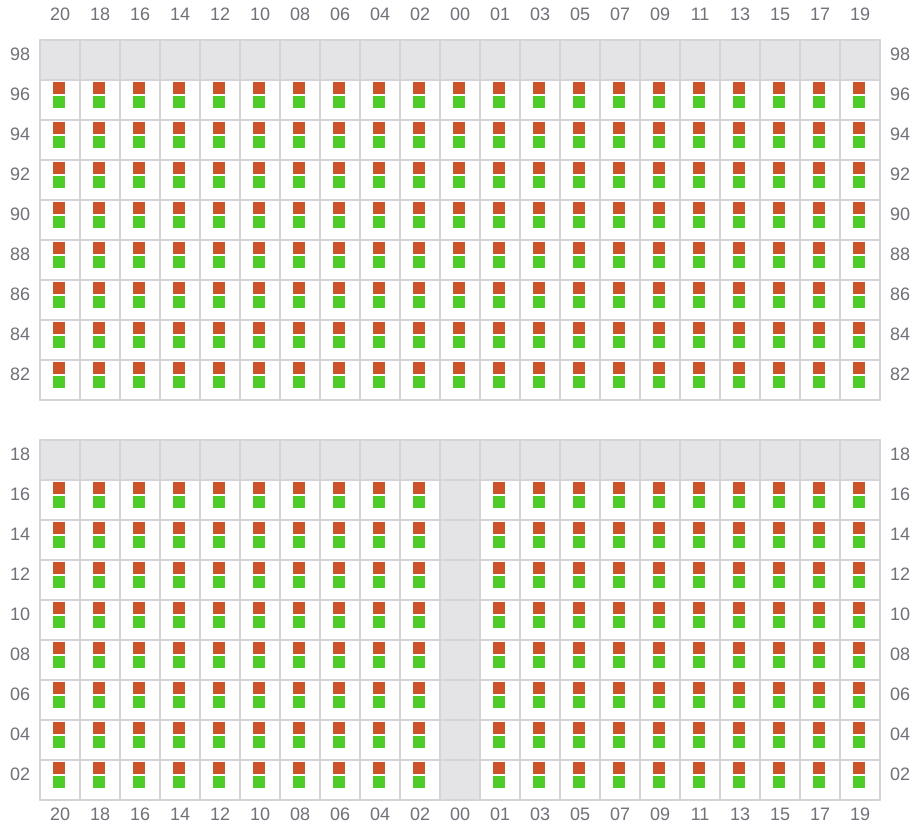

035 (034)
- ←
![Bay 035 view and slots of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-b035.png?v=1715879411913)
037
- →
![Bay 037 view and slots of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-b037.png?v=1715879411913)

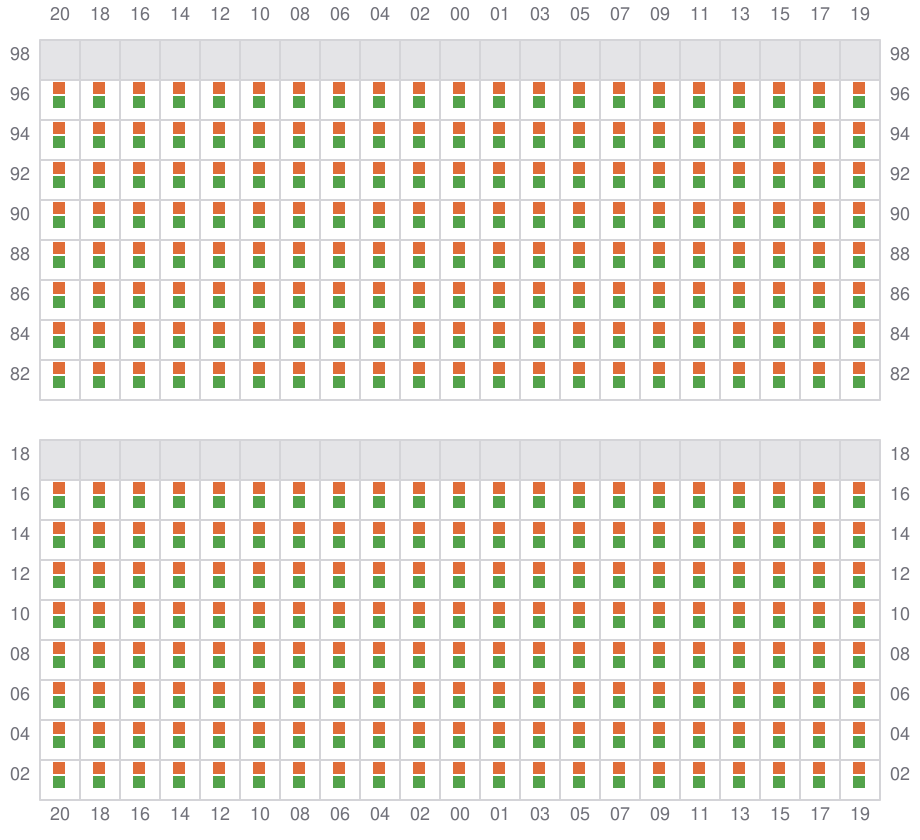

039 (038)
- ←
![Bay 039 view and slots of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-b039.png?v=1715879411913)

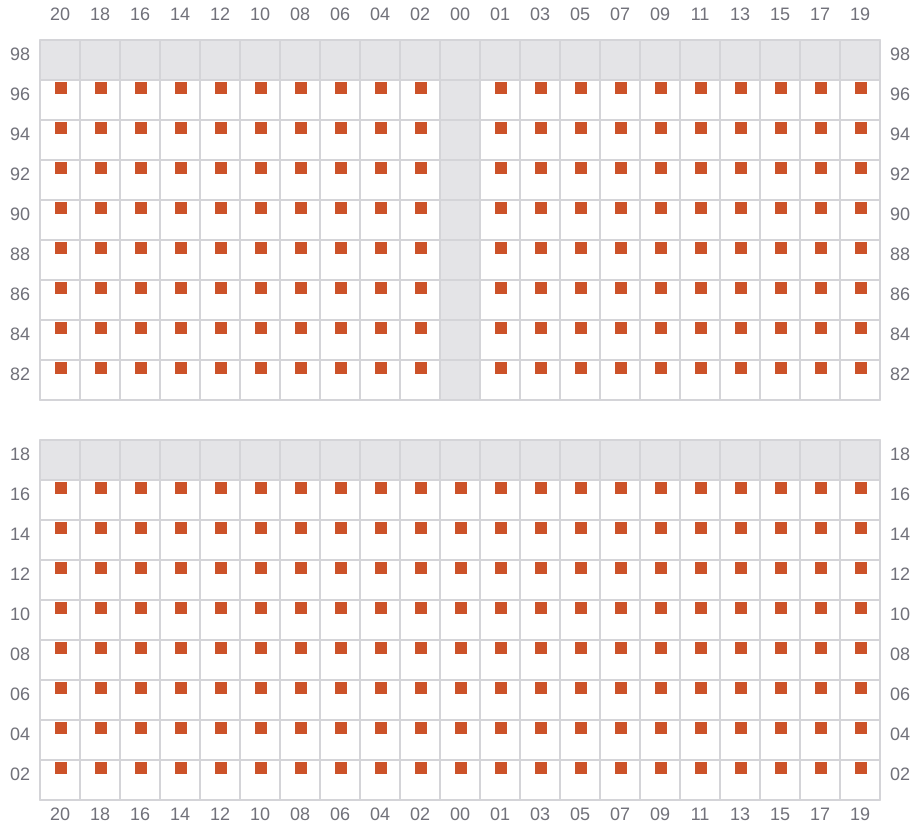

041
- →
![Bay 041 view and slots of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-b041.png?v=1715879411913)

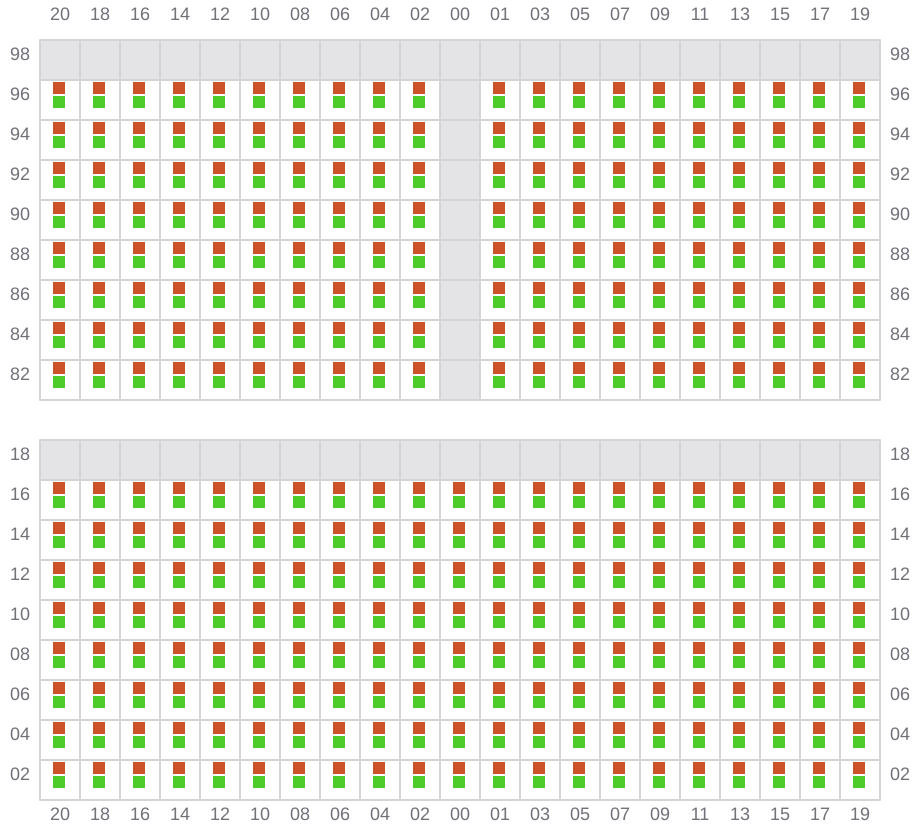

043 (042)
- ←
![Bay 043 view and slots of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-b043.png?v=1715879411913)

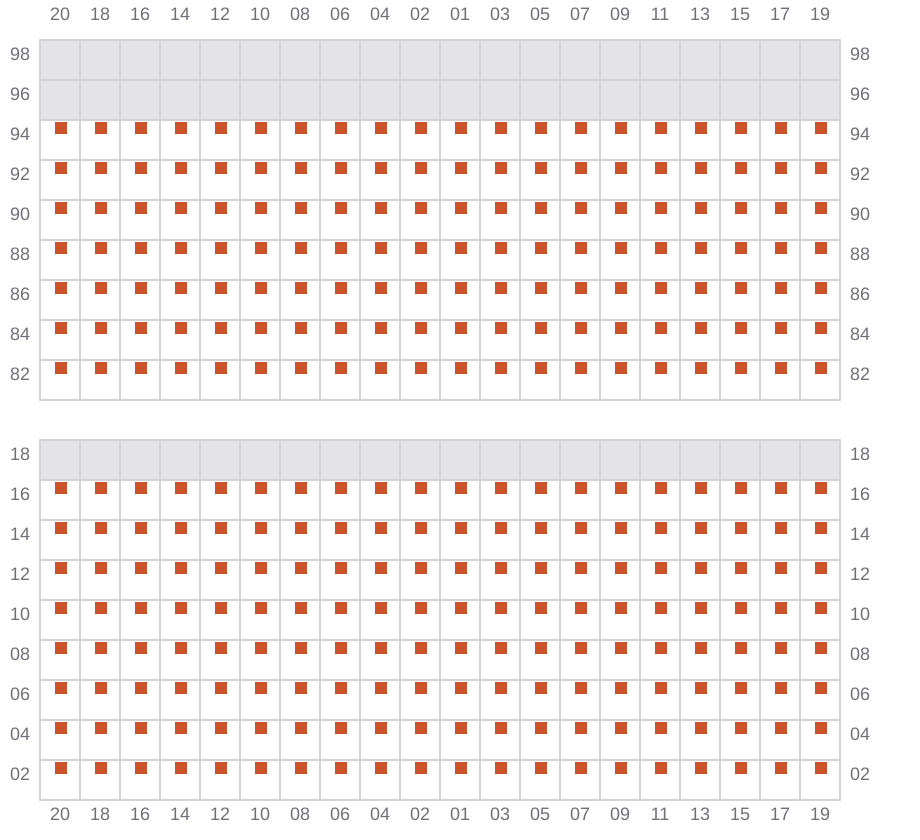

045
- →
![Bay 045 view and slots of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-b045.png?v=1715879411913)

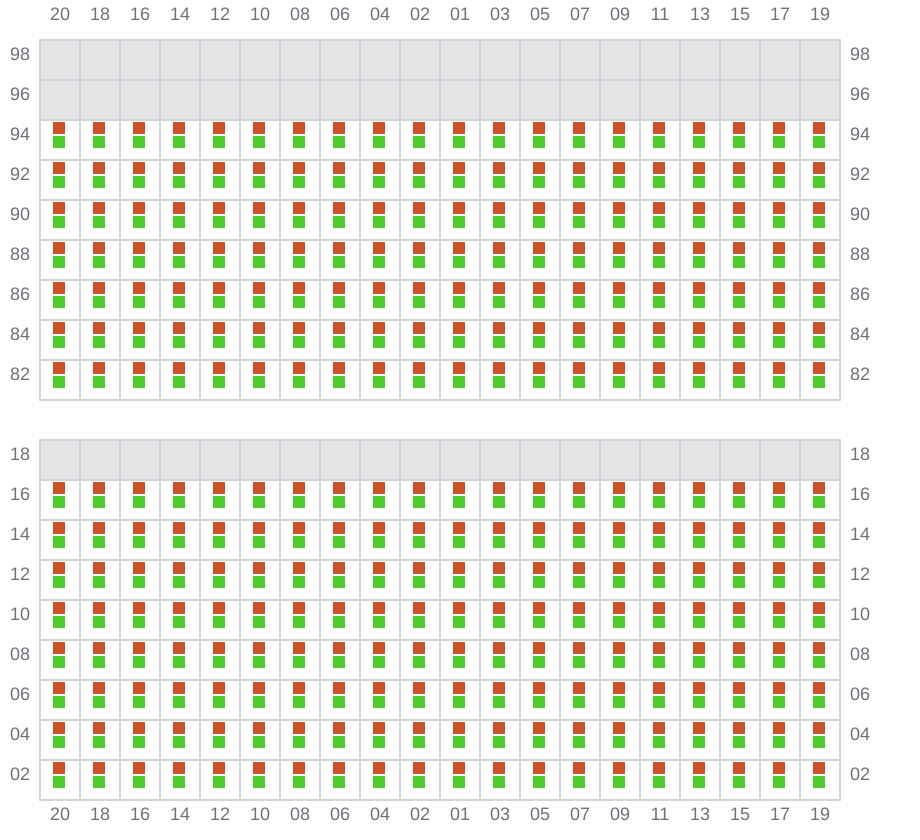

047 (046)
- ←
![Bay 047 view and slots of CAPE SAN JUAN](/vessel-images/144eea49-1c73-4e96-a2b9-824ee3354018-b047.png?v=1715879411913)
