CAPE SPENCER
9950129 | OZJQ2 | CMA by *********************** Last update: Thu Feb 13 2025
General Info
Ship Name:CAPE SPENCER
IMO Code:9950129
Call Sign:OZJQ2
Line Operator:CMA
Class Name for Sister Ships:CCCS
Year Built:2023
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:041
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,598
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

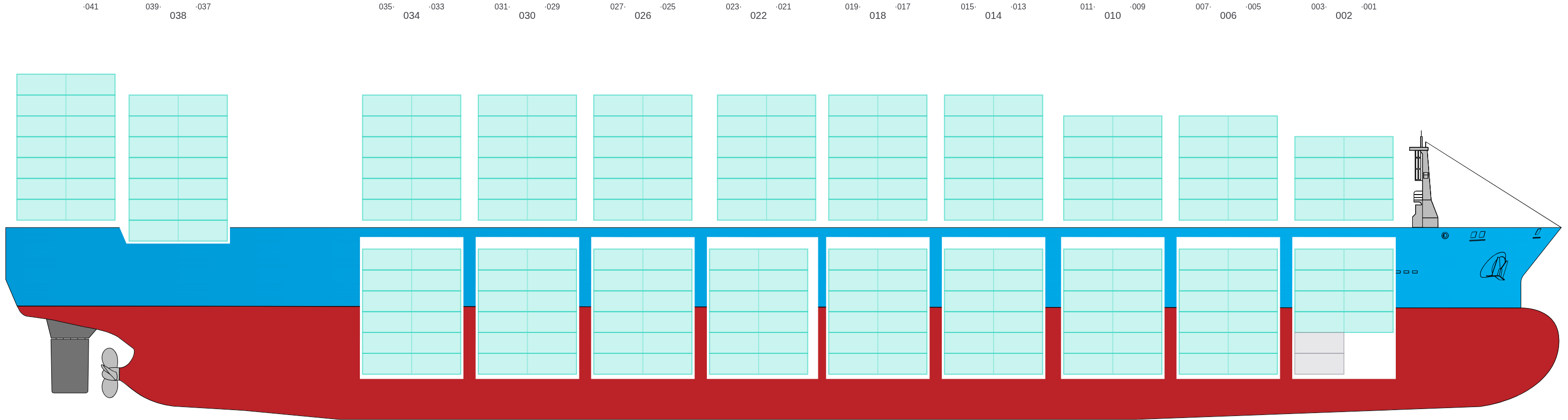

Side View

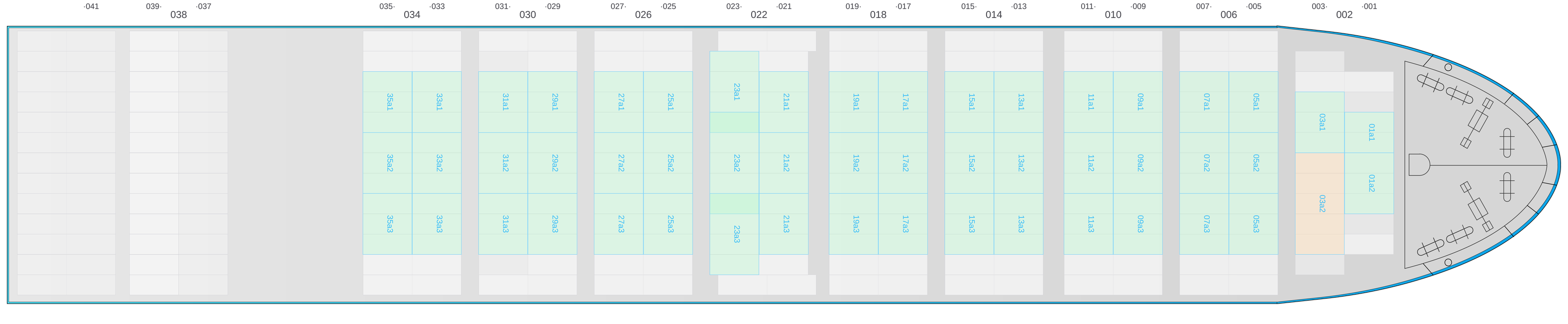

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

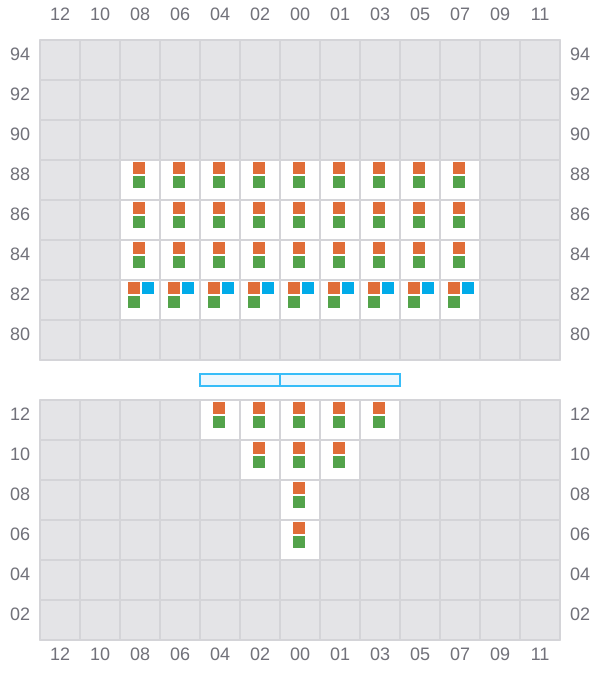

001 (002)
- →
- → / ?
- →

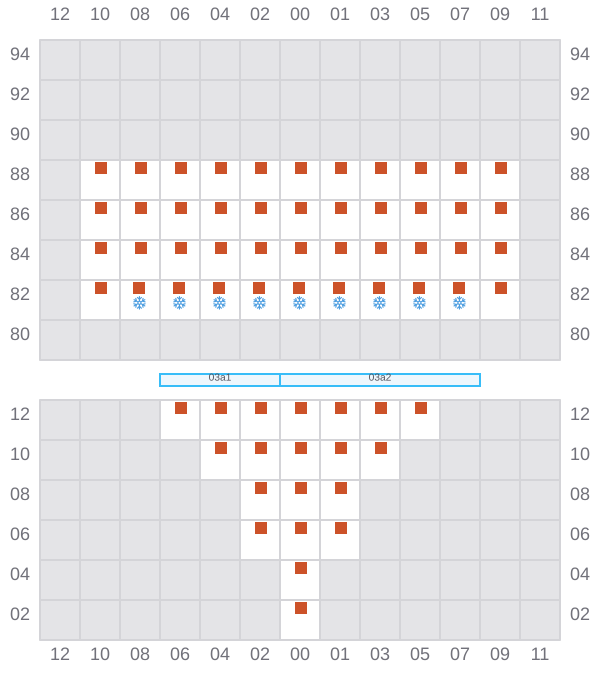

003
- ←
- → / ?
- →
005 (006)
- →
- →
- →

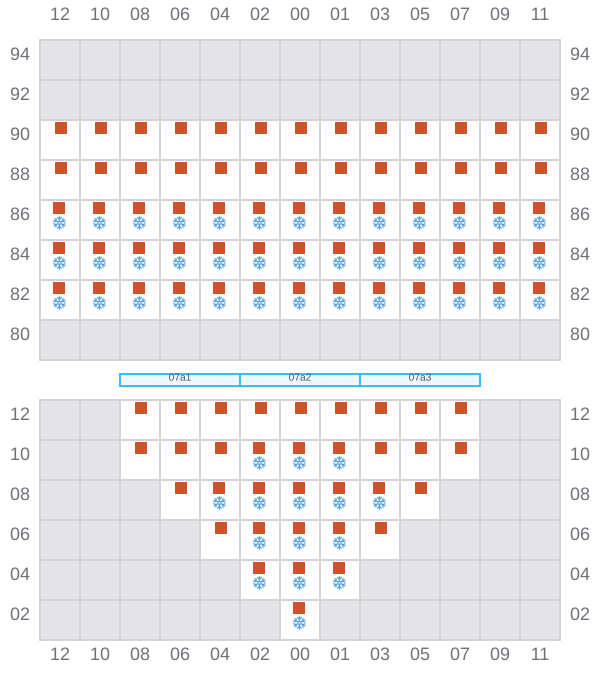

007
- ←
- →
- →

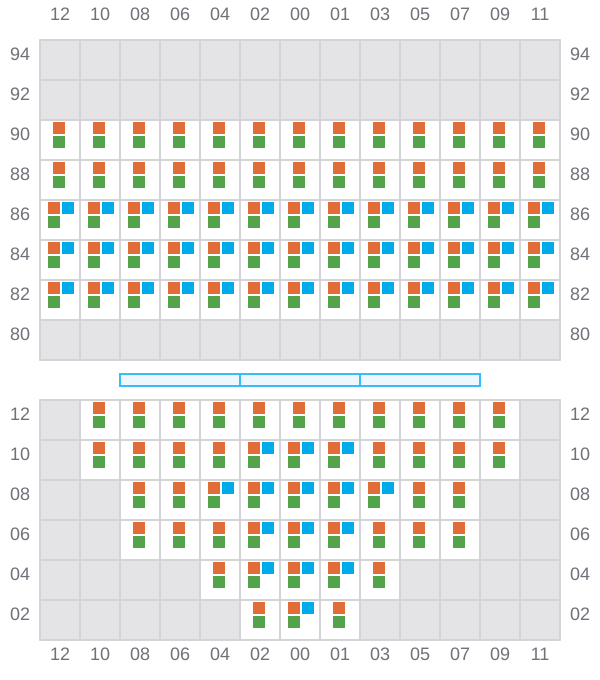

009 (010)
- →
- →
- →

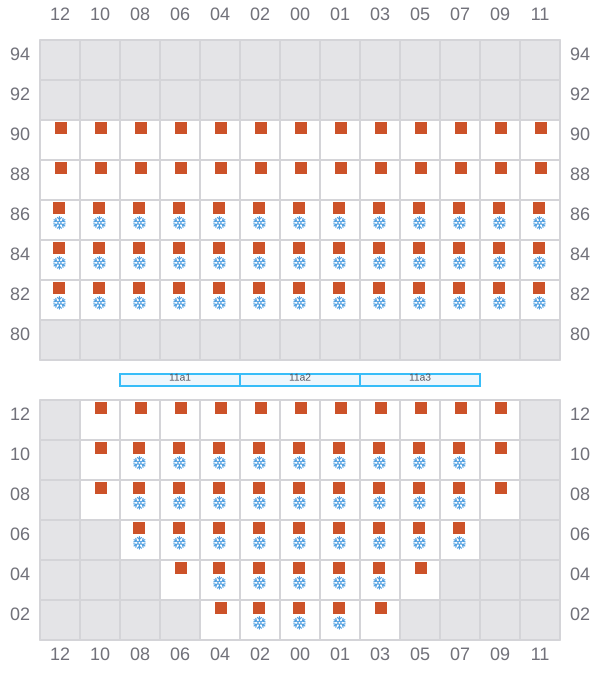

011
- ←
- →
- →

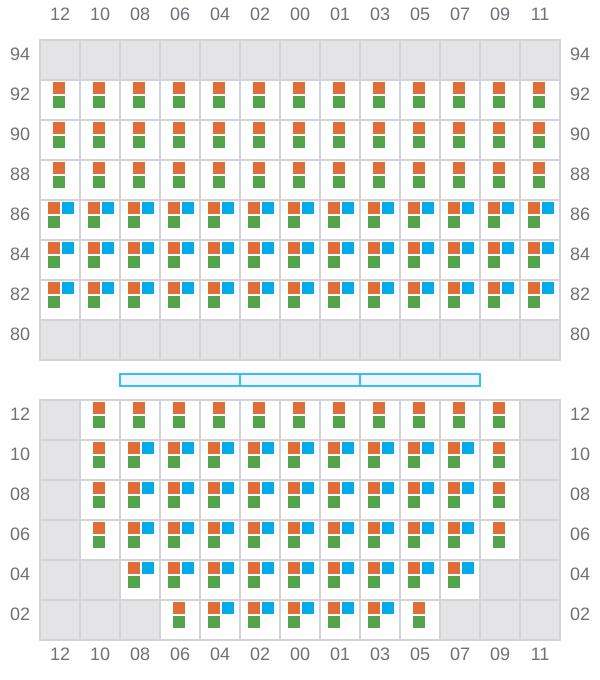

013 (014)
- →
- → / ←
- →

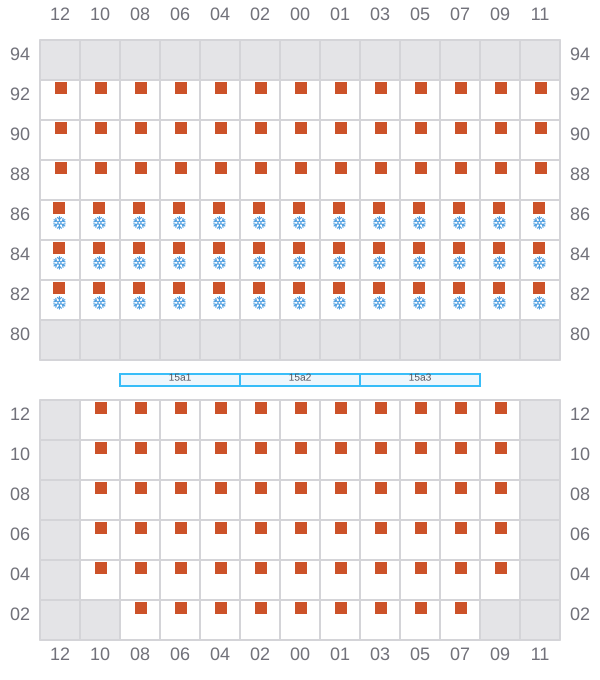

015
- ←
- → / ←
- →

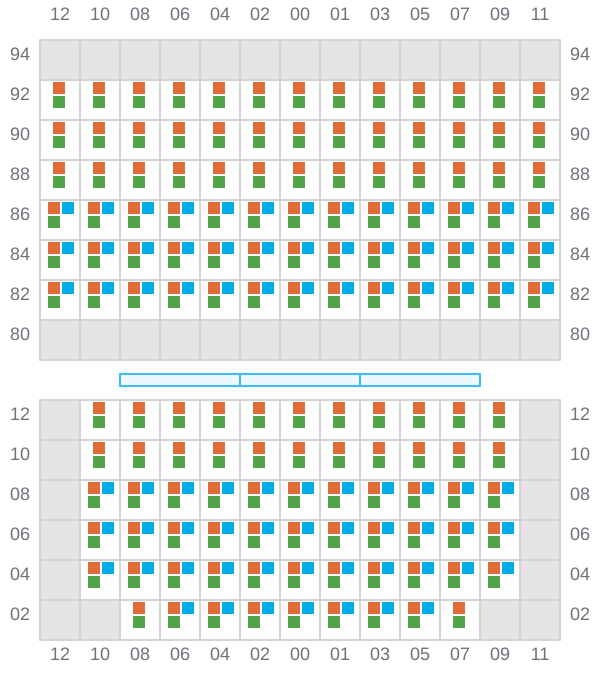

017 (018)
- →
- →
- →

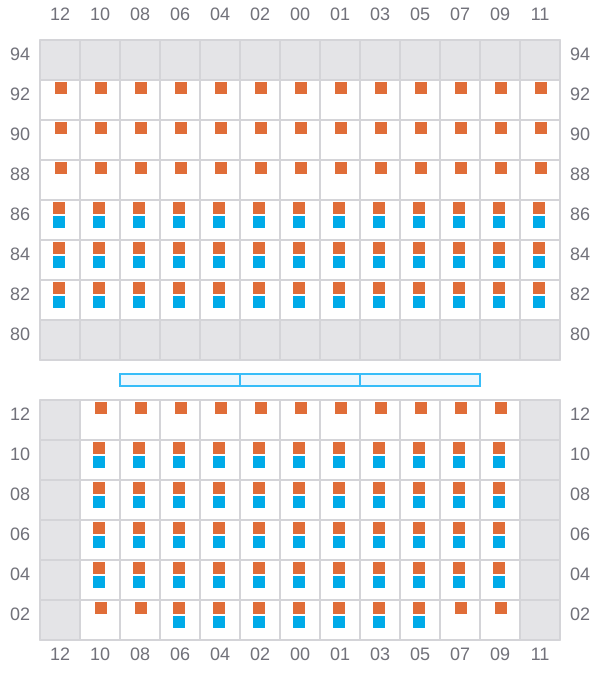

019
- ←
- →
- →
021 (022)
- →
- → / ←
- →

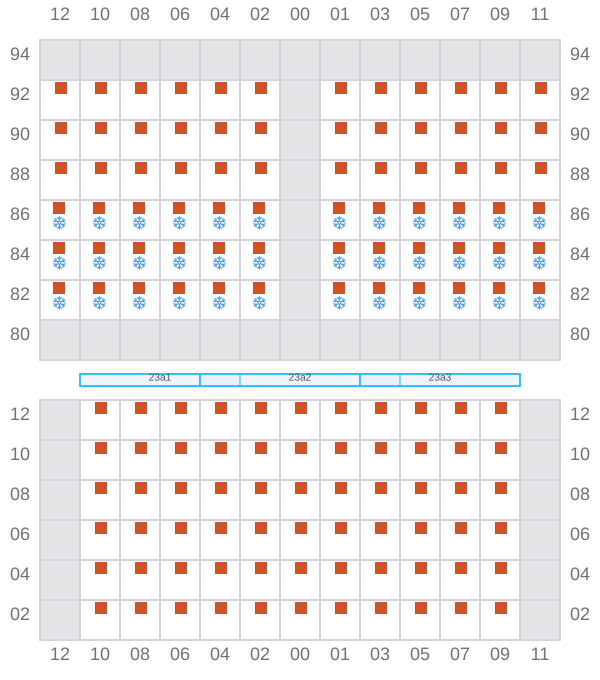

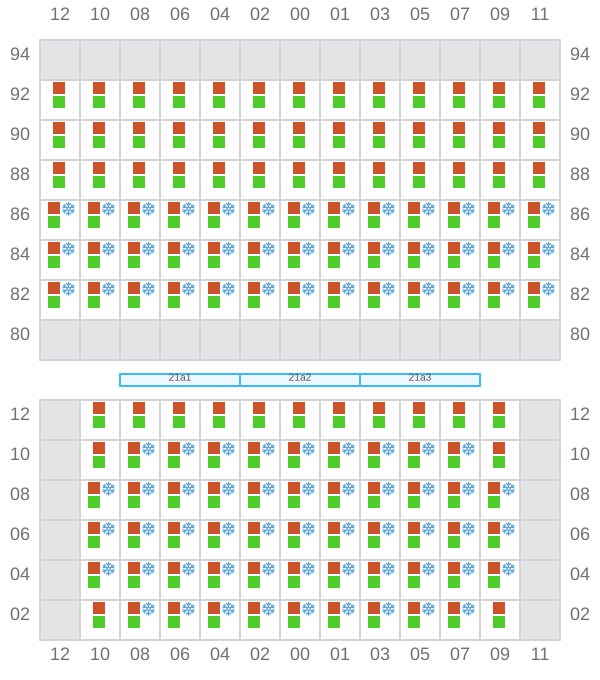

023
- ←
- →
- →

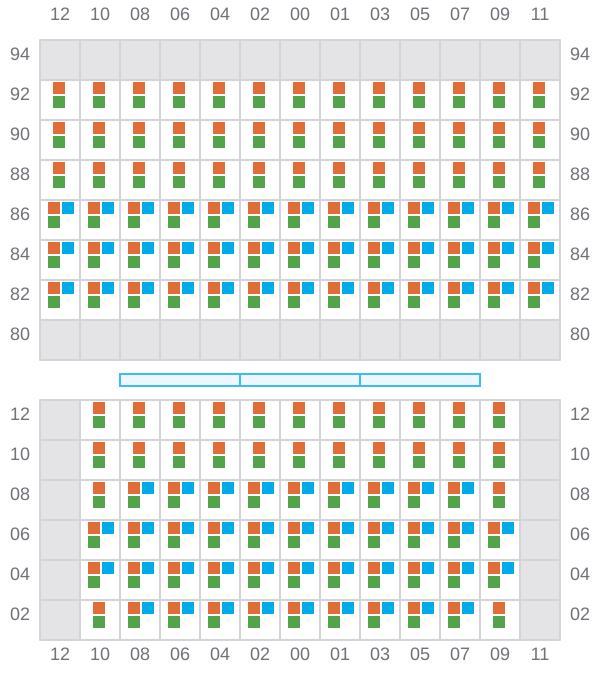

025 (026)
- →
- →
- →

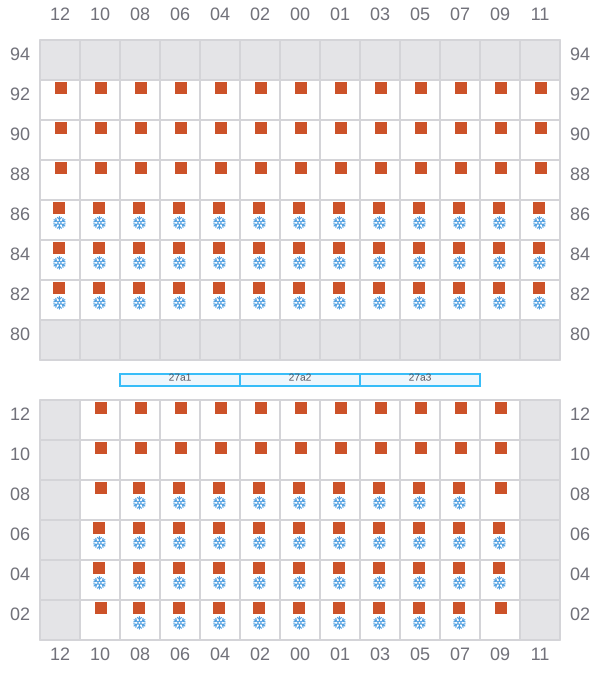

027
- ←
- →
- →

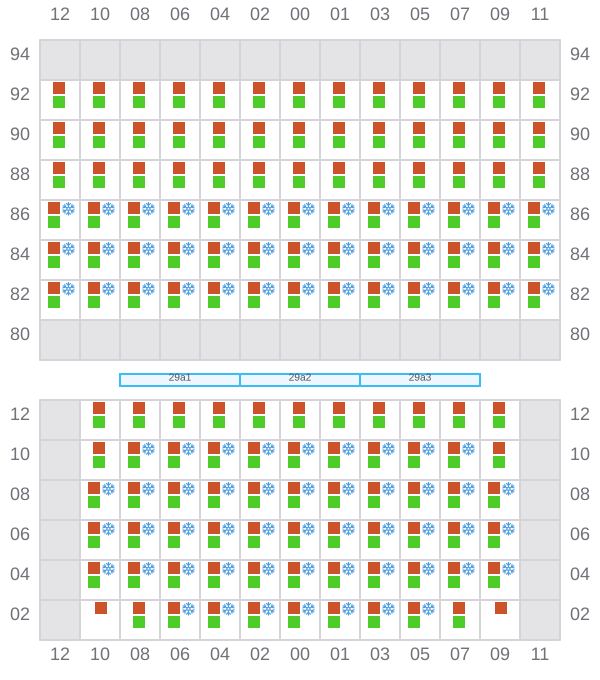

029 (030)
- →
- →
- →
031
- ←
- →
- →

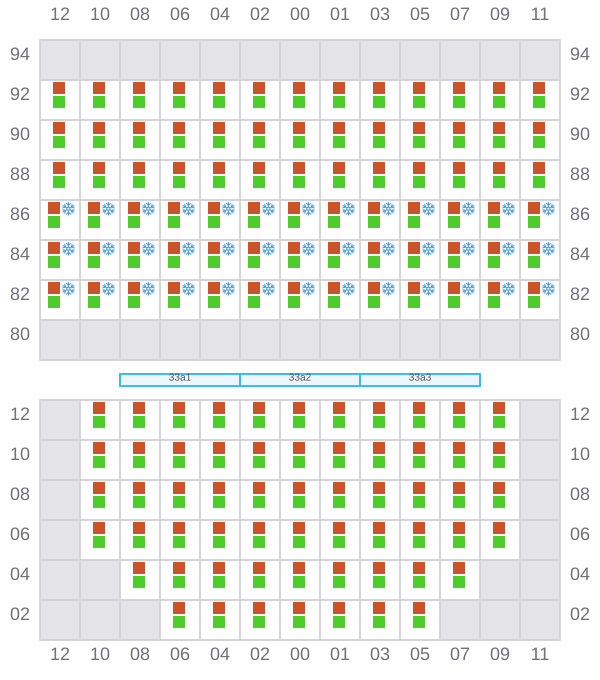

033 (034)
- →
- → / ?
- →

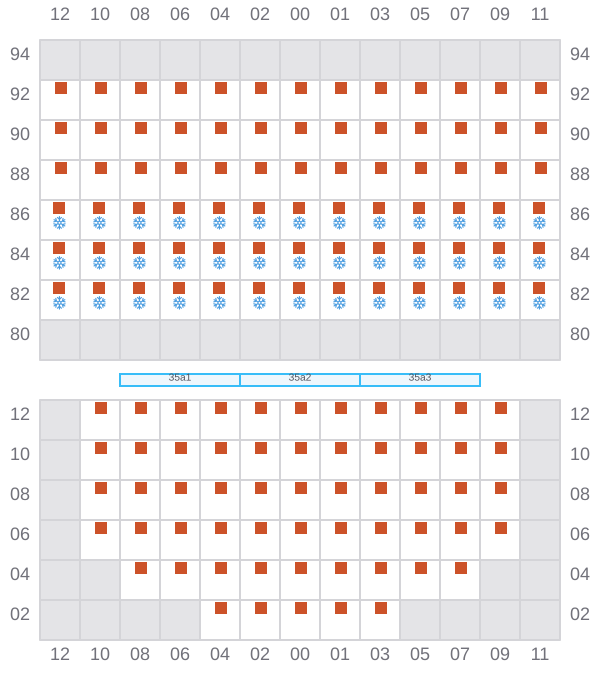

035
- ←
- → / ?
- →

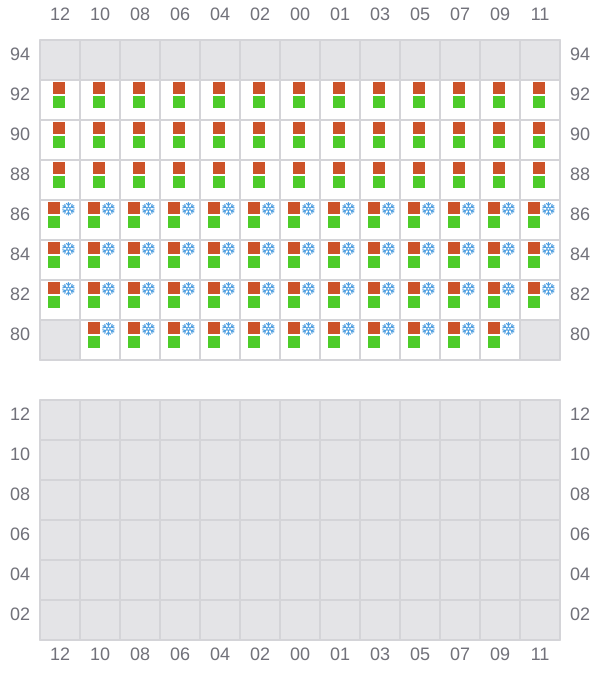

037 (038)
- → / ?
- → / ?
- → / ?

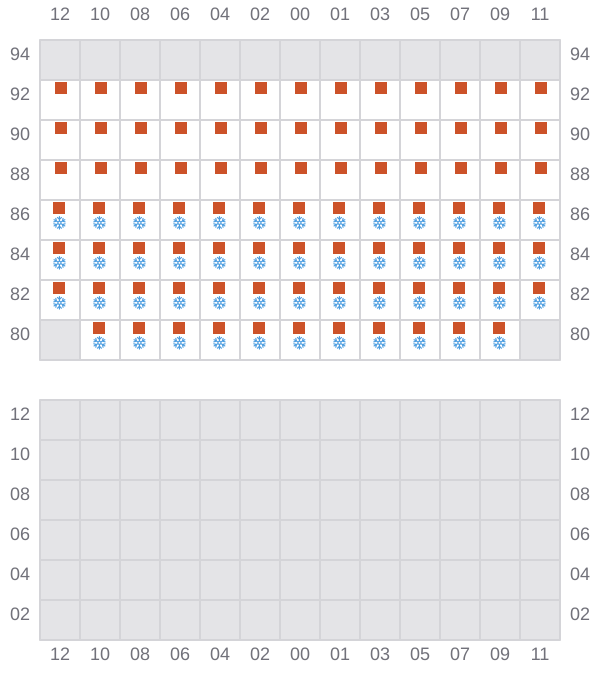

039
- ← / ?
- → / ?
- → / ?

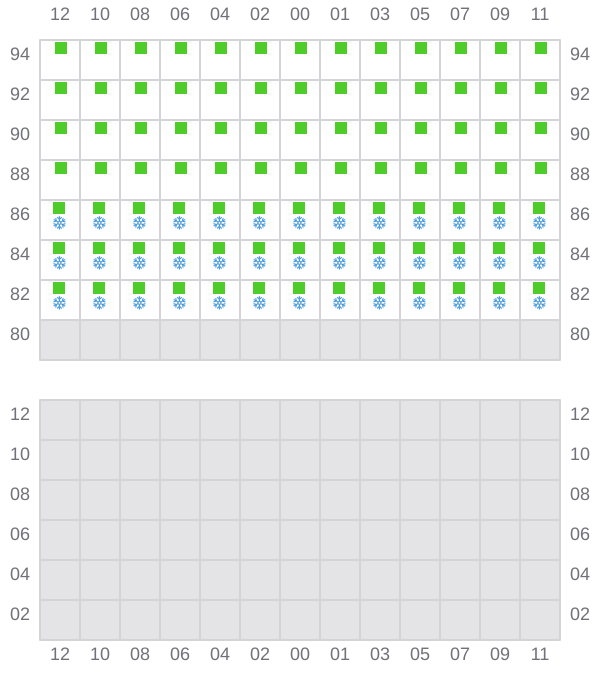

041 (042)
- → / ?
- → / ?
- → / ?
