CAPE TAINARO
9706205 | 9HA4463 | MSC by ******************** Last update: Tue Feb 11 2025
General Info
Ship Name:CAPE TAINARO
IMO Code:9706205
Call Sign:9HA4463
Line Operator:MSC
Class Name for Sister Ships:MCTR
Year Built:2017
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):316.32
LOA (Length Overall):329.97
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:077
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:70
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:11,051
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

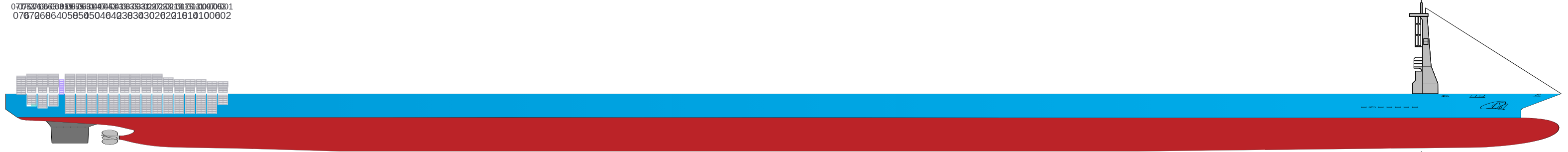

Side View

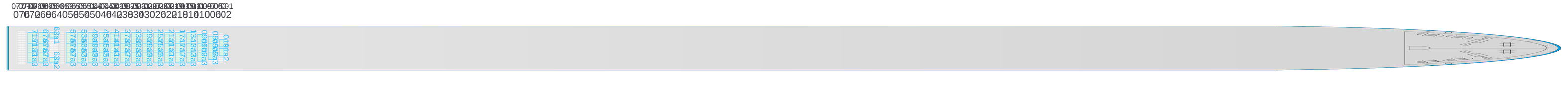

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

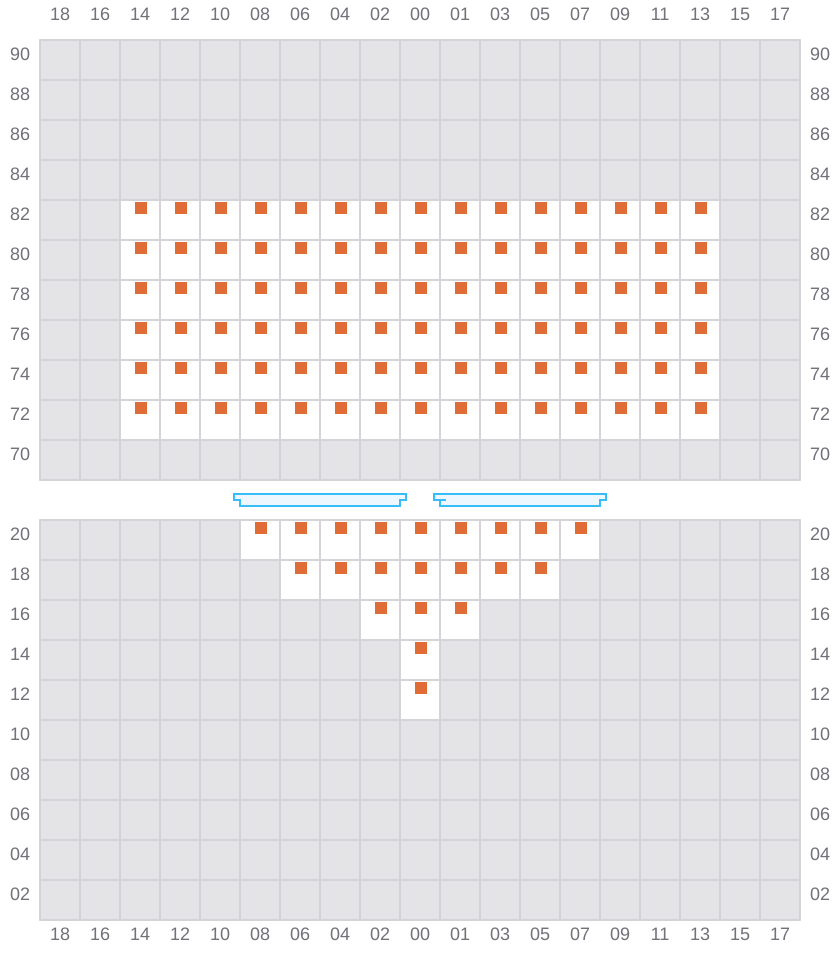

001
- →
- ✓

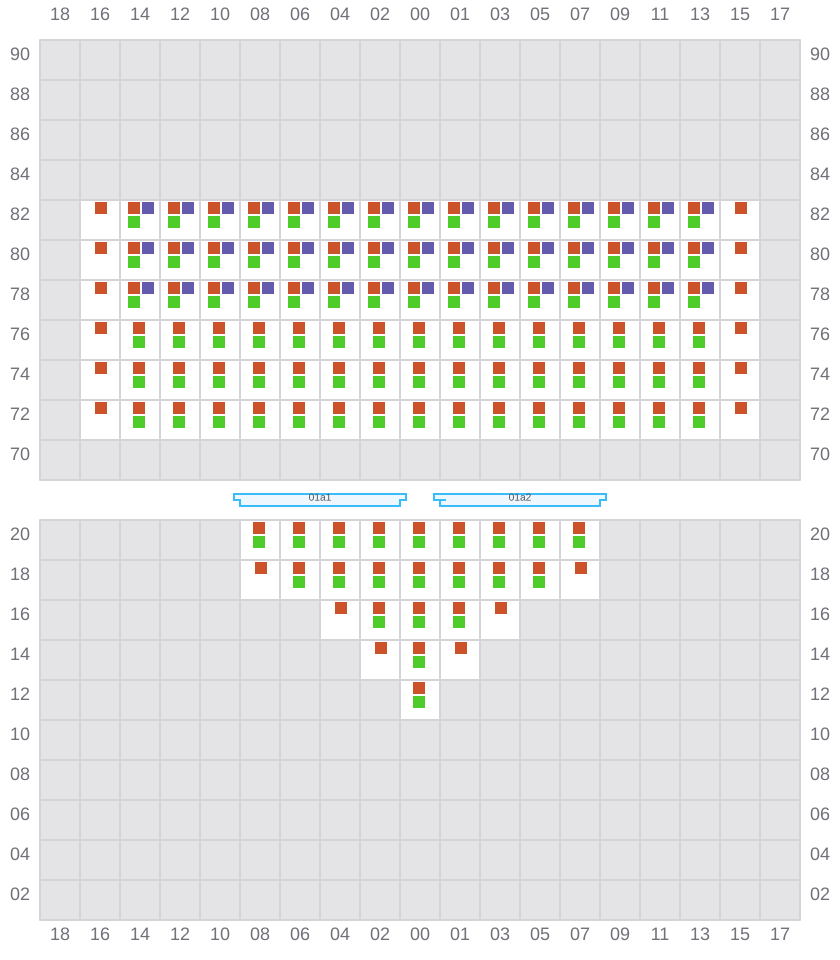

003 (002)
- ←
- ✓

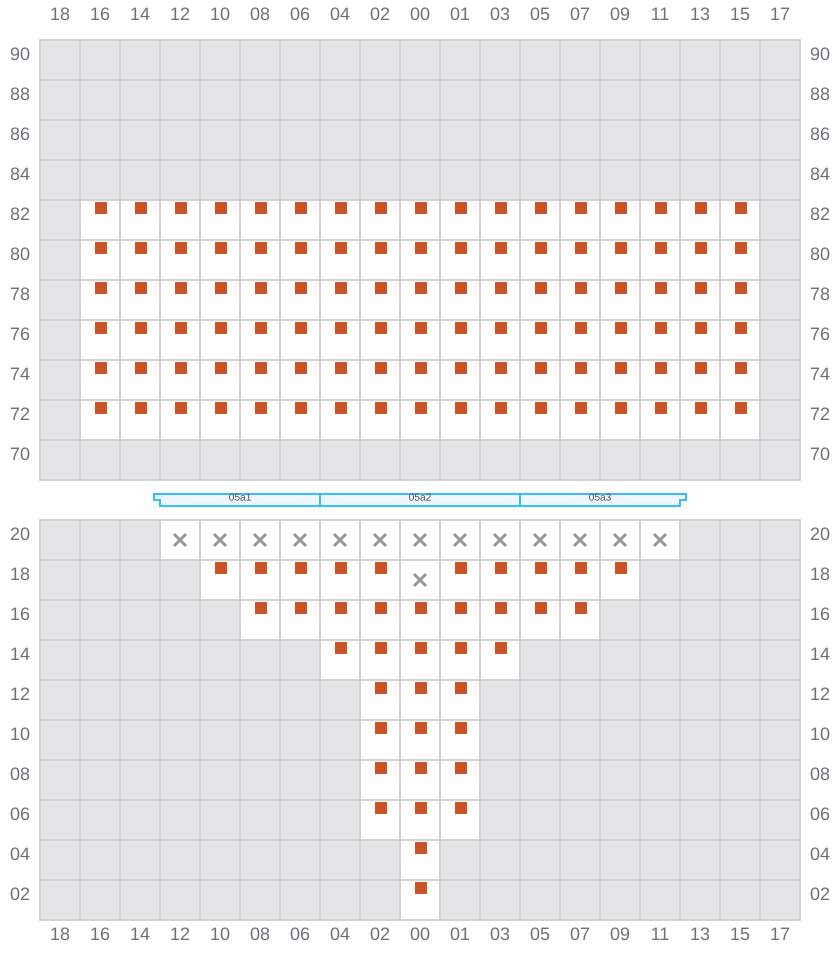

005
- →
- ✓

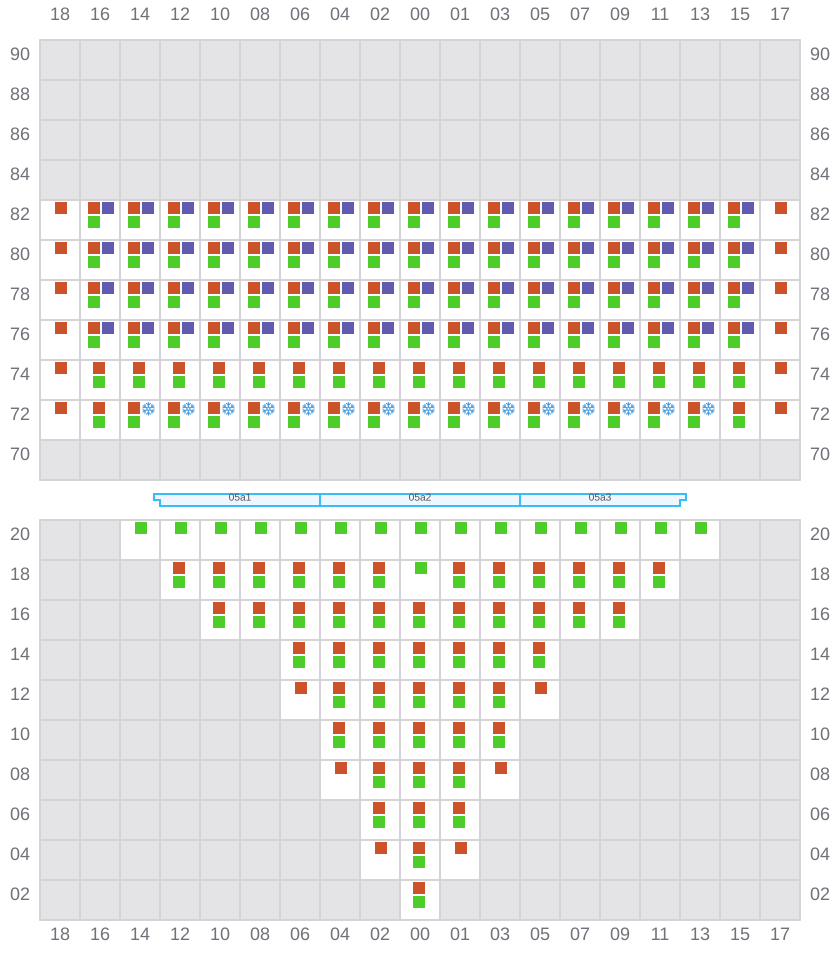

007 (006)
- ←
- ✓

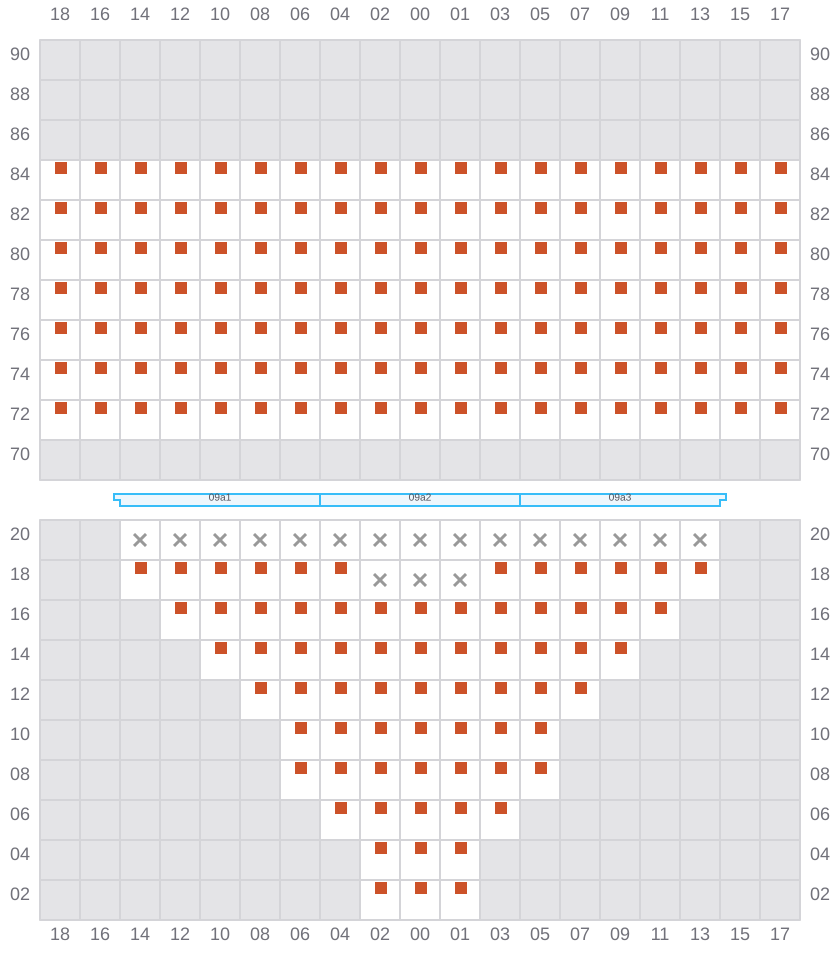

009
- →
- ✓

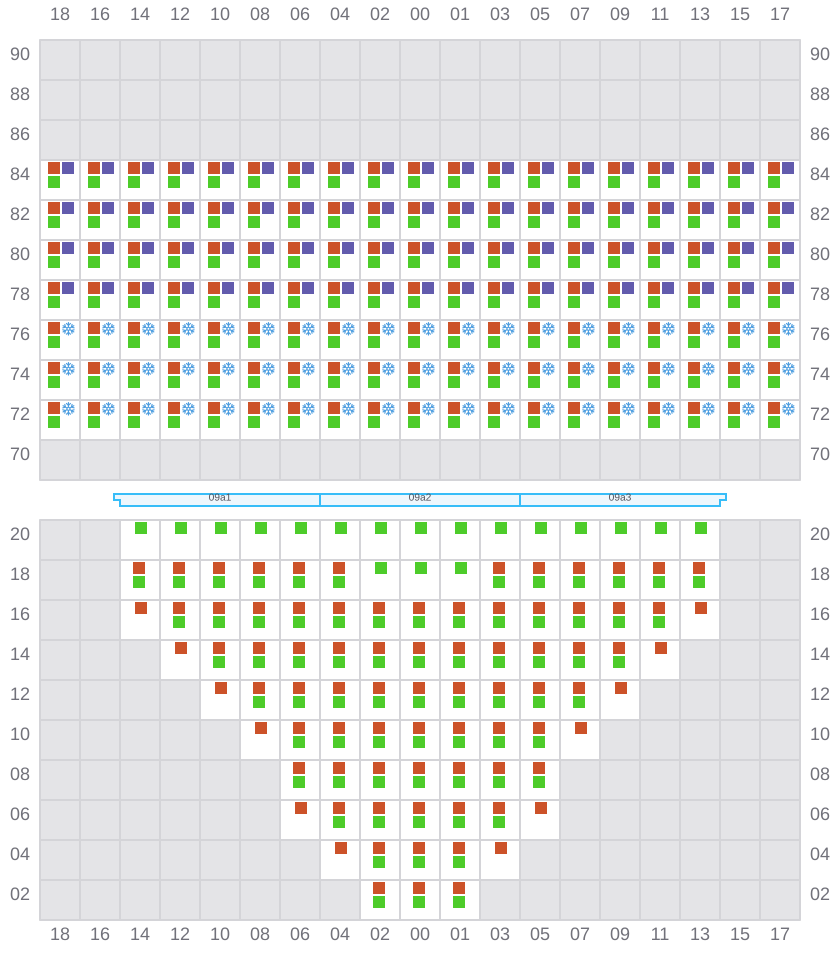

011 (010)
- ←
- ✓

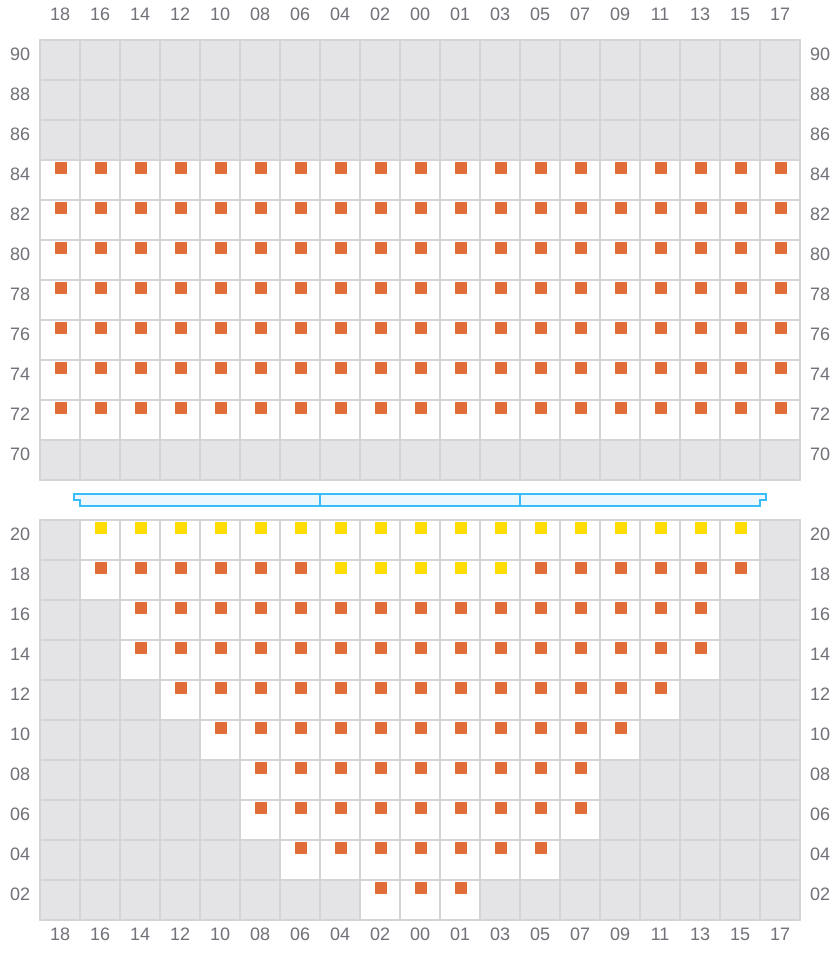

013
- →
- ✓

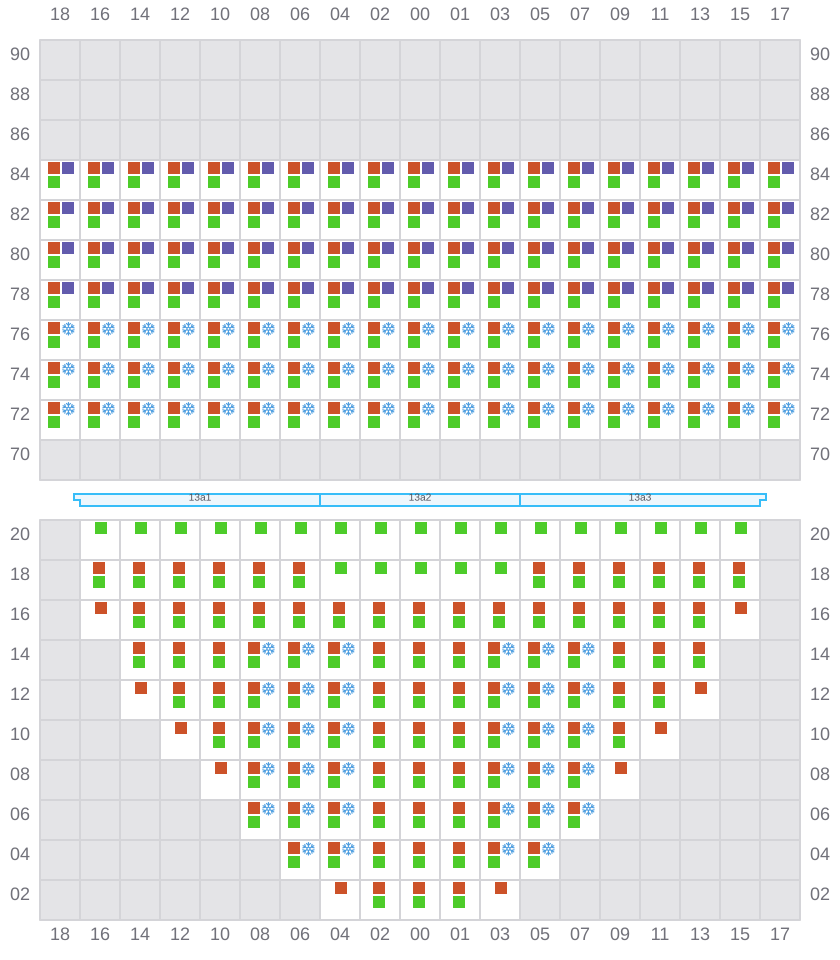

015 (014)
- ←
- ✓

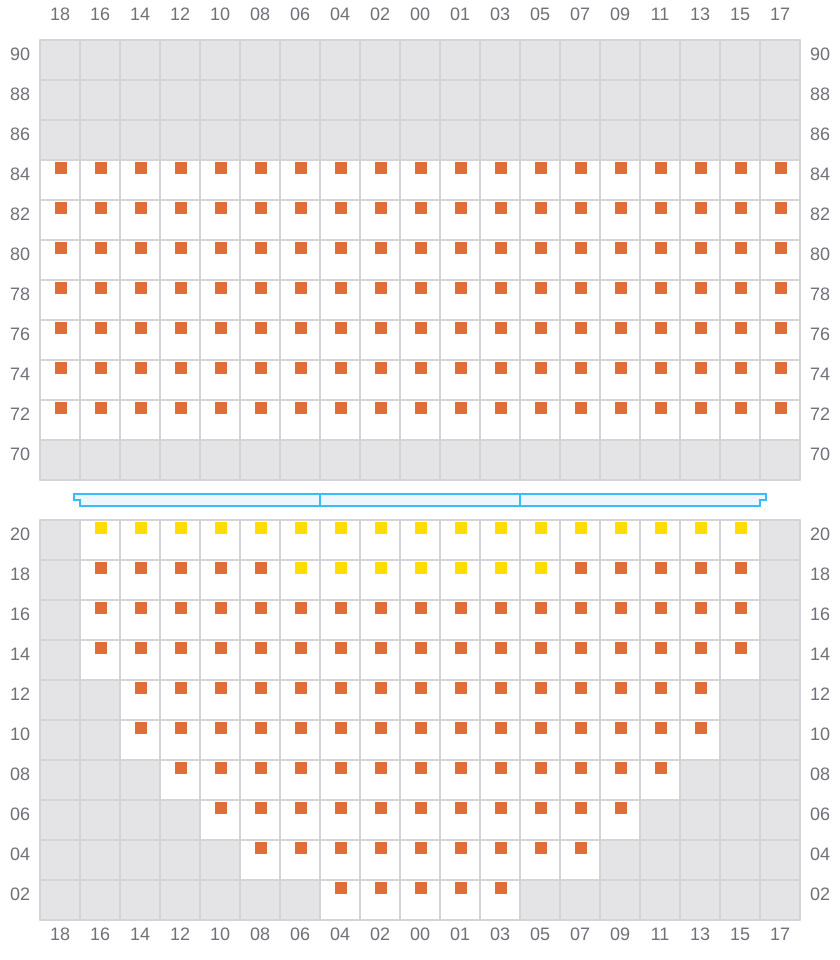

017
- →
- ✓
019 (018)
- ←
- ✓

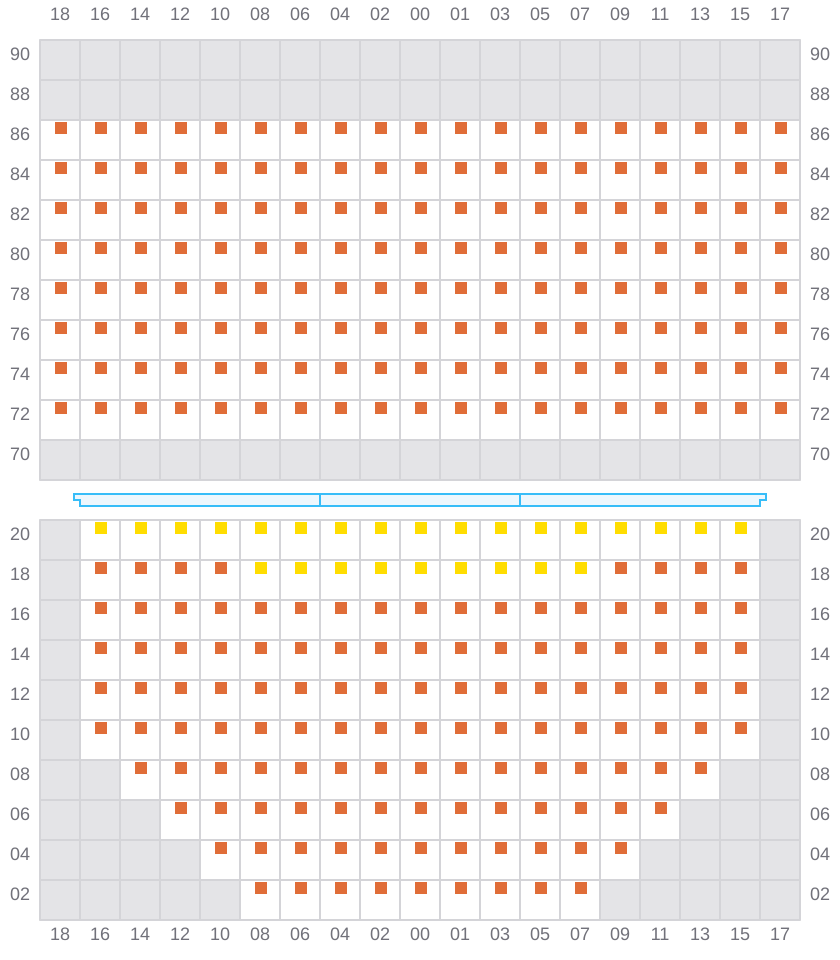

021
- →

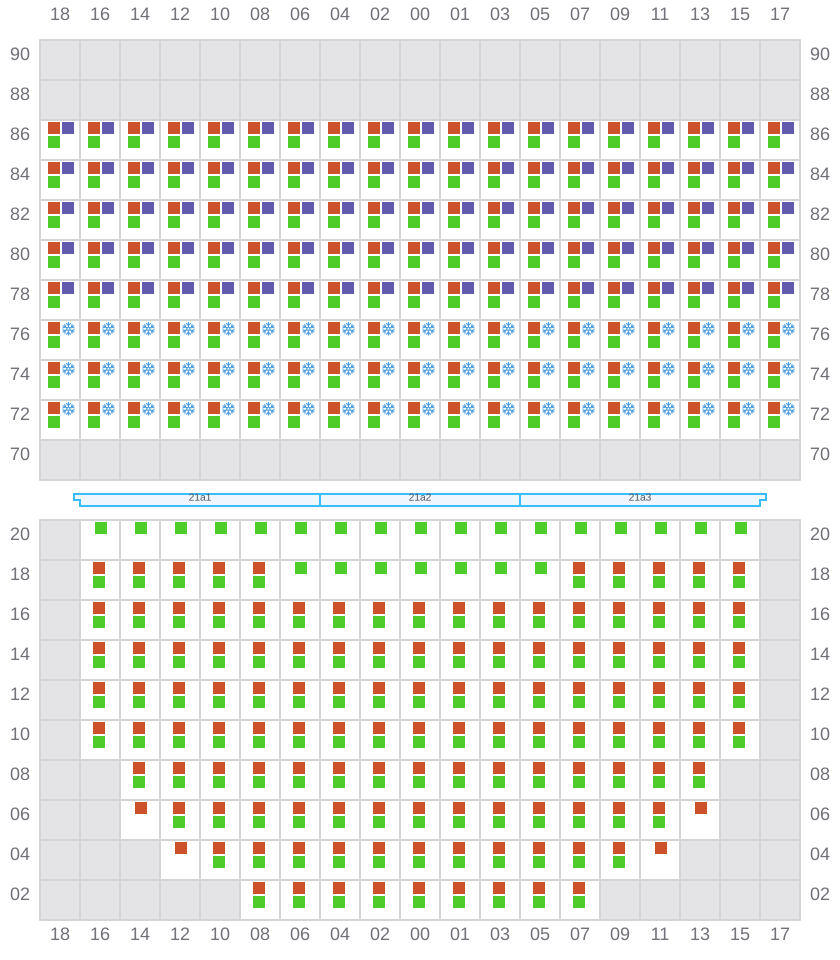

023 (022)
- ←
025
- →

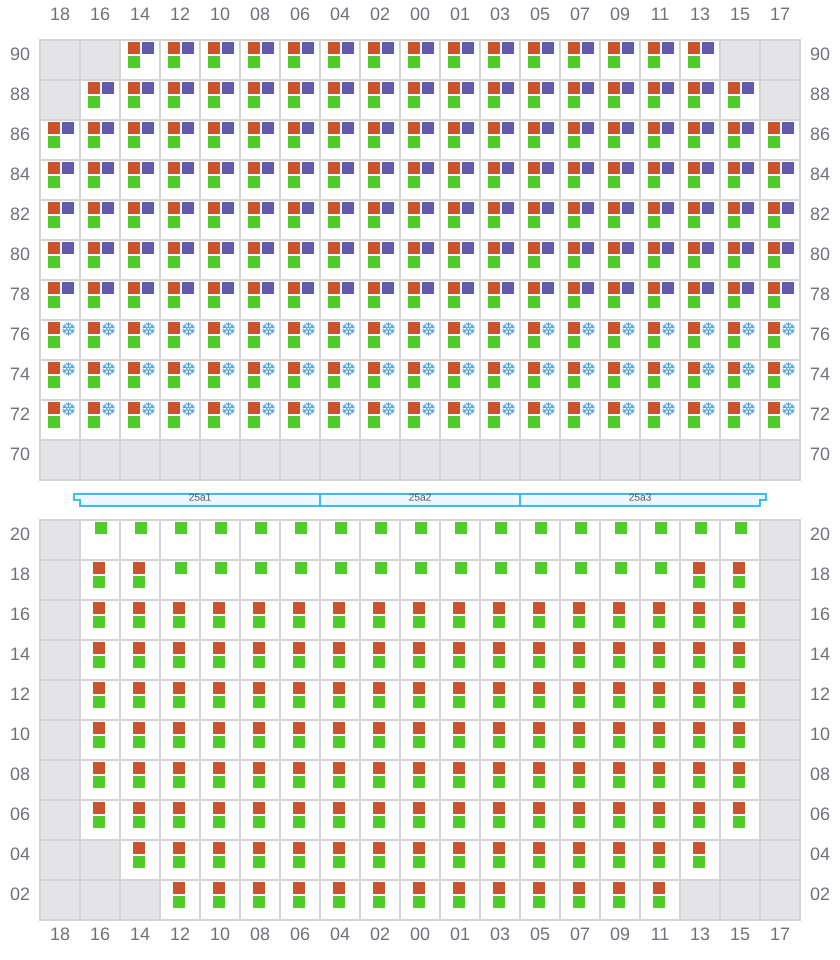

027 (026)
- ←
029
- →

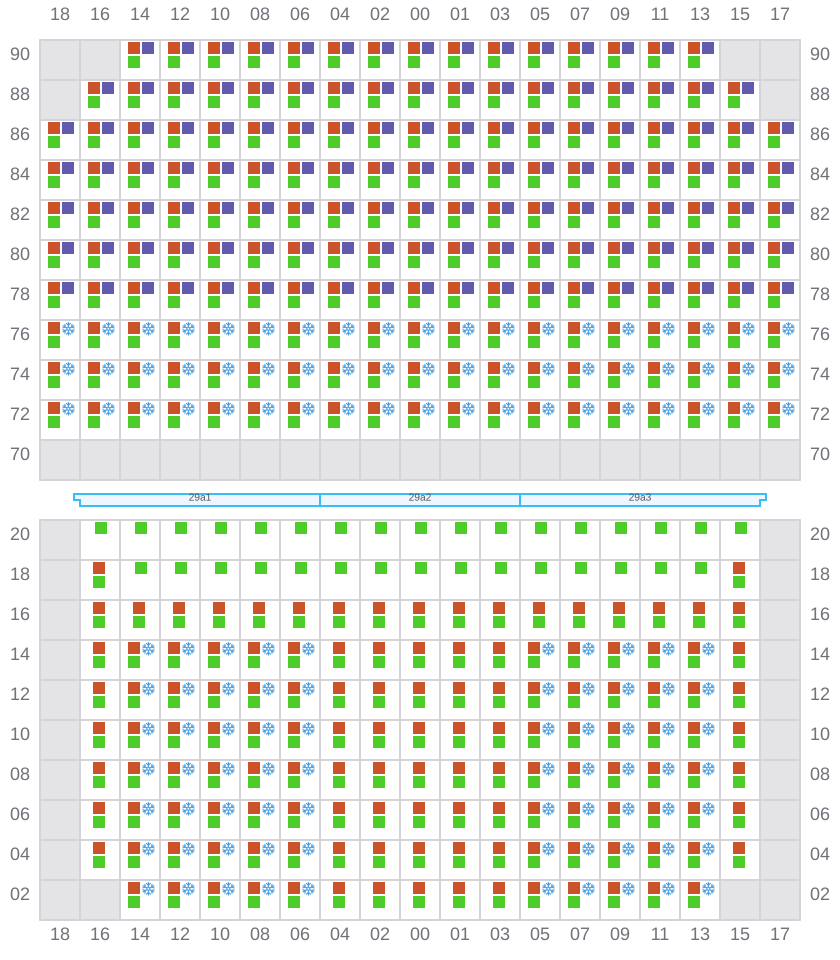

031 (030)
- ←
033
- →

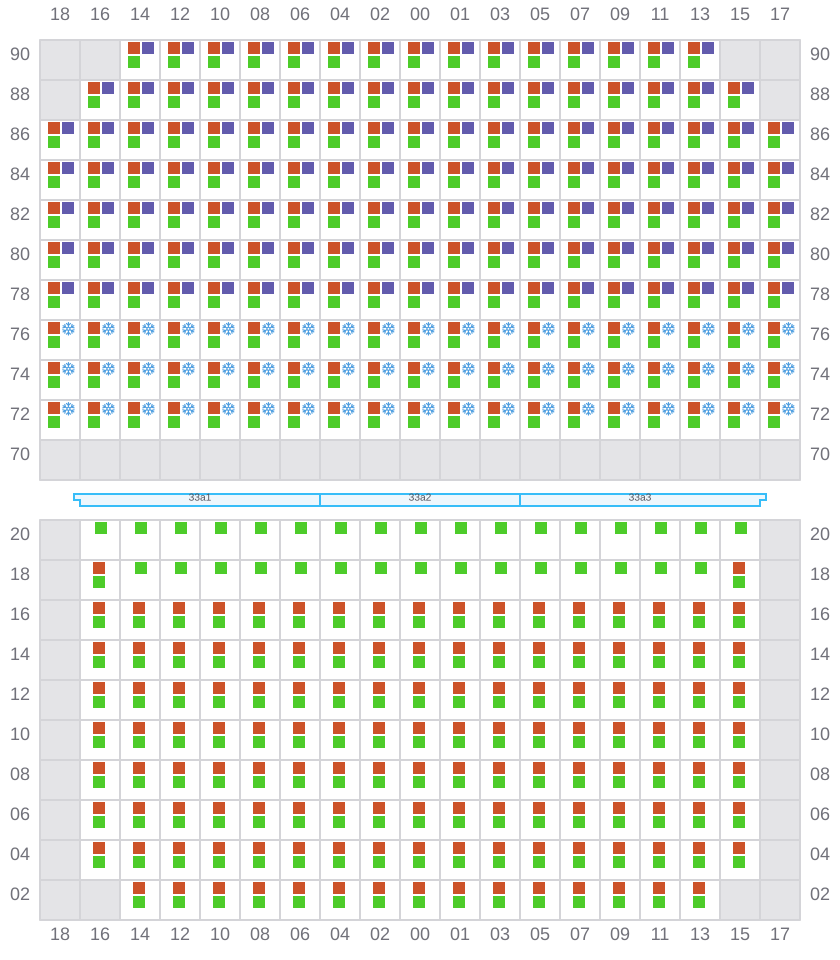

035 (034)
- ←
037
- →

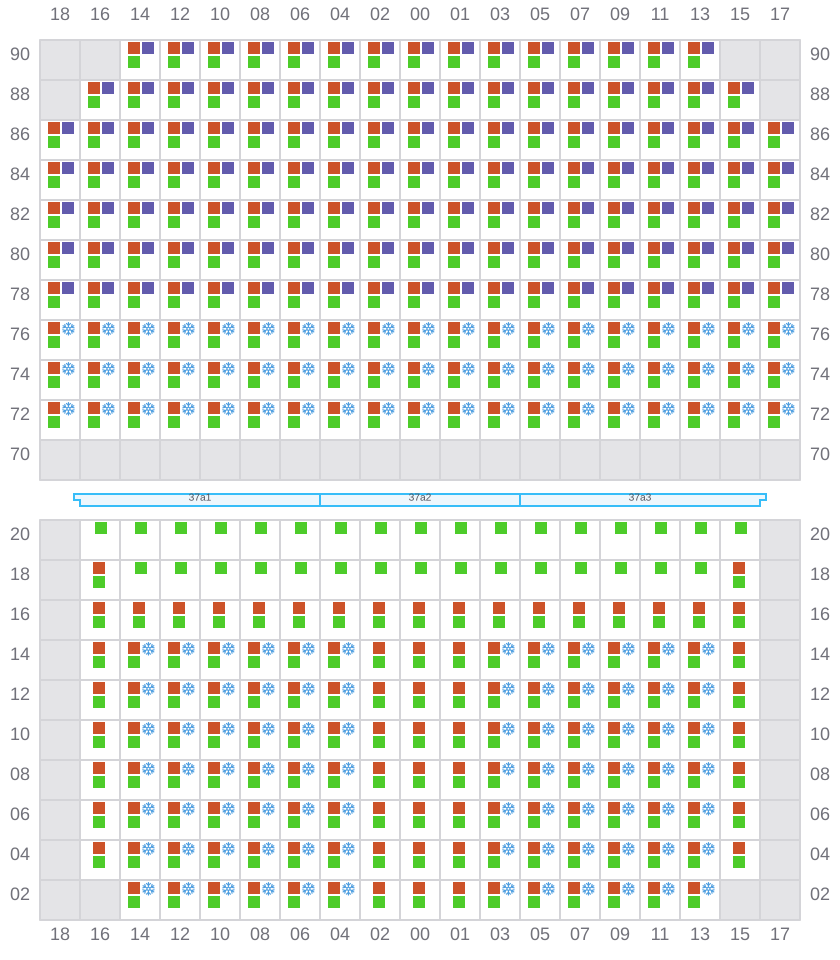

039 (038)
- ←

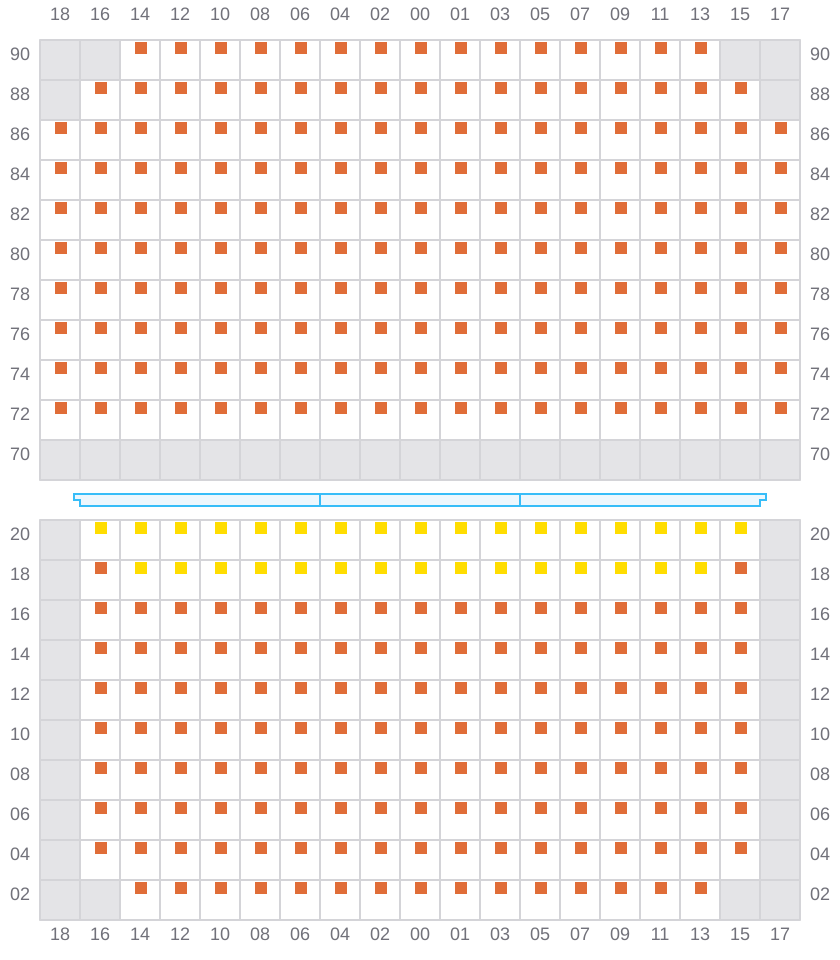

041
- →

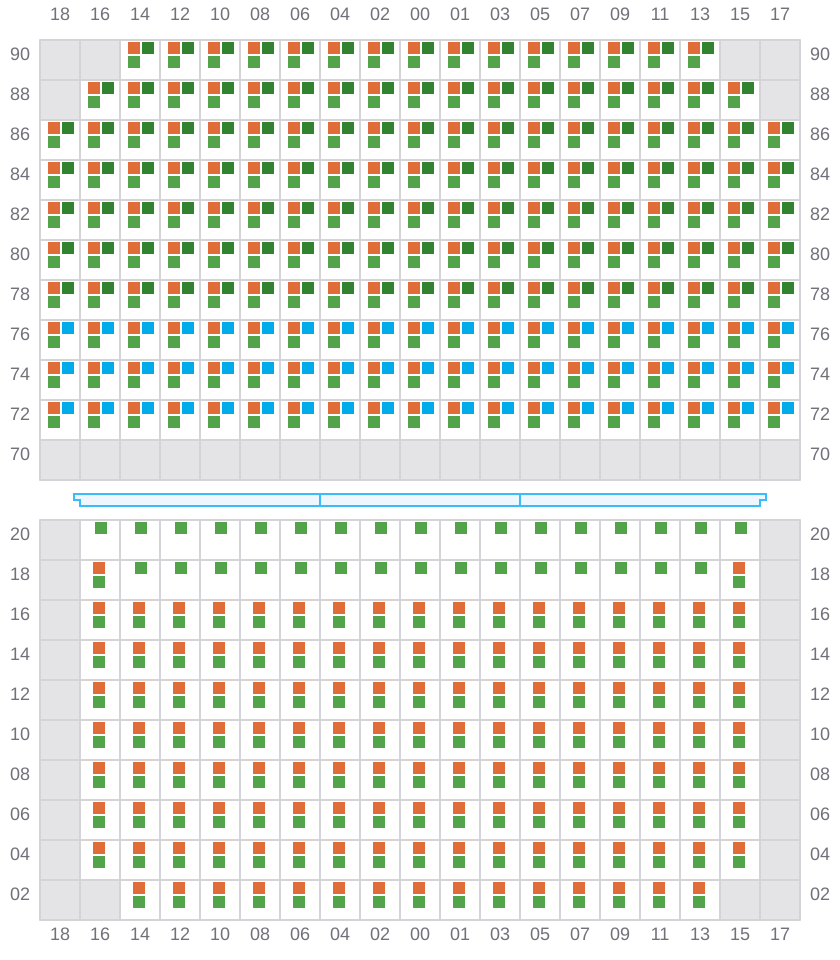

043 (042)
- ←

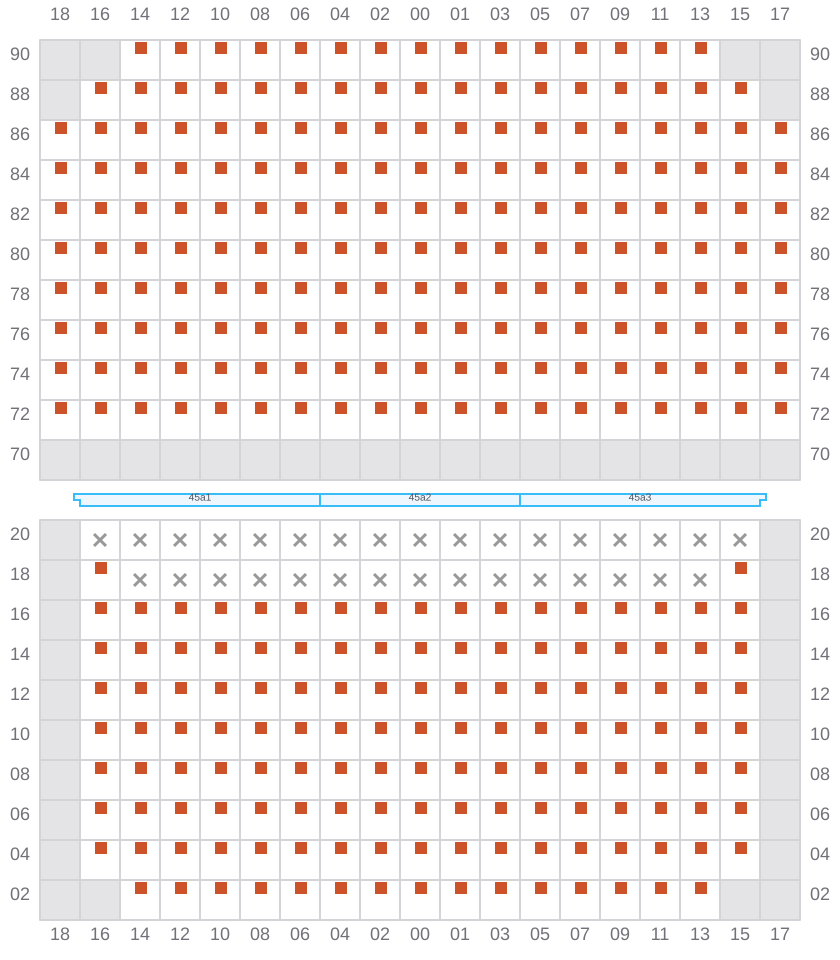

045
- →

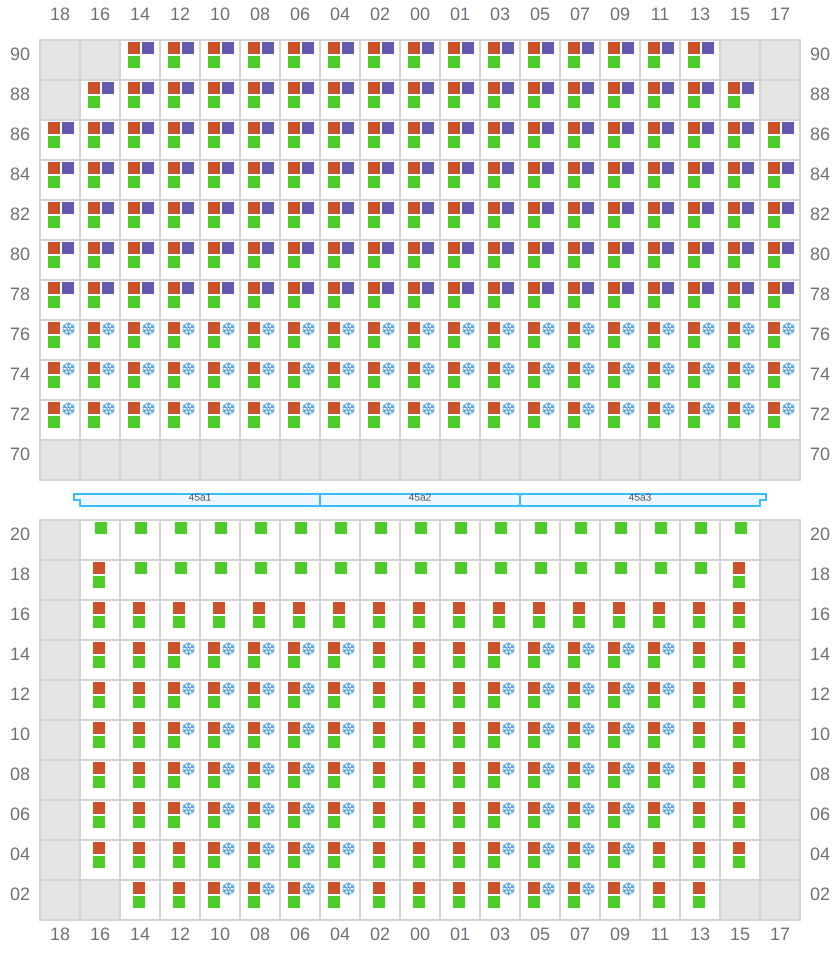

047 (046)
- ←

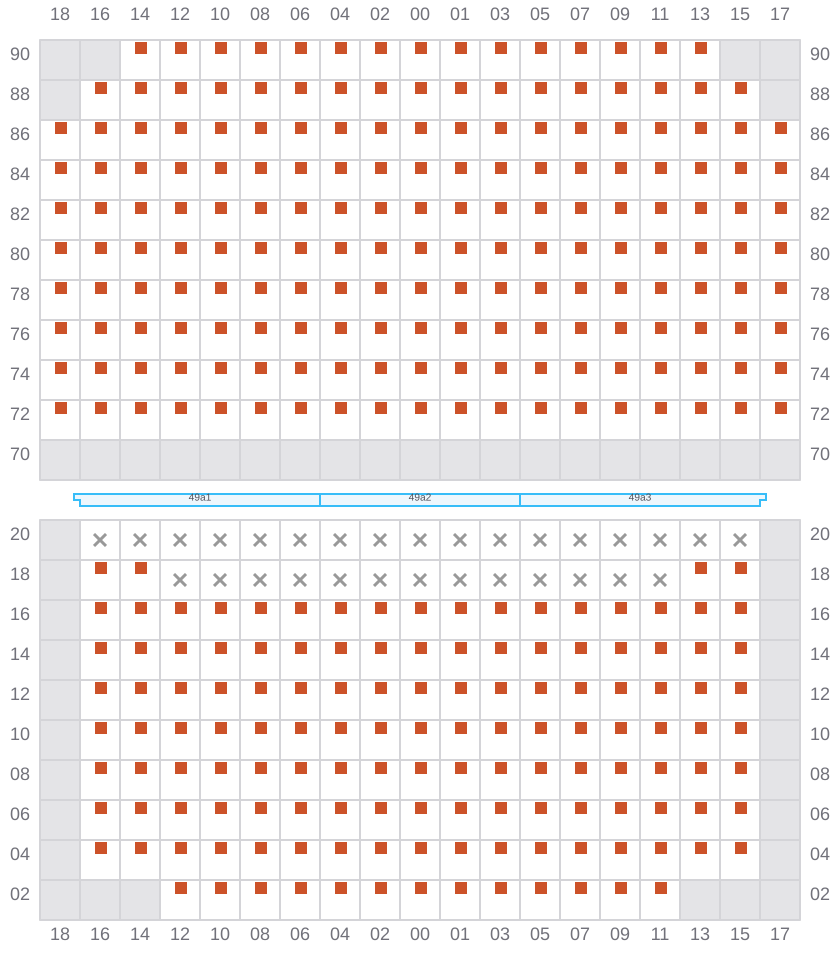

049
- →
051 (050)
- ←

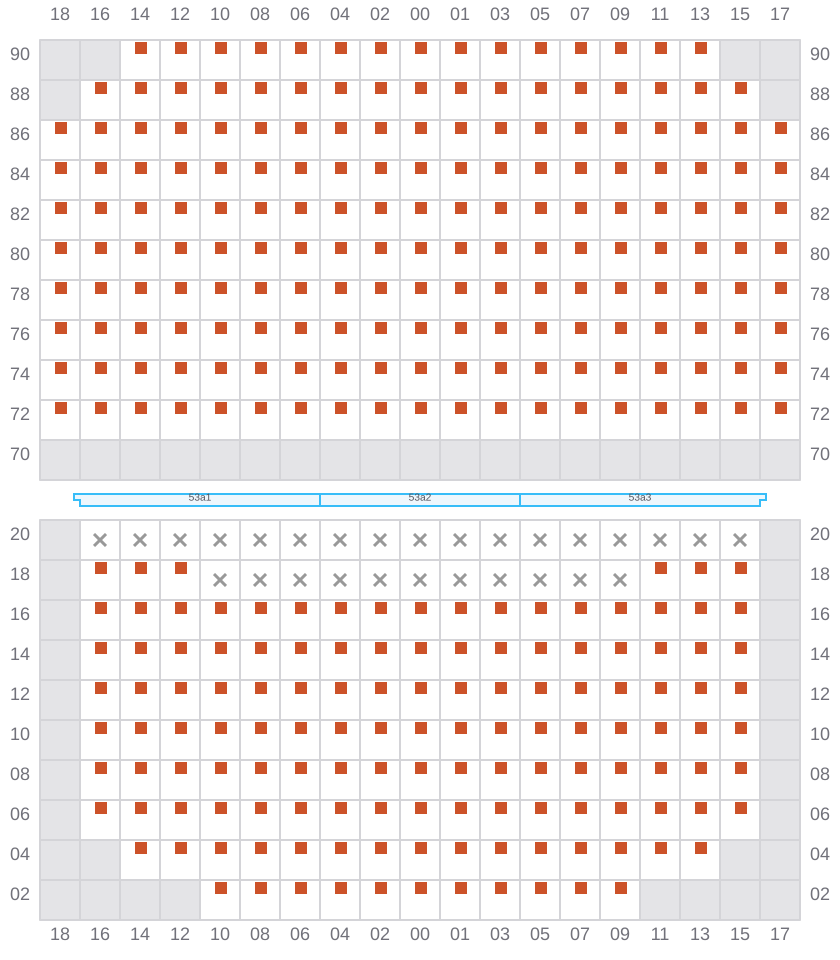

053
- →

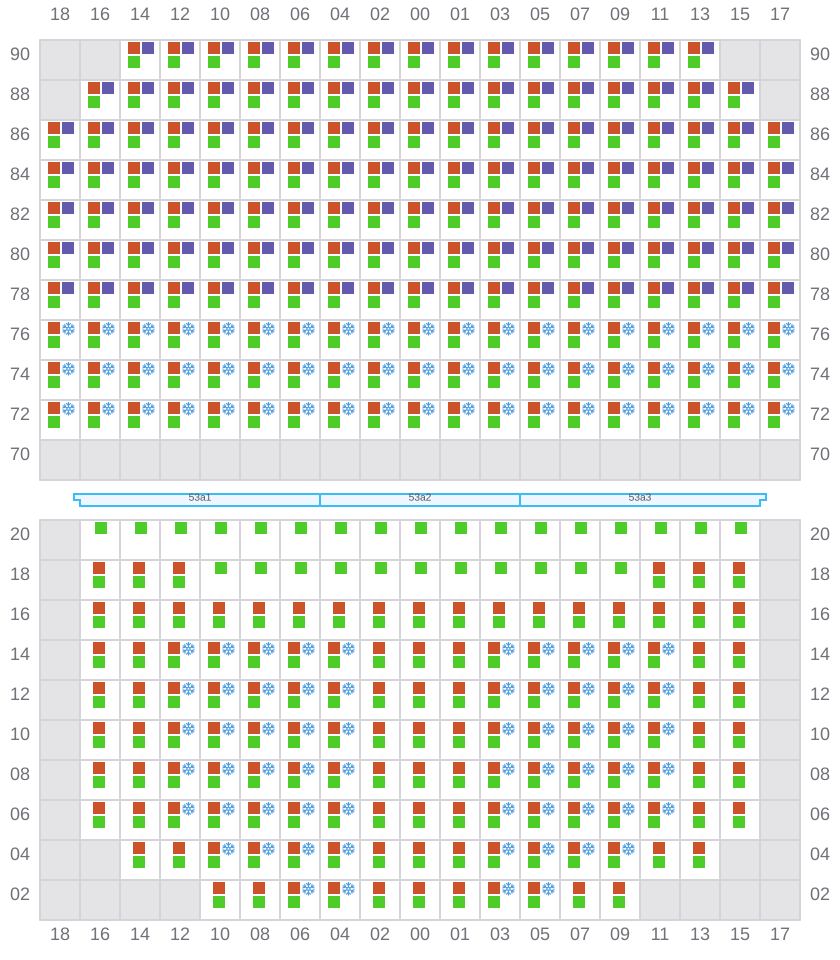

055 (054)
- ←

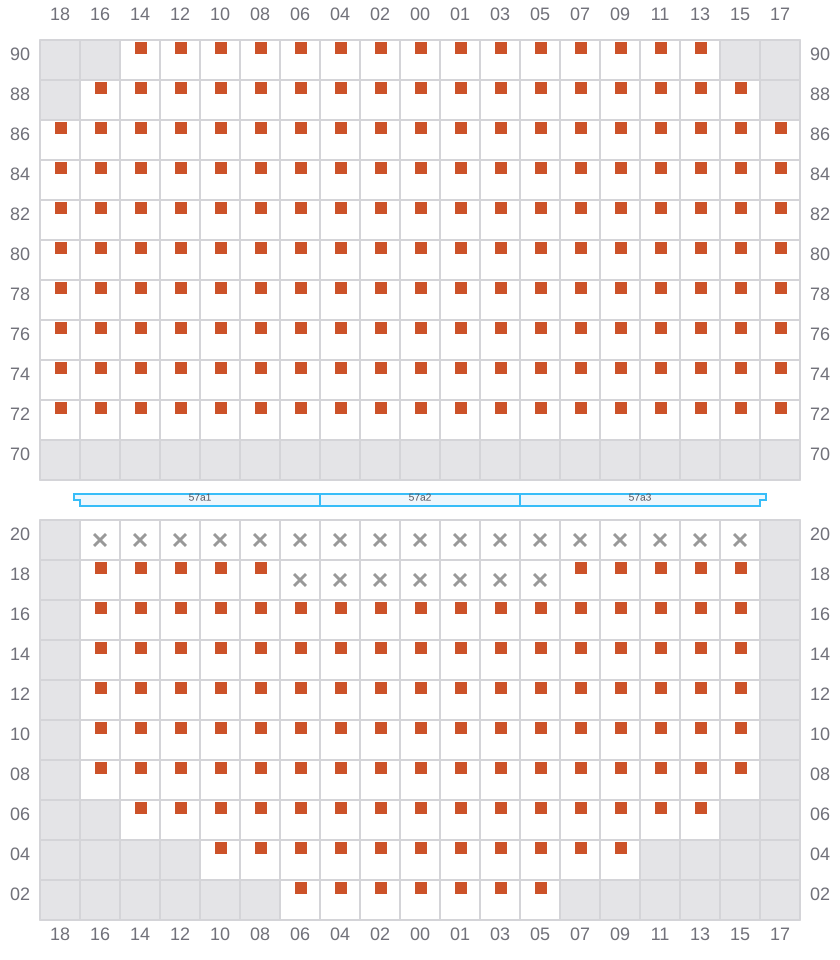

057
- →

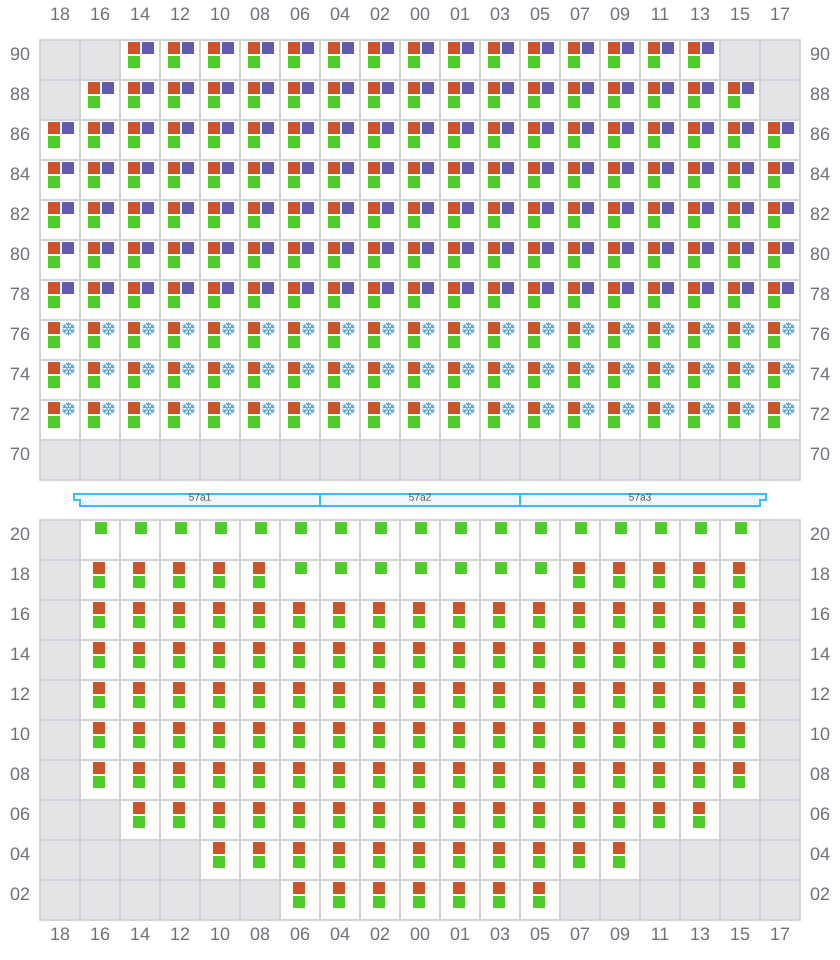

059 (058)
- ←

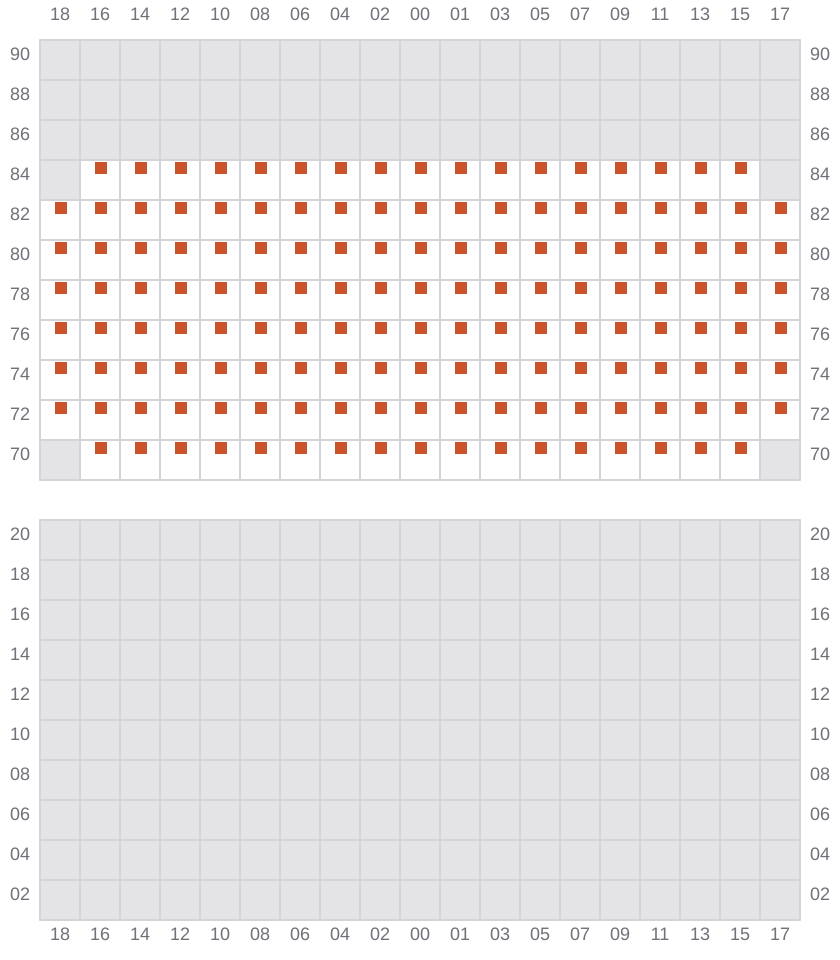

061

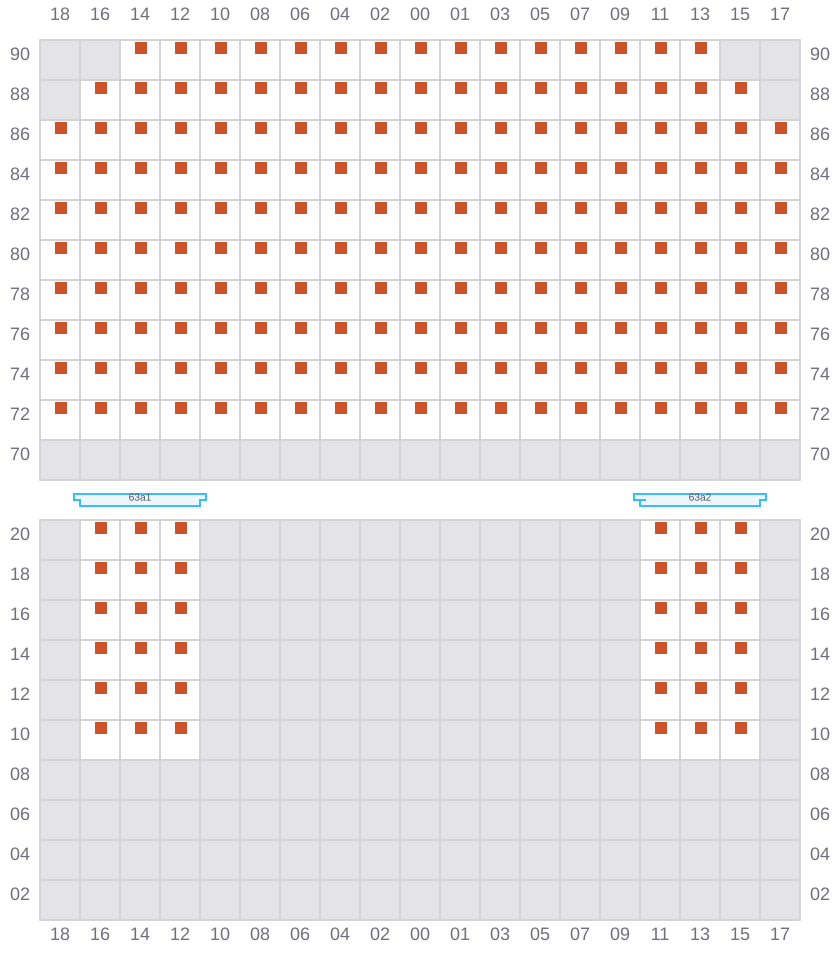

063
- →

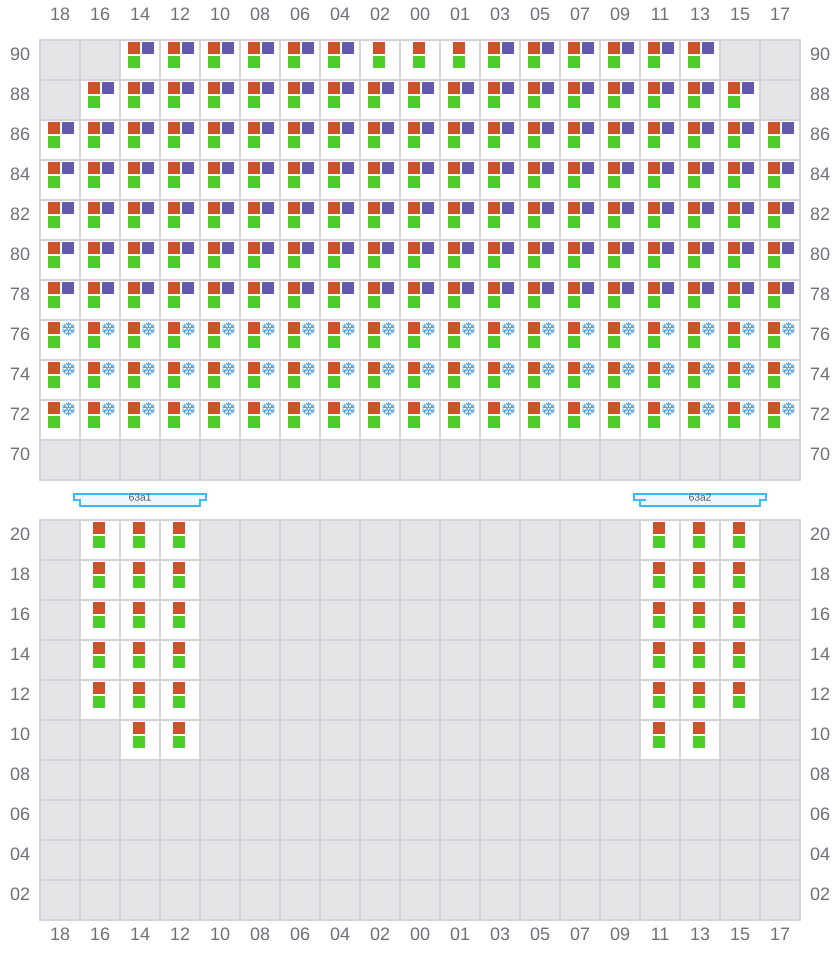

065 (064)
- ←

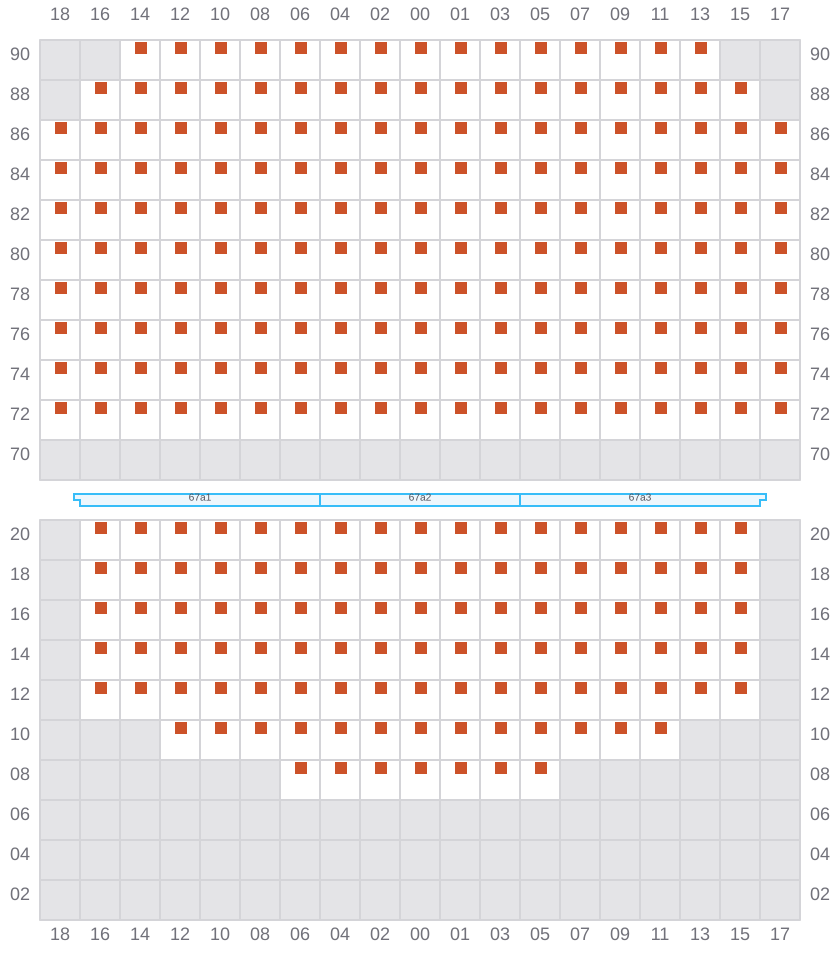

067
- →

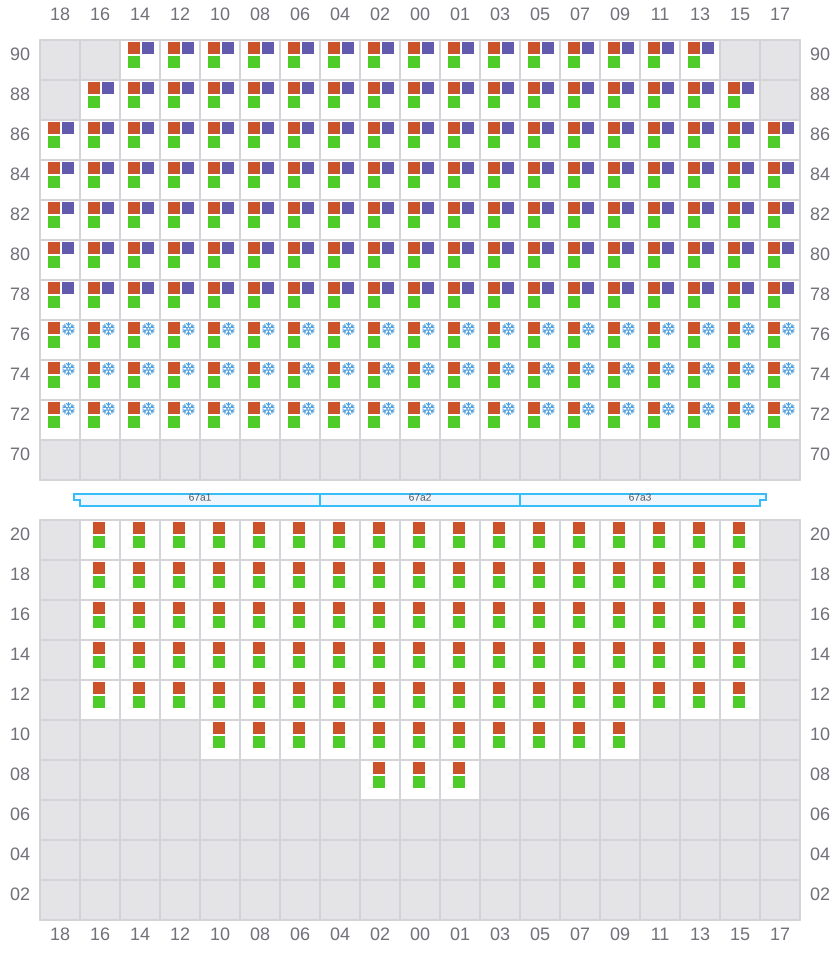

069 (068)
- ←

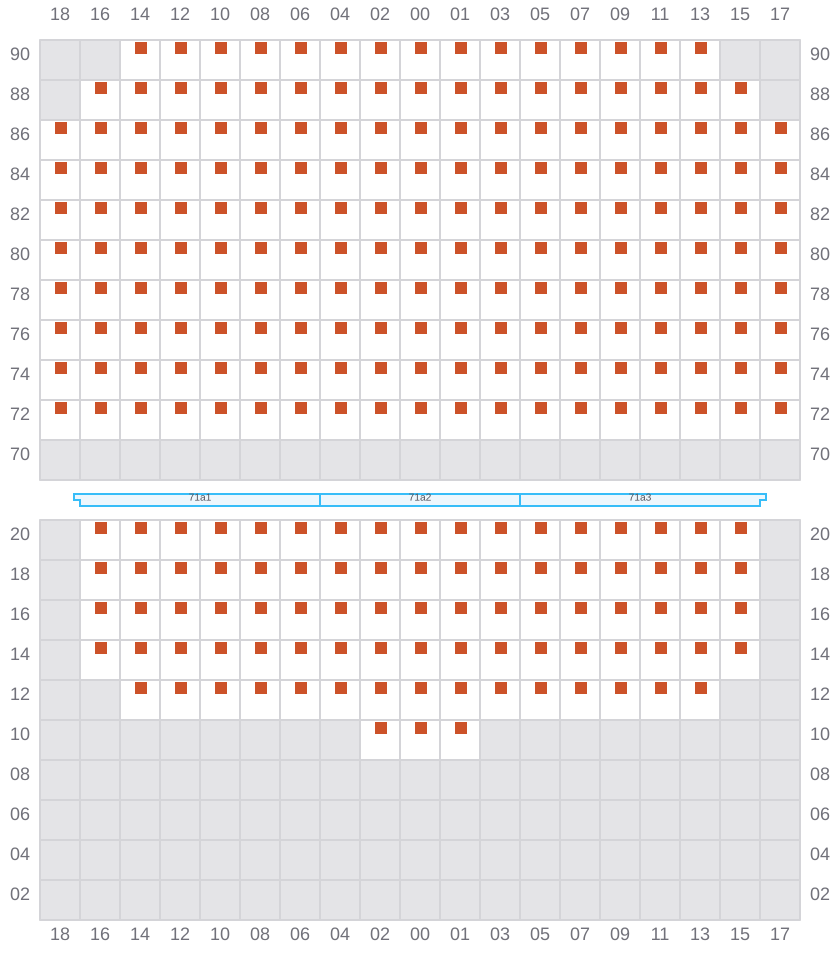

071
- →

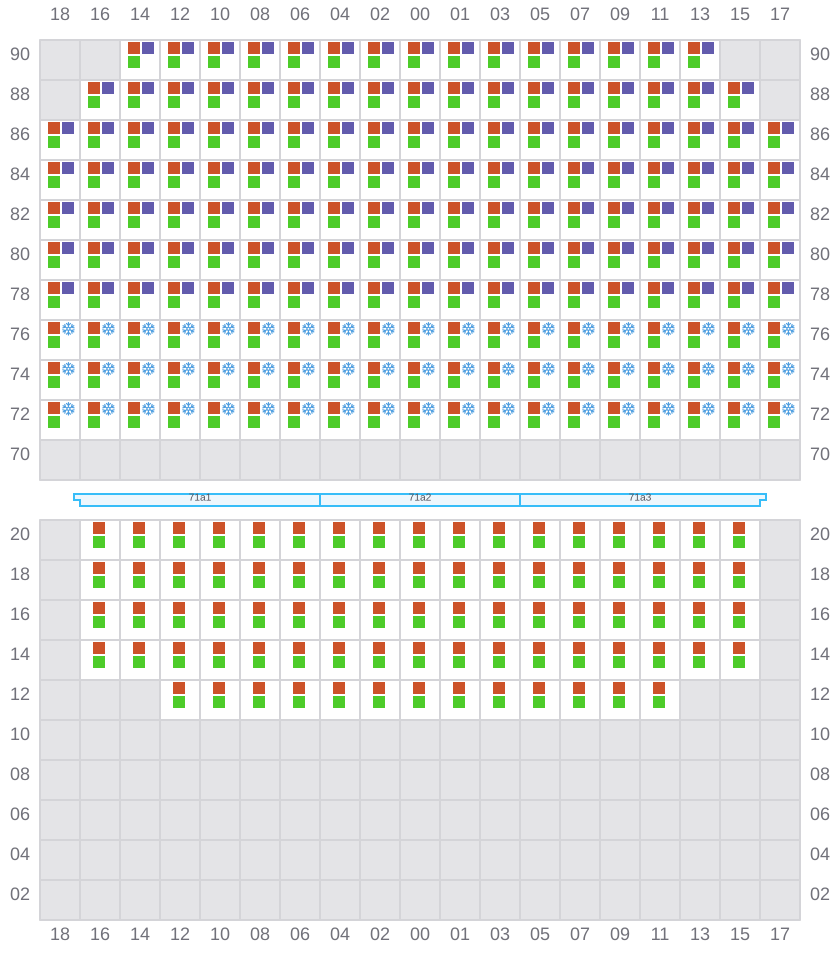

073 (072)
- ←
- ← / ?

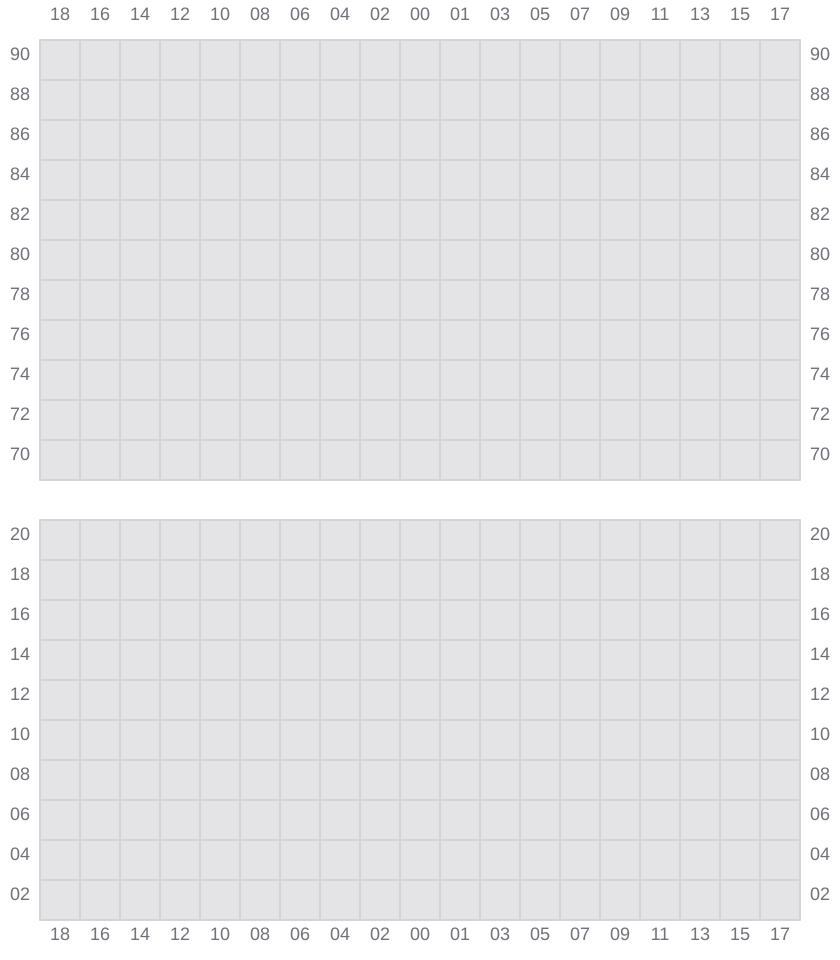

075
- → / ?

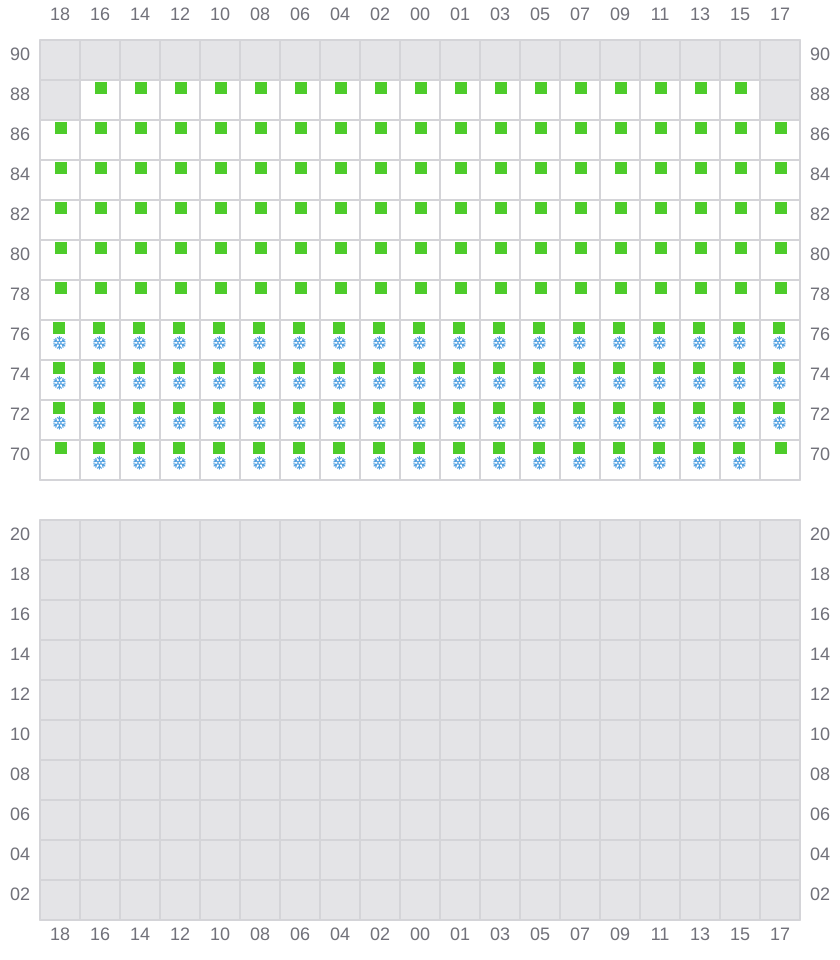

077 (076)
- ← / ?
