CAPITAINE BARET
9419668 | 9V7593 | 9419668 by ********* Last update: Tue May 14 2024
General Info
Ship Name:CAPITAINE BARET
IMO Code:9419668
Call Sign:9V7593
Line Operator:9419668
Class Name for Sister Ships:NYK VERONICA
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):198.80
LOA (Length Overall):210.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,502
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View

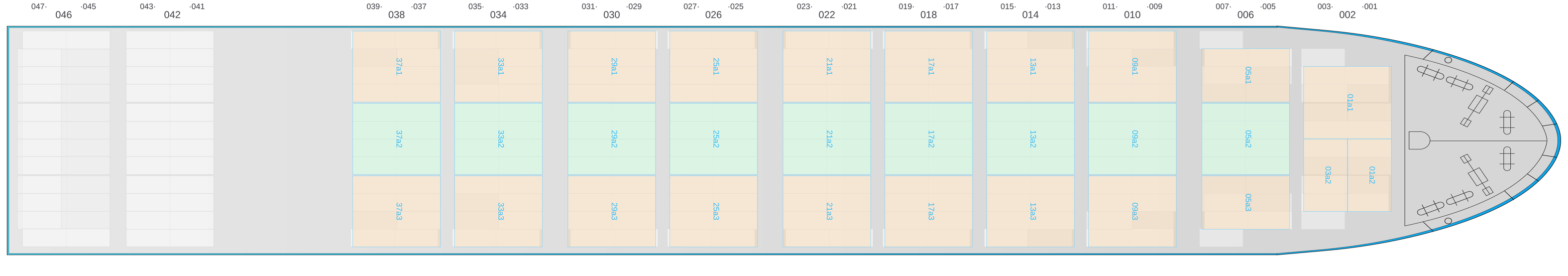

Hatch-Covers View

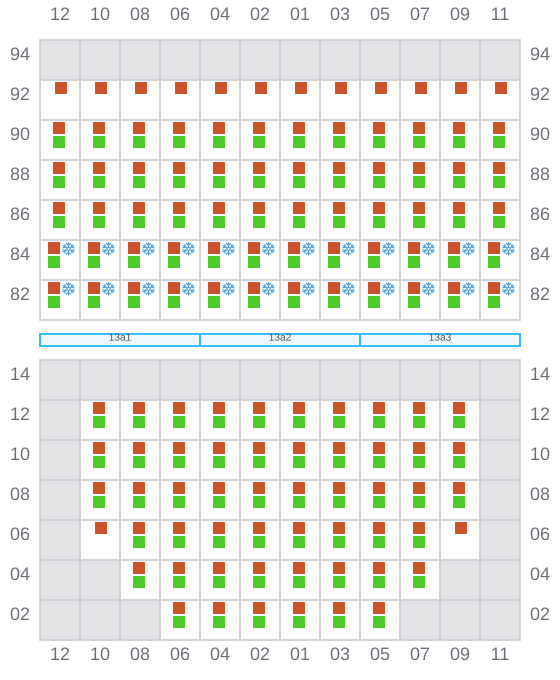

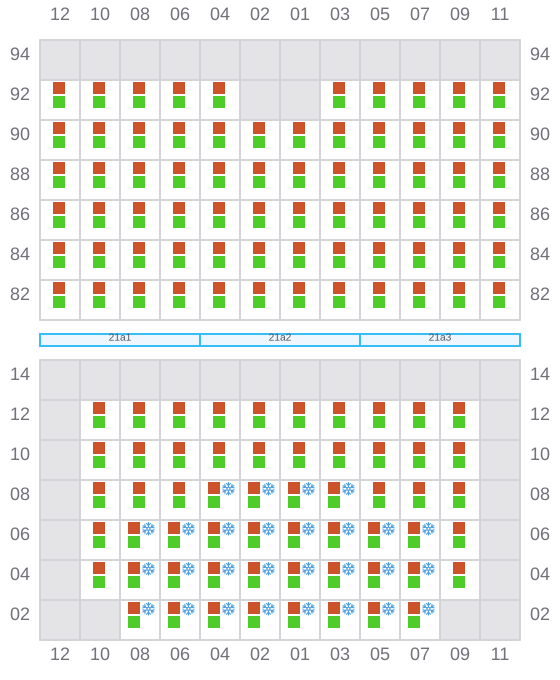

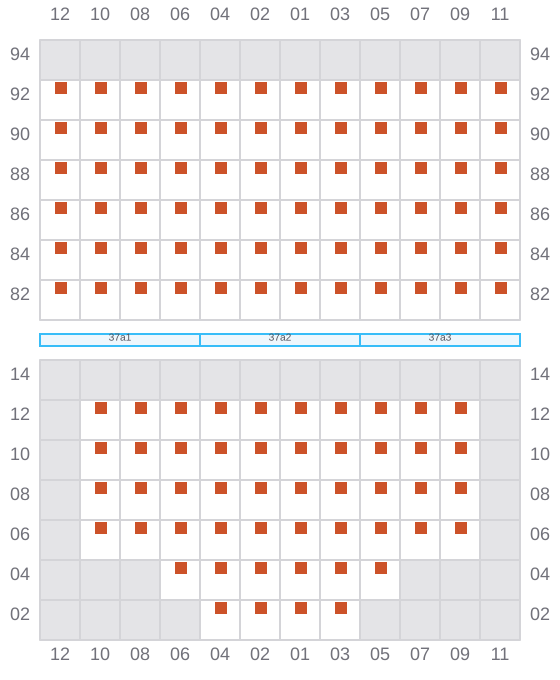

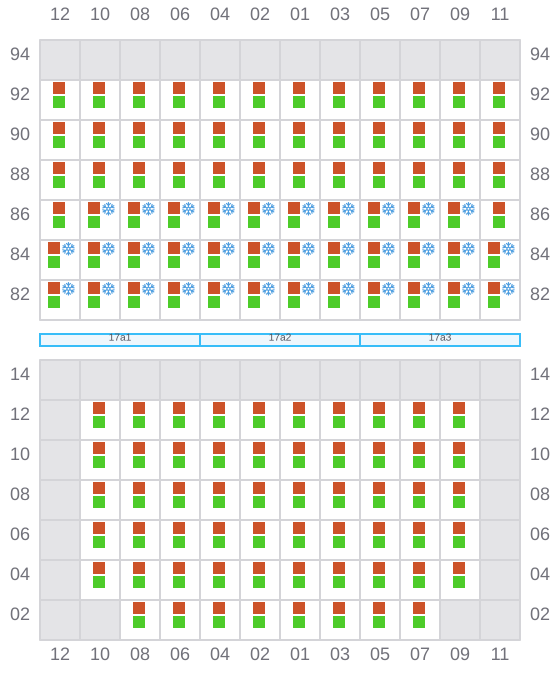

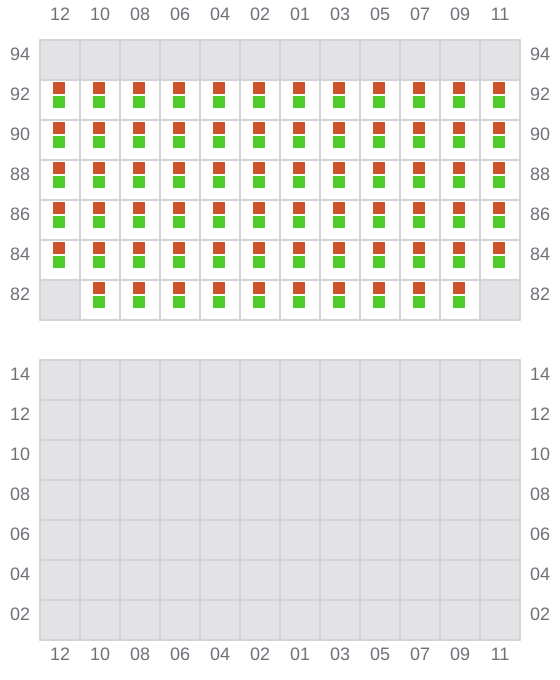

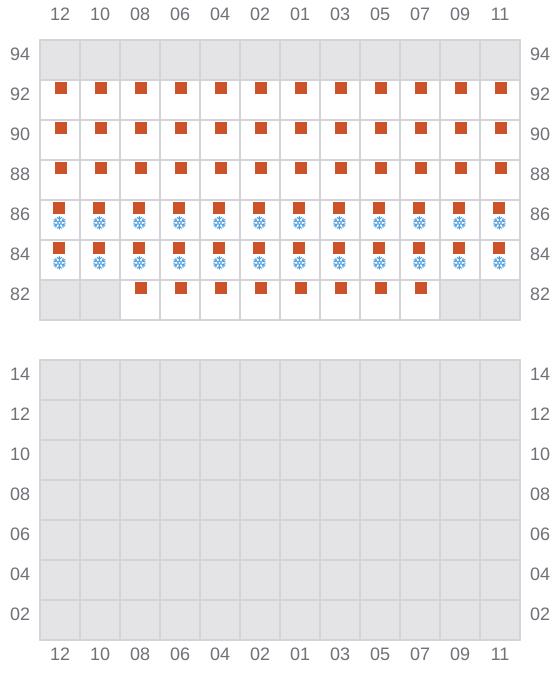

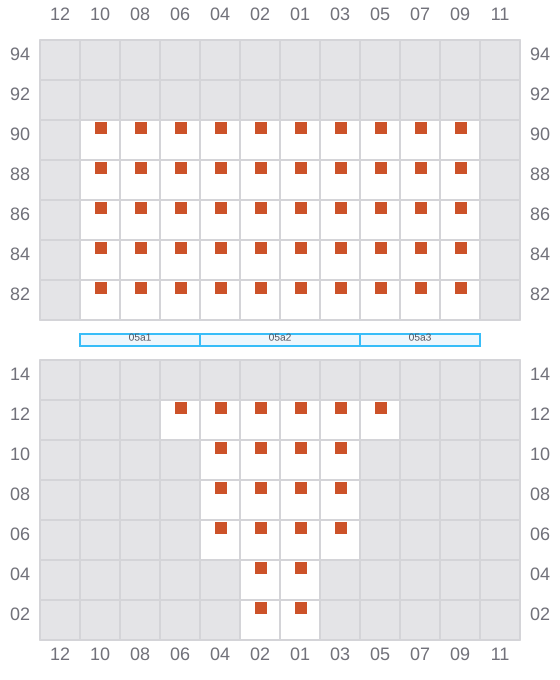

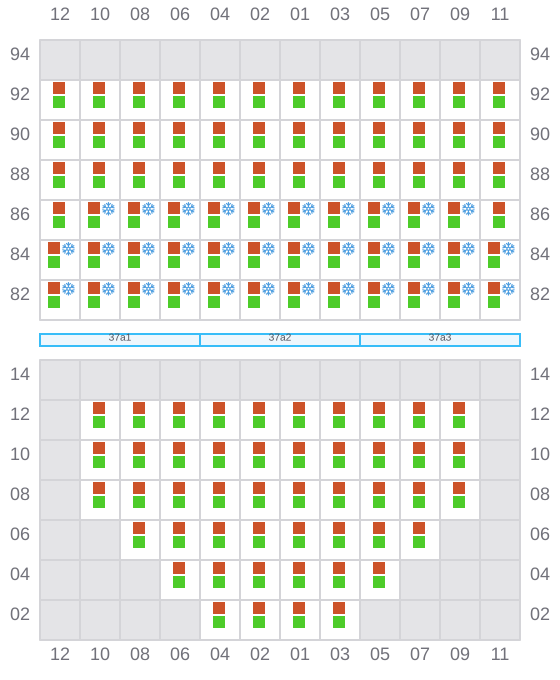

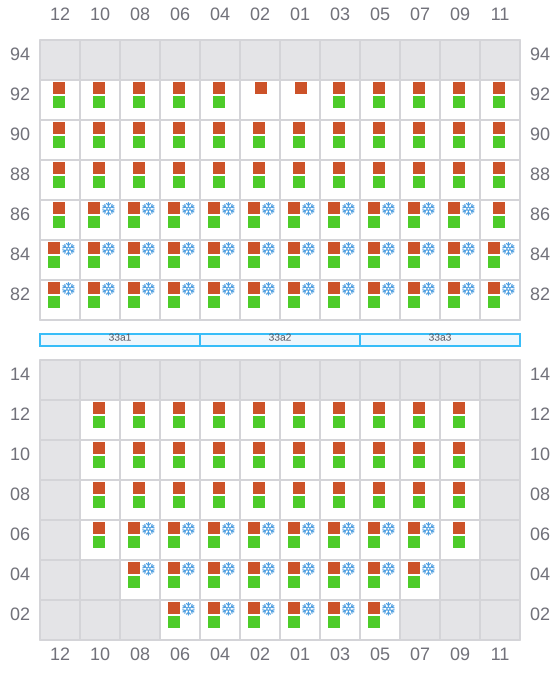

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

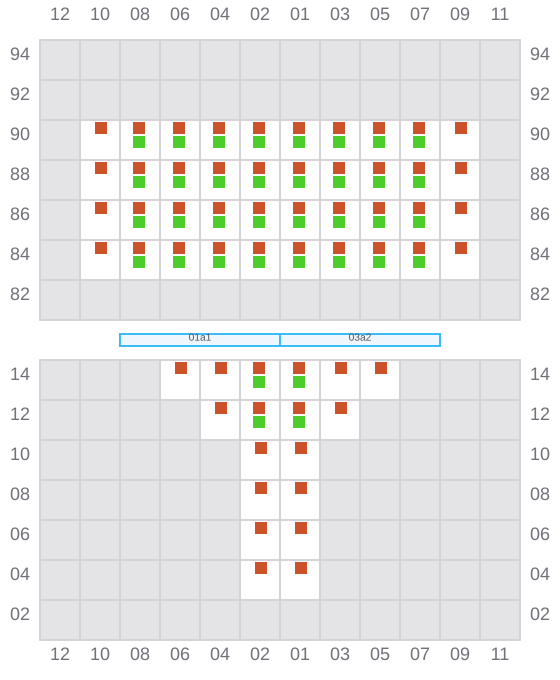

001
- →

003 (002)
- ←

005
- →

007 (006)
- ←

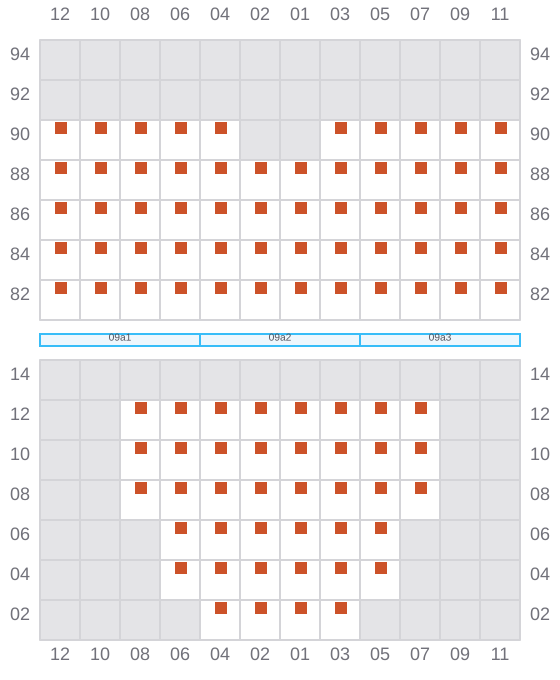

009
- →

011 (010)
- ←

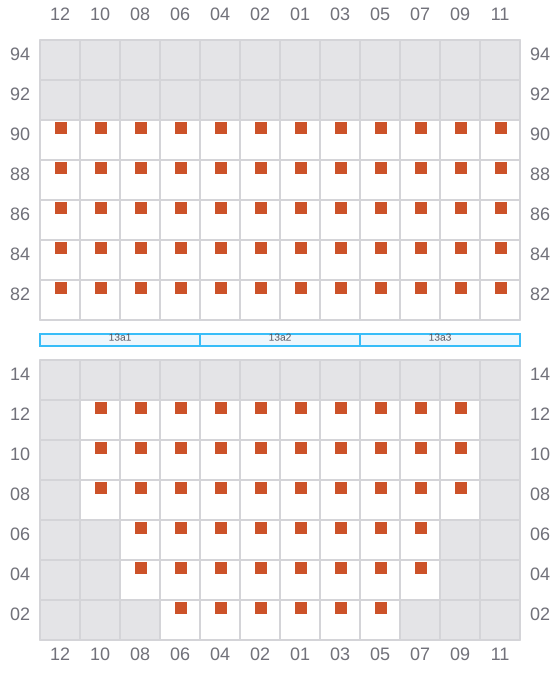

013
- →

015 (014)
- ←

017
- →

019 (018)
- ←

021
- →

023 (022)
- ←

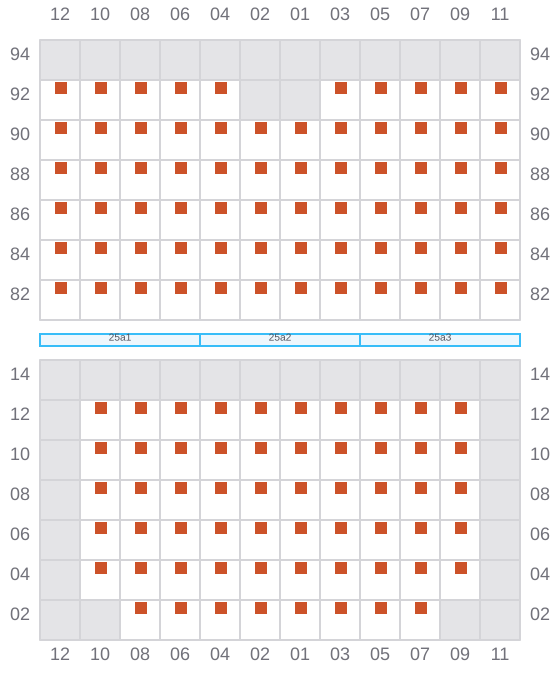

025
- →

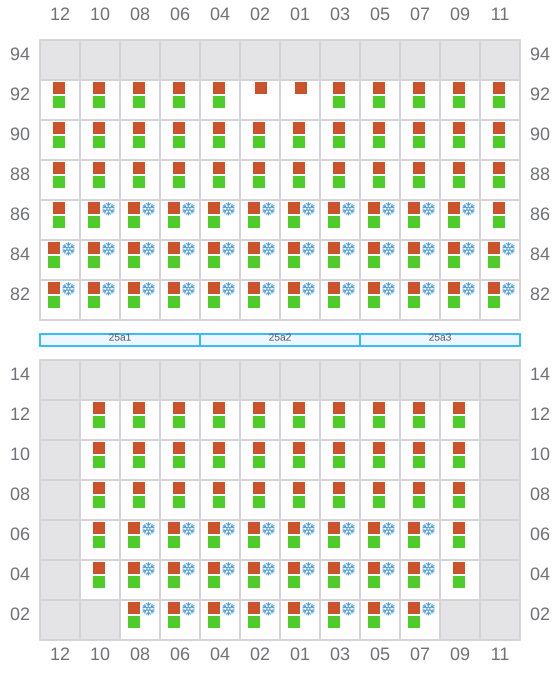

027 (026)
- ←

029
- →

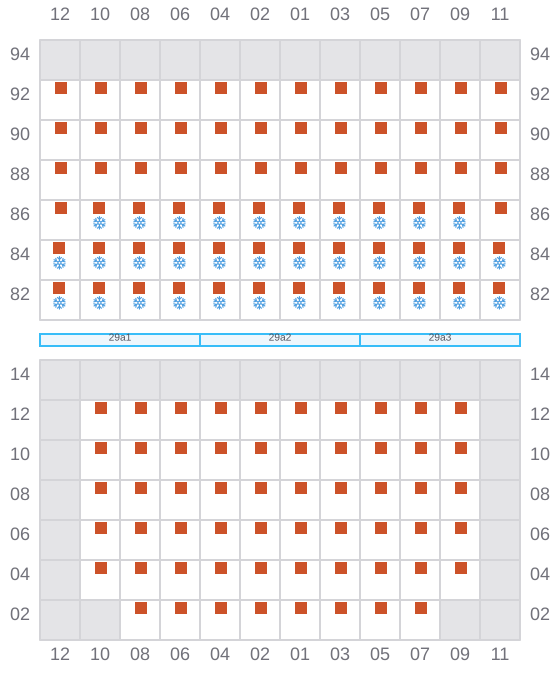

031 (030)
- ←

033
- →

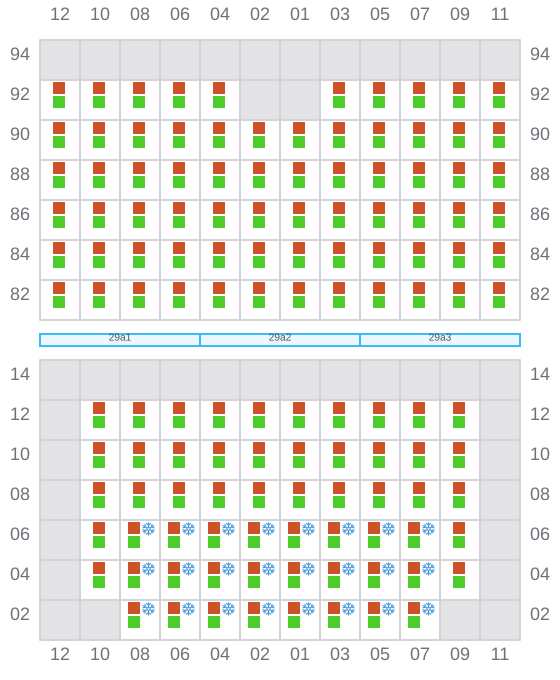

035 (034)
- ←

037
- →

039 (038)
- ←

041
- → / ?

043 (042)
- ← / ?

045
- → / ?

047 (046)
- ← / ?
