CAPITAINE TASMAN
9354533 | 9V5992 | CMA by *********************** Last update: Mon Jan 27 2025

General Info

Ship Name:CAPITAINE TASMAN
IMO Code:9354533
Call Sign:9V5992
Line Operator:CMA
Class Name for Sister Ships:FVLA
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:041
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,721

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

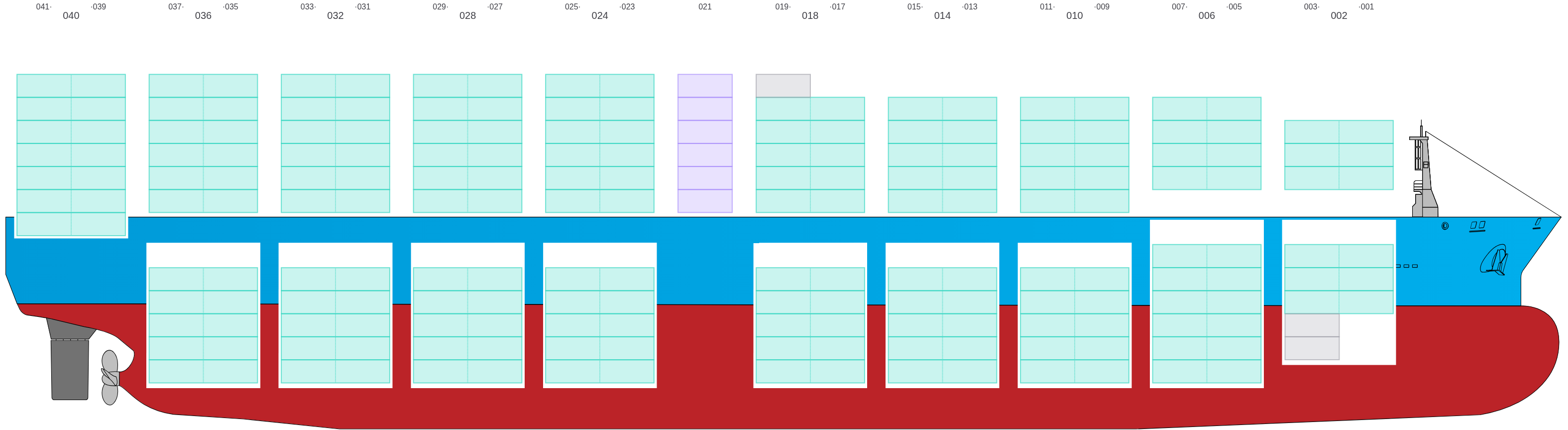

Side View

Side view of CAPITAINE TASMAN

Hatch-Covers View

Deck view of CAPITAINE TASMAN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

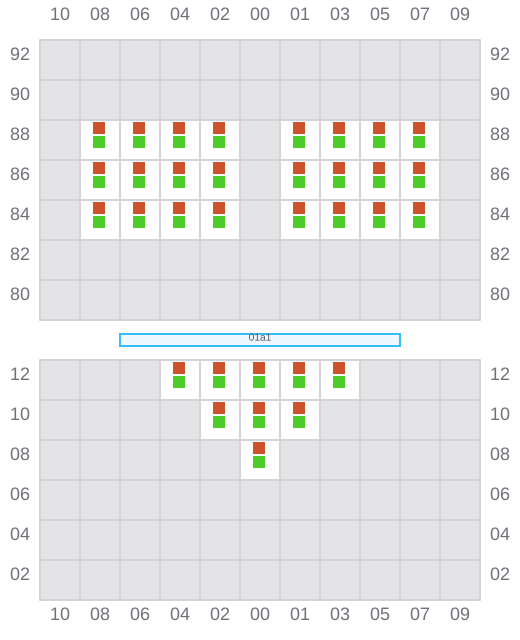

Bay 001 view and slots of CAPITAINE TASMAN

003

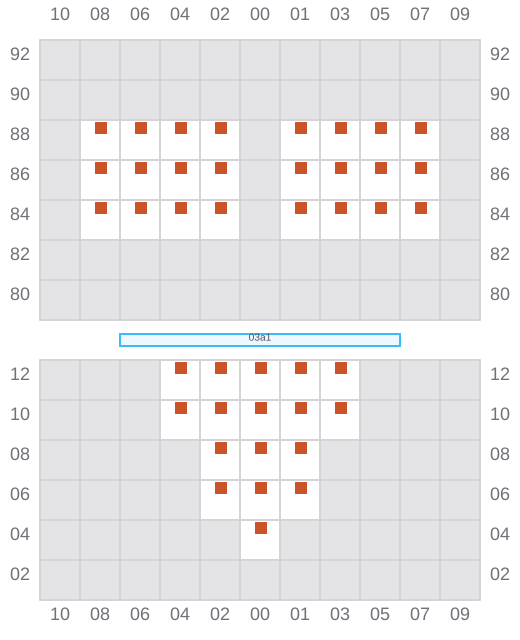

Bay 003 view and slots of CAPITAINE TASMAN

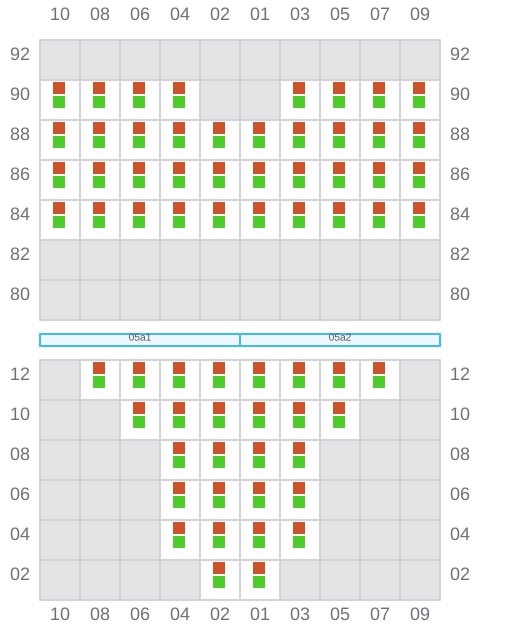

005 (006)

Bay 005 view and slots of CAPITAINE TASMAN

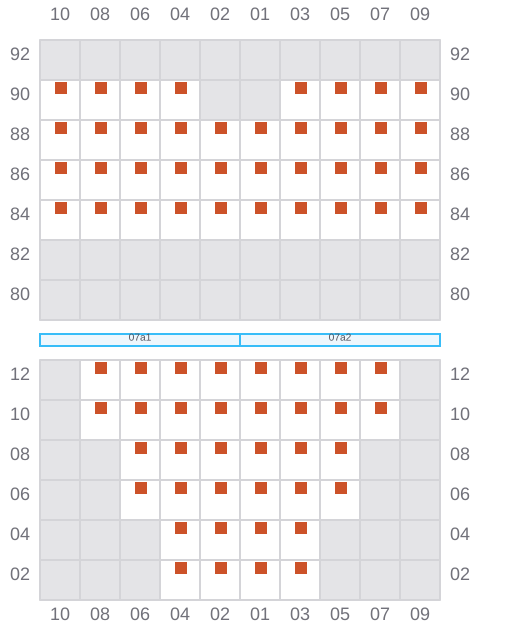

007

Bay 007 view and slots of CAPITAINE TASMAN

009 (010)

  • / ?
Bay 009 view and slots of CAPITAINE TASMAN

011

Bay 011 view and slots of CAPITAINE TASMAN

013 (014)

  • / ?
Bay 013 view and slots of CAPITAINE TASMAN

015

  • / ?
Bay 015 view and slots of CAPITAINE TASMAN

017 (018)

  • / ?
Bay 017 view and slots of CAPITAINE TASMAN

019

  • / ?
Bay 019 view and slots of CAPITAINE TASMAN

021

  • / ?

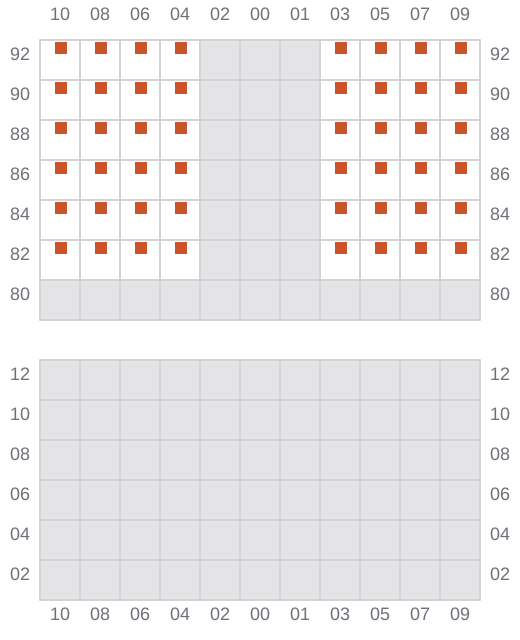

Bay 021 view and slots of CAPITAINE TASMAN

023 (024)

Bay 023 view and slots of CAPITAINE TASMAN

025

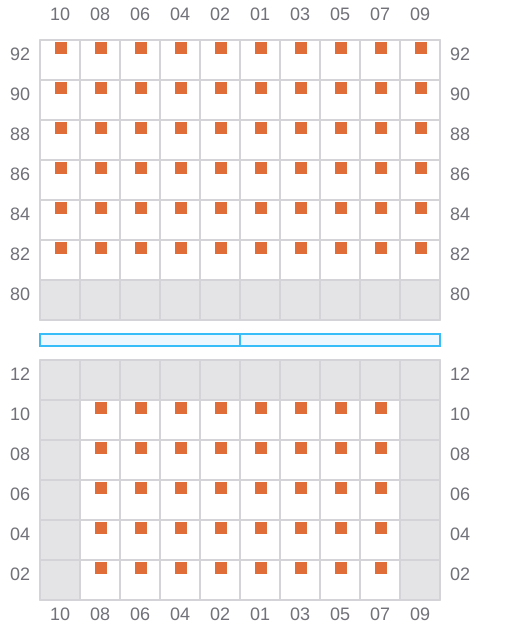

Bay 025 view and slots of CAPITAINE TASMAN

027 (028)

  • / ?

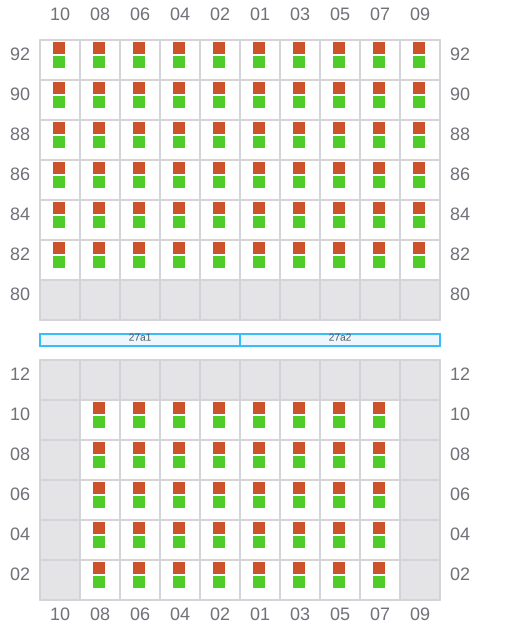

Bay 027 view and slots of CAPITAINE TASMAN

029

Bay 029 view and slots of CAPITAINE TASMAN

031 (032)

Bay 031 view and slots of CAPITAINE TASMAN

033

Bay 033 view and slots of CAPITAINE TASMAN

035 (036)

  • / ?

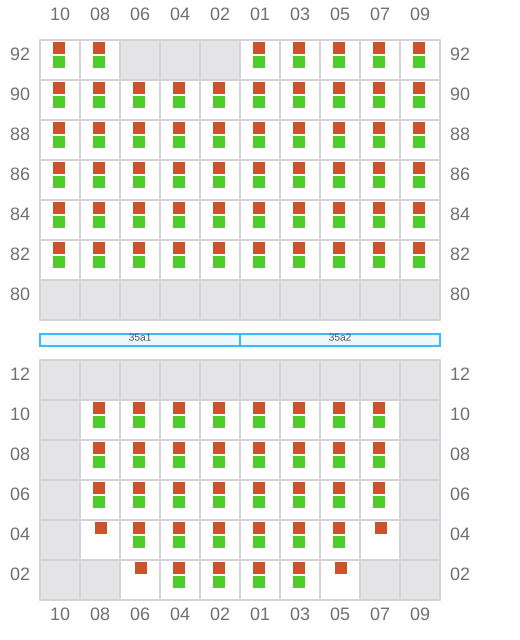

Bay 035 view and slots of CAPITAINE TASMAN

037

Bay 037 view and slots of CAPITAINE TASMAN

039 (040)

  • / ?
  • / ?

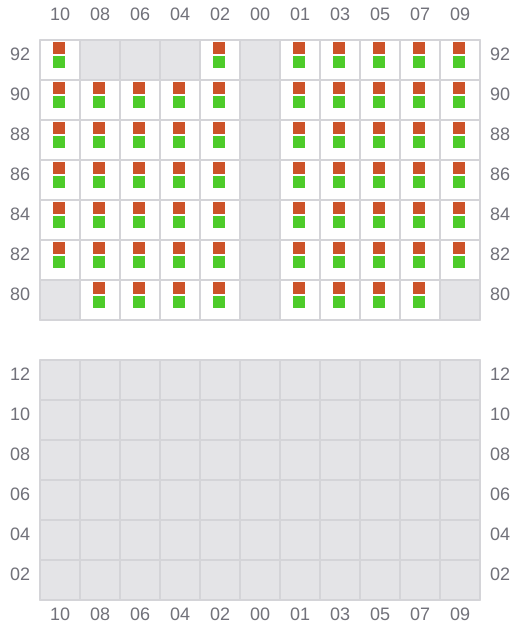

Bay 039 view and slots of CAPITAINE TASMAN

041

  • / ?
  • / ?

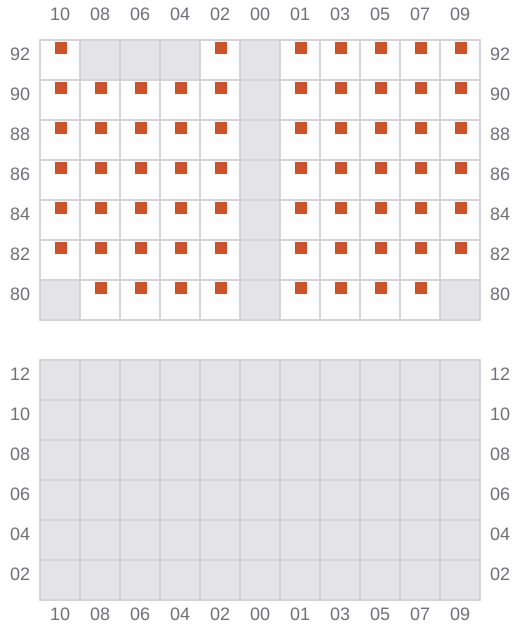

Bay 041 view and slots of CAPITAINE TASMAN
