CAPT.KATTELMANN
9330915 | S6HK4 | 9330915 by ********* Last update: Wed May 01 2024
General Info
Ship Name:CAPT.KATTELMANN
IMO Code:9330915
Call Sign:S6HK4
Line Operator:9330915
Class Name for Sister Ships:KAPT KATTELMANN
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:035
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,440
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

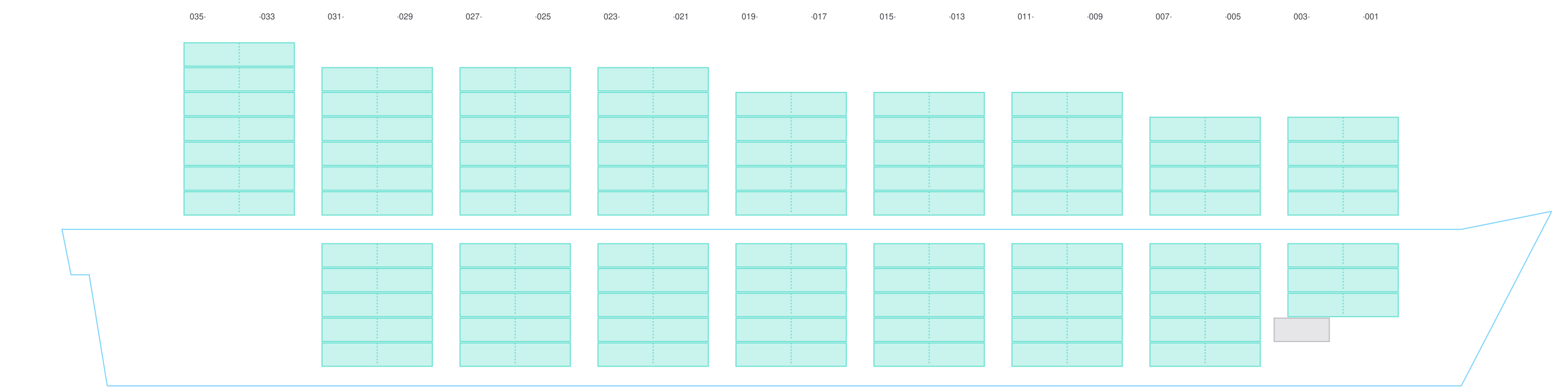

Side View
![Side view of CAPT.KATTELMANN](/vessel-images/1f6523e4-874f-4c9e-9ee5-a633dedafbbb-sideView.png?v=1714603027675)

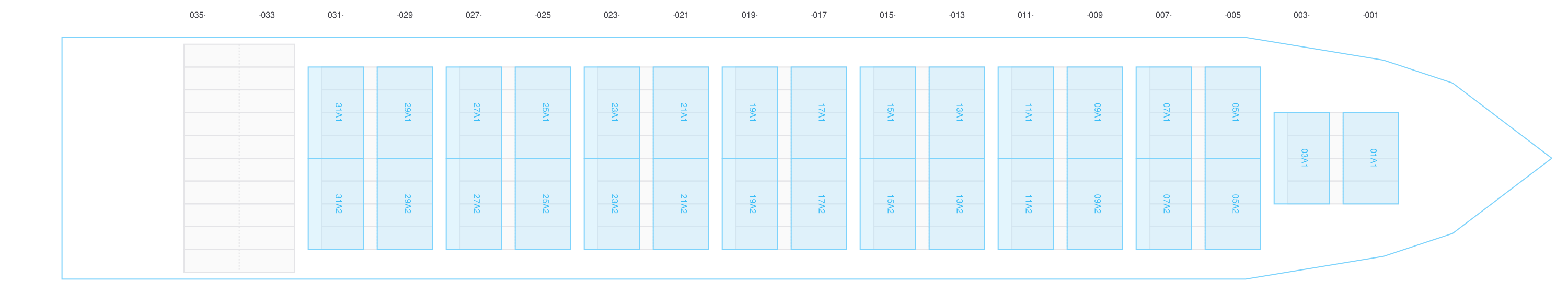

Hatch-Covers View
![Deck view of CAPT.KATTELMANN](/vessel-images/1f6523e4-874f-4c9e-9ee5-a633dedafbbb-deckView.png?v=1714603027675)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

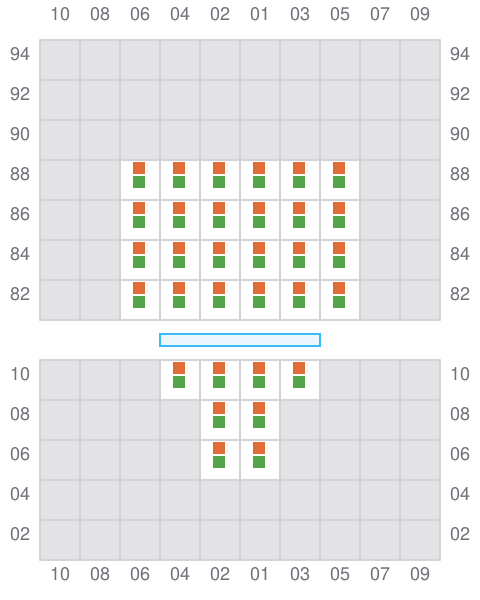

001 (002)
- →
![Bay 001 view and slots of CAPT.KATTELMANN](/vessel-images/1f6523e4-874f-4c9e-9ee5-a633dedafbbb-b001.png?v=1714603027675)

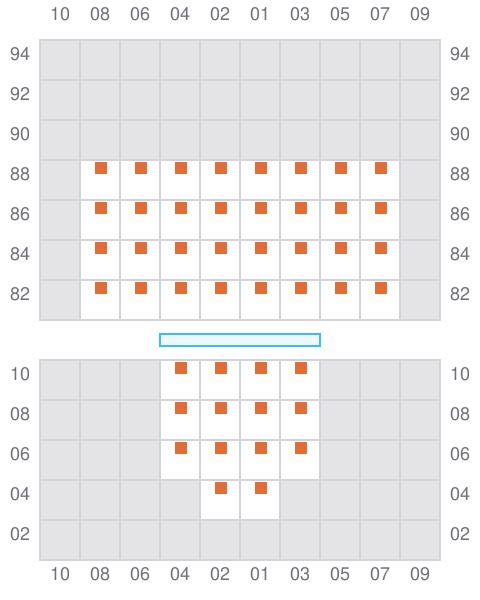

003
- ←
![Bay 003 view and slots of CAPT.KATTELMANN](/vessel-images/1f6523e4-874f-4c9e-9ee5-a633dedafbbb-b003.png?v=1714603027675)

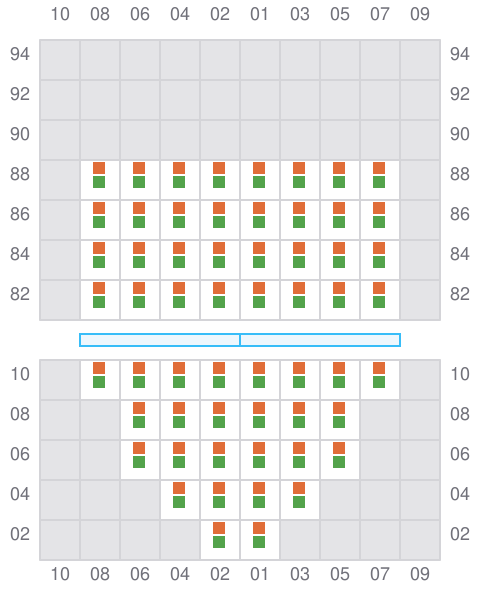

005 (006)
- →
![Bay 005 view and slots of CAPT.KATTELMANN](/vessel-images/1f6523e4-874f-4c9e-9ee5-a633dedafbbb-b005.png?v=1714603027675)

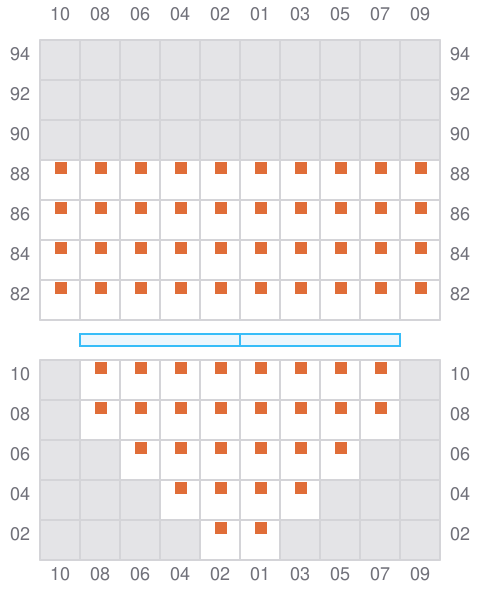

007
- ←
![Bay 007 view and slots of CAPT.KATTELMANN](/vessel-images/1f6523e4-874f-4c9e-9ee5-a633dedafbbb-b007.png?v=1714603027675)

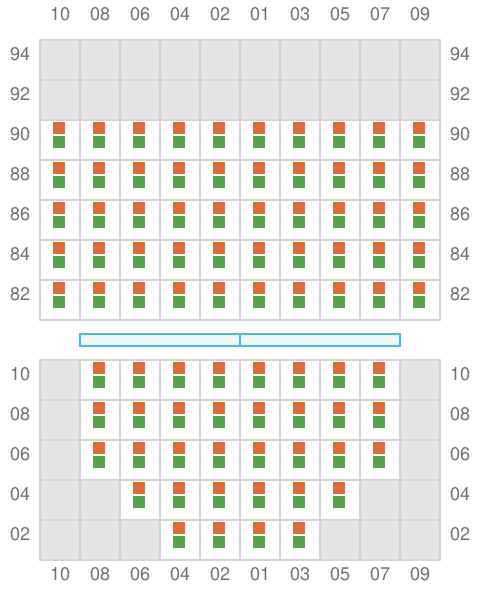

009 (010)
- →
![Bay 009 view and slots of CAPT.KATTELMANN](/vessel-images/1f6523e4-874f-4c9e-9ee5-a633dedafbbb-b009.png?v=1714603027675)

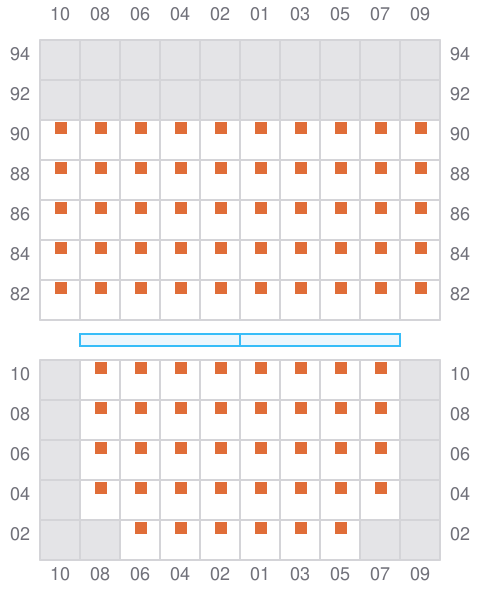

011
- ←
![Bay 011 view and slots of CAPT.KATTELMANN](/vessel-images/1f6523e4-874f-4c9e-9ee5-a633dedafbbb-b011.png?v=1714603027675)

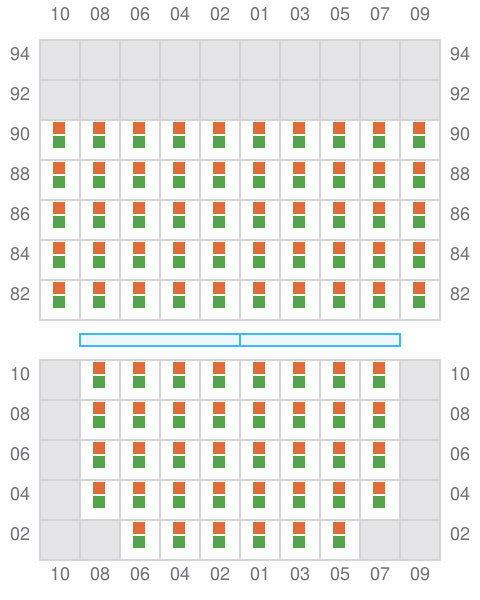

013 (014)
- →
![Bay 013 view and slots of CAPT.KATTELMANN](/vessel-images/1f6523e4-874f-4c9e-9ee5-a633dedafbbb-b013.png?v=1714603027675)
015
- ←
![Bay 015 view and slots of CAPT.KATTELMANN](/vessel-images/1f6523e4-874f-4c9e-9ee5-a633dedafbbb-b015.png?v=1714603027675)
017 (018)
- →
![Bay 017 view and slots of CAPT.KATTELMANN](/vessel-images/1f6523e4-874f-4c9e-9ee5-a633dedafbbb-b017.png?v=1714603027675)

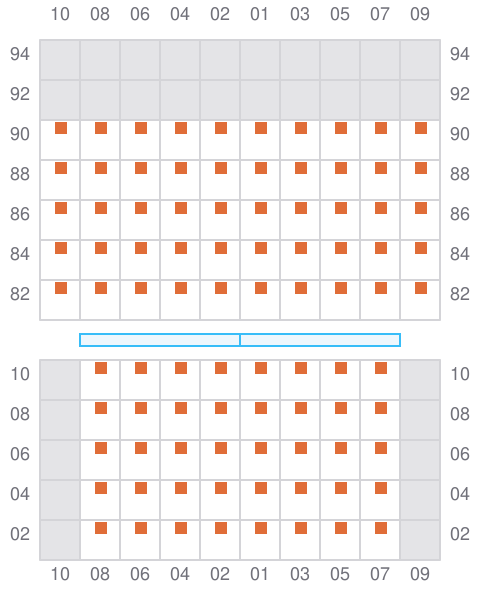

019
- ←
![Bay 019 view and slots of CAPT.KATTELMANN](/vessel-images/1f6523e4-874f-4c9e-9ee5-a633dedafbbb-b019.png?v=1714603027675)

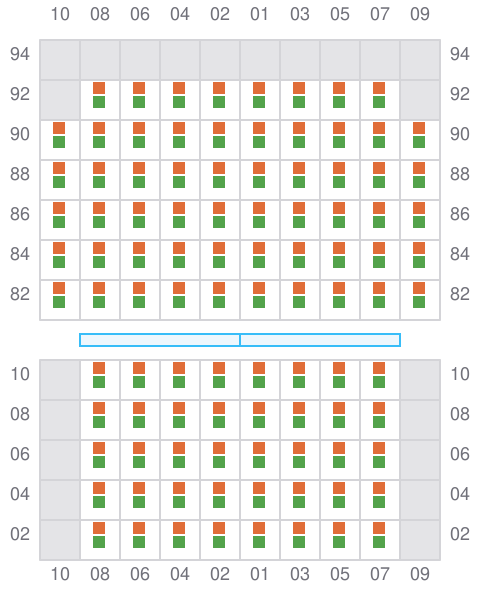

021 (022)
- →
![Bay 021 view and slots of CAPT.KATTELMANN](/vessel-images/1f6523e4-874f-4c9e-9ee5-a633dedafbbb-b021.png?v=1714603027675)
023
- ←
![Bay 023 view and slots of CAPT.KATTELMANN](/vessel-images/1f6523e4-874f-4c9e-9ee5-a633dedafbbb-b023.png?v=1714603027675)
025 (026)
- →
![Bay 025 view and slots of CAPT.KATTELMANN](/vessel-images/1f6523e4-874f-4c9e-9ee5-a633dedafbbb-b025.png?v=1714603027675)

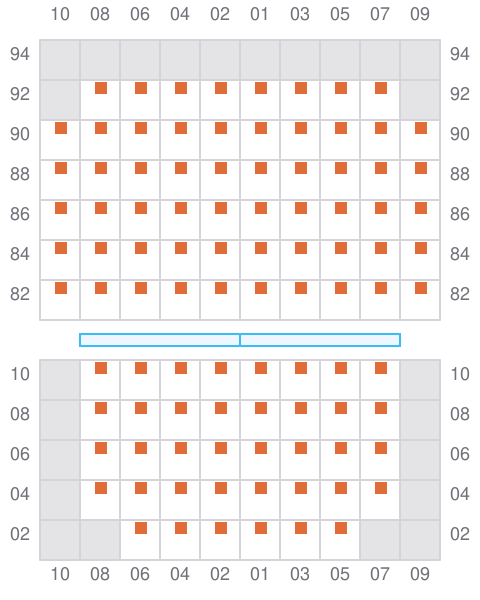

027
- ←
![Bay 027 view and slots of CAPT.KATTELMANN](/vessel-images/1f6523e4-874f-4c9e-9ee5-a633dedafbbb-b027.png?v=1714603027675)

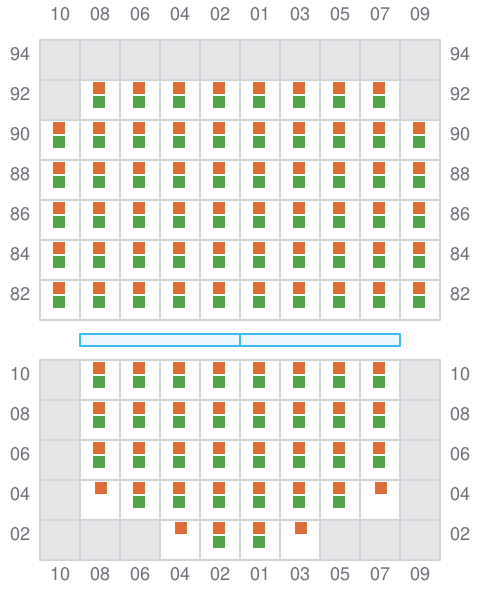

029 (030)
- →
![Bay 029 view and slots of CAPT.KATTELMANN](/vessel-images/1f6523e4-874f-4c9e-9ee5-a633dedafbbb-b029.png?v=1714603027675)

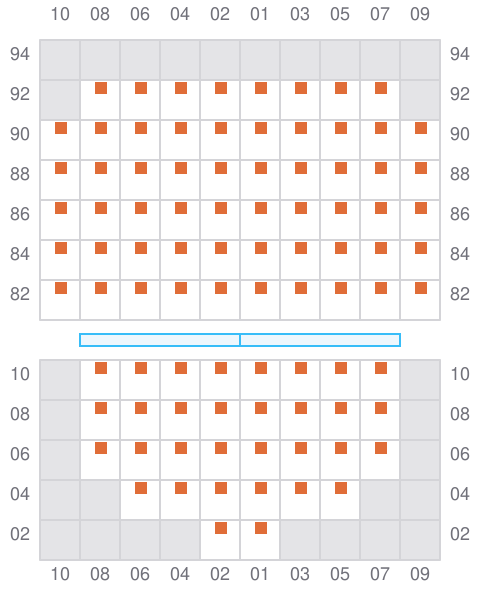

031
- ←
![Bay 031 view and slots of CAPT.KATTELMANN](/vessel-images/1f6523e4-874f-4c9e-9ee5-a633dedafbbb-b031.png?v=1714603027675)

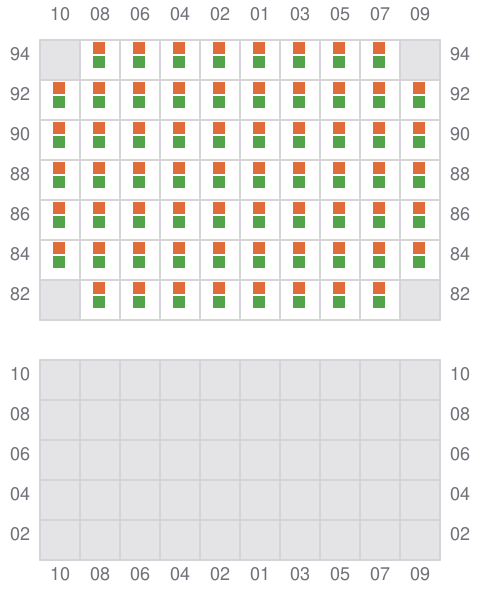

033 (034)
- → / ?
![Bay 033 view and slots of CAPT.KATTELMANN](/vessel-images/1f6523e4-874f-4c9e-9ee5-a633dedafbbb-b033.png?v=1714603027675)

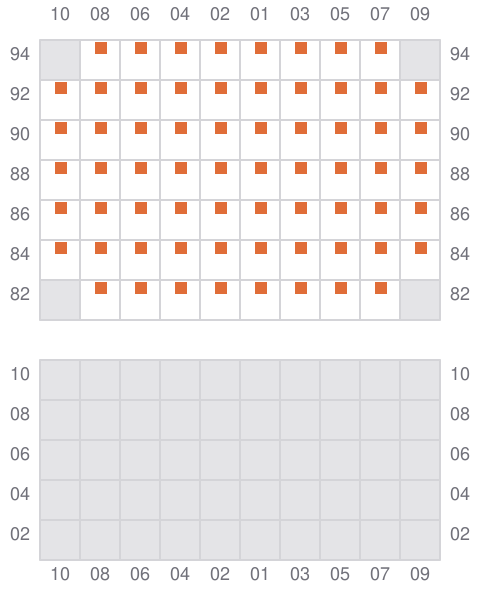

035
- ← / ?
![Bay 035 view and slots of CAPT.KATTELMANN](/vessel-images/1f6523e4-874f-4c9e-9ee5-a633dedafbbb-b035.png?v=1714603027675)
