CARDIFF
9629457 | D5EX4 | 9629457 by ********* Last update: Thu Mar 28 2024
General Info
Ship Name:CARDIFF
IMO Code:9629457
Call Sign:D5EX4
Line Operator:9629457
Class Name for Sister Ships:G92
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):258.40
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:061
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,622
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

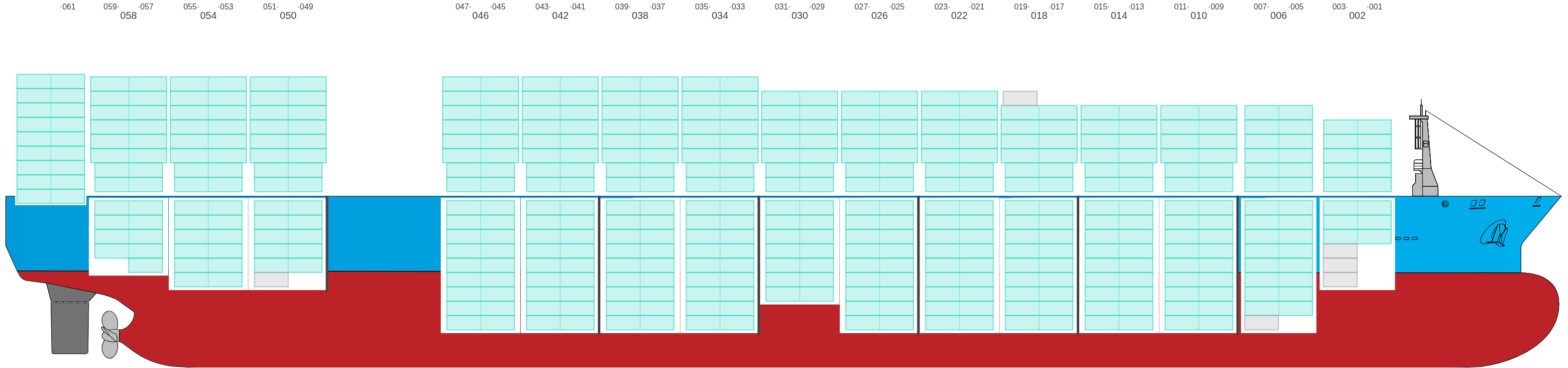

Side View
![Side view of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-sideView.png?v=1711662475320)
Hatch-Covers View
![Deck view of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-deckView.png?v=1711662475320)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

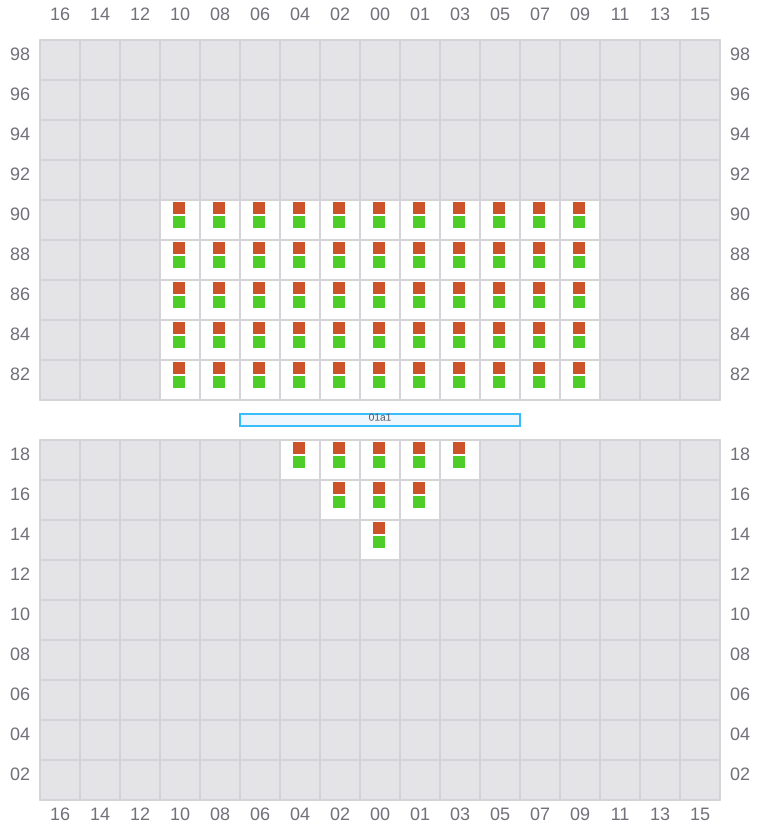

001 (002)
- →
![Bay 001 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b001.png?v=1711662475320)

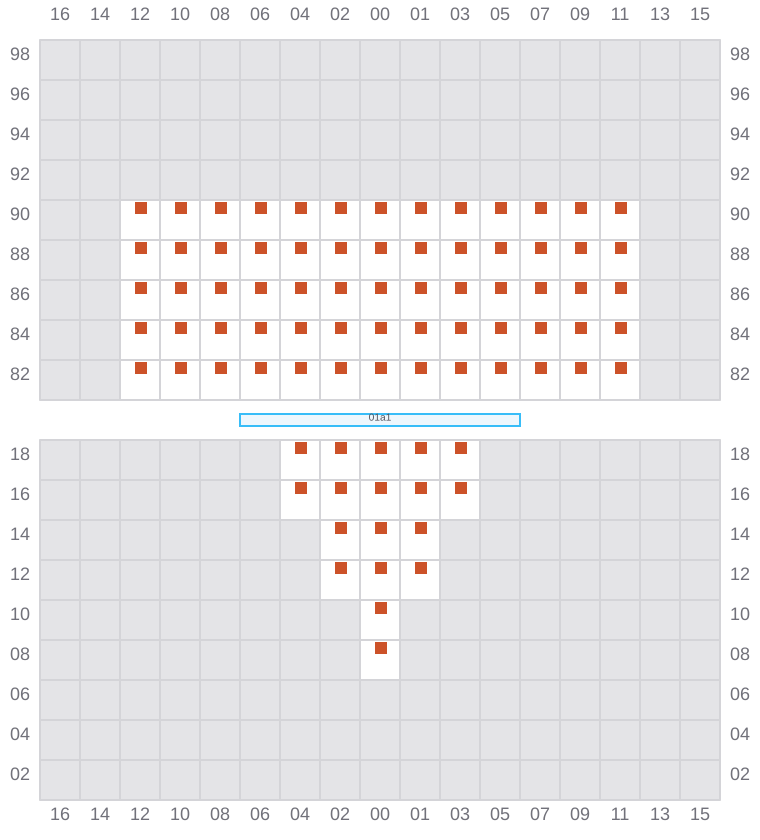

003
- ←
![Bay 003 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b003.png?v=1711662475320)

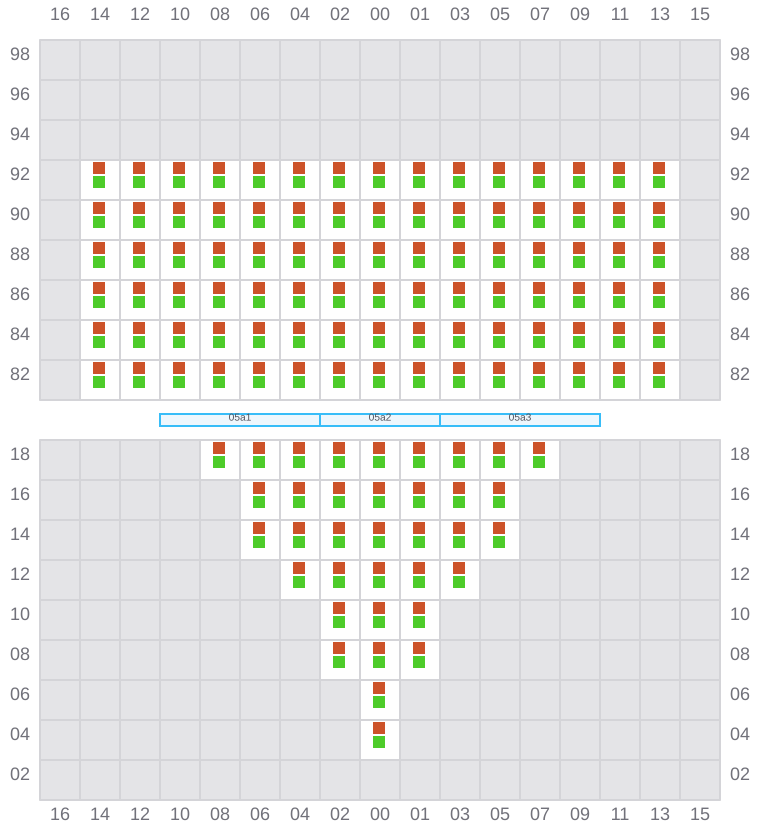

005 (006)
- →
![Bay 005 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b005.png?v=1711662475320)

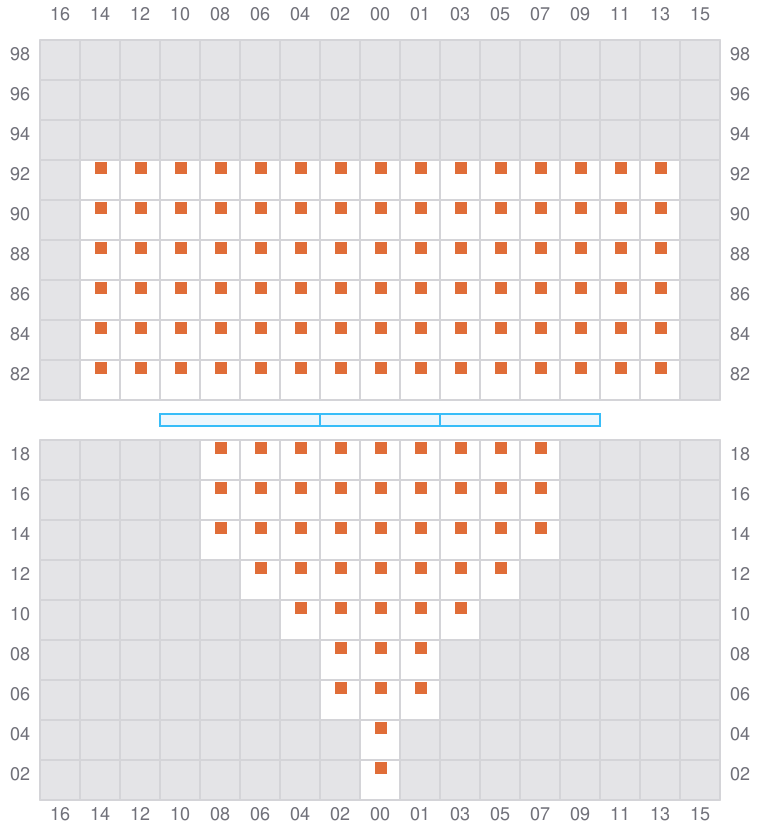

007
- ←
![Bay 007 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b007.png?v=1711662475320)

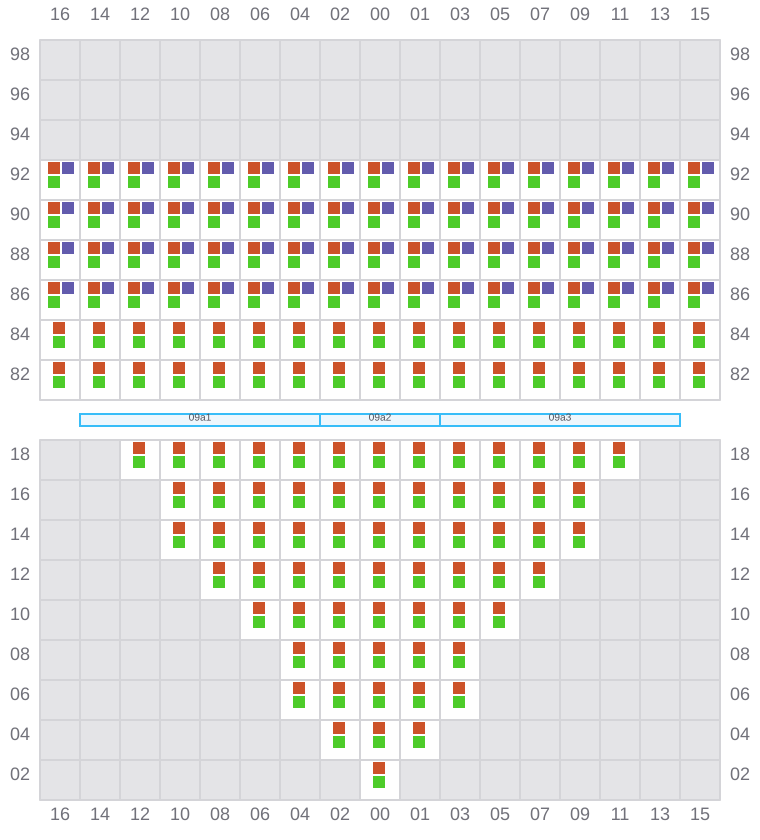

009 (010)
- →
![Bay 009 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b009.png?v=1711662475320)

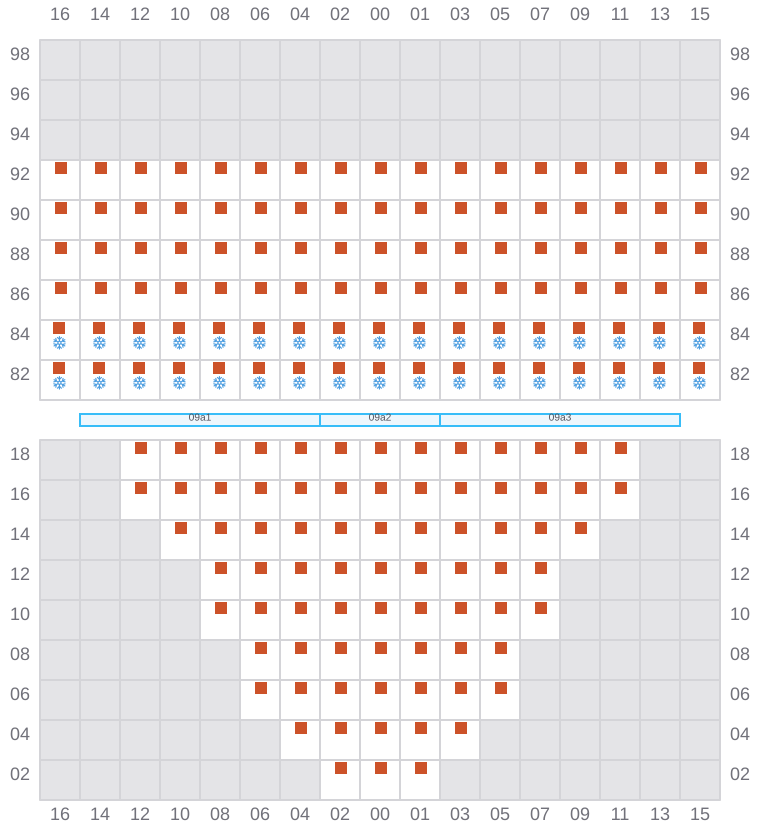

011
- ←
- → / ?
![Bay 011 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b011.png?v=1711662475320)

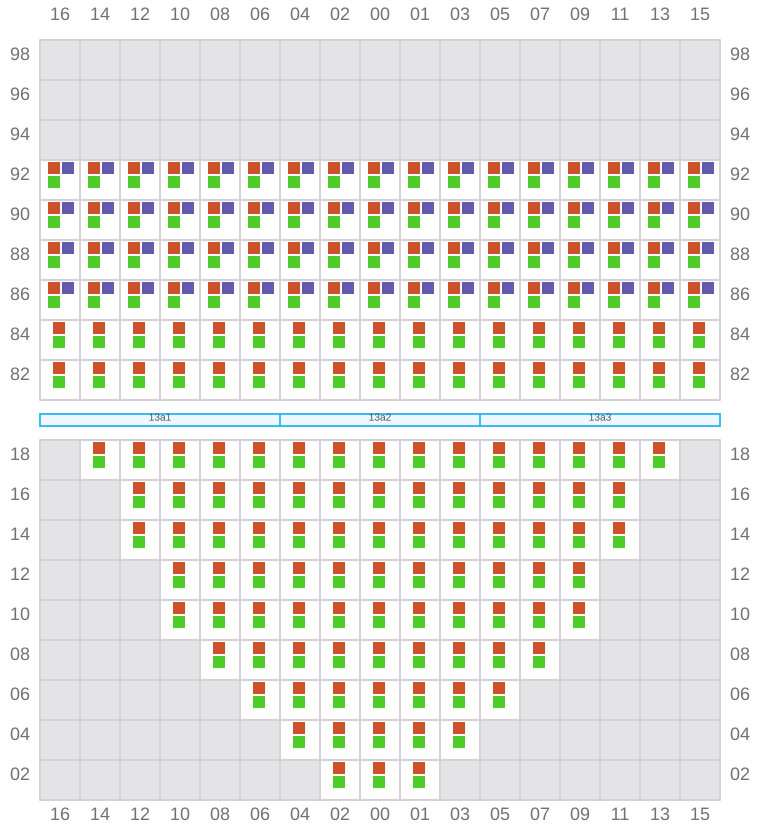

013 (014)
- →
![Bay 013 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b013.png?v=1711662475320)

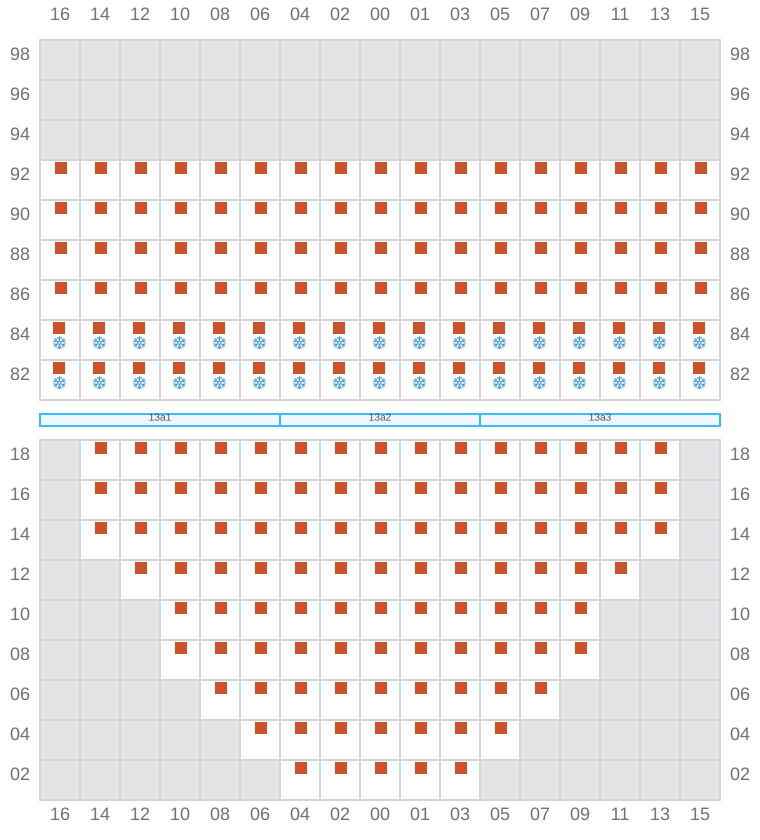

015
- ←
- → / ?
![Bay 015 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b015.png?v=1711662475320)

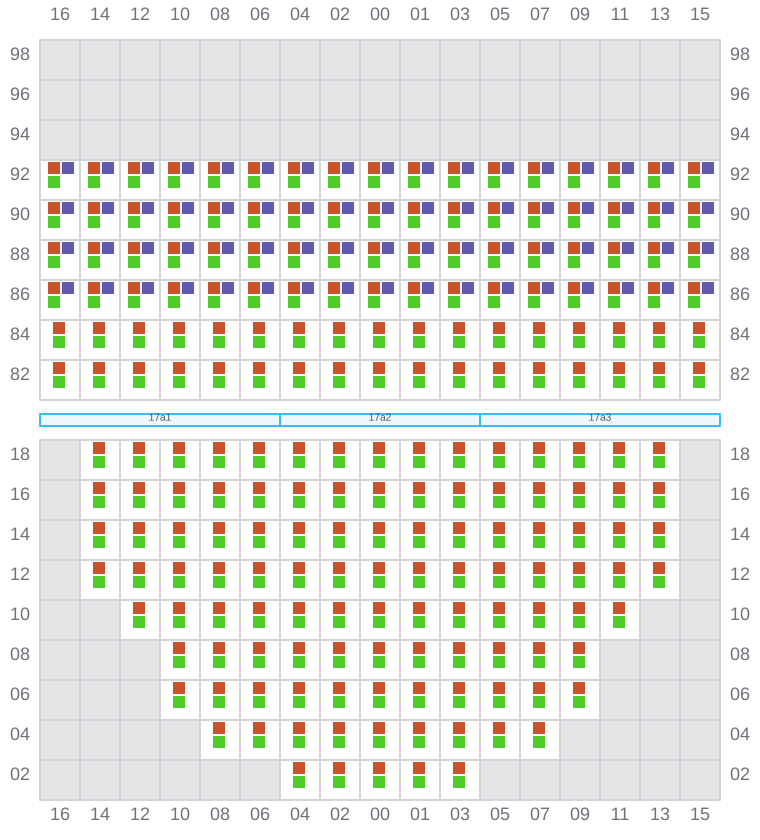

017 (018)
- →
![Bay 017 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b017.png?v=1711662475320)

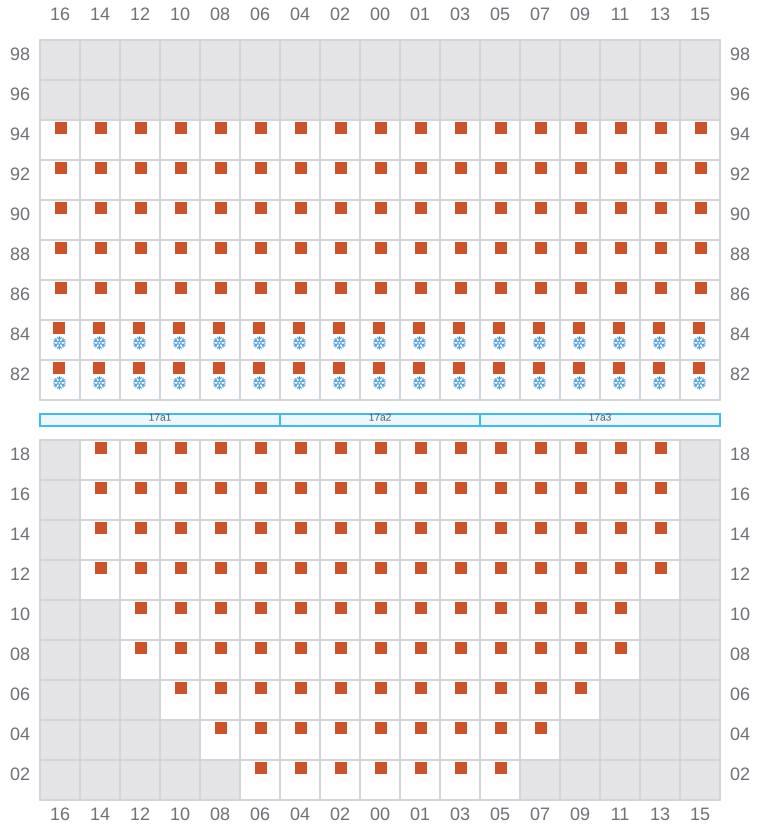

019
- ←
- → / ?
![Bay 019 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b019.png?v=1711662475320)

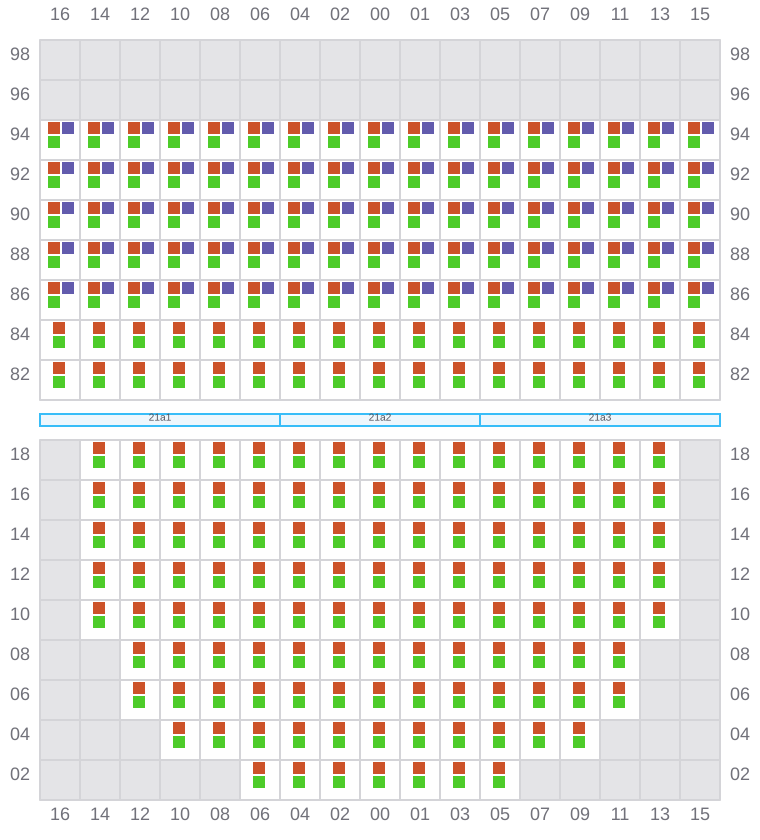

021 (022)
- →
![Bay 021 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b021.png?v=1711662475320)

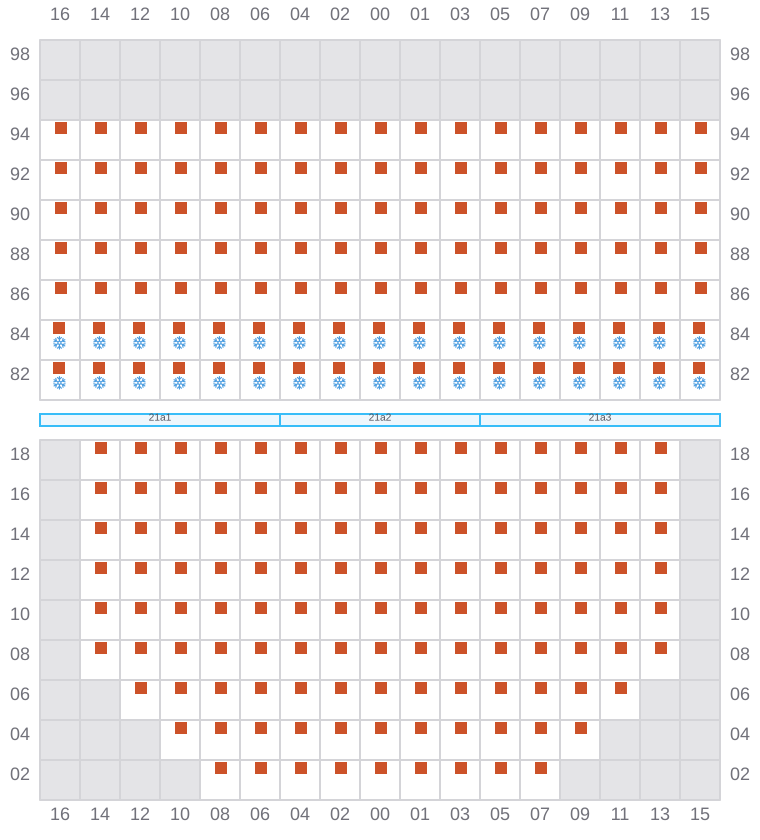

023
- ←
- → / ?
![Bay 023 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b023.png?v=1711662475320)

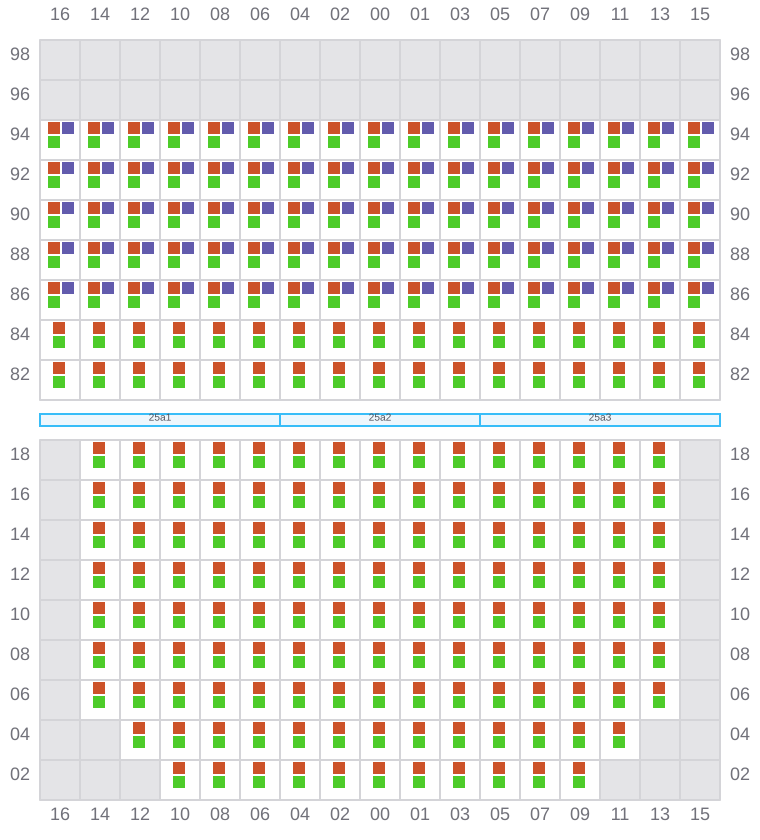

025 (026)
- →
![Bay 025 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b025.png?v=1711662475320)

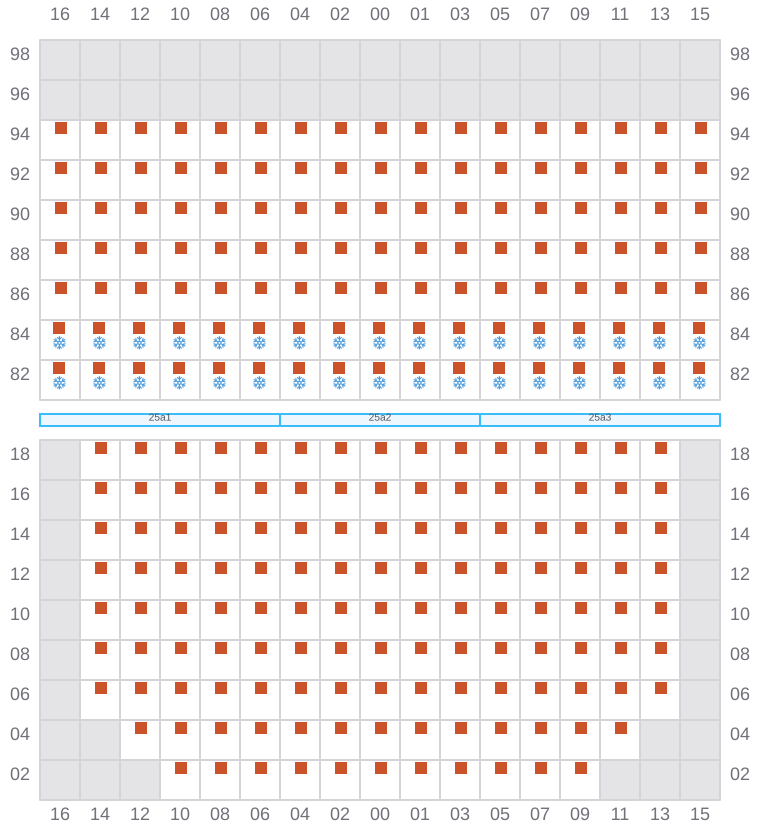

027
- ←
- → / ?
![Bay 027 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b027.png?v=1711662475320)

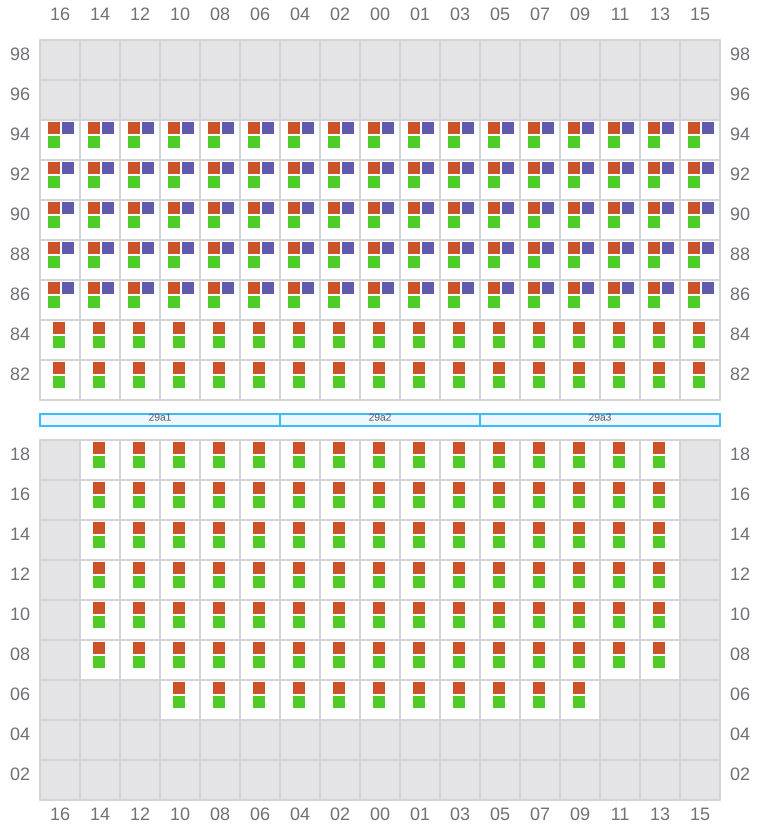

029 (030)
- →
![Bay 029 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b029.png?v=1711662475320)

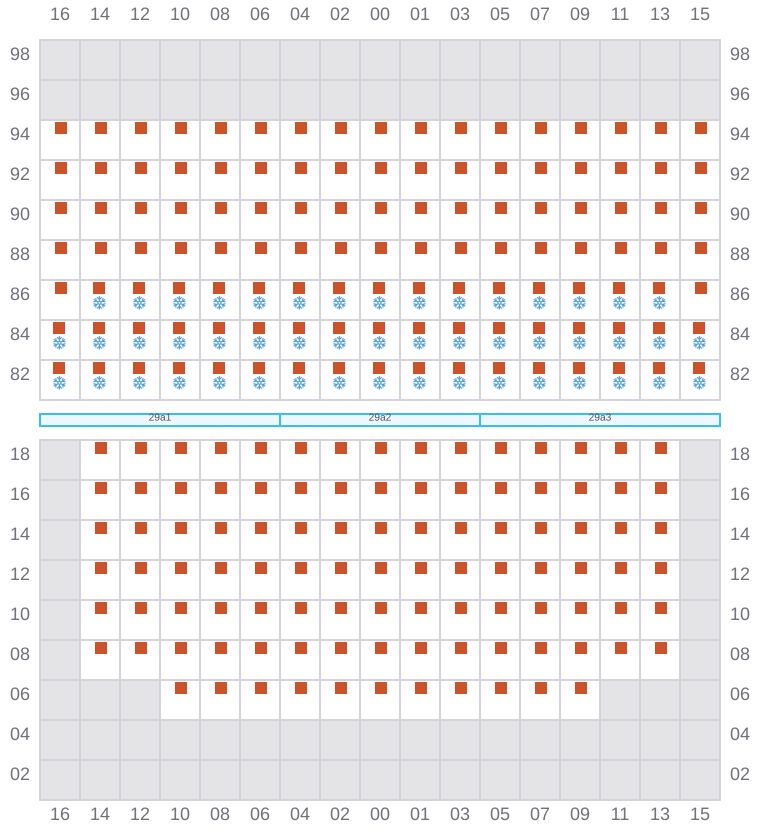

031
- ←
- → / ?
![Bay 031 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b031.png?v=1711662475320)
033 (034)
- →
![Bay 033 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b033.png?v=1711662475320)

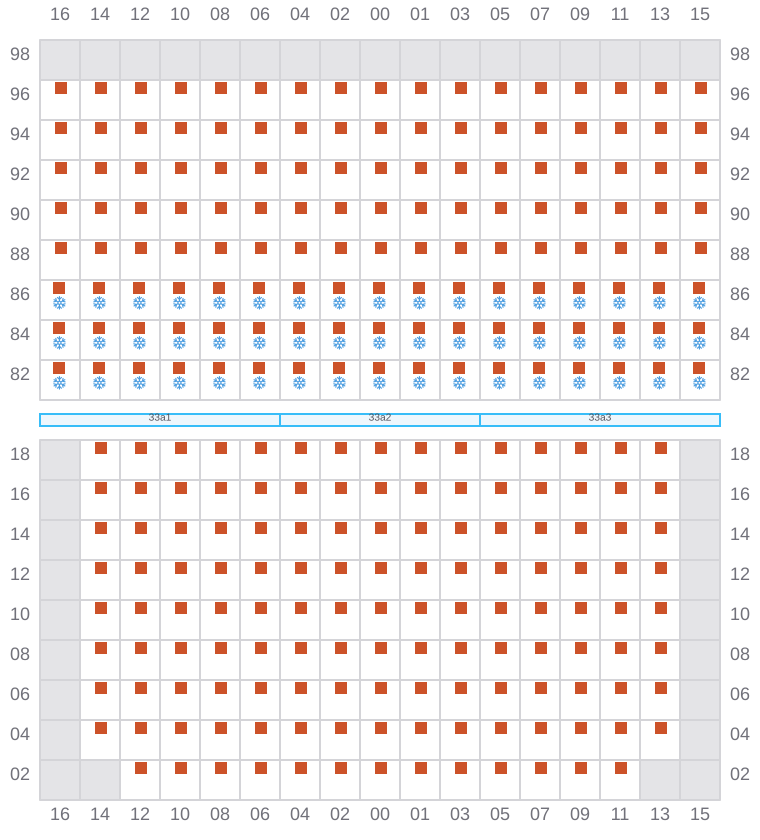

035
- ←
- → / ?
![Bay 035 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b035.png?v=1711662475320)

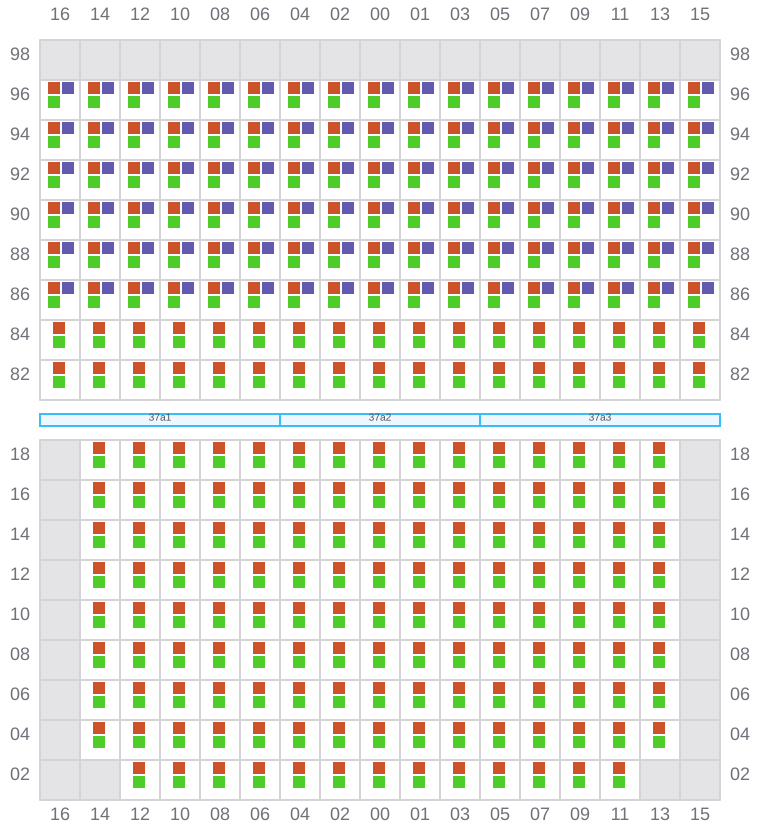

037 (038)
- →
![Bay 037 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b037.png?v=1711662475320)
039
- ←
- → / ?
![Bay 039 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b039.png?v=1711662475320)

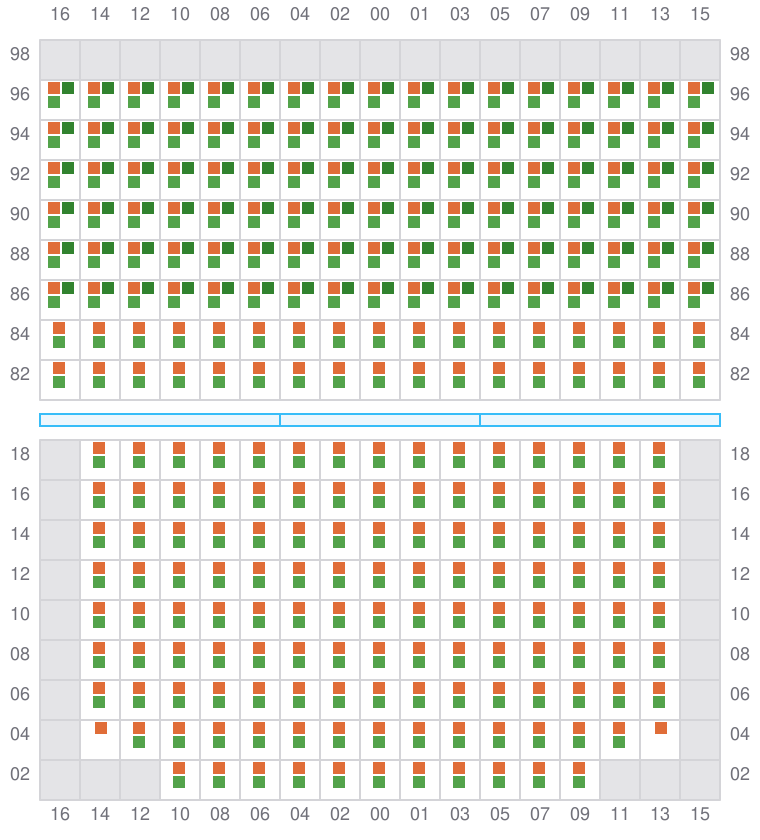

041 (042)
- →
![Bay 041 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b041.png?v=1711662475320)

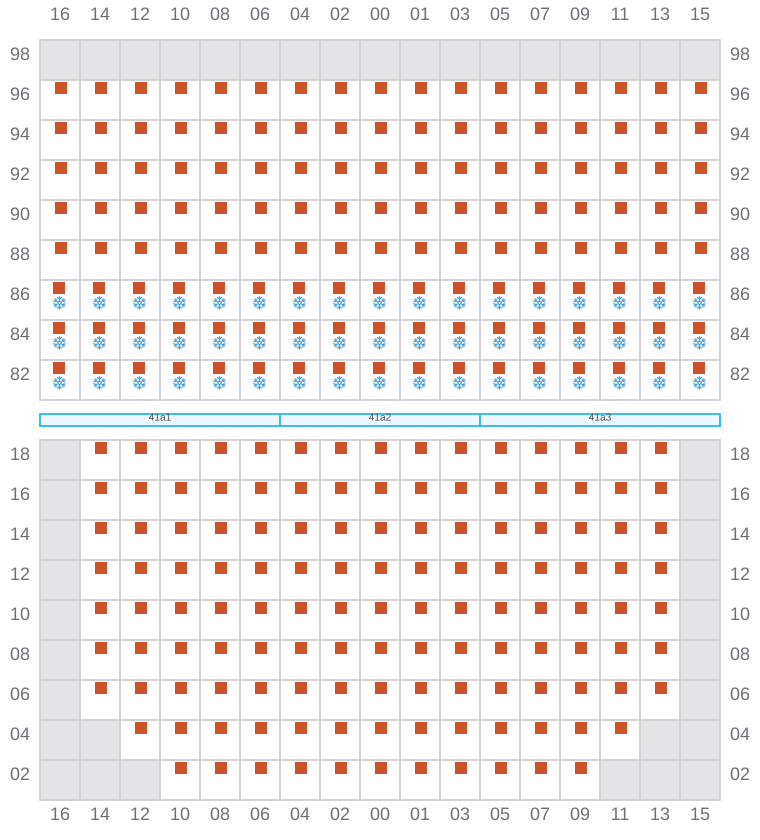

043
- ←
- → / ?
![Bay 043 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b043.png?v=1711662475320)

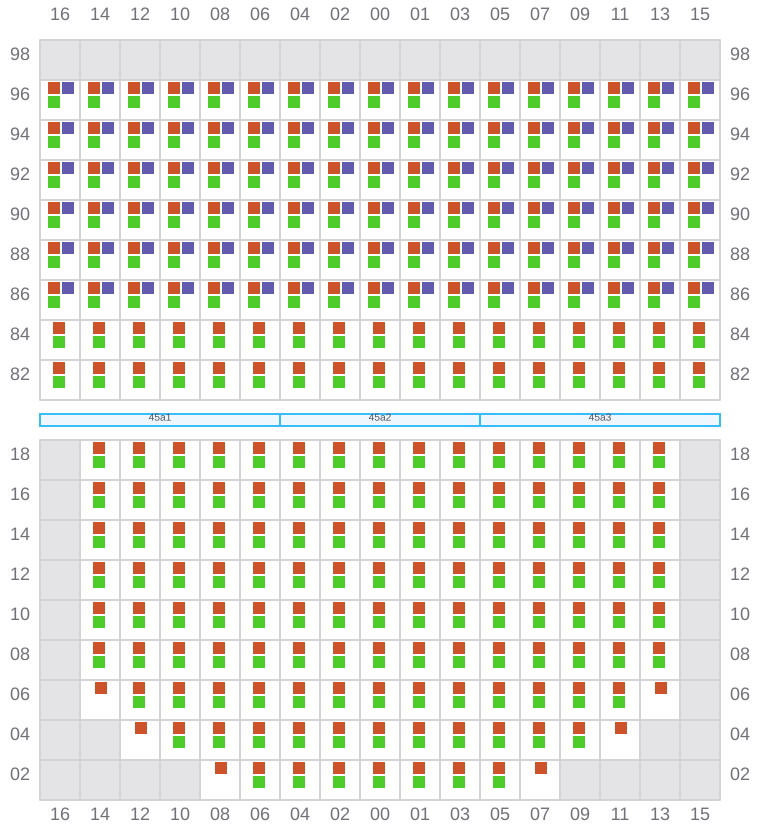

045 (046)
- →
![Bay 045 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b045.png?v=1711662475320)

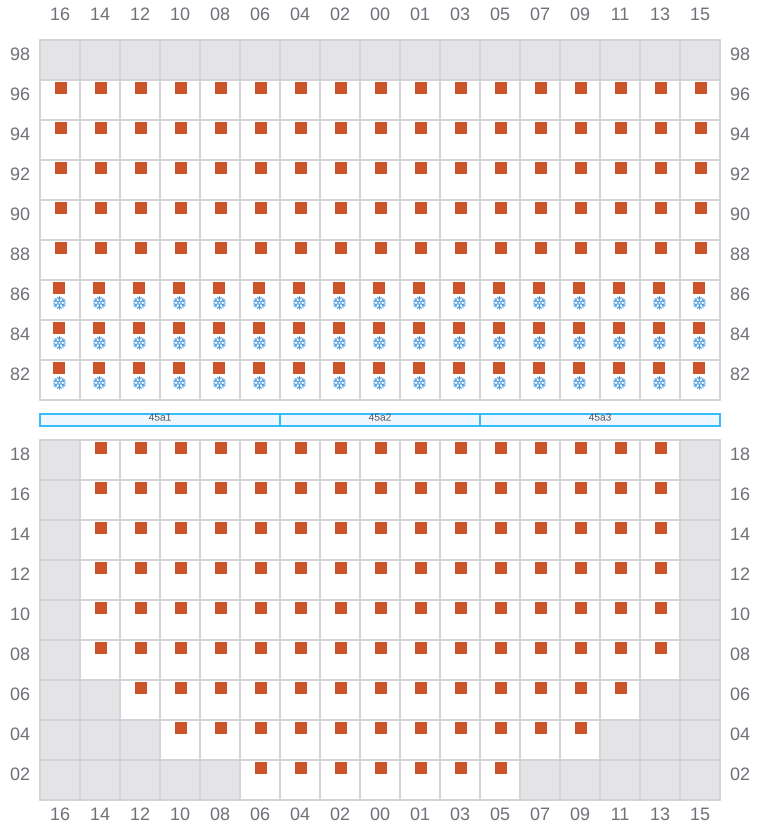

047
- ←
- → / ?
![Bay 047 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b047.png?v=1711662475320)

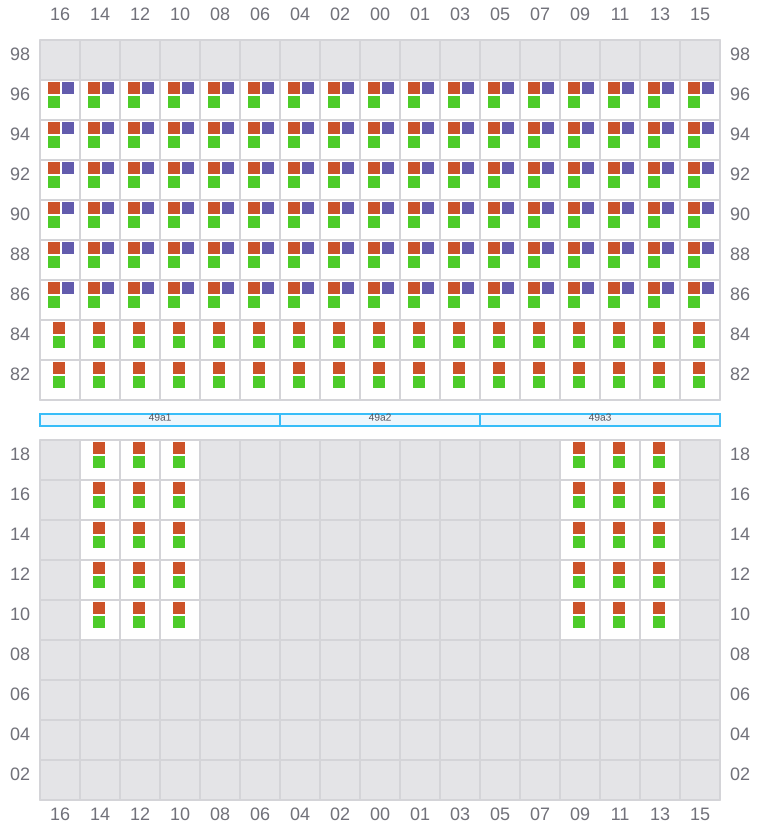

049 (050)
- →
![Bay 049 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b049.png?v=1711662475320)

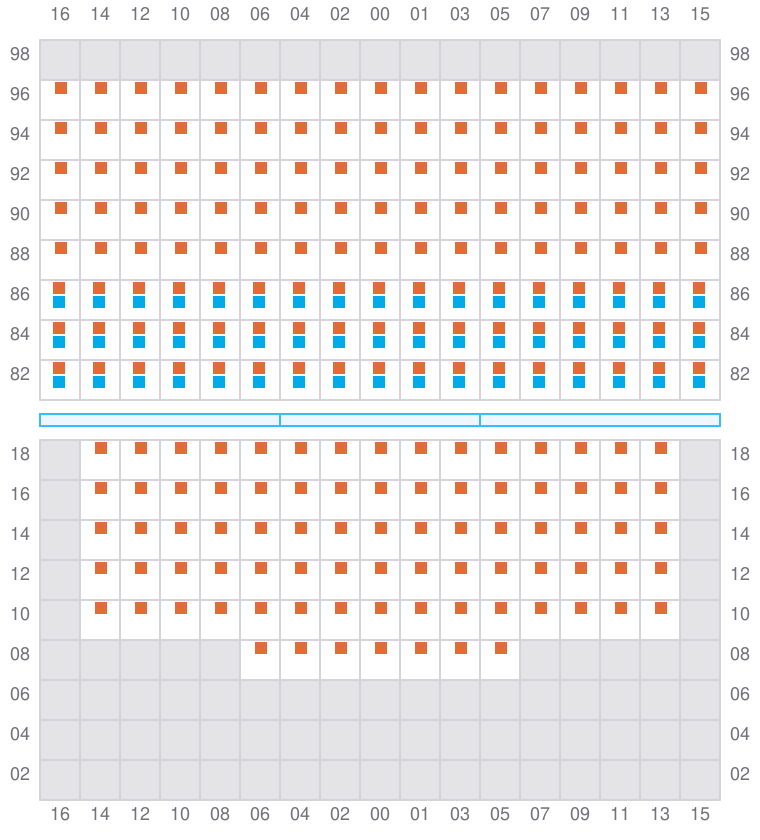

051
- ←
- → / ?
![Bay 051 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b051.png?v=1711662475320)

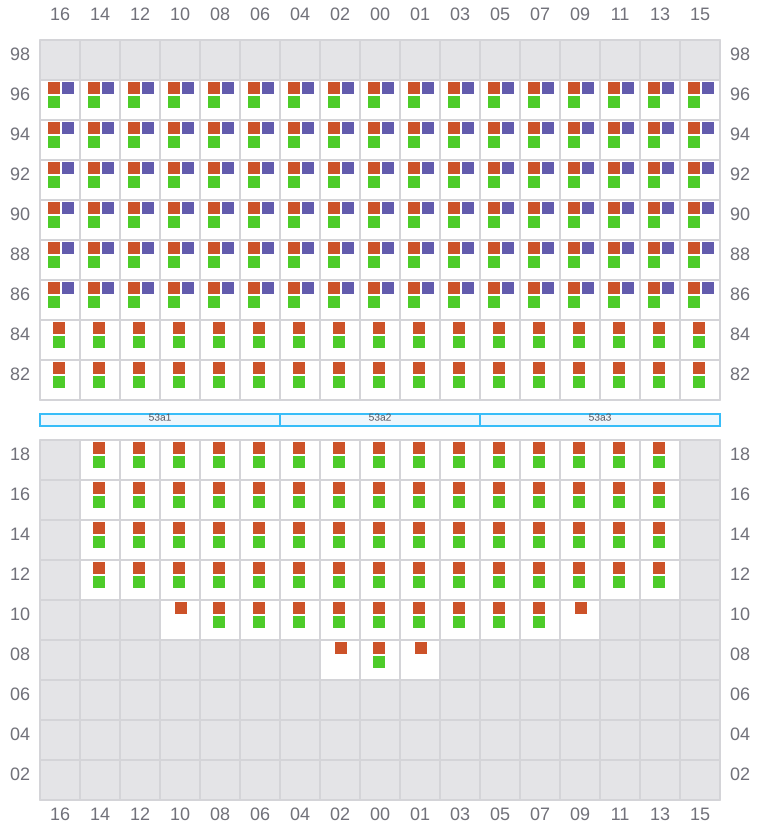

053 (054)
- →
![Bay 053 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b053.png?v=1711662475320)

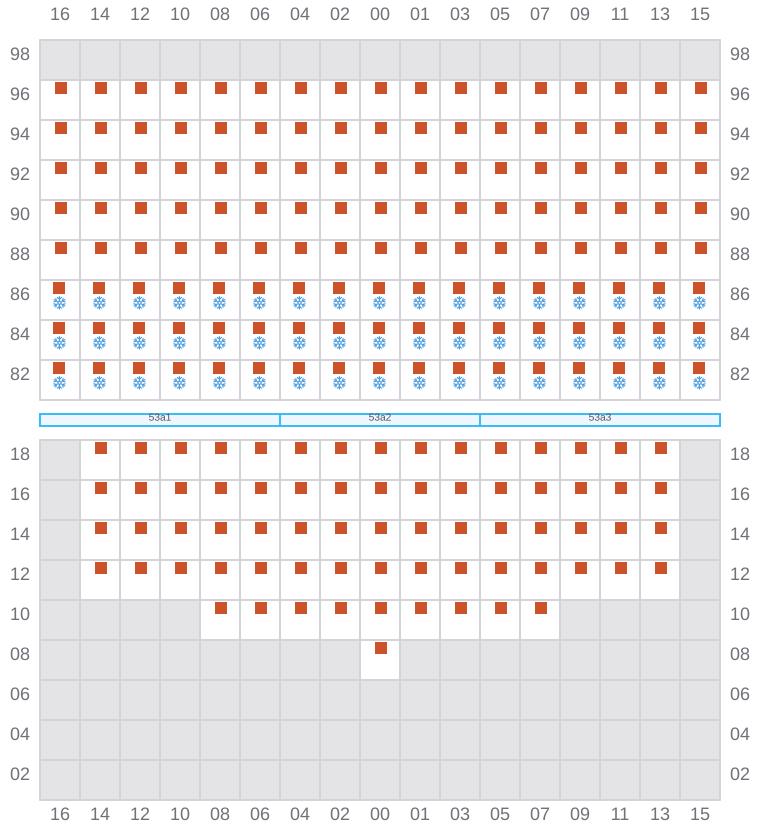

055
- ←
- → / ?
![Bay 055 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b055.png?v=1711662475320)

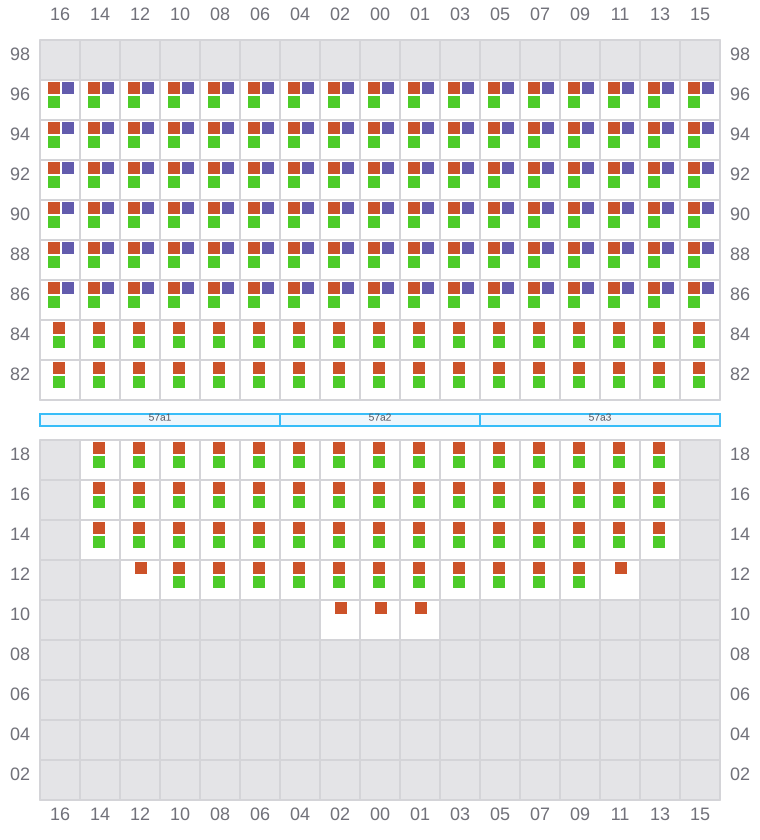

057 (058)
- →
![Bay 057 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b057.png?v=1711662475320)

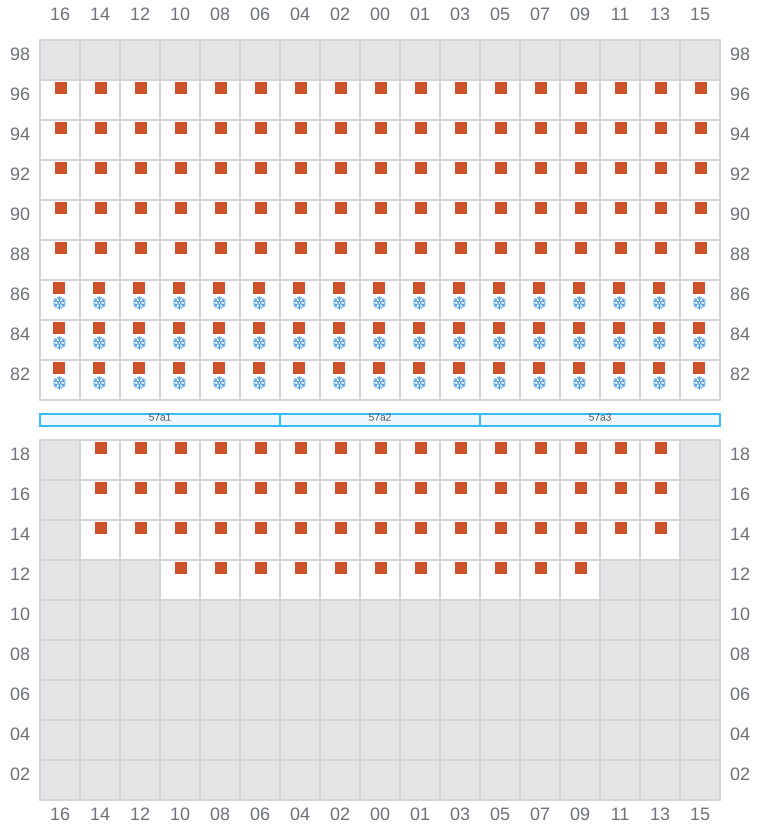

059
- ←
- → / ?
![Bay 059 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b059.png?v=1711662475320)

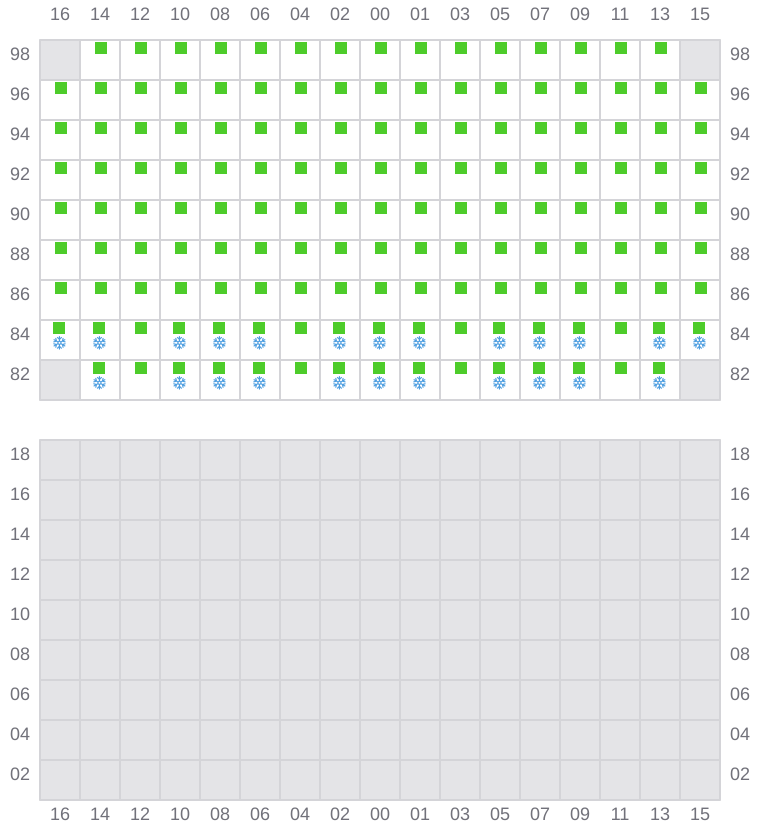

061 (062)
- → / ?
- ← / ?
![Bay 061 view and slots of CARDIFF](/vessel-images/46871e4b-8840-4c6f-9a1e-b402316d4f85-b061.png?v=1711662475320)
