CARLA LIV
9149897 | V7A7230 | CHI by ************************** Last update: Fri Jun 30 2023
General Info
Ship Name:CARLA LIV
IMO Code:9149897
Call Sign:V7A7230
Line Operator:CHI
Class Name for Sister Ships:ELQ
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:041
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,726
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

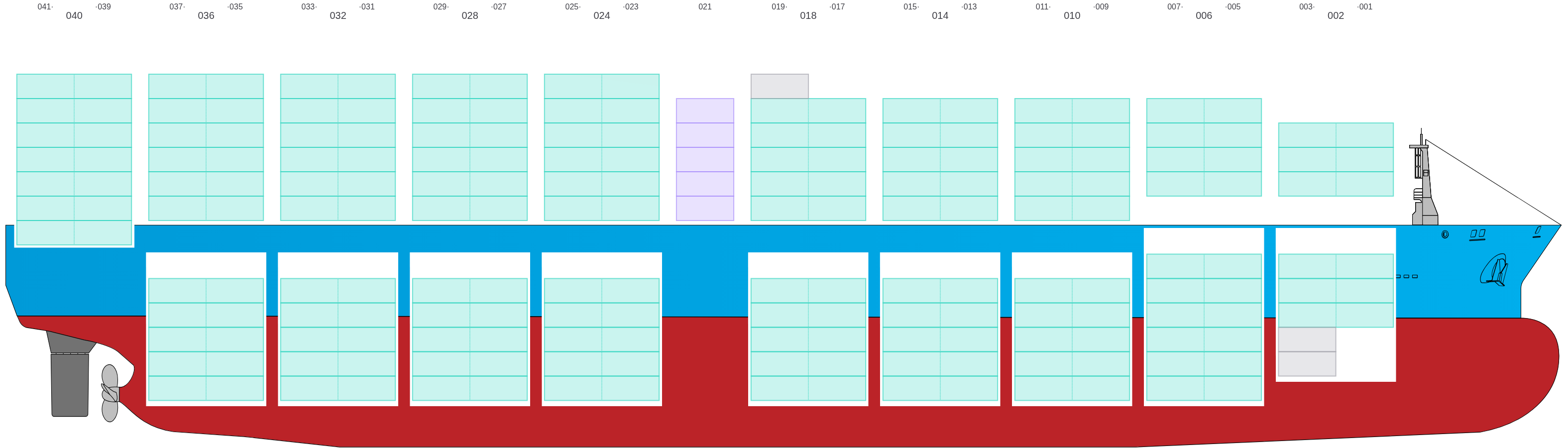

Side View
![Side view of CARLA LIV](/vessel-images/62195a25-5b31-4fa8-88c3-998ceb4568fb-sideView.png?v=1688153391878)

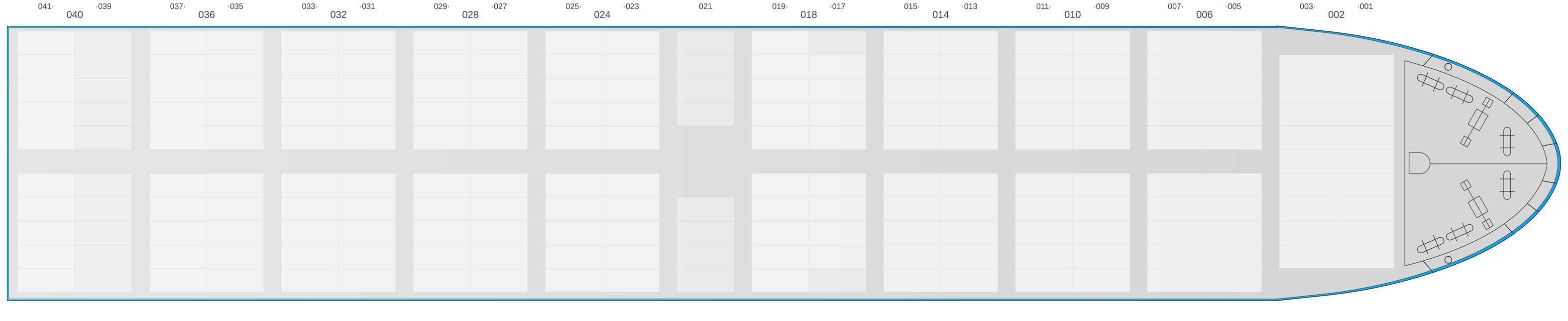

Hatch-Covers View
![Deck view of CARLA LIV](/vessel-images/62195a25-5b31-4fa8-88c3-998ceb4568fb-deckView.png?v=1688153391878)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

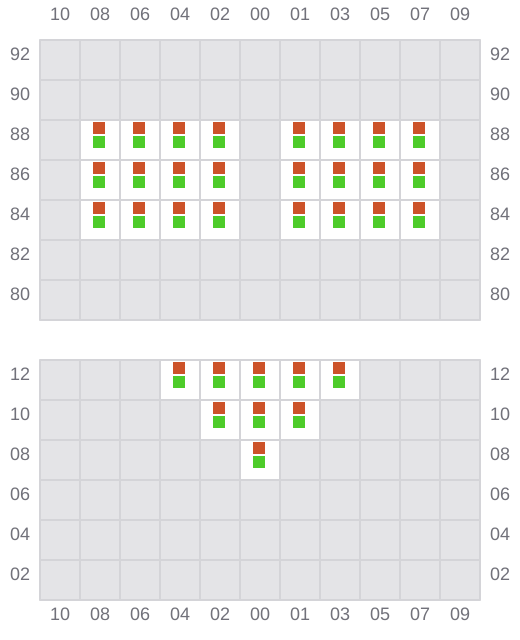

001 (002)
- →
![Bay 001 view and slots of CARLA LIV](/vessel-images/62195a25-5b31-4fa8-88c3-998ceb4568fb-b001.png?v=1688153391878)

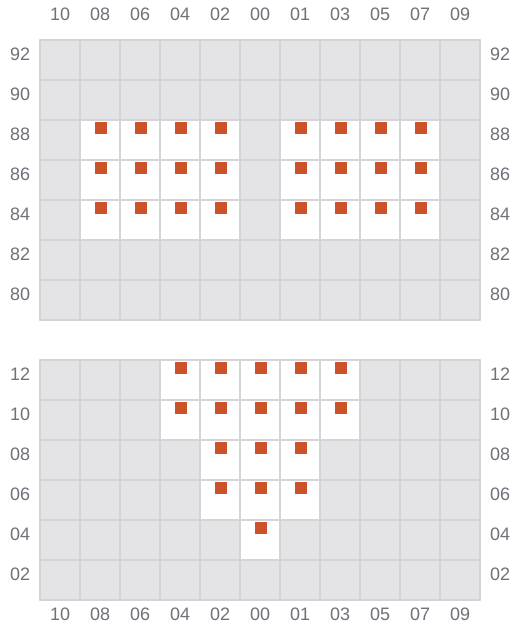

003
- ←
![Bay 003 view and slots of CARLA LIV](/vessel-images/62195a25-5b31-4fa8-88c3-998ceb4568fb-b003.png?v=1688153391878)

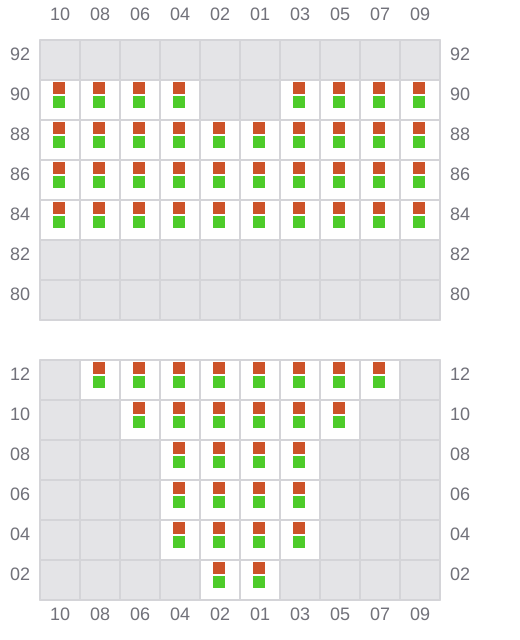

005 (006)
- →
![Bay 005 view and slots of CARLA LIV](/vessel-images/62195a25-5b31-4fa8-88c3-998ceb4568fb-b005.png?v=1688153391878)

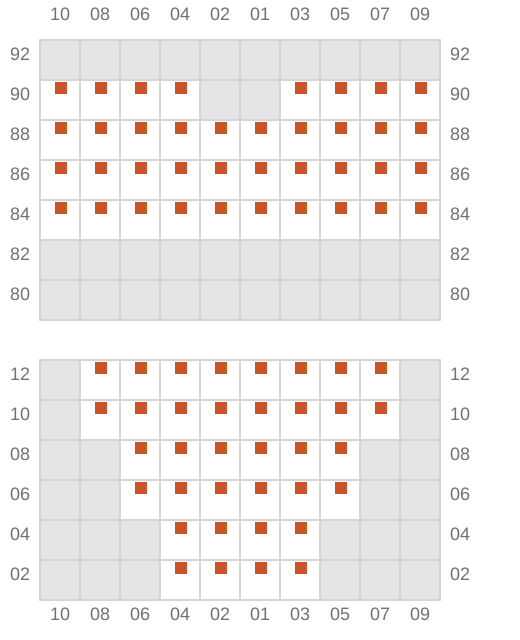

007
- ←
![Bay 007 view and slots of CARLA LIV](/vessel-images/62195a25-5b31-4fa8-88c3-998ceb4568fb-b007.png?v=1688153391878)

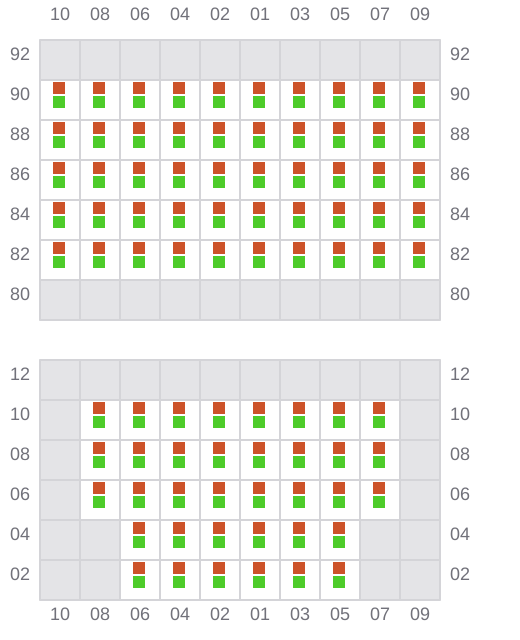

009 (010)
- →
![Bay 009 view and slots of CARLA LIV](/vessel-images/62195a25-5b31-4fa8-88c3-998ceb4568fb-b009.png?v=1688153391878)

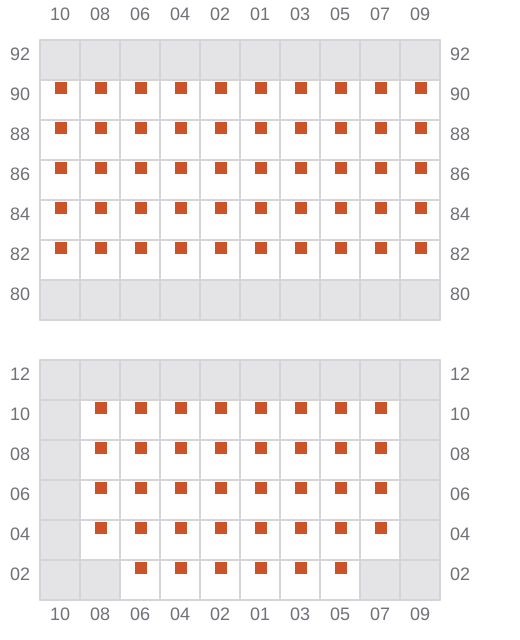

011
- ←
![Bay 011 view and slots of CARLA LIV](/vessel-images/62195a25-5b31-4fa8-88c3-998ceb4568fb-b011.png?v=1688153391878)

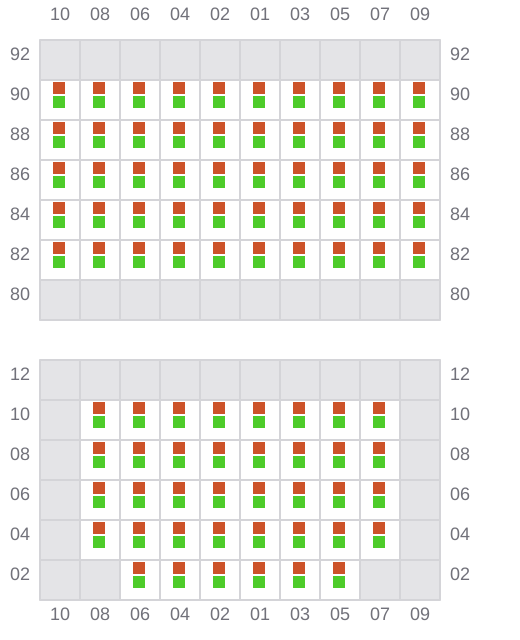

013 (014)
- →
![Bay 013 view and slots of CARLA LIV](/vessel-images/62195a25-5b31-4fa8-88c3-998ceb4568fb-b013.png?v=1688153391878)
015
- ←
![Bay 015 view and slots of CARLA LIV](/vessel-images/62195a25-5b31-4fa8-88c3-998ceb4568fb-b015.png?v=1688153391878)

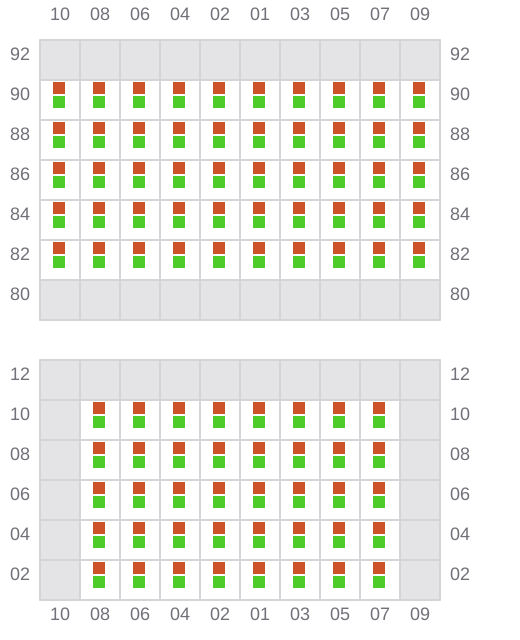

017 (018)
- →
![Bay 017 view and slots of CARLA LIV](/vessel-images/62195a25-5b31-4fa8-88c3-998ceb4568fb-b017.png?v=1688153391878)
019
- ←
![Bay 019 view and slots of CARLA LIV](/vessel-images/62195a25-5b31-4fa8-88c3-998ceb4568fb-b019.png?v=1688153391878)

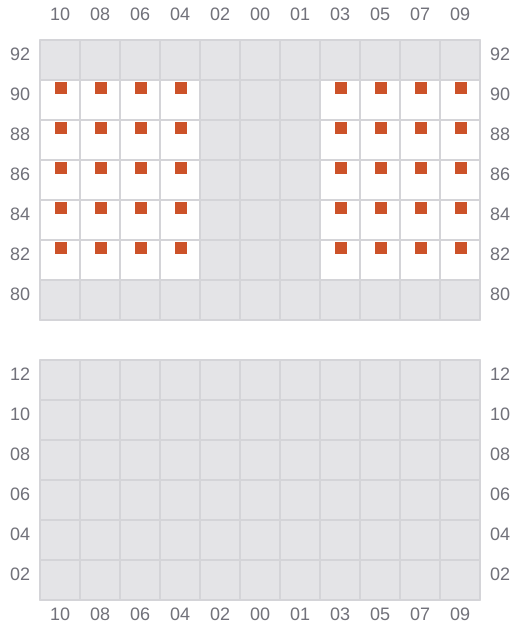

021
![Bay 021 view and slots of CARLA LIV](/vessel-images/62195a25-5b31-4fa8-88c3-998ceb4568fb-b021.png?v=1688153391878)
023 (024)
- →
![Bay 023 view and slots of CARLA LIV](/vessel-images/62195a25-5b31-4fa8-88c3-998ceb4568fb-b023.png?v=1688153391878)
025
- ←
![Bay 025 view and slots of CARLA LIV](/vessel-images/62195a25-5b31-4fa8-88c3-998ceb4568fb-b025.png?v=1688153391878)
027 (028)
- →
![Bay 027 view and slots of CARLA LIV](/vessel-images/62195a25-5b31-4fa8-88c3-998ceb4568fb-b027.png?v=1688153391878)
029
- ←
![Bay 029 view and slots of CARLA LIV](/vessel-images/62195a25-5b31-4fa8-88c3-998ceb4568fb-b029.png?v=1688153391878)
031 (032)
- →
![Bay 031 view and slots of CARLA LIV](/vessel-images/62195a25-5b31-4fa8-88c3-998ceb4568fb-b031.png?v=1688153391878)

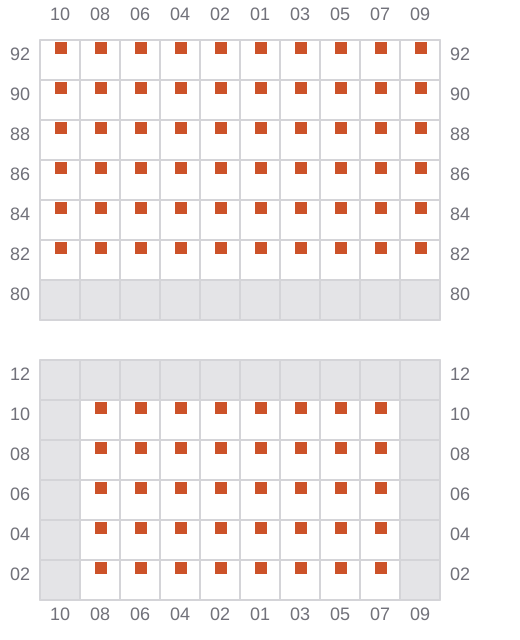

033
- ←
![Bay 033 view and slots of CARLA LIV](/vessel-images/62195a25-5b31-4fa8-88c3-998ceb4568fb-b033.png?v=1688153391878)

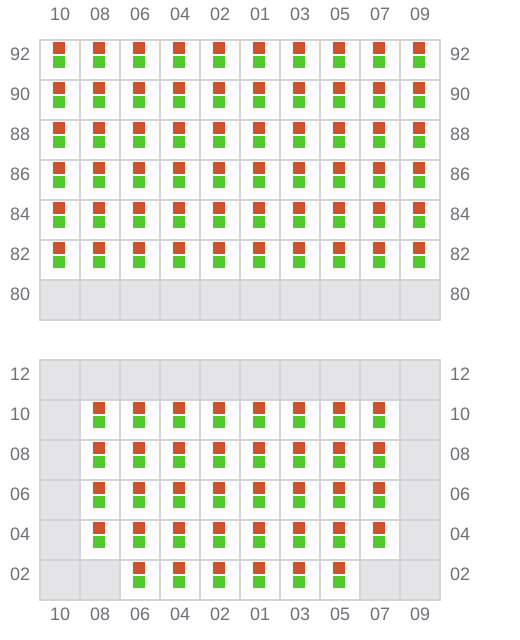

035 (036)
- →
![Bay 035 view and slots of CARLA LIV](/vessel-images/62195a25-5b31-4fa8-88c3-998ceb4568fb-b035.png?v=1688153391878)

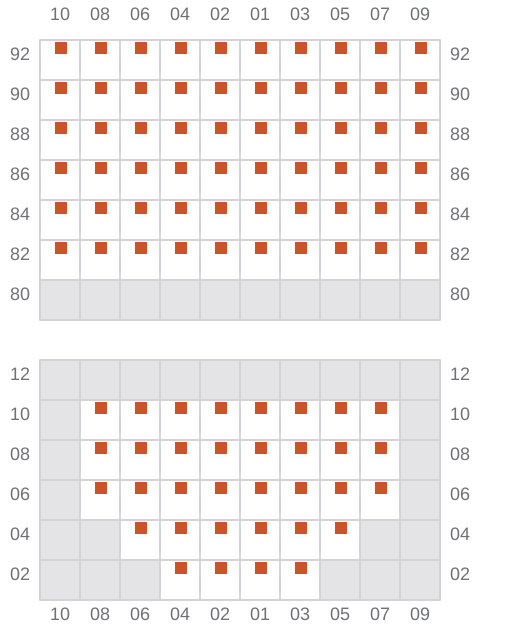

037
- ←
![Bay 037 view and slots of CARLA LIV](/vessel-images/62195a25-5b31-4fa8-88c3-998ceb4568fb-b037.png?v=1688153391878)

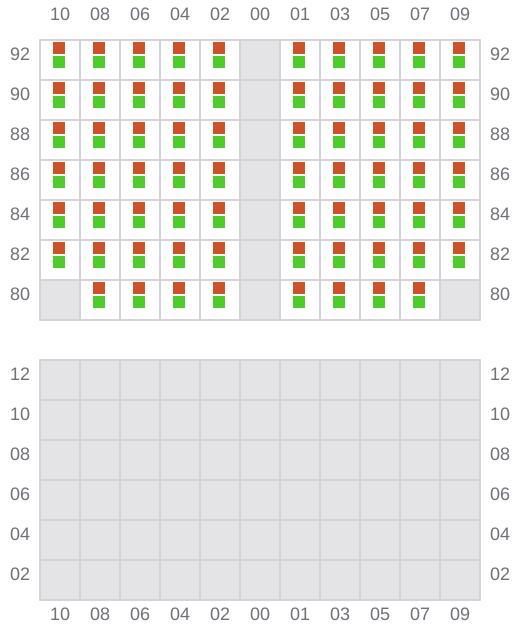

039 (040)
- → / ?
![Bay 039 view and slots of CARLA LIV](/vessel-images/62195a25-5b31-4fa8-88c3-998ceb4568fb-b039.png?v=1688153391878)

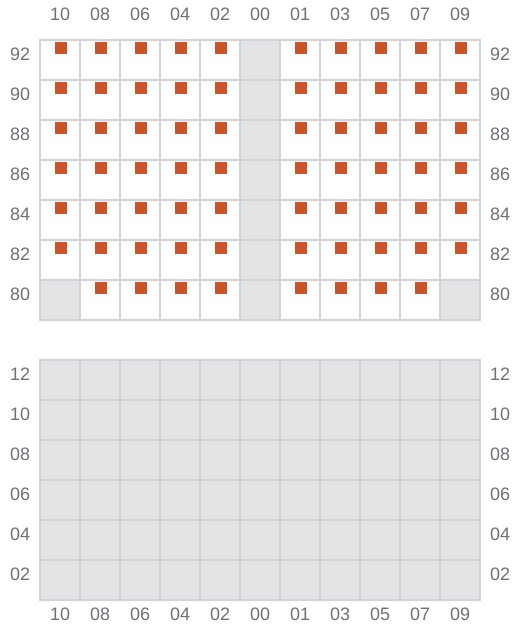

041
- ← / ?
![Bay 041 view and slots of CARLA LIV](/vessel-images/62195a25-5b31-4fa8-88c3-998ceb4568fb-b041.png?v=1688153391878)
