CARMEL I
9395927 | A8TX8 | 9395927 by ********* Last update: Thu Apr 04 2024
General Info
Ship Name:CARMEL I
IMO Code:9395927
Call Sign:A8TX8
Line Operator:9395927
Class Name for Sister Ships:APL
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):246.82
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,343
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

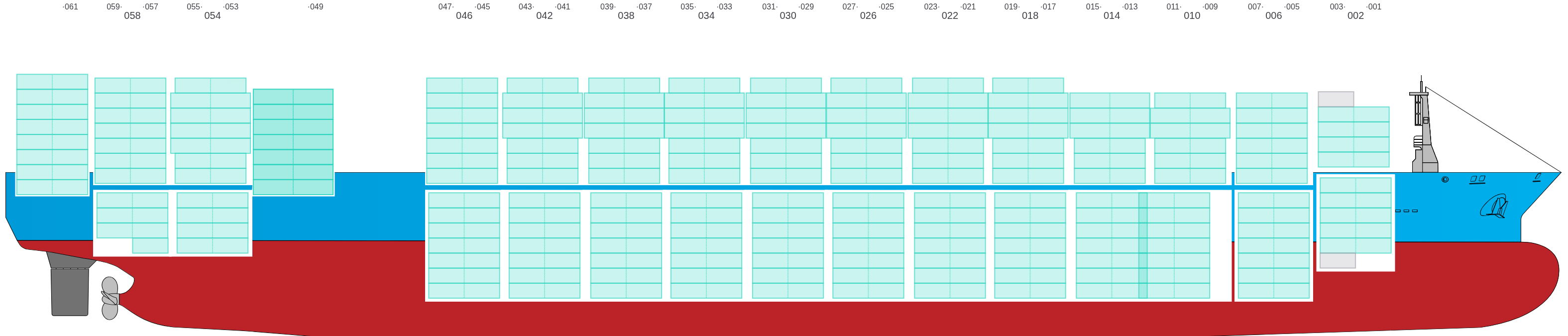

Side View
![Side view of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-sideView.png?v=1712251432898)
Hatch-Covers View
![Deck view of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-deckView.png?v=1712251432898)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

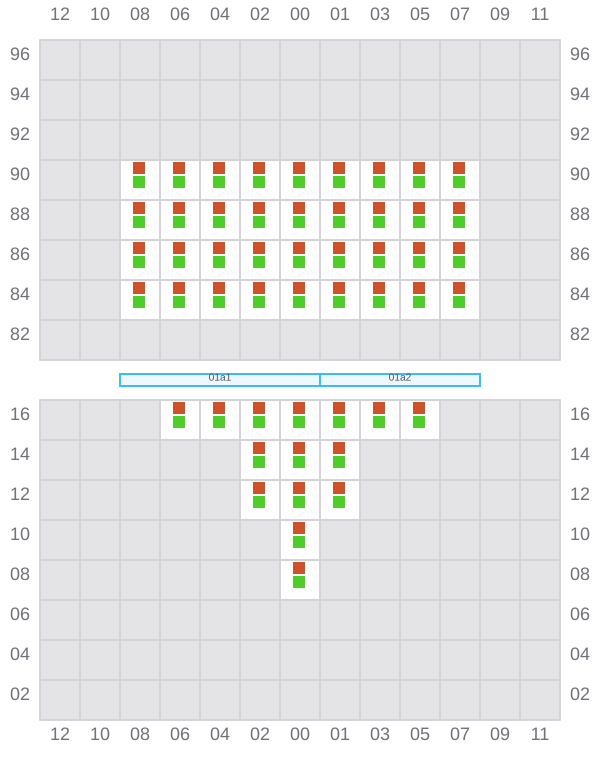

001 (002)
- →
![Bay 001 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b001.png?v=1712251432898)

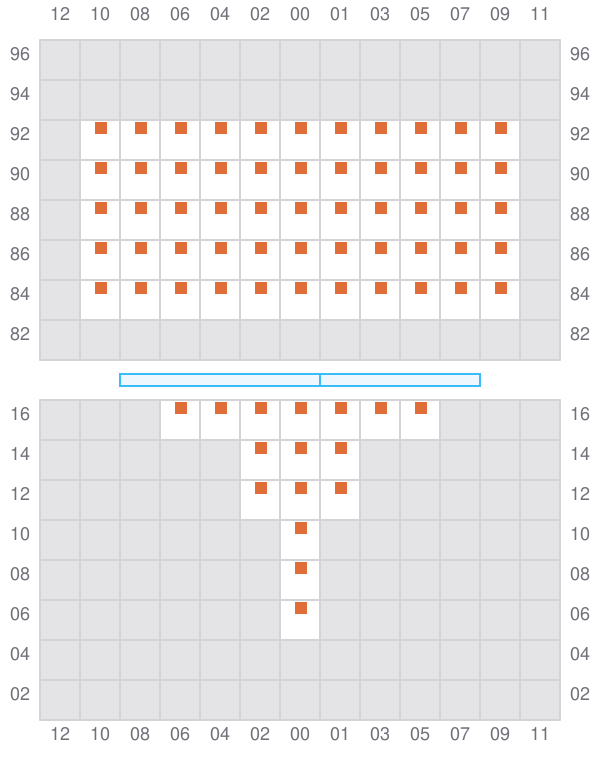

003
- ←
![Bay 003 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b003.png?v=1712251432898)

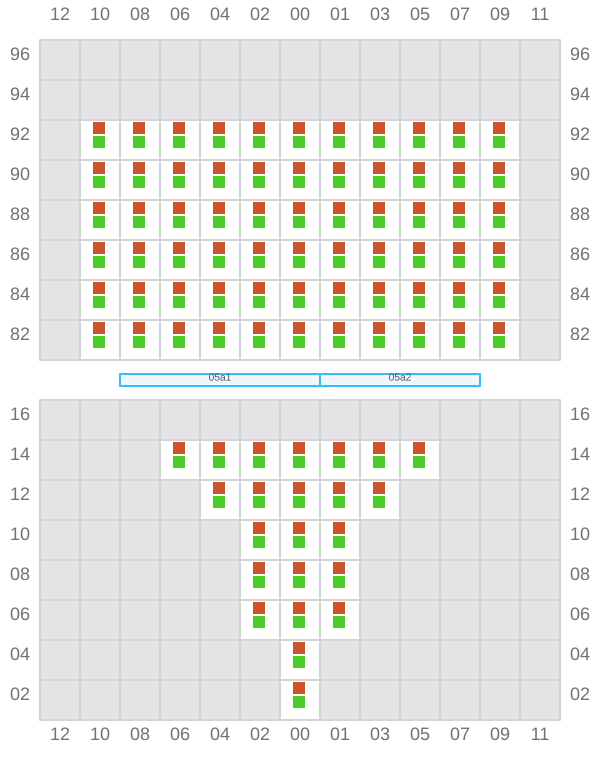

005 (006)
- →
![Bay 005 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b005.png?v=1712251432898)

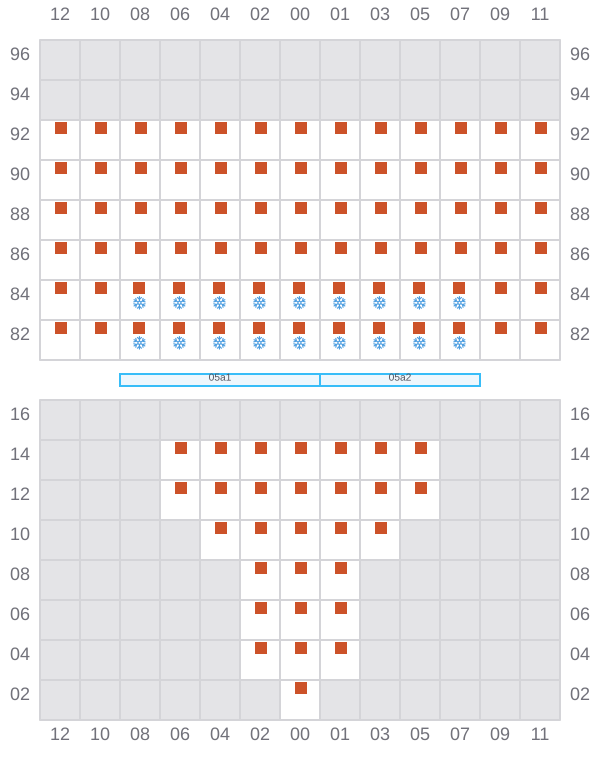

007
- ←
![Bay 007 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b007.png?v=1712251432898)

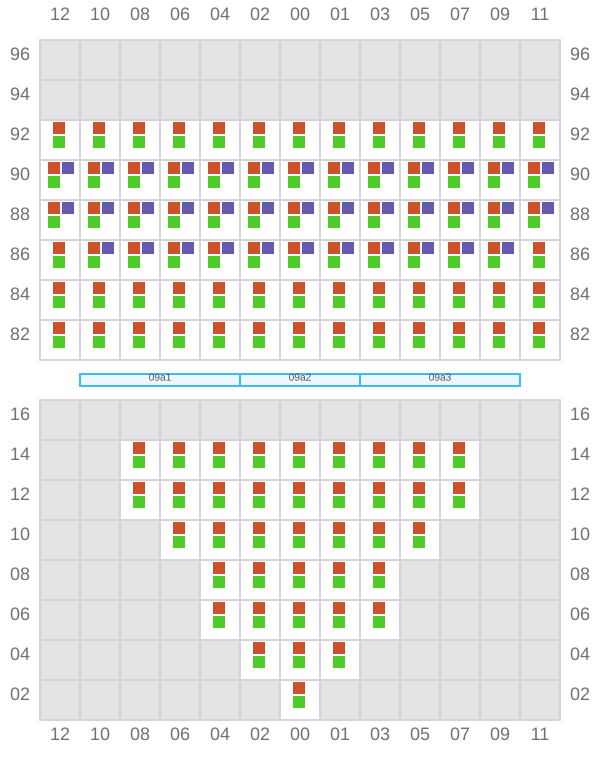

009 (010)
- →
![Bay 009 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b009.png?v=1712251432898)

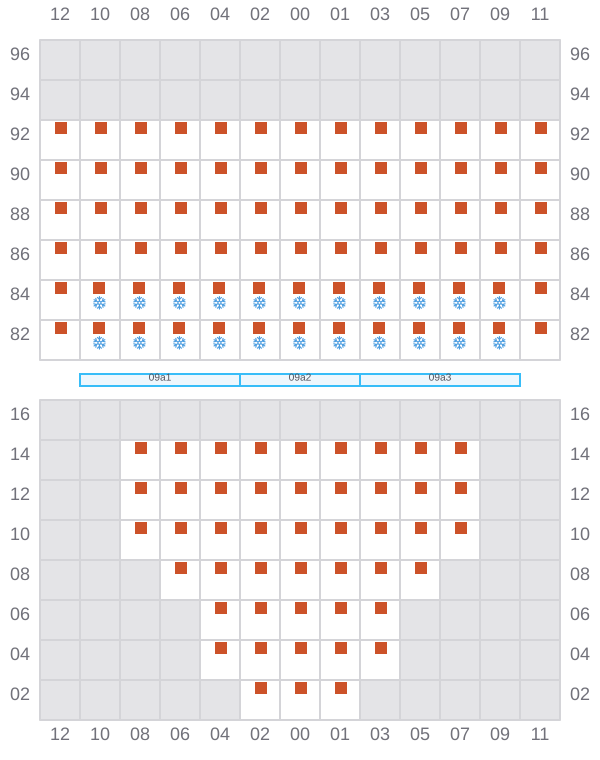

011
- ←
![Bay 011 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b011.png?v=1712251432898)

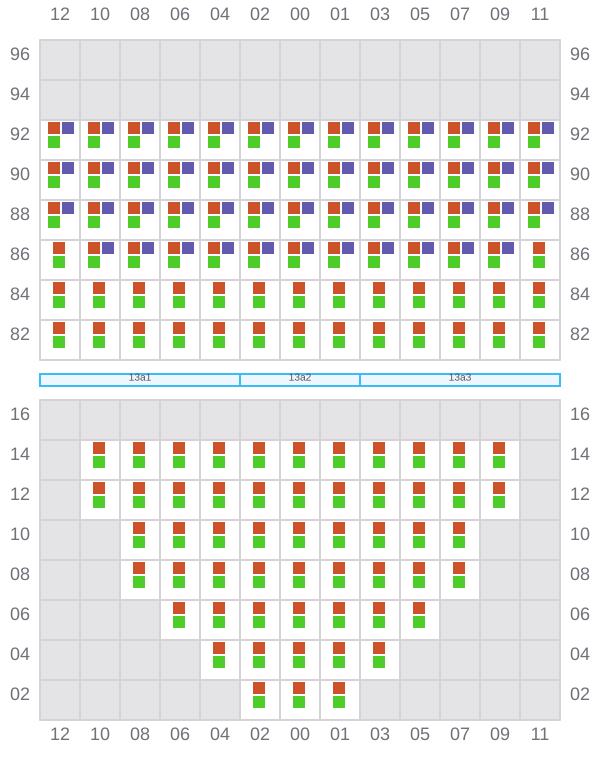

013 (014)
- →
![Bay 013 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b013.png?v=1712251432898)

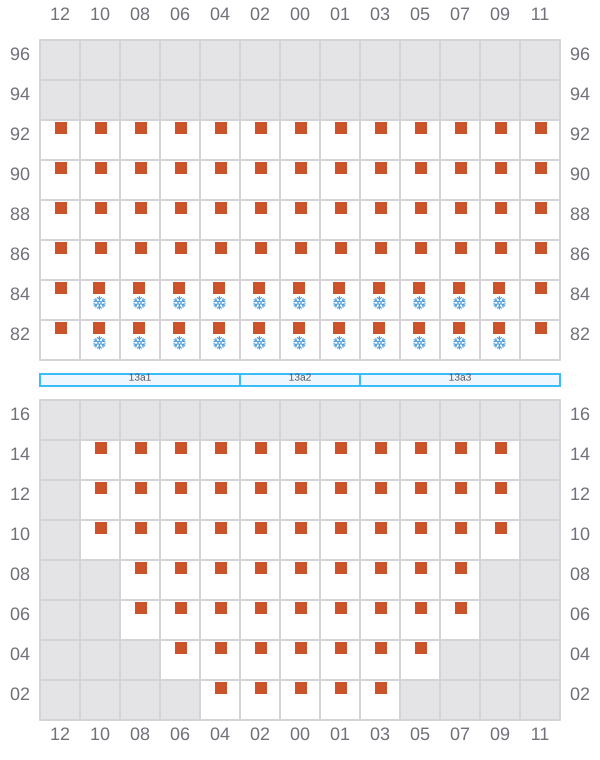

015
- ←
![Bay 015 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b015.png?v=1712251432898)

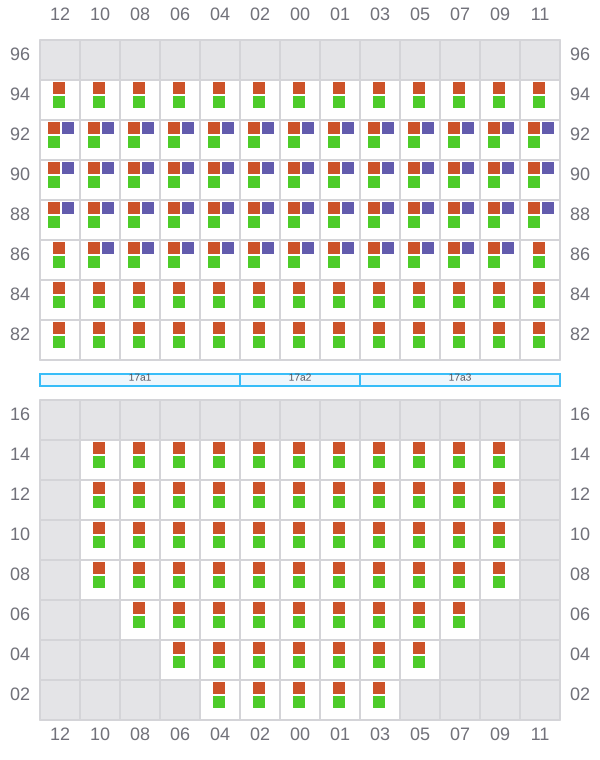

017 (018)
- →
![Bay 017 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b017.png?v=1712251432898)

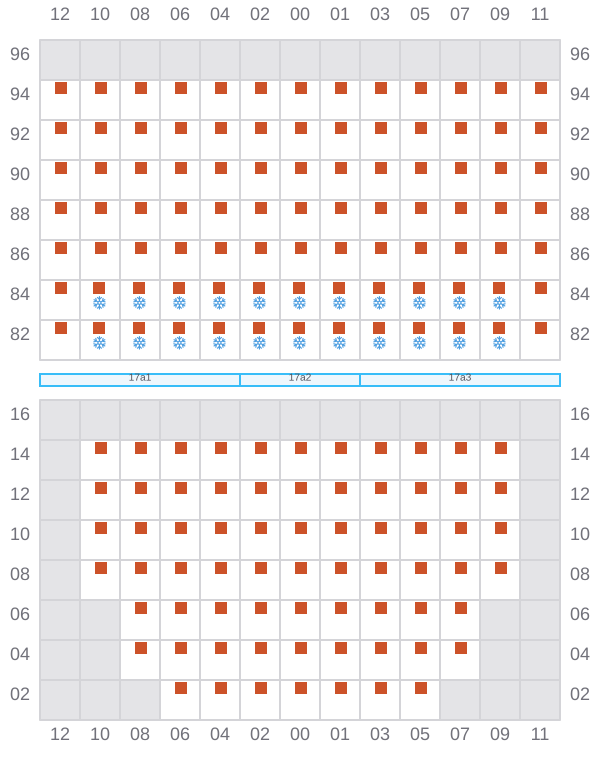

019
- ←
![Bay 019 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b019.png?v=1712251432898)

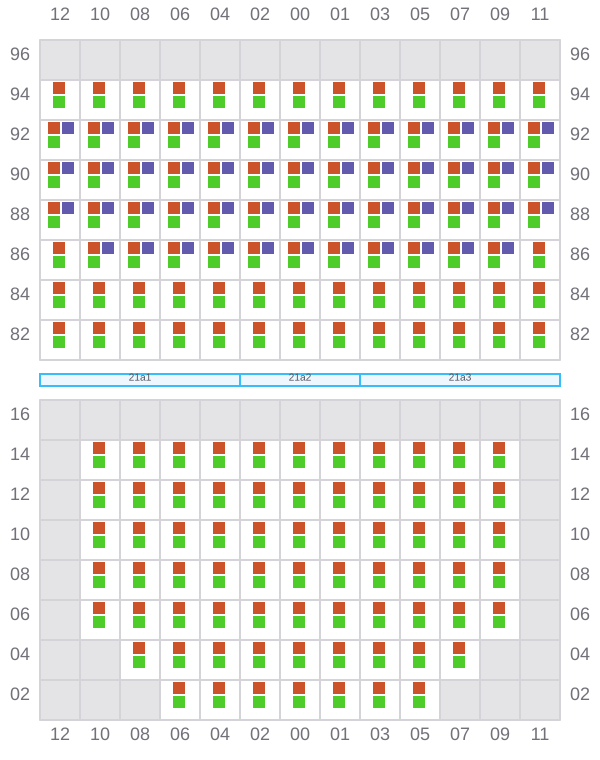

021 (022)
- →
![Bay 021 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b021.png?v=1712251432898)

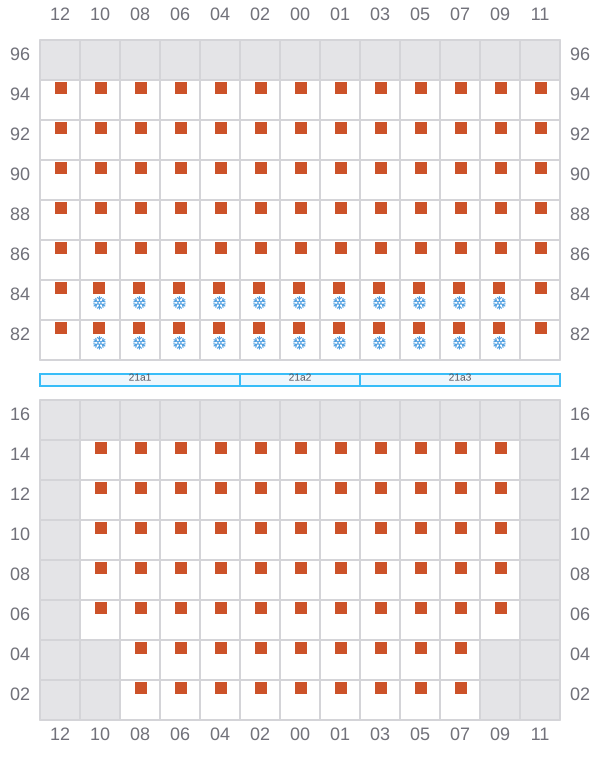

023
- ←
![Bay 023 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b023.png?v=1712251432898)
025 (026)
- →
![Bay 025 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b025.png?v=1712251432898)
027
- ←
![Bay 027 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b027.png?v=1712251432898)
029 (030)
- →
![Bay 029 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b029.png?v=1712251432898)
031
- ←
![Bay 031 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b031.png?v=1712251432898)
033 (034)
- →
![Bay 033 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b033.png?v=1712251432898)

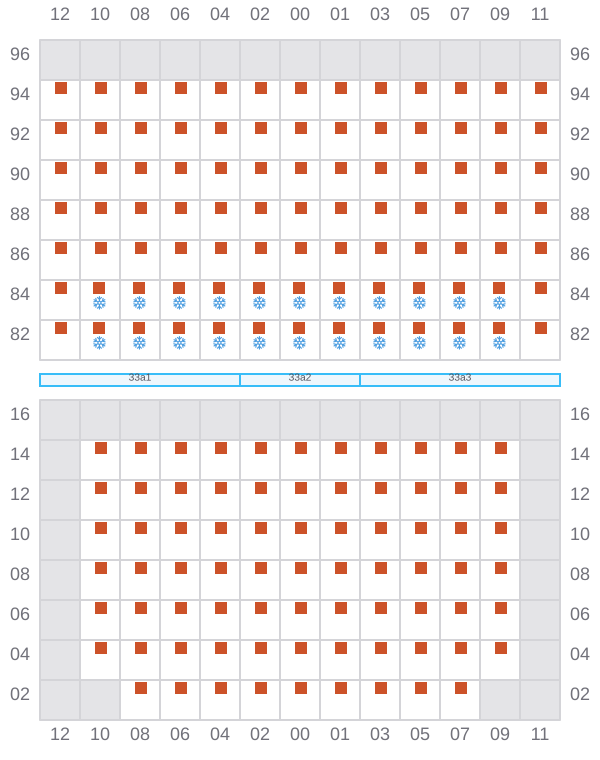

035
- ←
![Bay 035 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b035.png?v=1712251432898)
037 (038)
- →
![Bay 037 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b037.png?v=1712251432898)

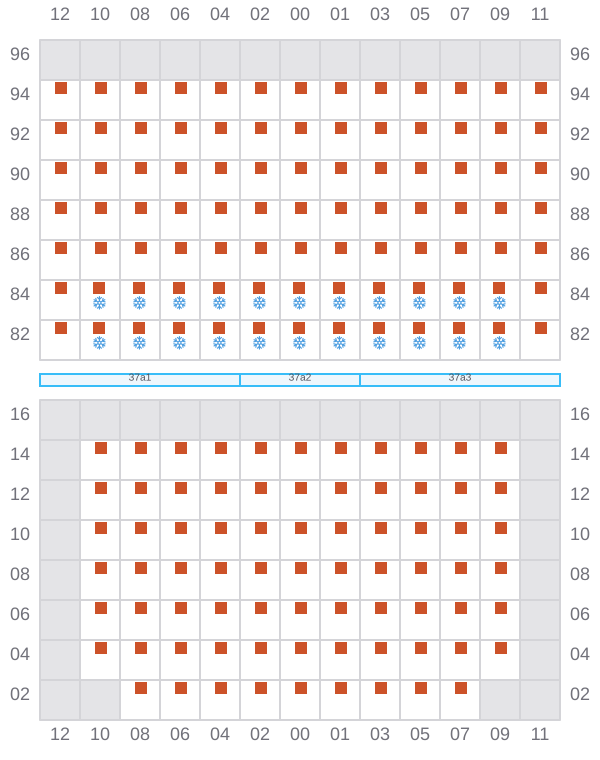

039
- ←
![Bay 039 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b039.png?v=1712251432898)

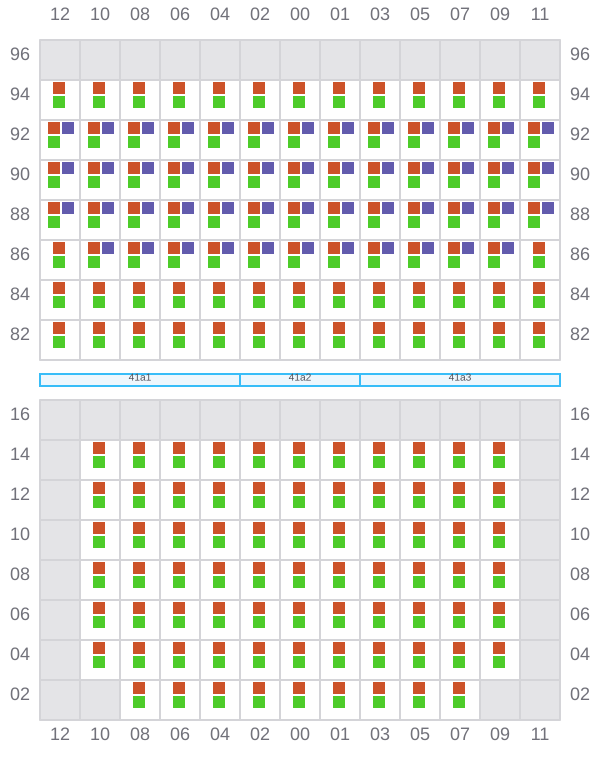

041 (042)
- →
![Bay 041 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b041.png?v=1712251432898)
043
- ←
![Bay 043 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b043.png?v=1712251432898)

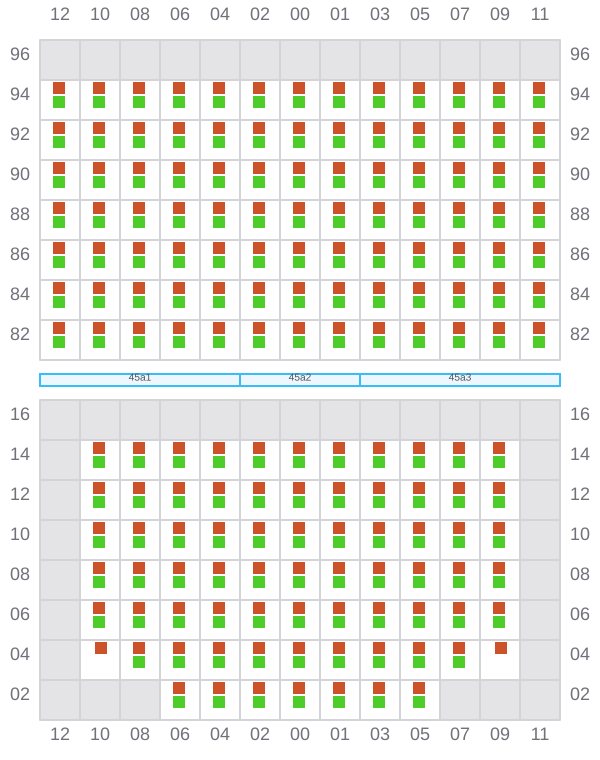

045 (046)
- →
![Bay 045 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b045.png?v=1712251432898)
047
- ←
![Bay 047 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b047.png?v=1712251432898)

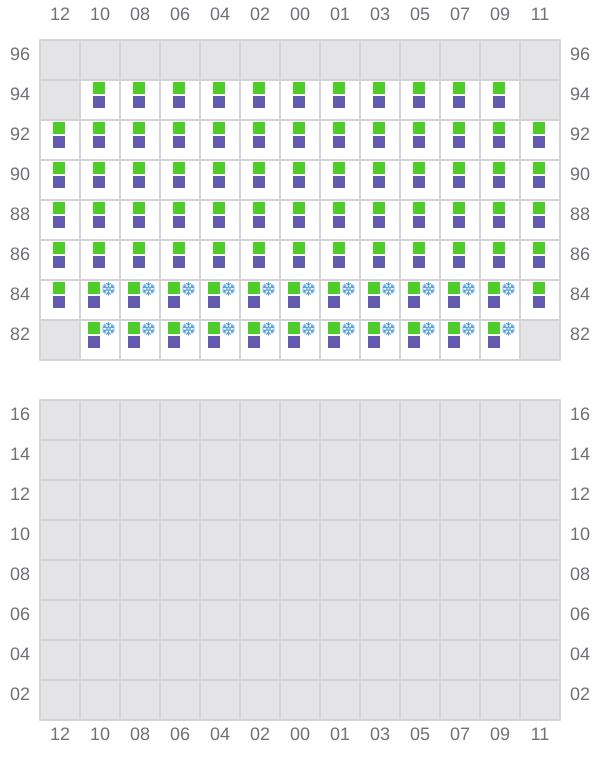

049 (050)
- → / ?
![Bay 049 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b049.png?v=1712251432898)

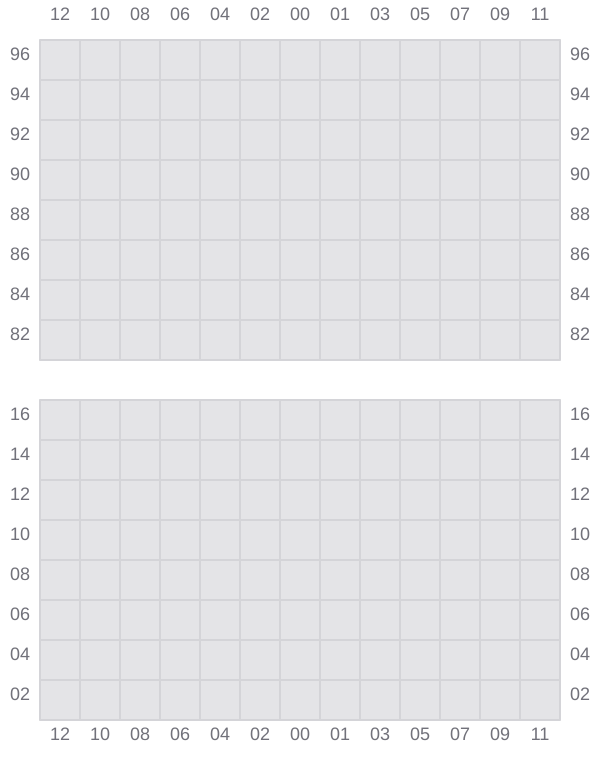

051
![Bay 051 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b051.png?v=1712251432898)

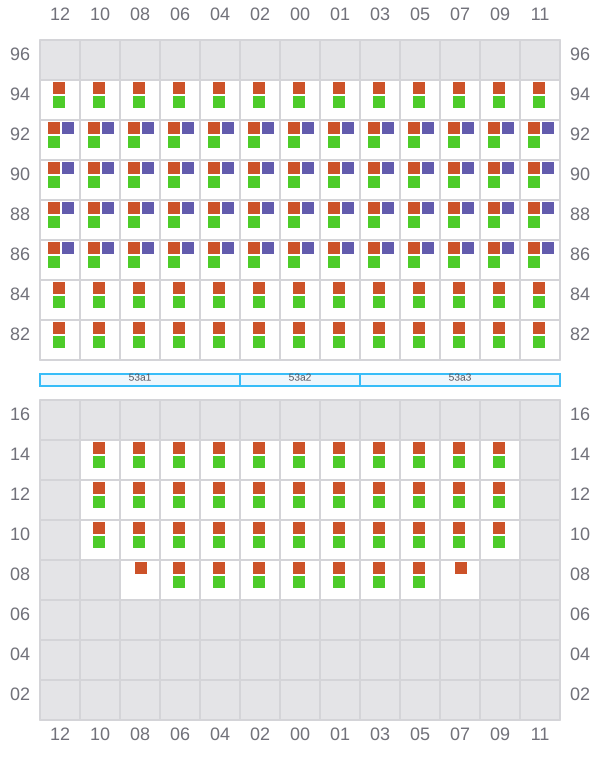

053 (054)
- →
![Bay 053 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b053.png?v=1712251432898)

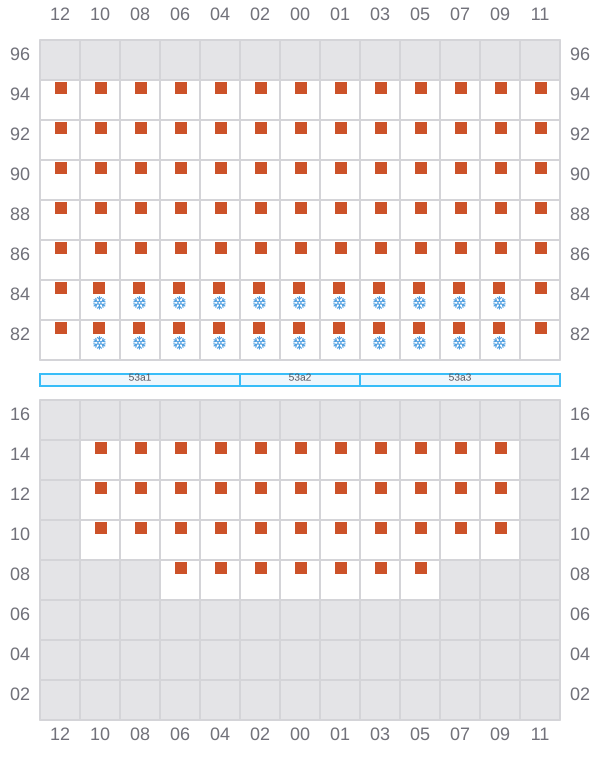

055
- ←
![Bay 055 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b055.png?v=1712251432898)

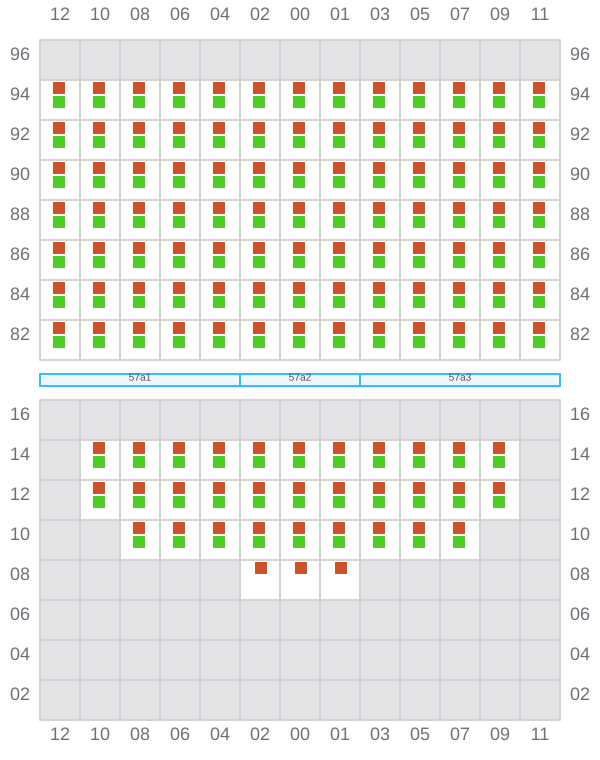

057 (058)
- →
![Bay 057 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b057.png?v=1712251432898)
059
- ←
![Bay 059 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b059.png?v=1712251432898)

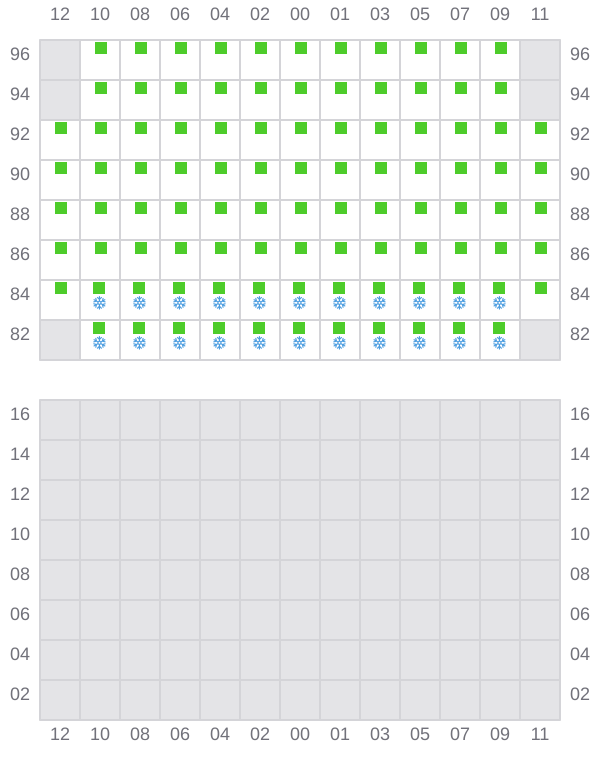

061 (062)
- → / ?
![Bay 061 view and slots of CARMEL I](/vessel-images/834ef330-7dff-4dc8-a841-c803afea6046-b061.png?v=1712251432898)
