CARSTEN MAERSK
9219795 | OUMN2 | 9219795 by ********* Last update: Thu Mar 14 2024

General Info

Ship Name:CARSTEN MAERSK
IMO Code:9219795
Call Sign:OUMN2
Line Operator:9219795
Class Name for Sister Ships:463
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:081
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,732

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

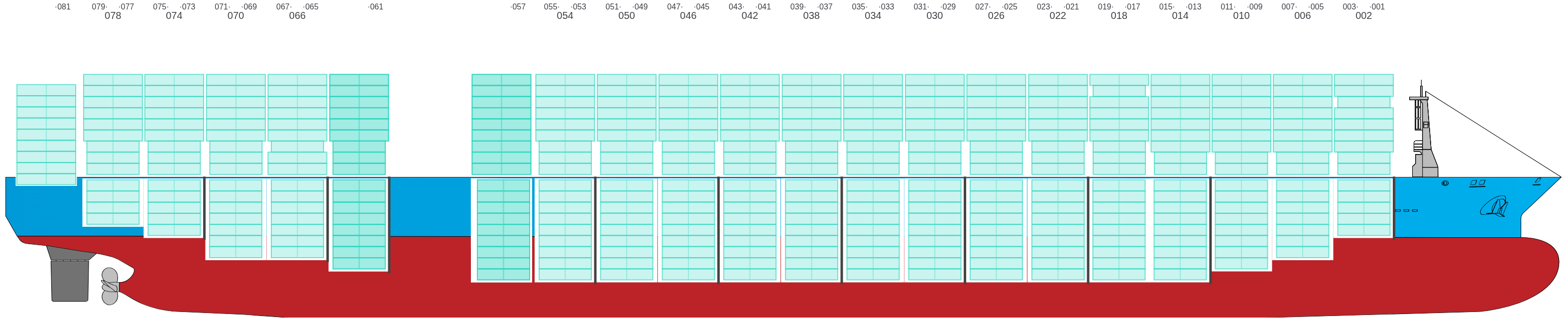

Side View

Side view of CARSTEN MAERSK

Hatch-Covers View

Deck view of CARSTEN MAERSK

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

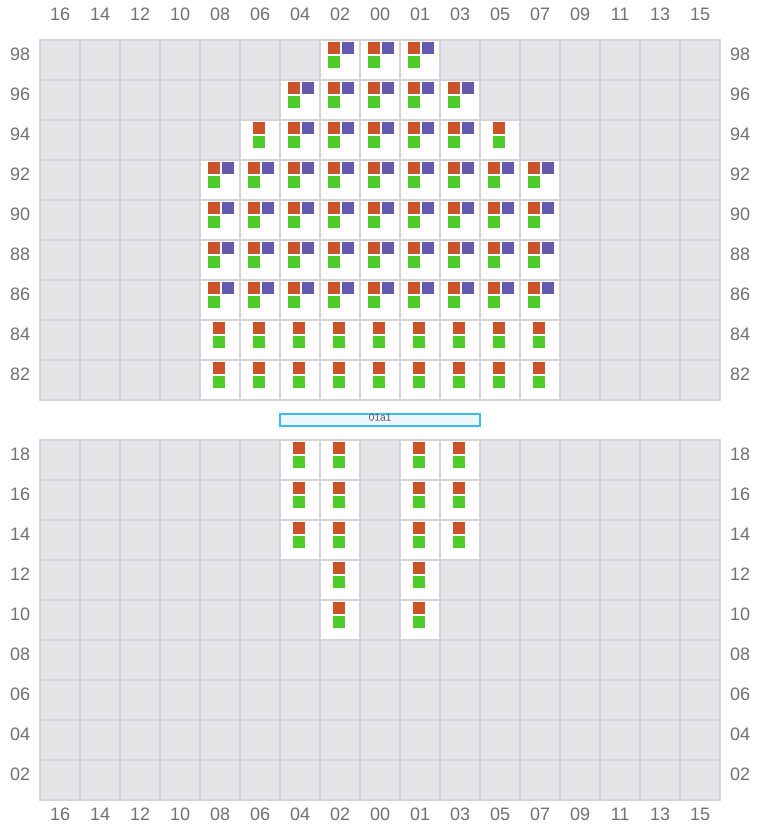

001 (002)

  • →
Bay 001 view and slots of CARSTEN MAERSK

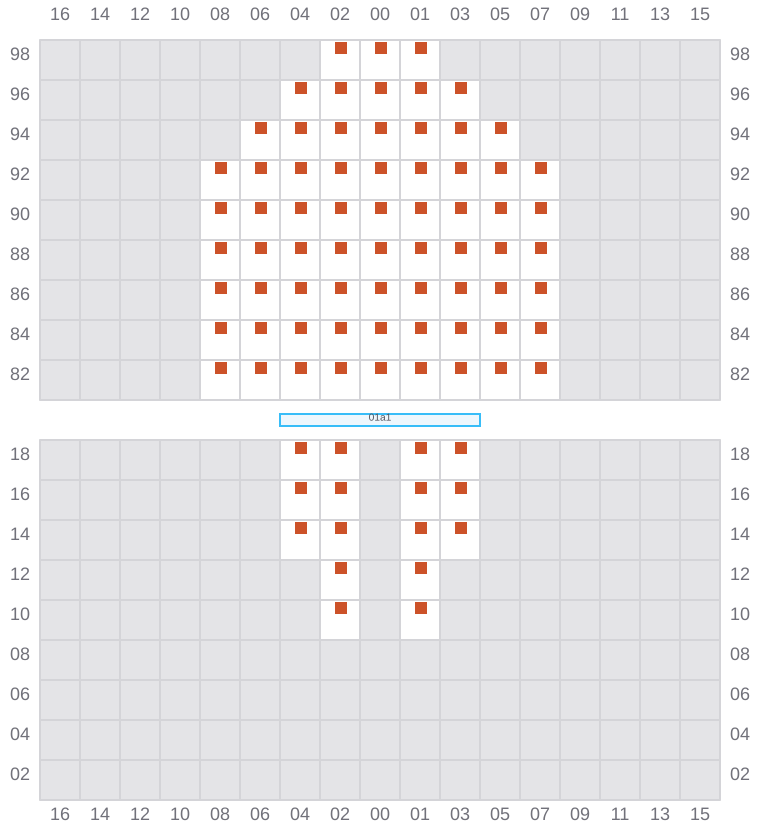

003

  • ←
Bay 003 view and slots of CARSTEN MAERSK

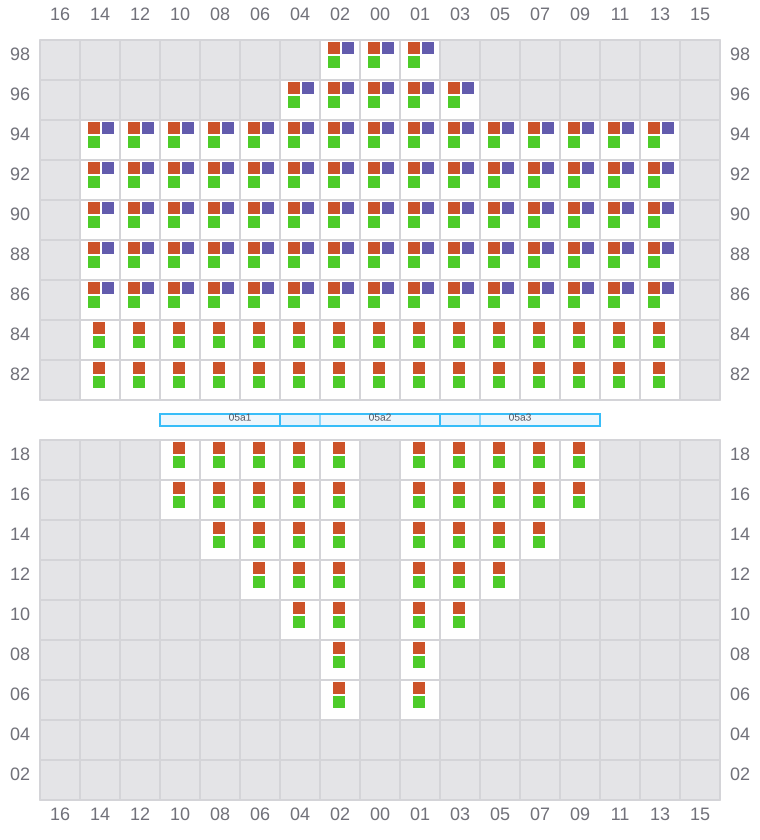

005 (006)

  • →
Bay 005 view and slots of CARSTEN MAERSK

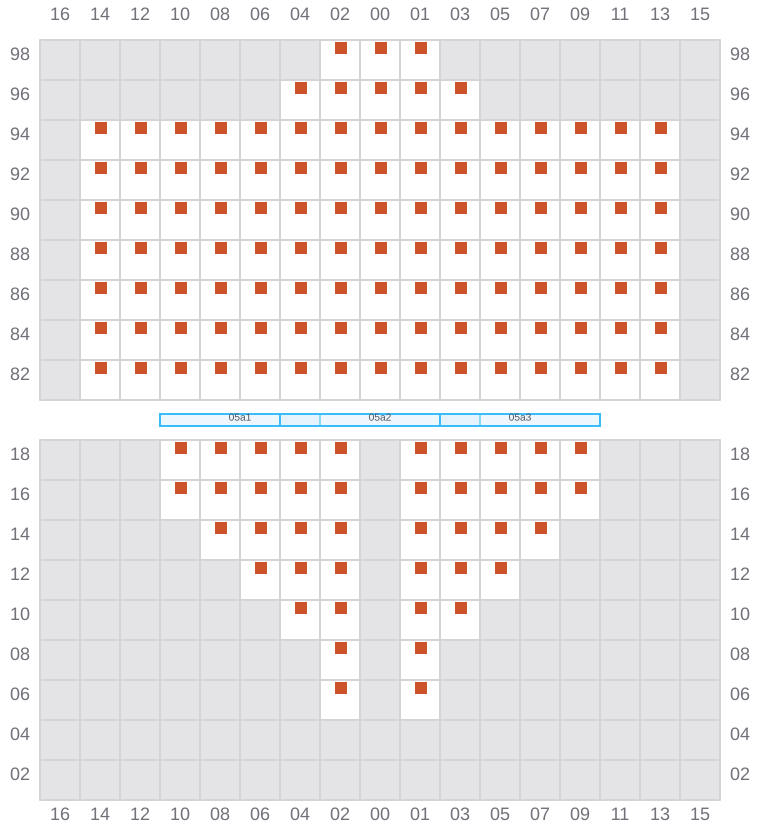

007

  • ←
Bay 007 view and slots of CARSTEN MAERSK

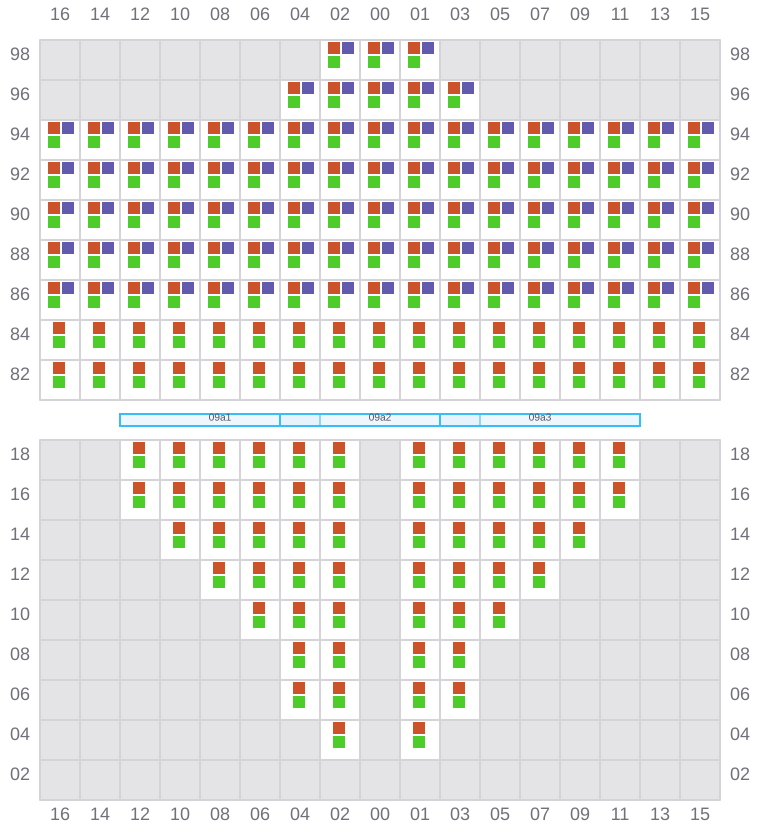

009 (010)

  • →
Bay 009 view and slots of CARSTEN MAERSK

011

  • ←
Bay 011 view and slots of CARSTEN MAERSK

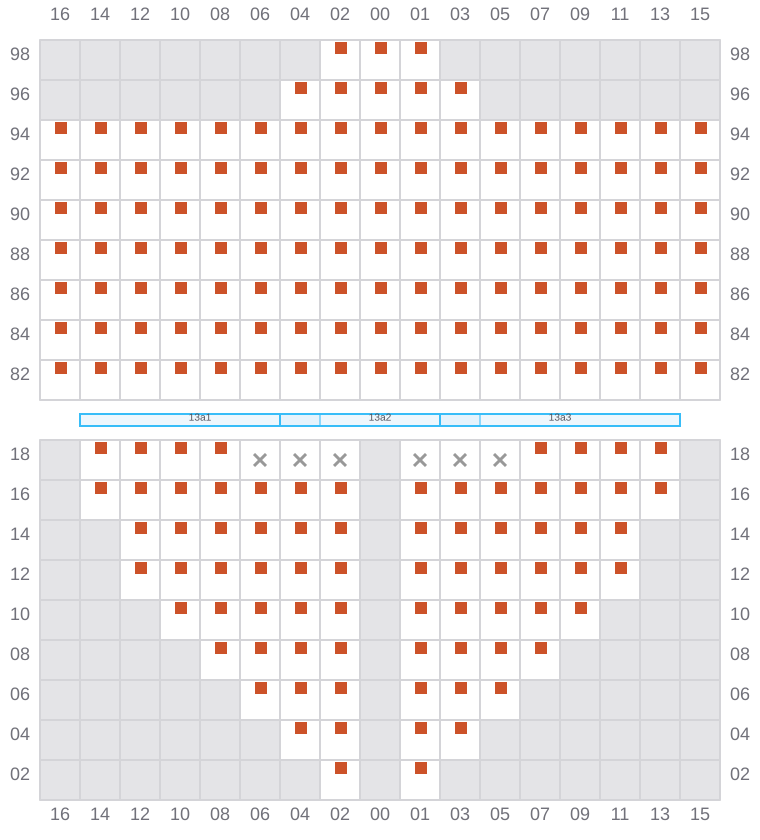

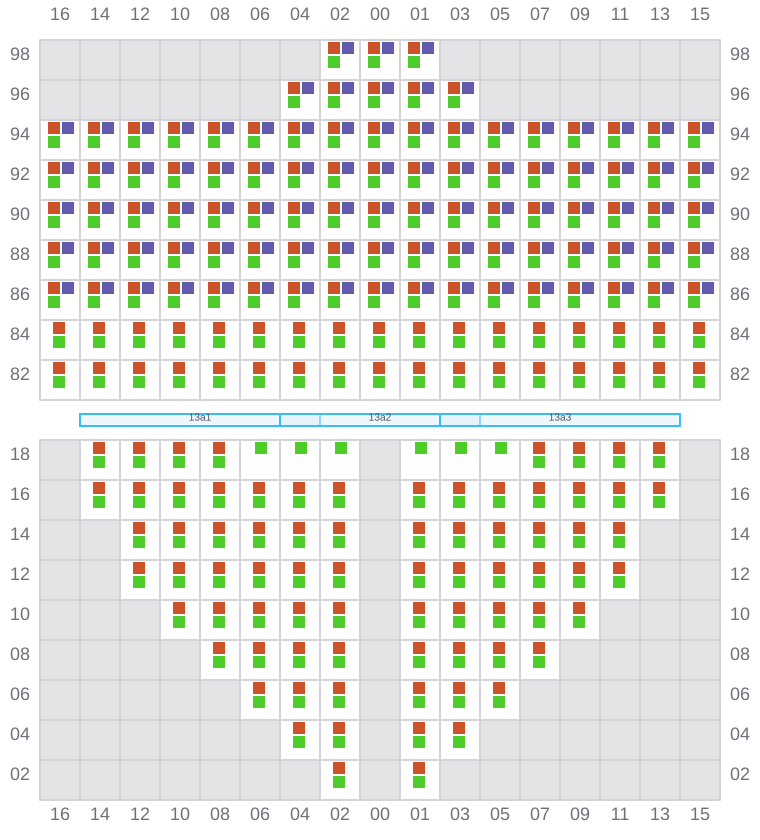

013 (014)

  • →
Bay 013 view and slots of CARSTEN MAERSK

015

  • ←
Bay 015 view and slots of CARSTEN MAERSK

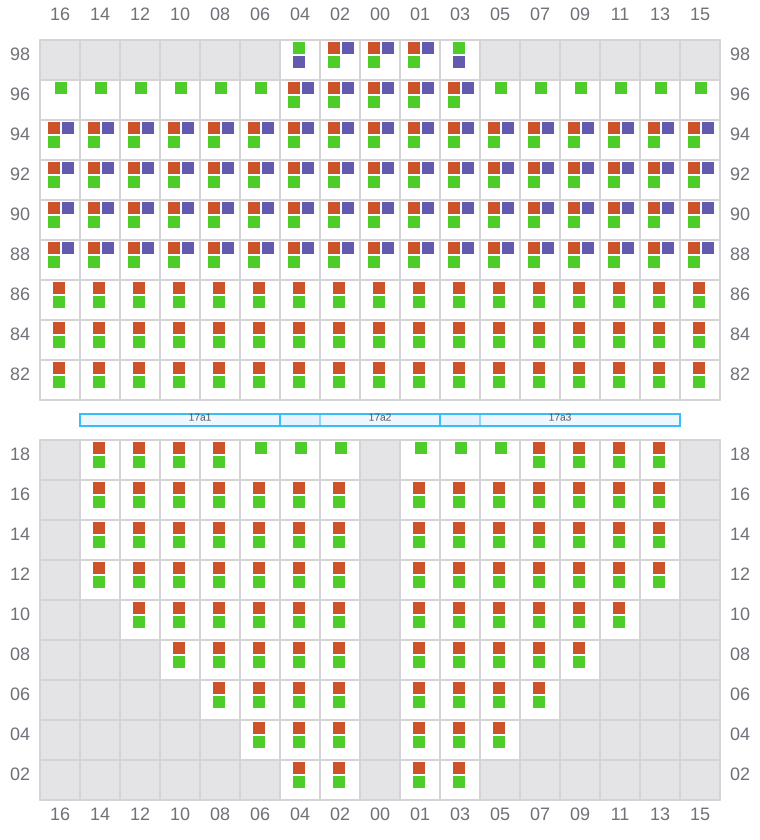

017 (018)

  • →
Bay 017 view and slots of CARSTEN MAERSK

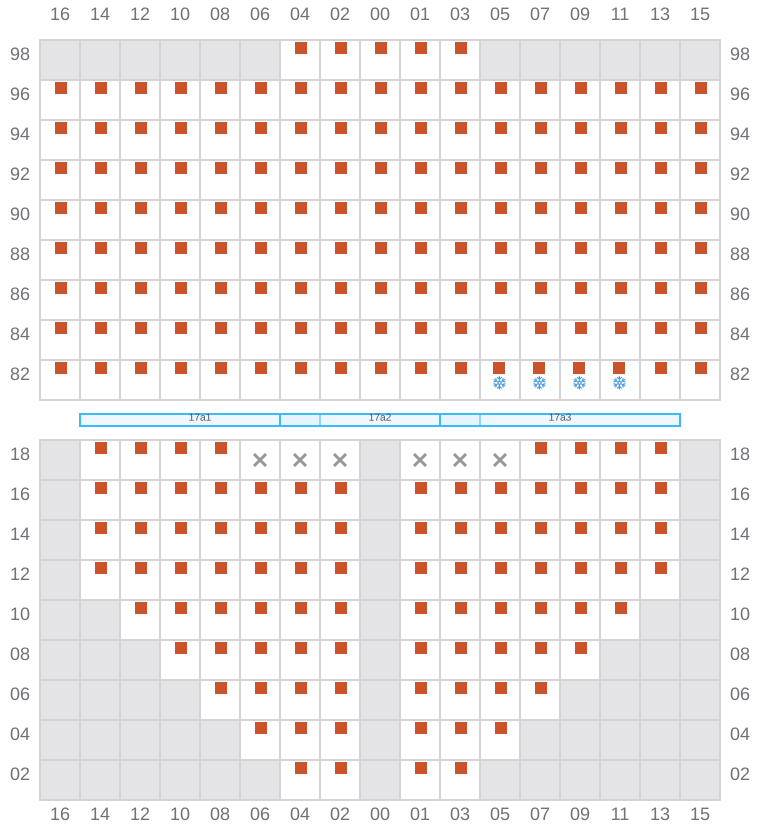

019

  • ←
  • → / ?
Bay 019 view and slots of CARSTEN MAERSK

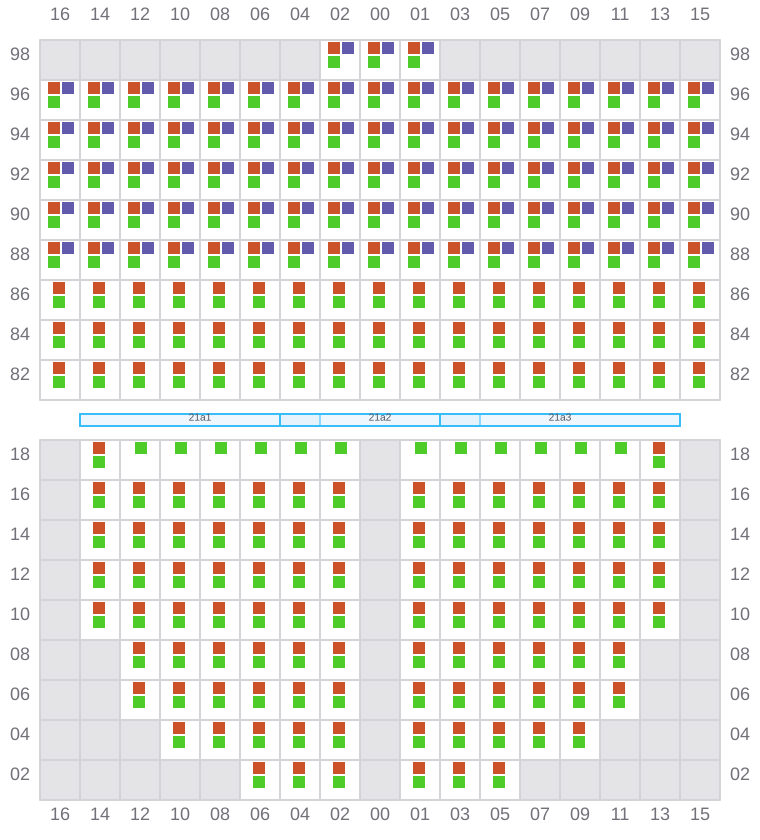

021 (022)

  • →
Bay 021 view and slots of CARSTEN MAERSK

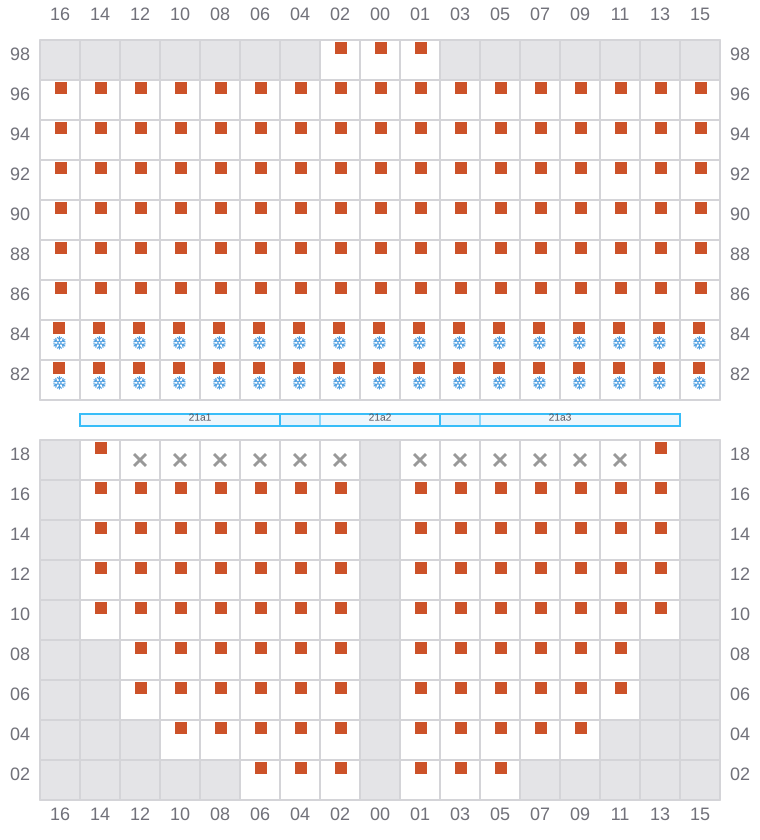

023

  • ←
  • → / ?
Bay 023 view and slots of CARSTEN MAERSK

025 (026)

  • →

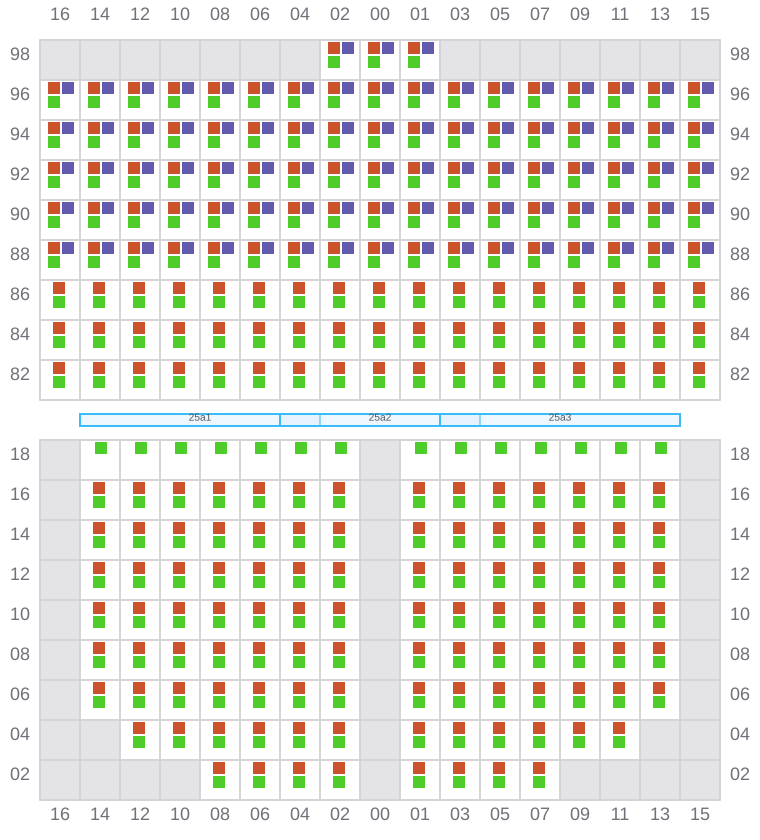

Bay 025 view and slots of CARSTEN MAERSK

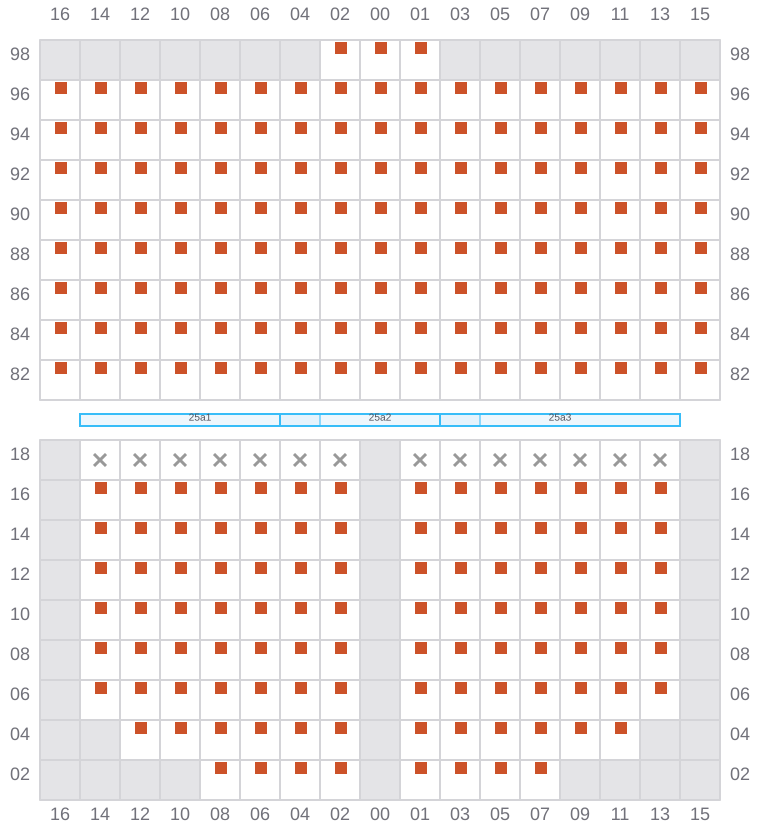

027

  • ←
Bay 027 view and slots of CARSTEN MAERSK

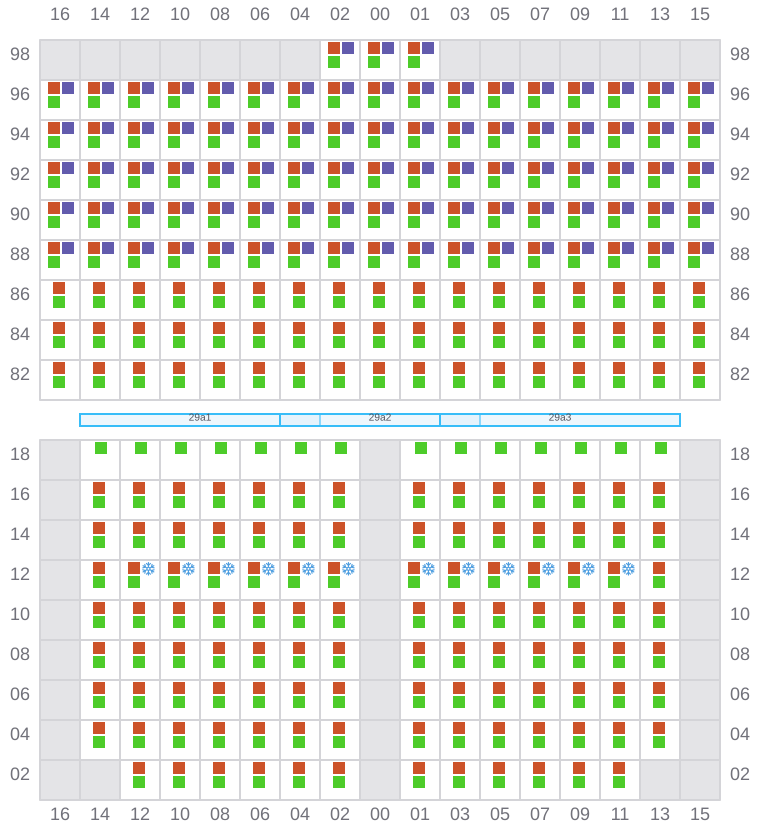

029 (030)

  • →
  • ? / →
Bay 029 view and slots of CARSTEN MAERSK

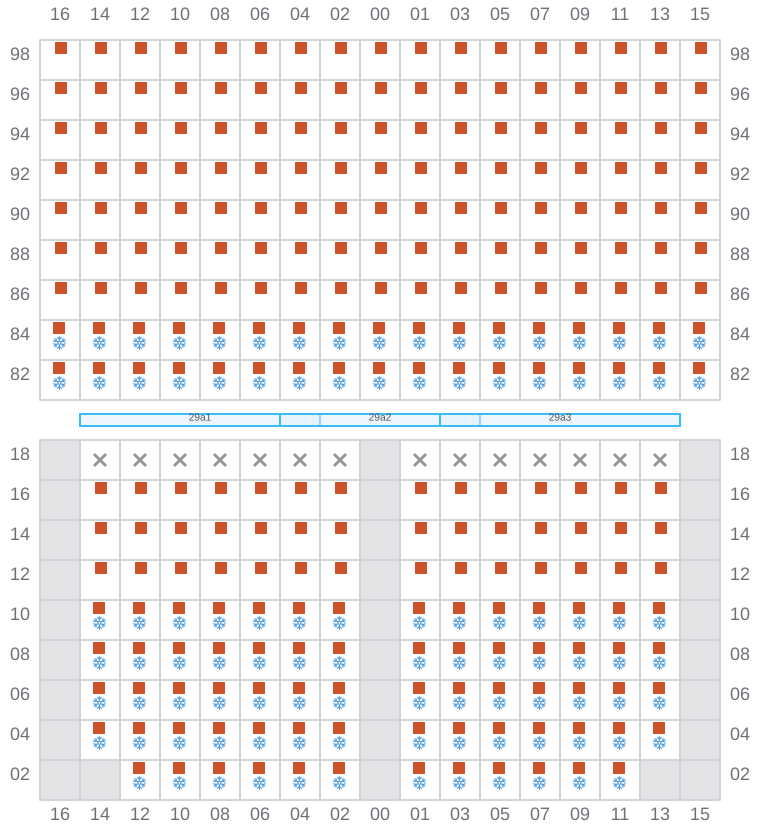

031

  • ←
  • →
Bay 031 view and slots of CARSTEN MAERSK

033 (034)

  • →

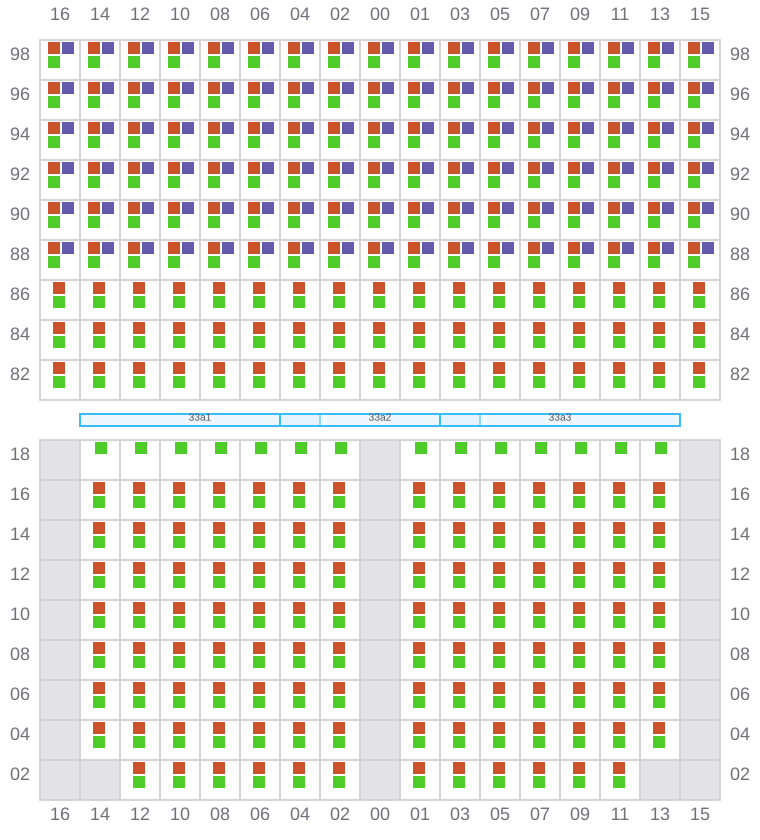

Bay 033 view and slots of CARSTEN MAERSK

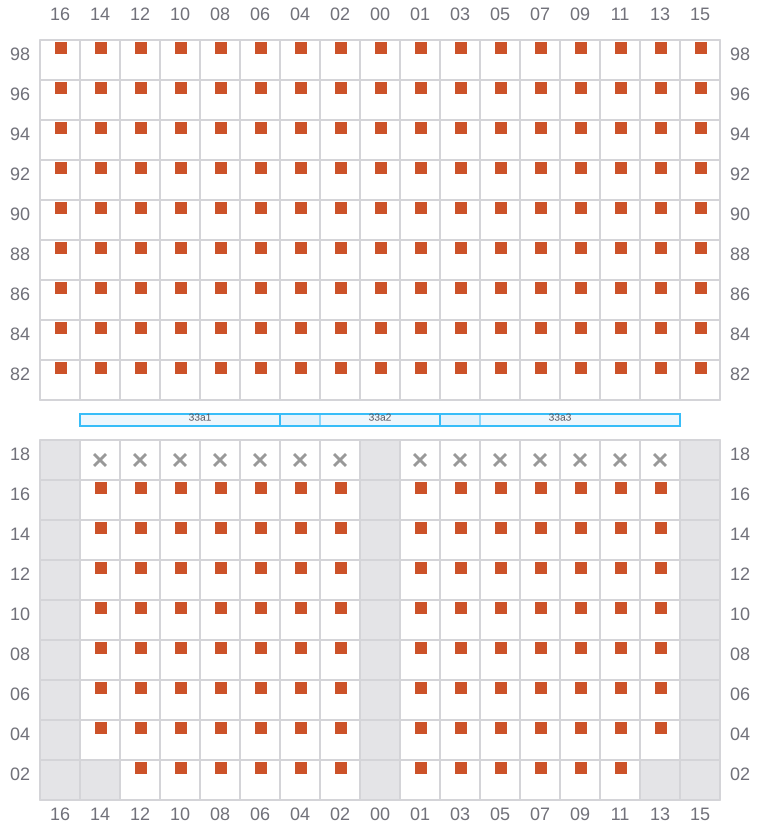

035

  • ←
Bay 035 view and slots of CARSTEN MAERSK

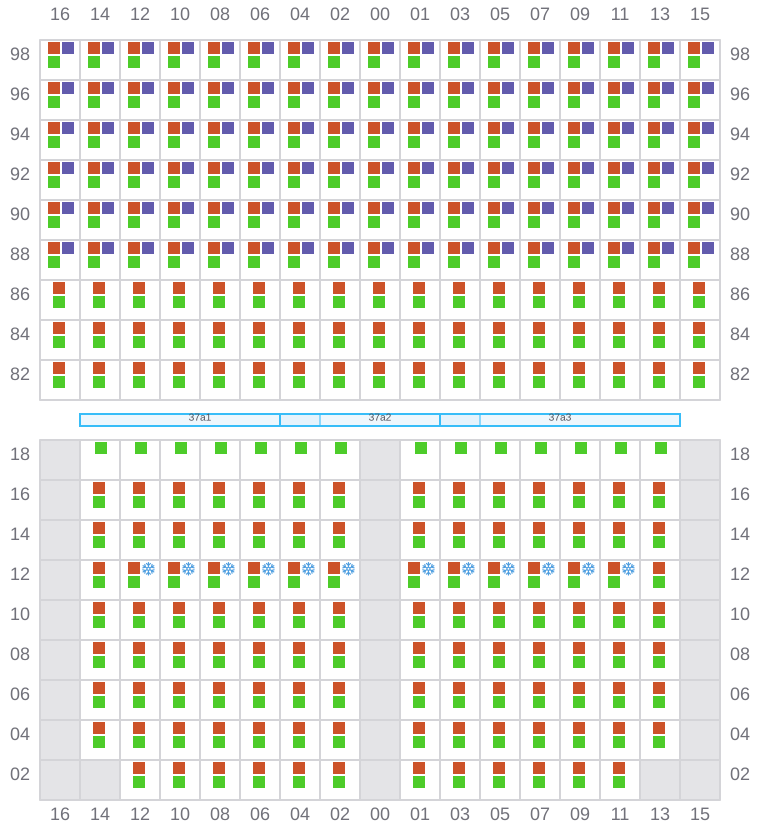

037 (038)

  • →
  • ? / →
Bay 037 view and slots of CARSTEN MAERSK

039

  • ←
  • →
Bay 039 view and slots of CARSTEN MAERSK

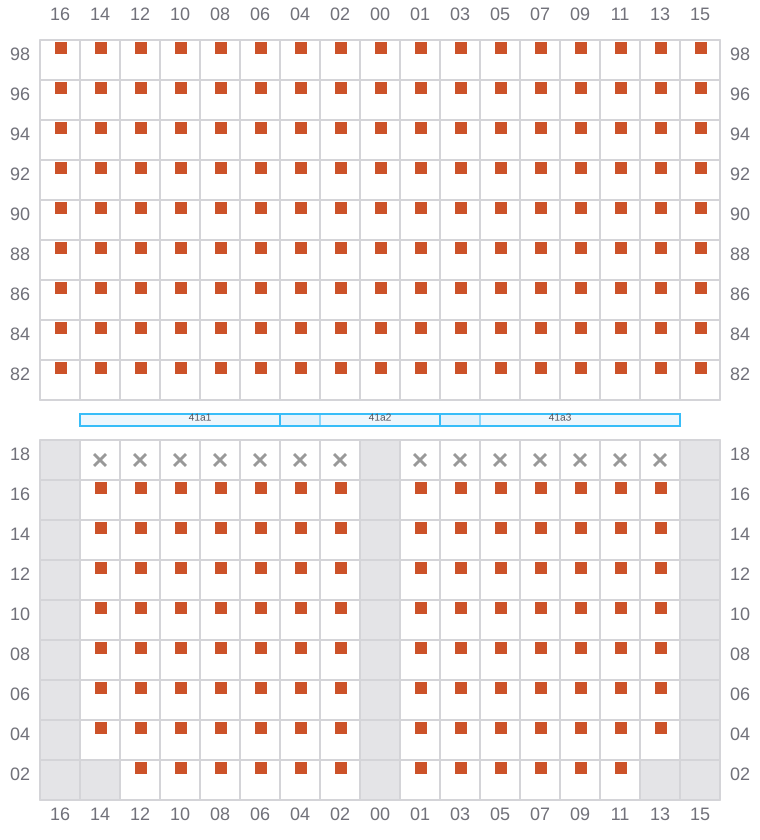

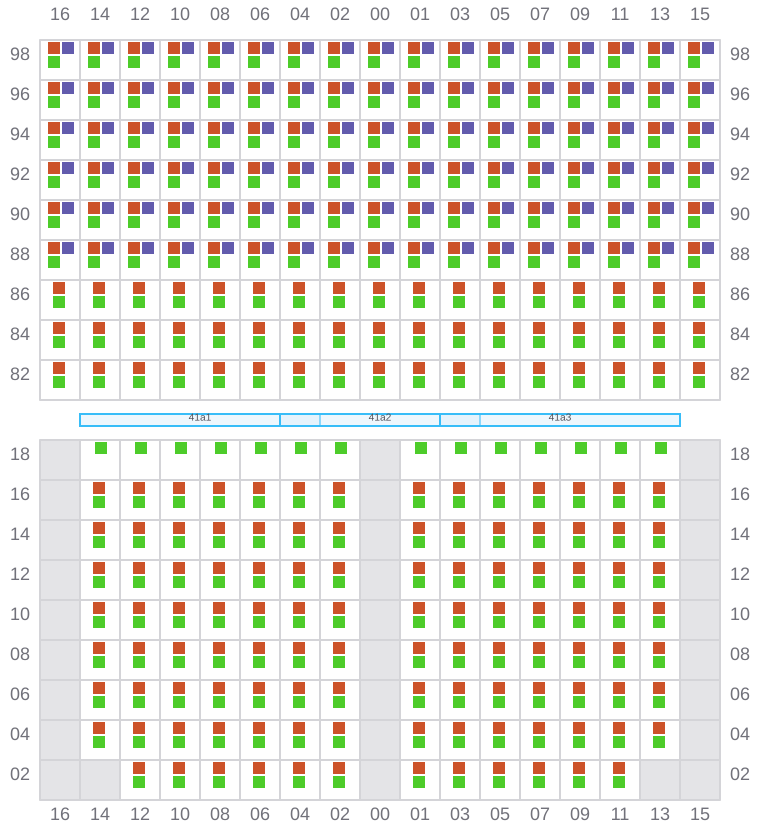

041 (042)

  • →
Bay 041 view and slots of CARSTEN MAERSK

043

  • ←
Bay 043 view and slots of CARSTEN MAERSK

045 (046)

  • →
  • ? / →
Bay 045 view and slots of CARSTEN MAERSK

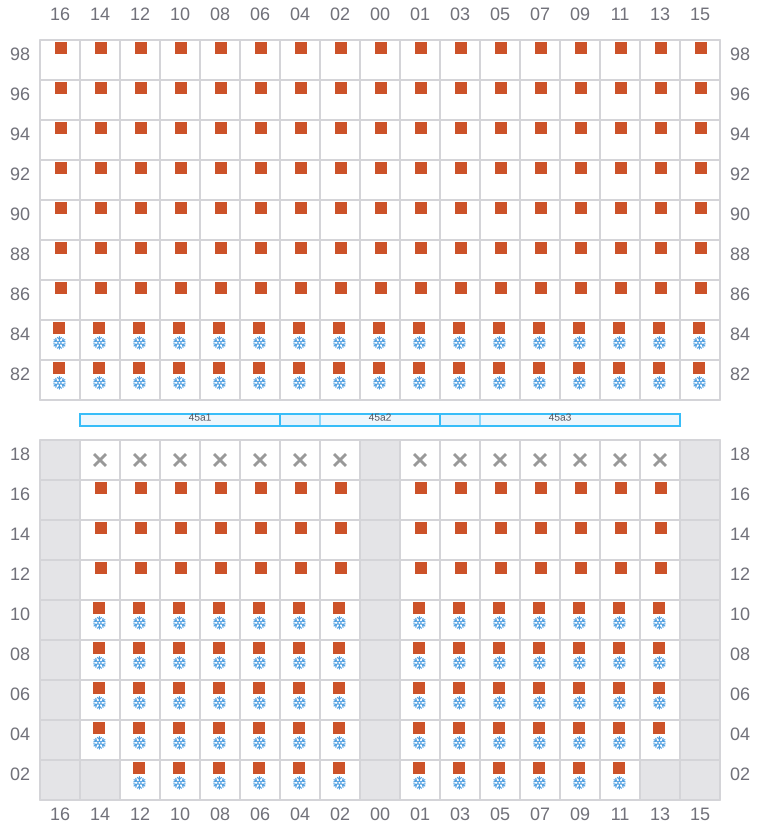

047

  • ←
  • →
Bay 047 view and slots of CARSTEN MAERSK

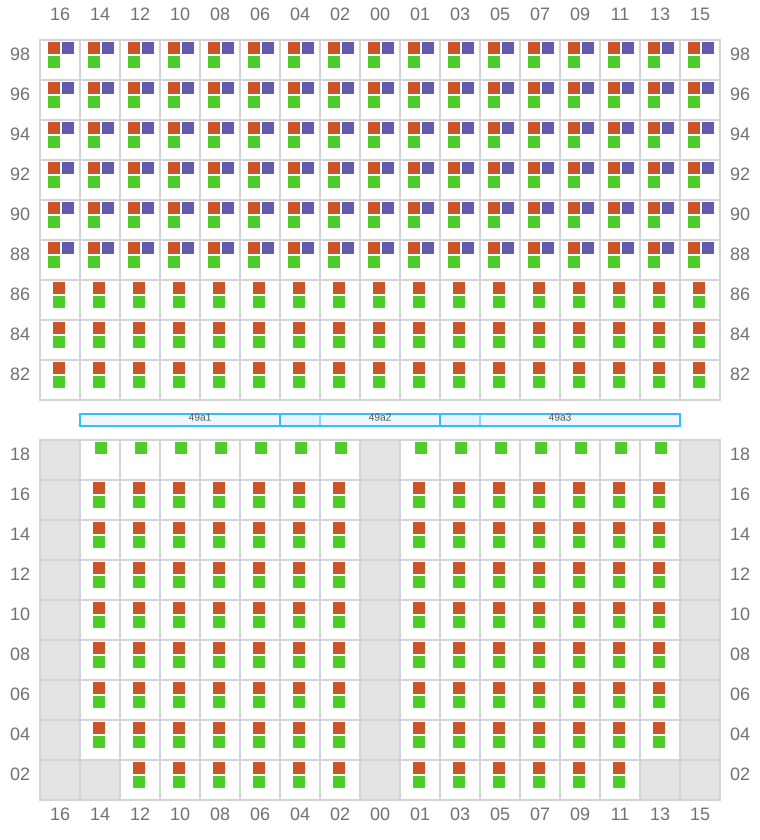

049 (050)

  • →
Bay 049 view and slots of CARSTEN MAERSK

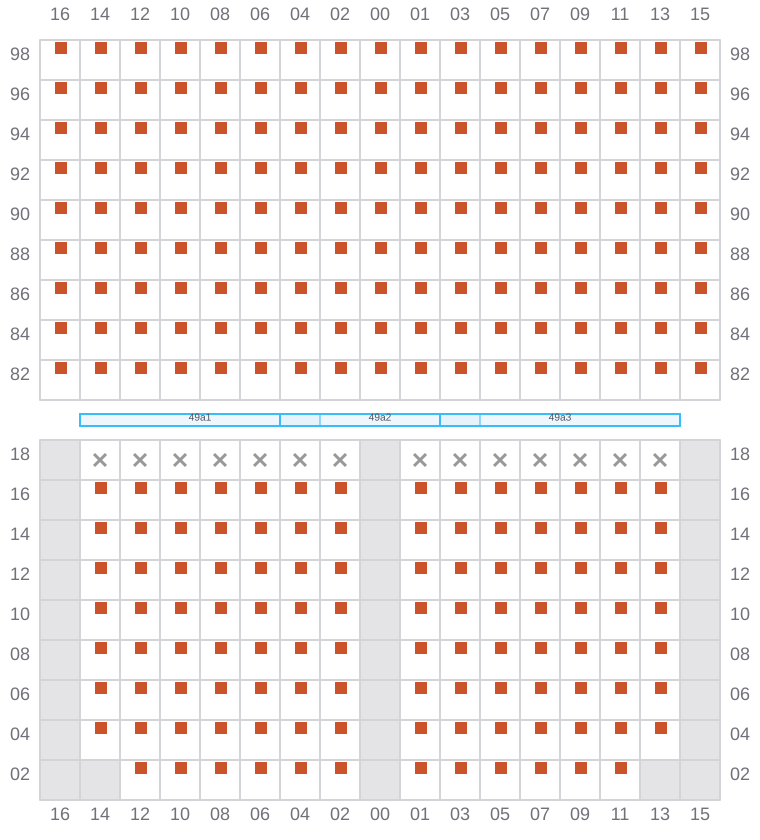

051

  • ←
Bay 051 view and slots of CARSTEN MAERSK

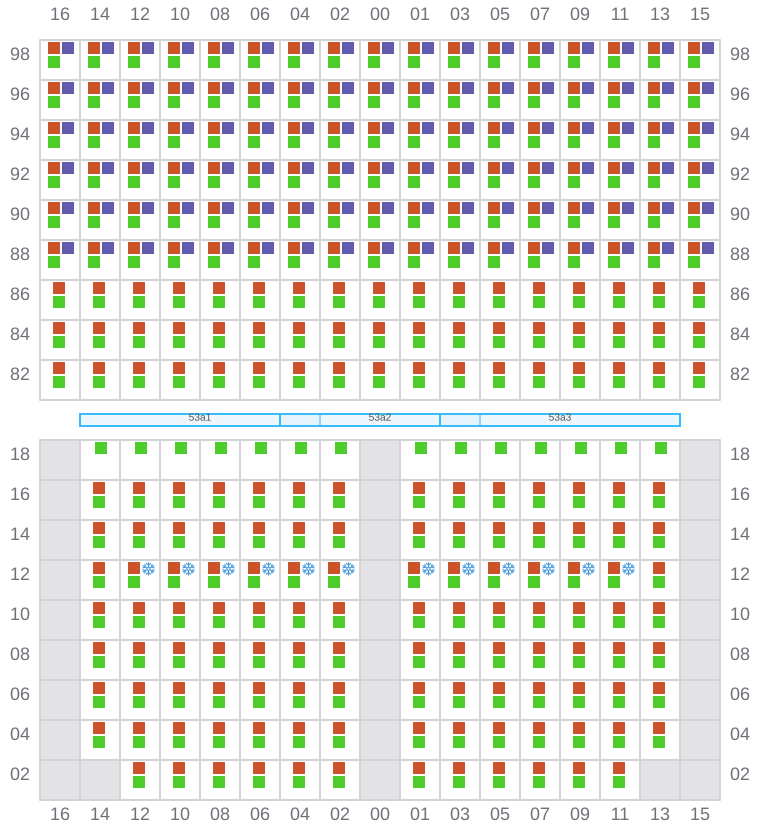

053 (054)

  • →
  • ? / →
Bay 053 view and slots of CARSTEN MAERSK

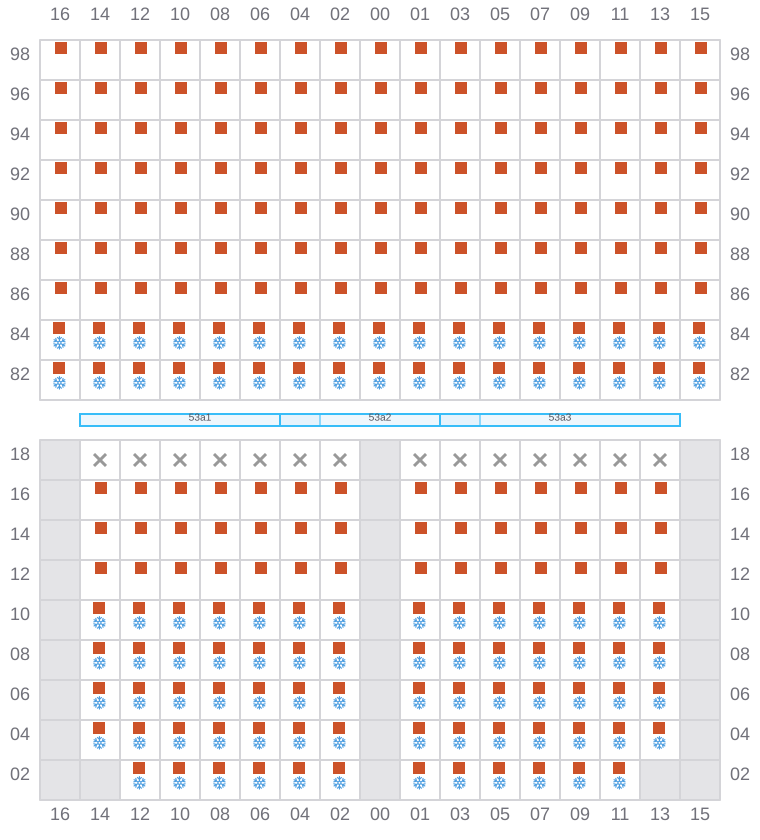

055

  • ←
  • →
Bay 055 view and slots of CARSTEN MAERSK

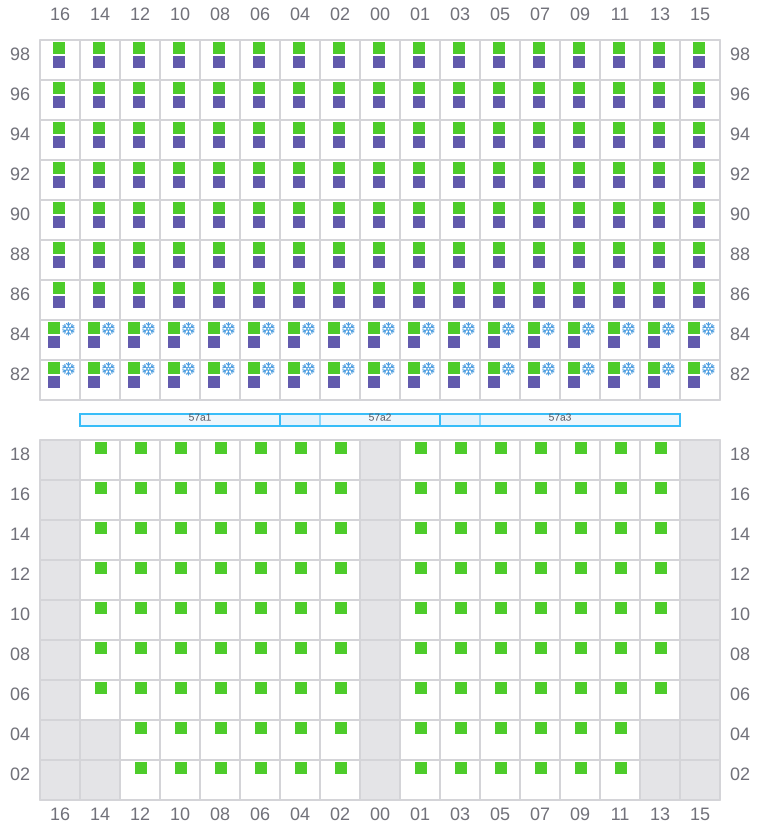

057 (058)

  • →
  • → / ?
Bay 057 view and slots of CARSTEN MAERSK

059

Bay 059 view and slots of CARSTEN MAERSK

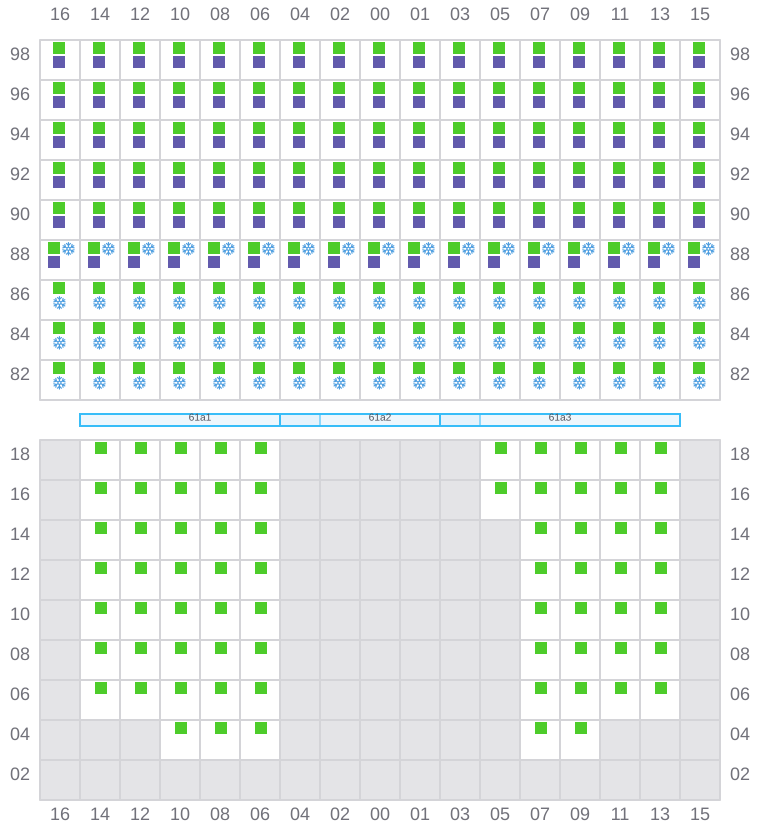

061 (062)

  • →
  • ← / ?
Bay 061 view and slots of CARSTEN MAERSK

063

Bay 063 view and slots of CARSTEN MAERSK

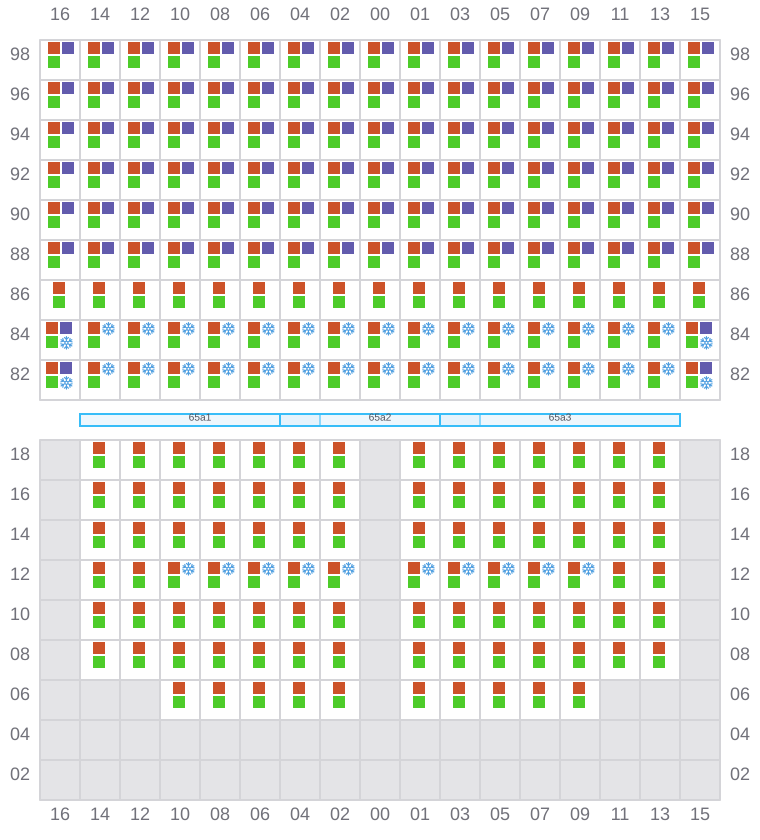

065 (066)

  • →
  • ← / →
Bay 065 view and slots of CARSTEN MAERSK

067

  • ←
  • ? / →
Bay 067 view and slots of CARSTEN MAERSK

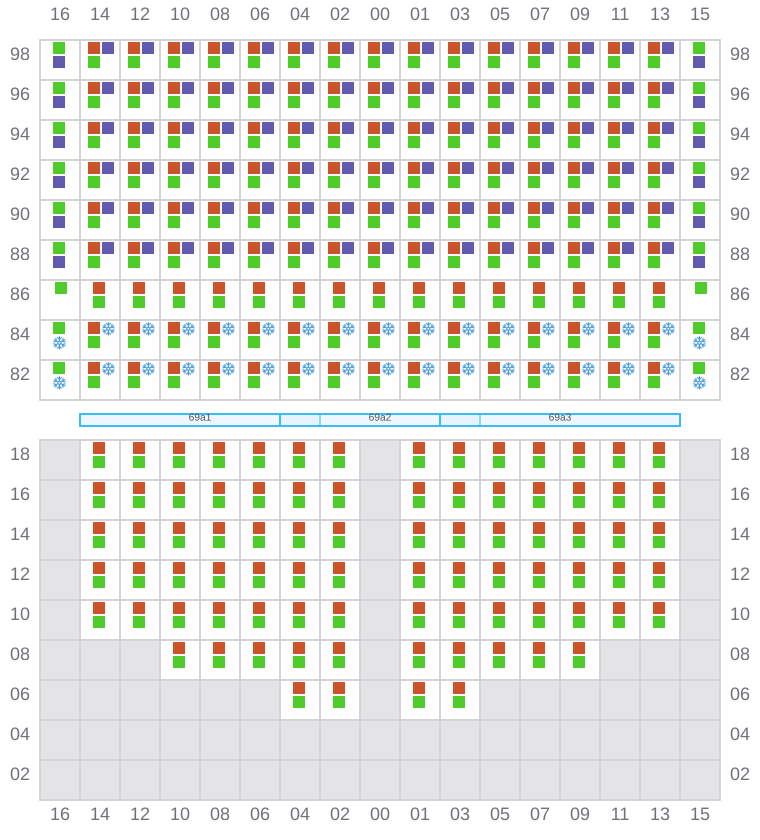

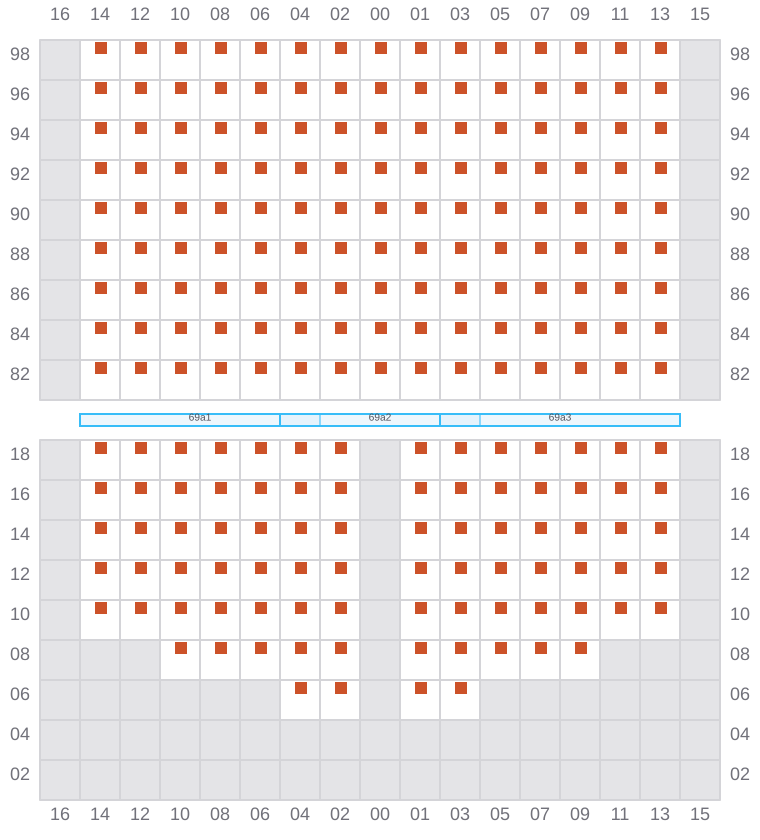

069 (070)

  • →
  • ← / ?
Bay 069 view and slots of CARSTEN MAERSK

071

  • ←
Bay 071 view and slots of CARSTEN MAERSK

073 (074)

  • →
  • ← / ?
Bay 073 view and slots of CARSTEN MAERSK

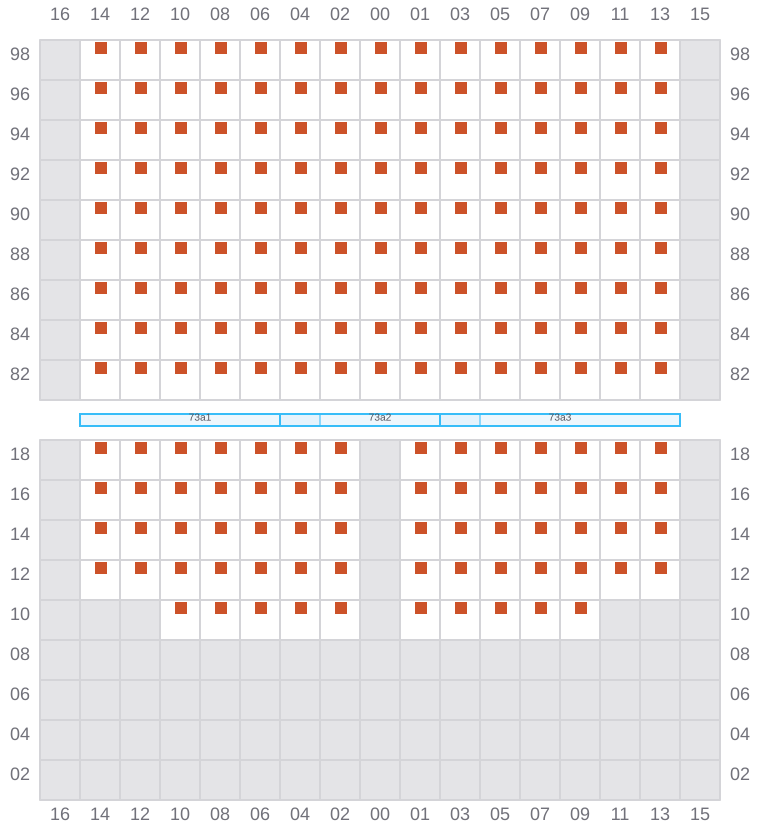

075

  • ←
Bay 075 view and slots of CARSTEN MAERSK

077 (078)

  • →
  • ← / ?

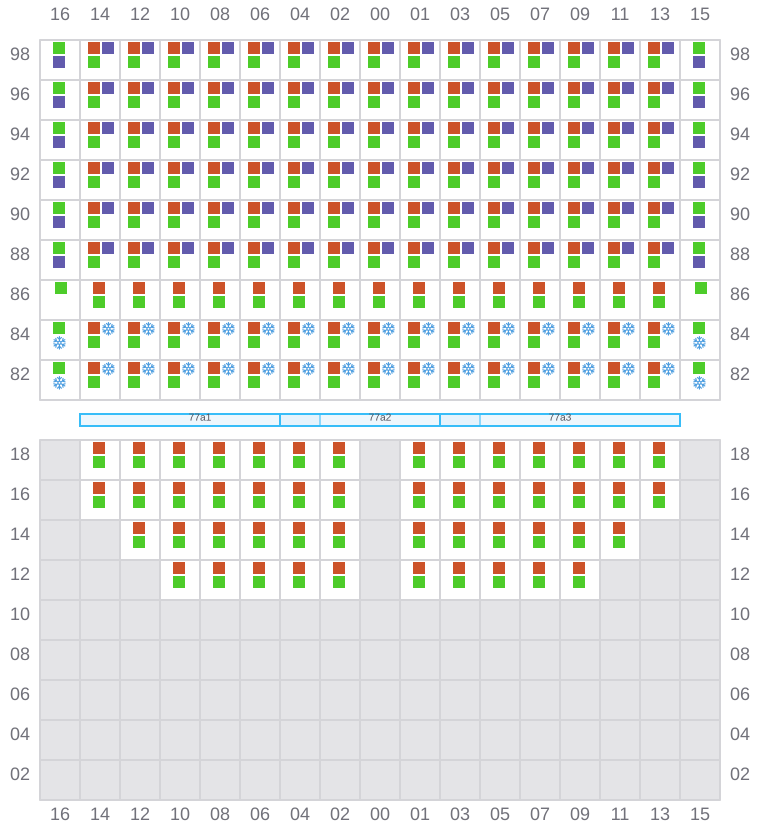

Bay 077 view and slots of CARSTEN MAERSK

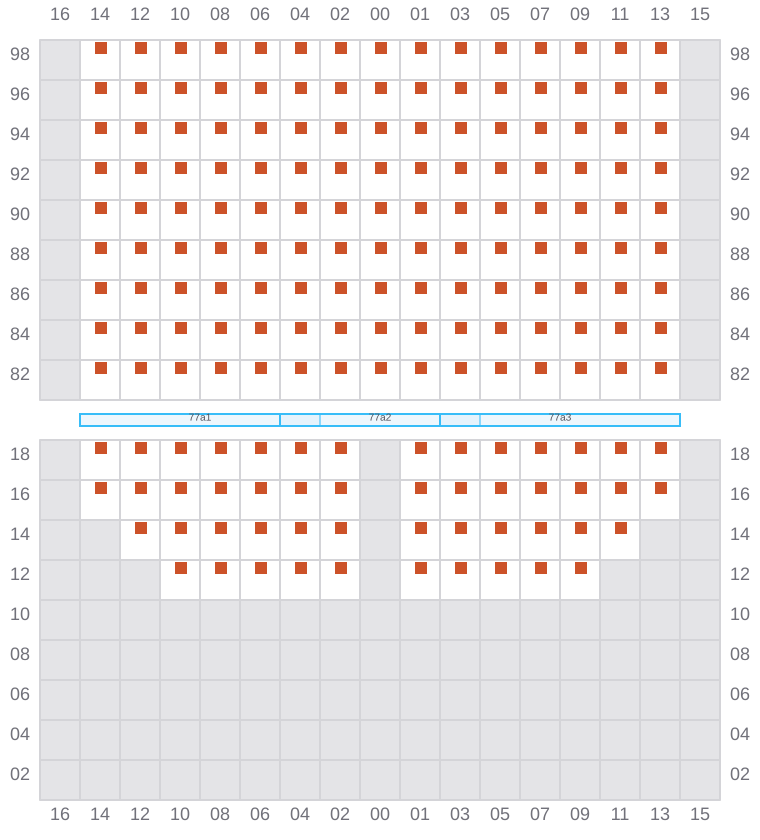

079

  • ←
Bay 079 view and slots of CARSTEN MAERSK

081 (082)

  • → / ?

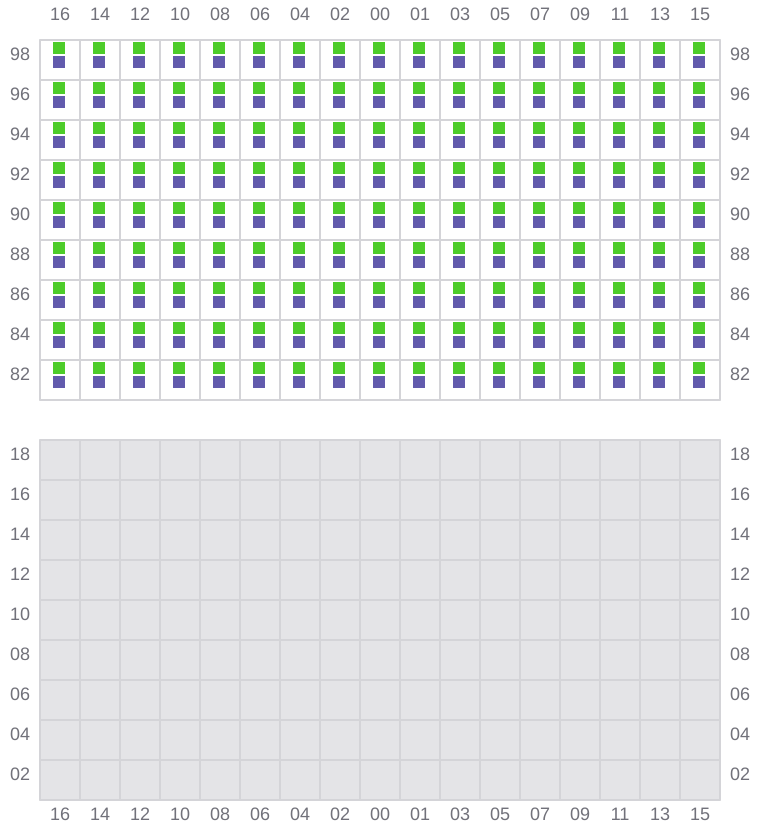

Bay 081 view and slots of CARSTEN MAERSK
