CAUCEDO EXPRESS
9434931 | VRVP7 | 9434931 by ********* Last update: Mon Mar 25 2024
General Info
Ship Name:CAUCEDO EXPRESS
IMO Code:9434931
Call Sign:VRVP7
Line Operator:9434931
Class Name for Sister Ships:28B
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,592
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

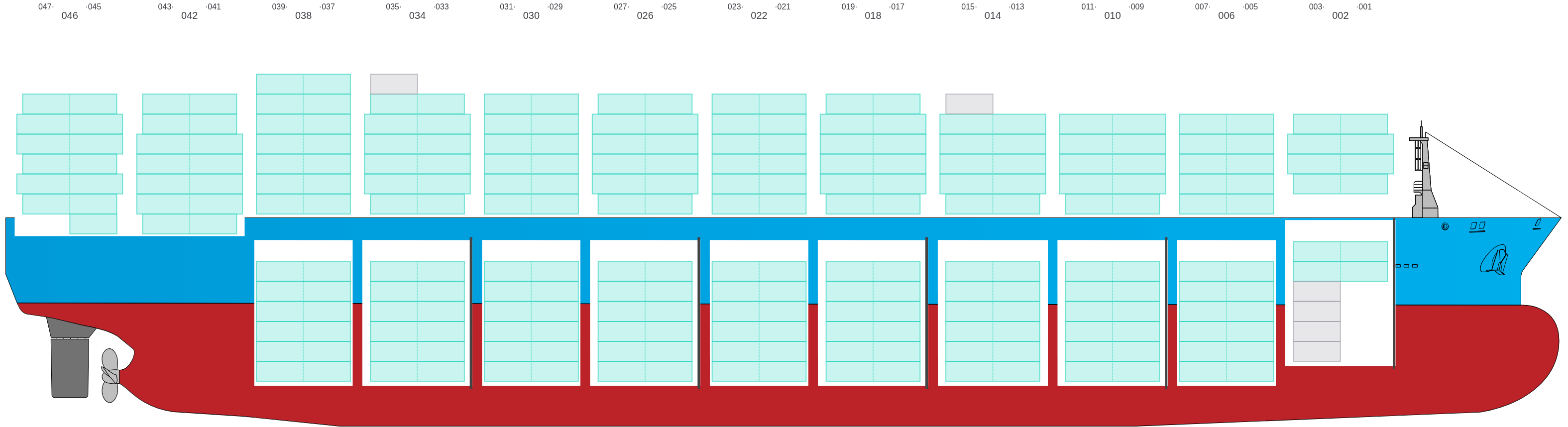

Side View
![Side view of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-sideView.png?v=1711393164342)
Hatch-Covers View
![Deck view of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-deckView.png?v=1711393164342)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
![Bay 001 view and slots of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-b001.png?v=1711393164342)

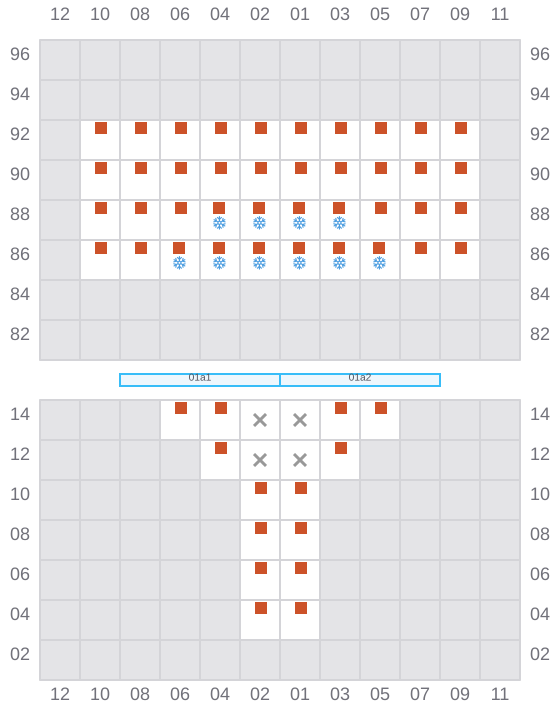

003
- ←
- → / ?
![Bay 003 view and slots of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-b003.png?v=1711393164342)

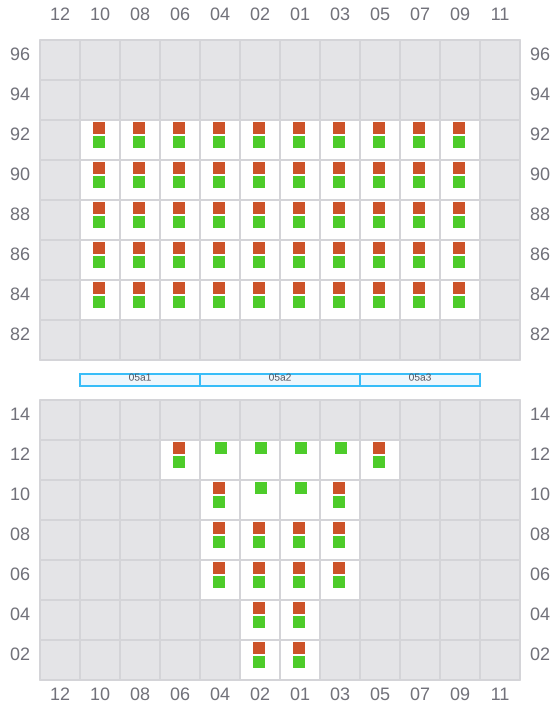

005 (006)
- →
![Bay 005 view and slots of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-b005.png?v=1711393164342)

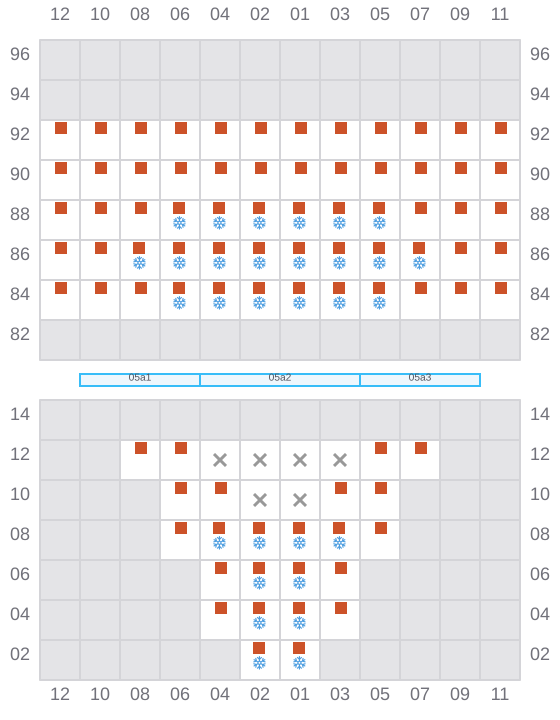

007
- ←
- →
![Bay 007 view and slots of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-b007.png?v=1711393164342)

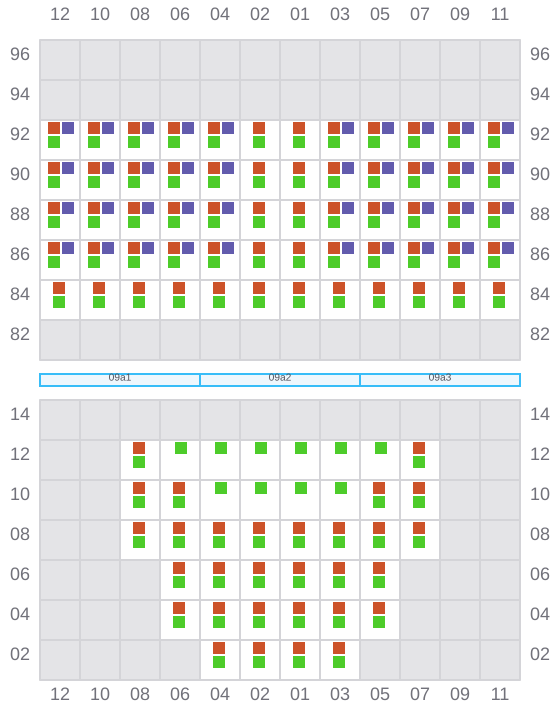

009 (010)
- →
![Bay 009 view and slots of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-b009.png?v=1711393164342)

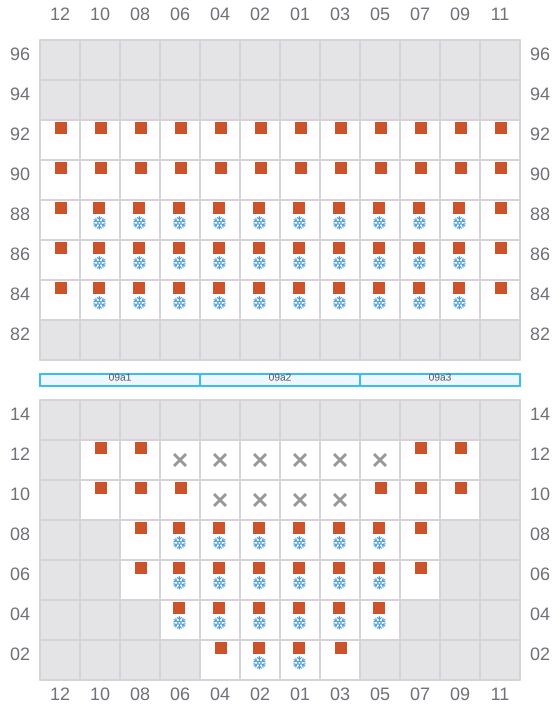

011
- ←
- →
![Bay 011 view and slots of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-b011.png?v=1711393164342)

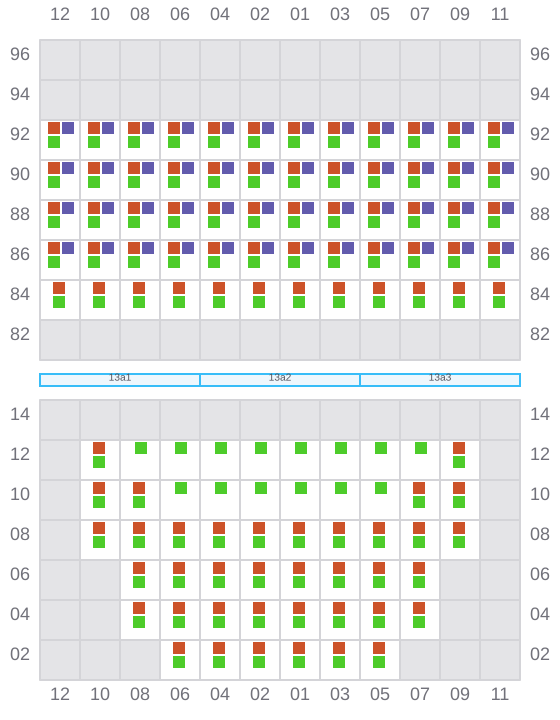

013 (014)
- →
![Bay 013 view and slots of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-b013.png?v=1711393164342)

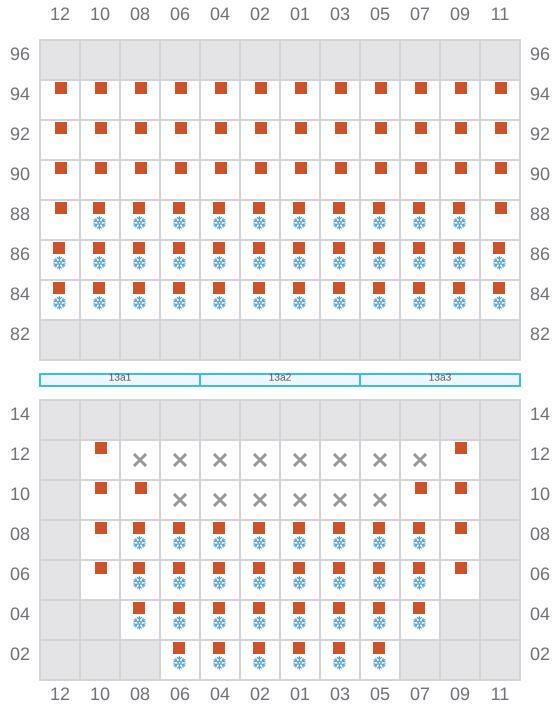

015
- ←
- →
![Bay 015 view and slots of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-b015.png?v=1711393164342)

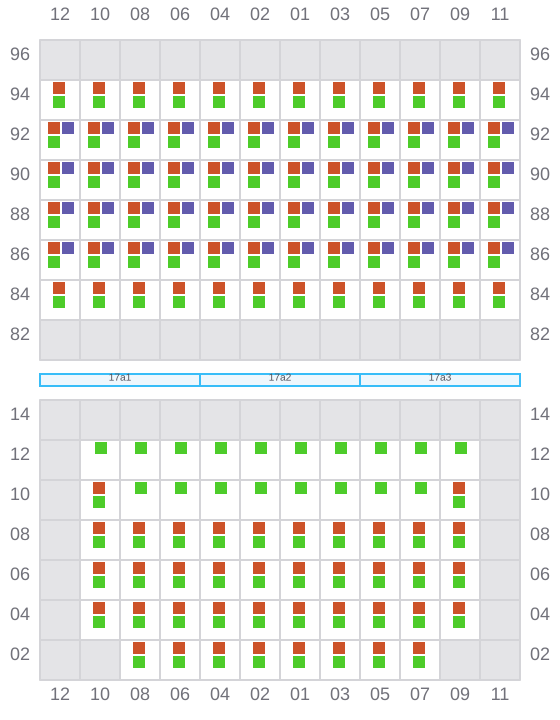

017 (018)
- →
![Bay 017 view and slots of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-b017.png?v=1711393164342)
019
- ←
- →
![Bay 019 view and slots of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-b019.png?v=1711393164342)

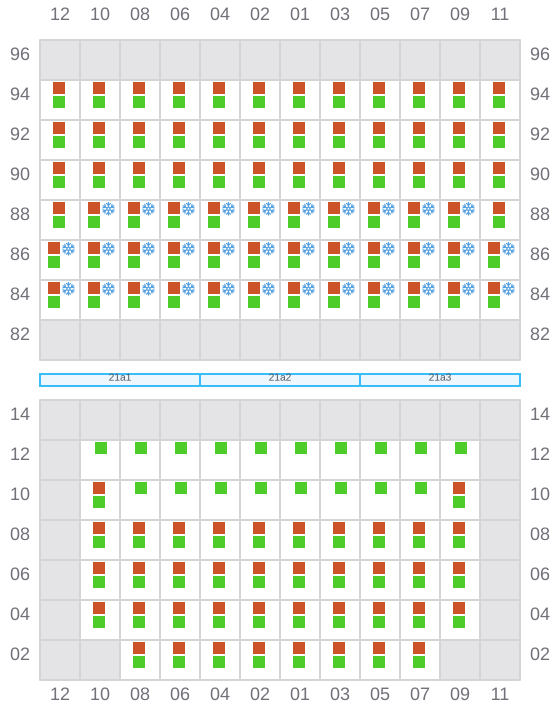

021 (022)
- →
- ← / ?
![Bay 021 view and slots of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-b021.png?v=1711393164342)

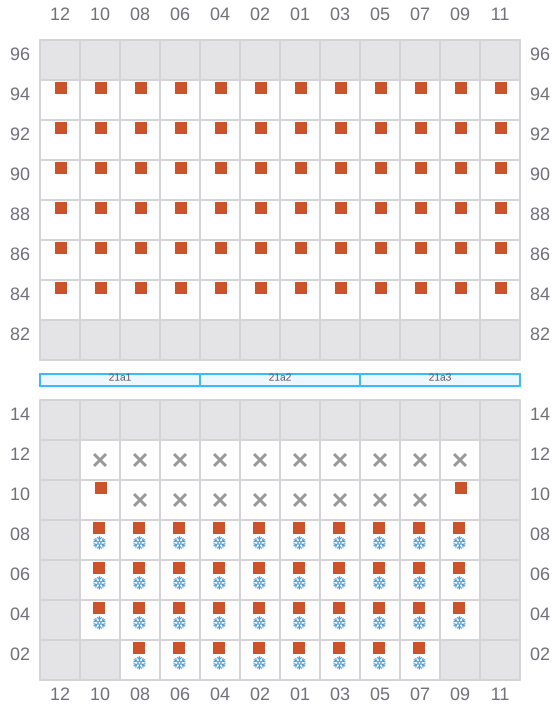

023
- ←
- →
![Bay 023 view and slots of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-b023.png?v=1711393164342)

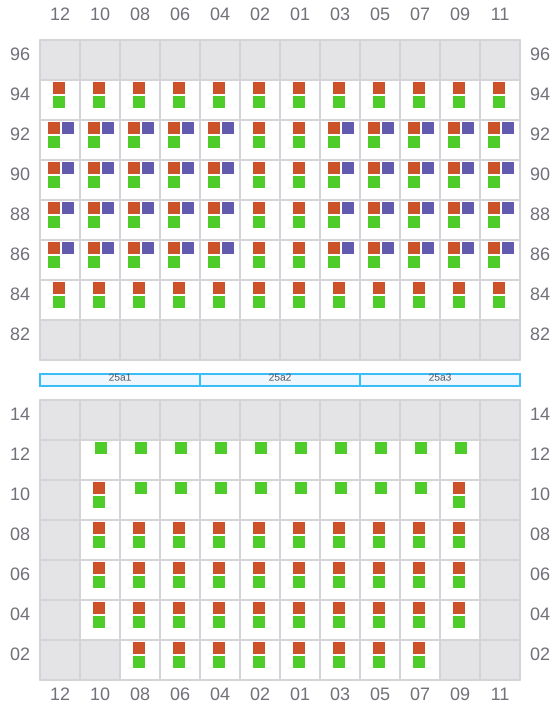

025 (026)
- →
![Bay 025 view and slots of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-b025.png?v=1711393164342)

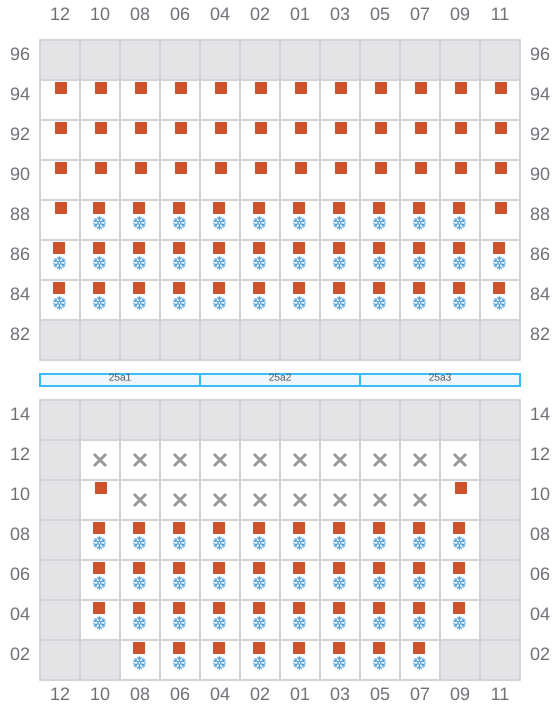

027
- ←
- →
![Bay 027 view and slots of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-b027.png?v=1711393164342)

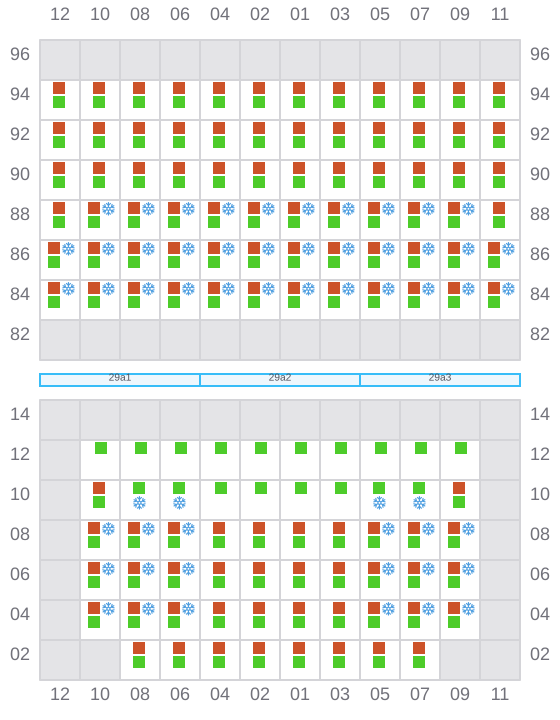

029 (030)
- →
- ←
![Bay 029 view and slots of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-b029.png?v=1711393164342)

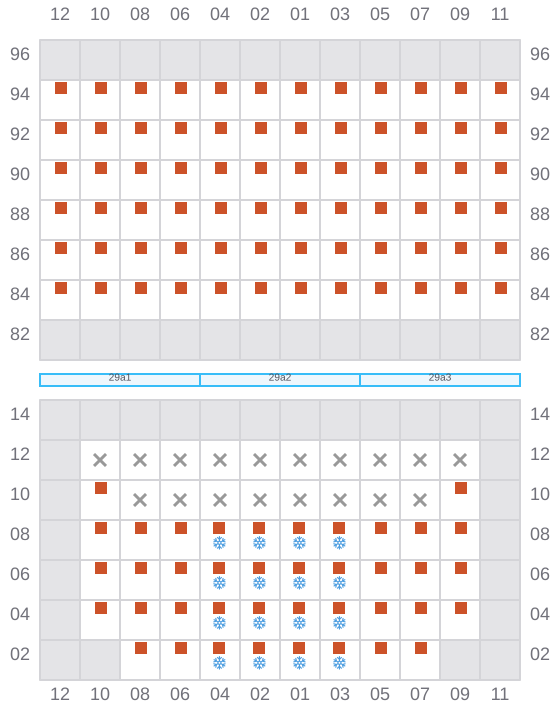

031
- ←
- → / ?
![Bay 031 view and slots of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-b031.png?v=1711393164342)

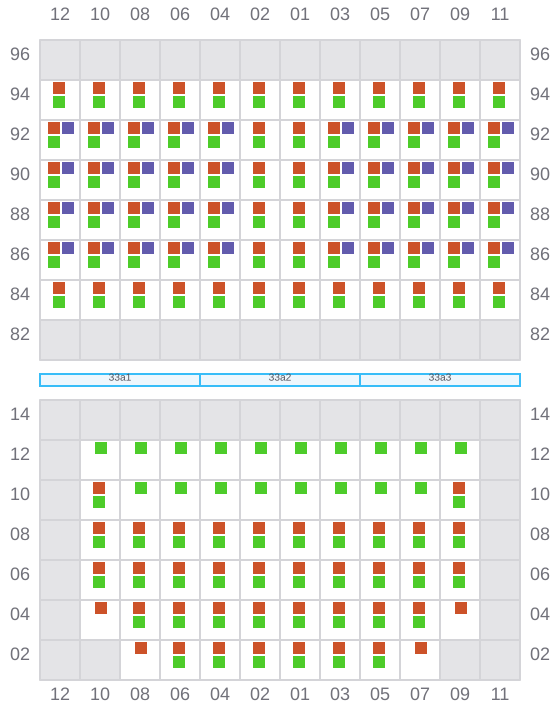

033 (034)
- →
![Bay 033 view and slots of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-b033.png?v=1711393164342)

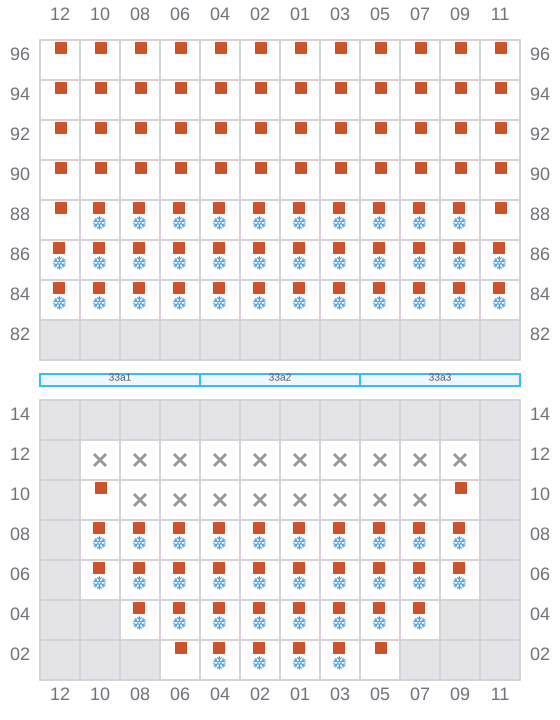

035
- ←
- → / ?
![Bay 035 view and slots of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-b035.png?v=1711393164342)

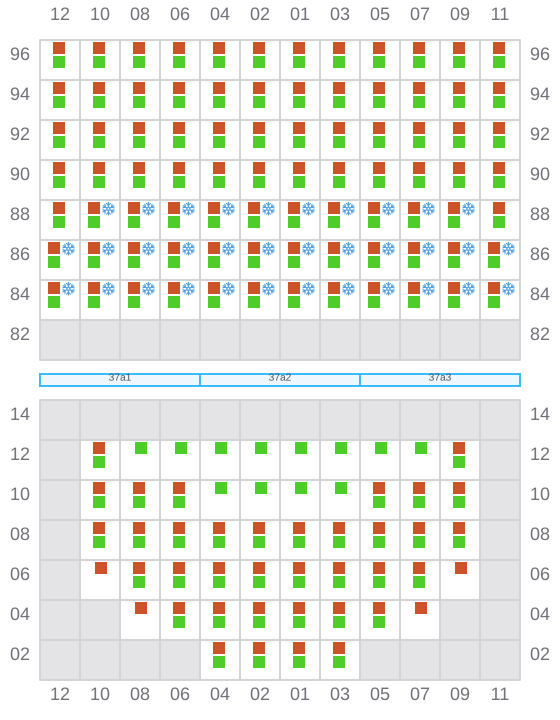

037 (038)
- →
- ← / ?
![Bay 037 view and slots of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-b037.png?v=1711393164342)

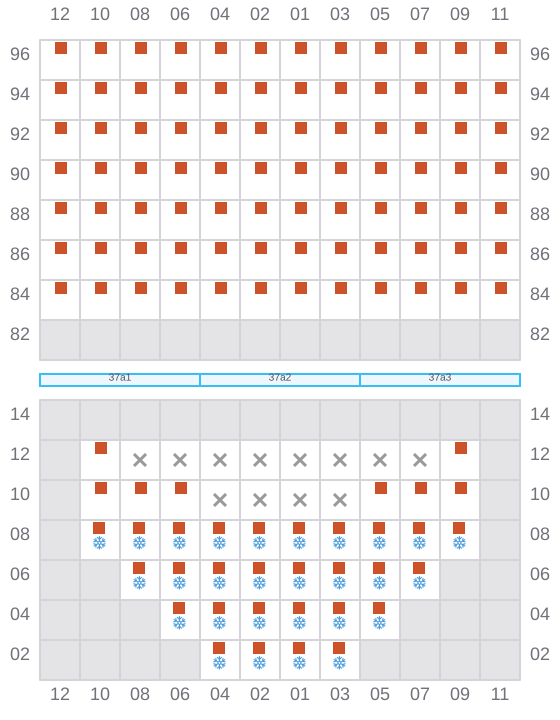

039
- ←
![Bay 039 view and slots of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-b039.png?v=1711393164342)

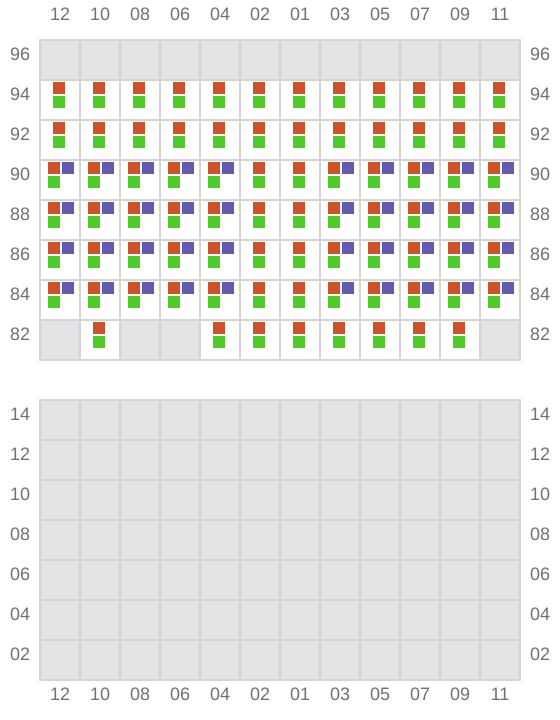

041 (042)
- → / ?
![Bay 041 view and slots of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-b041.png?v=1711393164342)

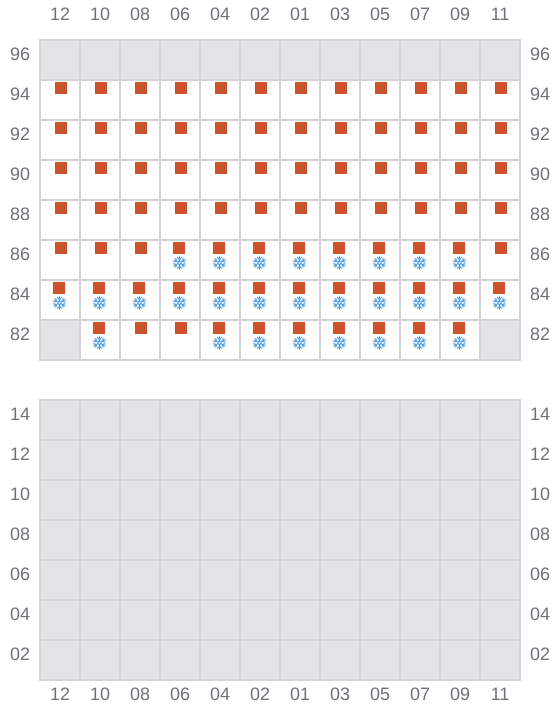

043
- ← / ?
![Bay 043 view and slots of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-b043.png?v=1711393164342)

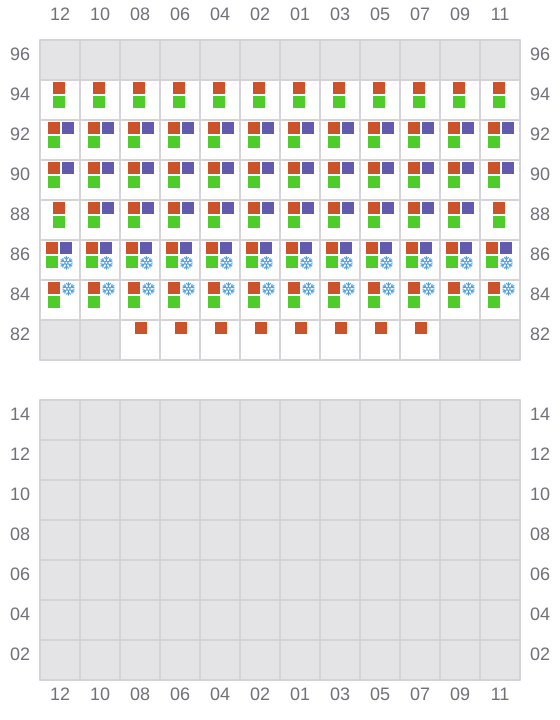

045 (046)
- → / ?
- ← / ?
![Bay 045 view and slots of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-b045.png?v=1711393164342)
047
- ← / ?
![Bay 047 view and slots of CAUCEDO EXPRESS](/vessel-images/51f9cd50-5561-4900-87fc-ee7713d31c69-b047.png?v=1711393164342)
