CAUTIN
9687538 | D5HE8 | 9687538 by ********* Last update: Tue Jul 23 2024
General Info
Ship Name:CAUTIN
IMO Code:9687538
Call Sign:D5HE8
Line Operator:9687538
Class Name for Sister Ships:CSAV
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,326
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

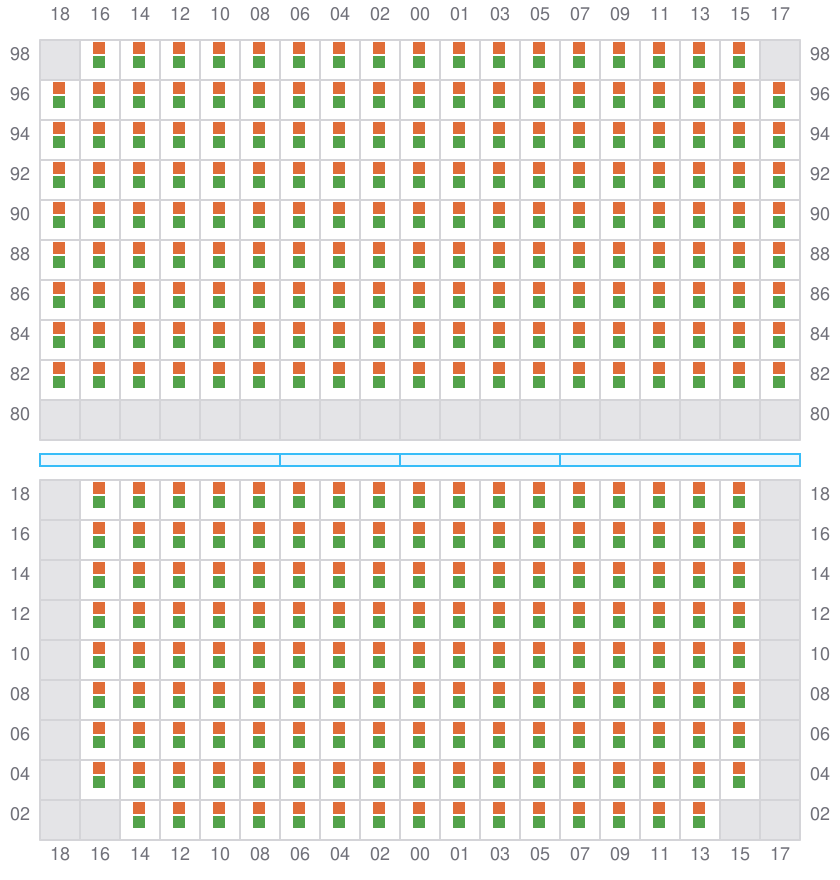

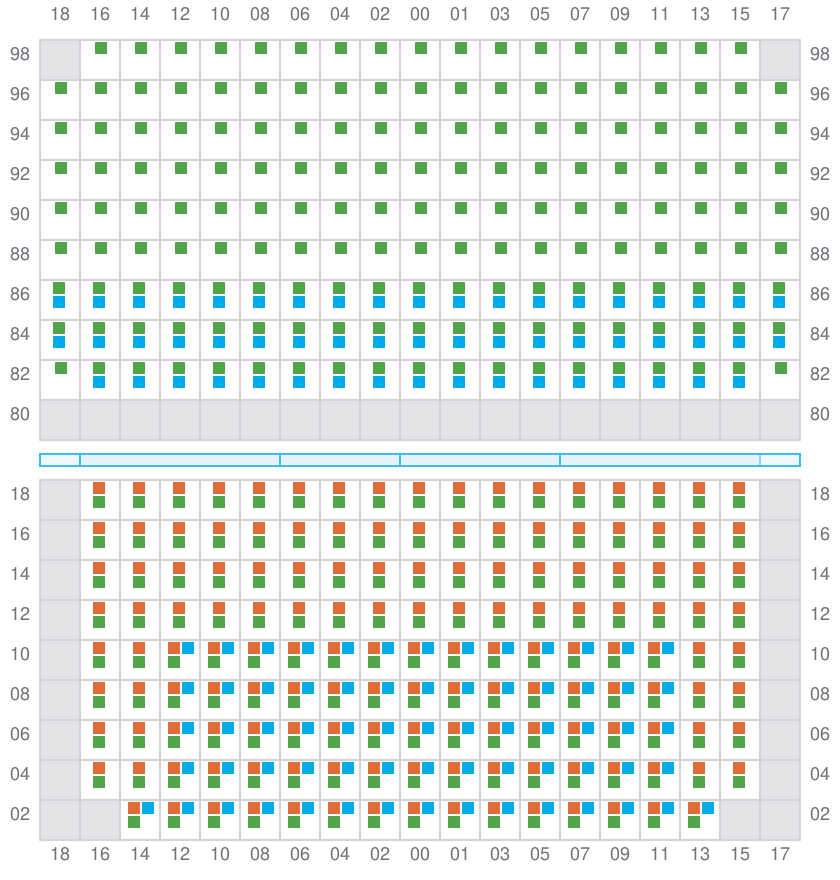

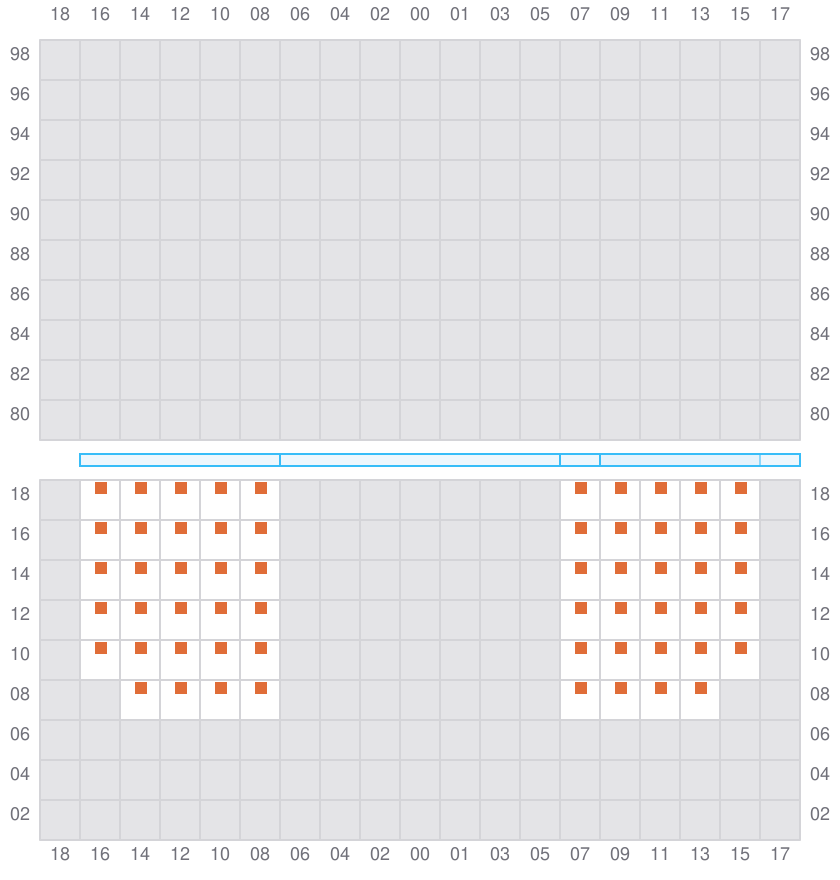

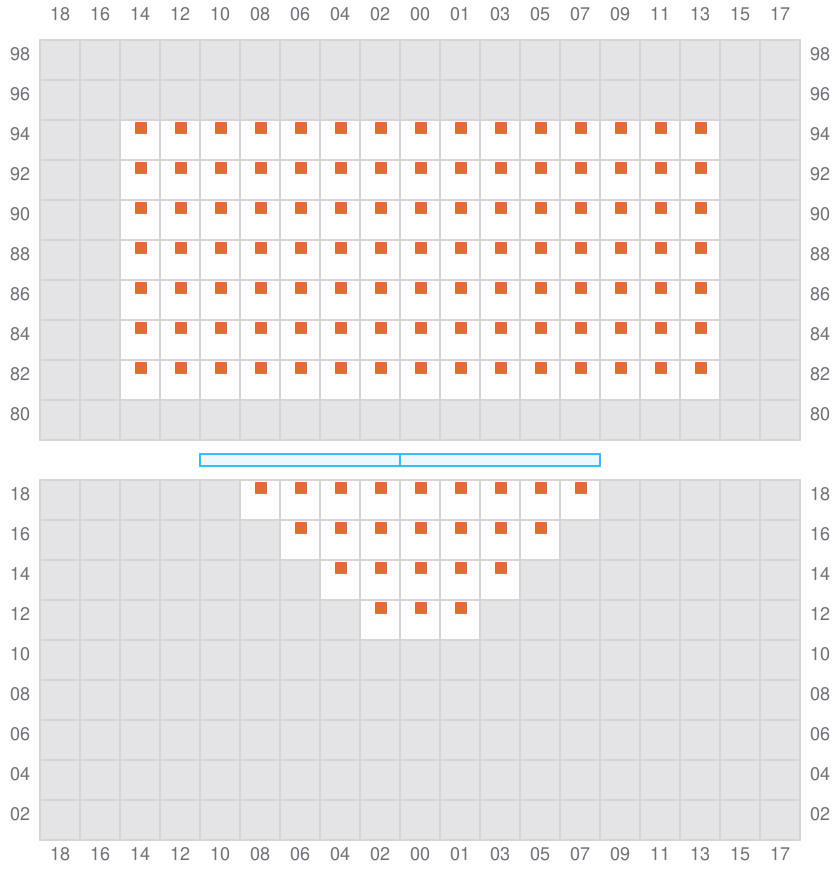

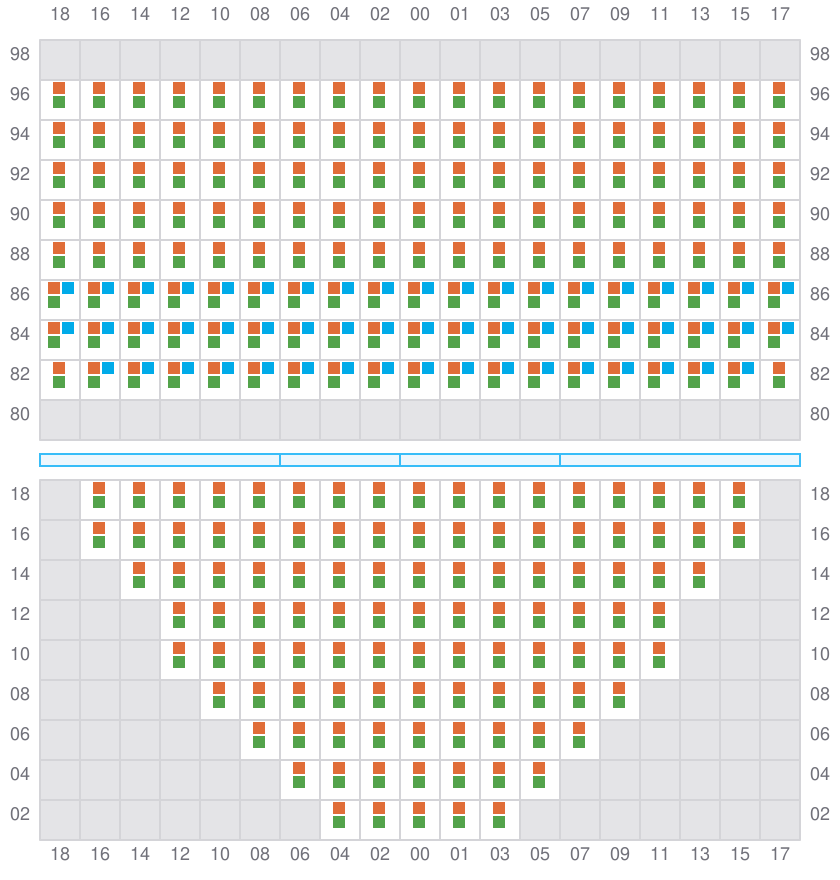

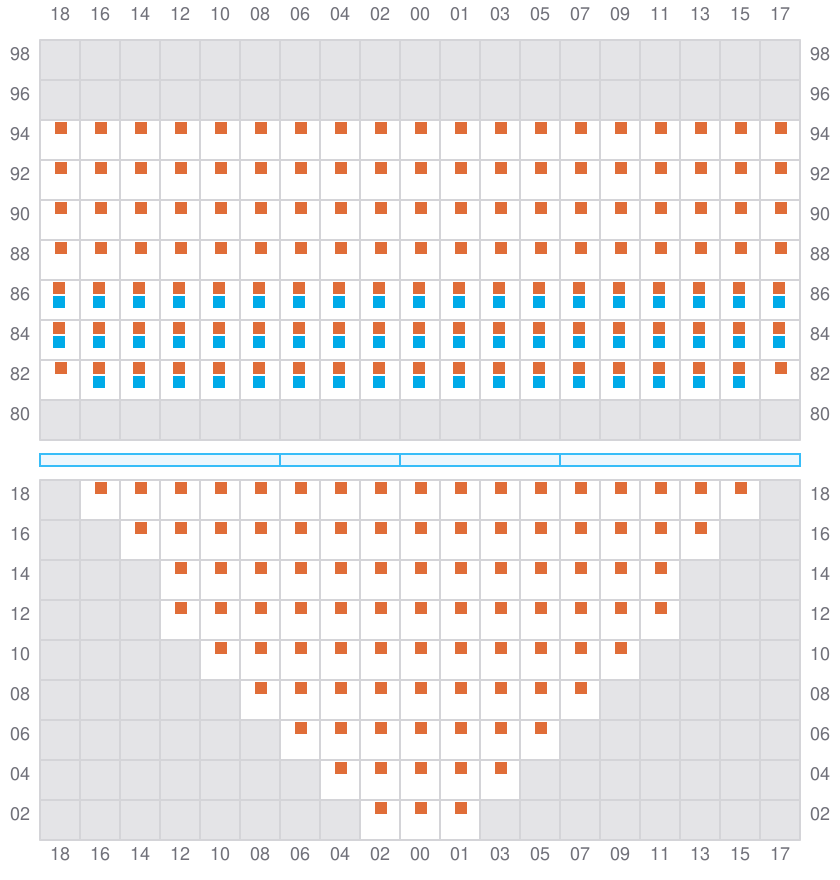

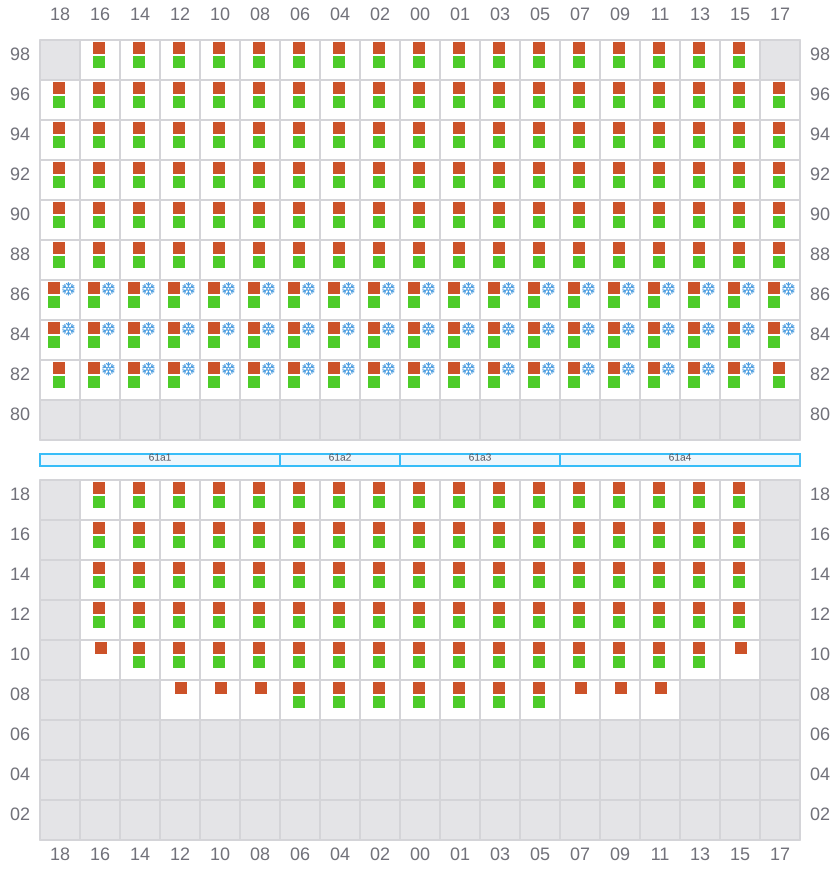

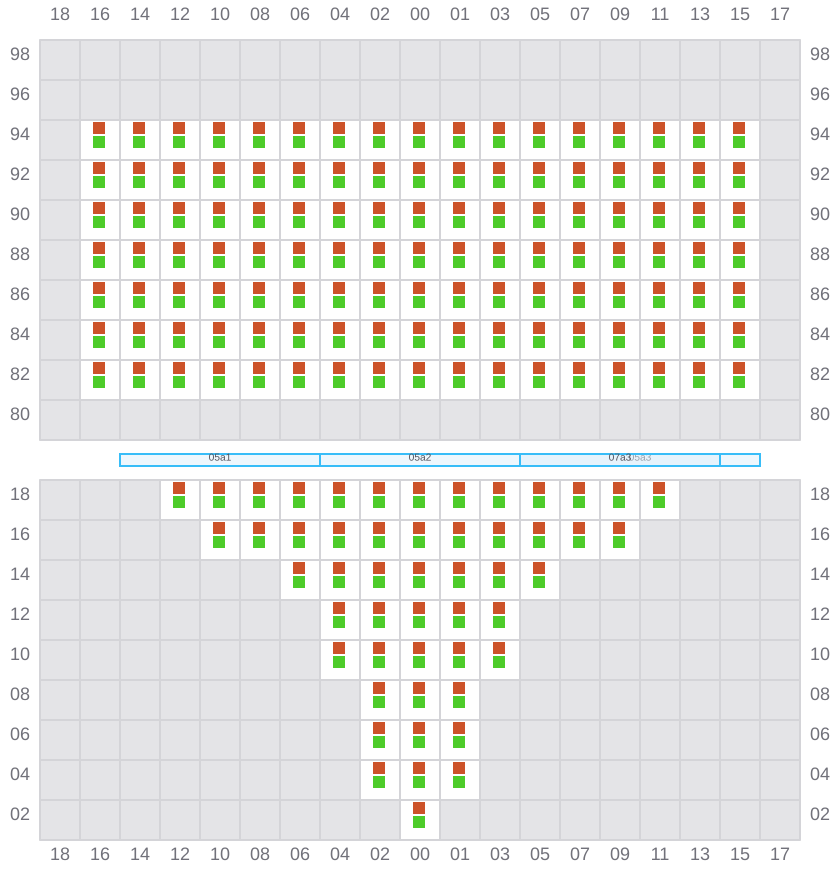

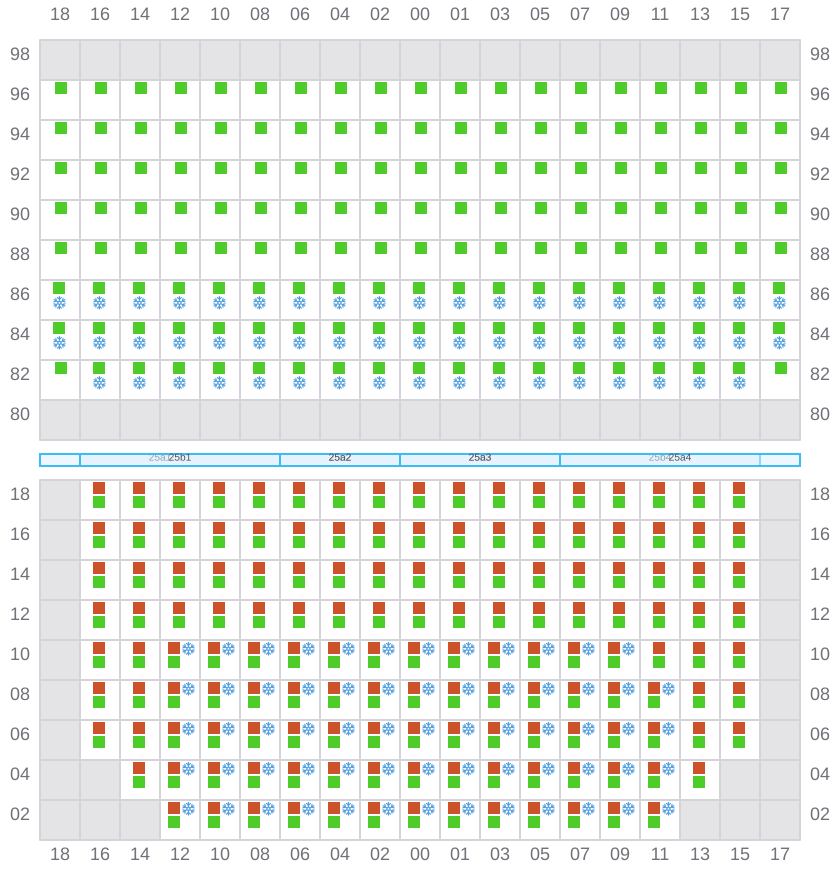

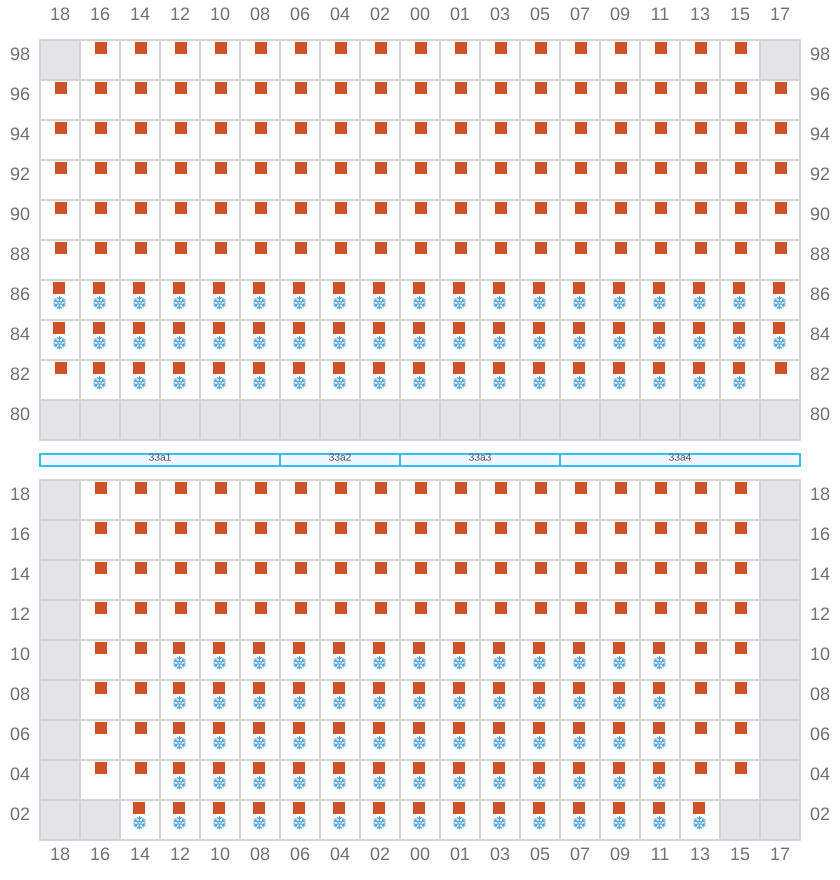

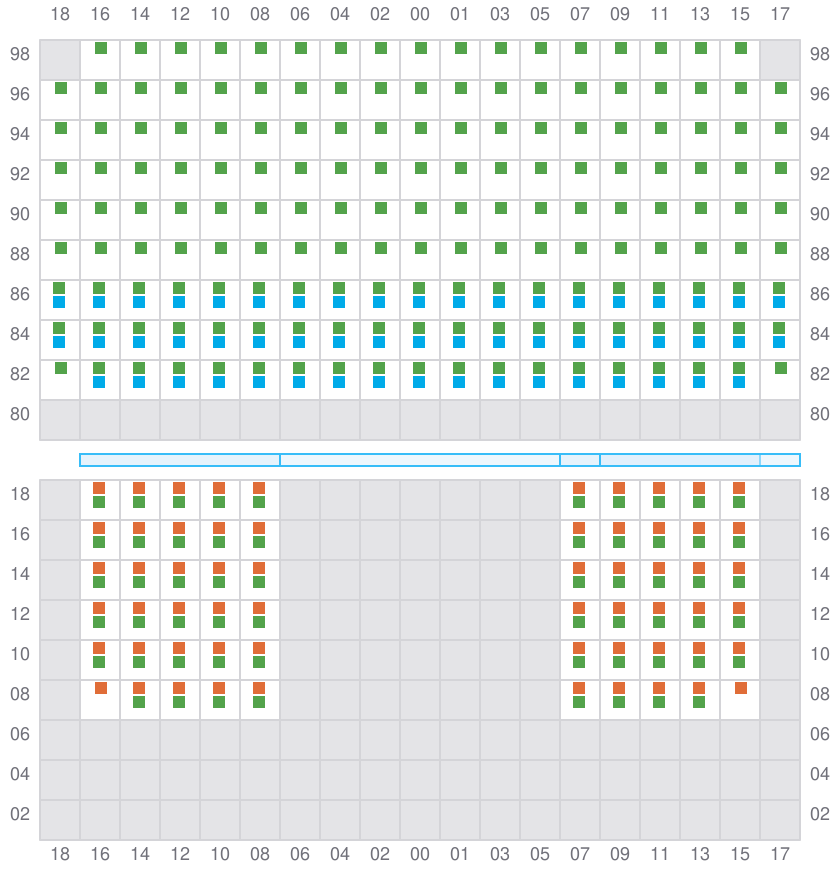

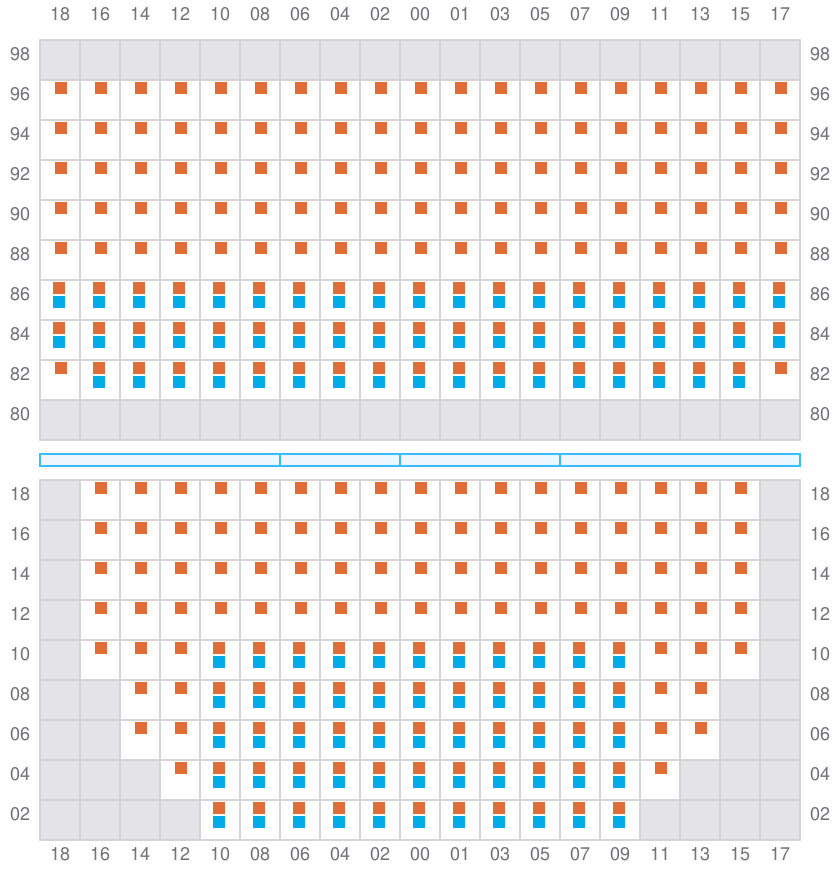

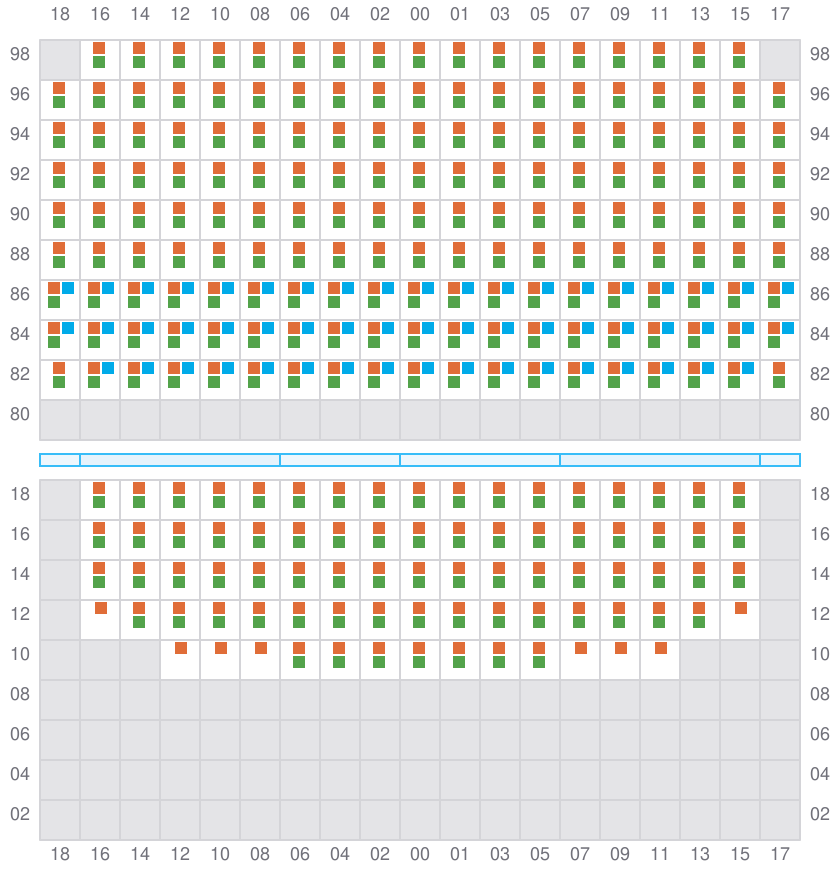

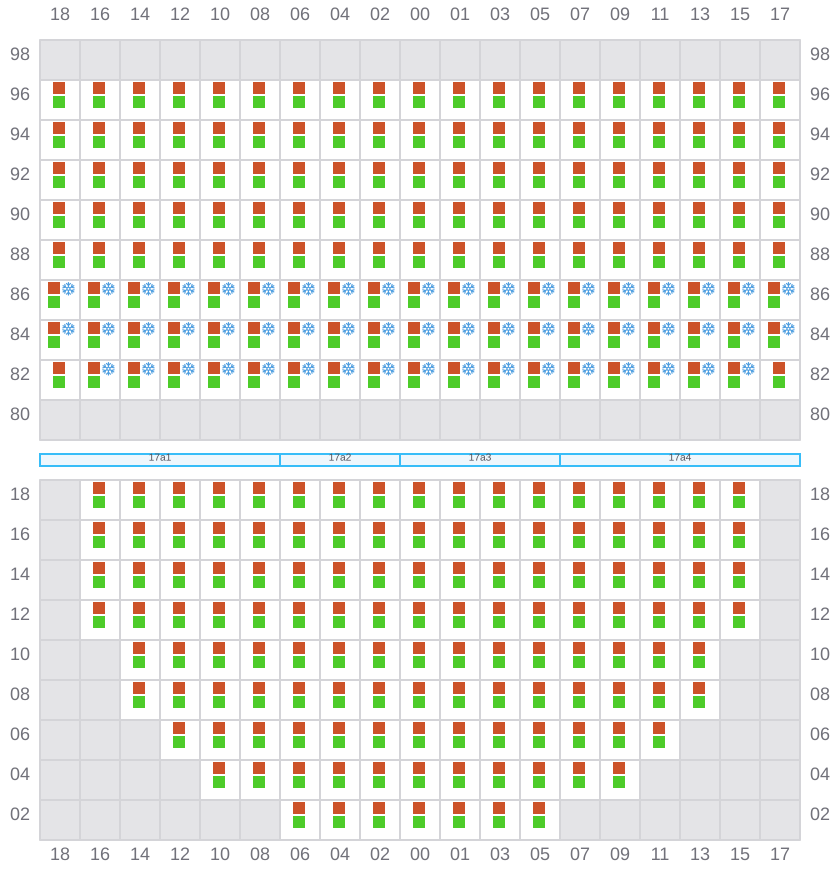

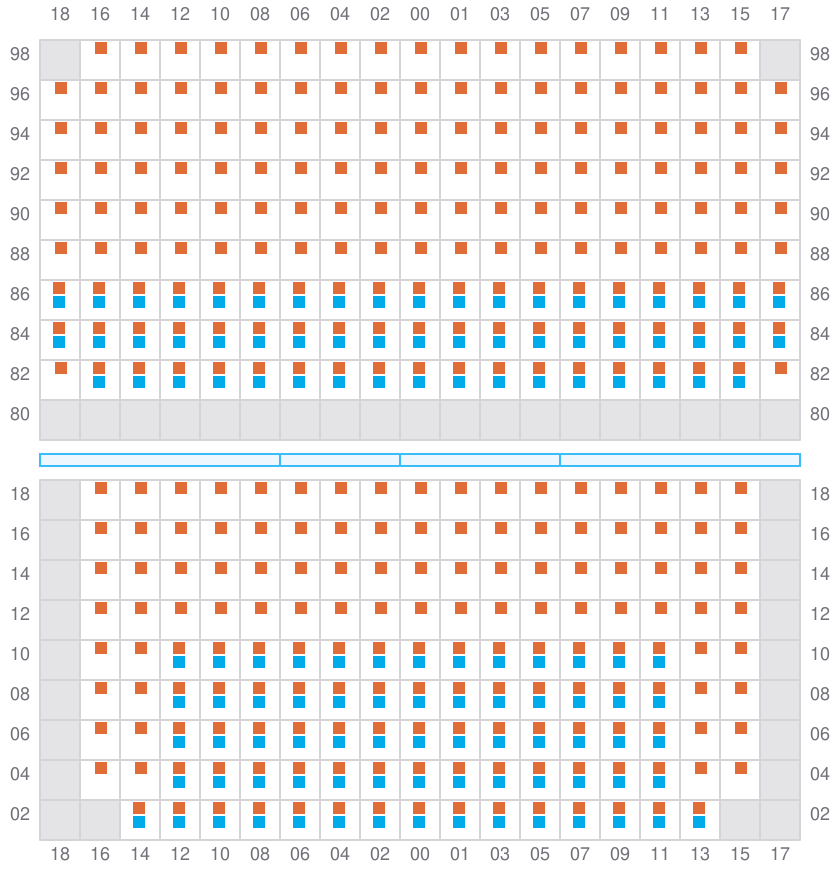

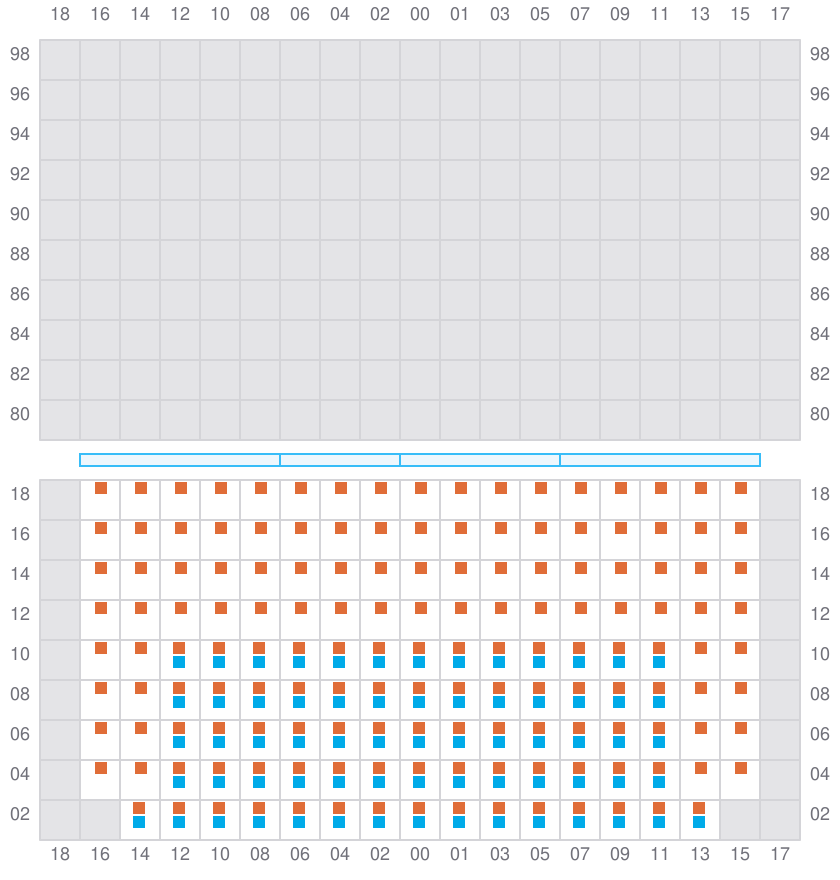

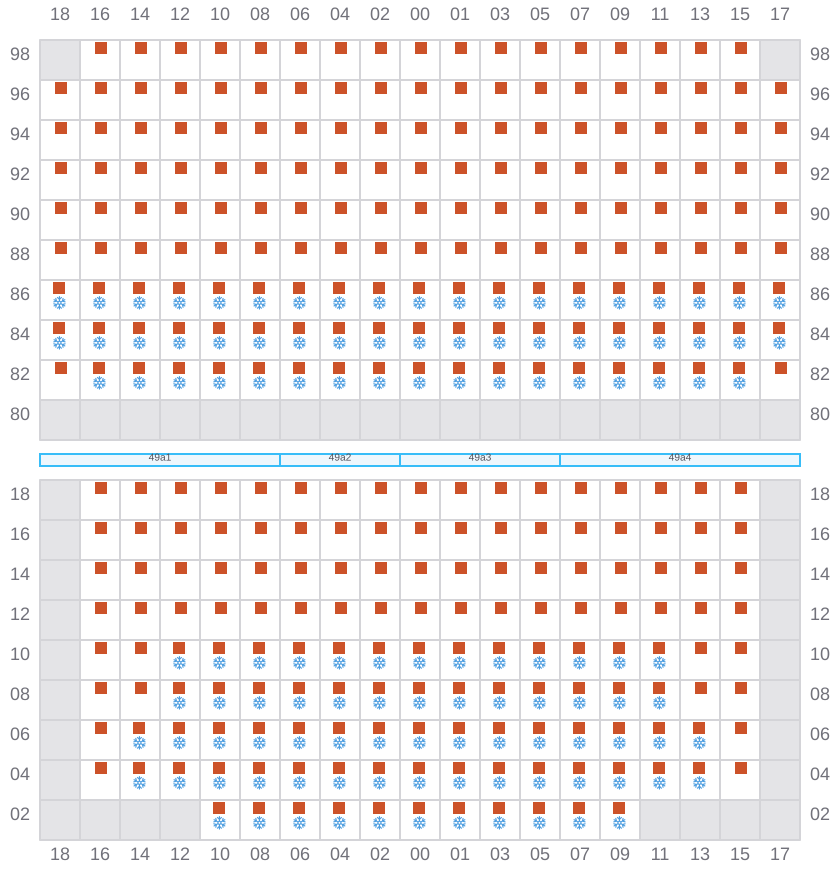

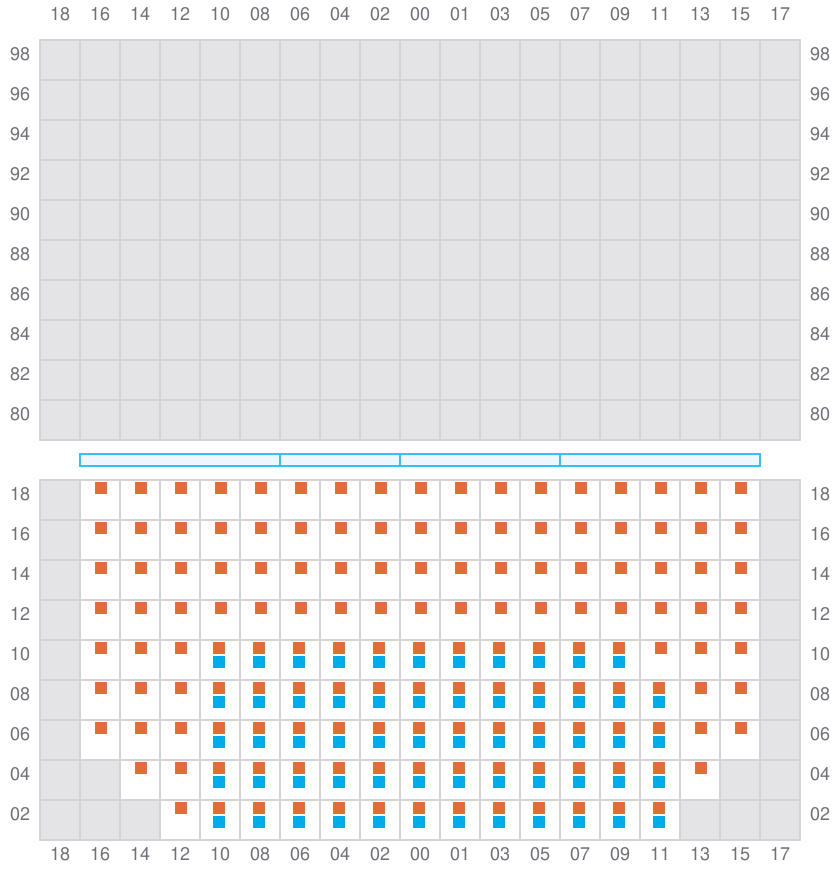

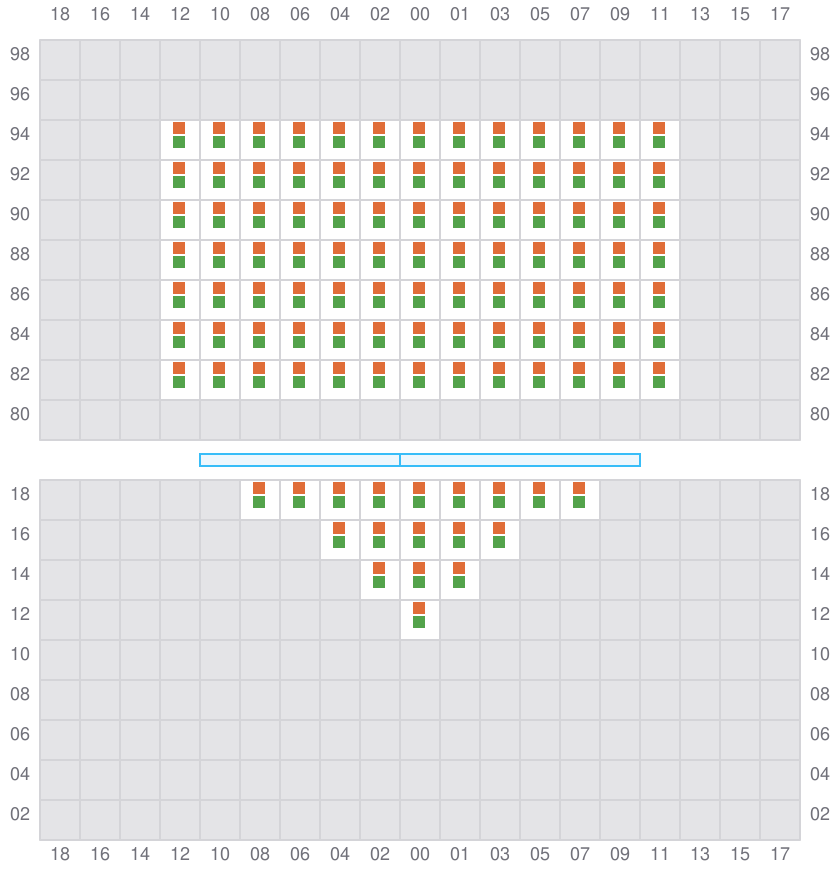

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←
005 (006)
- →
007
- ←
009 (010)
- →
011
- ←
013 (014)
- →
015
- ←
017 (018)
- →
019
- ←
021 (022)
- →
- ? / →
023
- ←
025 (026)
- →
027
- ? / ←
029 (030)
- →
031
- ? / ←
033 (034)
- →
035
- ←
- → / ?
037 (038)
- →
039
- ←
- → / ?
041 (042)
- →
043
- ←
- → / ?
045 (046)
- →
047
- ←
- → / ?
049 (050)
- →
051
- ←
- →
053 (054)
- → / ?
055
057 (058)
- →
059
- ? / ←
061 (062)
- →
063
- ←
065 (066)
- →
- ← / ?
067
- ←
069 (070)
- → / ?
