CBC SAVANNAH
8639194 | N/A | COLUMBIA by ********* Last update: Mon Apr 08 2024

General Info

Ship Name:CBC SAVANNAH
IMO Code:8639194
Call Sign:N/A
Line Operator:COLUMBIA
Class Name for Sister Ships:BARGE
Year Built:1994
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:019
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:-
Min Below ISO Tier:-
Total TEU:540

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

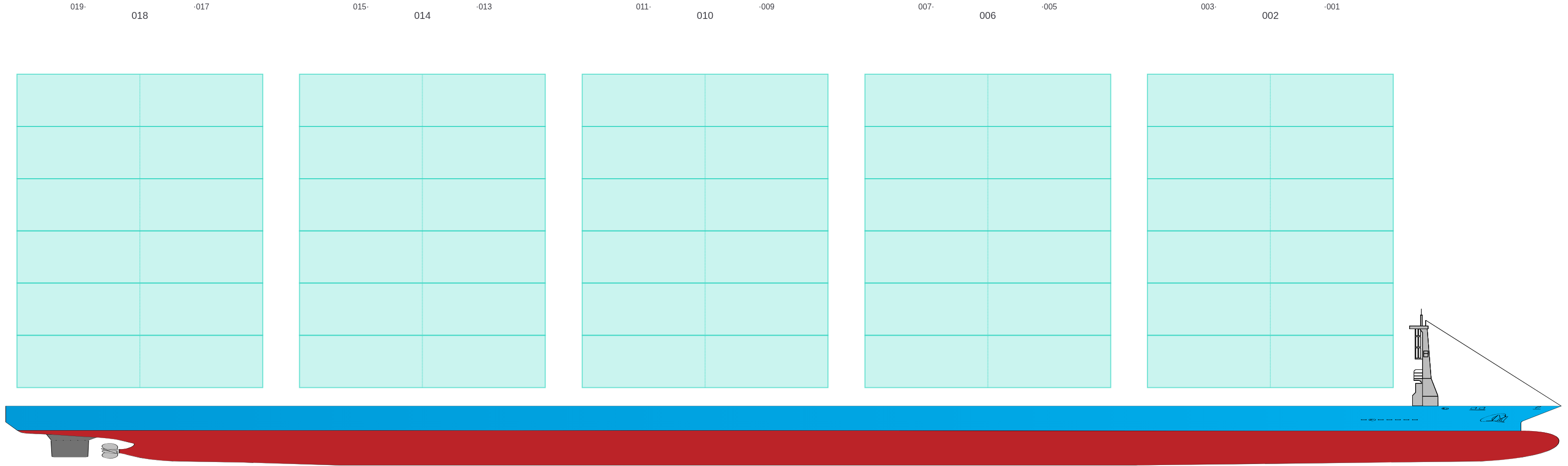

Side view of CBC SAVANNAH

Hatch-Covers View

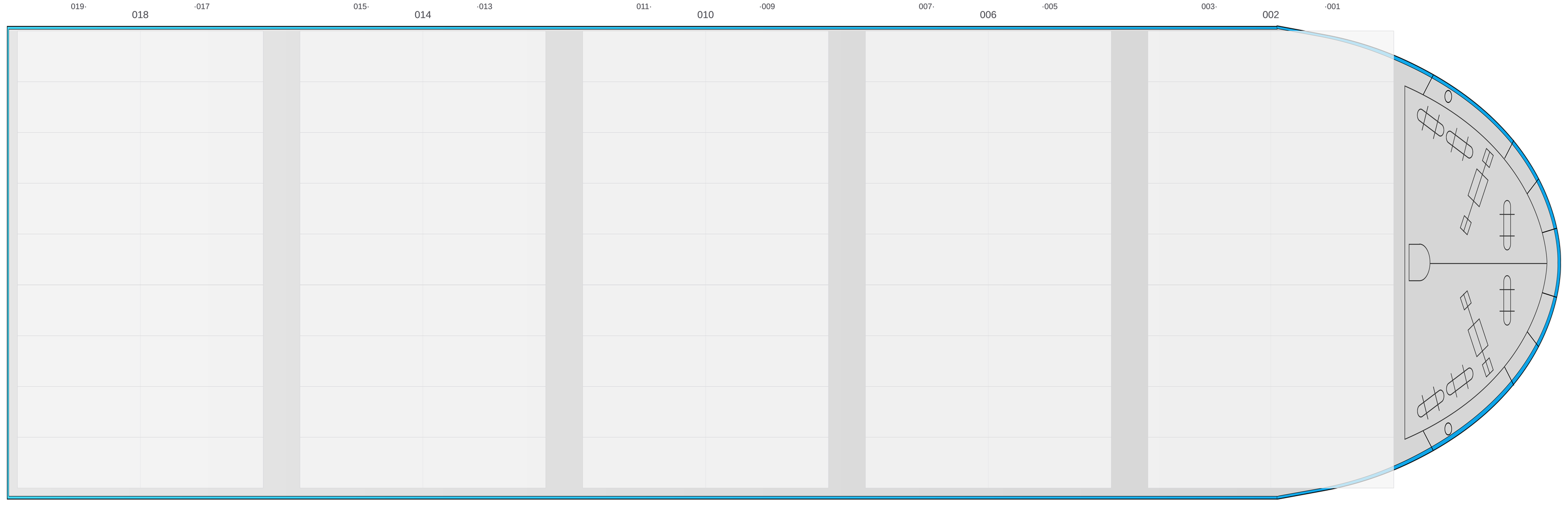

Deck view of CBC SAVANNAH

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

Bay 001 view and slots of CBC SAVANNAH

003

Bay 003 view and slots of CBC SAVANNAH

005 (006)

Bay 005 view and slots of CBC SAVANNAH

007

Bay 007 view and slots of CBC SAVANNAH

009 (010)

Bay 009 view and slots of CBC SAVANNAH

011

Bay 011 view and slots of CBC SAVANNAH

013 (014)

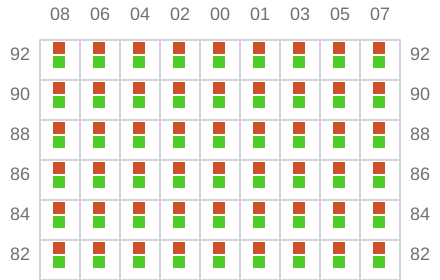

Bay 013 view and slots of CBC SAVANNAH

015

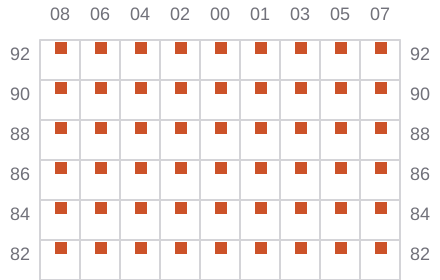

Bay 015 view and slots of CBC SAVANNAH

017 (018)

Bay 017 view and slots of CBC SAVANNAH

019

Bay 019 view and slots of CBC SAVANNAH
