CCNI ARAUCO
9683843 | D5GZ3 | 968384 by ********* Last update: Fri Apr 05 2024
General Info
Ship Name:CCNI ARAUCO
IMO Code:9683843
Call Sign:D5GZ3
Line Operator:968384
Class Name for Sister Ships:CCNI
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:100
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,112
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-sideView.png?v=1712339330438)

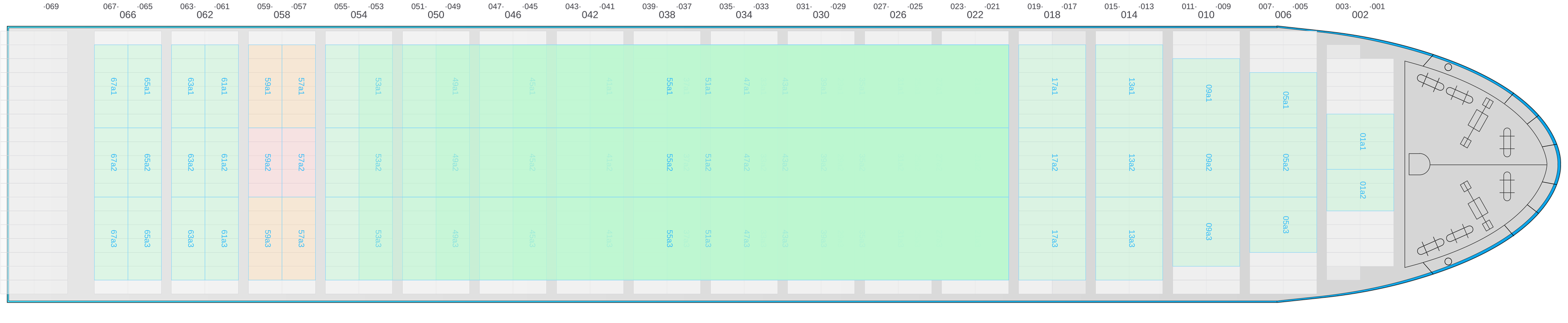

Hatch-Covers View
![Deck view of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-deckView.png?v=1712339330438)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

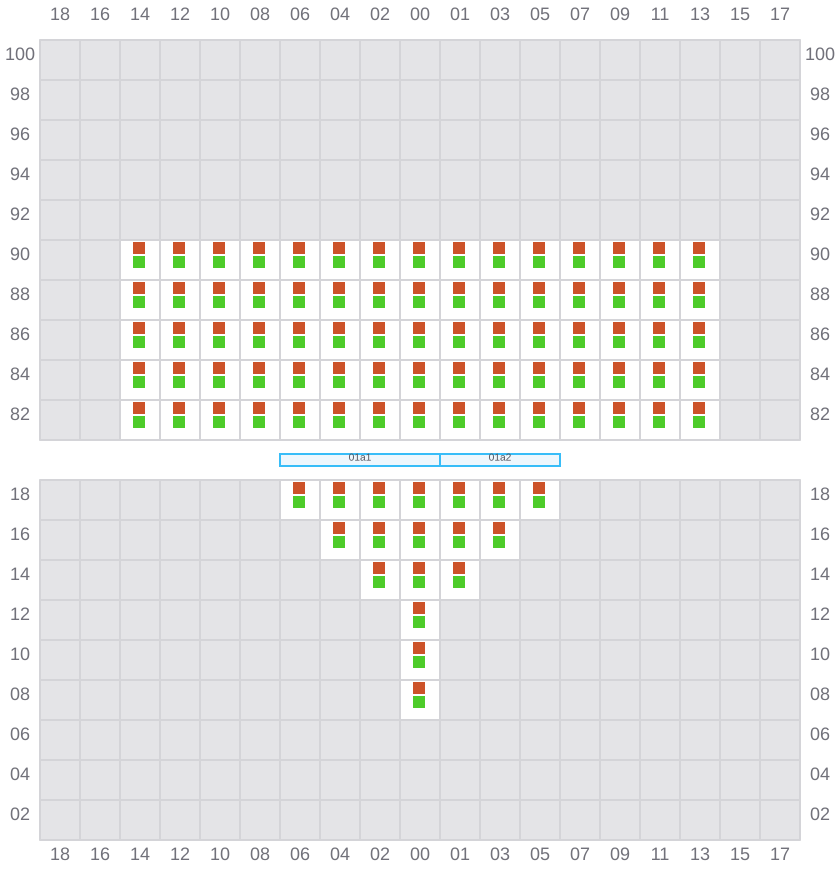

001 (002)
- →
![Bay 001 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b001.png?v=1712339330438)

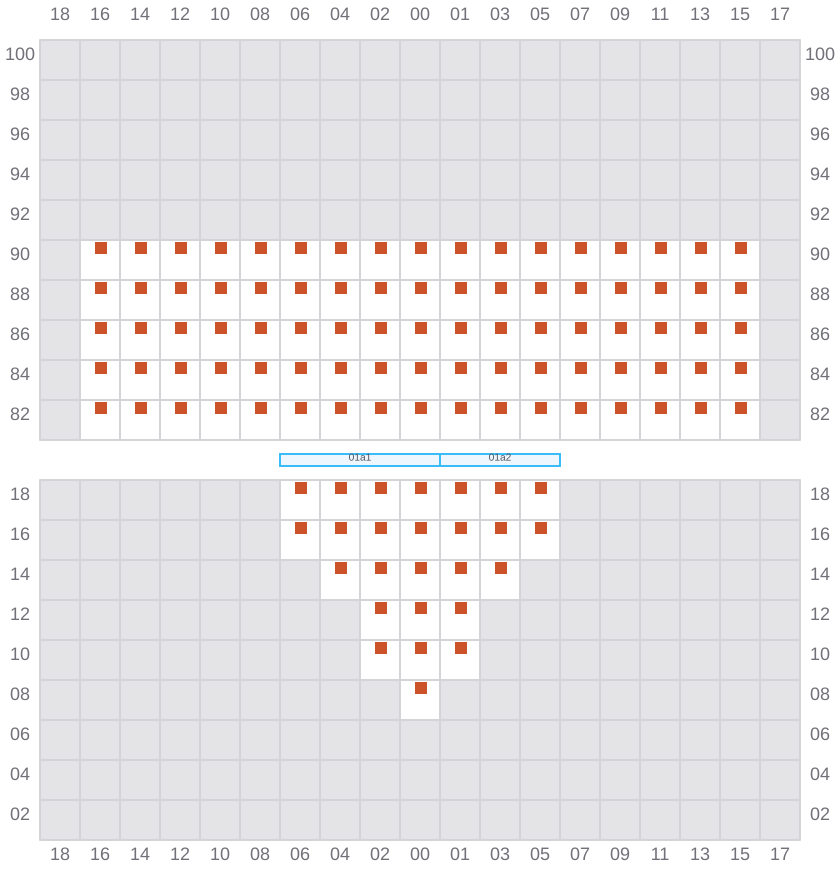

003
- ←
![Bay 003 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b003.png?v=1712339330438)

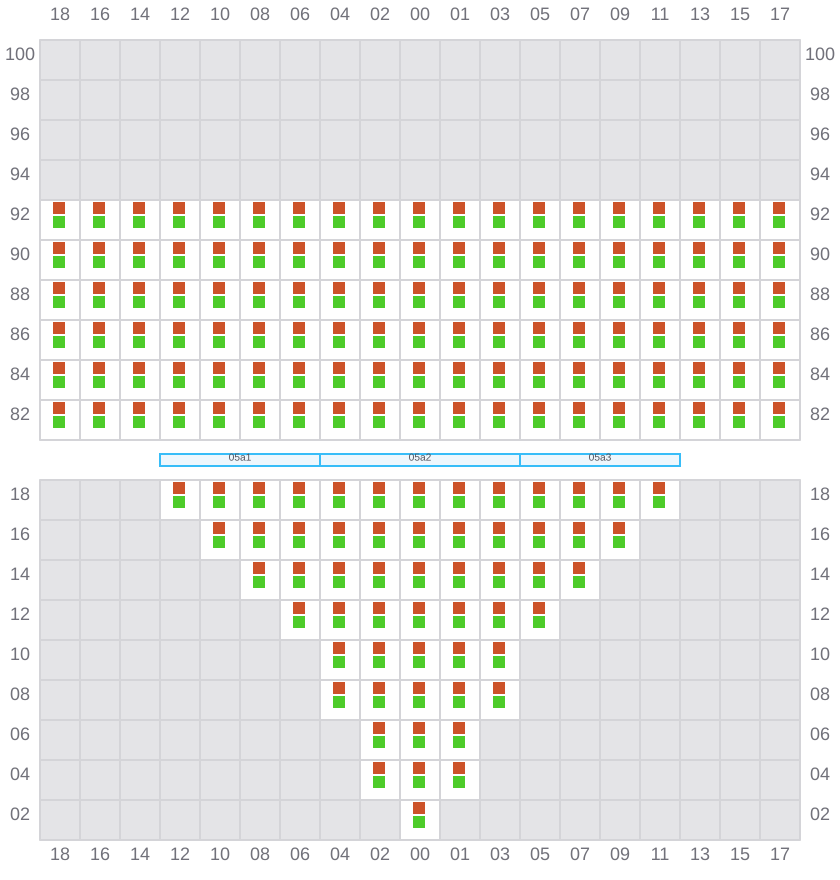

005 (006)
- →
![Bay 005 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b005.png?v=1712339330438)

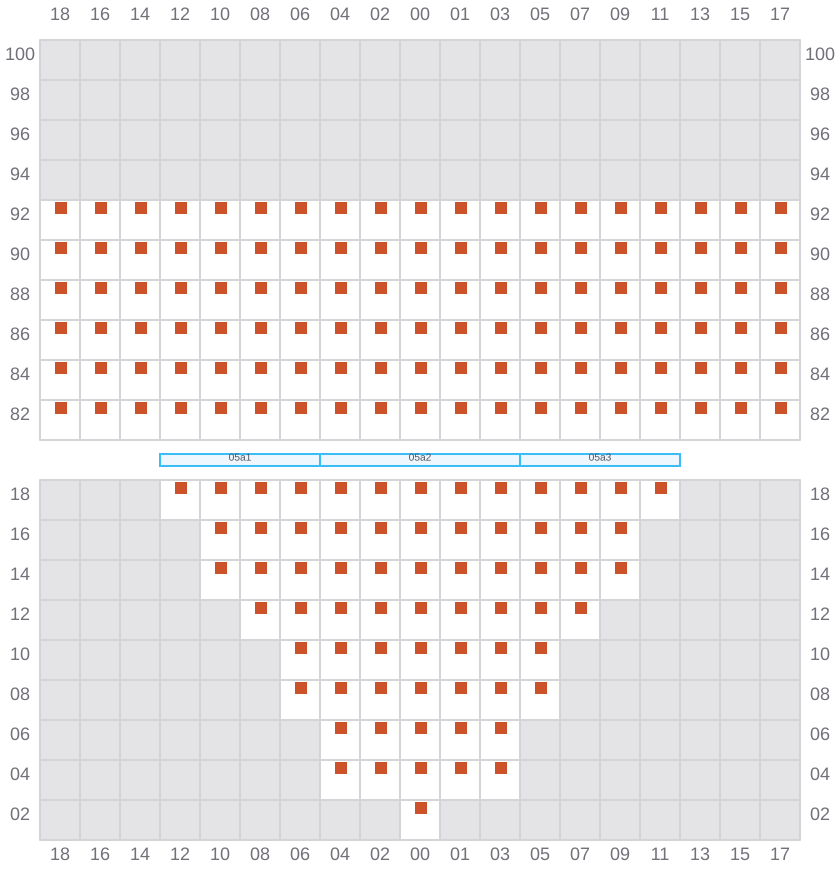

007
- ←
![Bay 007 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b007.png?v=1712339330438)

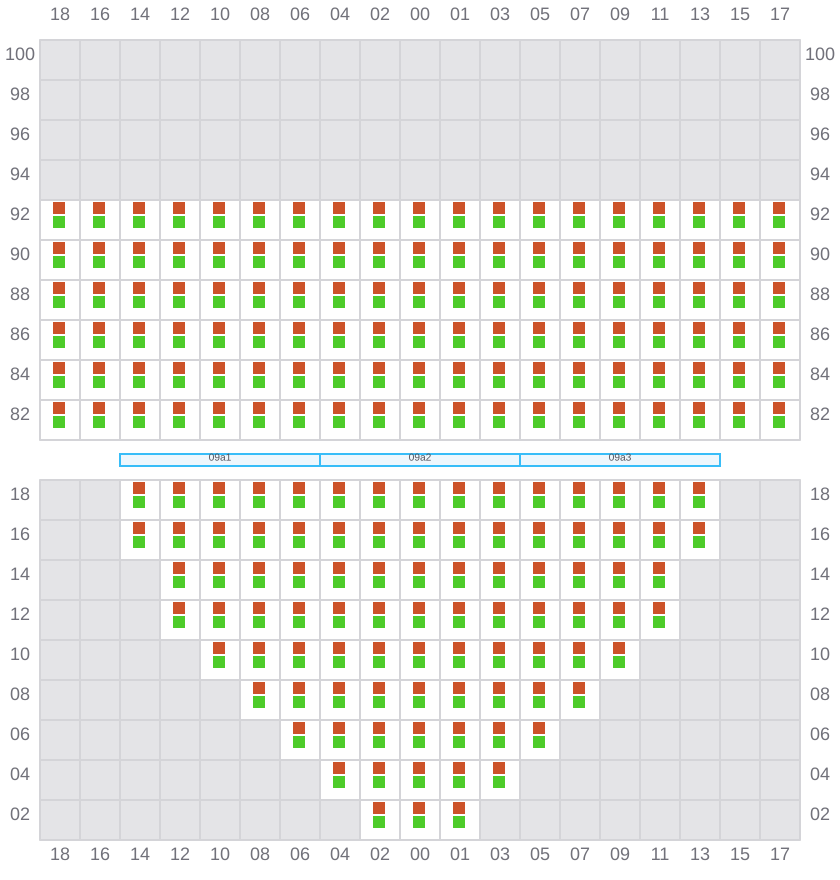

009 (010)
- →
![Bay 009 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b009.png?v=1712339330438)

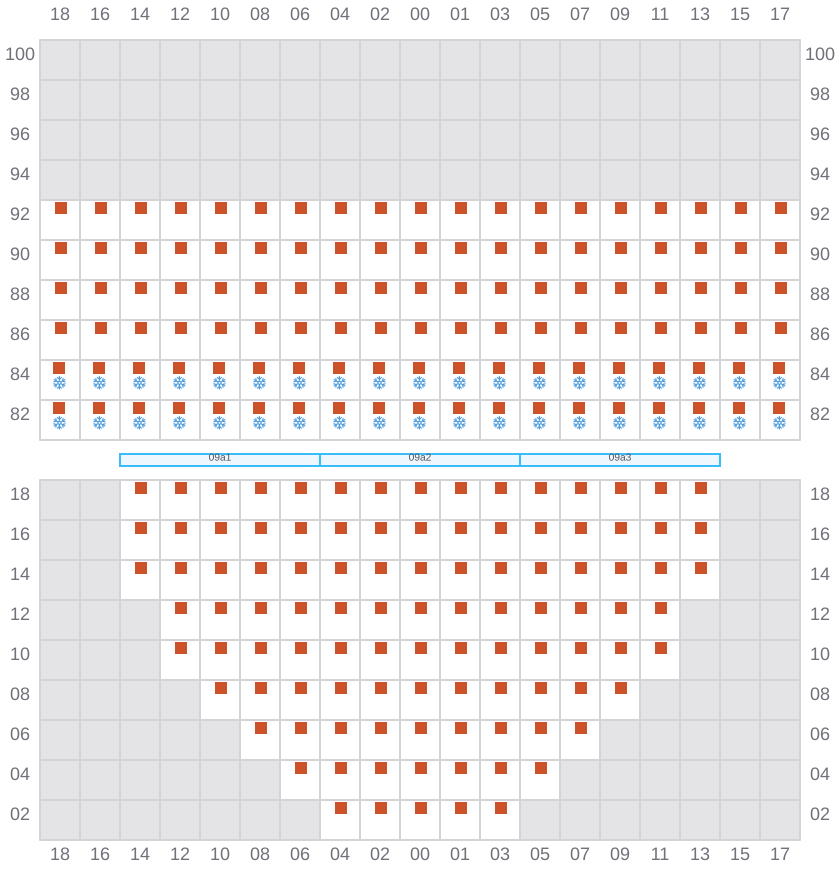

011
- ←
![Bay 011 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b011.png?v=1712339330438)

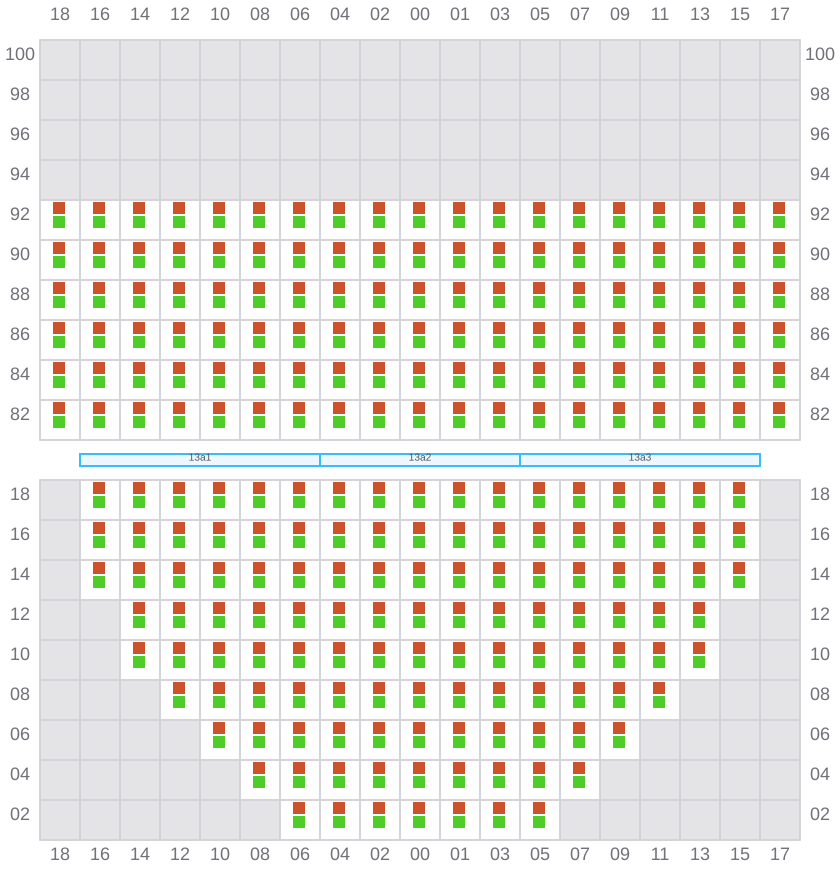

013 (014)
- →
![Bay 013 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b013.png?v=1712339330438)
015
- ←
![Bay 015 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b015.png?v=1712339330438)

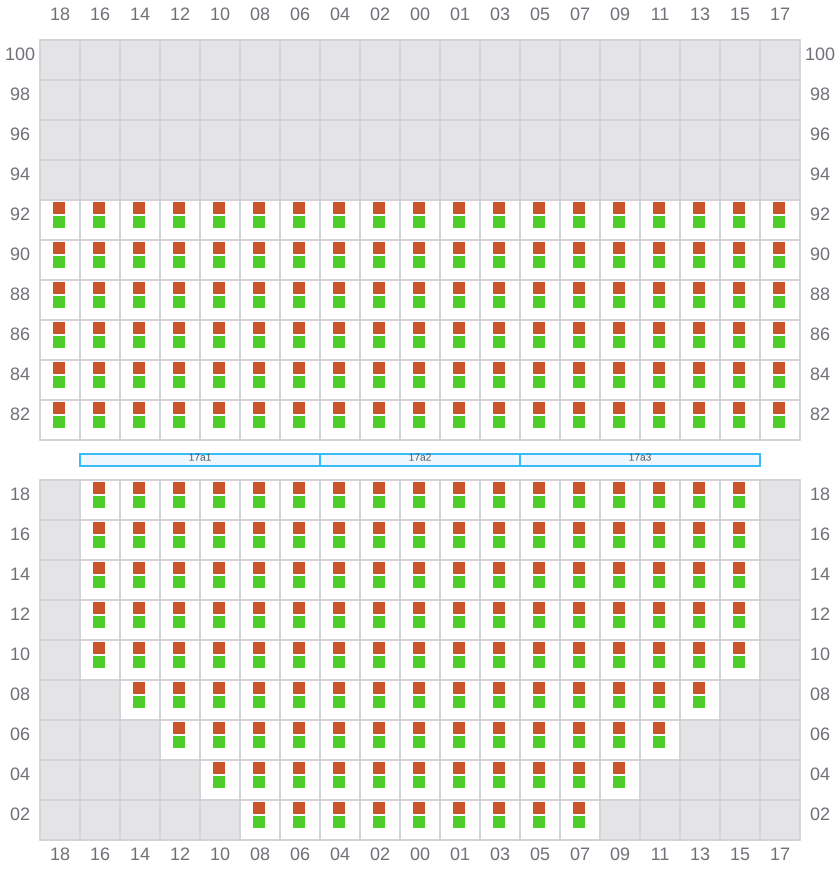

017 (018)
- →
![Bay 017 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b017.png?v=1712339330438)

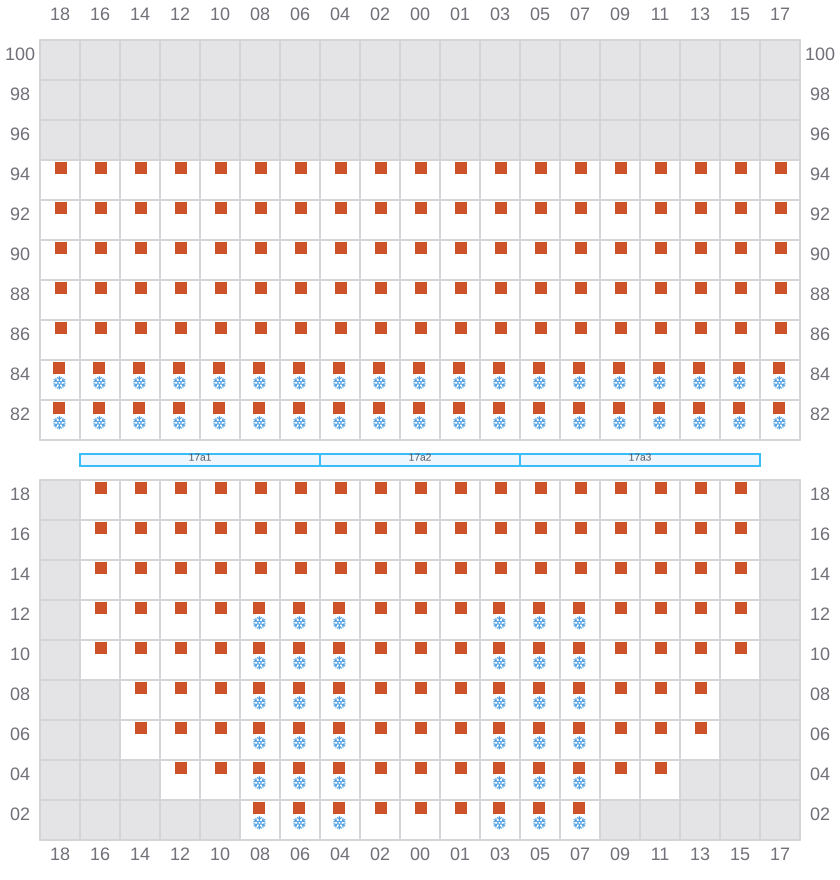

019
- ←
![Bay 019 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b019.png?v=1712339330438)
021 (022)
- →
![Bay 021 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b021.png?v=1712339330438)

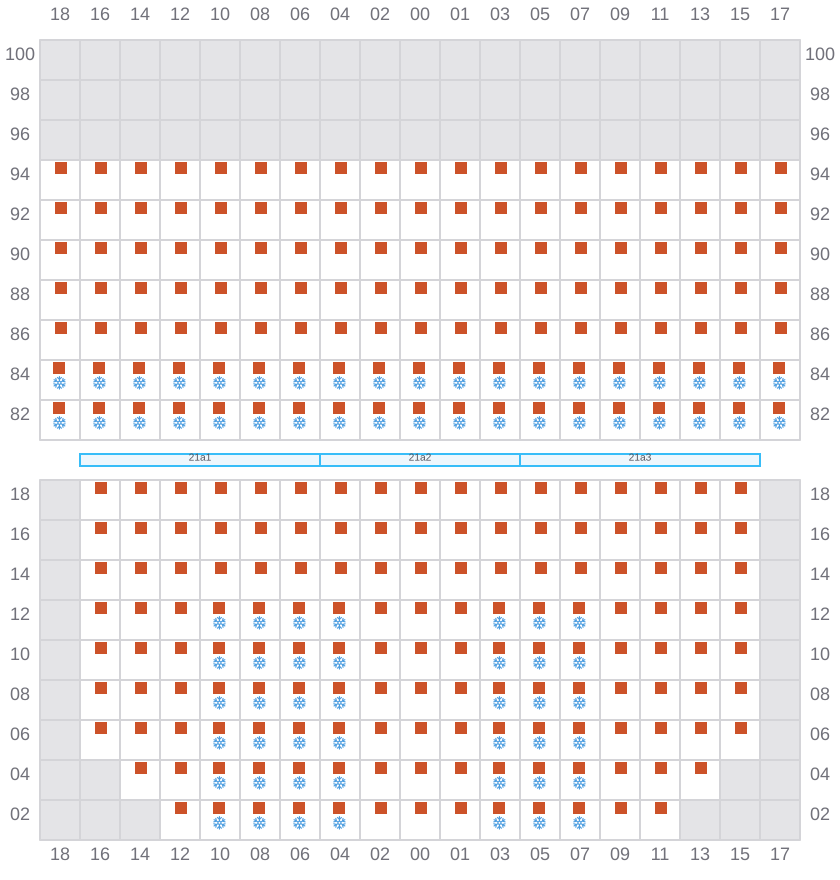

023
- ←
![Bay 023 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b023.png?v=1712339330438)

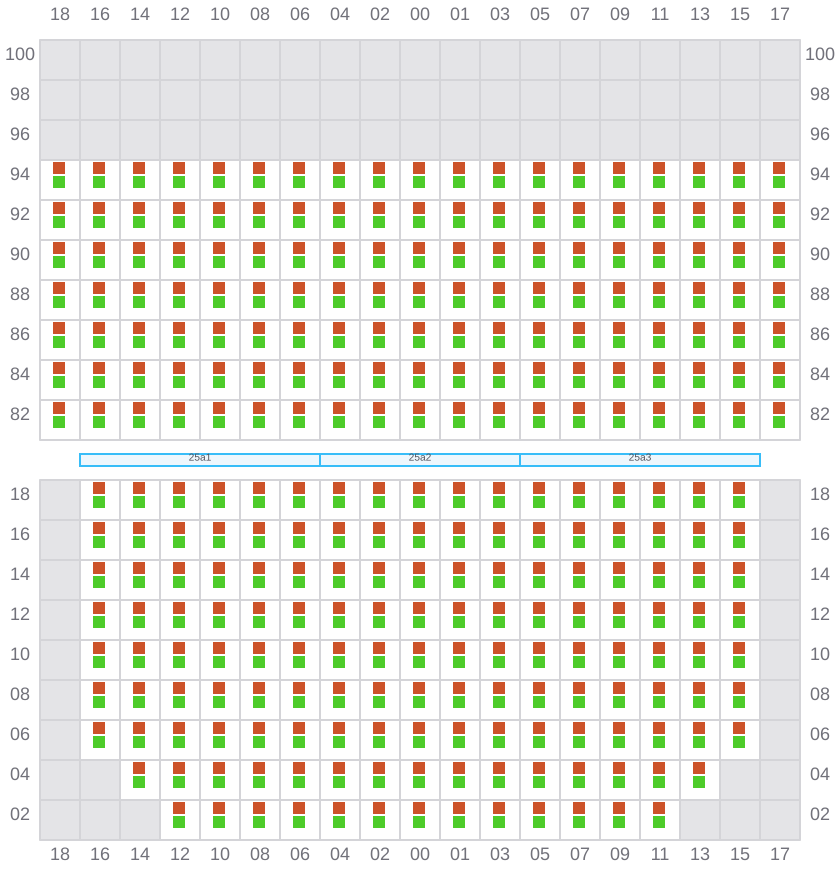

025 (026)
- →
![Bay 025 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b025.png?v=1712339330438)

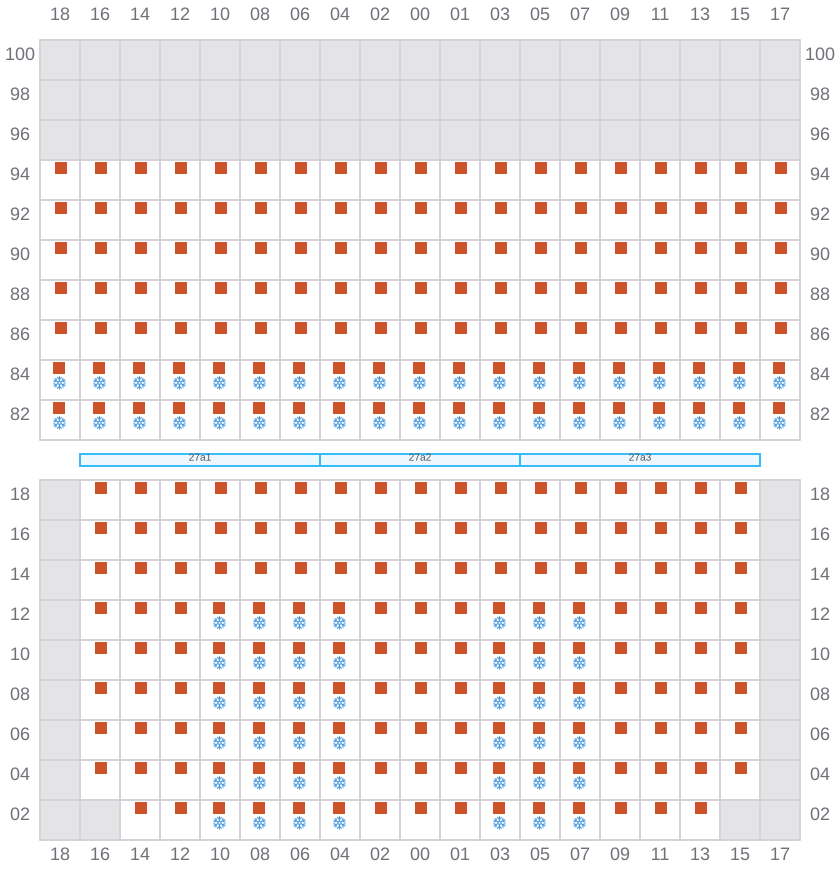

027
- ←
![Bay 027 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b027.png?v=1712339330438)

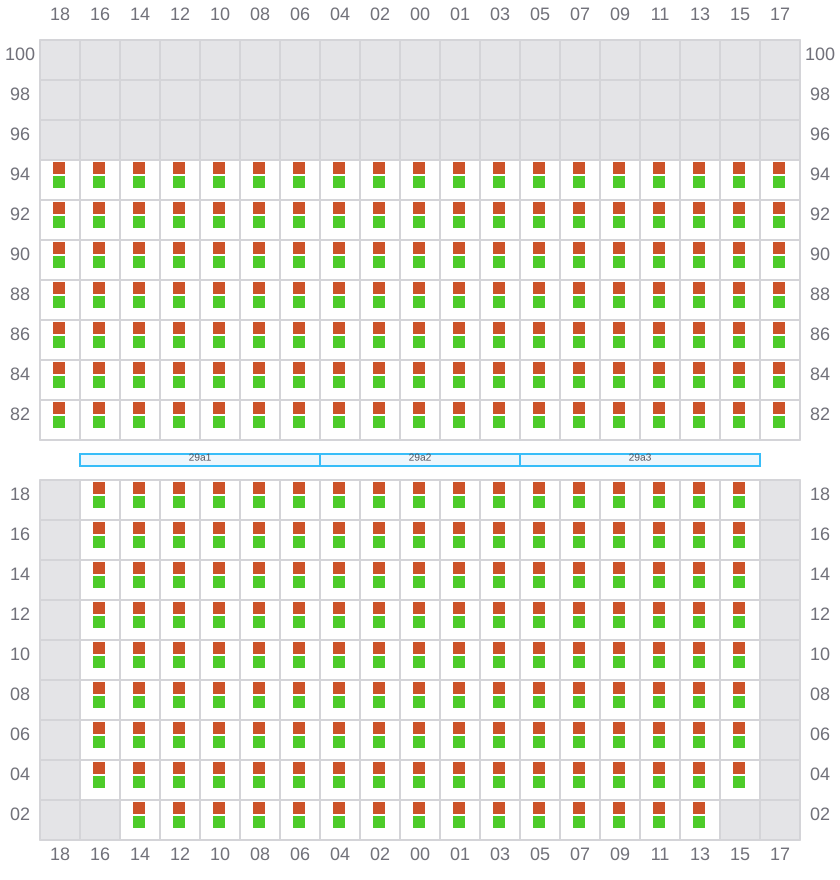

029 (030)
- →
![Bay 029 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b029.png?v=1712339330438)

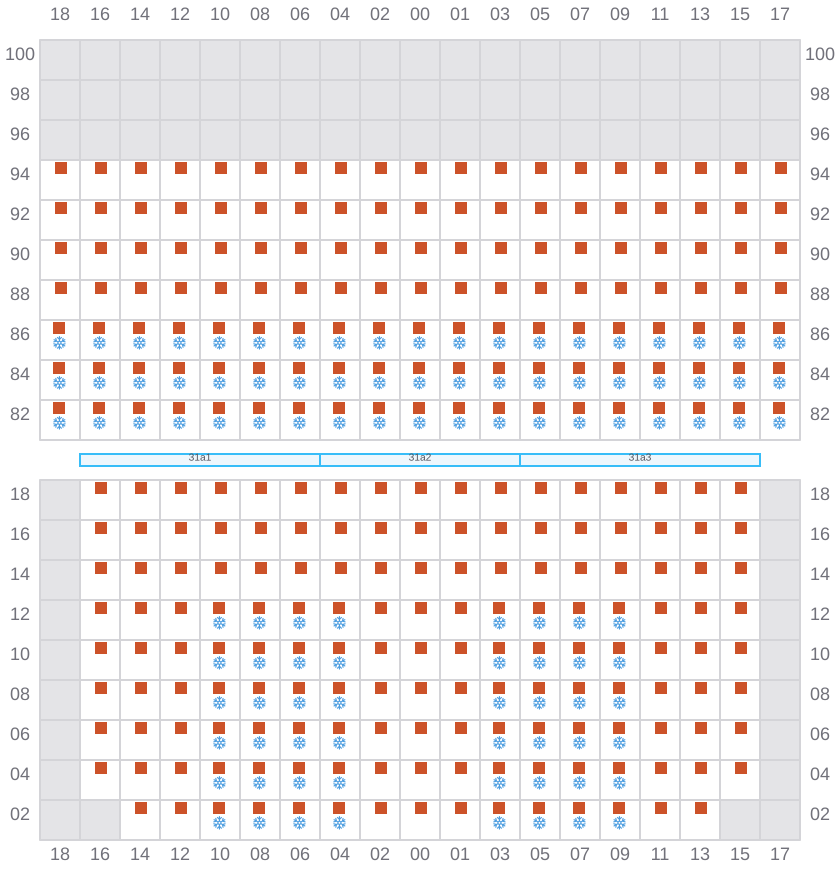

031
- ←
![Bay 031 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b031.png?v=1712339330438)

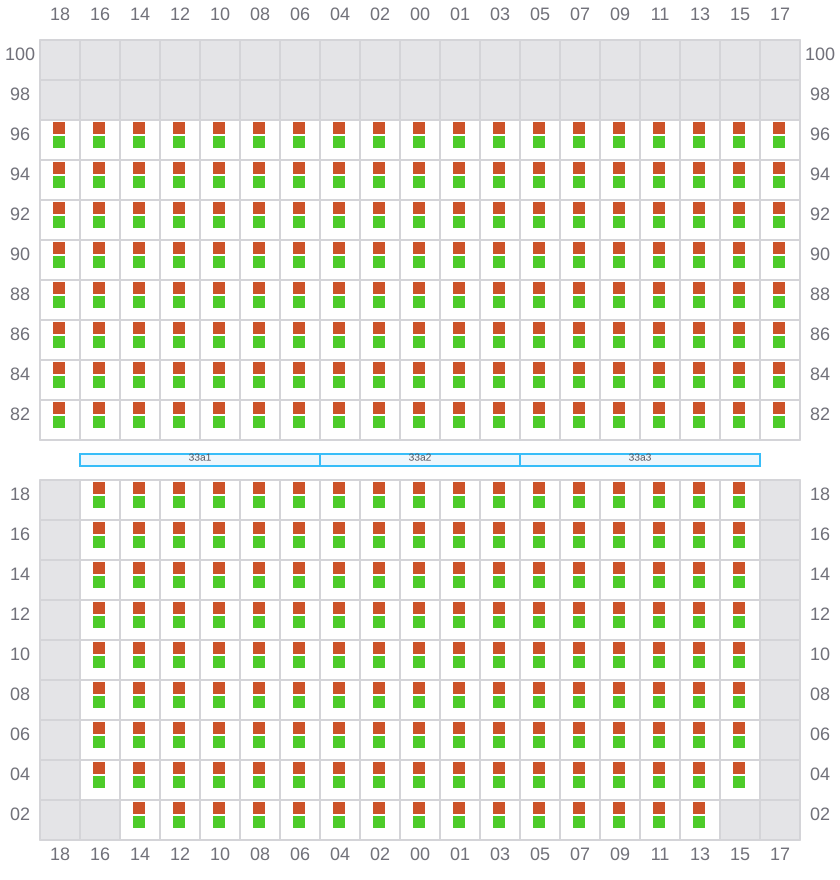

033 (034)
- →
![Bay 033 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b033.png?v=1712339330438)

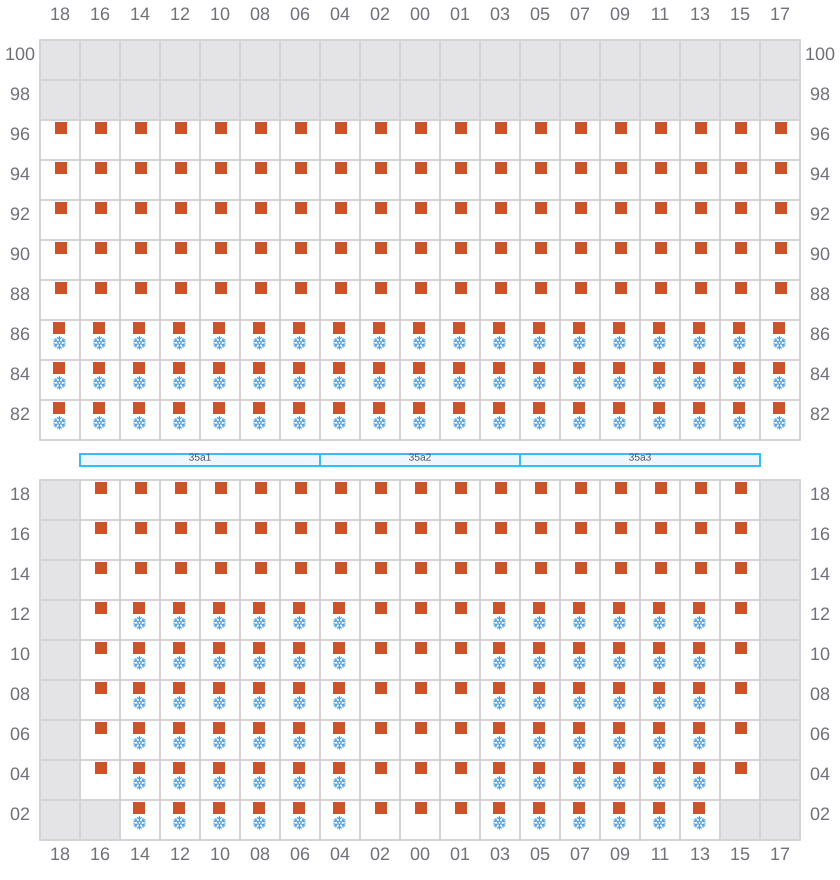

035
- ←
![Bay 035 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b035.png?v=1712339330438)

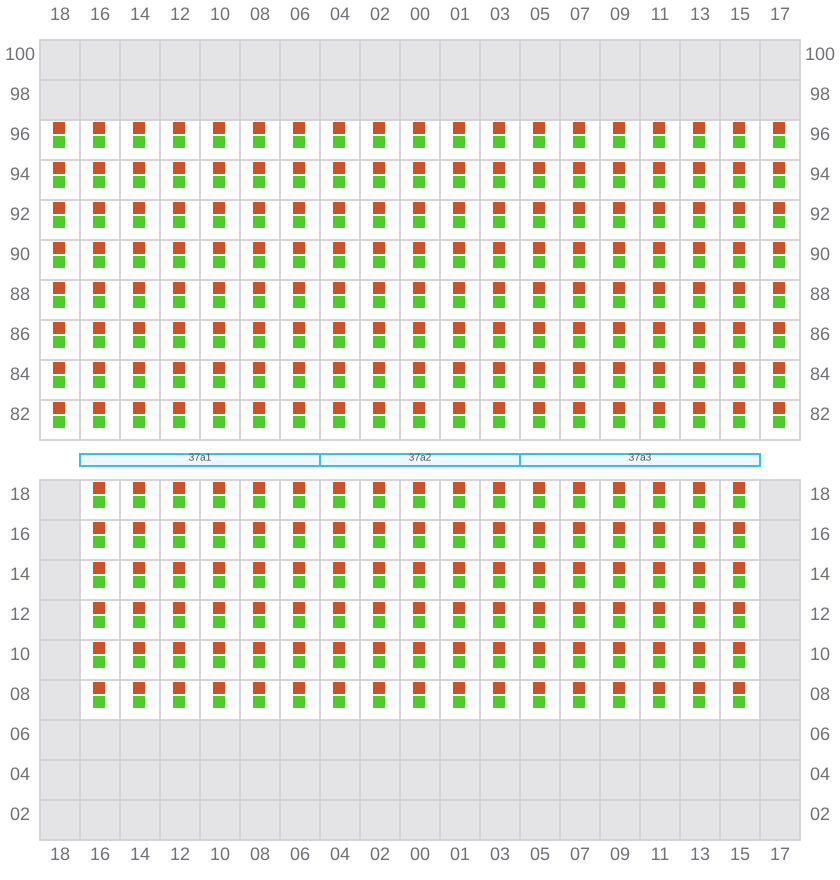

037 (038)
- →
![Bay 037 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b037.png?v=1712339330438)

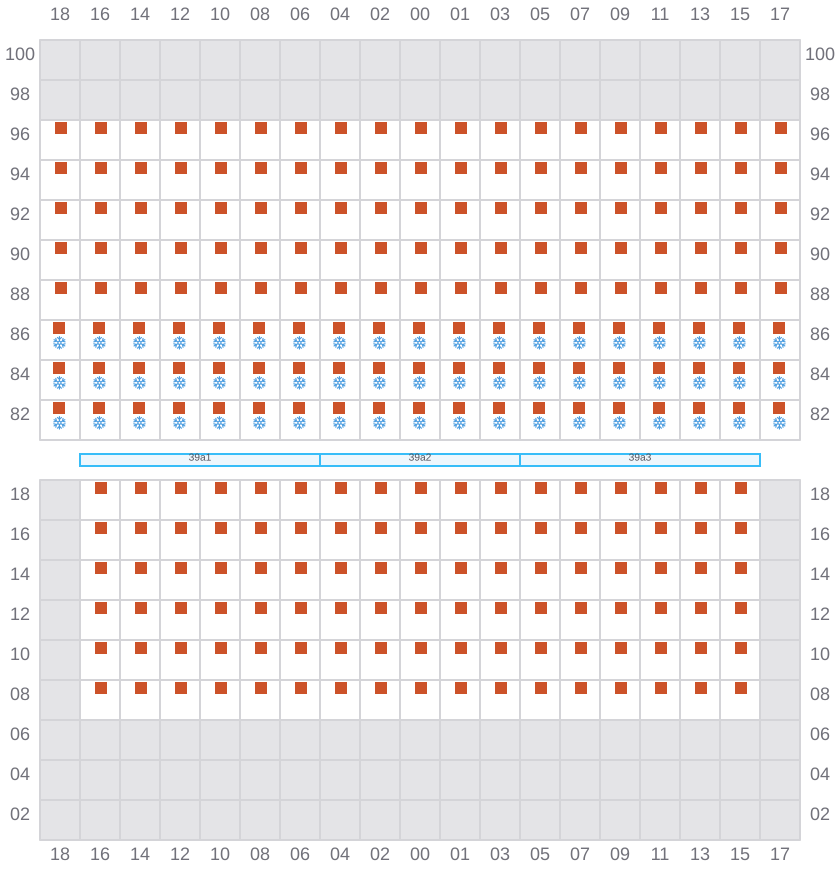

039
- ←
![Bay 039 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b039.png?v=1712339330438)
041 (042)
- →
![Bay 041 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b041.png?v=1712339330438)
043
- ←
![Bay 043 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b043.png?v=1712339330438)

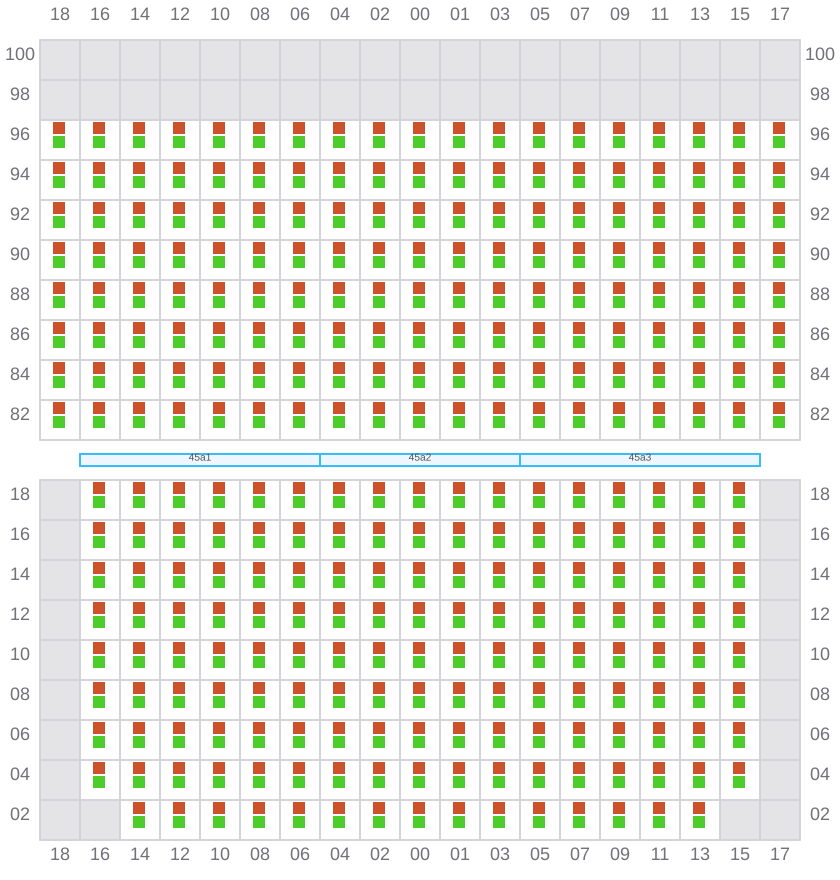

045 (046)
- →
![Bay 045 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b045.png?v=1712339330438)
047
- ←
![Bay 047 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b047.png?v=1712339330438)

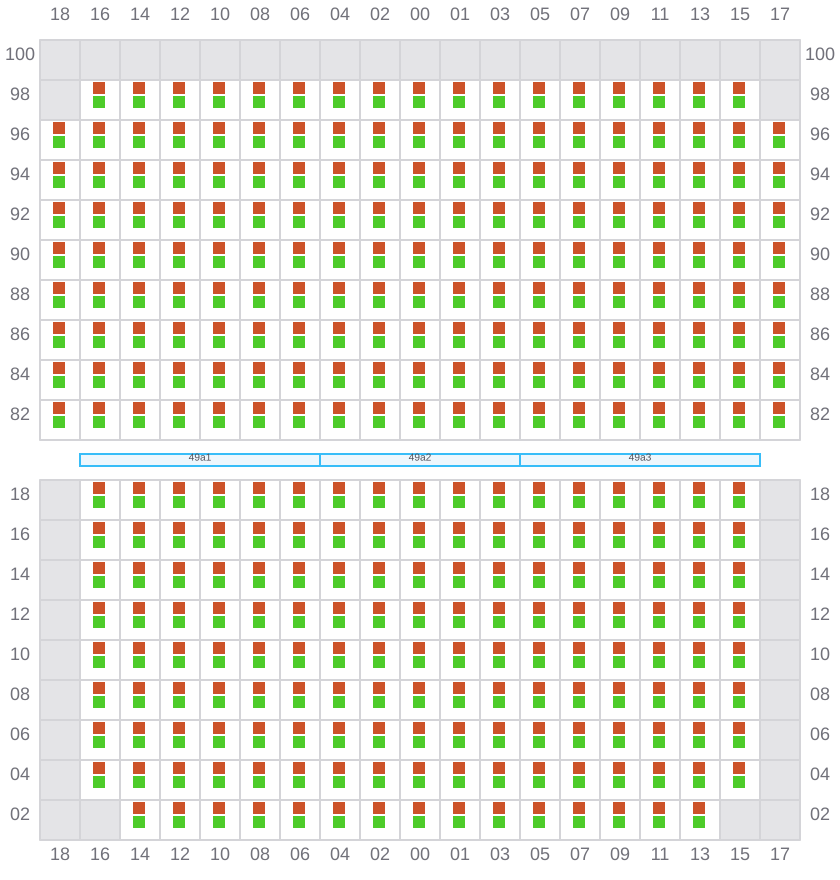

049 (050)
- →
![Bay 049 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b049.png?v=1712339330438)

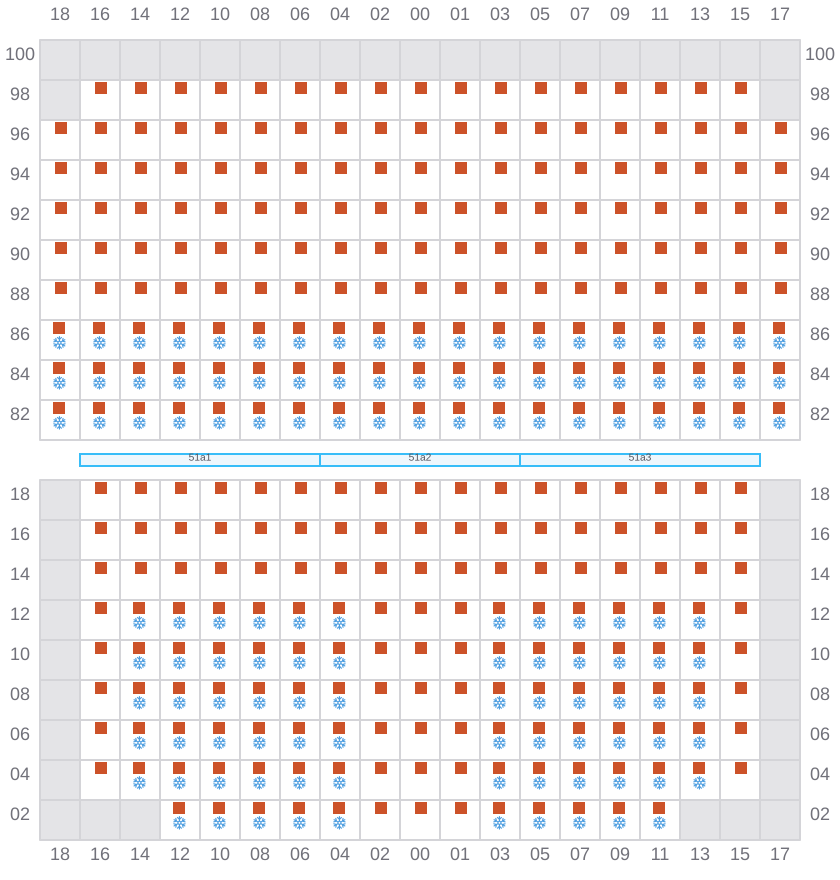

051
- ←
![Bay 051 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b051.png?v=1712339330438)

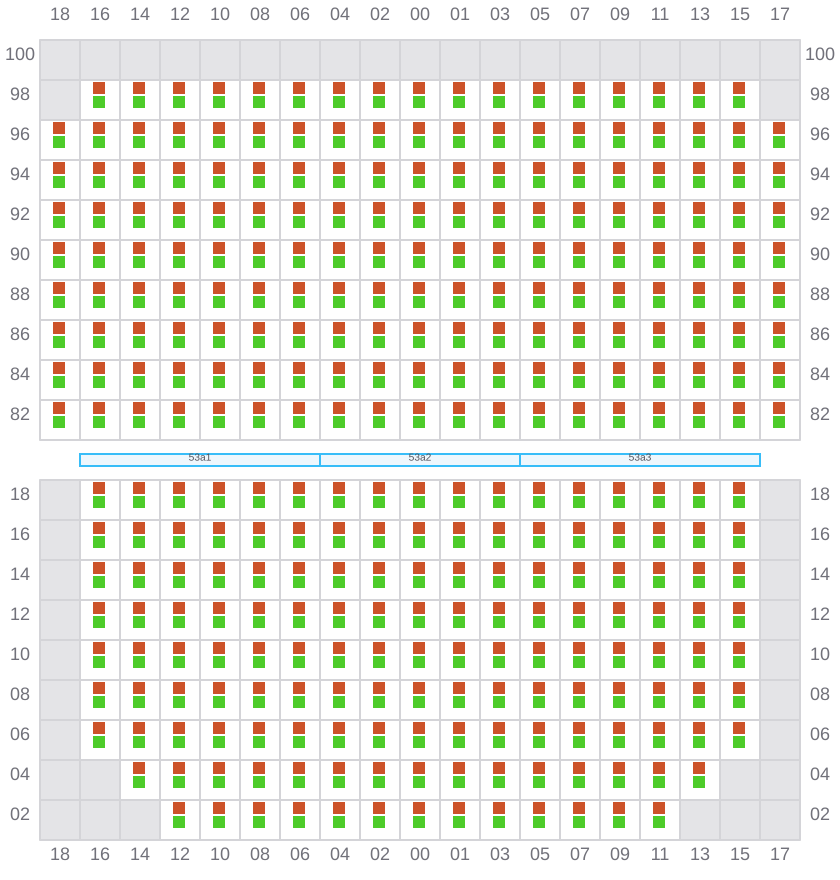

053 (054)
- →
![Bay 053 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b053.png?v=1712339330438)

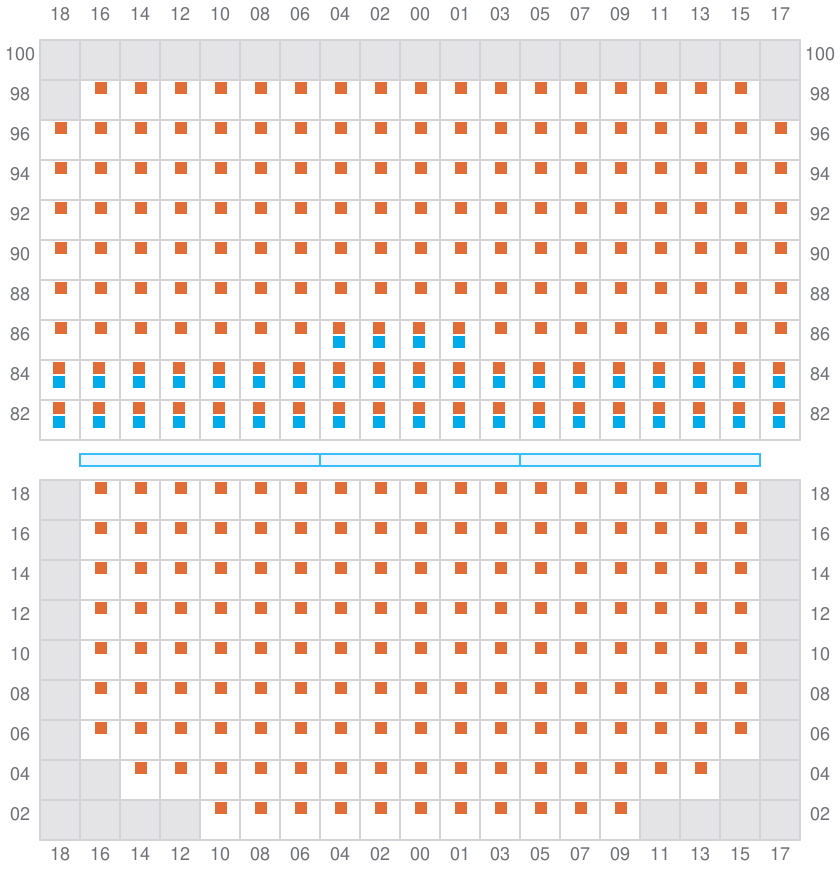

055
- ←
![Bay 055 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b055.png?v=1712339330438)

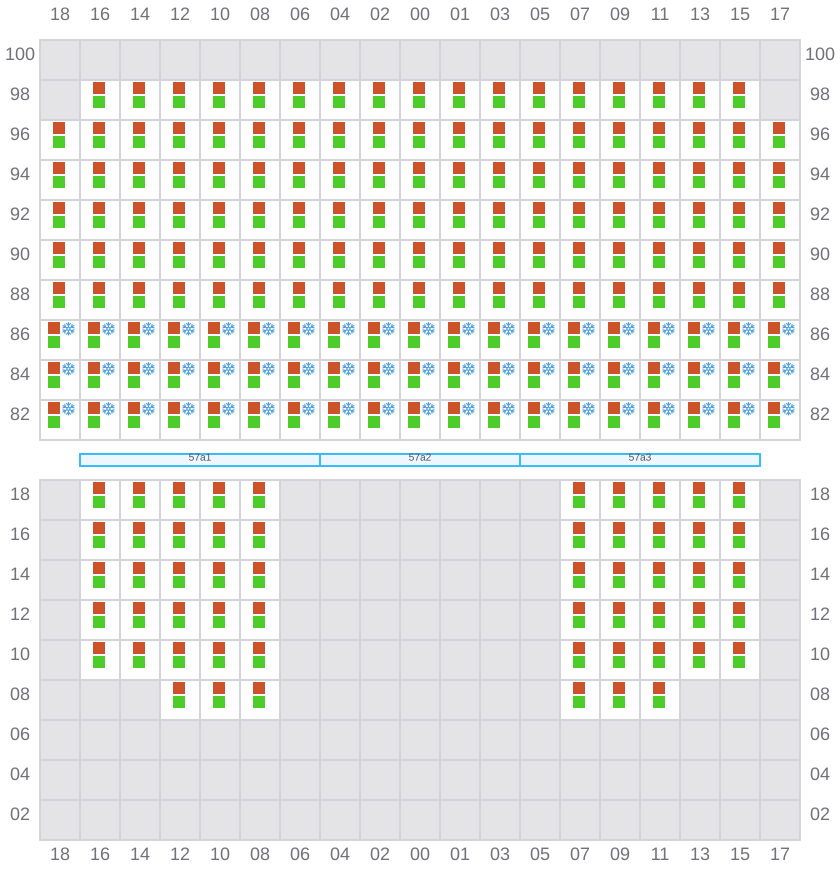

057 (058)
- →
![Bay 057 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b057.png?v=1712339330438)

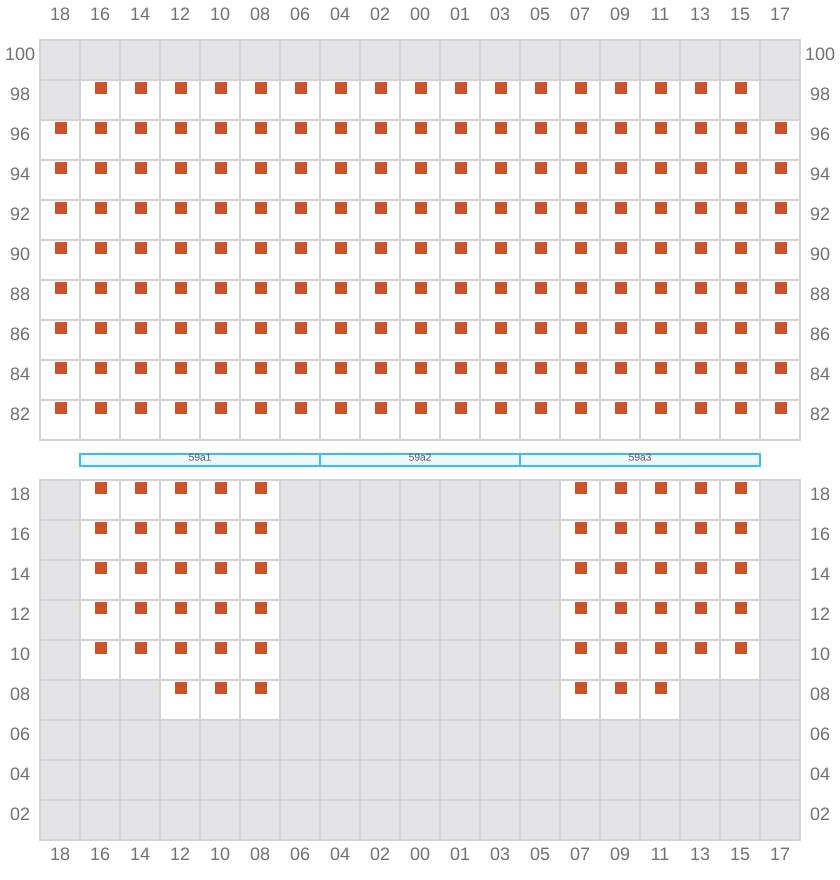

059
- ←
![Bay 059 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b059.png?v=1712339330438)

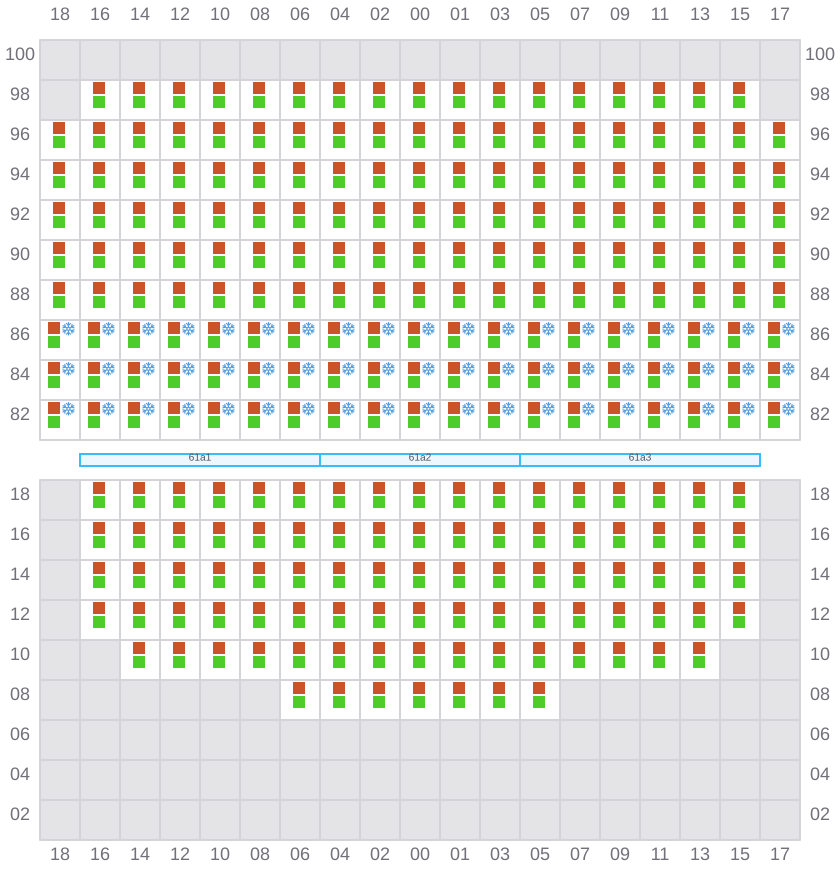

061 (062)
- →
![Bay 061 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b061.png?v=1712339330438)

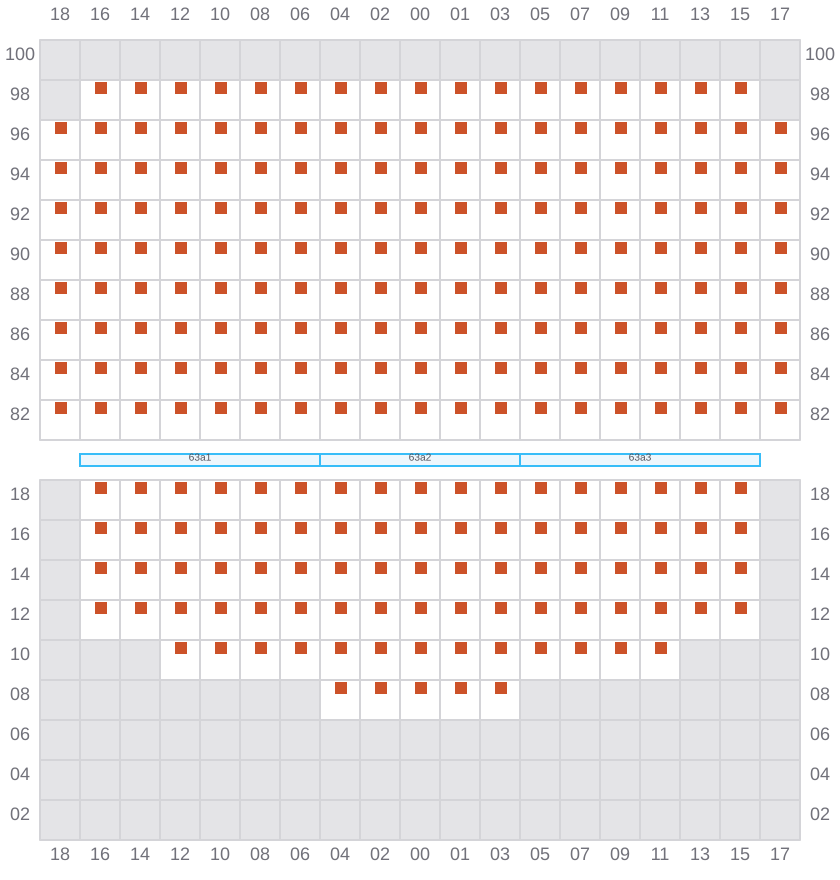

063
- ←
![Bay 063 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b063.png?v=1712339330438)

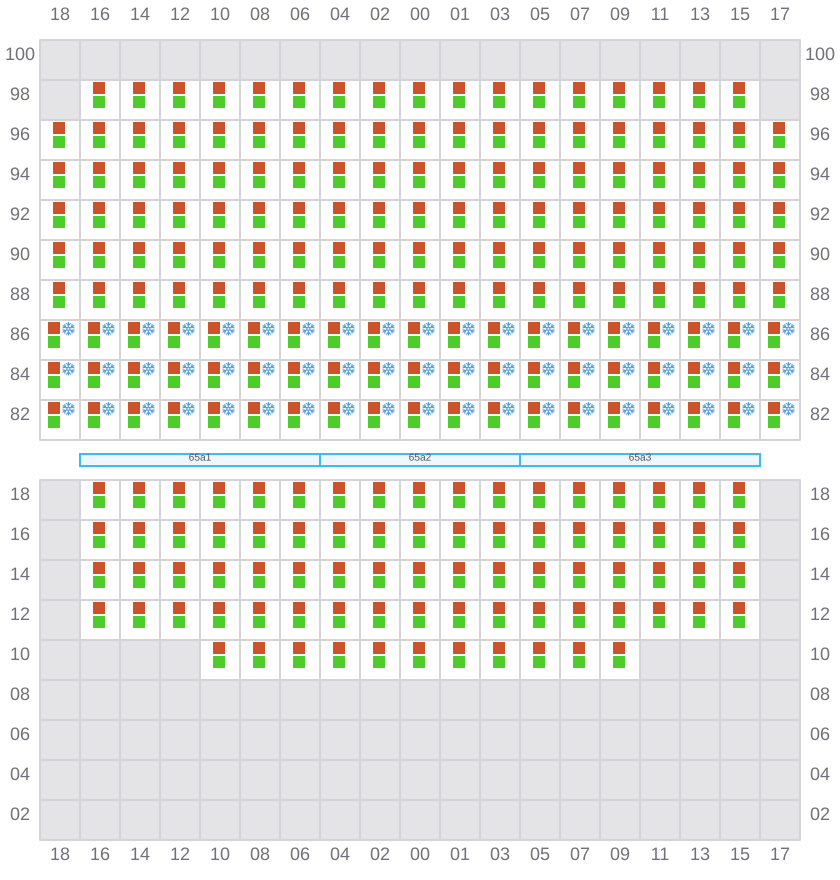

065 (066)
- →
![Bay 065 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b065.png?v=1712339330438)

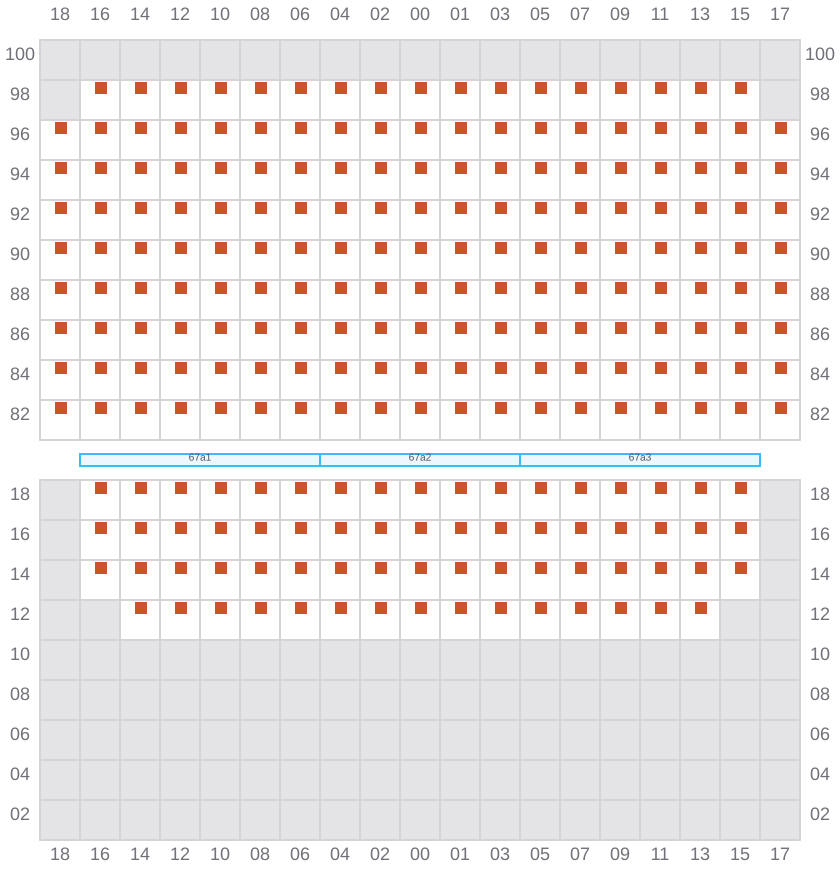

067
- ←
![Bay 067 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b067.png?v=1712339330438)

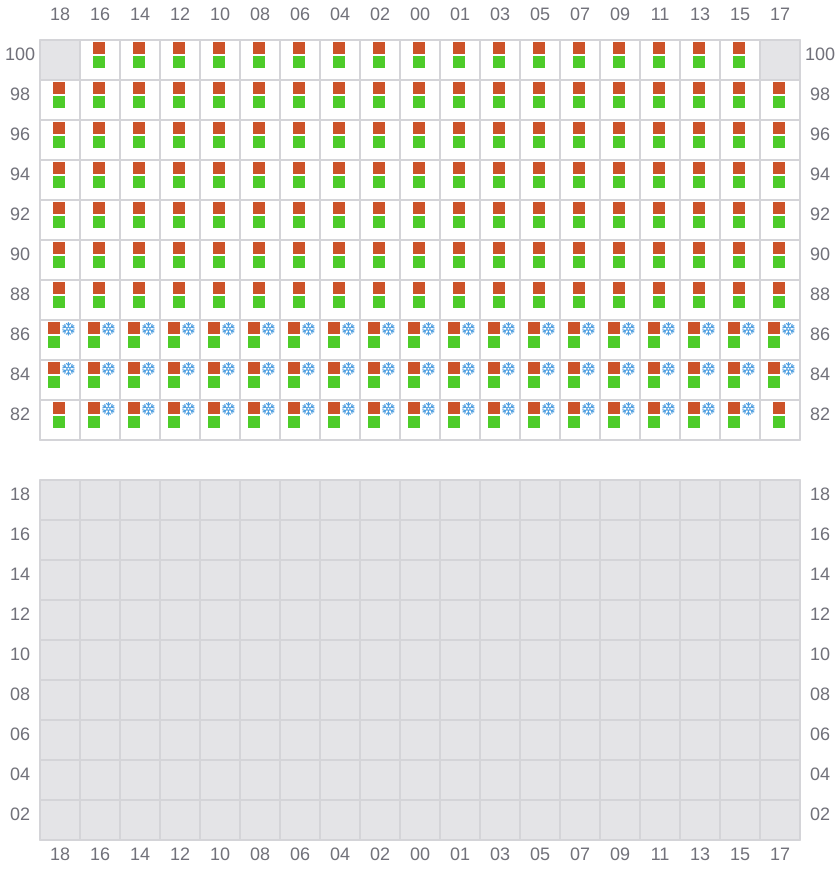

069 (070)
- → / ?
![Bay 069 view and slots of CCNI ARAUCO](/vessel-images/e47aeace-9317-4f4f-b956-7b2e91d53261-b069.png?v=1712339330438)
