CELSIUS BOSTON
9315355 | V7A4946 | 9315355 by ********* Last update: Tue May 14 2024
General Info
Ship Name:CELSIUS BOSTON
IMO Code:9315355
Call Sign:V7A4946
Line Operator:9315355
Class Name for Sister Ships:HS BIZET
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:059
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,607
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

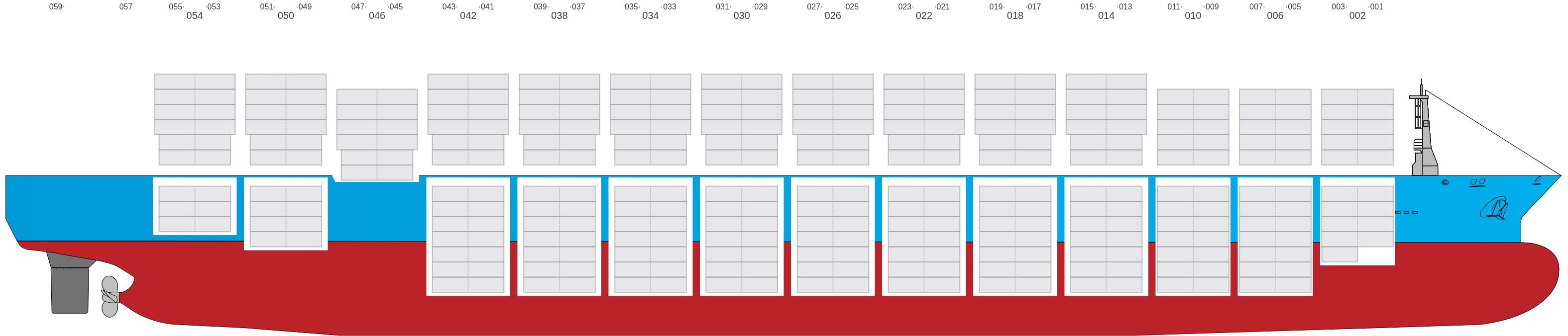

Side View

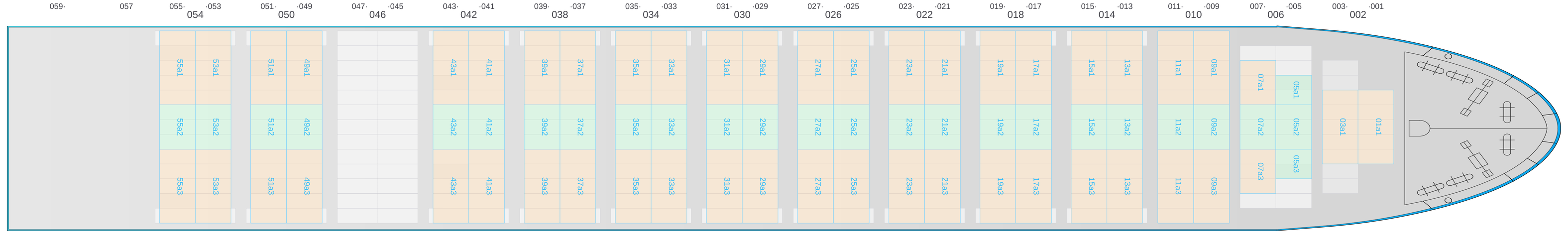

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

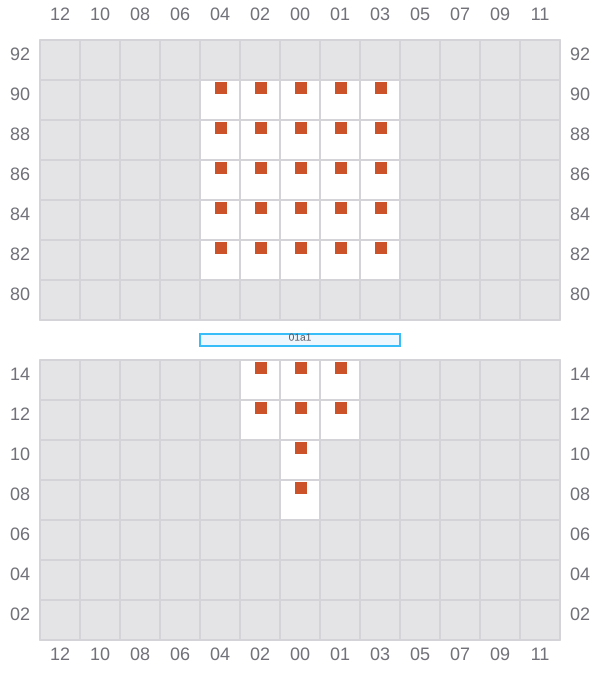

001
- →

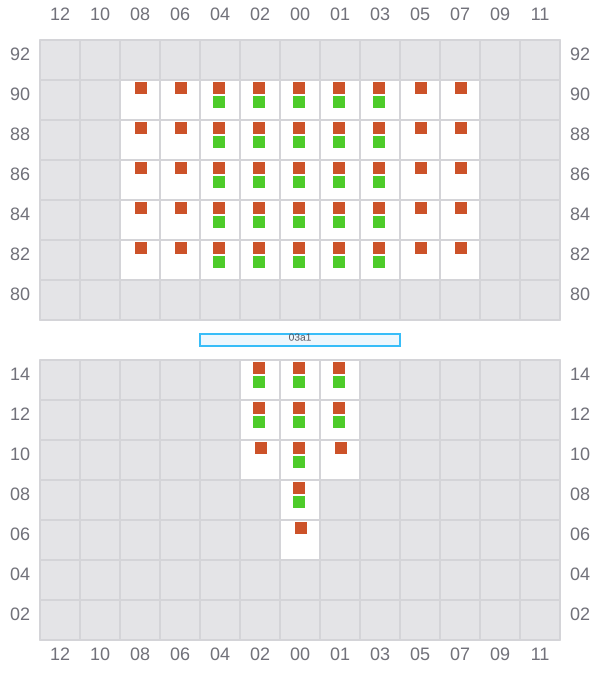

003 (002)
- ←

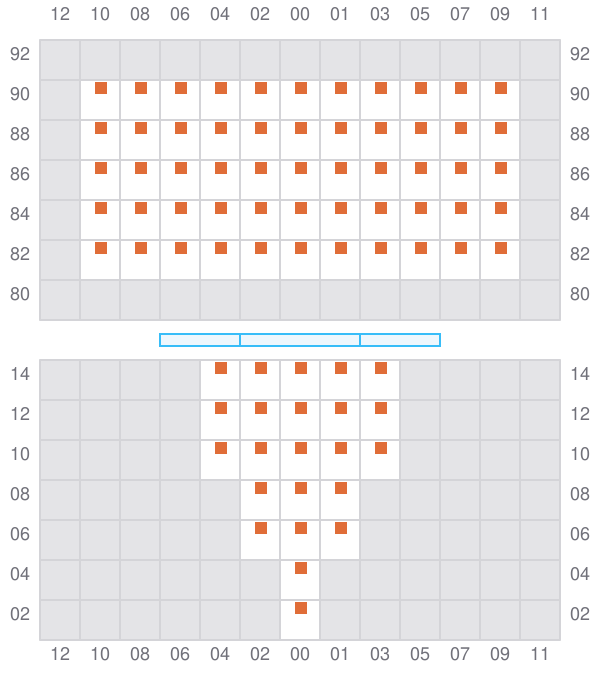

005
- →

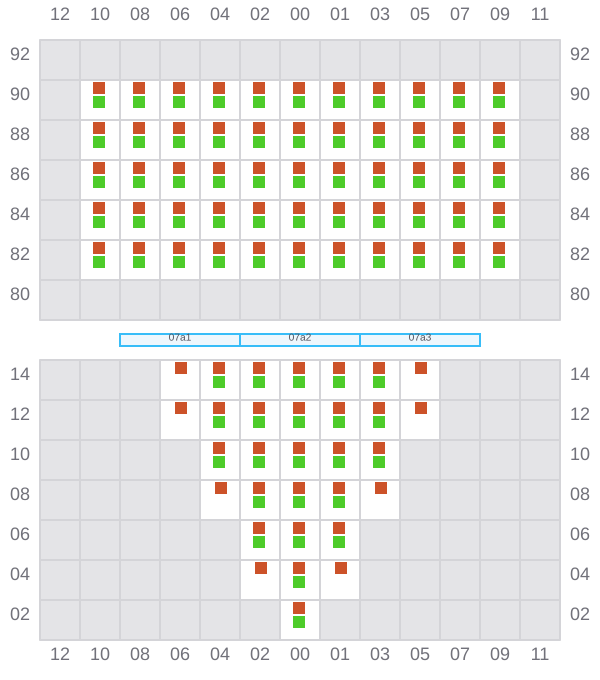

007 (006)
- ←

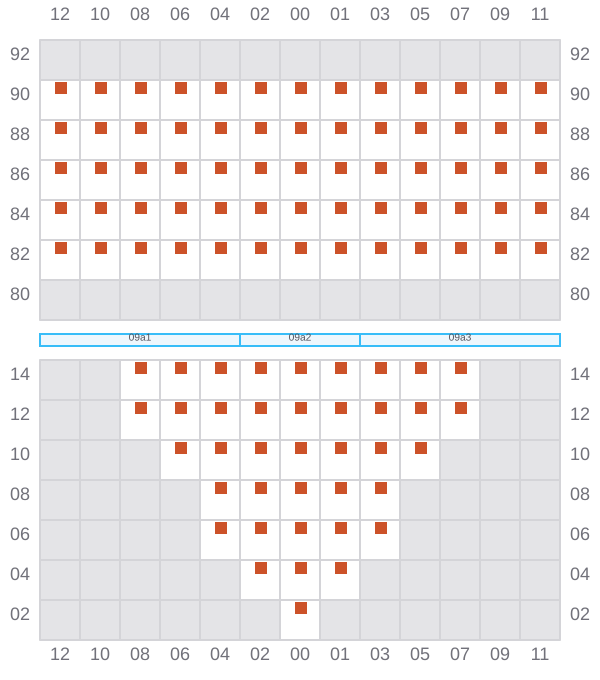

009
- →

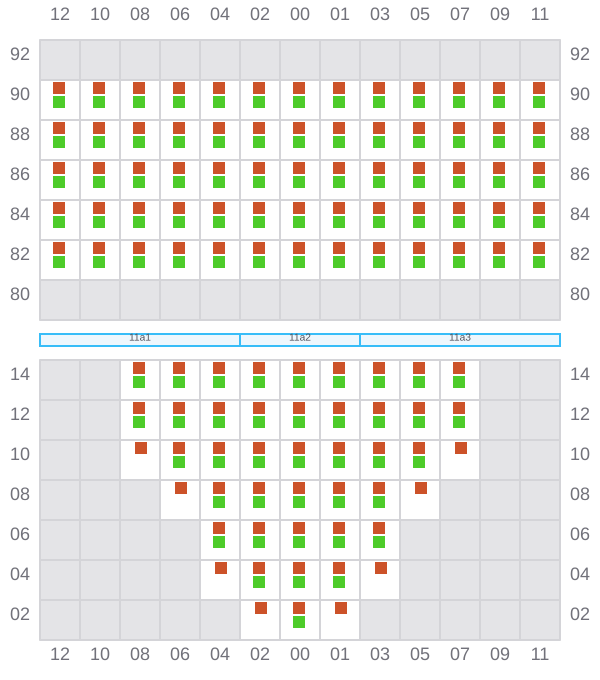

011 (010)
- ←

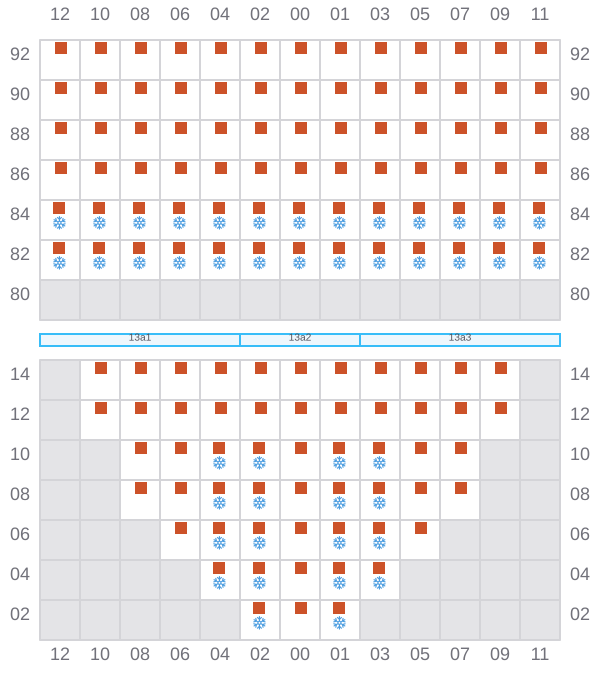

013
- →

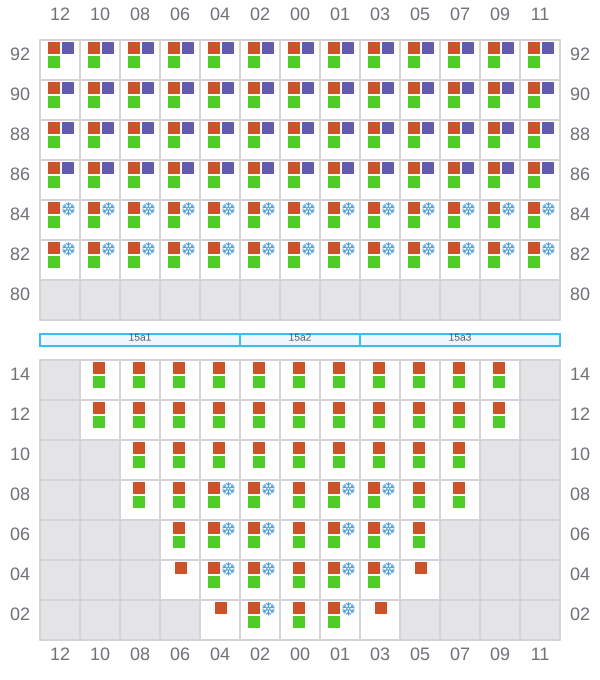

015 (014)
- ←

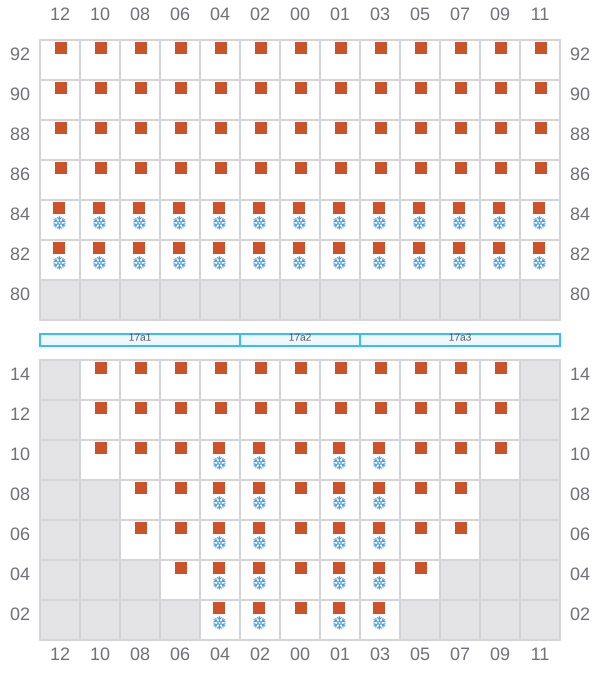

017
- →

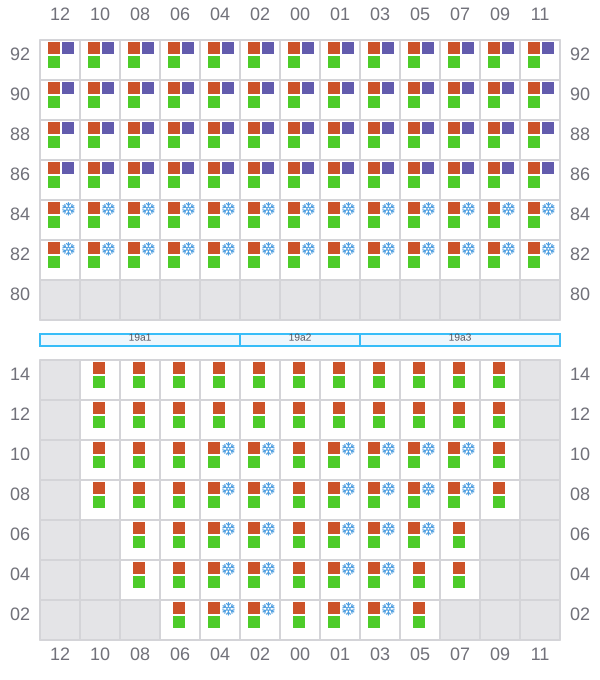

019 (018)
- ←
021
- →
023 (022)
- ←

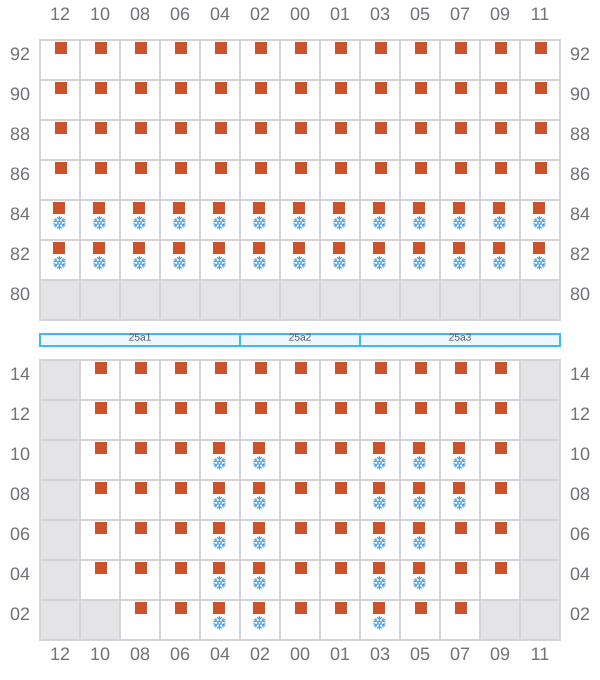

025
- →
027 (026)
- ←

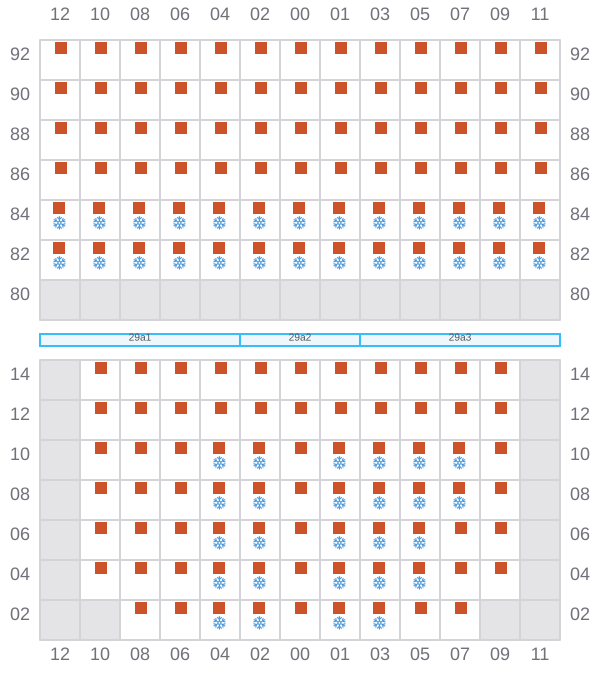

029
- →

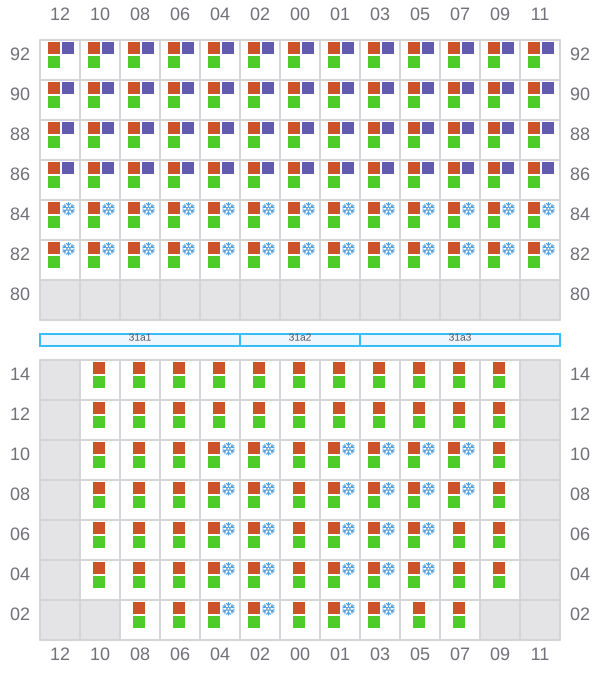

031 (030)
- ←
033
- →
035 (034)
- ←
037
- →
039 (038)
- ←

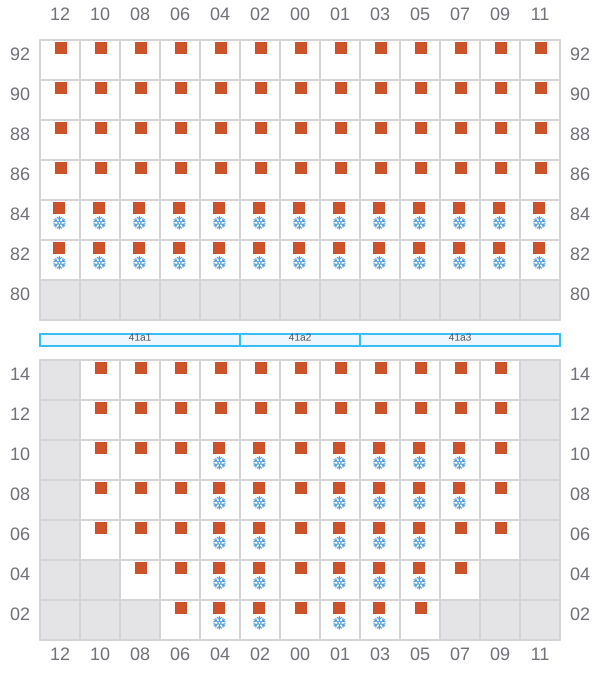

041
- →

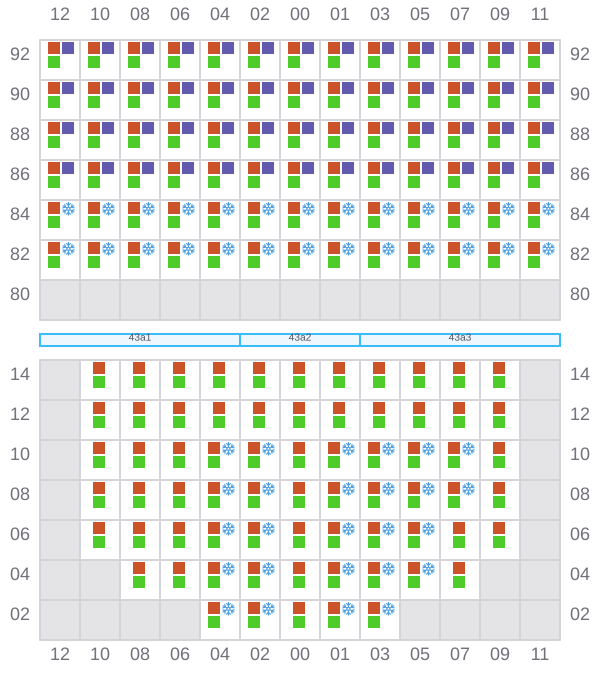

043 (042)
- ←

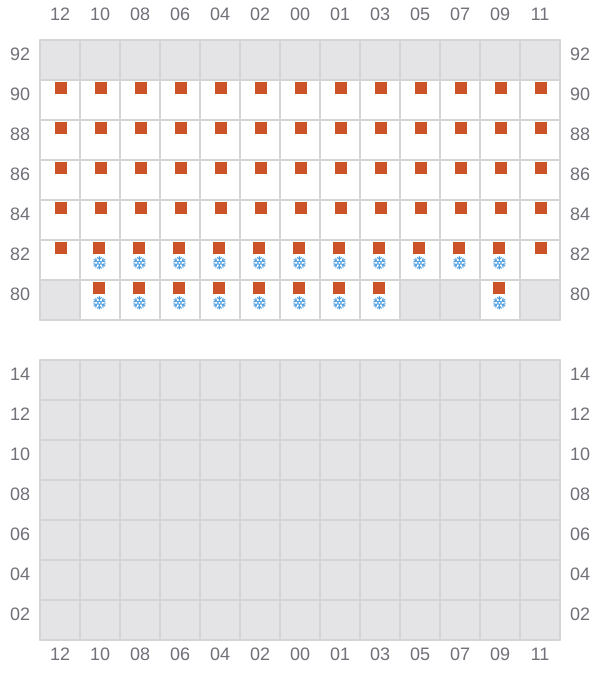

045
- → / ?

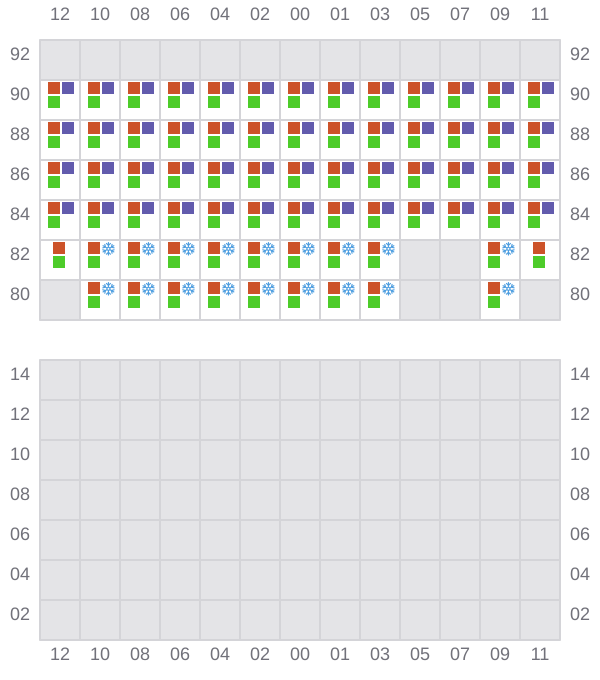

047 (046)
- ← / ?

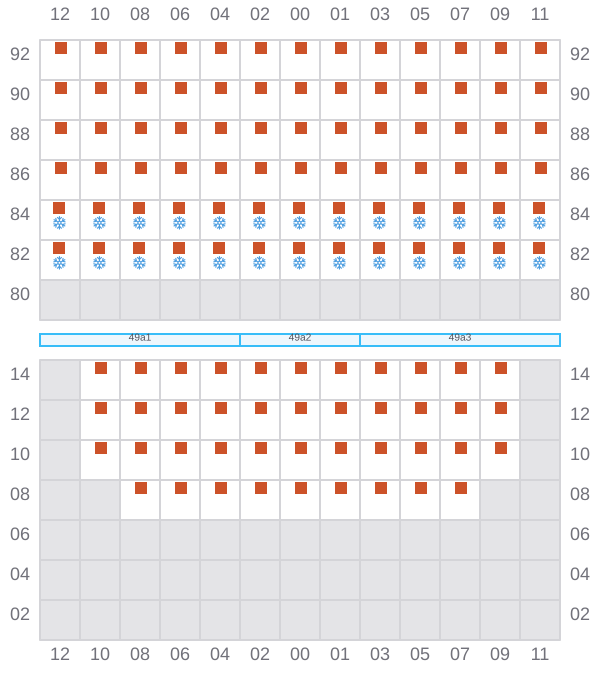

049
- →

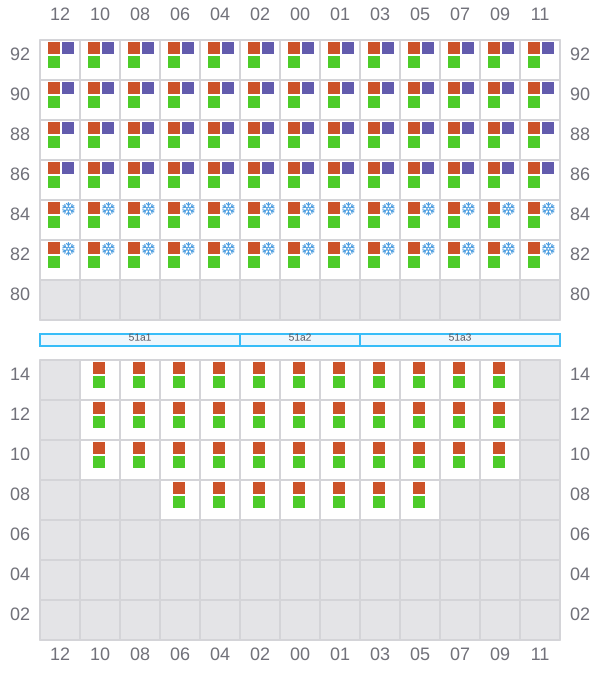

051 (050)
- ←

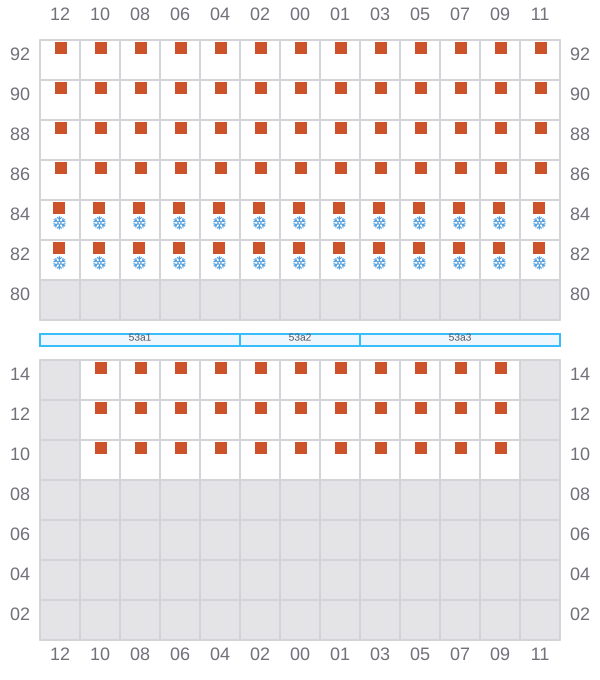

053
- →

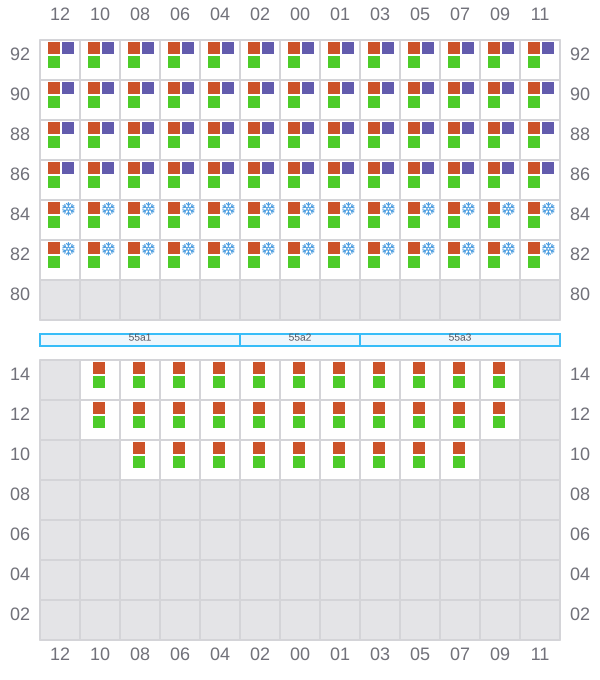

055 (054)
- ←

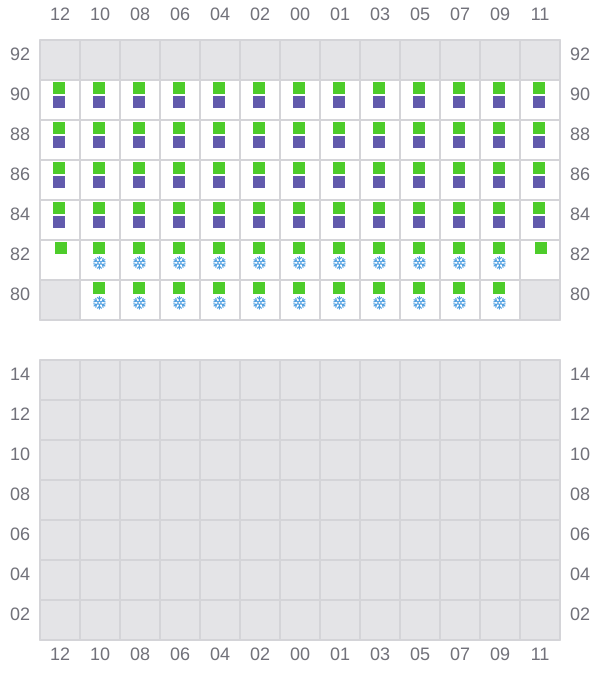

057
059 (058)
- ← / ?
