CELSIUS LONDON
9303778 | V7A4628 | 930 by ********* Last update: Thu Jul 11 2024

General Info

Ship Name:CELSIUS LONDON
IMO Code:9303778
Call Sign:V7A4628
Line Operator:930
Class Name for Sister Ships:MSL
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):212.00
LOA (Length Overall):222.53
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:051
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,398

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

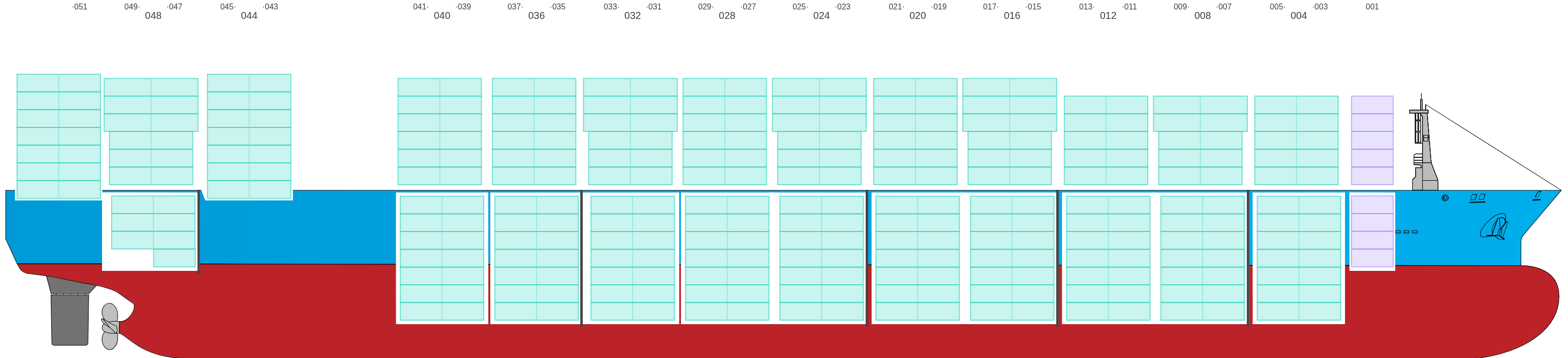

Side view of CELSIUS LONDON

Hatch-Covers View

Deck view of CELSIUS LONDON

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

Bay 001 view and slots of CELSIUS LONDON

003 (004)

  • →

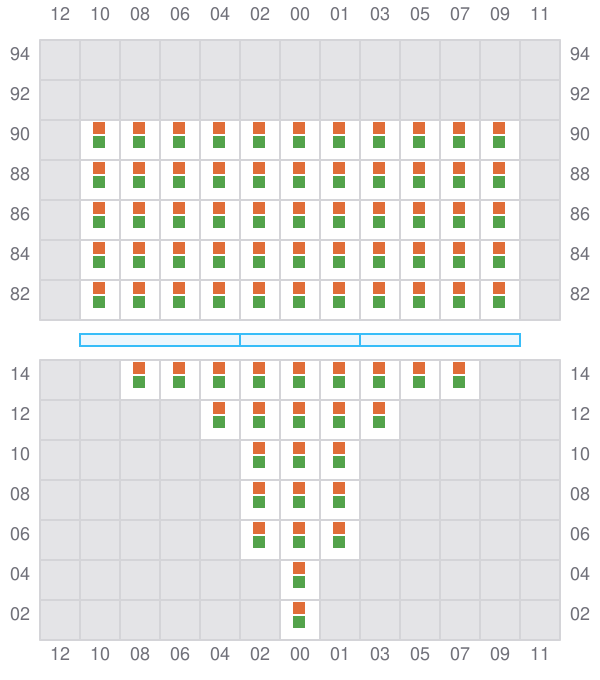

Bay 003 view and slots of CELSIUS LONDON

005

  • ←
  • → / ?

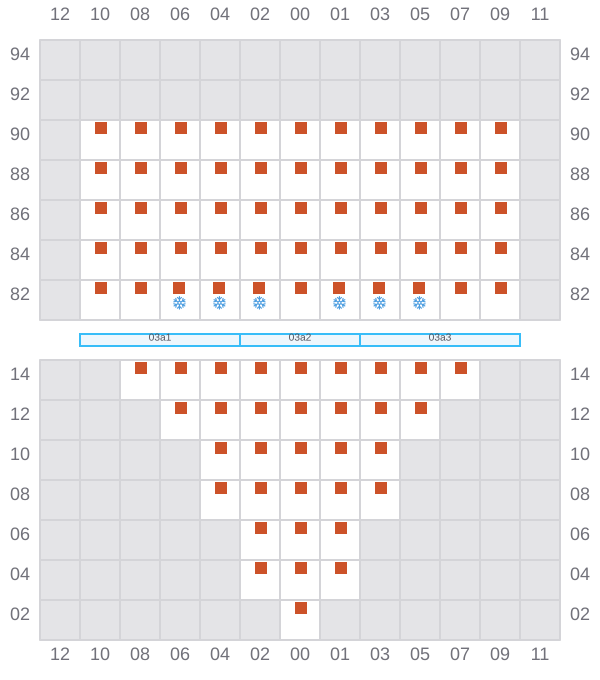

Bay 005 view and slots of CELSIUS LONDON

007 (008)

  • →

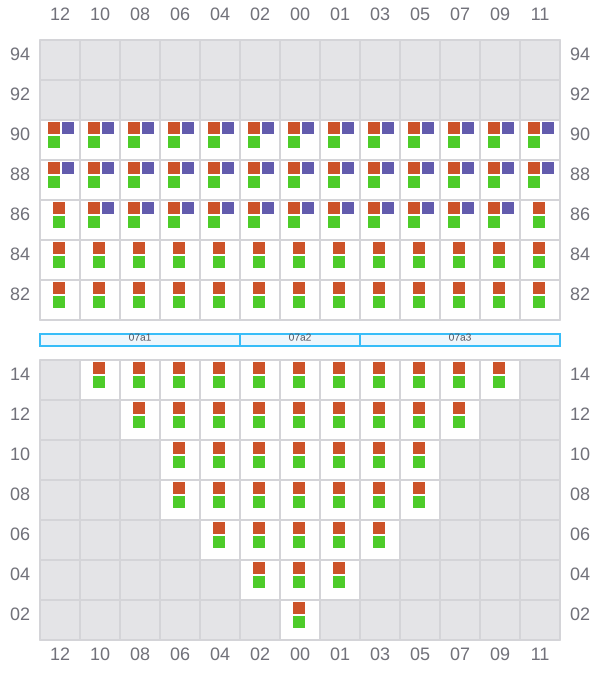

Bay 007 view and slots of CELSIUS LONDON

009

  • ←
  • → / ?

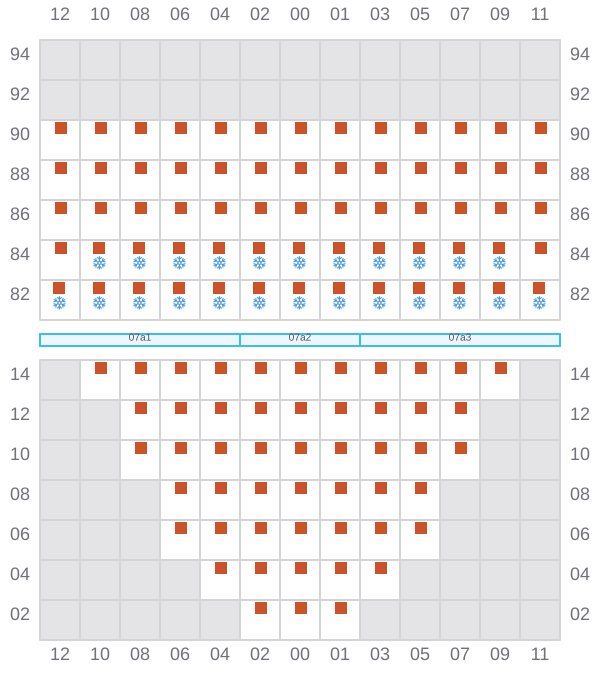

Bay 009 view and slots of CELSIUS LONDON

011 (012)

  • →

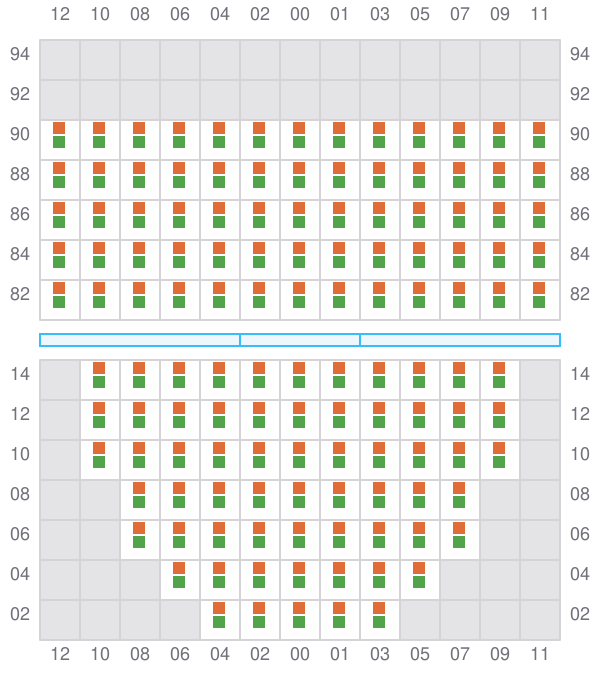

Bay 011 view and slots of CELSIUS LONDON

013

  • ←
  • → / ?

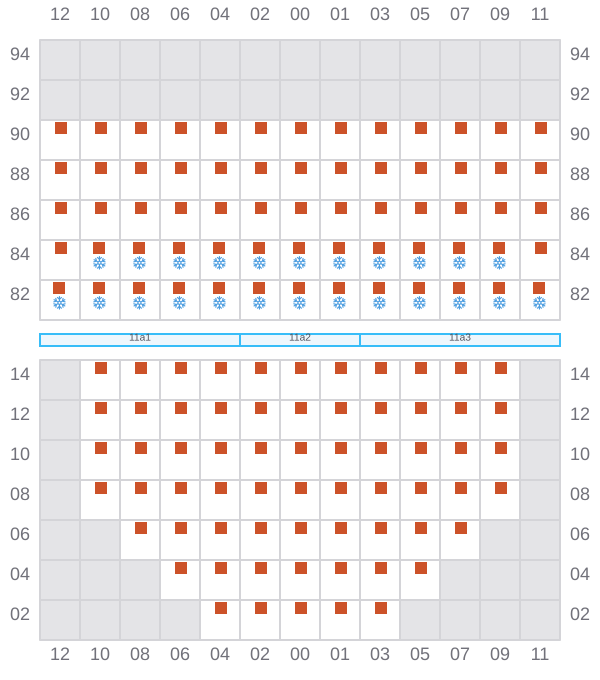

Bay 013 view and slots of CELSIUS LONDON

015 (016)

  • →

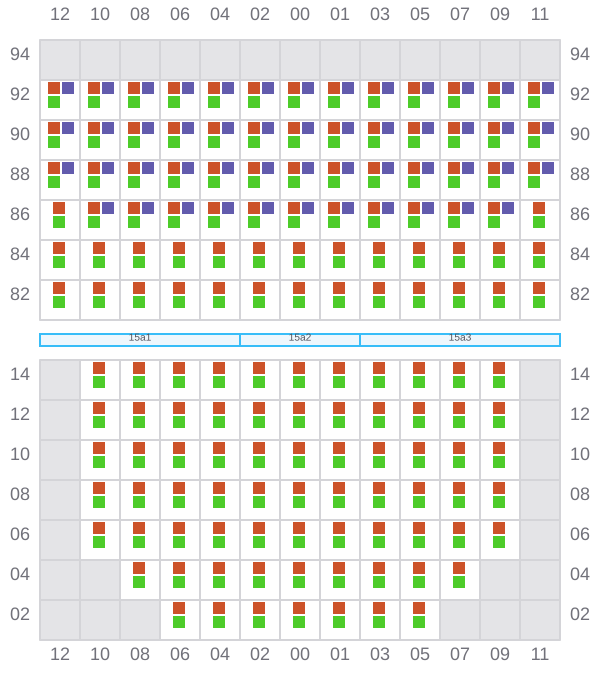

Bay 015 view and slots of CELSIUS LONDON

017

  • ←
  • → / ?

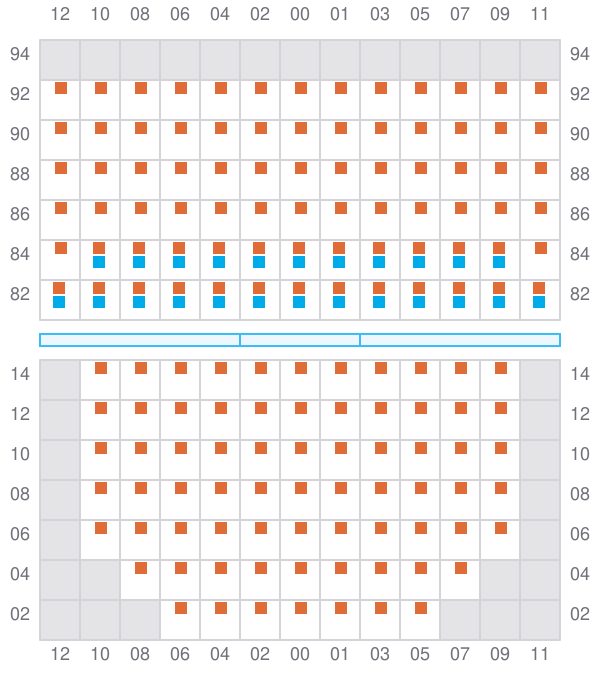

Bay 017 view and slots of CELSIUS LONDON

019 (020)

  • →
Bay 019 view and slots of CELSIUS LONDON

021

  • ←
  • → / ?
Bay 021 view and slots of CELSIUS LONDON

023 (024)

  • →
Bay 023 view and slots of CELSIUS LONDON

025

  • ←
  • → / ?
Bay 025 view and slots of CELSIUS LONDON

027 (028)

  • →

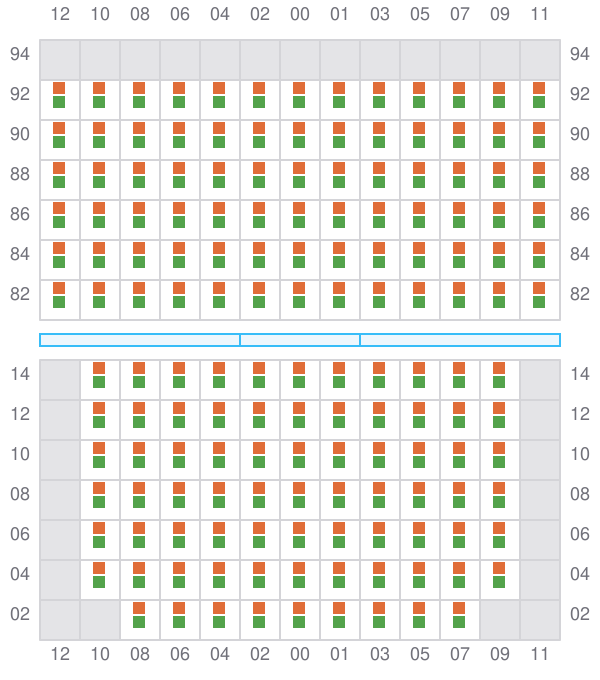

Bay 027 view and slots of CELSIUS LONDON

029

  • ←
  • → / ?

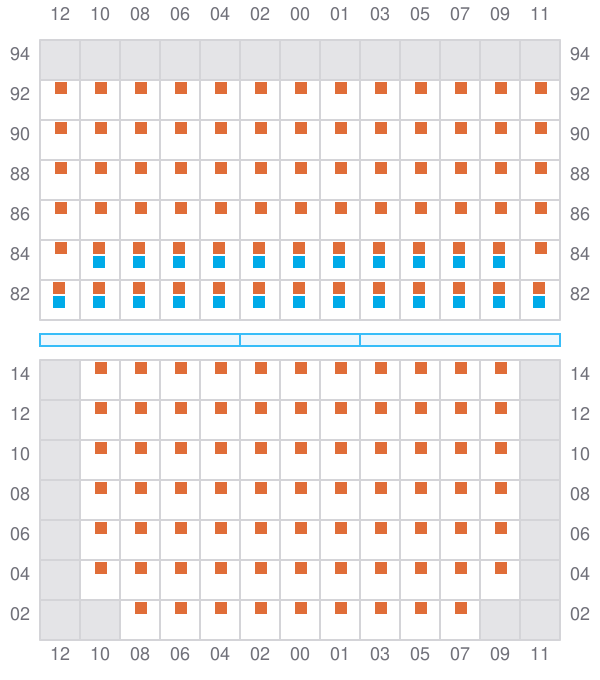

Bay 029 view and slots of CELSIUS LONDON

031 (032)

  • →

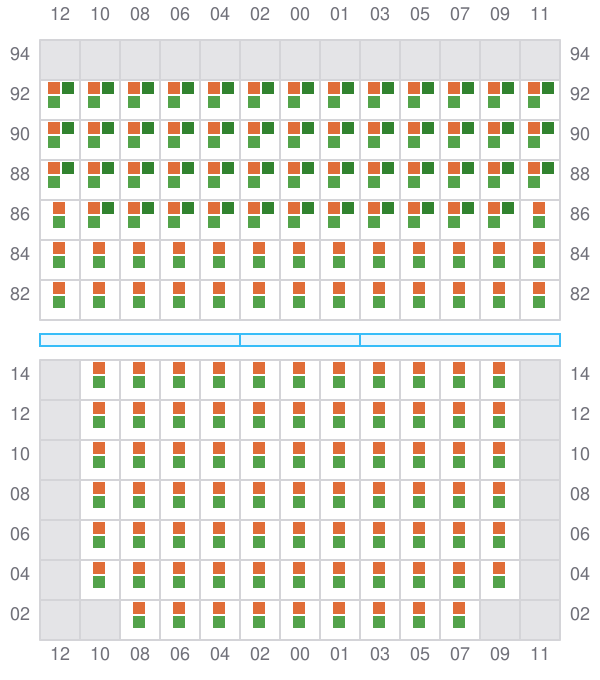

Bay 031 view and slots of CELSIUS LONDON

033

  • ←
  • → / ?

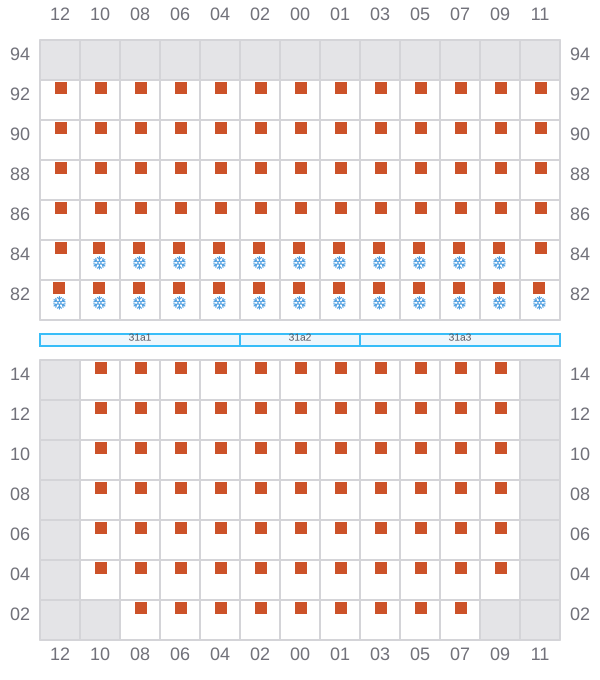

Bay 033 view and slots of CELSIUS LONDON

035 (036)

  • →

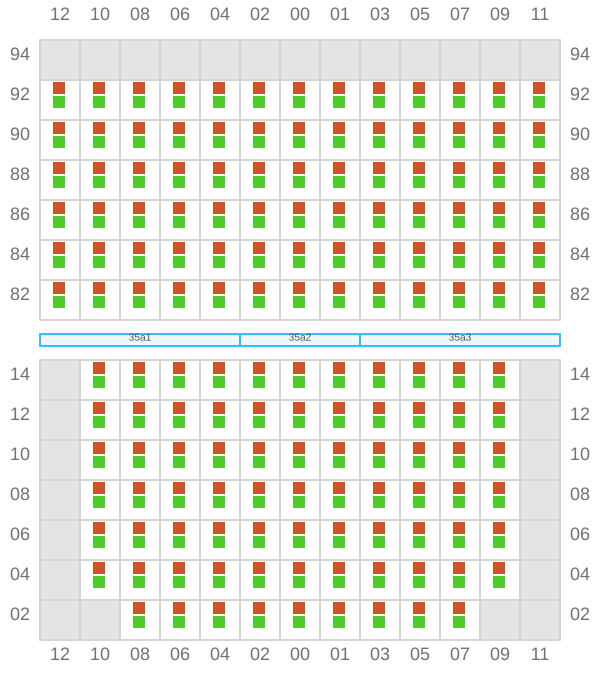

Bay 035 view and slots of CELSIUS LONDON

037

  • ←
  • → / ?
Bay 037 view and slots of CELSIUS LONDON

039 (040)

  • →

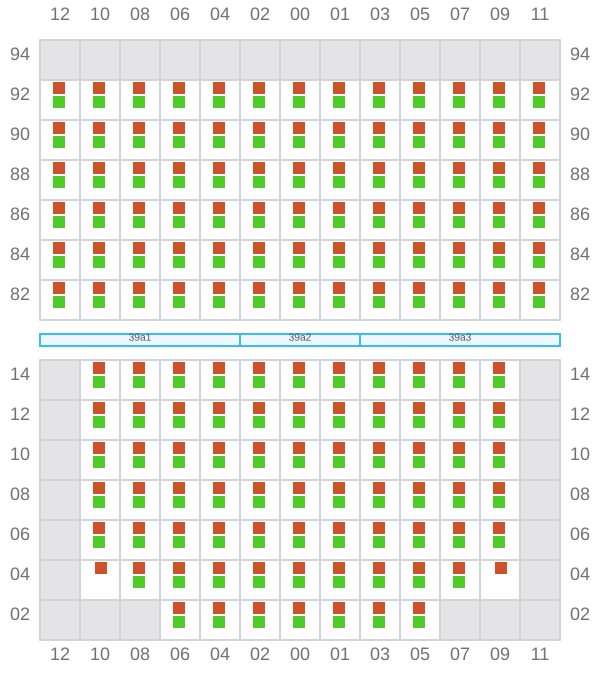

Bay 039 view and slots of CELSIUS LONDON

041

  • ←
  • → / ?
Bay 041 view and slots of CELSIUS LONDON

043 (044)

  • → / ?

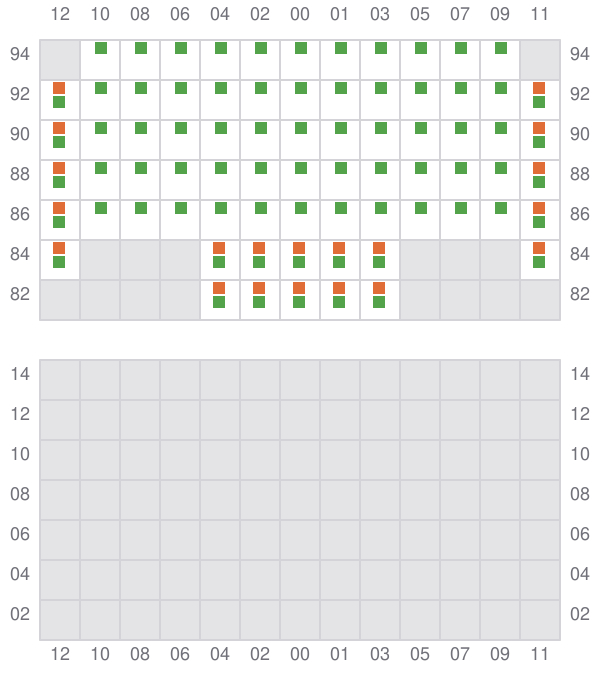

Bay 043 view and slots of CELSIUS LONDON

045

  • ← / ?
  • → / ?

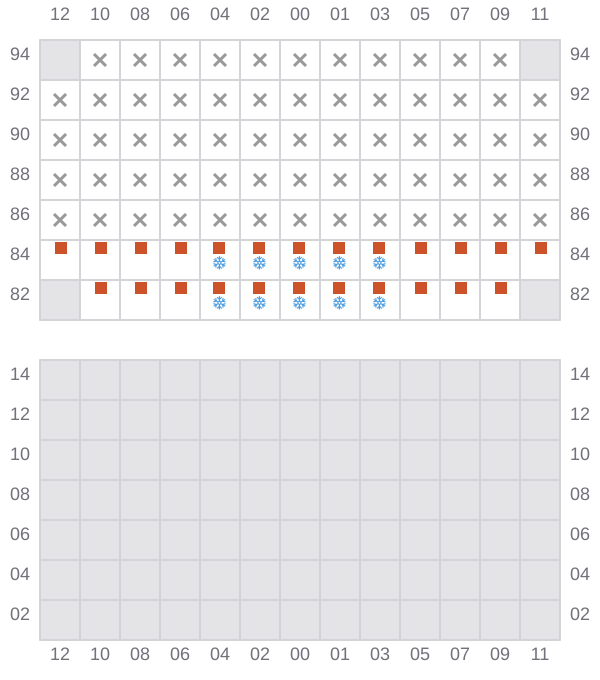

Bay 045 view and slots of CELSIUS LONDON

047 (048)

  • →

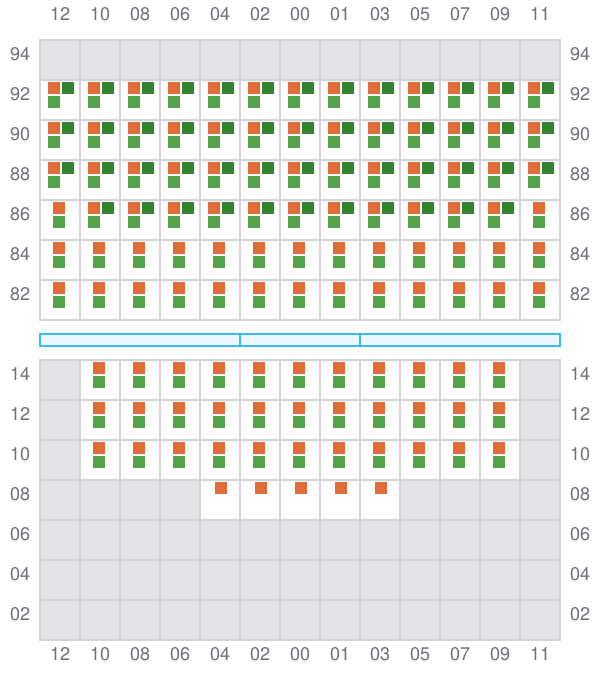

Bay 047 view and slots of CELSIUS LONDON

049

  • ←
  • → / ?

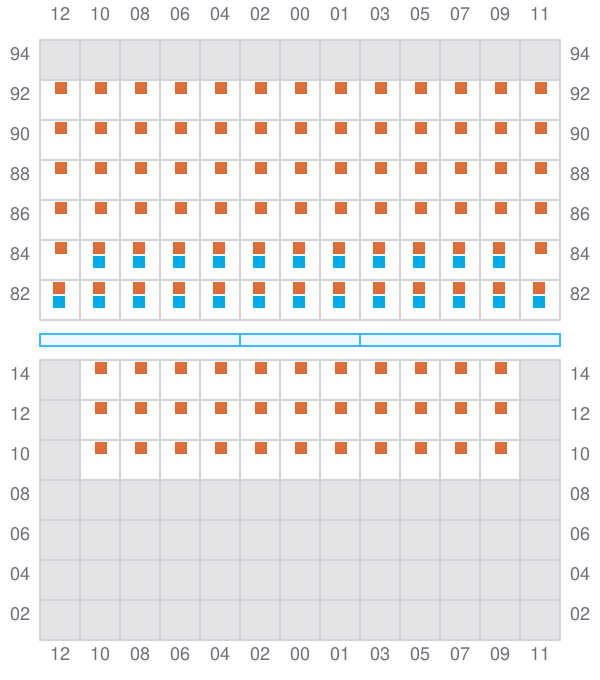

Bay 049 view and slots of CELSIUS LONDON

051 (052)

  • → / ?
  • → / ?

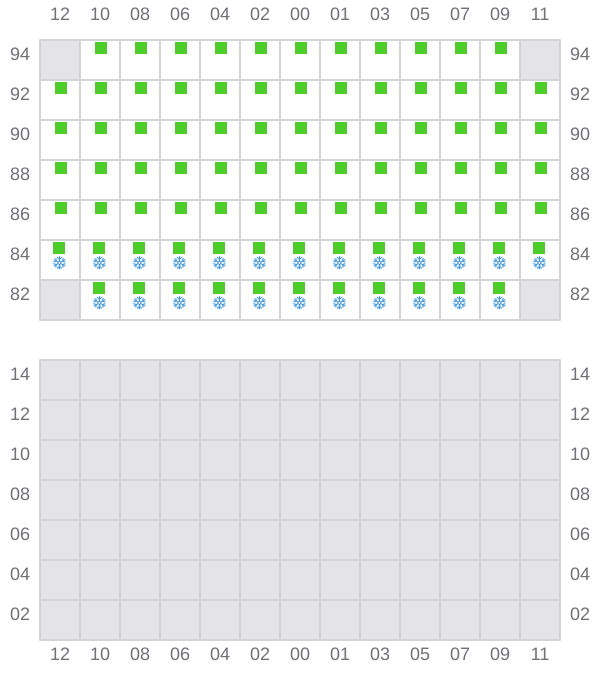

Bay 051 view and slots of CELSIUS LONDON
