CELSIUS NEW ORLEANS
9412842 | V7A5284 | 9412842 by ********* Last update: Mon Mar 25 2024

General Info

Ship Name:CELSIUS NEW ORLEANS
IMO Code:9412842
Call Sign:V7A5284
Line Operator:9412842
Class Name for Sister Ships:IMABARI 1700
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):160.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,577

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

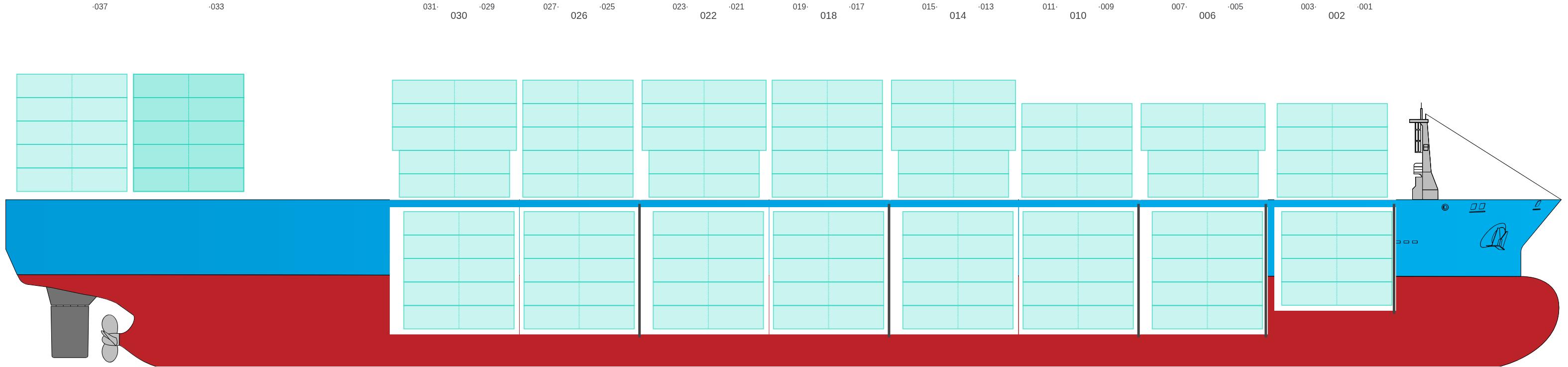

Side View

Side view of CELSIUS NEW ORLEANS

Hatch-Covers View

Deck view of CELSIUS NEW ORLEANS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

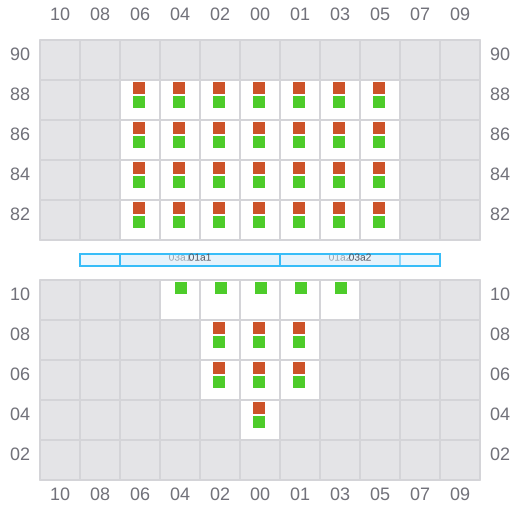

001 (002)

  • →
Bay 001 view and slots of CELSIUS NEW ORLEANS

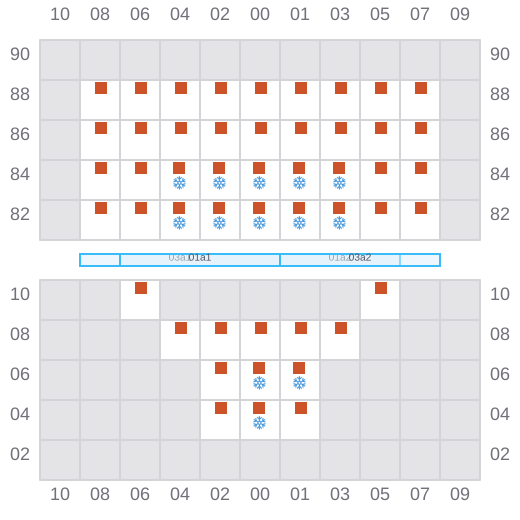

003

  • ←
  • →
Bay 003 view and slots of CELSIUS NEW ORLEANS

005 (006)

  • →
  • ← / ?

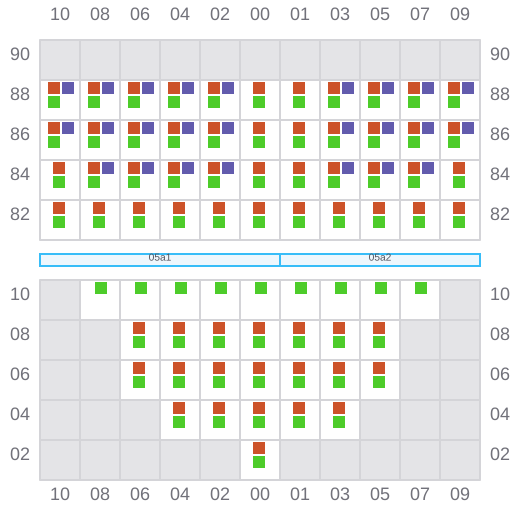

Bay 005 view and slots of CELSIUS NEW ORLEANS

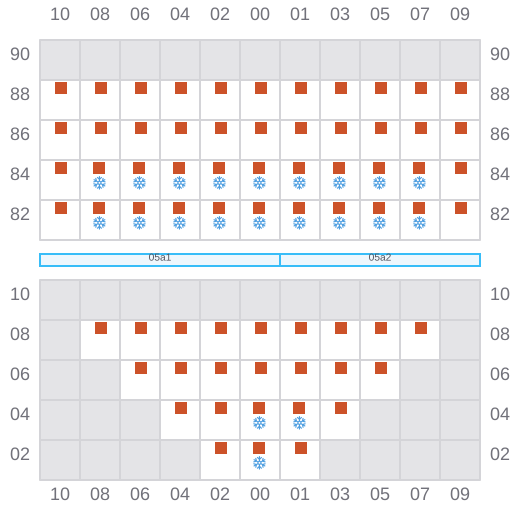

007

  • ←
  • →
Bay 007 view and slots of CELSIUS NEW ORLEANS

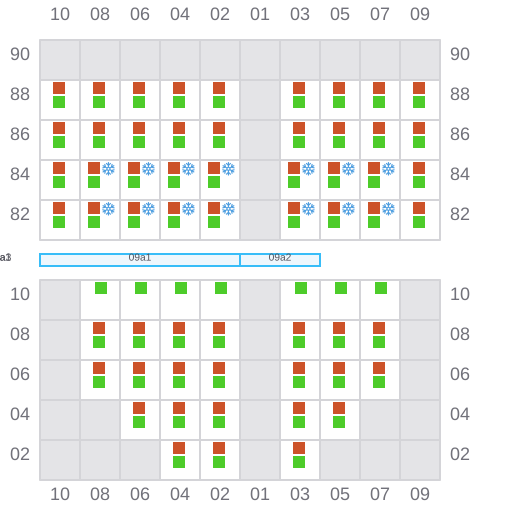

009 (010)

  • →
  • ← / ?
Bay 009 view and slots of CELSIUS NEW ORLEANS

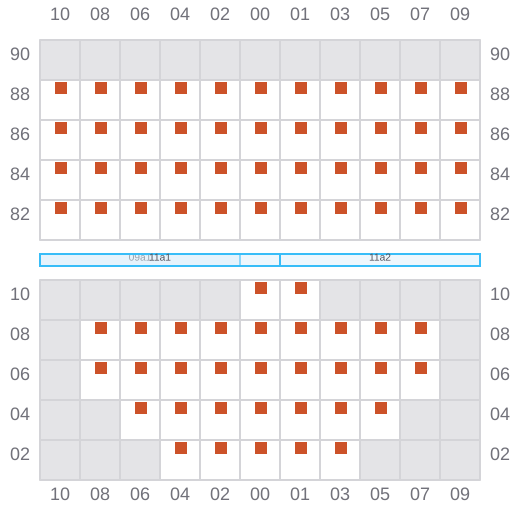

011

  • ←
  • → / ?
Bay 011 view and slots of CELSIUS NEW ORLEANS

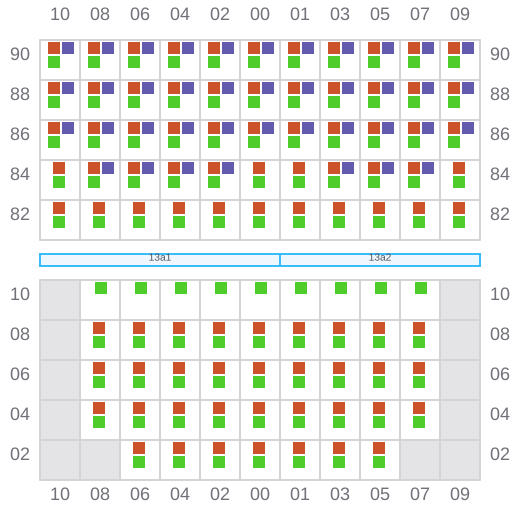

013 (014)

  • →
  • ← / ?
Bay 013 view and slots of CELSIUS NEW ORLEANS

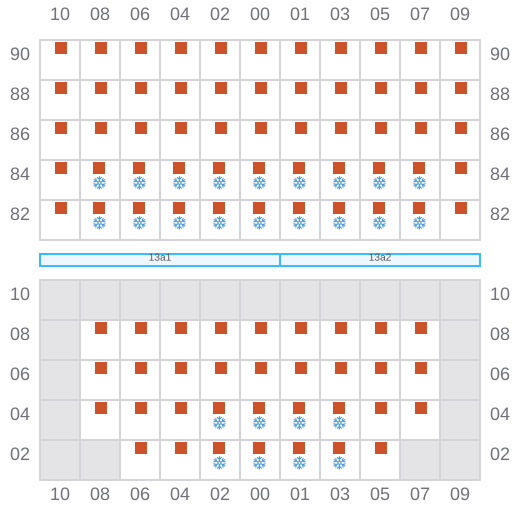

015

  • ←
  • →
Bay 015 view and slots of CELSIUS NEW ORLEANS

017 (018)

  • →
  • ← / ?

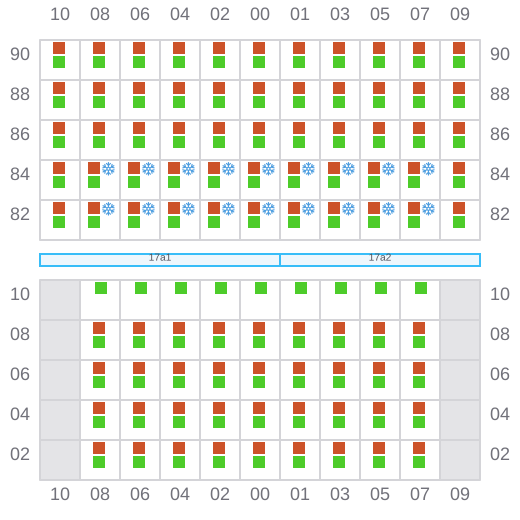

Bay 017 view and slots of CELSIUS NEW ORLEANS

019

  • ←
  • → / ?
Bay 019 view and slots of CELSIUS NEW ORLEANS

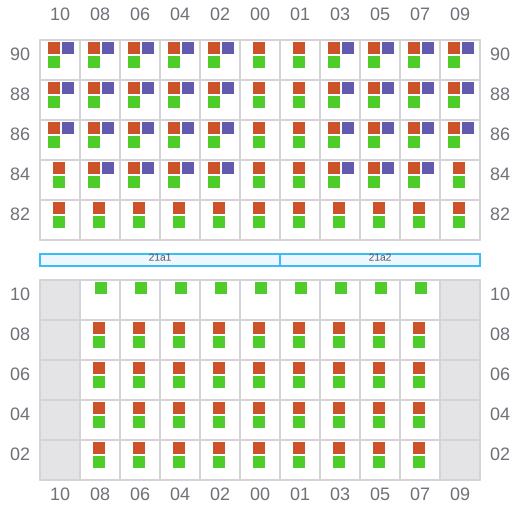

021 (022)

  • →
  • ← / ?
Bay 021 view and slots of CELSIUS NEW ORLEANS

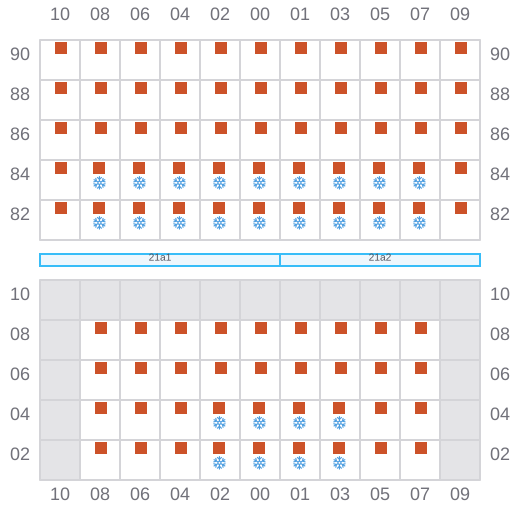

023

  • ←
  • →
Bay 023 view and slots of CELSIUS NEW ORLEANS

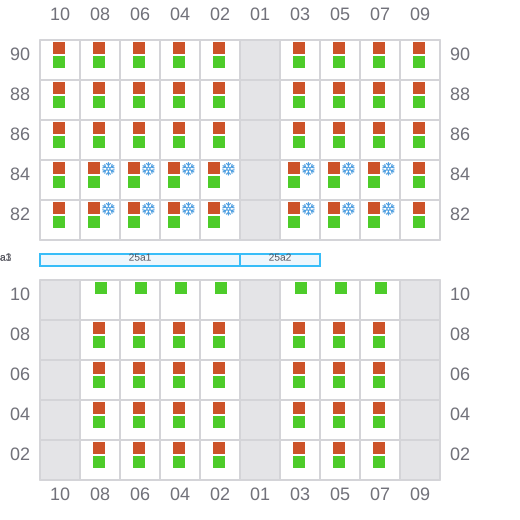

025 (026)

  • →
  • ← / ?
Bay 025 view and slots of CELSIUS NEW ORLEANS

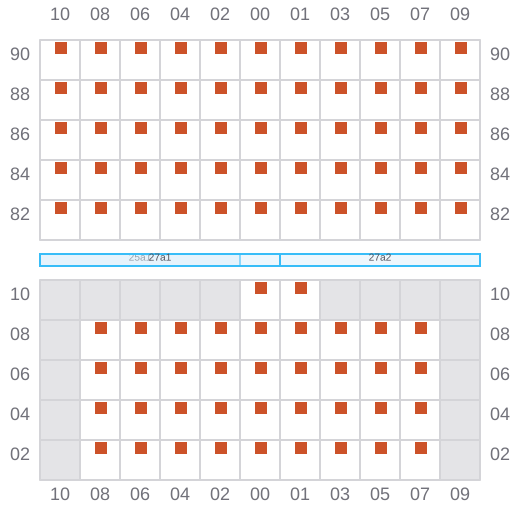

027

  • ←
  • → / ?
Bay 027 view and slots of CELSIUS NEW ORLEANS

029 (030)

  • →
  • ← / ?
Bay 029 view and slots of CELSIUS NEW ORLEANS

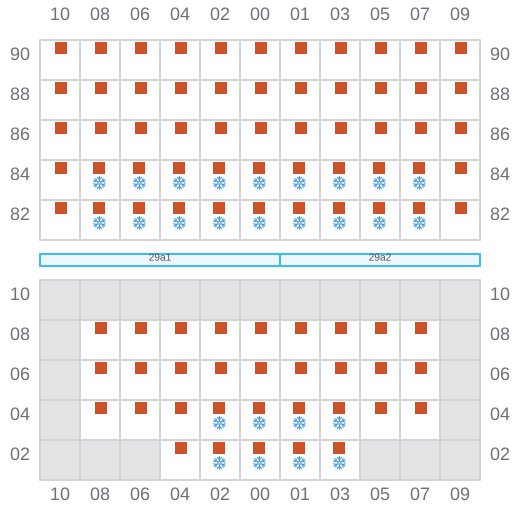

031

  • ←
  • →
Bay 031 view and slots of CELSIUS NEW ORLEANS

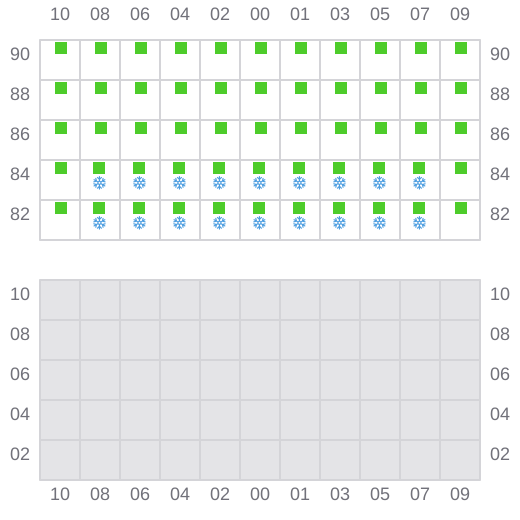

033 (034)

  • → / ?
  • ← / ?
Bay 033 view and slots of CELSIUS NEW ORLEANS

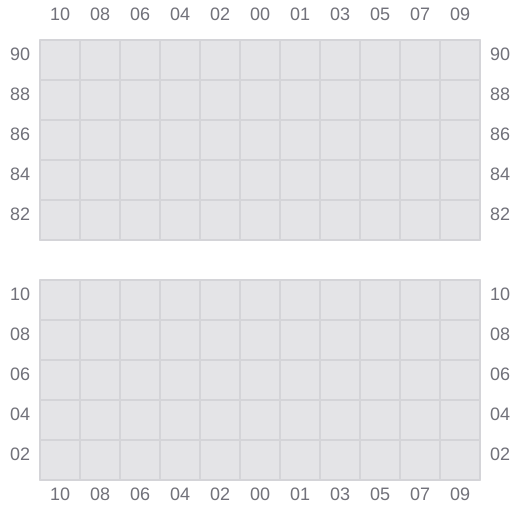

035

Bay 035 view and slots of CELSIUS NEW ORLEANS

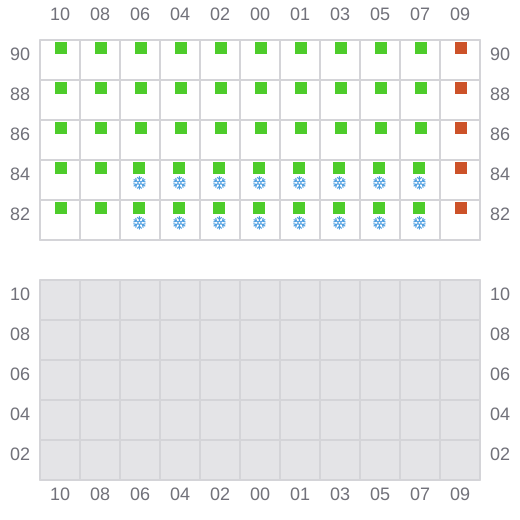

037 (038)

  • → / ?
  • ← / ?
Bay 037 view and slots of CELSIUS NEW ORLEANS
