CF ATHENA
9239886 | V7A5501 | SAF by ************************** Last update: Wed Jun 28 2023
General Info
Ship Name:CF ATHENA
IMO Code:9239886
Call Sign:V7A5501
Line Operator:SAF
Class Name for Sister Ships:CUN
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,506
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

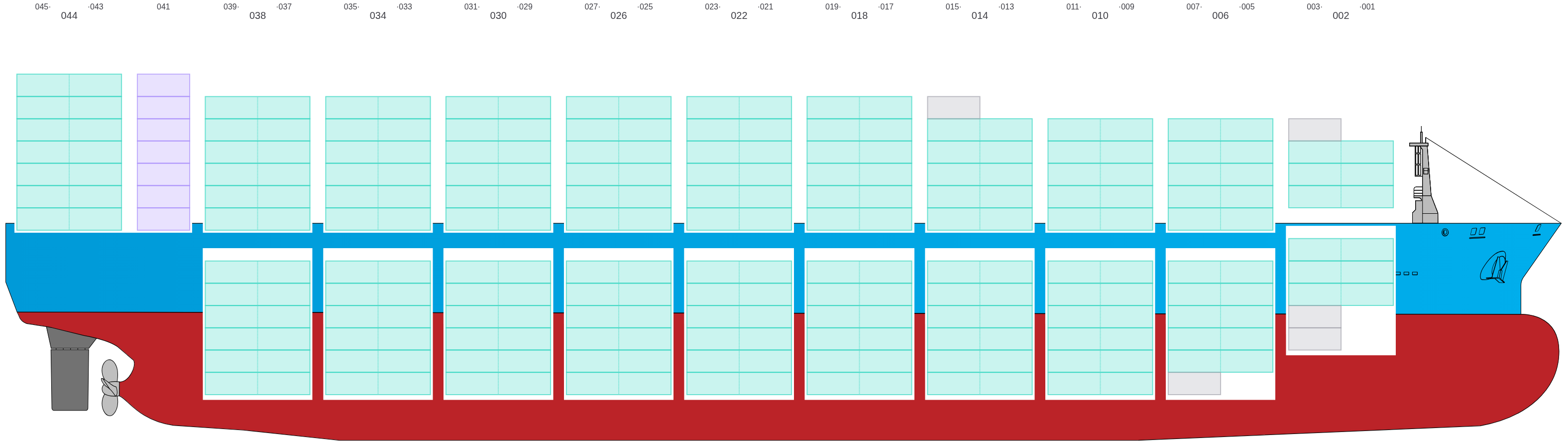

Side View
![Side view of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-sideView.png?v=1687980305904)
Hatch-Covers View
![Deck view of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-deckView.png?v=1687980305904)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

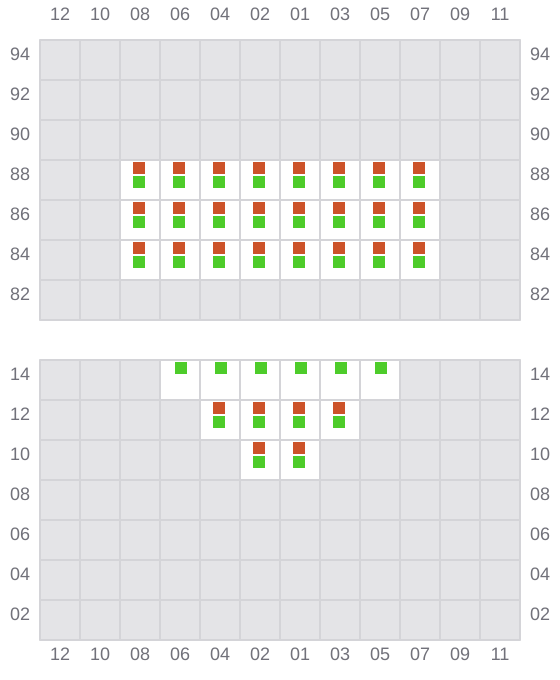

001 (002)
- →
![Bay 001 view and slots of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-b001.png?v=1687980305904)

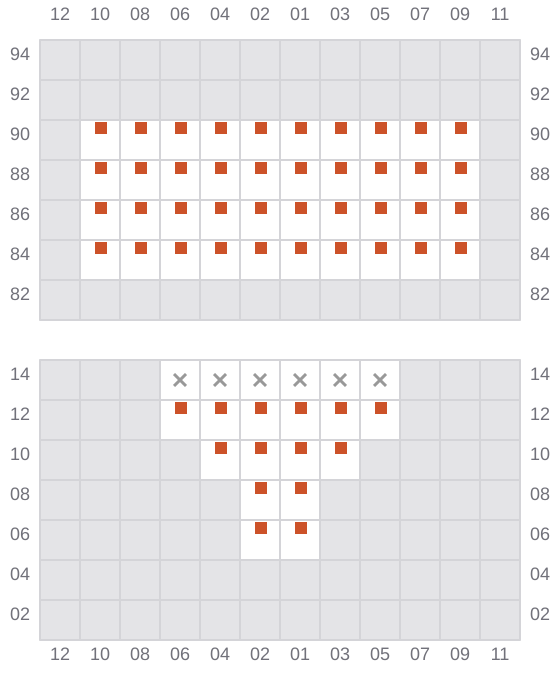

003
- ←
![Bay 003 view and slots of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-b003.png?v=1687980305904)

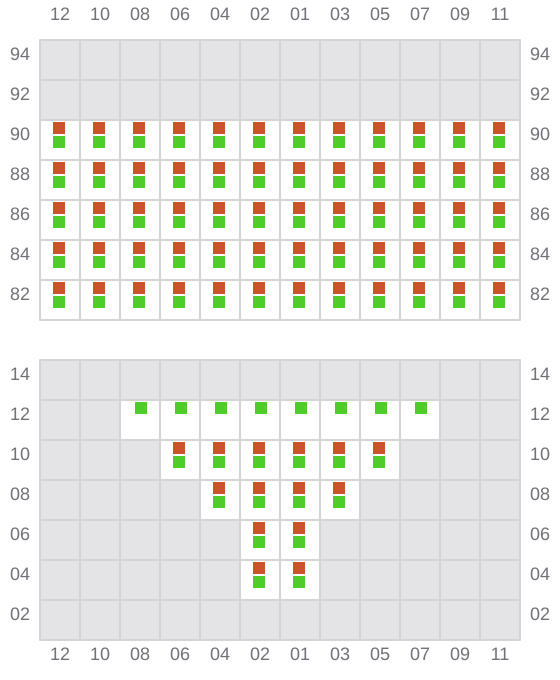

005 (006)
- →
![Bay 005 view and slots of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-b005.png?v=1687980305904)

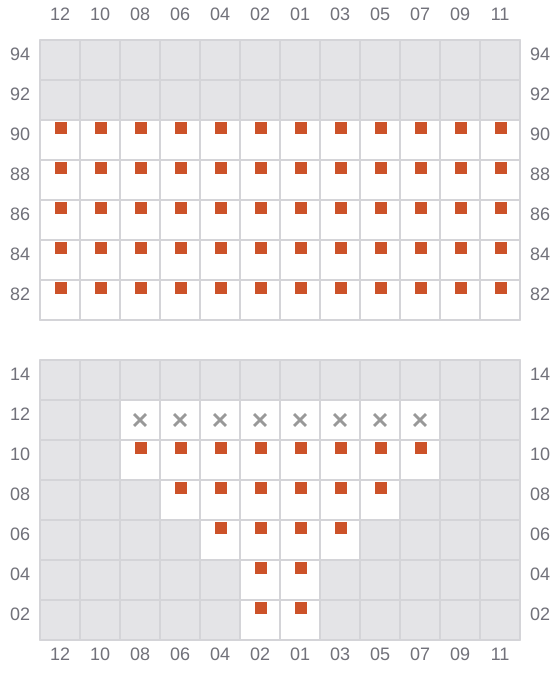

007
- ←
![Bay 007 view and slots of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-b007.png?v=1687980305904)

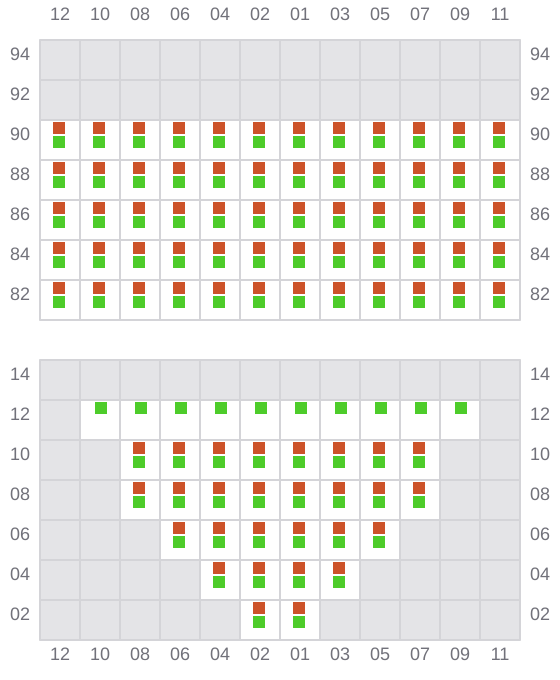

009 (010)
- →
![Bay 009 view and slots of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-b009.png?v=1687980305904)

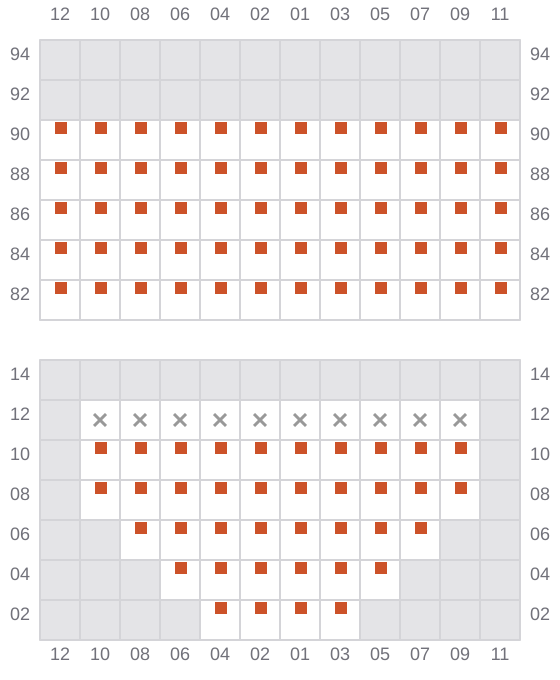

011
- ←
![Bay 011 view and slots of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-b011.png?v=1687980305904)

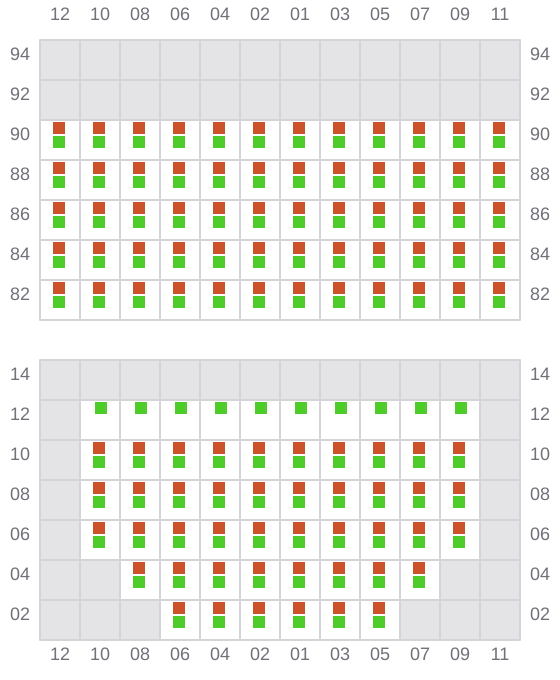

013 (014)
- →
![Bay 013 view and slots of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-b013.png?v=1687980305904)

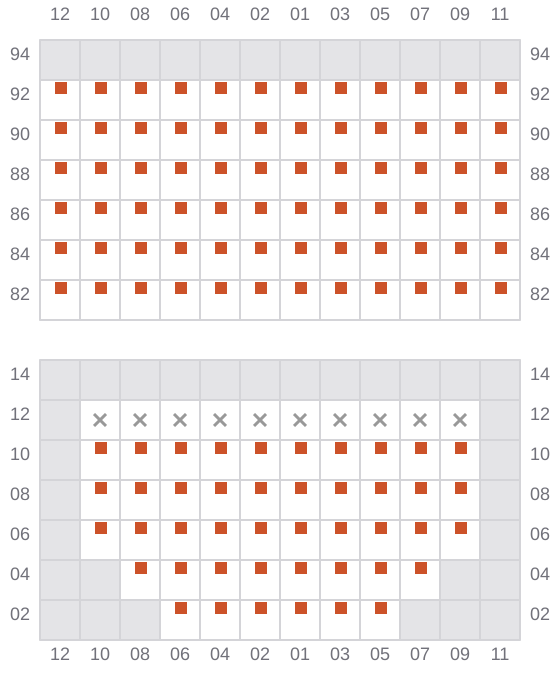

015
- ←
![Bay 015 view and slots of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-b015.png?v=1687980305904)
017 (018)
- →
![Bay 017 view and slots of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-b017.png?v=1687980305904)
019
- ←
![Bay 019 view and slots of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-b019.png?v=1687980305904)
021 (022)
- →
![Bay 021 view and slots of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-b021.png?v=1687980305904)
023
- ←
![Bay 023 view and slots of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-b023.png?v=1687980305904)
025 (026)
- →
![Bay 025 view and slots of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-b025.png?v=1687980305904)
027
- ←
![Bay 027 view and slots of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-b027.png?v=1687980305904)

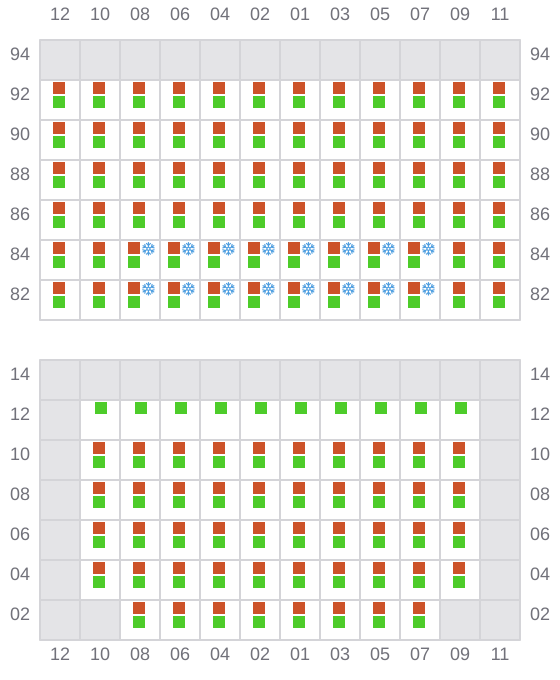

029 (030)
- →
![Bay 029 view and slots of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-b029.png?v=1687980305904)

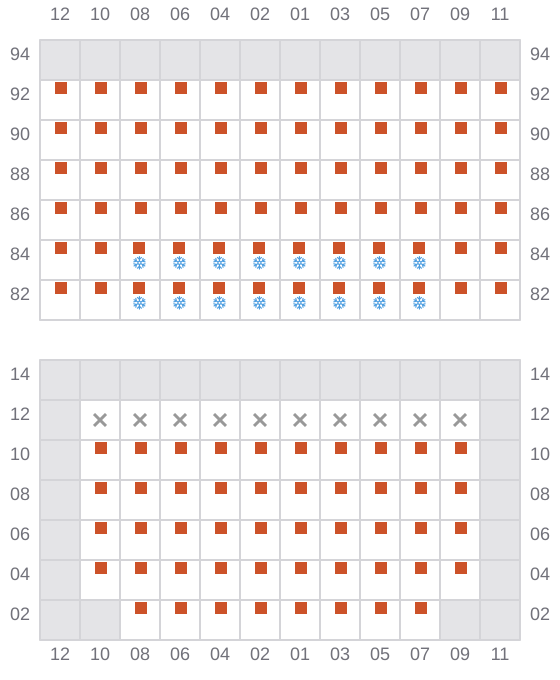

031
- ←
![Bay 031 view and slots of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-b031.png?v=1687980305904)
033 (034)
- →
![Bay 033 view and slots of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-b033.png?v=1687980305904)
035
- ←
![Bay 035 view and slots of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-b035.png?v=1687980305904)

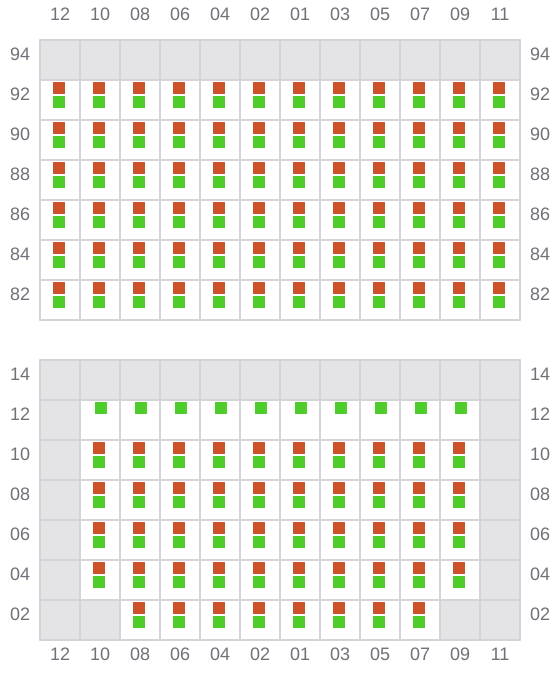

037 (038)
- →
![Bay 037 view and slots of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-b037.png?v=1687980305904)

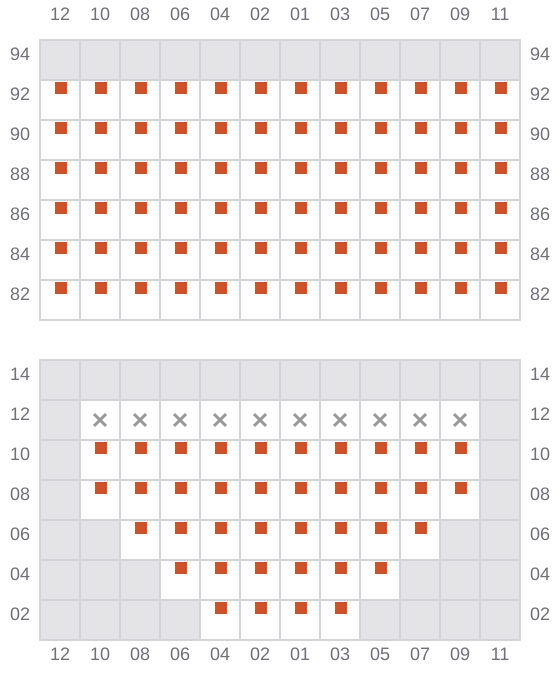

039
- ←
![Bay 039 view and slots of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-b039.png?v=1687980305904)

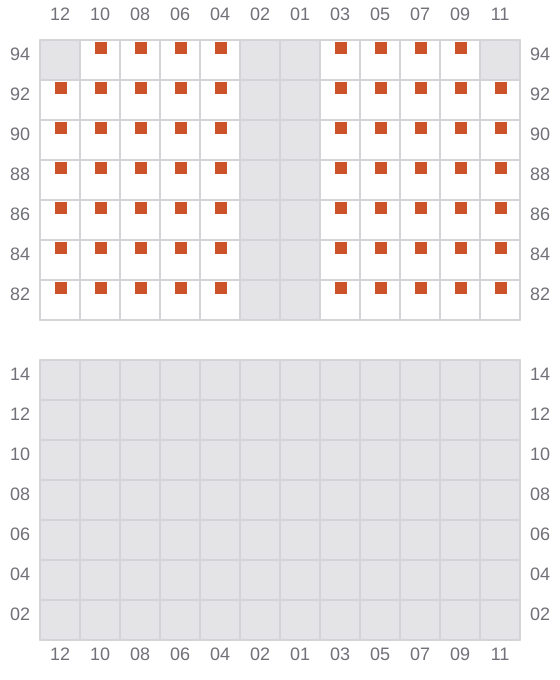

041
![Bay 041 view and slots of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-b041.png?v=1687980305904)

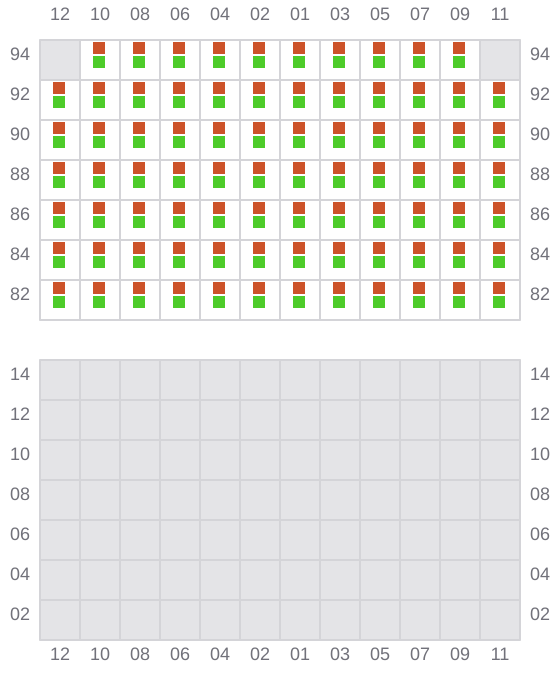

043 (044)
- → / ?
- → / ?
![Bay 043 view and slots of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-b043.png?v=1687980305904)

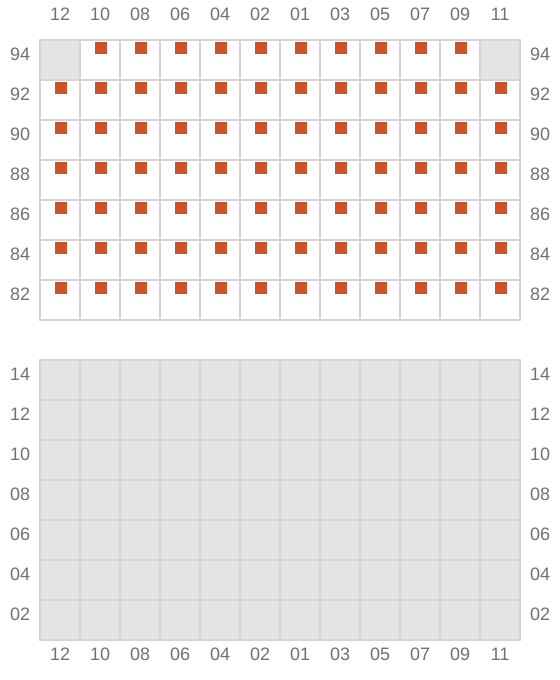

045
- ← / ?
- → / ?
![Bay 045 view and slots of CF ATHENA](/vessel-images/28e56e38-6ae2-41d0-b2a6-67912ad6ffc6-b045.png?v=1687980305904)
