CF ATHENA
9239886 | V7A5501 | 9239886 by ********* Last update: Fri Mar 15 2024
General Info
Ship Name:CF ATHENA
IMO Code:9239886
Call Sign:V7A5501
Line Operator:9239886
Class Name for Sister Ships:7TG
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,648
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

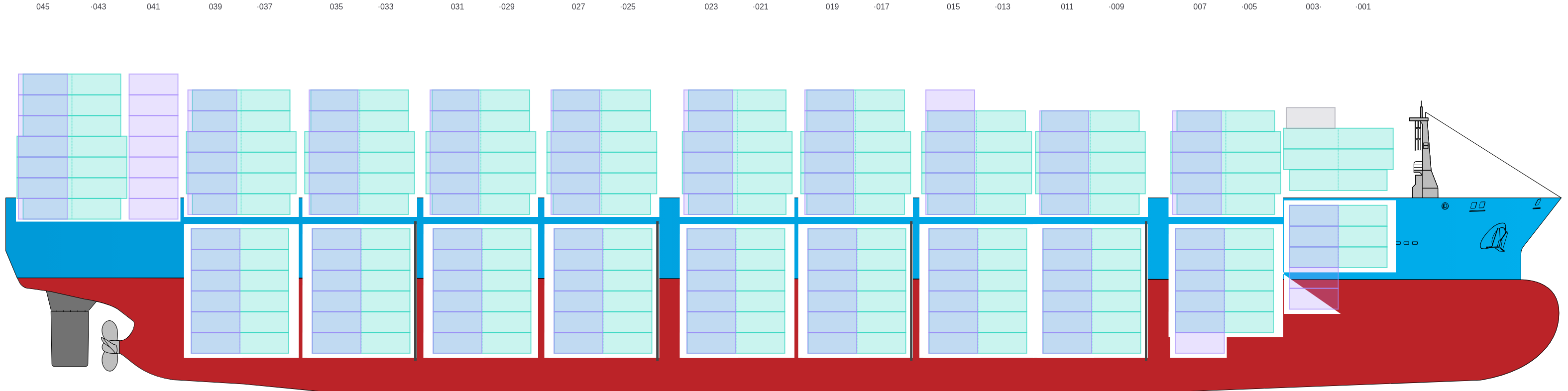

Side View
Hatch-Covers View

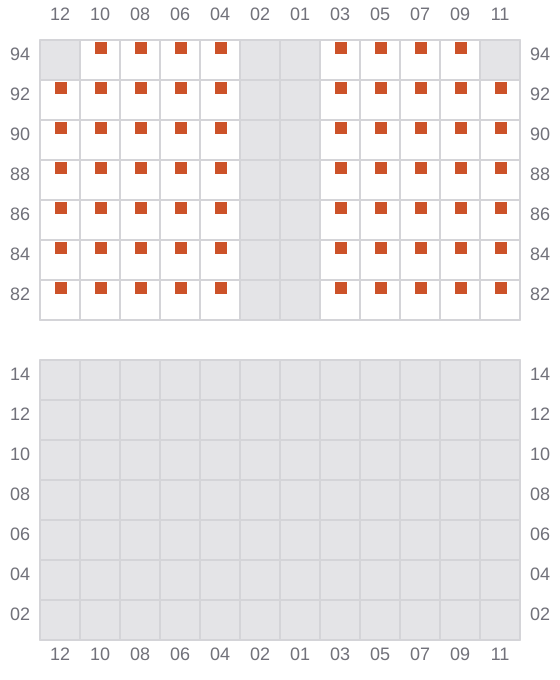

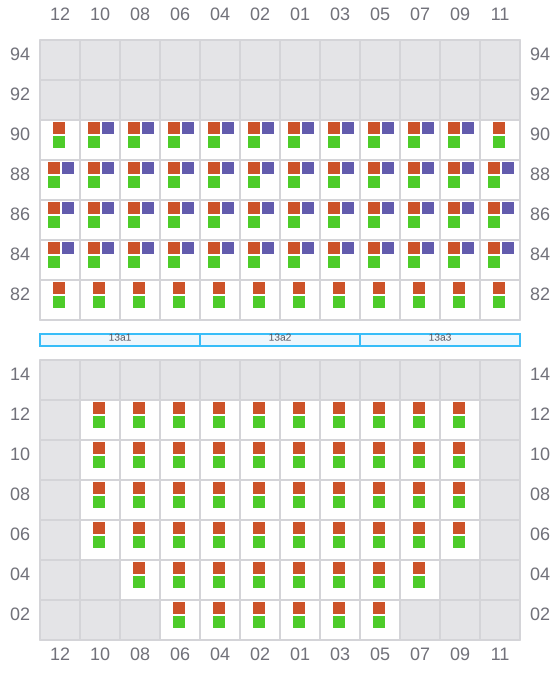

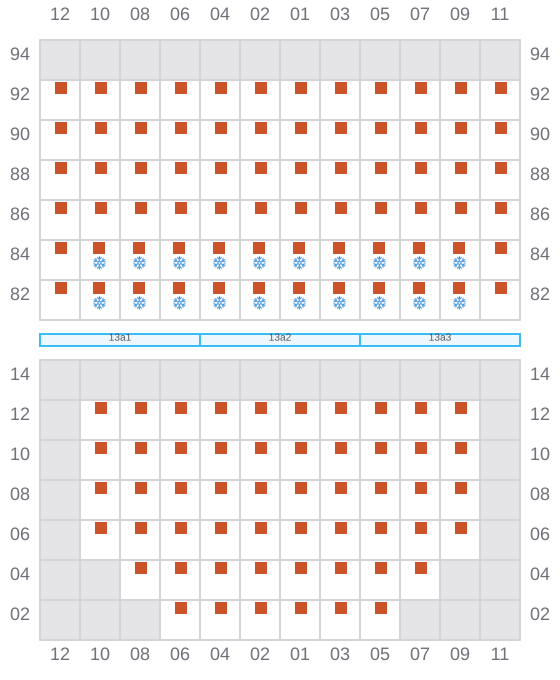

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

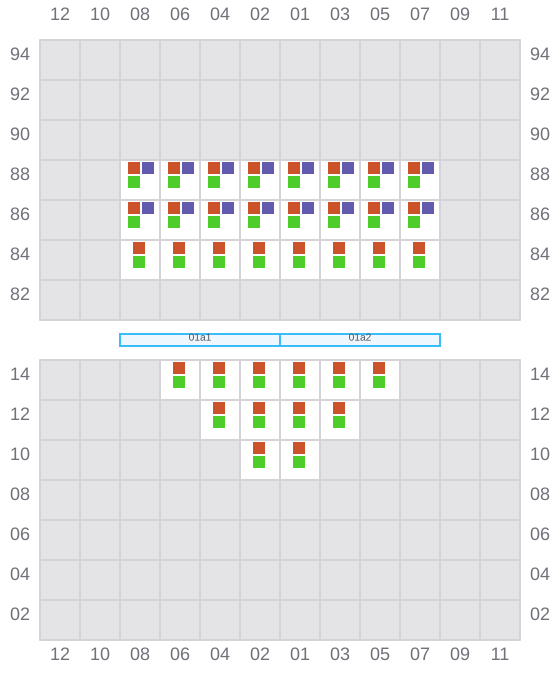

001 (002)
- →
003
- ← / ?

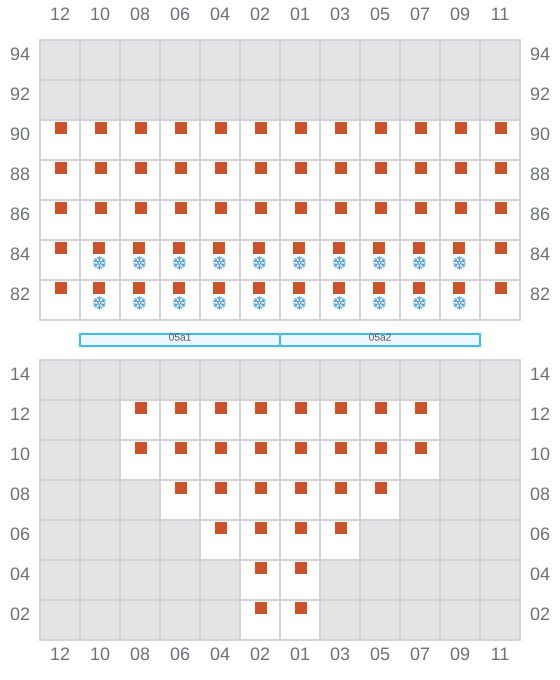

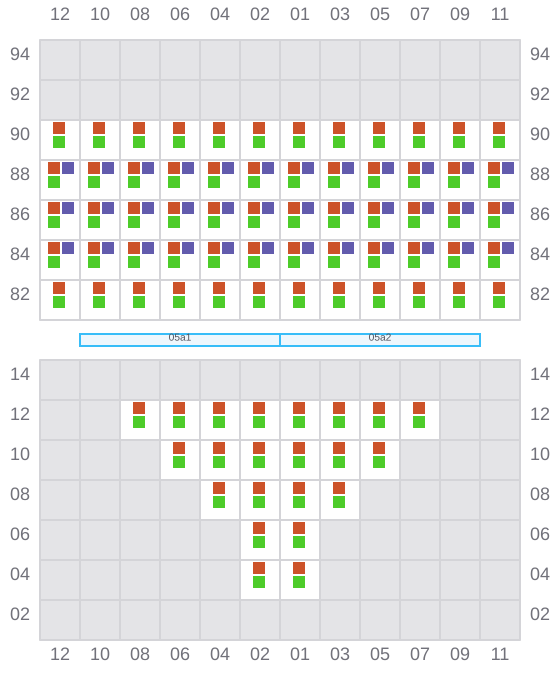

005 (006)
- →
007
- → / ?

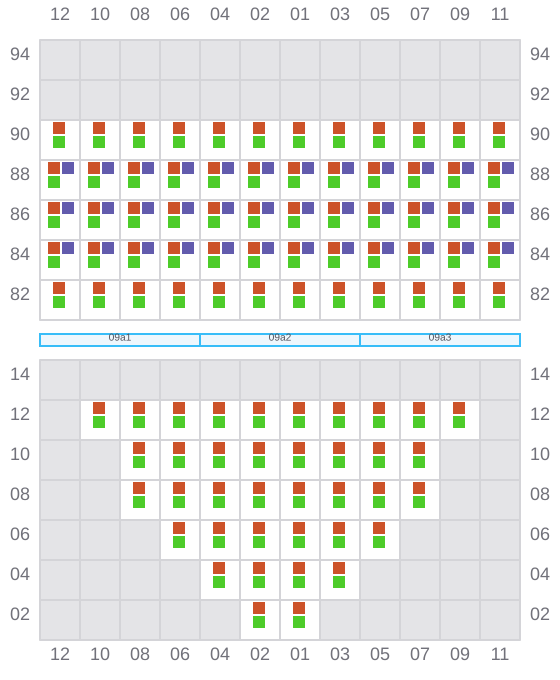

009 (010)
- →

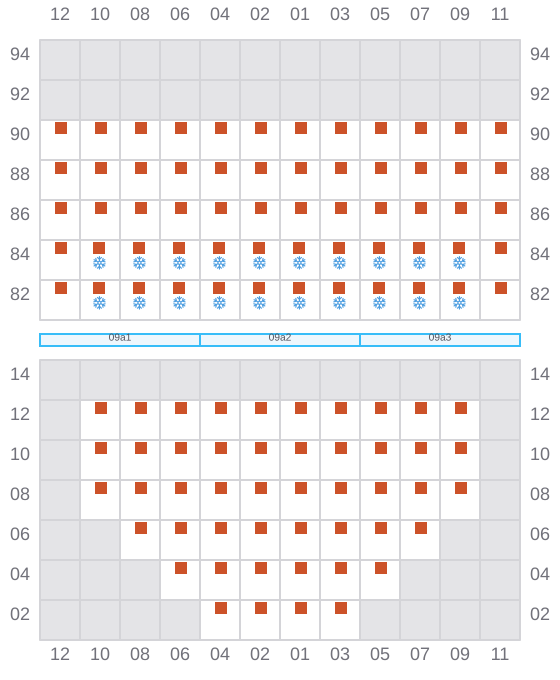

011
- → / ?
013 (014)
- →
015
- → / ?

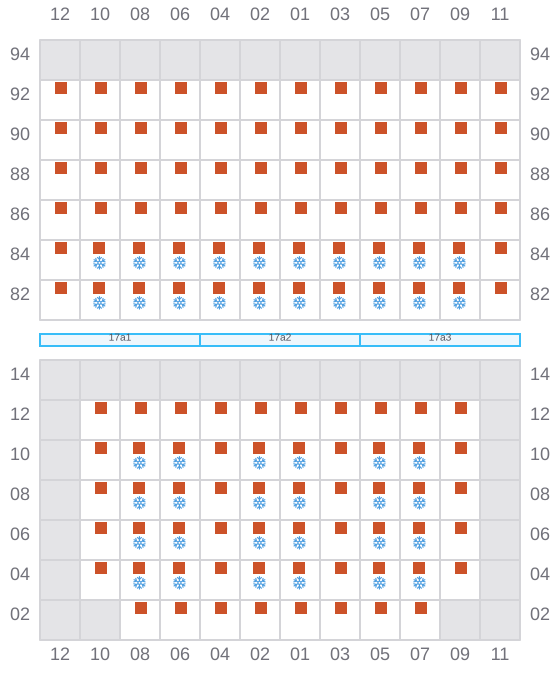

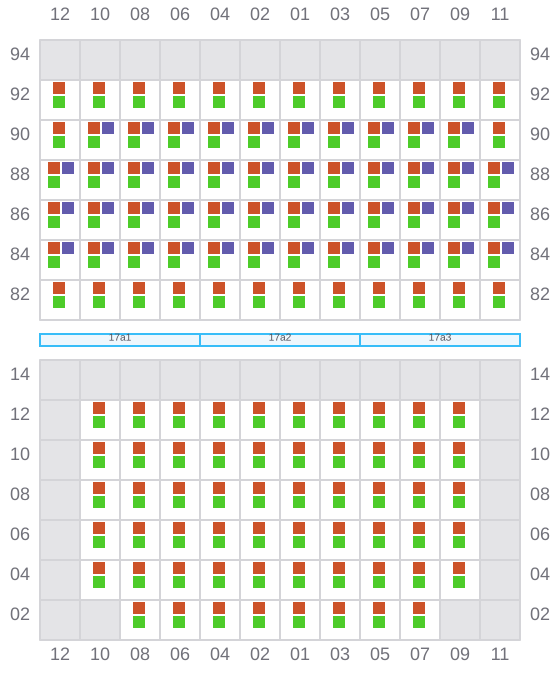

017 (018)
- →
019
- →

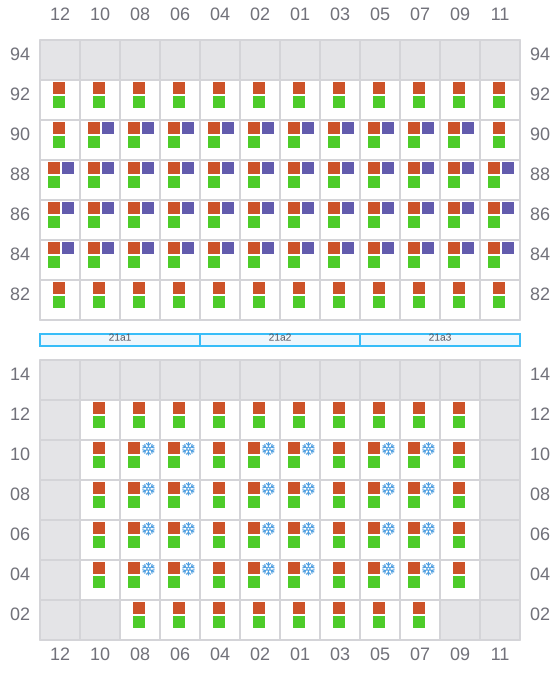

021 (022)
- →
- ? / ←
023
- → / ?

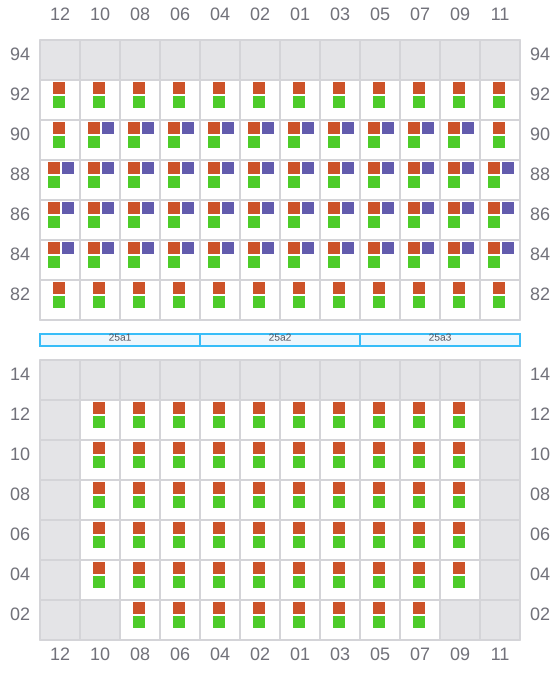

025 (026)
- →
027
- →

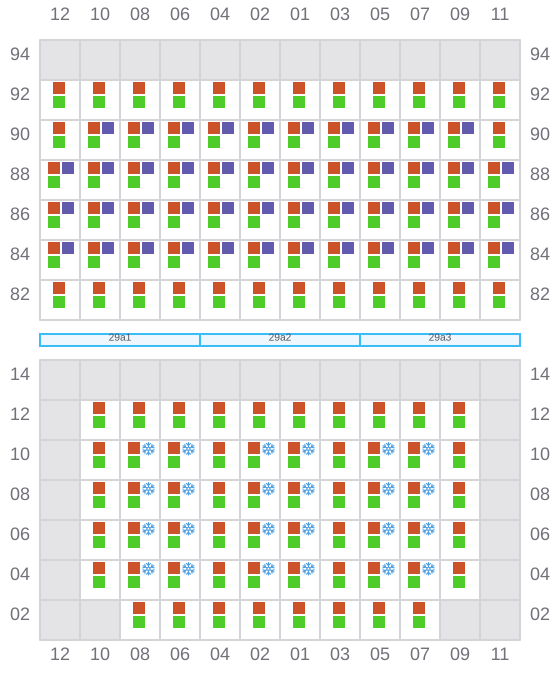

029 (030)
- →
- ? / ←
031
- → / ?
033 (034)
- →

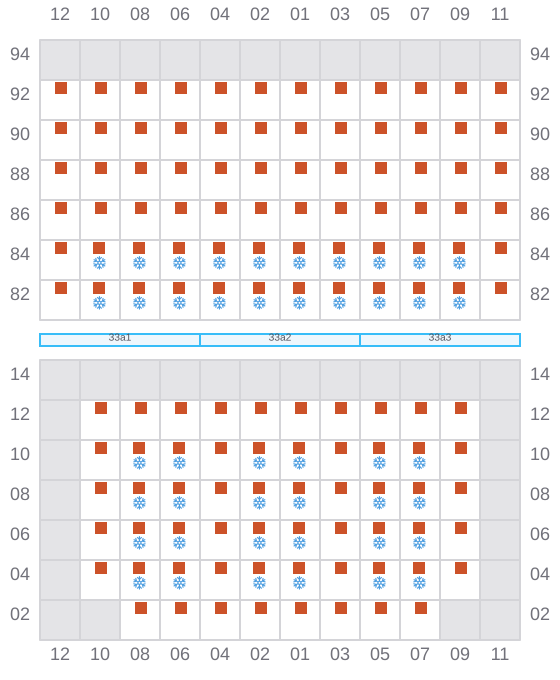

035
- →

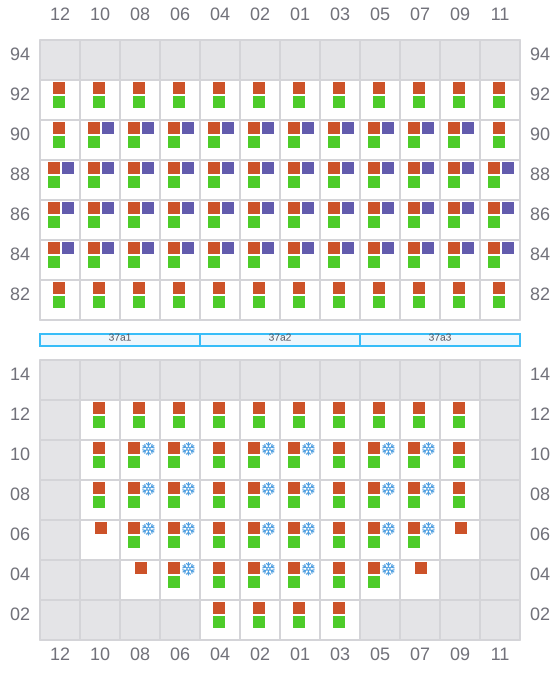

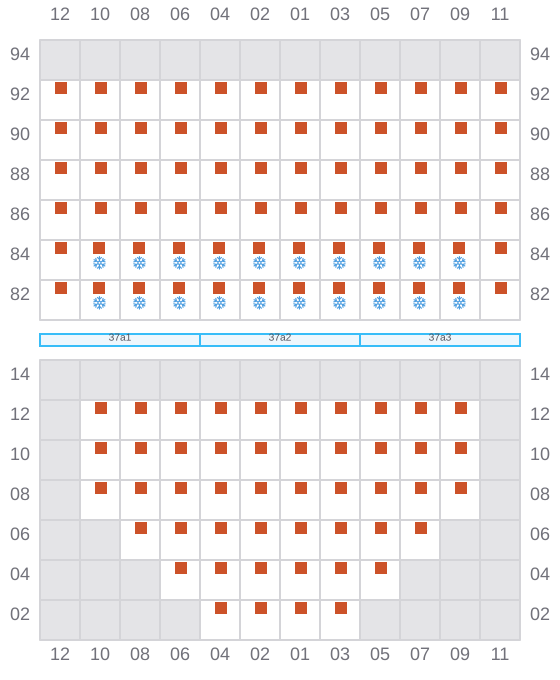

037 (038)
- →
- ? / ←

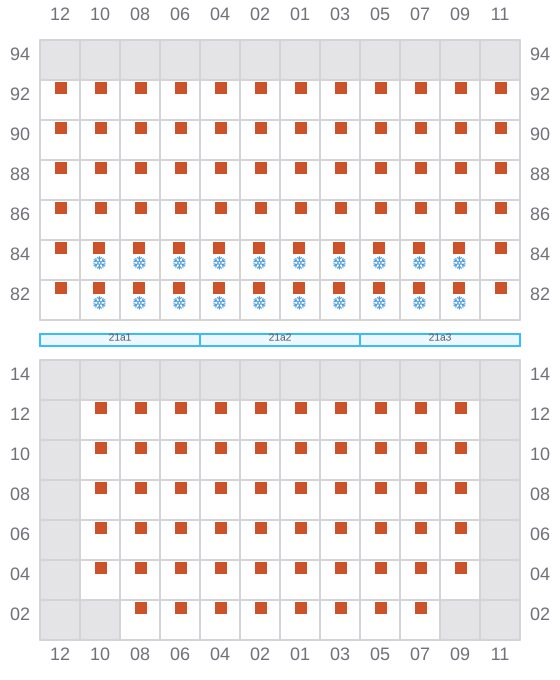

039
- → / ?
041

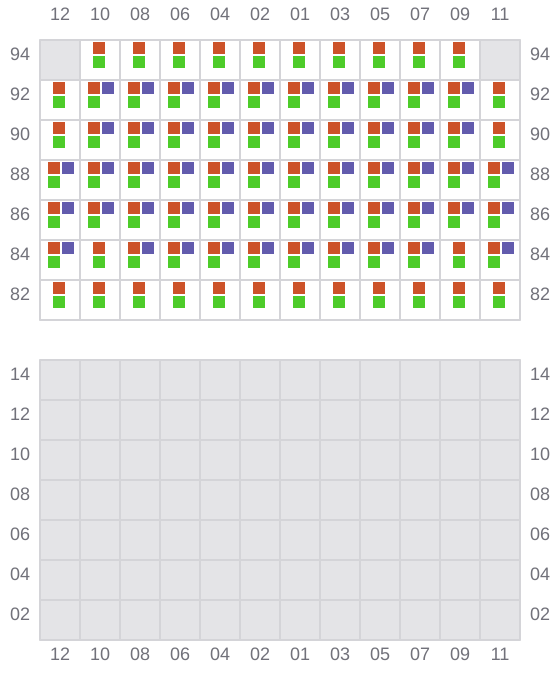

043 (044)
- → / ?

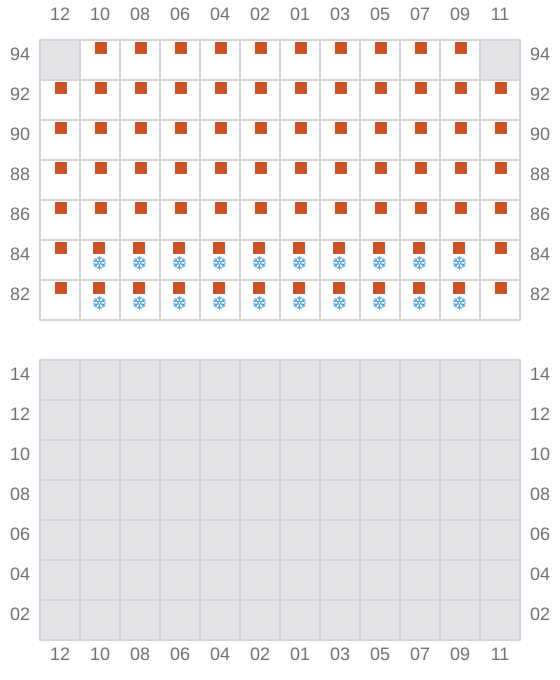

045
- → / ?
