CHARLOTTE BORCHARD
9212022 | V7AO8 | 9212022 by ********* Last update: Mon Mar 18 2024
General Info
Ship Name:CHARLOTTE BORCHARD
IMO Code:9212022
Call Sign:V7AO8
Line Operator:9212022
Class Name for Sister Ships:11W
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):159.00
LOA (Length Overall):159.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:033
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,216
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

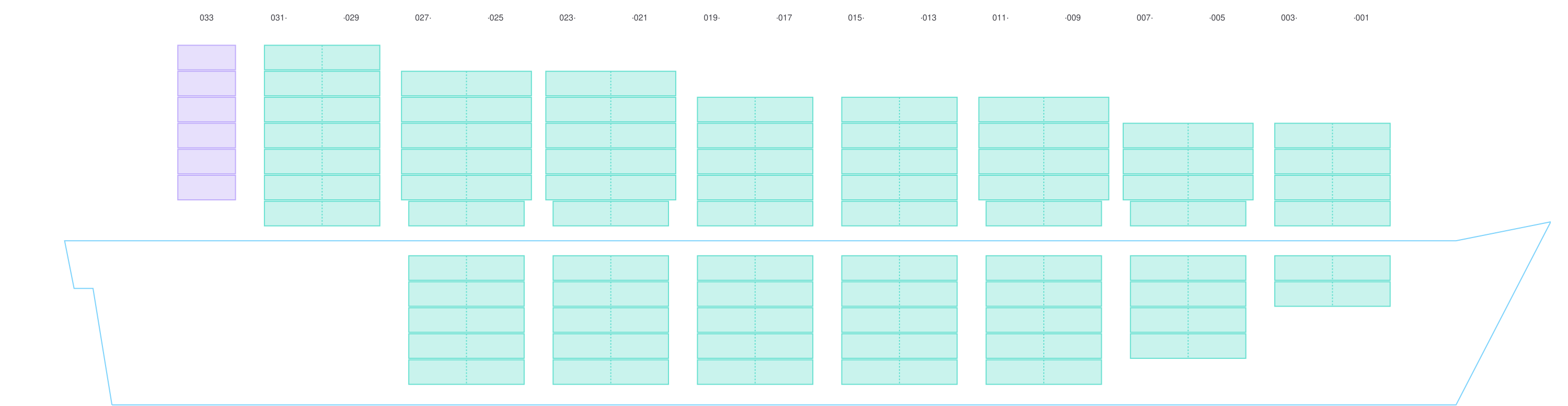

Side View
Hatch-Covers View

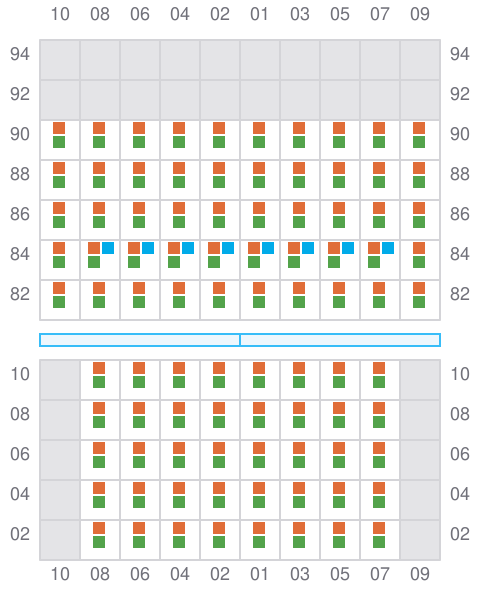

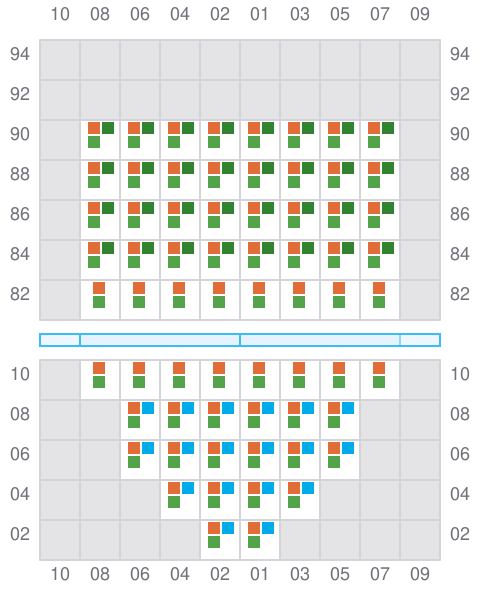

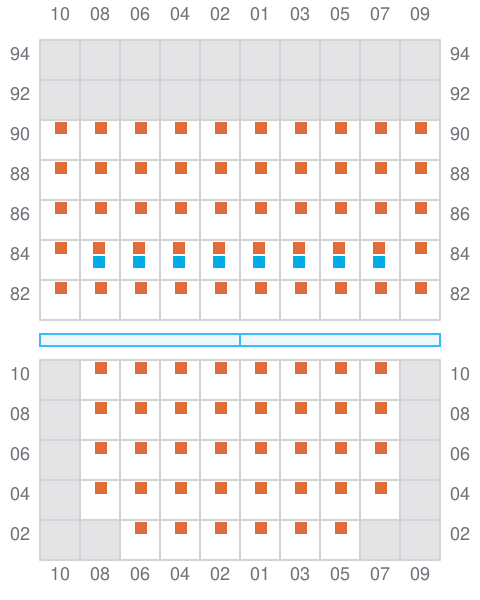

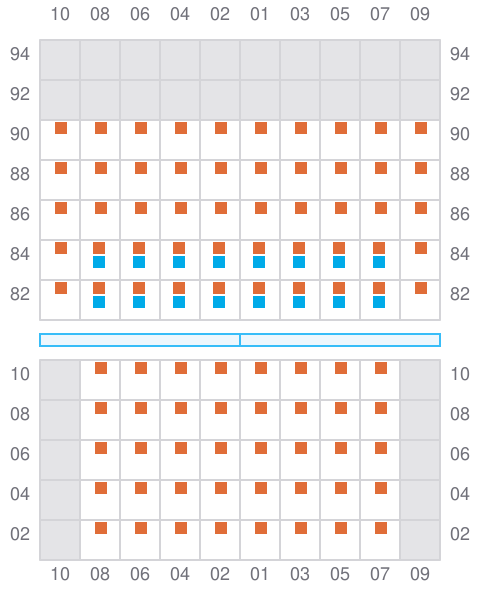

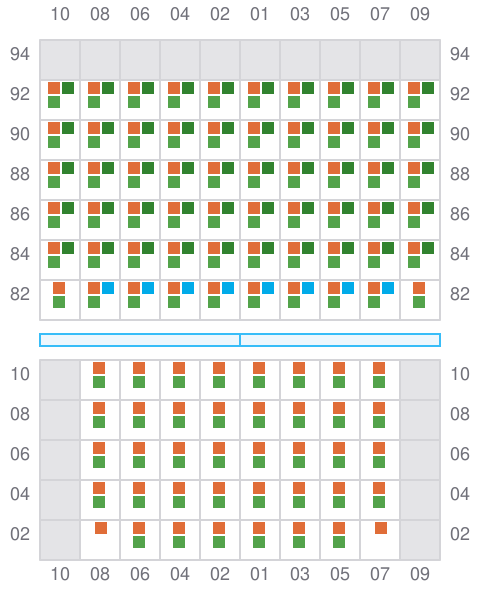

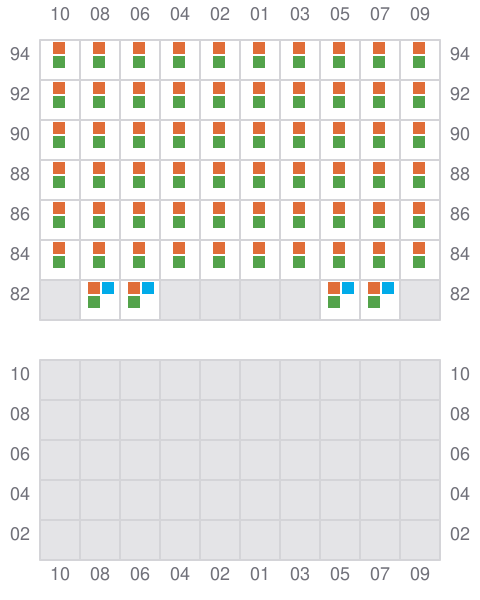

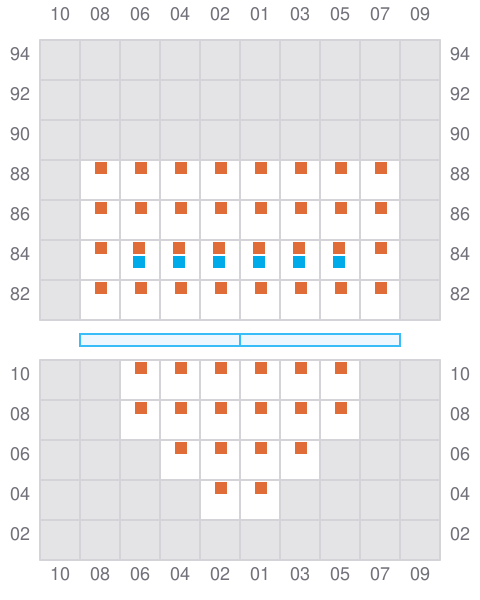

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

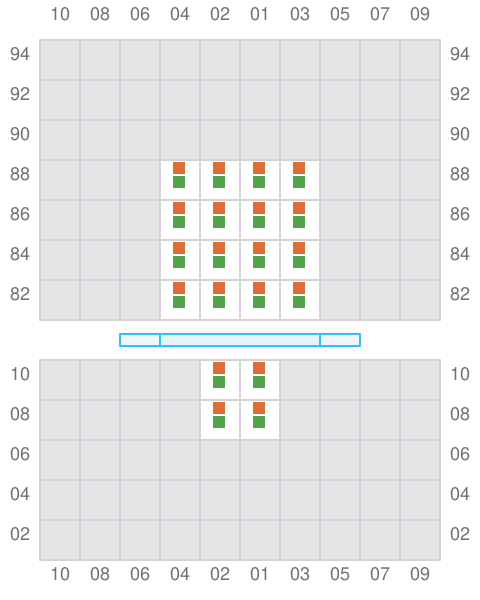

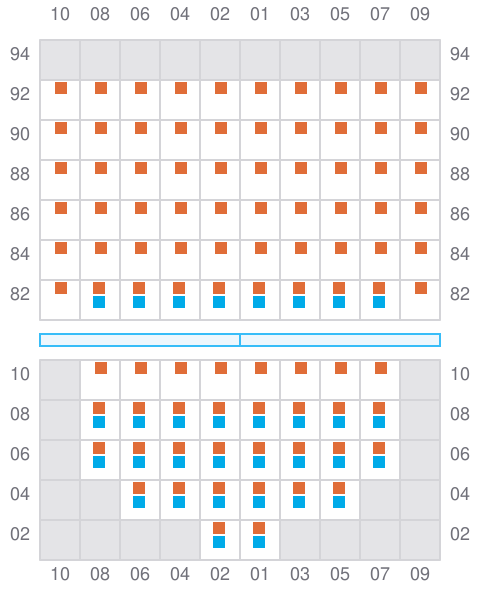

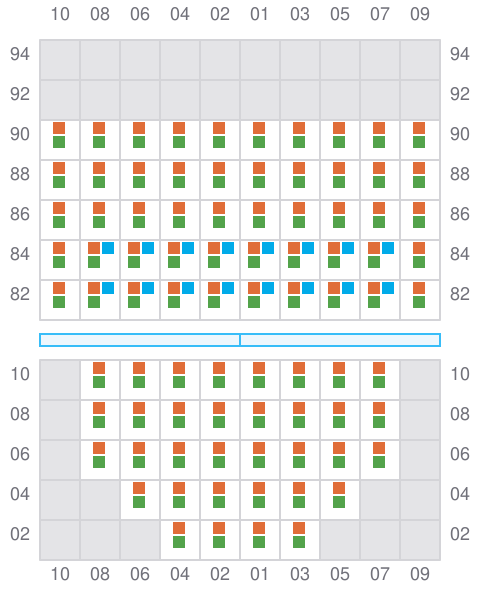

001 (002)
- →

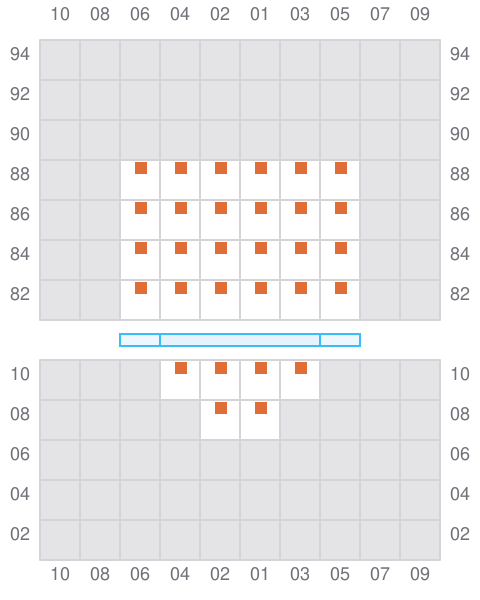

003
- ←

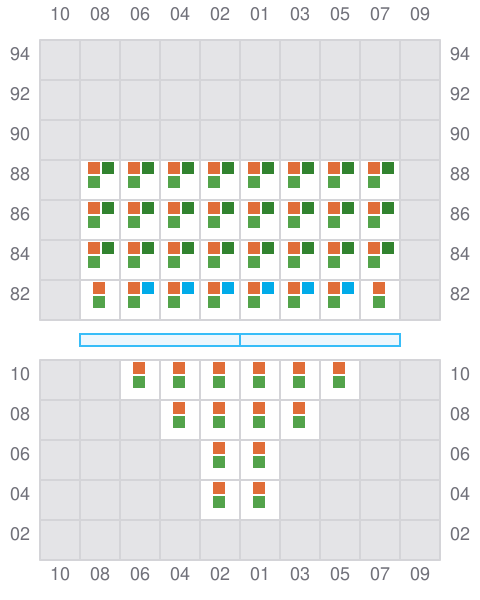

005 (006)
- →
- ← / ?
007
- ←
- → / ?
009 (010)
- →
- ? / ←

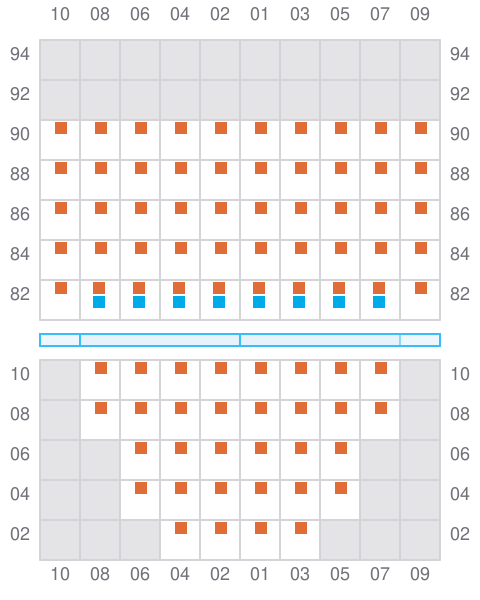

011
- ←
- → / ?
013 (014)
- →
- ← / ?
015
- ←
- → / ?
017 (018)
- →
- ← / ?
019
- ←
- → / ?
021 (022)
- →
- ← / ?

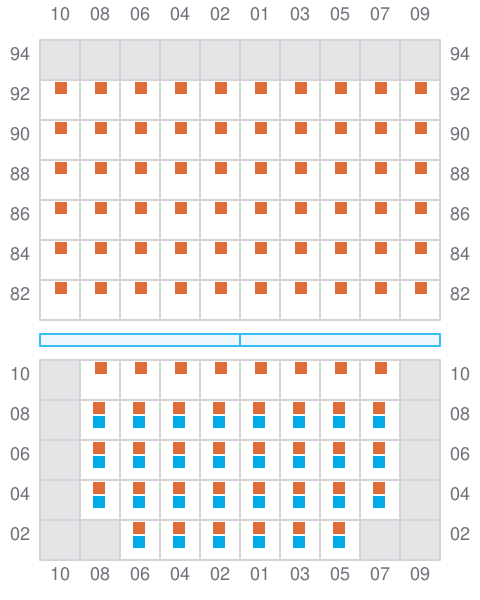

023
- ←
- ? / →

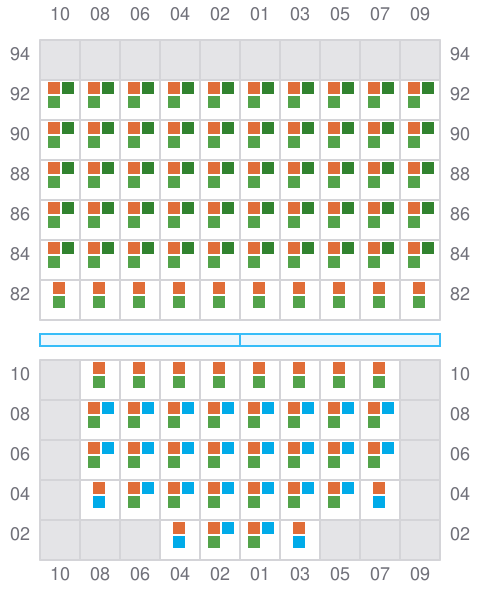

025 (026)
- →
- ? / ←
027
- ←
- →
029 (030)
- → / ?
- ← / ?

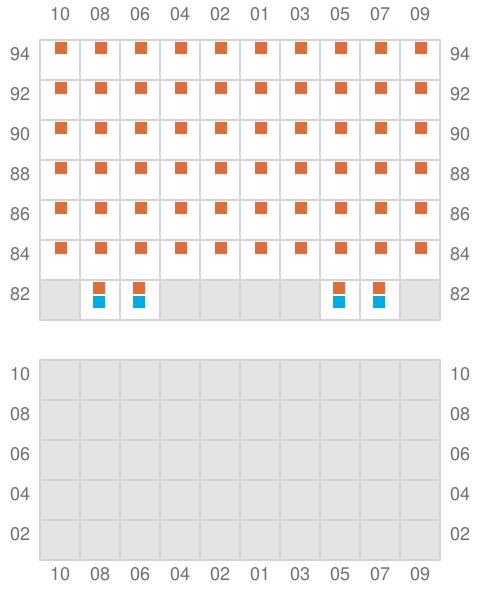

031
- ← / ?
- → / ?

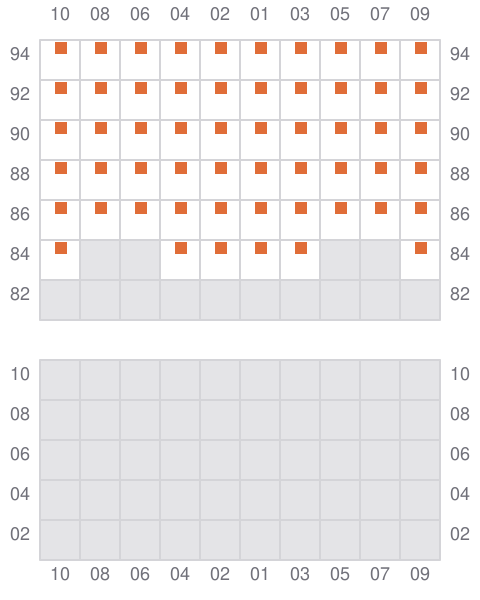

033
