CHARLOTTE MAERSK
9245744 | OWLD2 | MSK by ************************** Last update: Fri Jun 23 2023

General Info

Ship Name:CHARLOTTE MAERSK
IMO Code:9245744
Call Sign:OWLD2
Line Operator:MSK
Class Name for Sister Ships:CHT
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:081
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,732

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

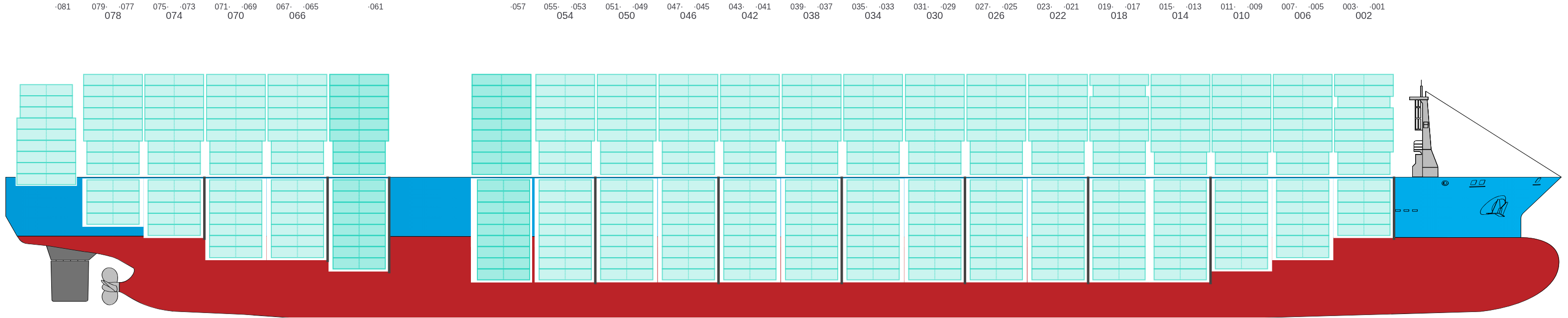

Side View

Side view of CHARLOTTE MAERSK

Hatch-Covers View

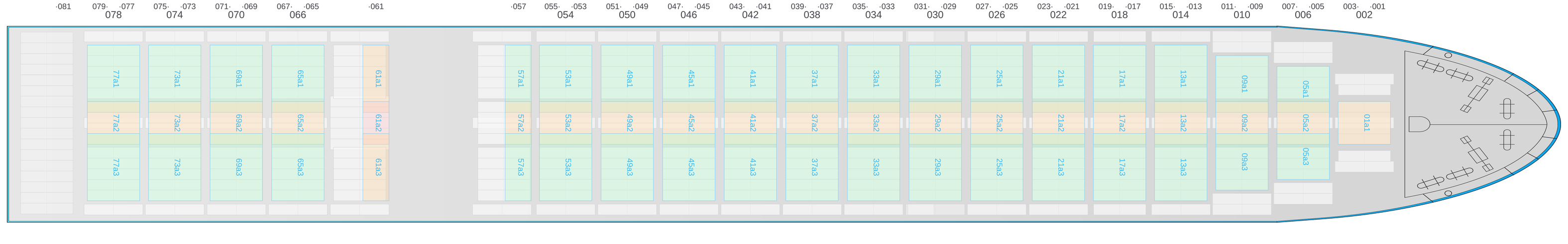

Deck view of CHARLOTTE MAERSK

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

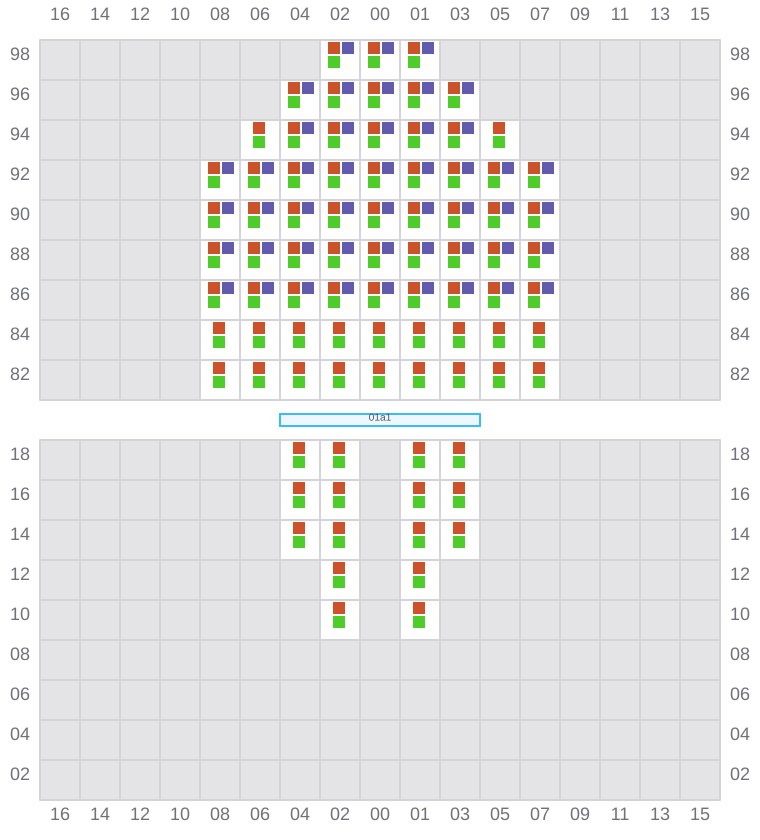

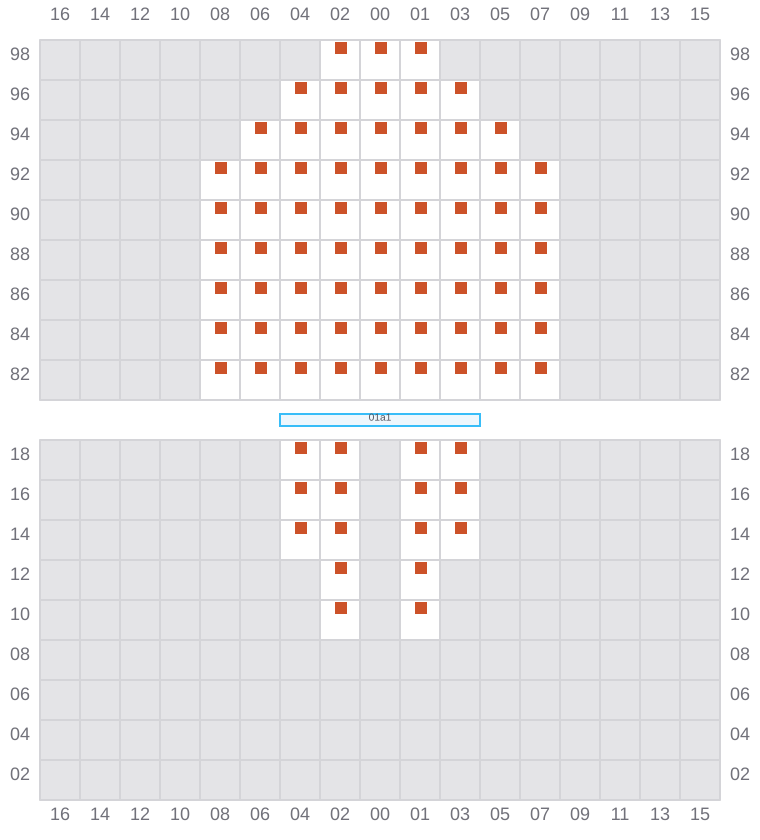

Bay 001 view and slots of CHARLOTTE MAERSK

003

  • ←
Bay 003 view and slots of CHARLOTTE MAERSK

005 (006)

  • →

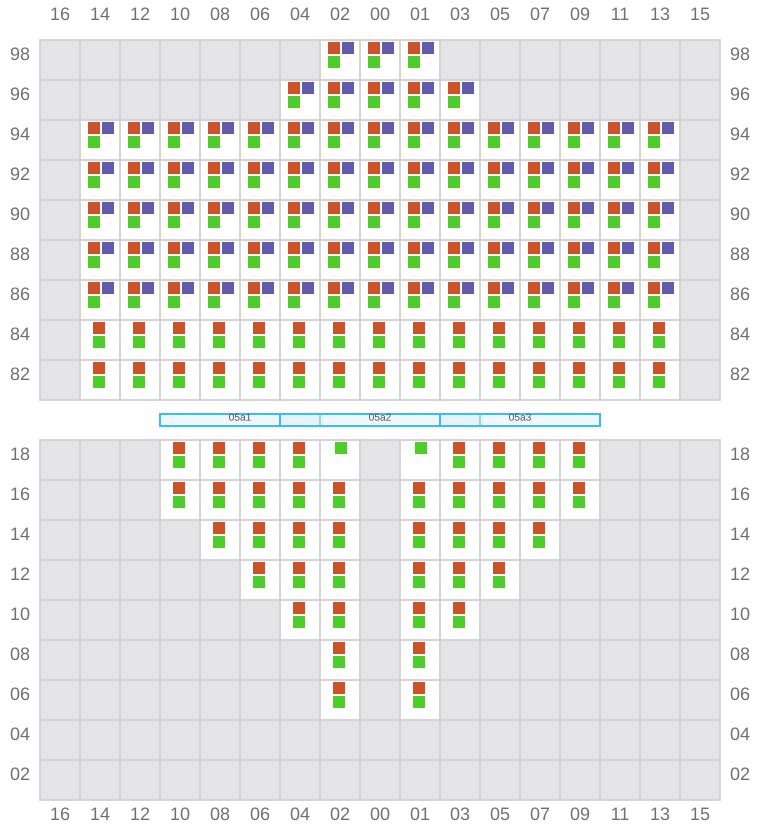

Bay 005 view and slots of CHARLOTTE MAERSK

007

  • ←
Bay 007 view and slots of CHARLOTTE MAERSK

009 (010)

  • →

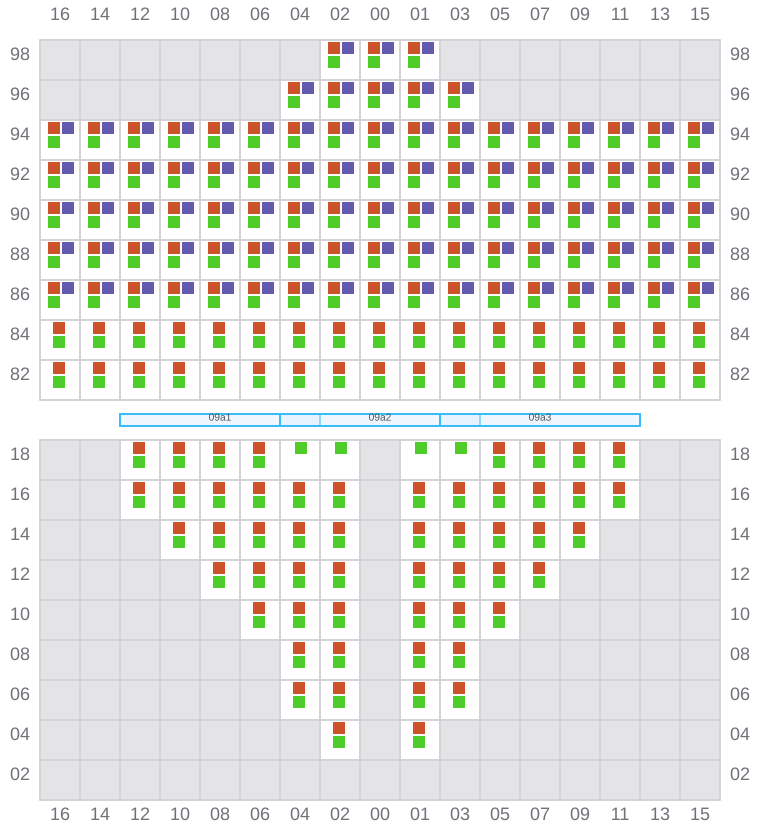

Bay 009 view and slots of CHARLOTTE MAERSK

011

  • ←

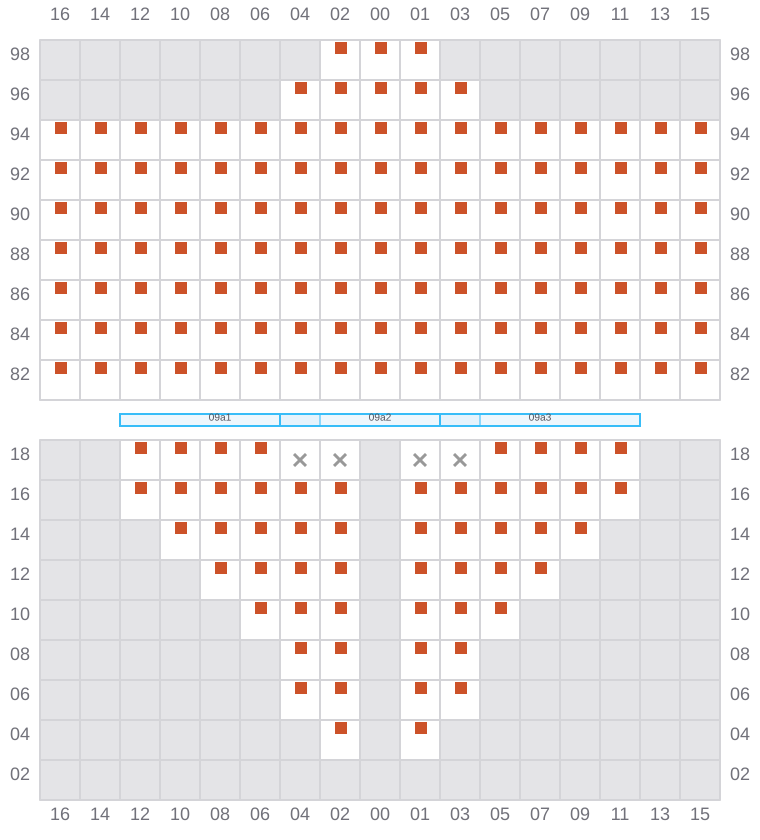

Bay 011 view and slots of CHARLOTTE MAERSK

013 (014)

  • →

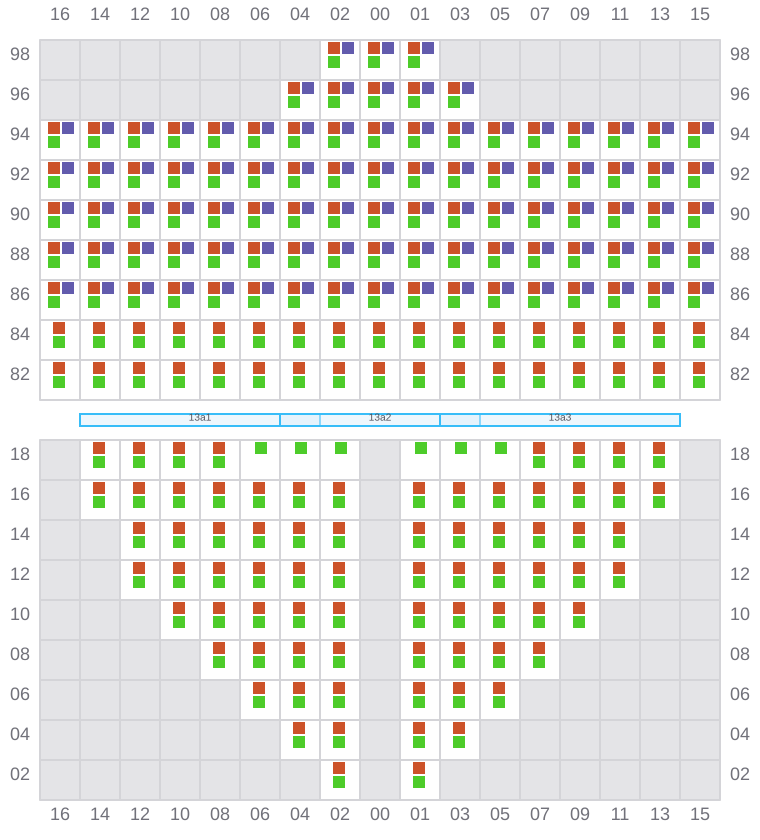

Bay 013 view and slots of CHARLOTTE MAERSK

015

  • ←
Bay 015 view and slots of CHARLOTTE MAERSK

017 (018)

  • →

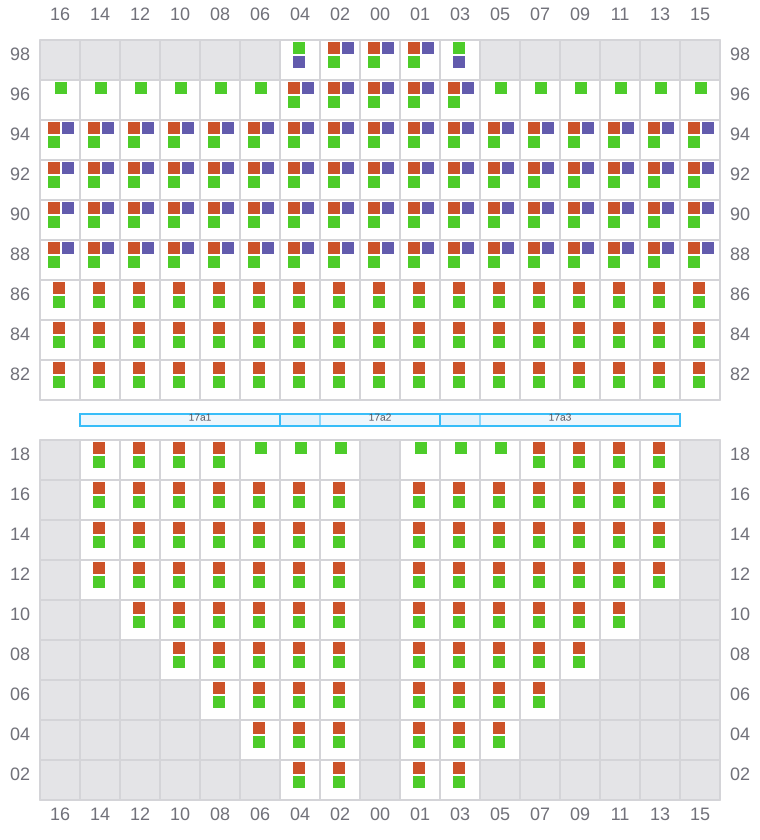

Bay 017 view and slots of CHARLOTTE MAERSK

019

  • ←
  • → / ?

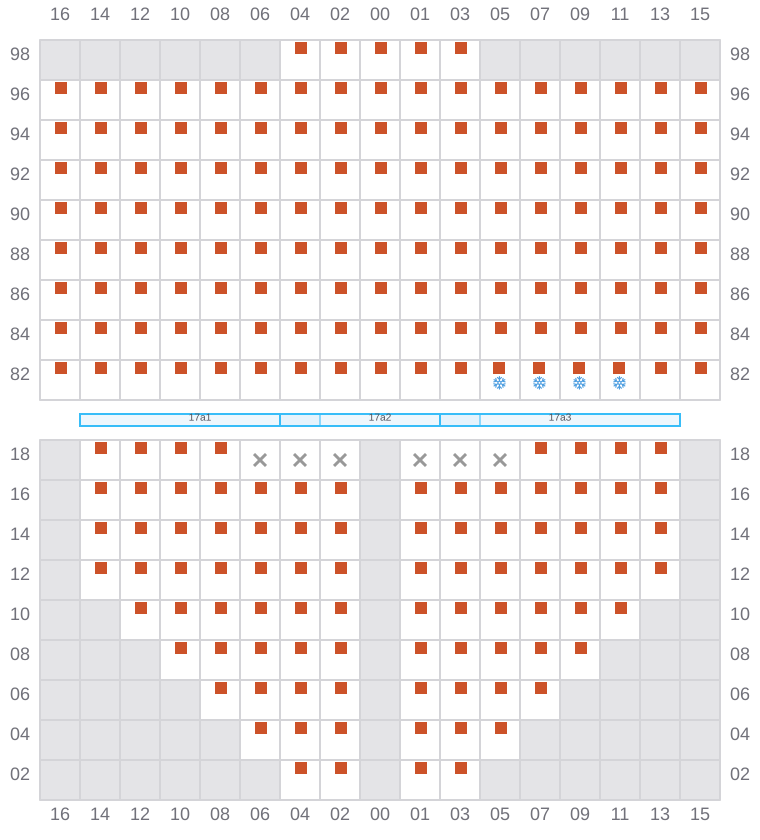

Bay 019 view and slots of CHARLOTTE MAERSK

021 (022)

  • →

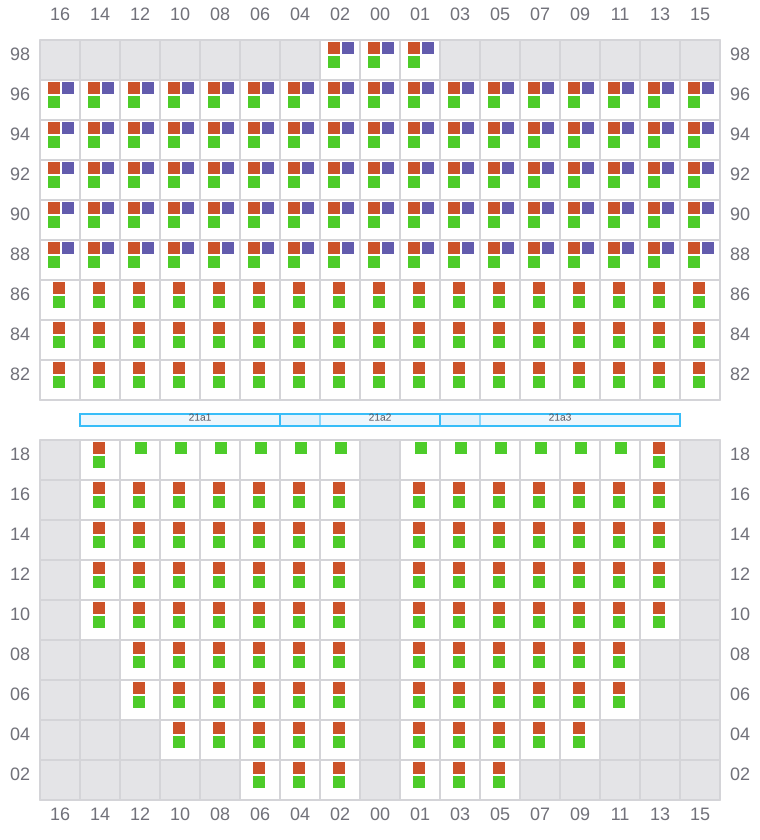

Bay 021 view and slots of CHARLOTTE MAERSK

023

  • ←
  • → / ?

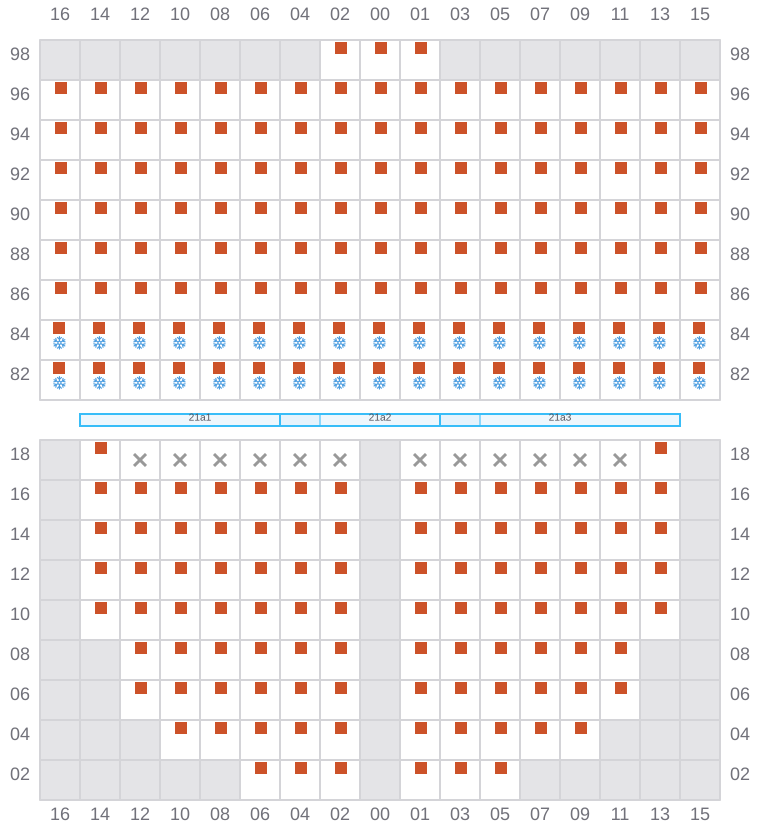

Bay 023 view and slots of CHARLOTTE MAERSK

025 (026)

  • →

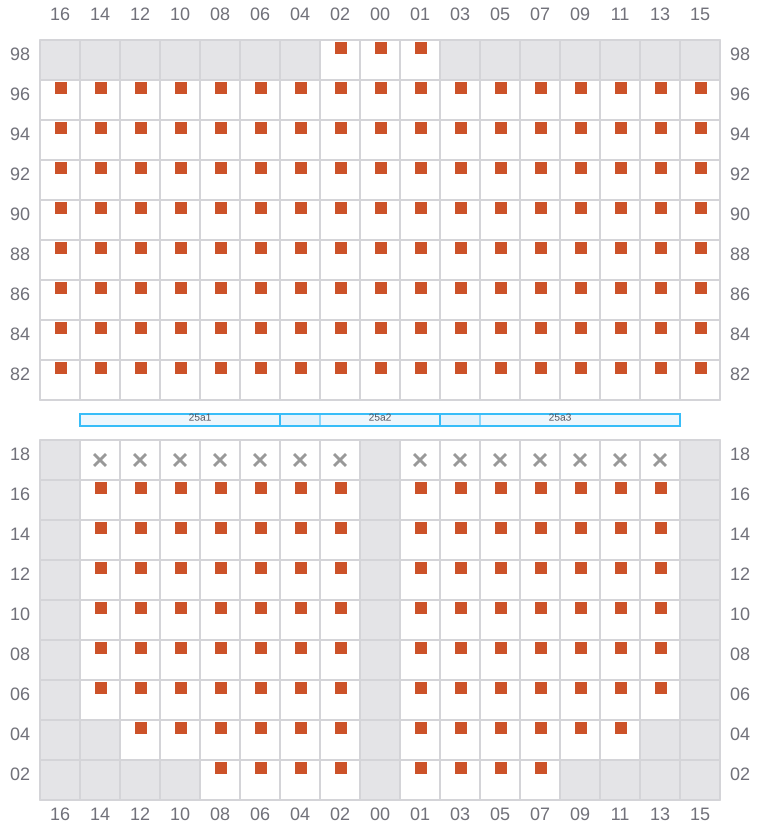

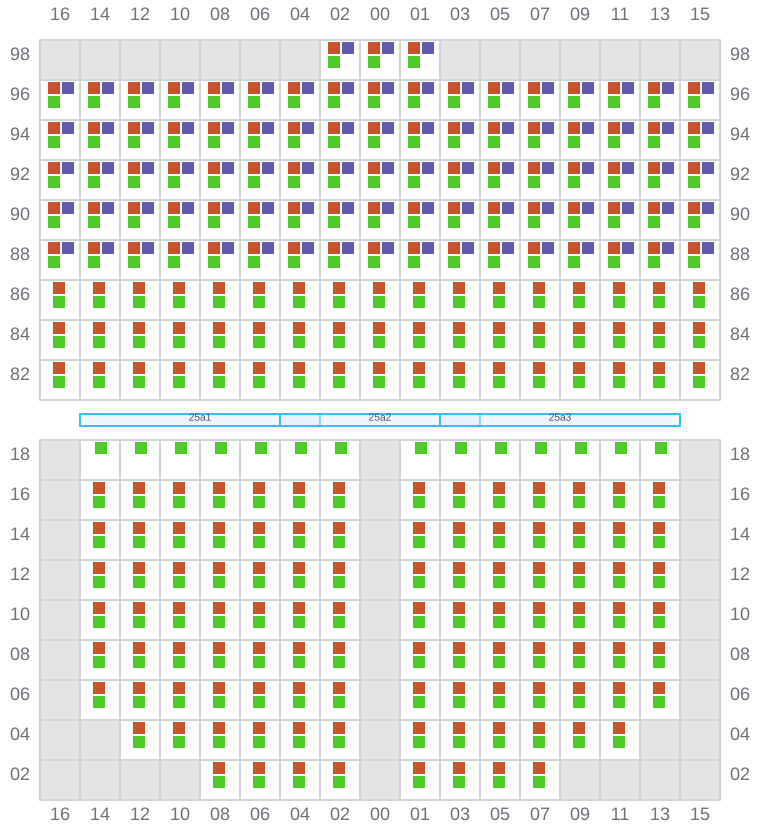

Bay 025 view and slots of CHARLOTTE MAERSK

027

  • ←
Bay 027 view and slots of CHARLOTTE MAERSK

029 (030)

  • →
  • ? / →

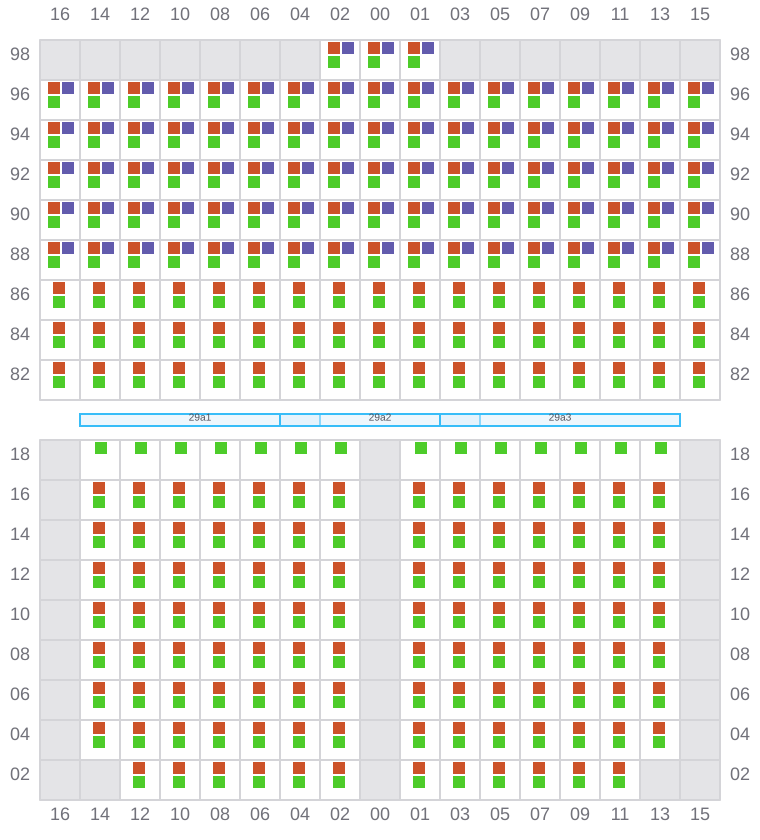

Bay 029 view and slots of CHARLOTTE MAERSK

031

  • ←
  • →
Bay 031 view and slots of CHARLOTTE MAERSK

033 (034)

  • →

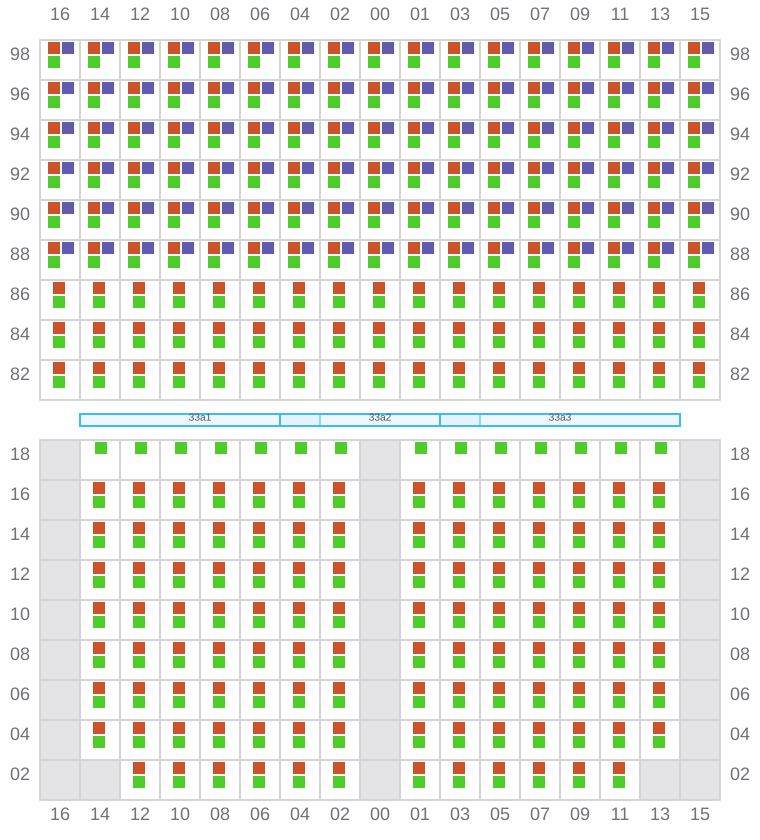

Bay 033 view and slots of CHARLOTTE MAERSK

035

  • ←

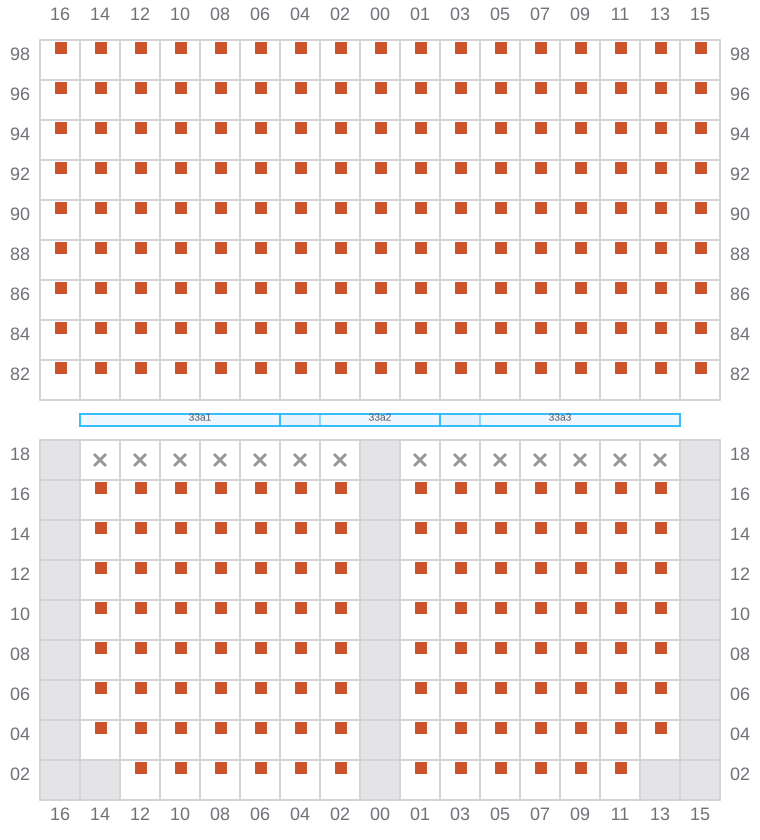

Bay 035 view and slots of CHARLOTTE MAERSK

037 (038)

  • →
  • ? / →
Bay 037 view and slots of CHARLOTTE MAERSK

039

  • ←
  • →
Bay 039 view and slots of CHARLOTTE MAERSK

041 (042)

  • →
Bay 041 view and slots of CHARLOTTE MAERSK

043

  • ←

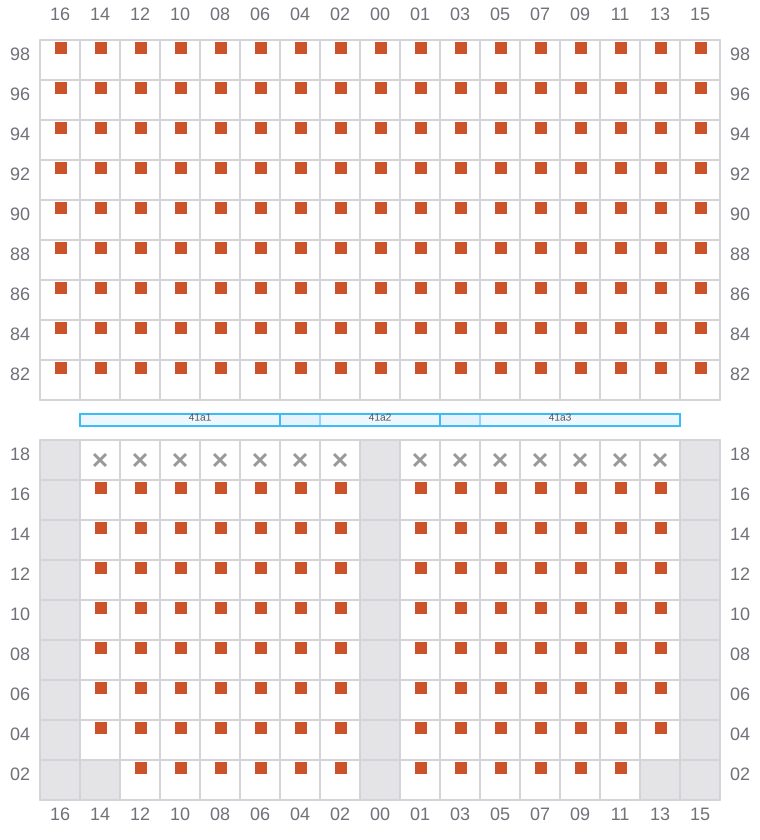

Bay 043 view and slots of CHARLOTTE MAERSK

045 (046)

  • →
  • ? / →
Bay 045 view and slots of CHARLOTTE MAERSK

047

  • ←
  • →

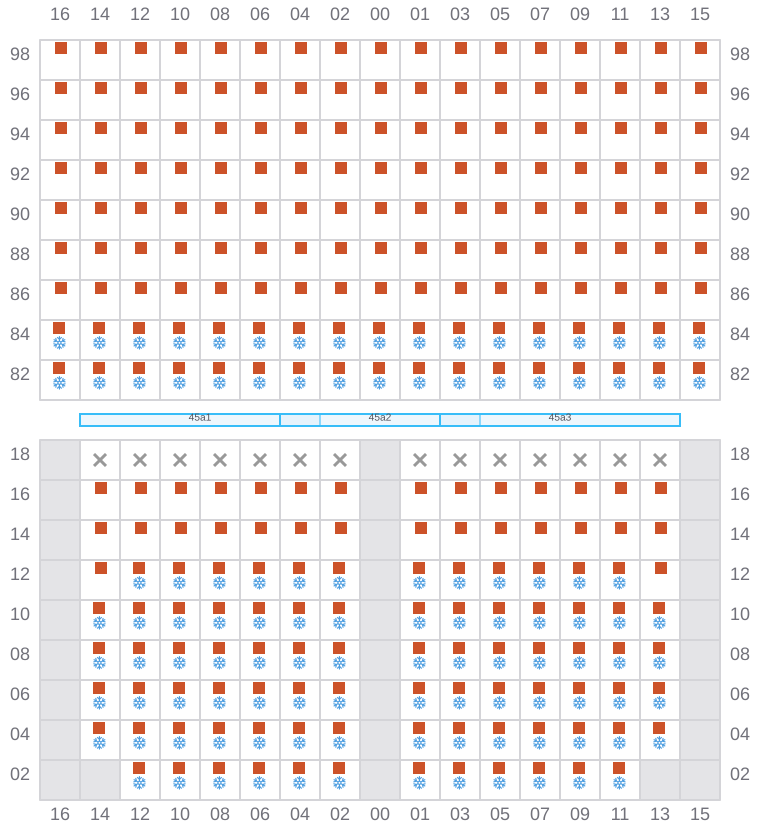

Bay 047 view and slots of CHARLOTTE MAERSK

049 (050)

  • →

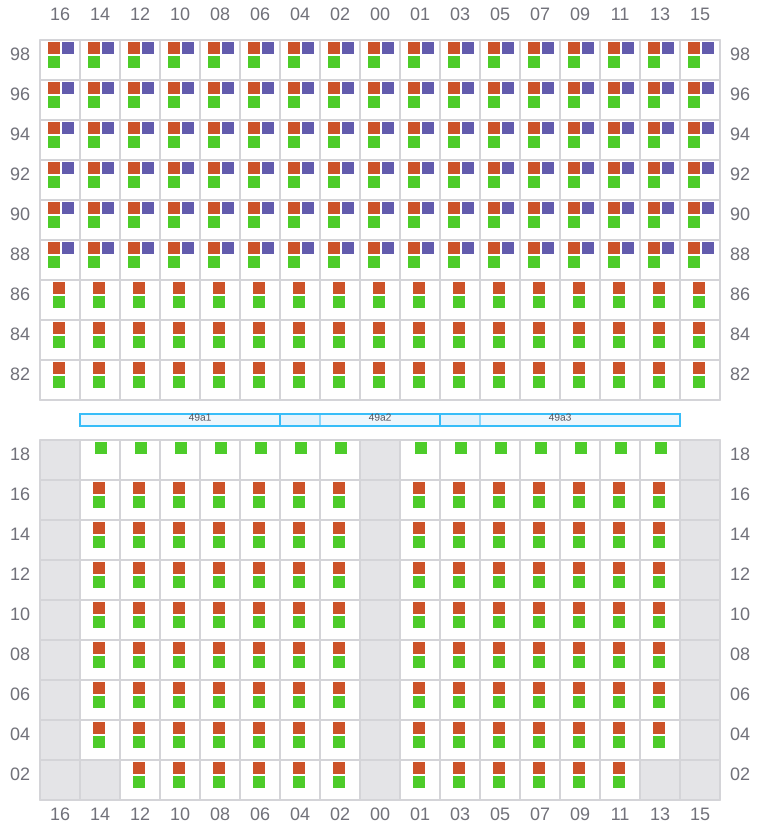

Bay 049 view and slots of CHARLOTTE MAERSK

051

  • ←

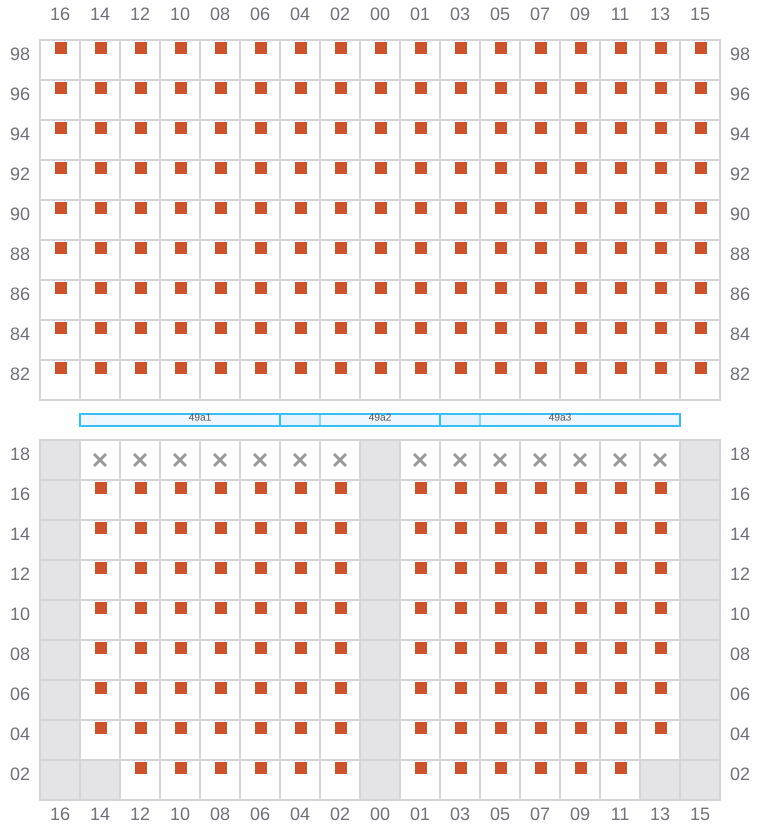

Bay 051 view and slots of CHARLOTTE MAERSK

053 (054)

  • →
  • ? / →
Bay 053 view and slots of CHARLOTTE MAERSK

055

  • ←
  • →
Bay 055 view and slots of CHARLOTTE MAERSK

057 (058)

  • →
  • → / ?

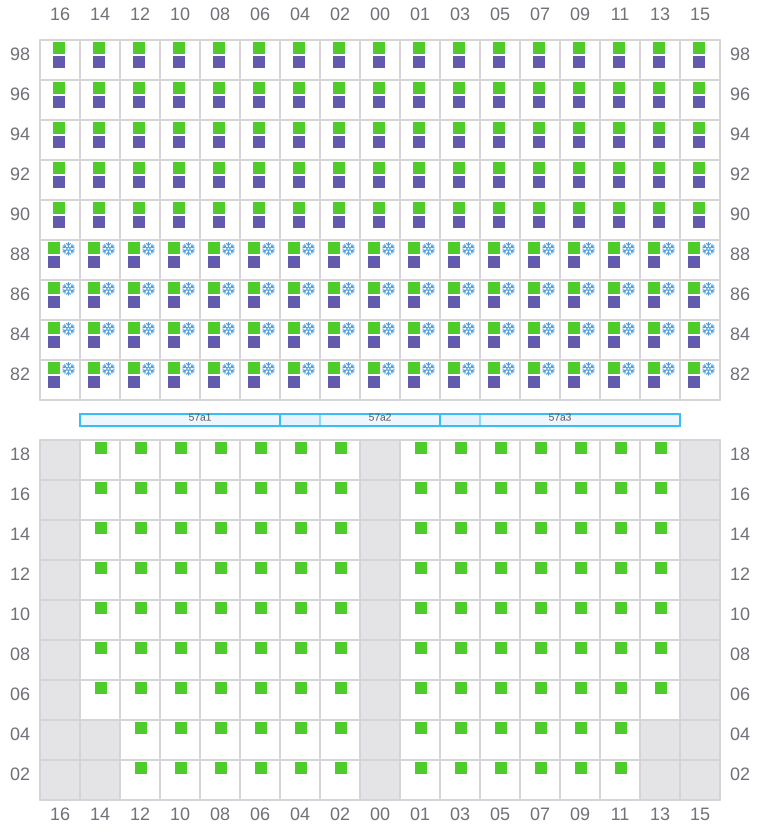

Bay 057 view and slots of CHARLOTTE MAERSK

059

Bay 059 view and slots of CHARLOTTE MAERSK

061 (062)

  • →
  • ← / ?

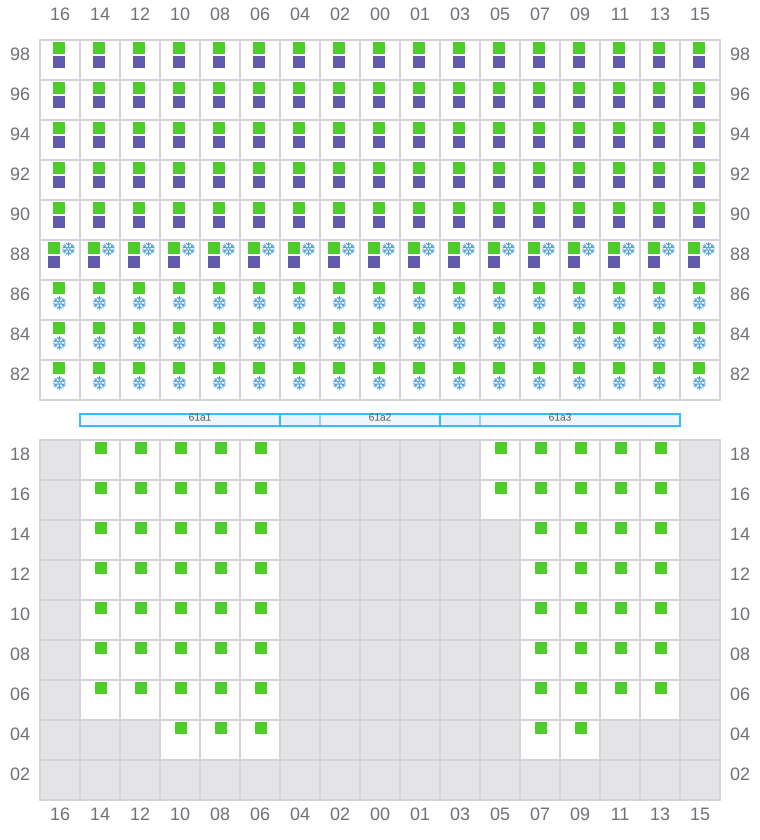

Bay 061 view and slots of CHARLOTTE MAERSK

063

Bay 063 view and slots of CHARLOTTE MAERSK

065 (066)

  • →
  • ← / →

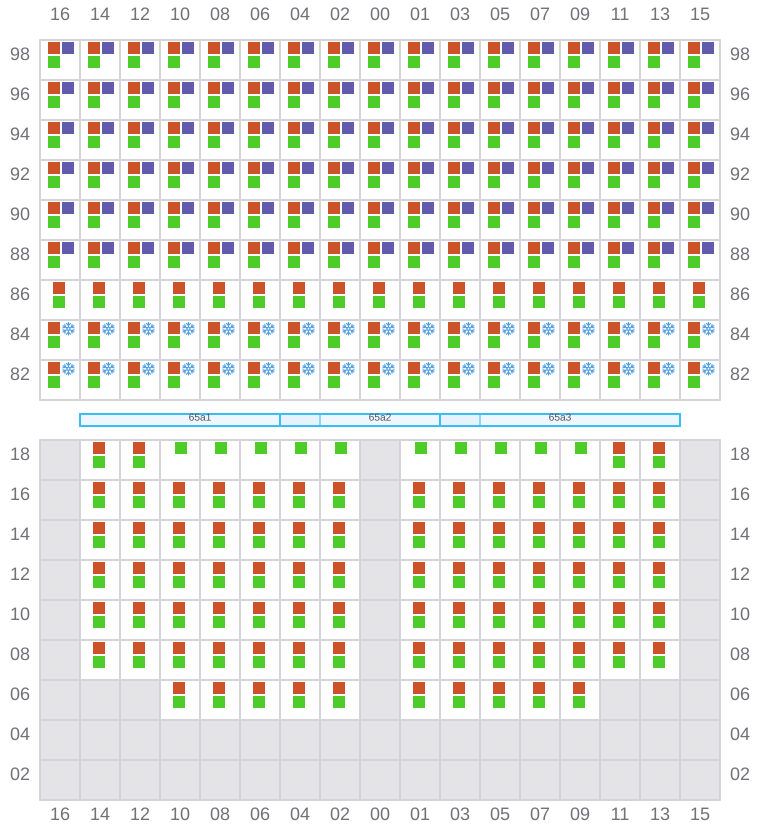

Bay 065 view and slots of CHARLOTTE MAERSK

067

  • ←
  • ? / →

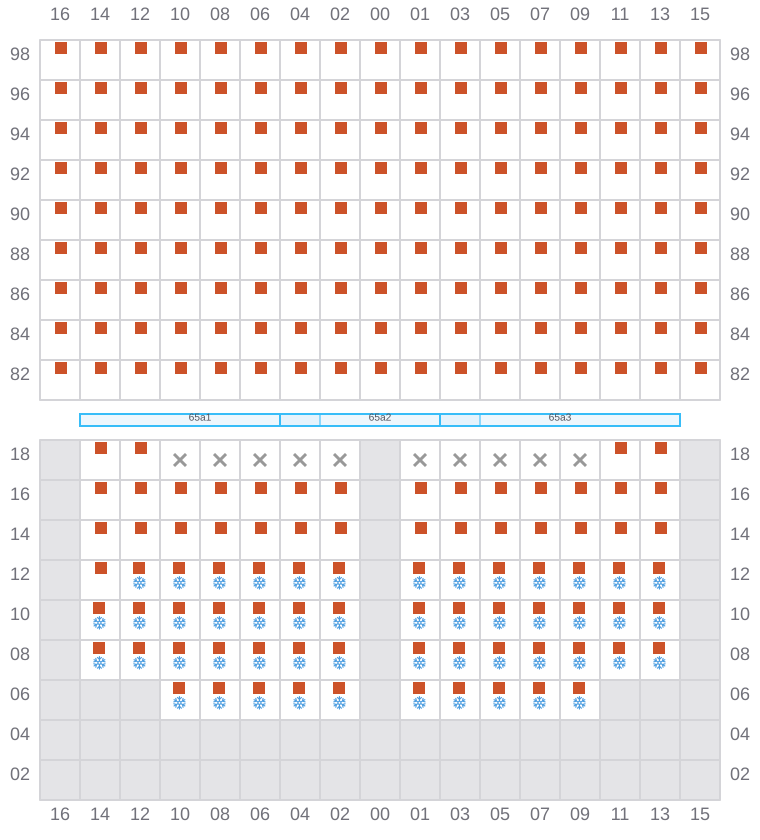

Bay 067 view and slots of CHARLOTTE MAERSK

069 (070)

  • →
  • ← / ?

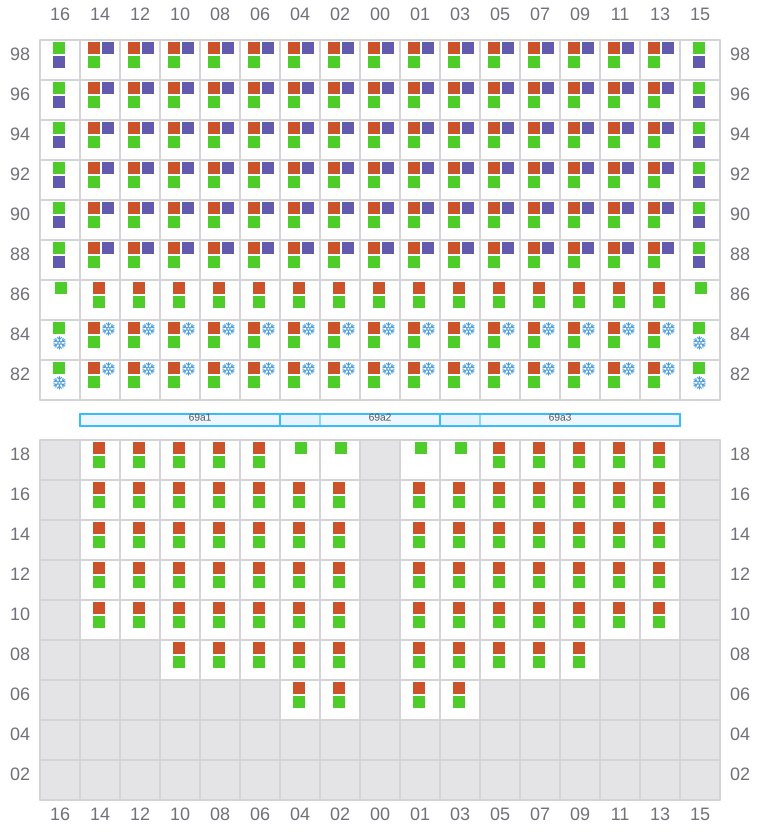

Bay 069 view and slots of CHARLOTTE MAERSK

071

  • ←

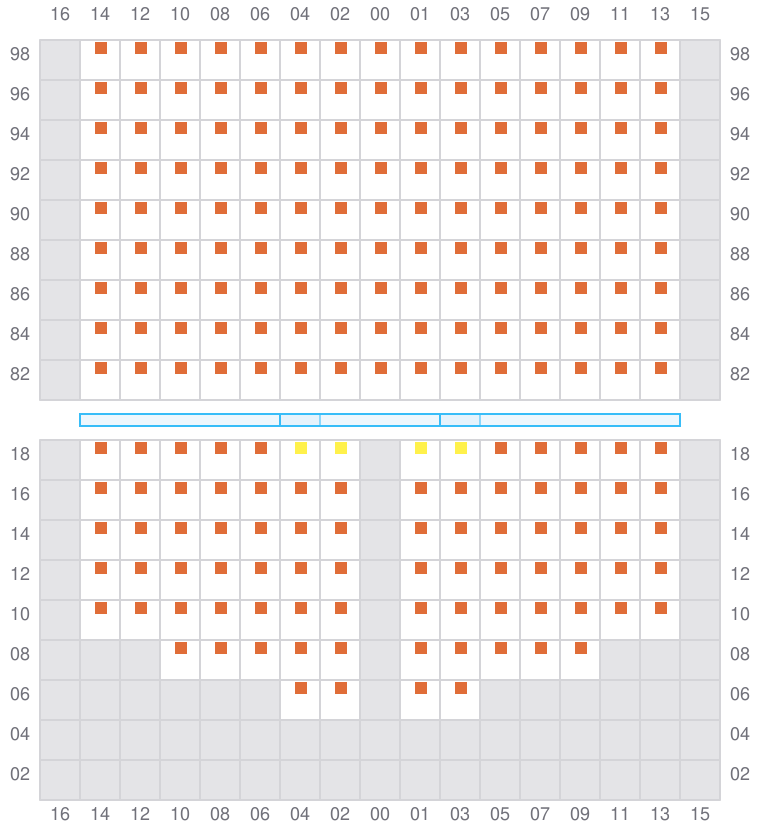

Bay 071 view and slots of CHARLOTTE MAERSK

073 (074)

  • →
  • ← / ?

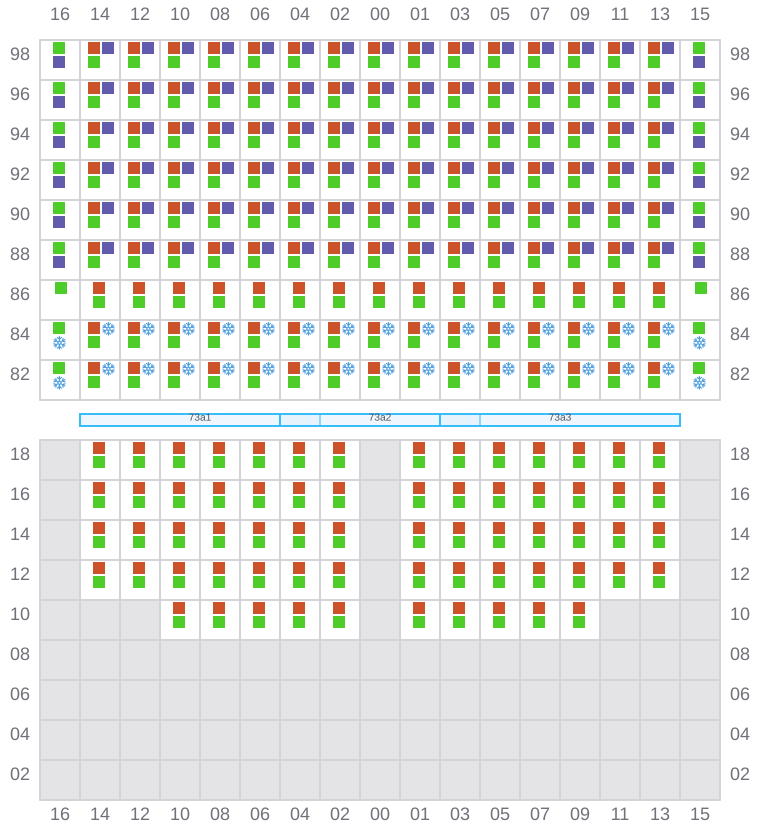

Bay 073 view and slots of CHARLOTTE MAERSK

075

  • ←

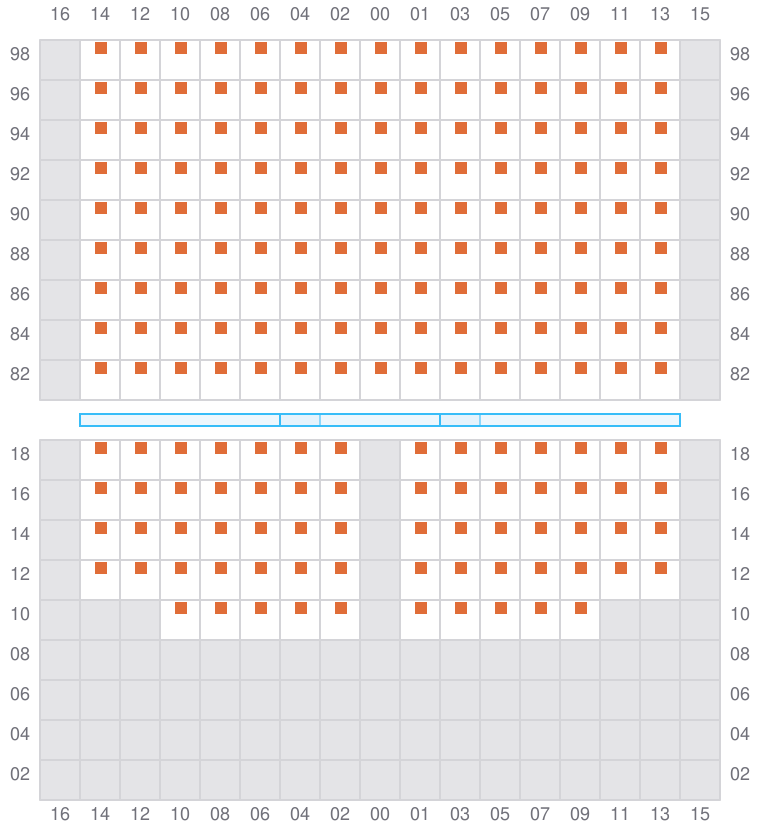

Bay 075 view and slots of CHARLOTTE MAERSK

077 (078)

  • →
  • ← / ?
Bay 077 view and slots of CHARLOTTE MAERSK

079

  • ←
Bay 079 view and slots of CHARLOTTE MAERSK

081 (082)

  • → / ?

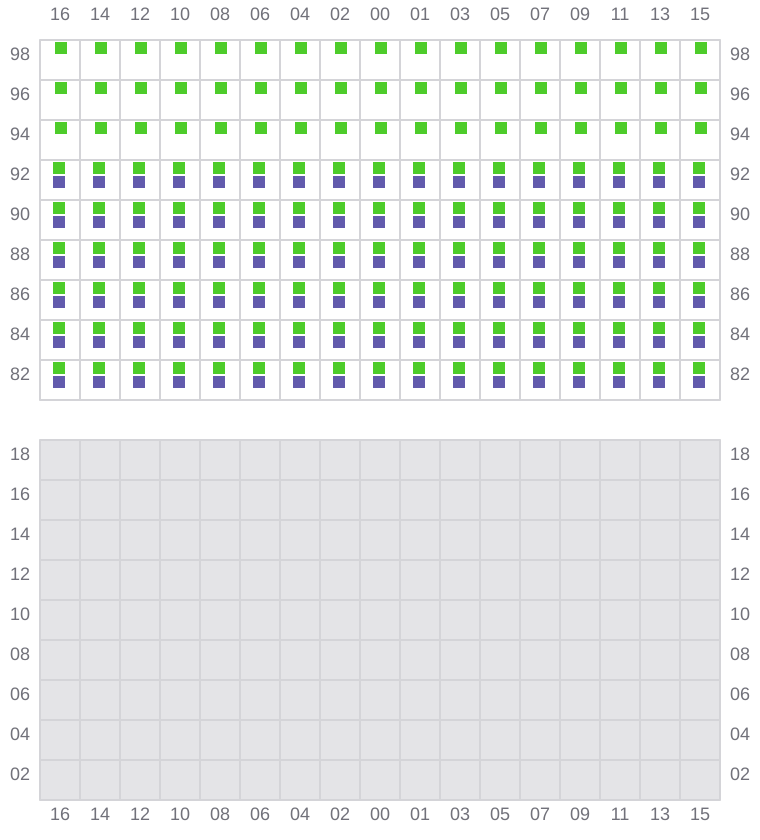

Bay 081 view and slots of CHARLOTTE MAERSK
