CHARM C
9383259 | A8QP3 | 9383259 by ********* Last update: Sun Mar 24 2024
General Info
Ship Name:CHARM C
IMO Code:9383259
Call Sign:A8QP3
Line Operator:9383259
Class Name for Sister Ships:JIANGSU 2500
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):196.90
LOA (Length Overall):208.93
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,546
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

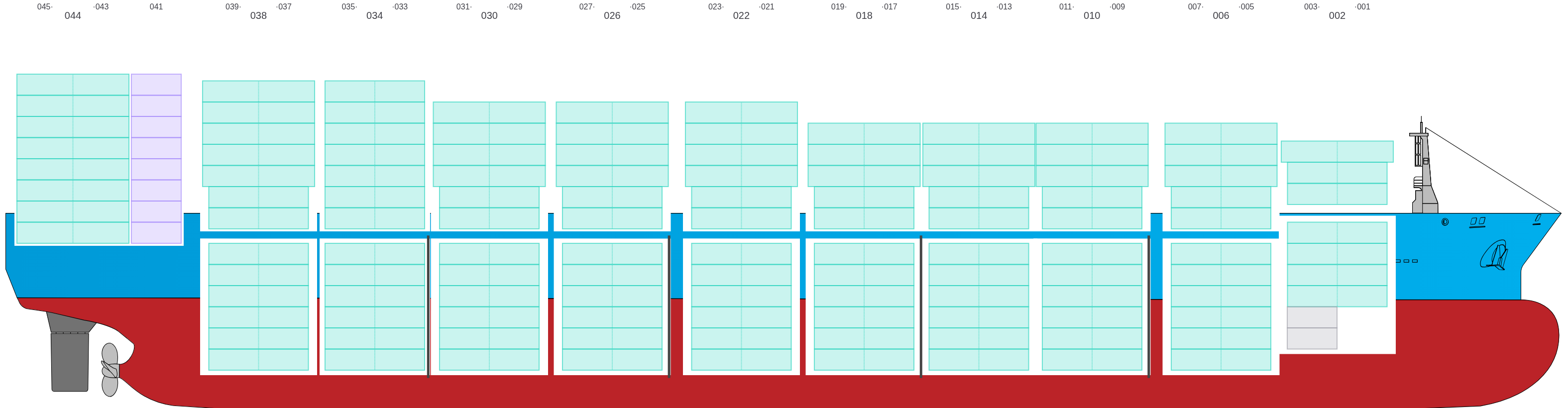

Side View
![Side view of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-sideView.png?v=1711307580737)
Hatch-Covers View
![Deck view of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-deckView.png?v=1711307580737)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

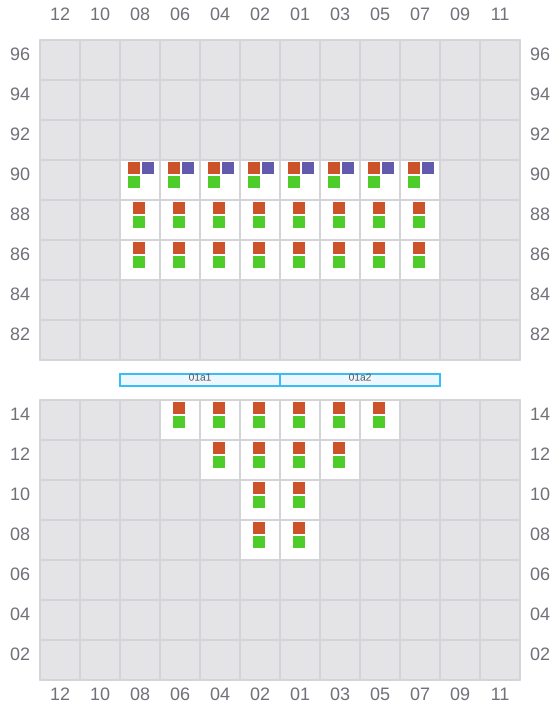

001 (002)
- →
![Bay 001 view and slots of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-b001.png?v=1711307580737)

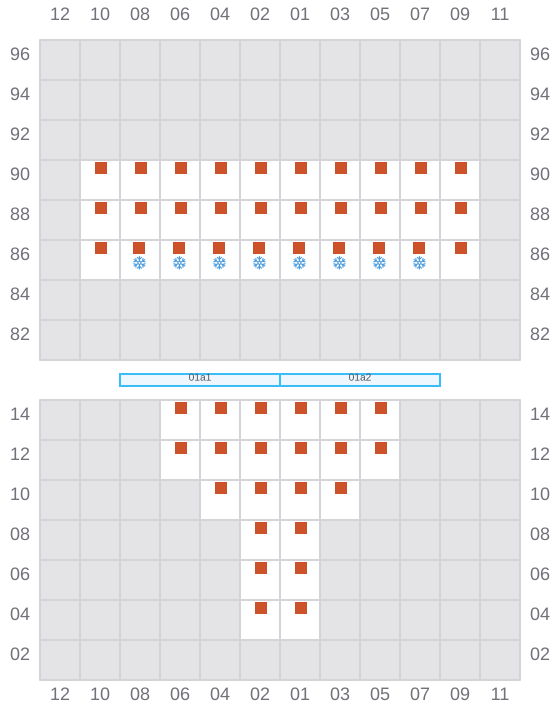

003
- ←
- → / ?
![Bay 003 view and slots of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-b003.png?v=1711307580737)

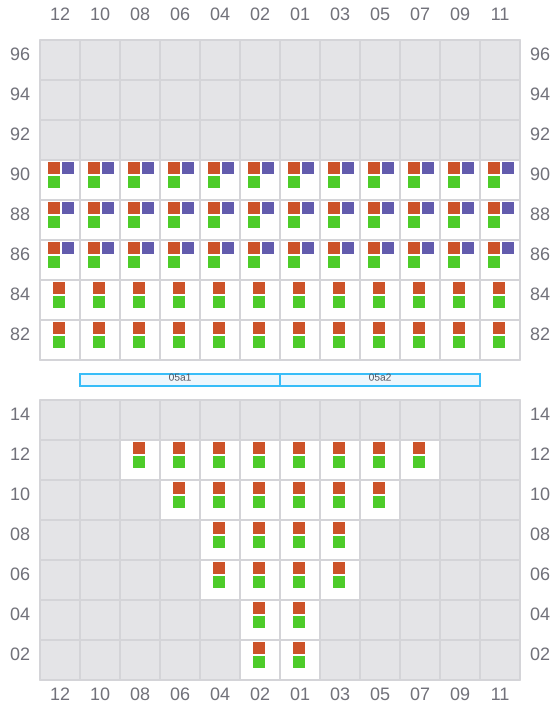

005 (006)
- →
![Bay 005 view and slots of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-b005.png?v=1711307580737)

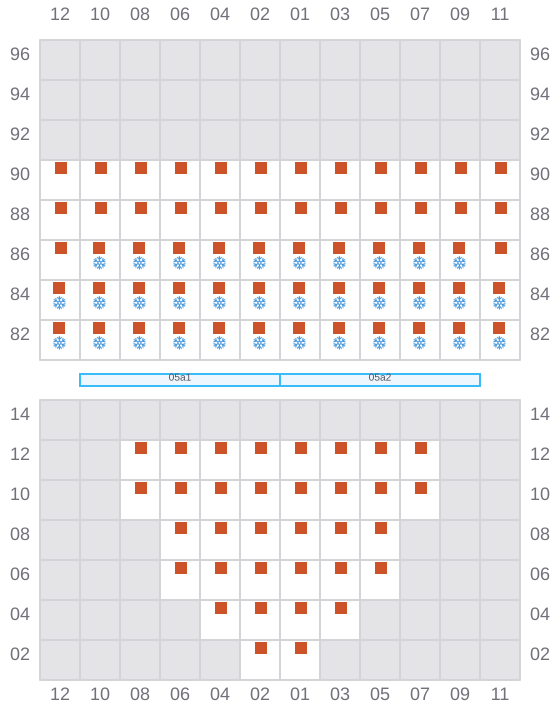

007
- ←
- → / ?
![Bay 007 view and slots of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-b007.png?v=1711307580737)

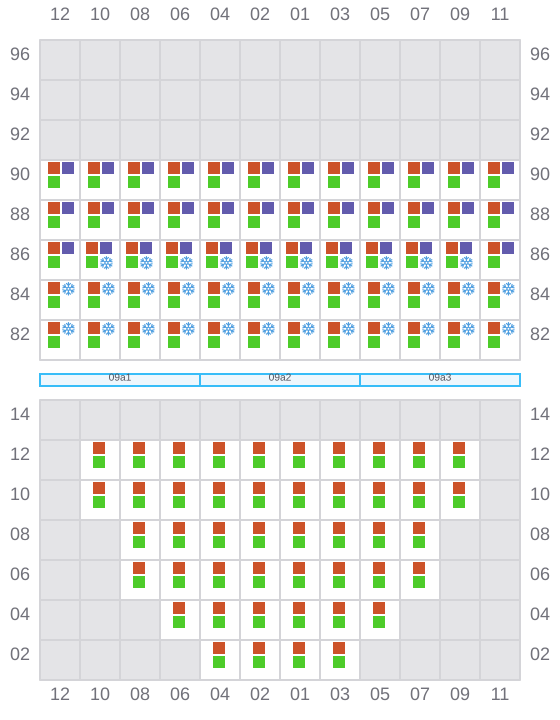

009 (010)
- →
- ← / ?
![Bay 009 view and slots of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-b009.png?v=1711307580737)

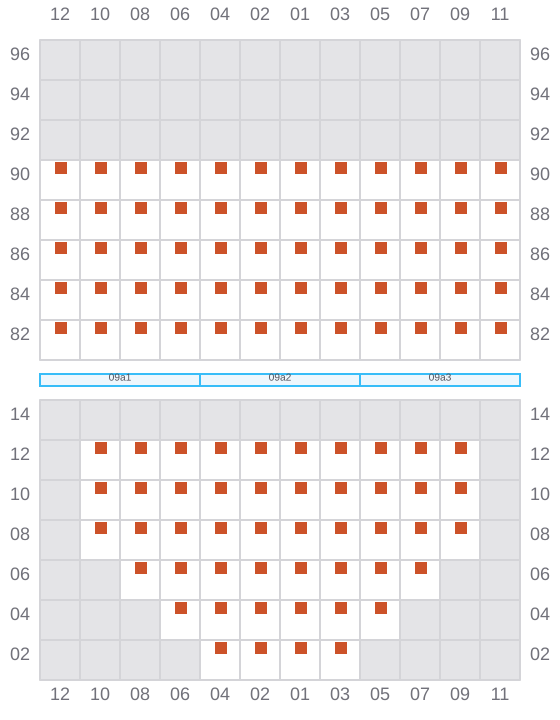

011
- ←
- → / ?
![Bay 011 view and slots of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-b011.png?v=1711307580737)

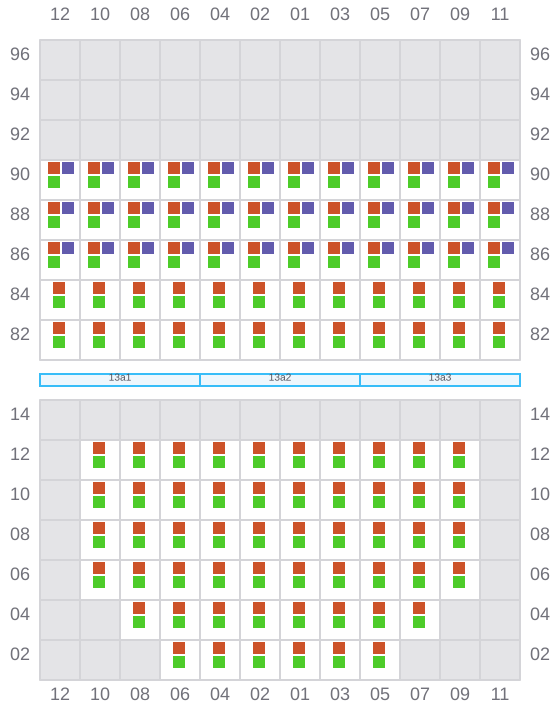

013 (014)
- →
![Bay 013 view and slots of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-b013.png?v=1711307580737)

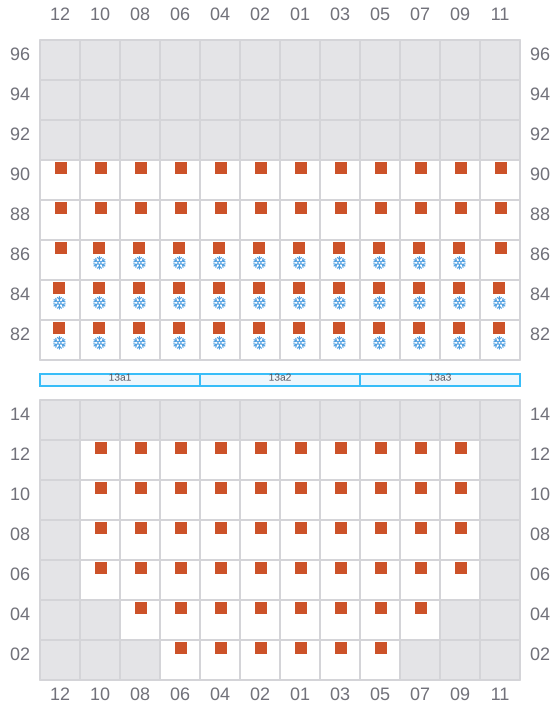

015
- ←
- → / ?
![Bay 015 view and slots of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-b015.png?v=1711307580737)

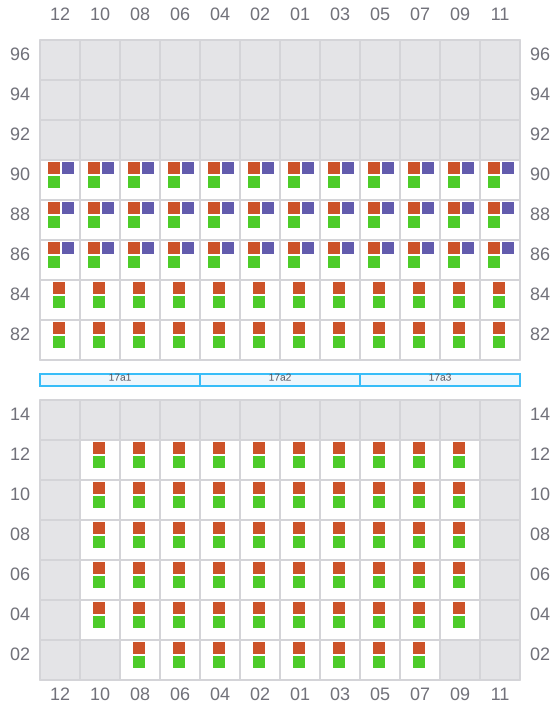

017 (018)
- →
![Bay 017 view and slots of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-b017.png?v=1711307580737)

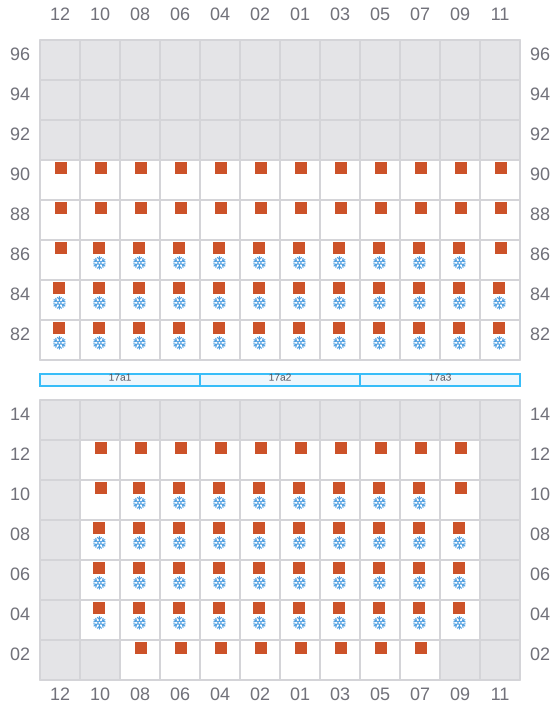

019
- ←
- →
![Bay 019 view and slots of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-b019.png?v=1711307580737)

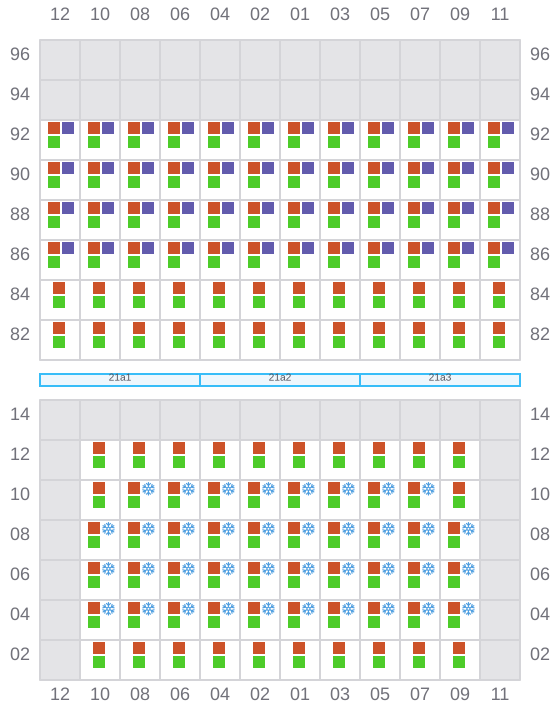

021 (022)
- →
- ? / ←
![Bay 021 view and slots of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-b021.png?v=1711307580737)

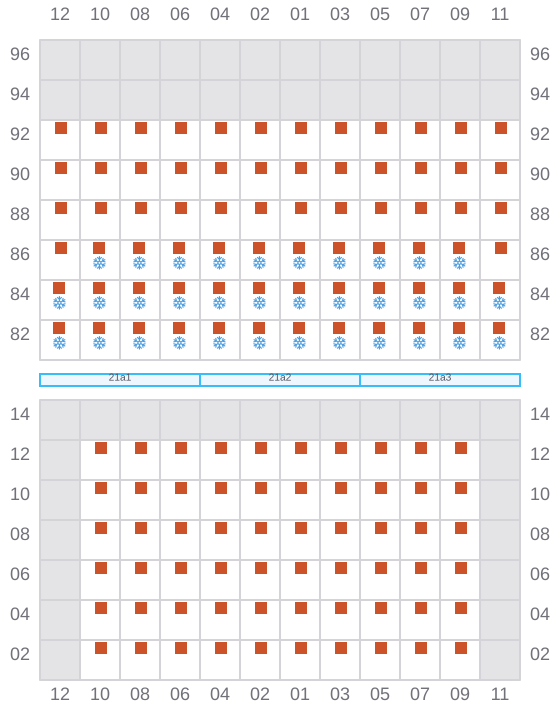

023
- ←
- → / ?
![Bay 023 view and slots of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-b023.png?v=1711307580737)

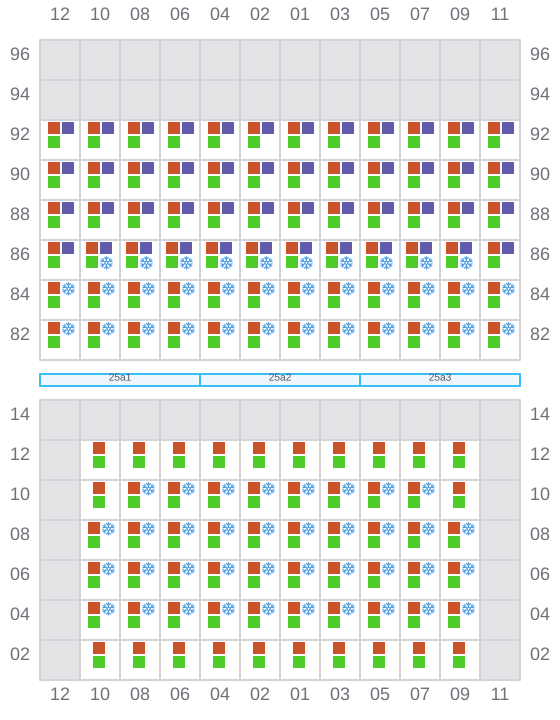

025 (026)
- →
- ←
![Bay 025 view and slots of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-b025.png?v=1711307580737)

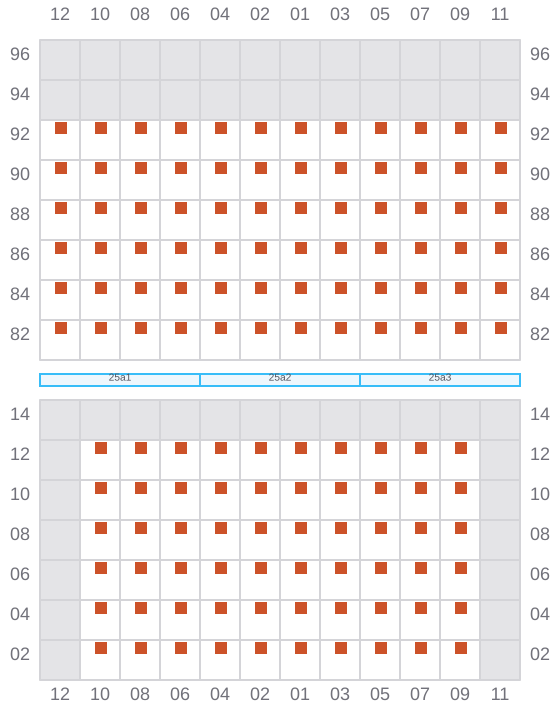

027
- ←
- → / ?
![Bay 027 view and slots of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-b027.png?v=1711307580737)

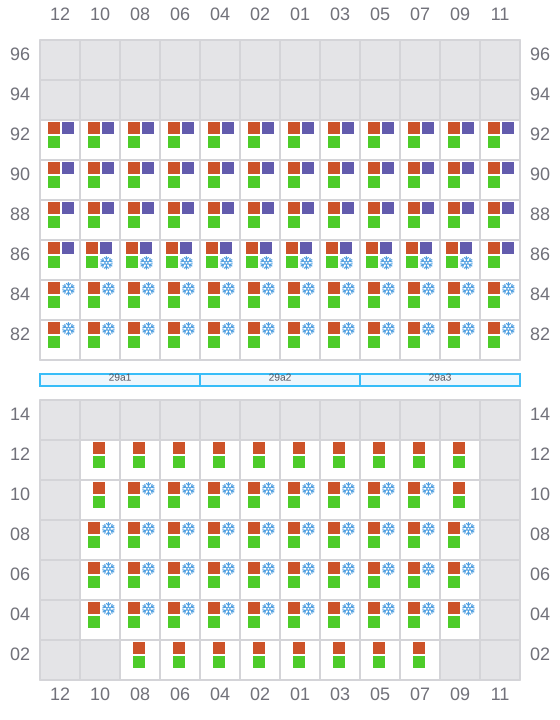

029 (030)
- →
- ←
![Bay 029 view and slots of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-b029.png?v=1711307580737)
031
- ←
- → / ?
![Bay 031 view and slots of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-b031.png?v=1711307580737)

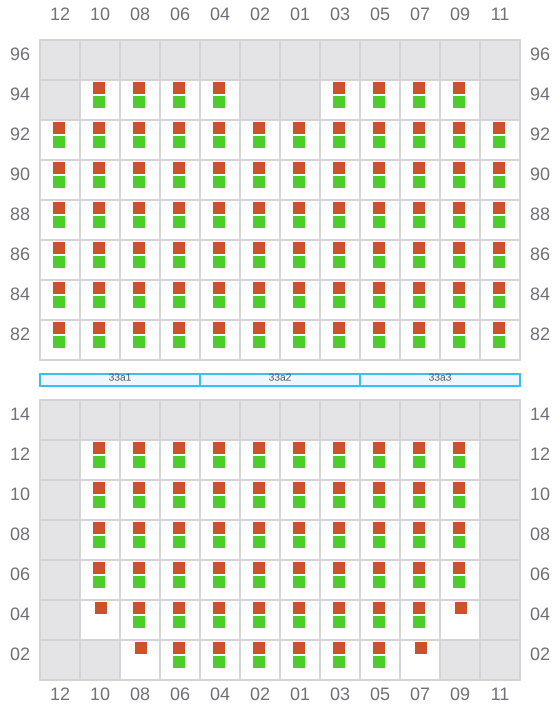

033 (034)
- →
![Bay 033 view and slots of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-b033.png?v=1711307580737)

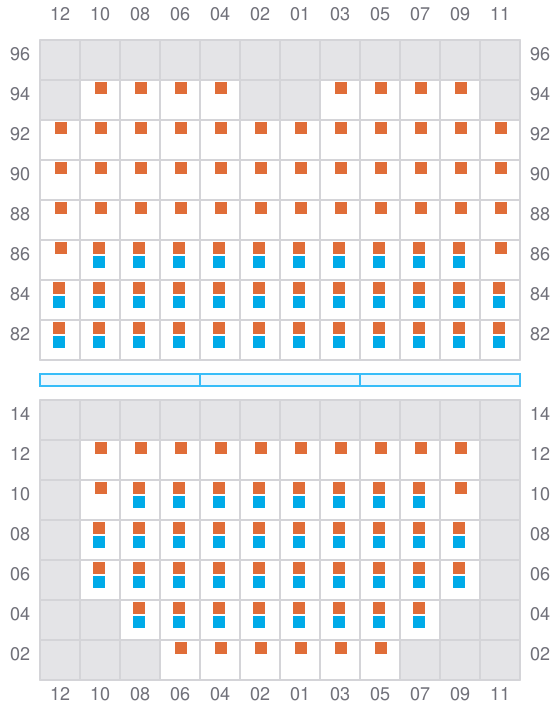

035
- ←
- →
![Bay 035 view and slots of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-b035.png?v=1711307580737)

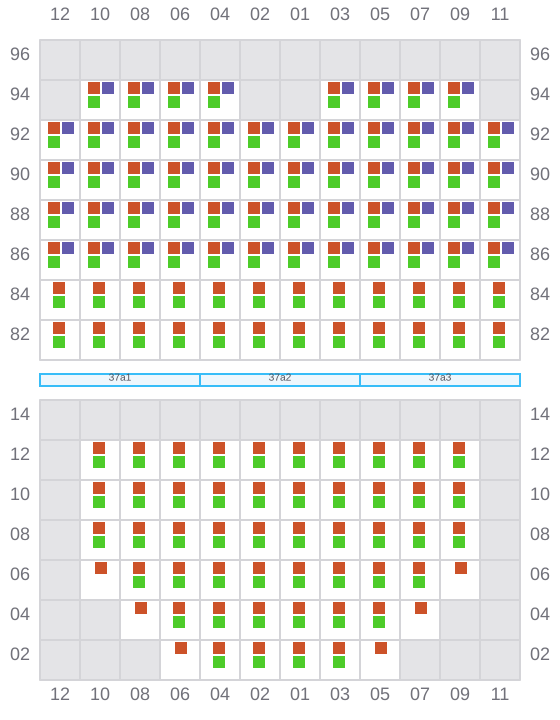

037 (038)
- →
![Bay 037 view and slots of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-b037.png?v=1711307580737)

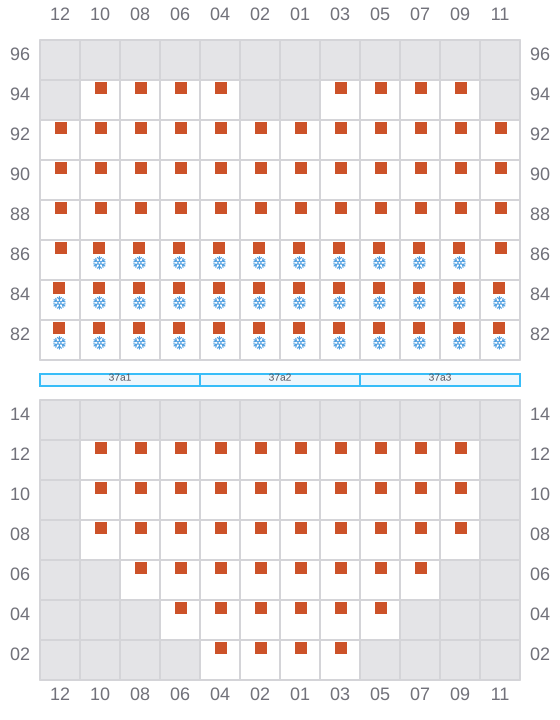

039
- ←
- → / ?
![Bay 039 view and slots of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-b039.png?v=1711307580737)

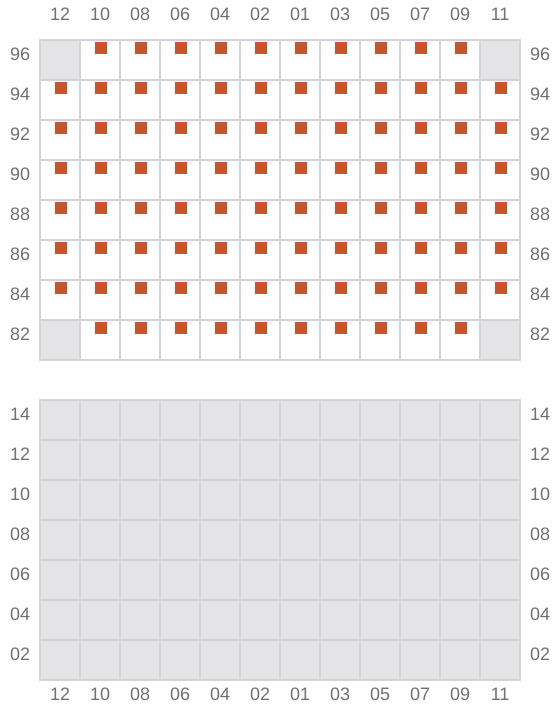

041
![Bay 041 view and slots of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-b041.png?v=1711307580737)

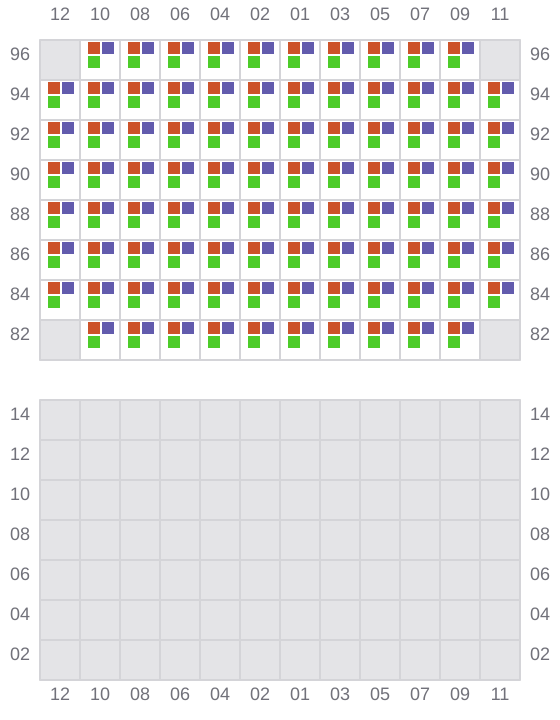

043 (044)
- → / ?
![Bay 043 view and slots of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-b043.png?v=1711307580737)

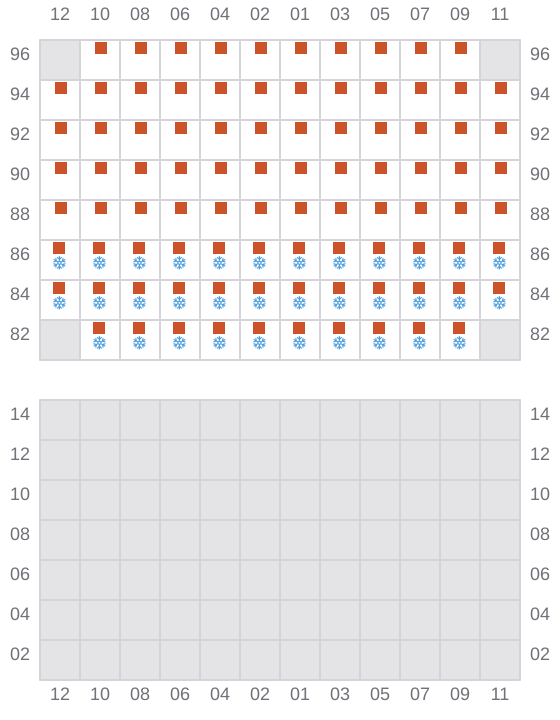

045
- ← / ?
- → / ?
![Bay 045 view and slots of CHARM C](/vessel-images/4734529a-656c-4a42-82ad-b5c1f7ffd41b-b045.png?v=1711307580737)
