CHENNAI EXPRESS
9306158 | D5VH7 | 9306158 by ********* Last update: Tue Jul 23 2024

General Info

Ship Name:CHENNAI EXPRESS
IMO Code:9306158
Call Sign:D5VH7
Line Operator:9306158
Class Name for Sister Ships:CSAV
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):292.00
LOA (Length Overall):304.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,569

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

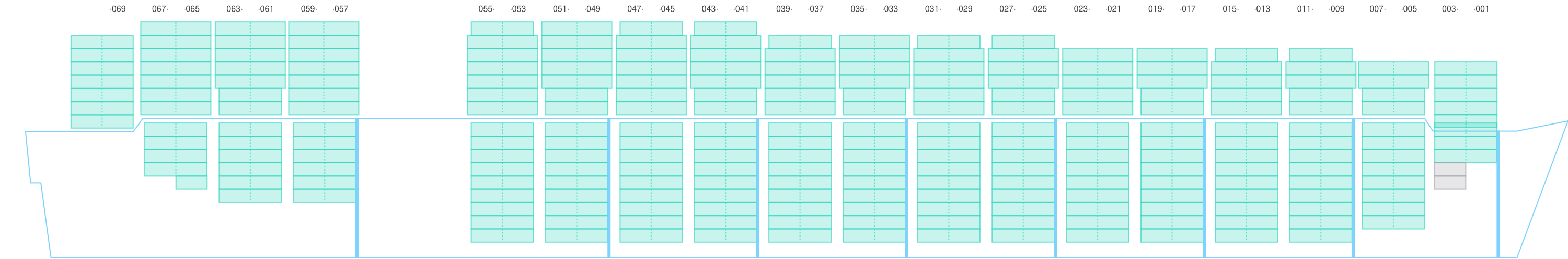

Side view of CHENNAI EXPRESS

Hatch-Covers View

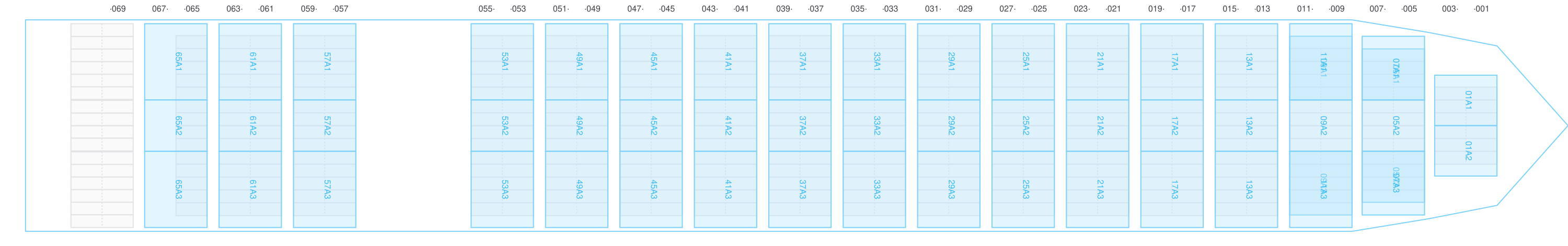

Deck view of CHENNAI EXPRESS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

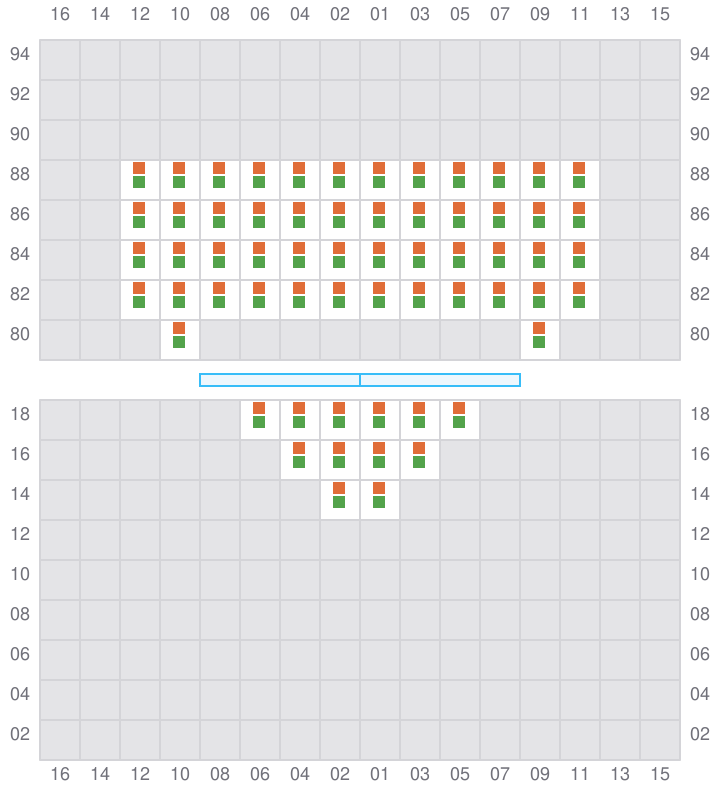

001 (002)

  • →
Bay 001 view and slots of CHENNAI EXPRESS

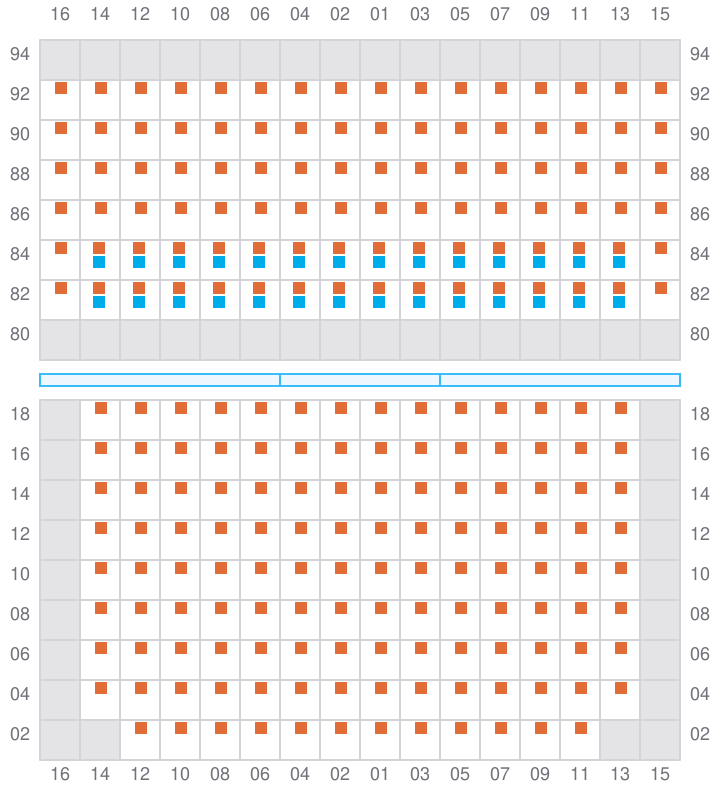

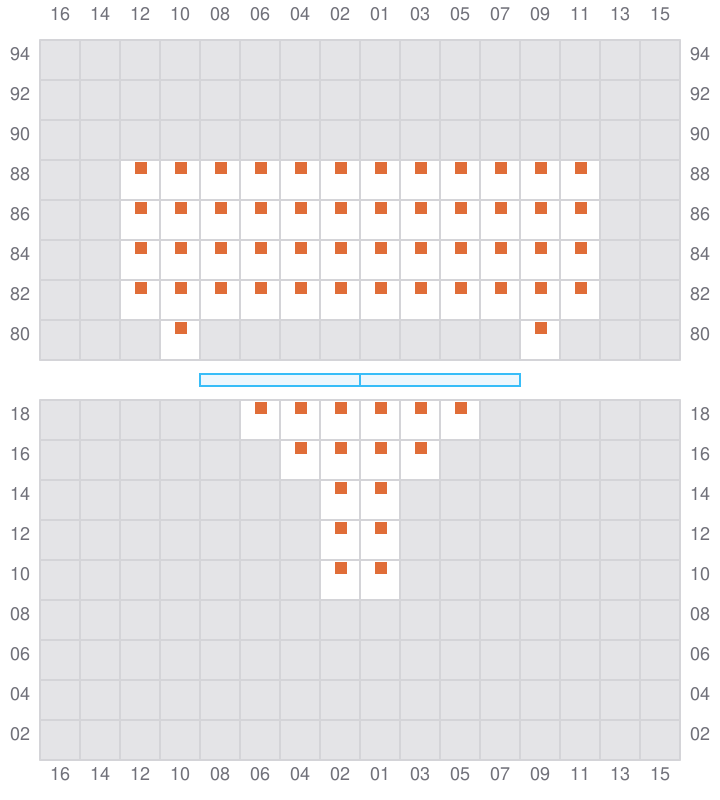

003

  • ←
Bay 003 view and slots of CHENNAI EXPRESS

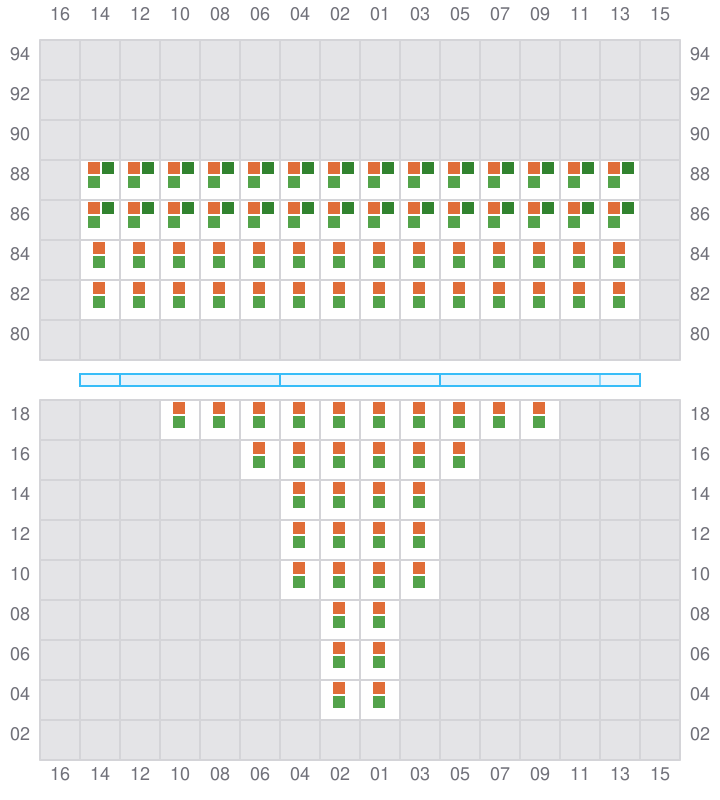

005 (006)

  • →
Bay 005 view and slots of CHENNAI EXPRESS

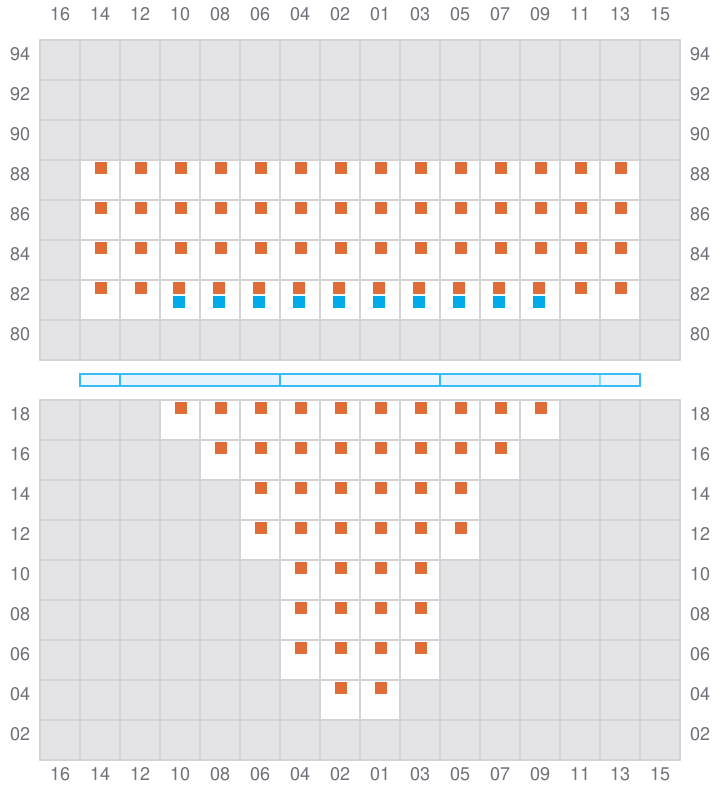

007

  • ←
  • → / ?
Bay 007 view and slots of CHENNAI EXPRESS

009 (010)

  • →

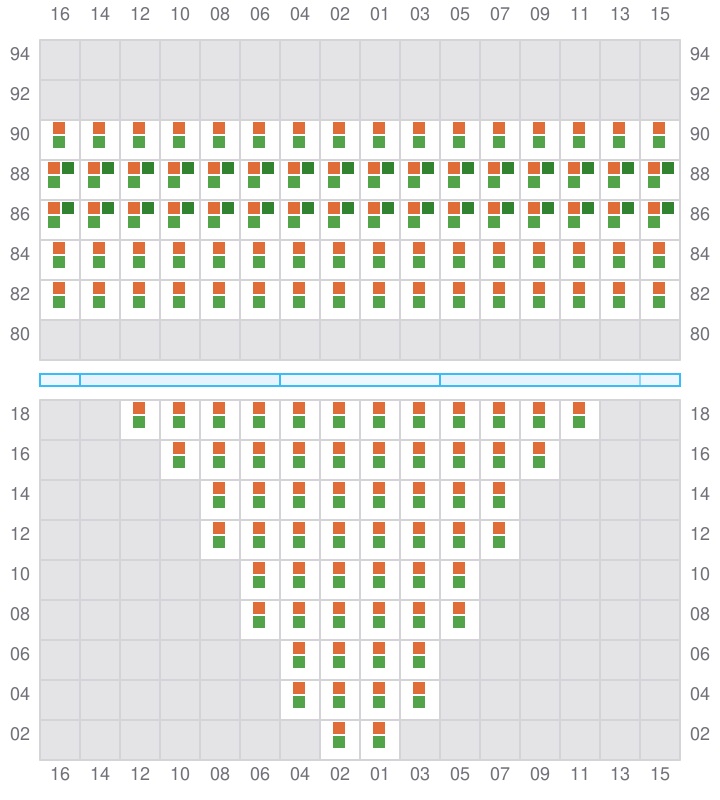

Bay 009 view and slots of CHENNAI EXPRESS

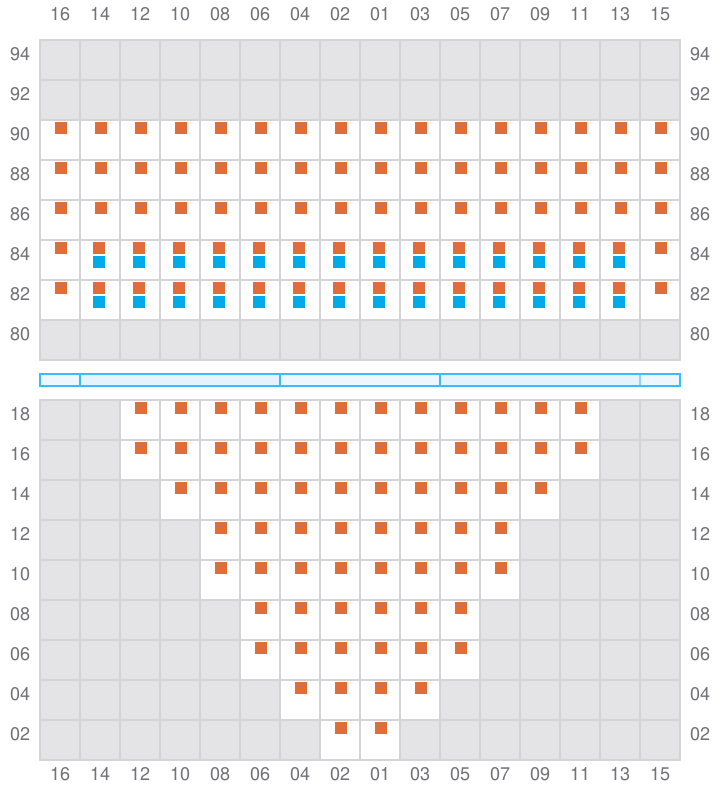

011

  • ←
  • → / ?
Bay 011 view and slots of CHENNAI EXPRESS

013 (014)

  • →

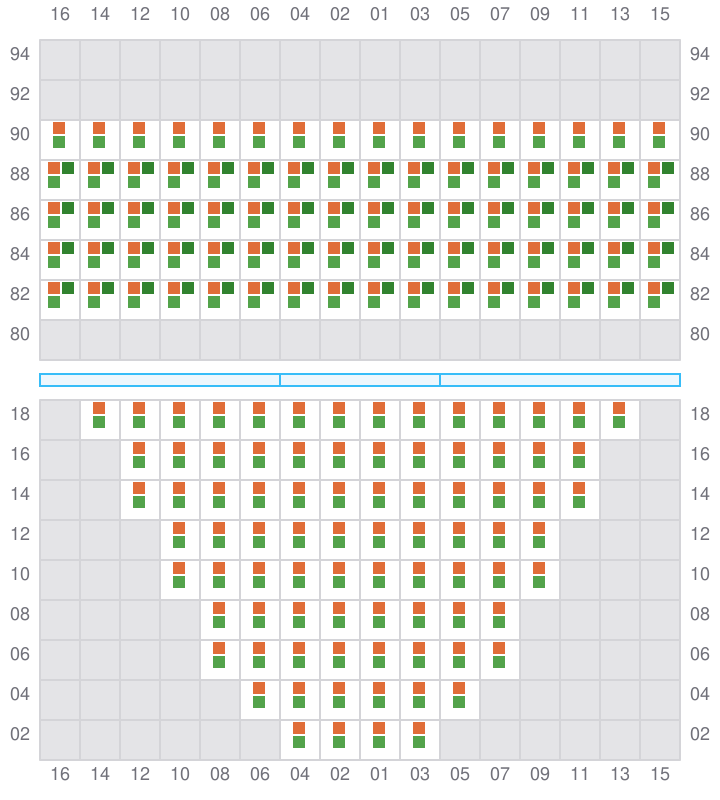

Bay 013 view and slots of CHENNAI EXPRESS

015

  • ←
  • → / ?

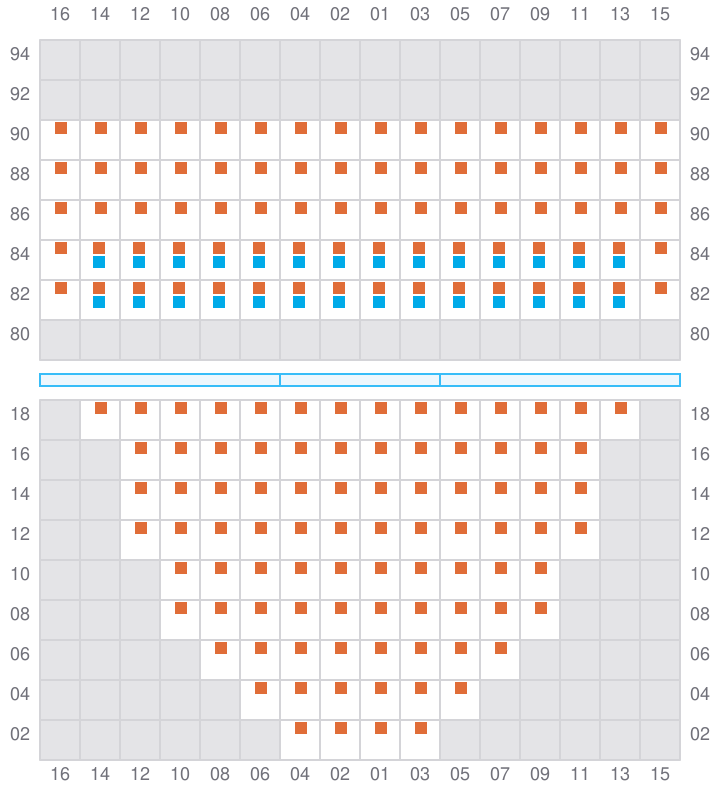

Bay 015 view and slots of CHENNAI EXPRESS

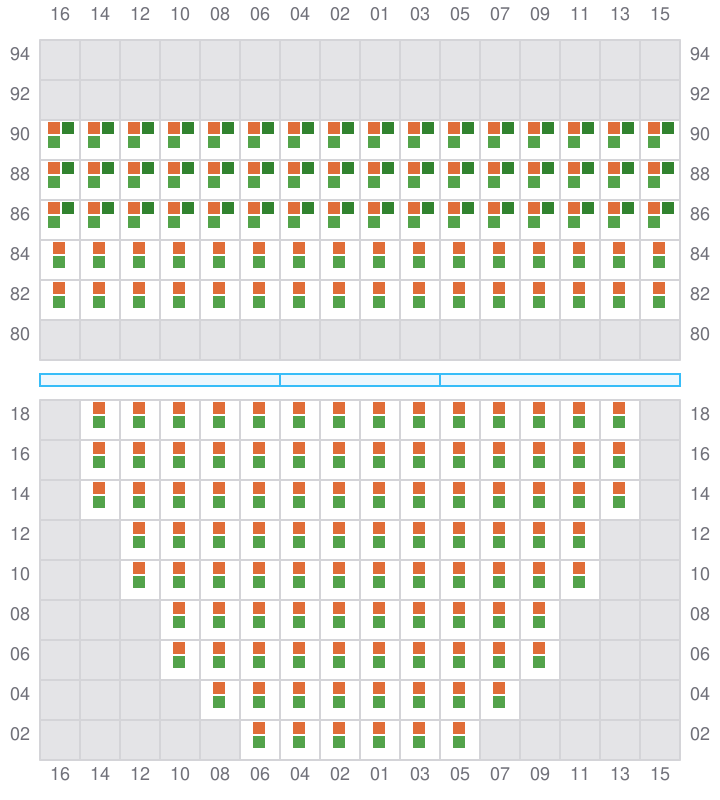

017 (018)

  • →
Bay 017 view and slots of CHENNAI EXPRESS

019

  • ←
  • → / ?

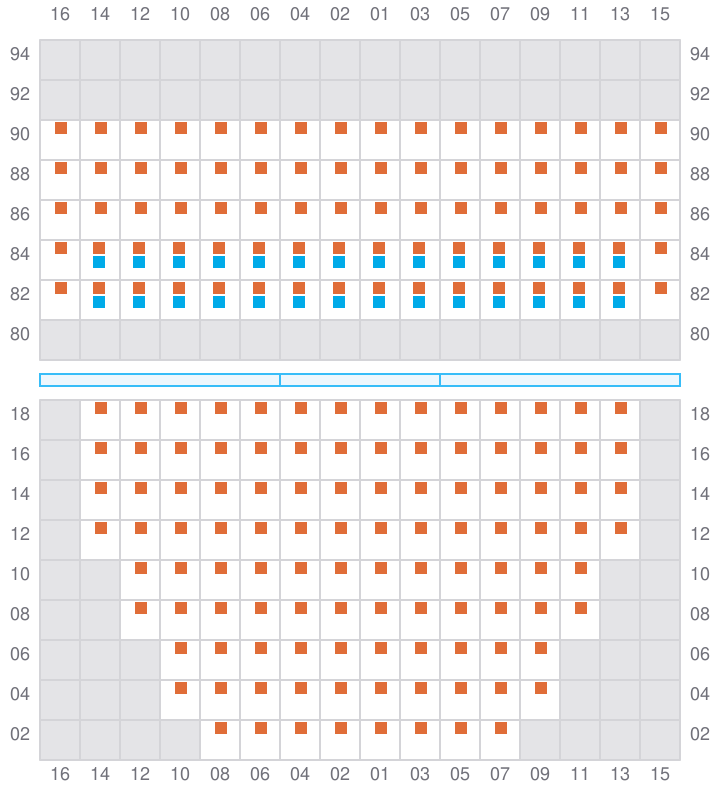

Bay 019 view and slots of CHENNAI EXPRESS

021 (022)

  • →

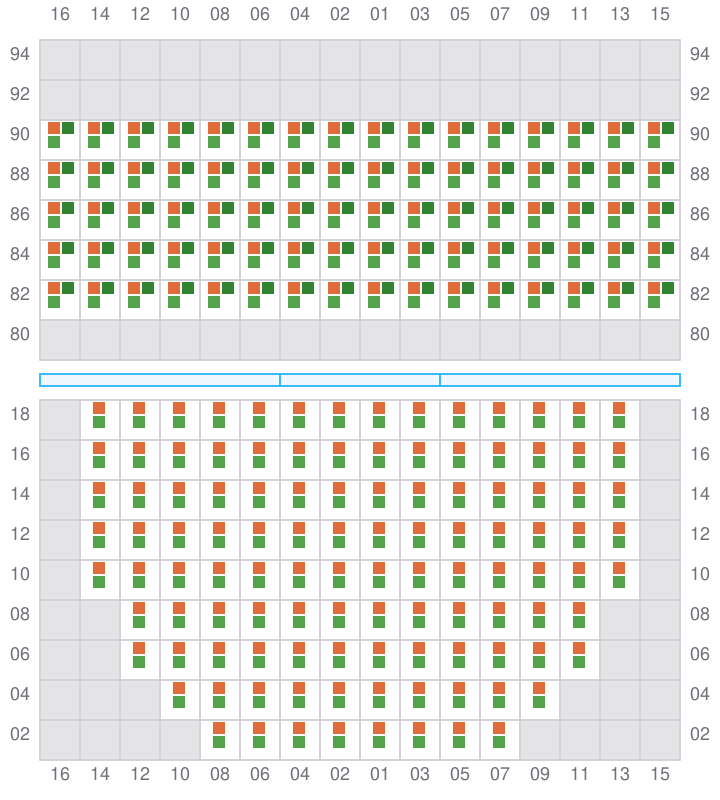

Bay 021 view and slots of CHENNAI EXPRESS

023

  • ←
  • → / ?
Bay 023 view and slots of CHENNAI EXPRESS

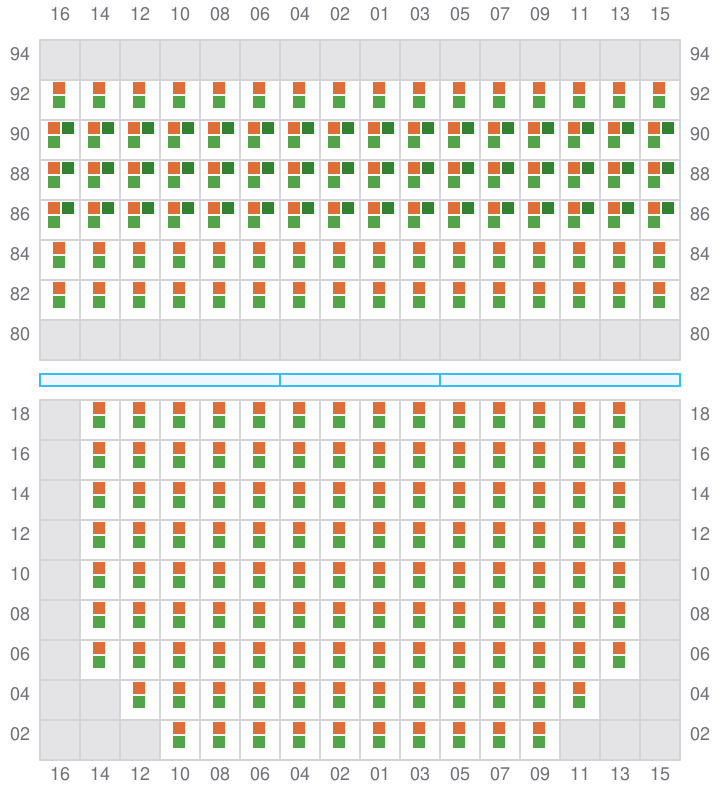

025 (026)

  • →
Bay 025 view and slots of CHENNAI EXPRESS

027

  • ←
  • → / ?
Bay 027 view and slots of CHENNAI EXPRESS

029 (030)

  • →
Bay 029 view and slots of CHENNAI EXPRESS

031

  • ←
  • → / ?
Bay 031 view and slots of CHENNAI EXPRESS

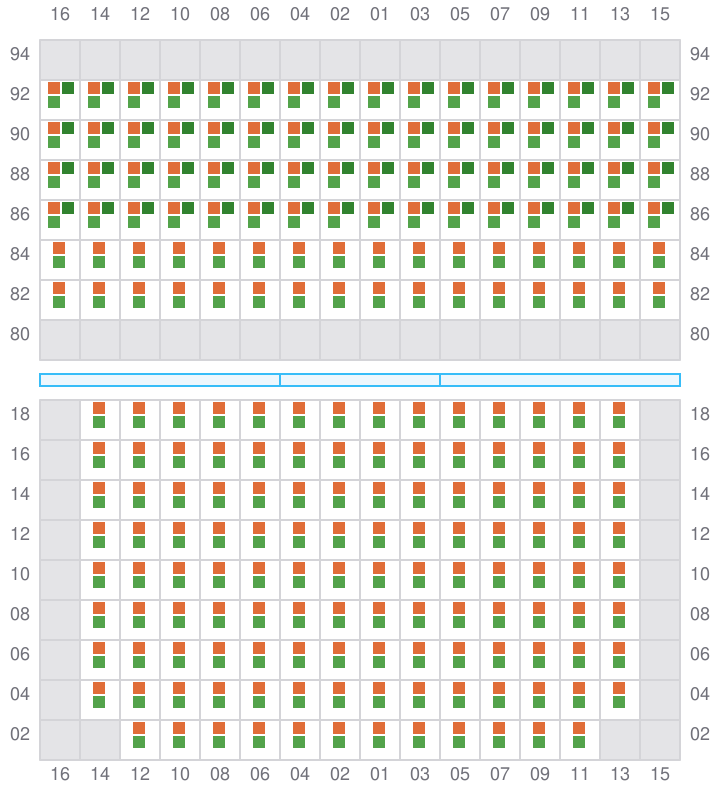

033 (034)

  • →
Bay 033 view and slots of CHENNAI EXPRESS

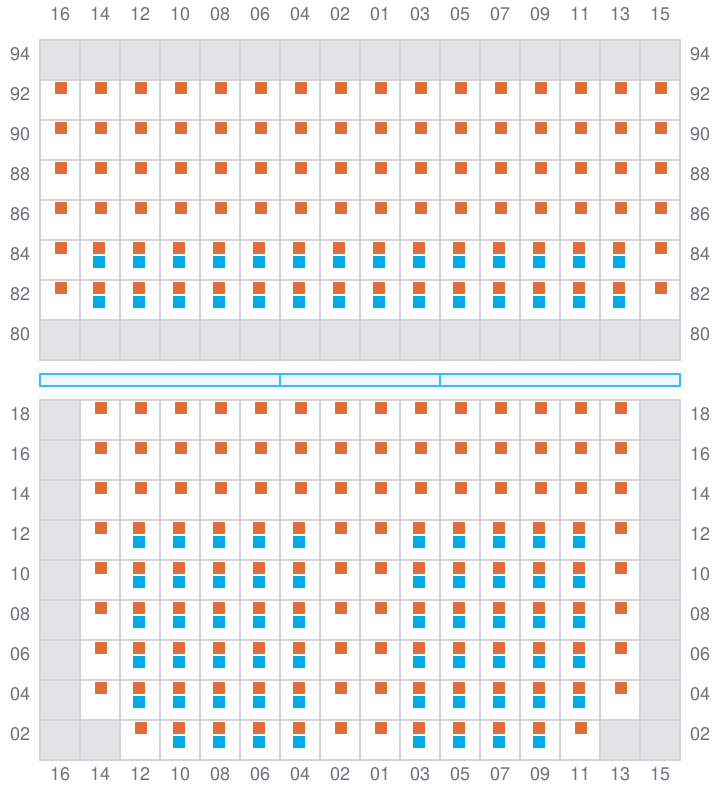

035

  • ←
  • →
Bay 035 view and slots of CHENNAI EXPRESS

037 (038)

  • →

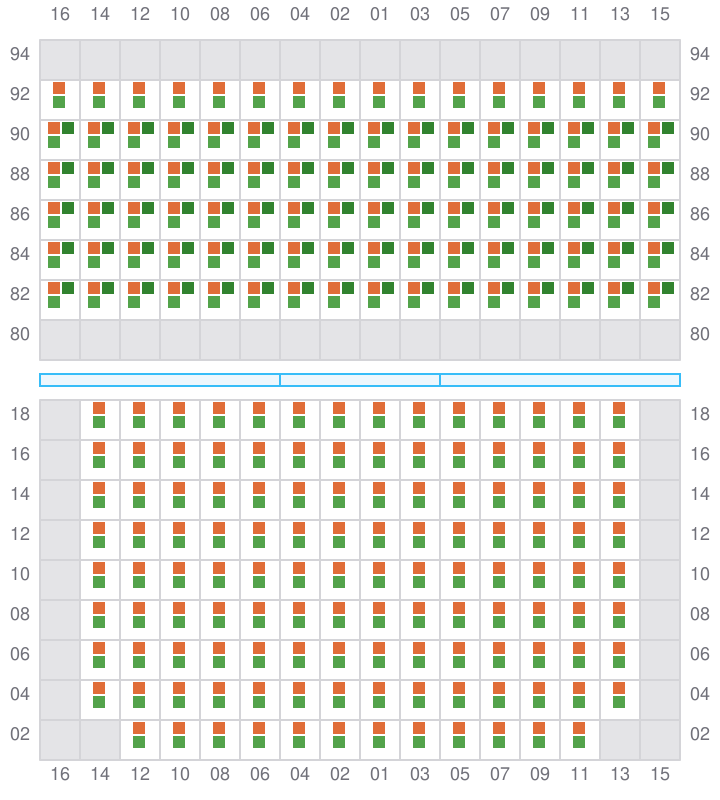

Bay 037 view and slots of CHENNAI EXPRESS

039

  • ←
  • → / ?
Bay 039 view and slots of CHENNAI EXPRESS

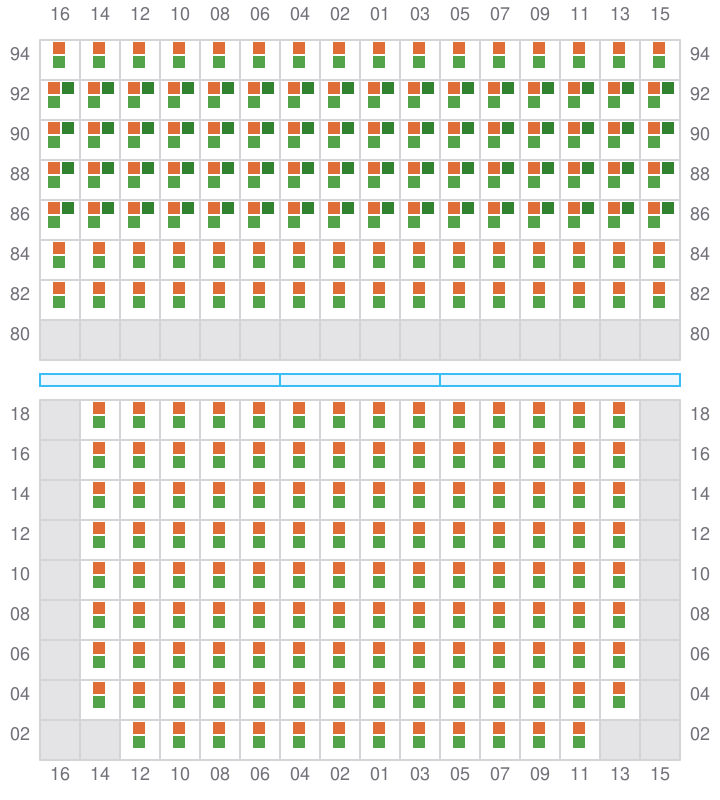

041 (042)

  • →
Bay 041 view and slots of CHENNAI EXPRESS

043

  • ←
  • →

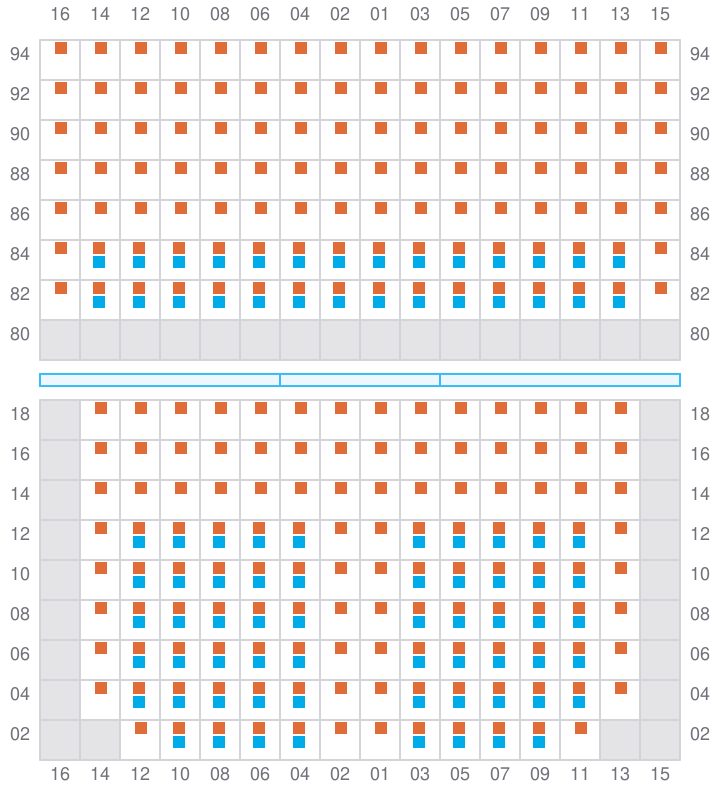

Bay 043 view and slots of CHENNAI EXPRESS

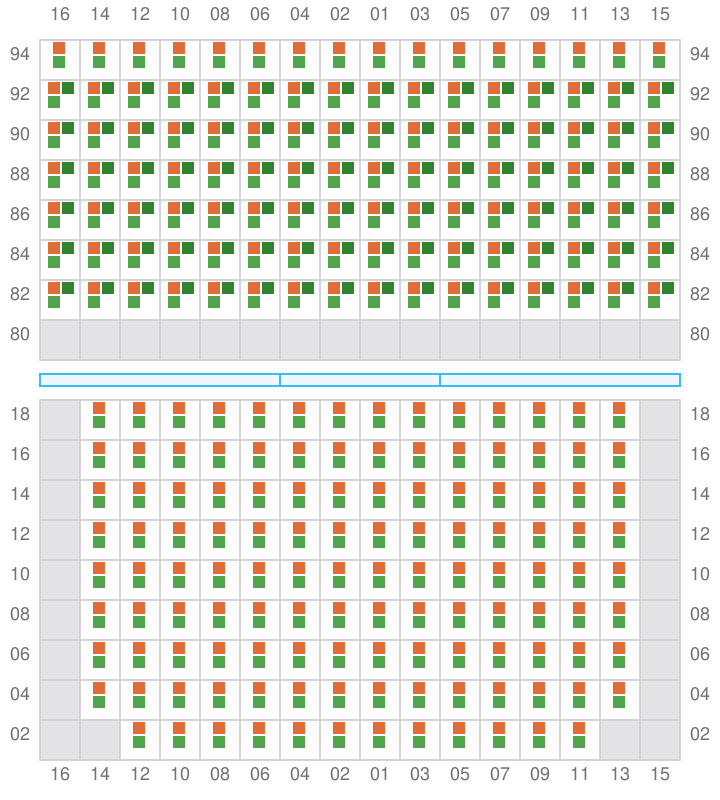

045 (046)

  • →
Bay 045 view and slots of CHENNAI EXPRESS

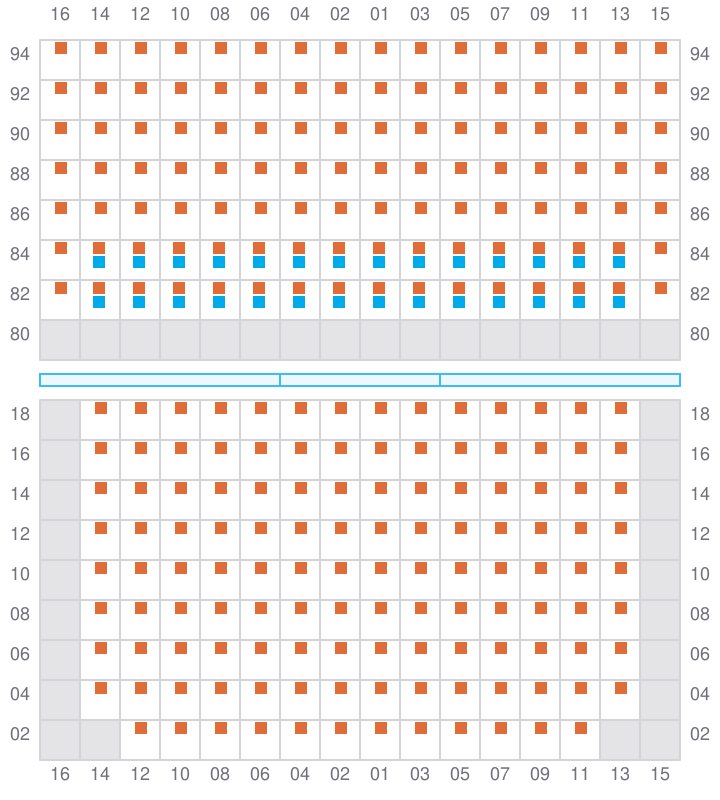

047

  • ←
  • → / ?
Bay 047 view and slots of CHENNAI EXPRESS

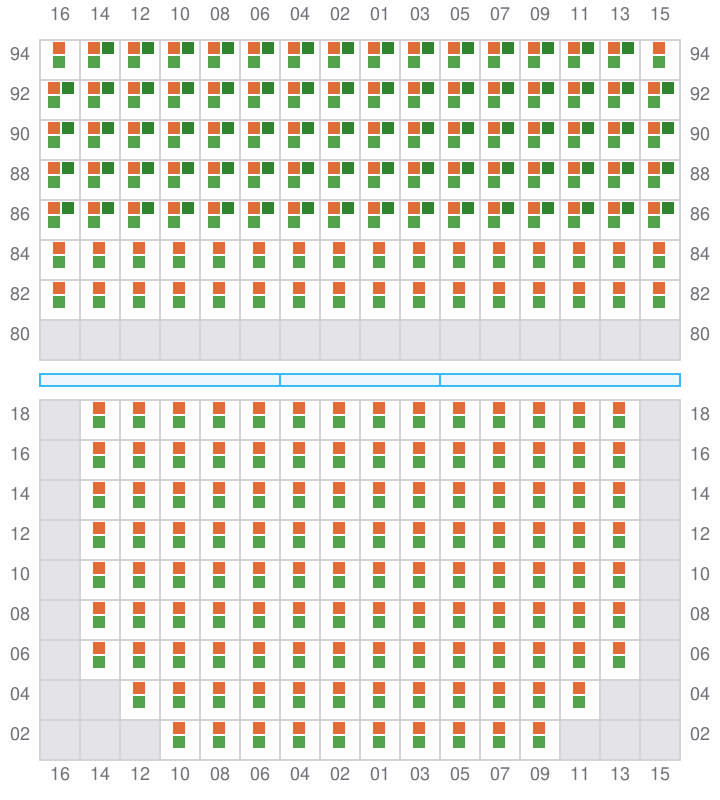

049 (050)

  • →
Bay 049 view and slots of CHENNAI EXPRESS

051

  • ←
  • →

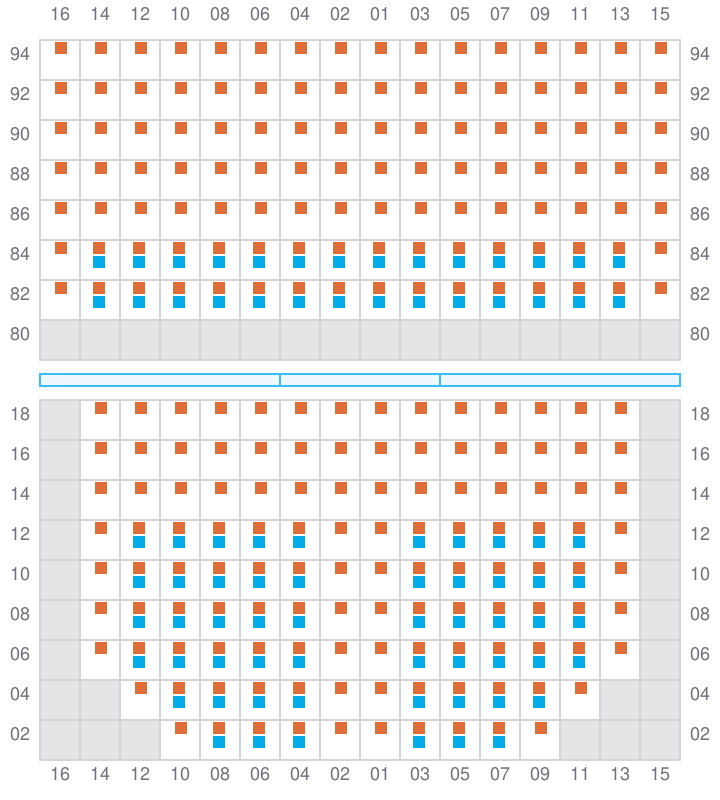

Bay 051 view and slots of CHENNAI EXPRESS

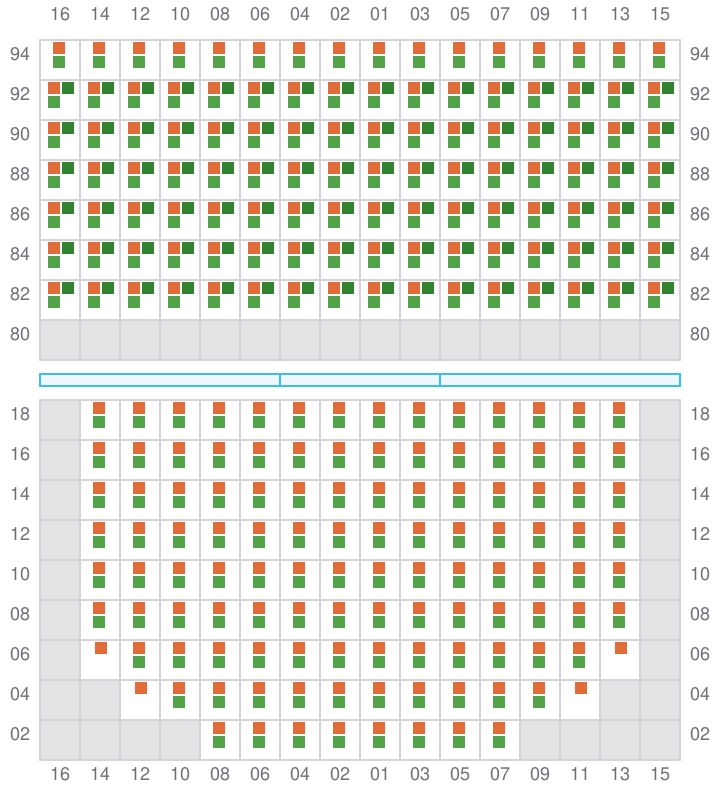

053 (054)

  • →
Bay 053 view and slots of CHENNAI EXPRESS

055

  • ←
  • → / ?

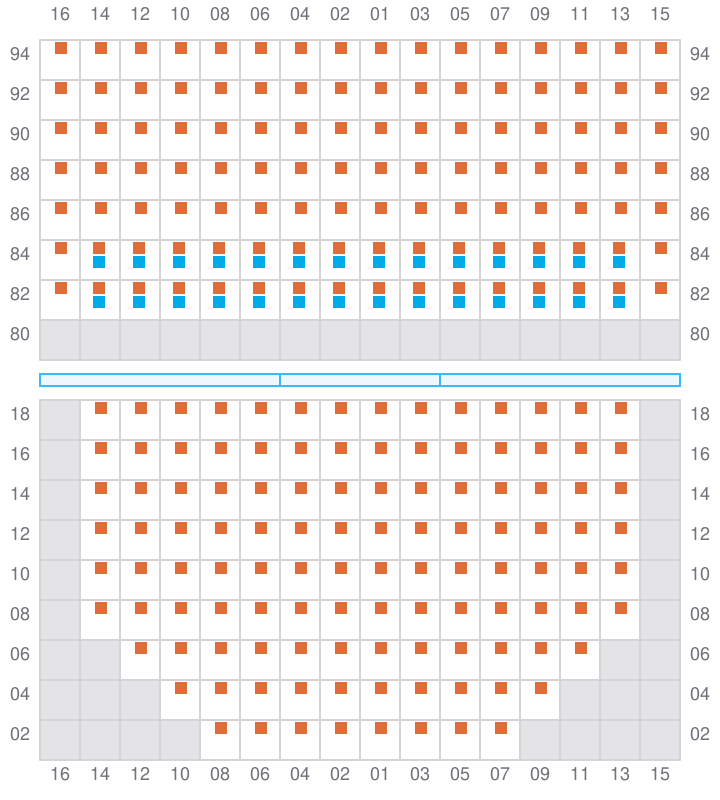

Bay 055 view and slots of CHENNAI EXPRESS

057 (058)

  • →

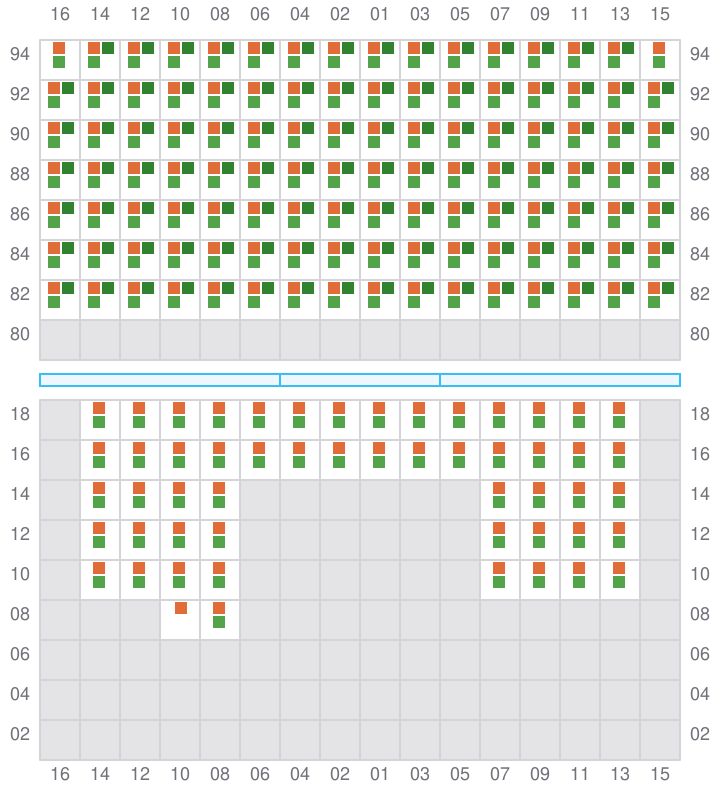

Bay 057 view and slots of CHENNAI EXPRESS

059

  • ←
  • → / ?

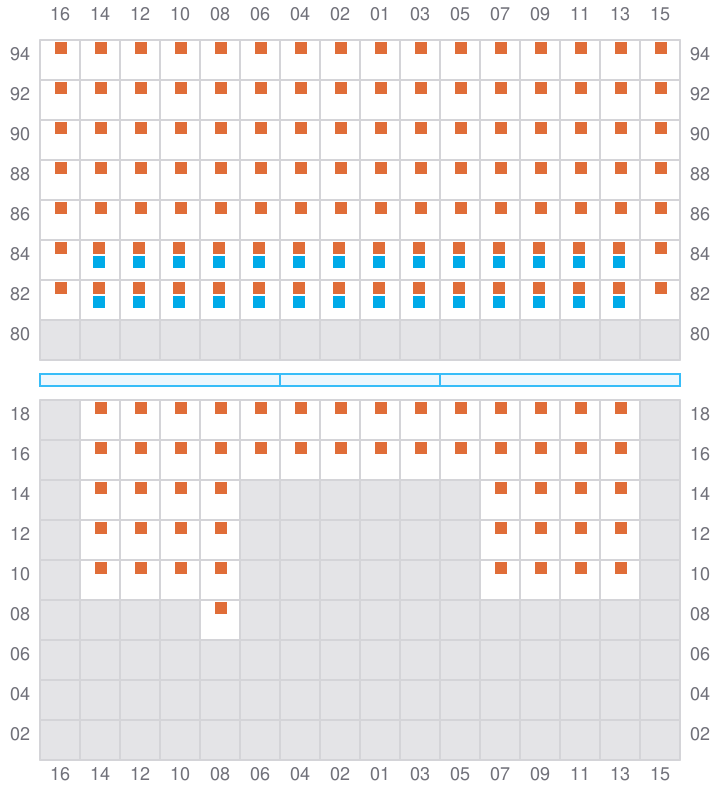

Bay 059 view and slots of CHENNAI EXPRESS

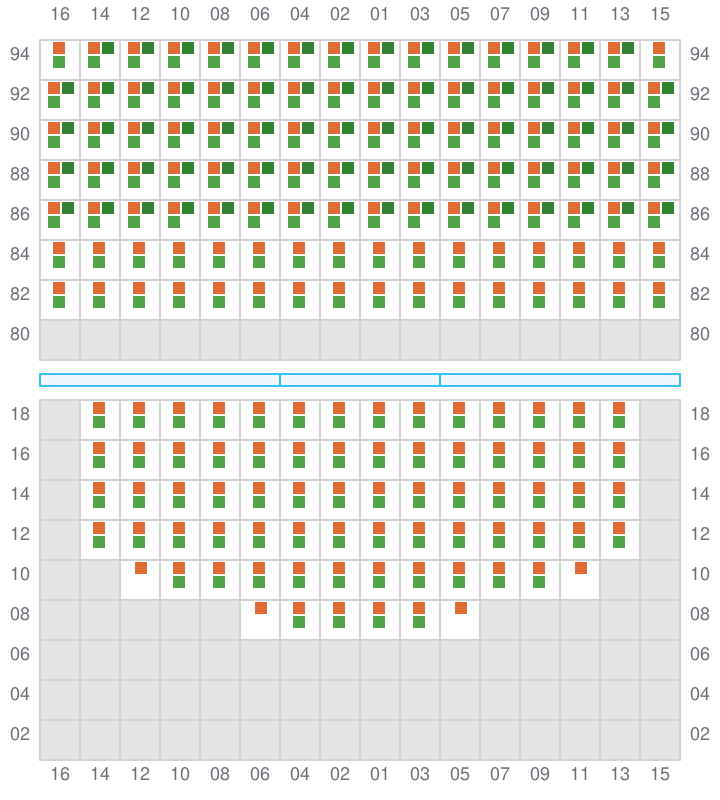

061 (062)

  • →
Bay 061 view and slots of CHENNAI EXPRESS

063

  • ←
  • → / ?

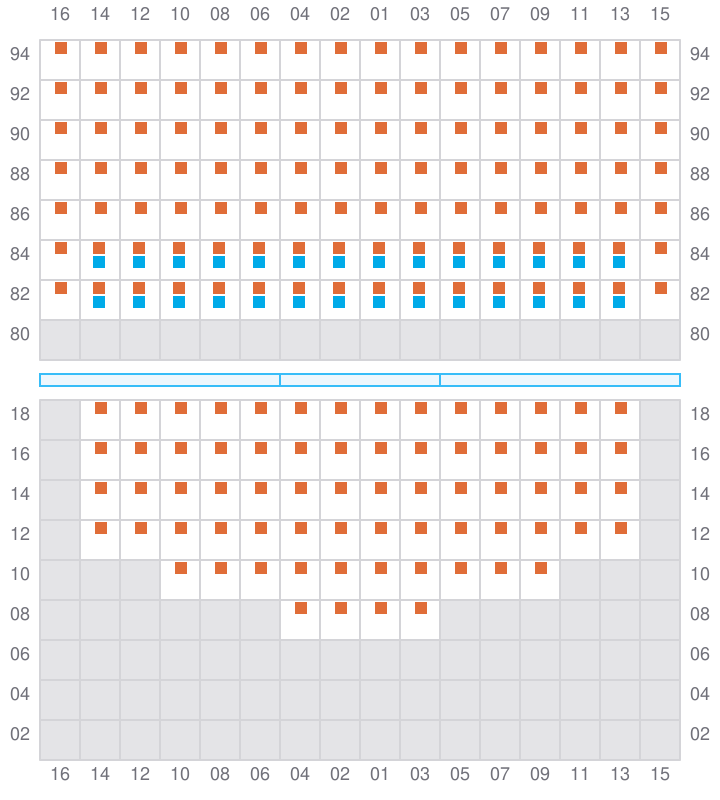

Bay 063 view and slots of CHENNAI EXPRESS

065 (066)

  • →

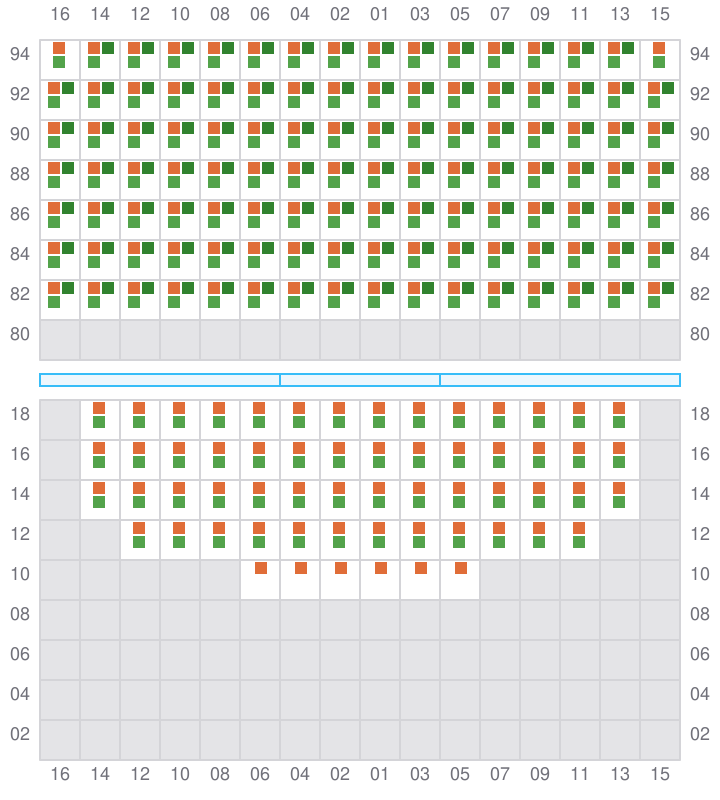

Bay 065 view and slots of CHENNAI EXPRESS

067

  • ←
  • → / ?

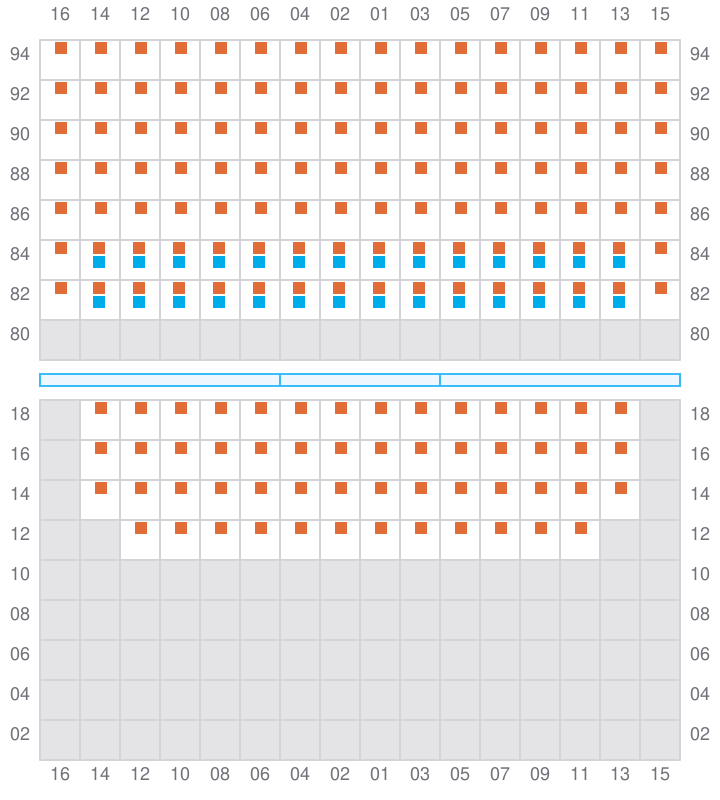

Bay 067 view and slots of CHENNAI EXPRESS

069 (070)

  • → / ?

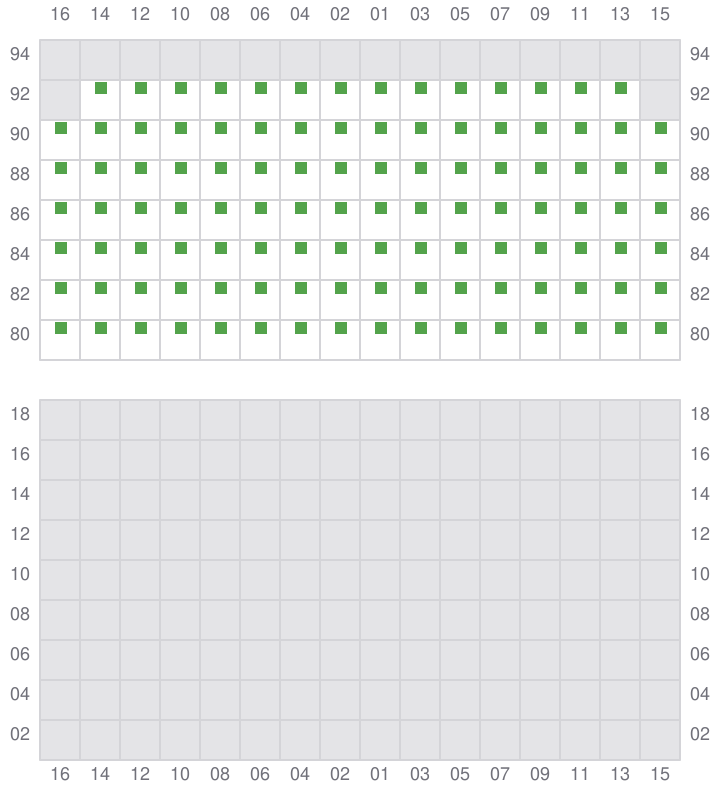

Bay 069 view and slots of CHENNAI EXPRESS
