CHIQUITA CENTURY
9339595 | A8OP7 | HLC by *********************** Last update: Fri Jan 24 2025

General Info

Ship Name:CHIQUITA CENTURY
IMO Code:9339595
Call Sign:A8OP7
Line Operator:HLC
Class Name for Sister Ships:HART
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):196.90
LOA (Length Overall):209.01
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,548

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of CHIQUITA CENTURY

Hatch-Covers View

Deck view of CHIQUITA CENTURY

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • ← / ?
  • →

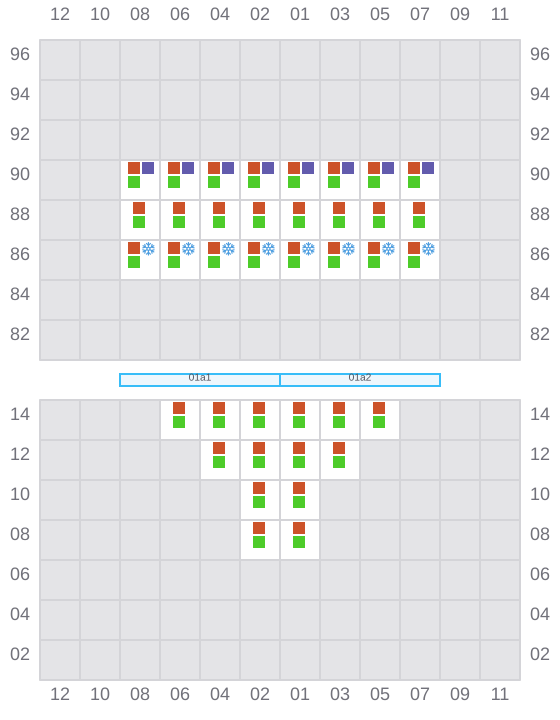

Bay 001 view and slots of CHIQUITA CENTURY

003

  • ←
  • → / ?
  • →

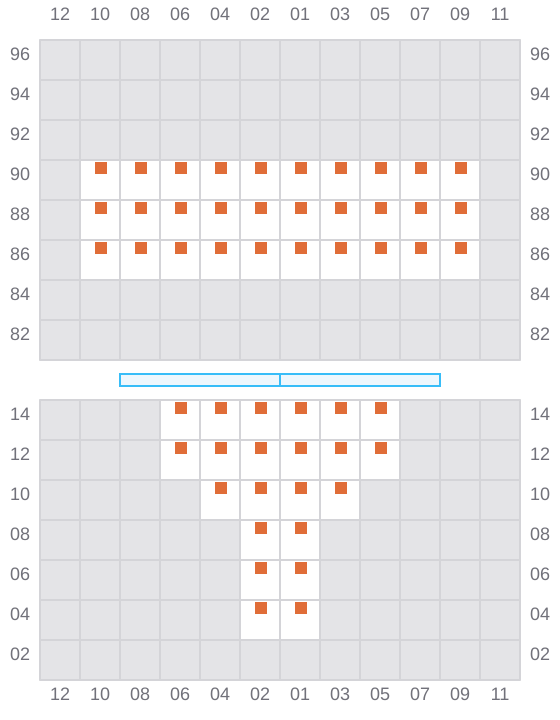

Bay 003 view and slots of CHIQUITA CENTURY

005 (006)

  • →
  • →

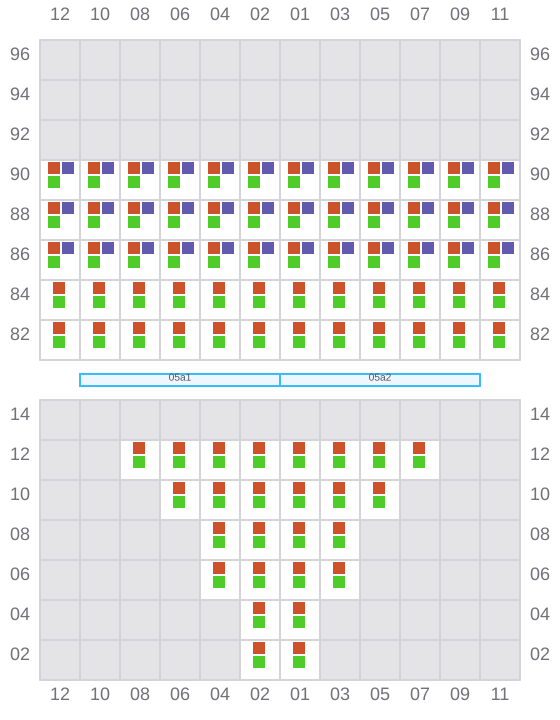

Bay 005 view and slots of CHIQUITA CENTURY

007

  • ←
  • → / ?
  • →

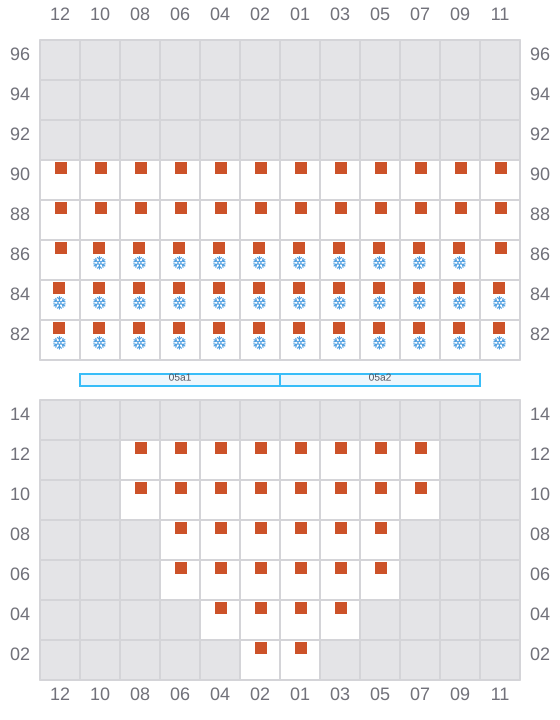

Bay 007 view and slots of CHIQUITA CENTURY

009 (010)

  • →
  • ← / ?
  • →

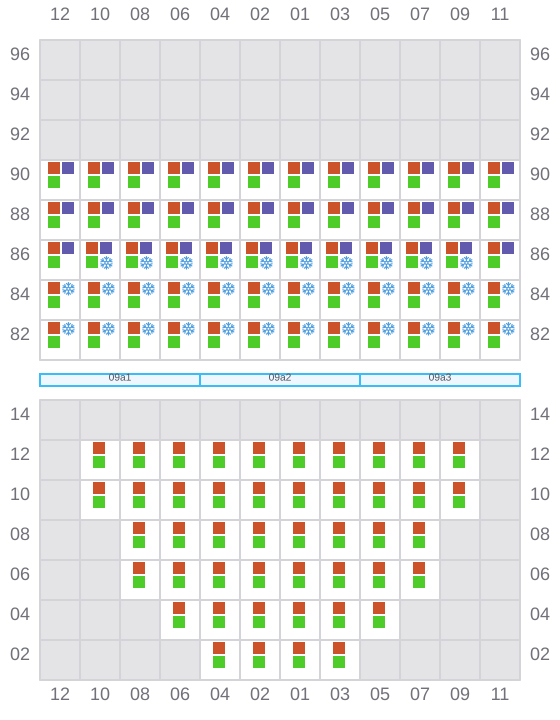

Bay 009 view and slots of CHIQUITA CENTURY

011

  • ←
  • → / ?
  • →

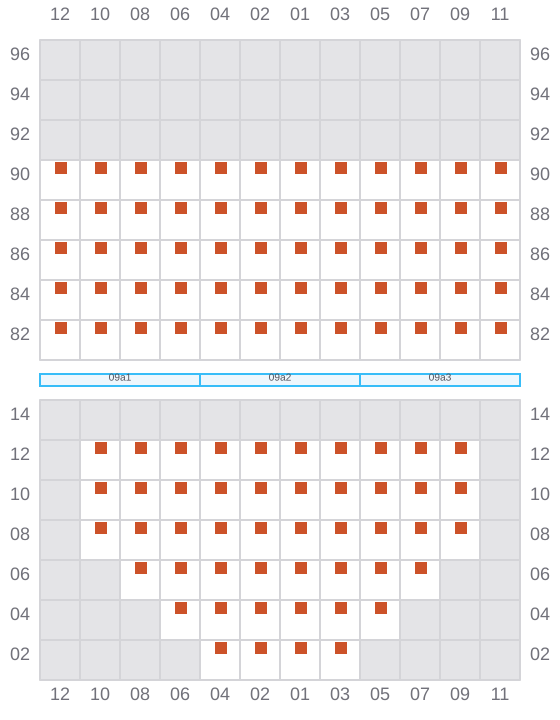

Bay 011 view and slots of CHIQUITA CENTURY

013 (014)

  • →
  • ← / ?
  • →

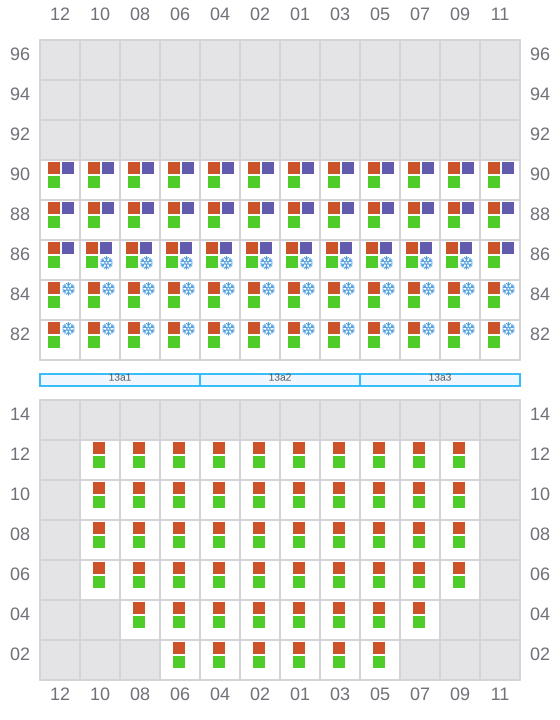

Bay 013 view and slots of CHIQUITA CENTURY

015

  • ←
  • → / ?
  • →

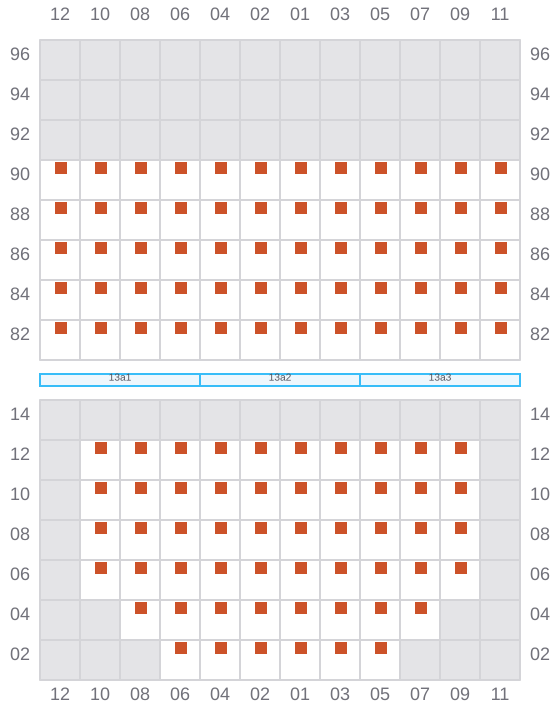

Bay 015 view and slots of CHIQUITA CENTURY

017 (018)

  • →
  • →
Bay 017 view and slots of CHIQUITA CENTURY

019

  • ←
  • →
  • →
Bay 019 view and slots of CHIQUITA CENTURY

021 (022)

  • →
  • ? / ←
  • →

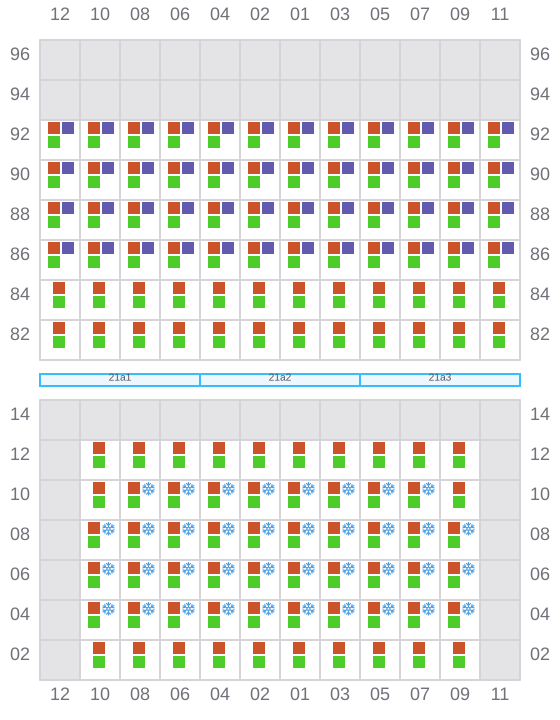

Bay 021 view and slots of CHIQUITA CENTURY

023

  • ←
  • → / ?
  • →

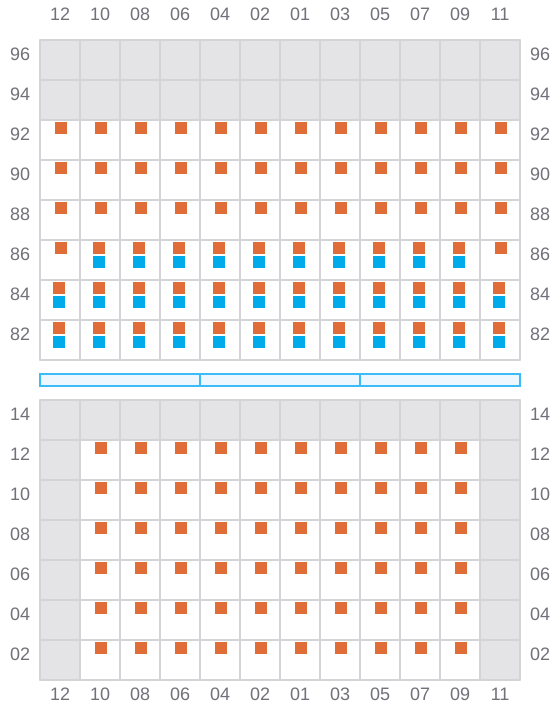

Bay 023 view and slots of CHIQUITA CENTURY

025 (026)

  • →
  • ←
  • →

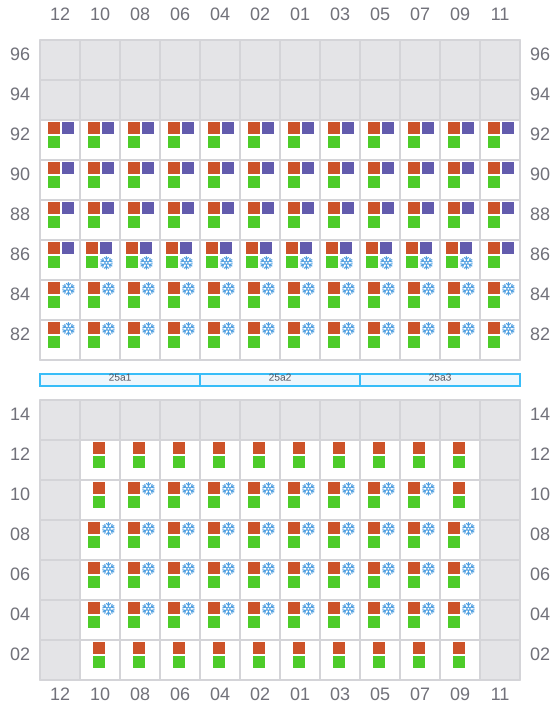

Bay 025 view and slots of CHIQUITA CENTURY

027

  • ←
  • → / ?
  • →

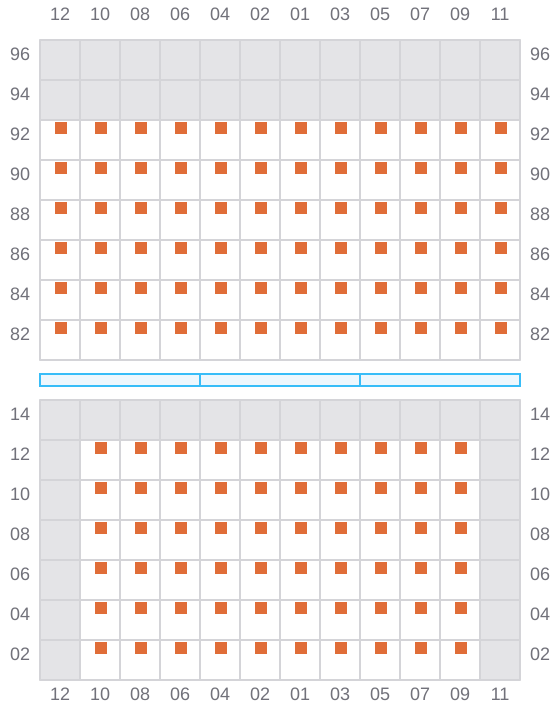

Bay 027 view and slots of CHIQUITA CENTURY

029 (030)

  • →
  • ←
  • →

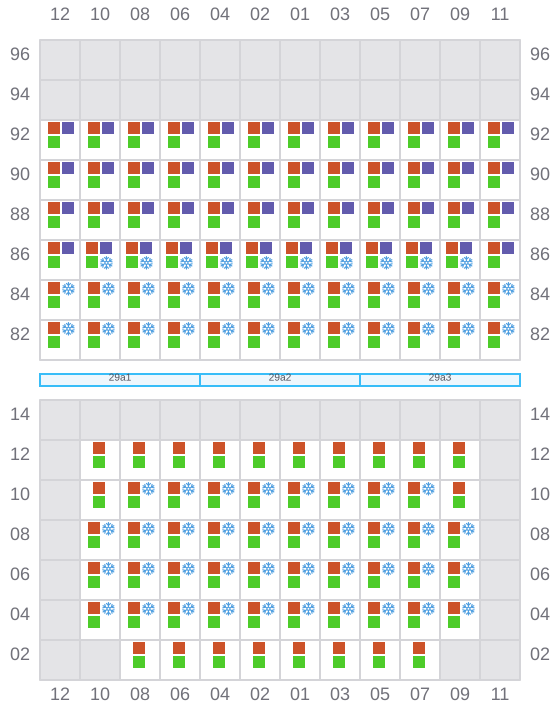

Bay 029 view and slots of CHIQUITA CENTURY

031

  • ←
  • → / ?
  • →

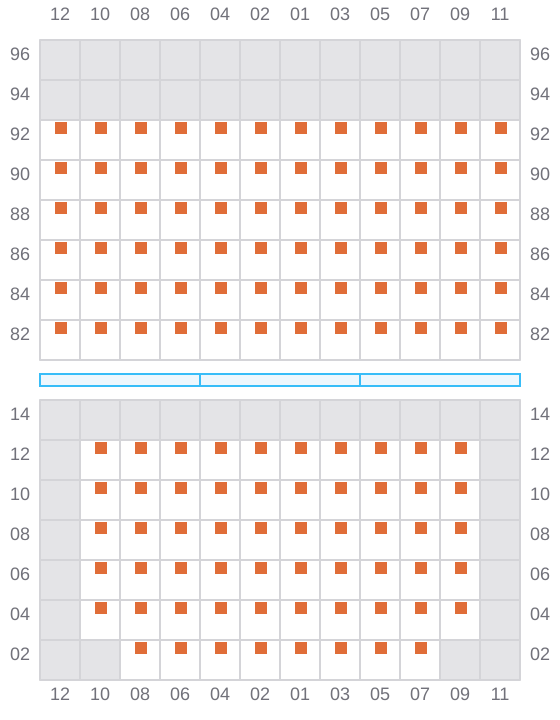

Bay 031 view and slots of CHIQUITA CENTURY

033 (034)

  • →
  • →

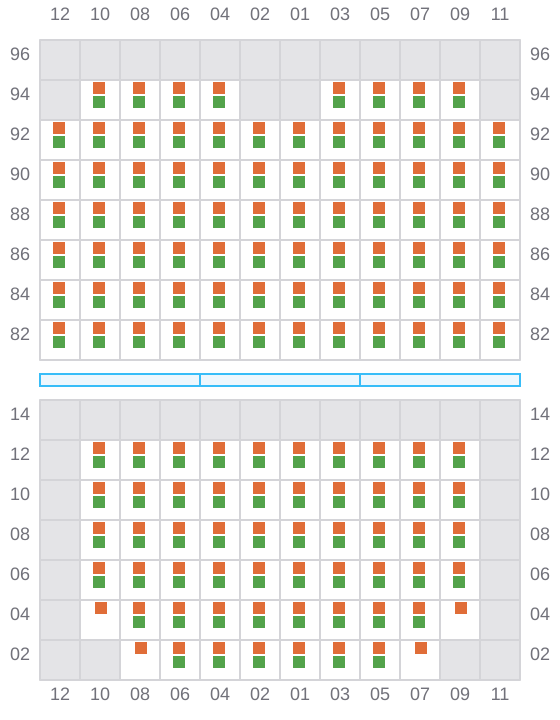

Bay 033 view and slots of CHIQUITA CENTURY

035

  • ←
  • →
  • →

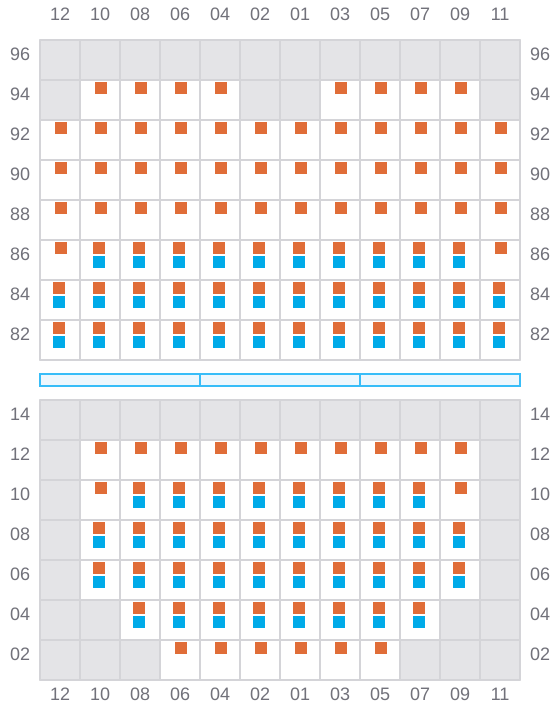

Bay 035 view and slots of CHIQUITA CENTURY

037 (038)

  • →
  • →

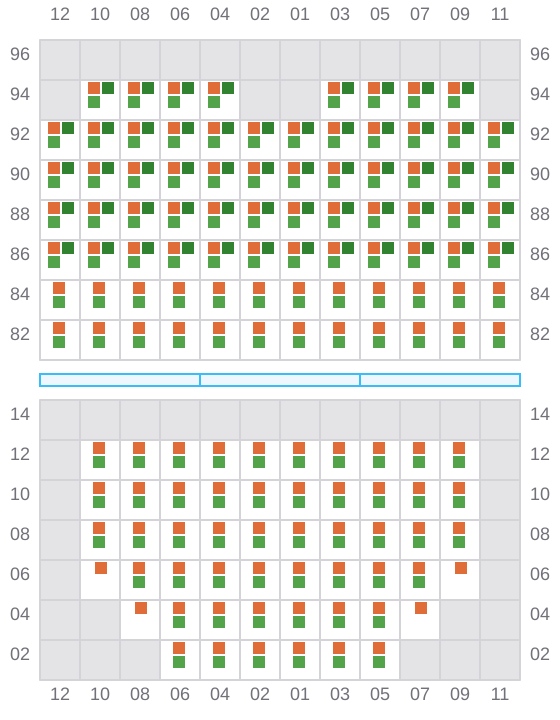

Bay 037 view and slots of CHIQUITA CENTURY

039

  • ←
  • → / ?
  • →

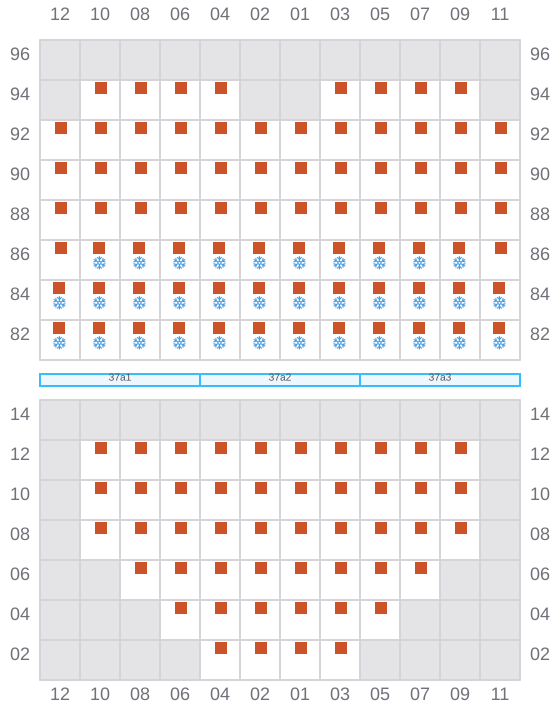

Bay 039 view and slots of CHIQUITA CENTURY

041

  • → / ?

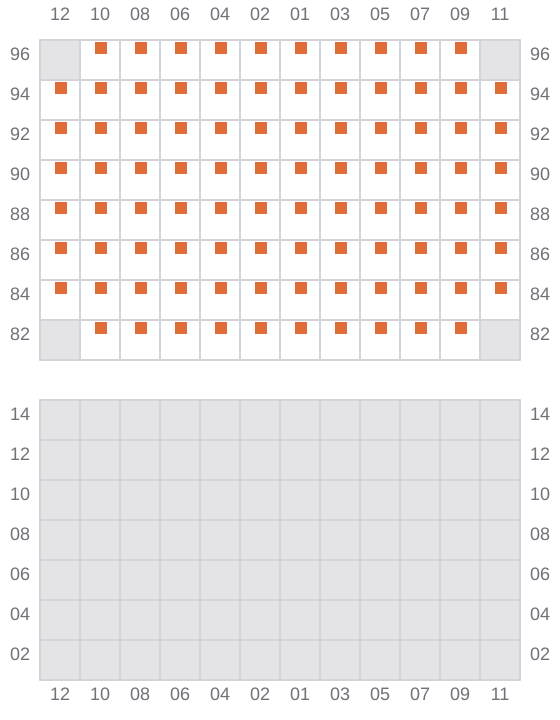

Bay 041 view and slots of CHIQUITA CENTURY

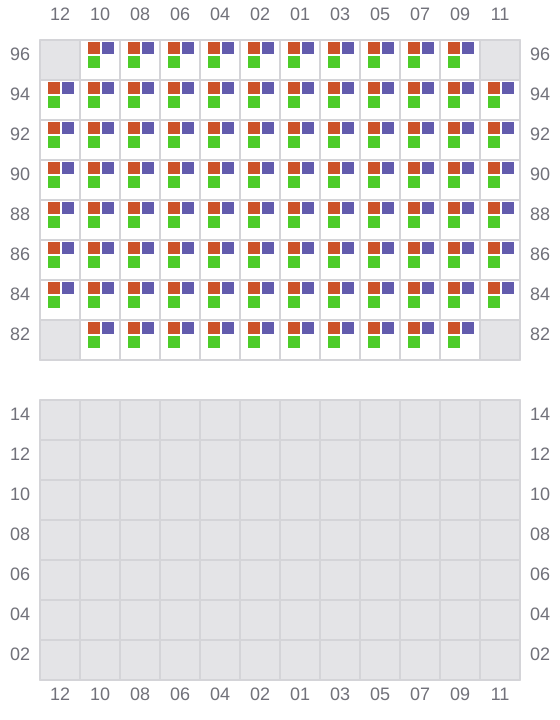

043 (044)

  • → / ?
  • → / ?
Bay 043 view and slots of CHIQUITA CENTURY

045

  • ← / ?
  • → / ?
  • → / ?

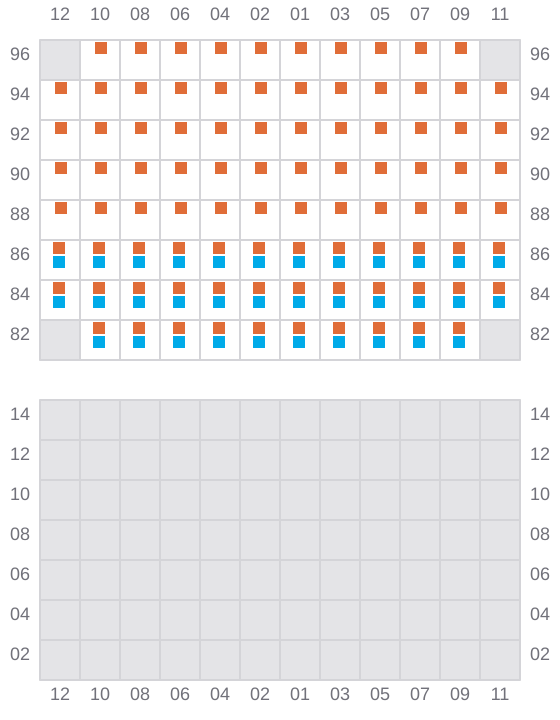

Bay 045 view and slots of CHIQUITA CENTURY
