CHIQUITA DREAM
9399777 | A8PX6 | HLC by *********************** Last update: Tue Jan 28 2025
General Info
Ship Name:CHIQUITA DREAM
IMO Code:9399777
Call Sign:A8PX6
Line Operator:HLC
Class Name for Sister Ships:FASL
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):212.50
LOA (Length Overall):225.73
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,848
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

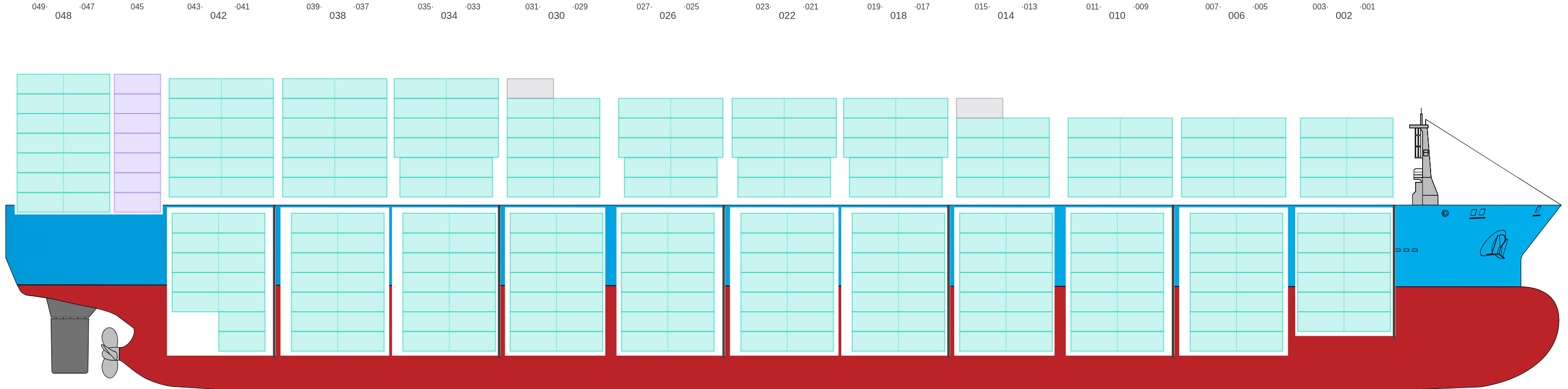

Side View

Hatch-Covers View

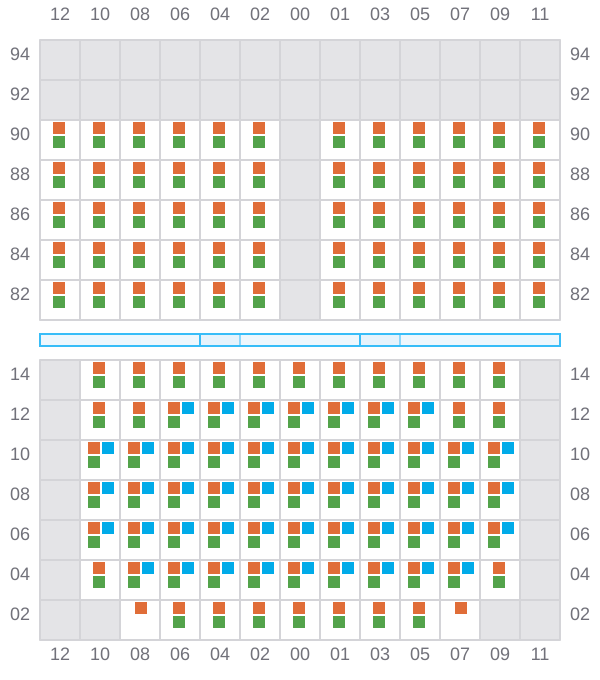

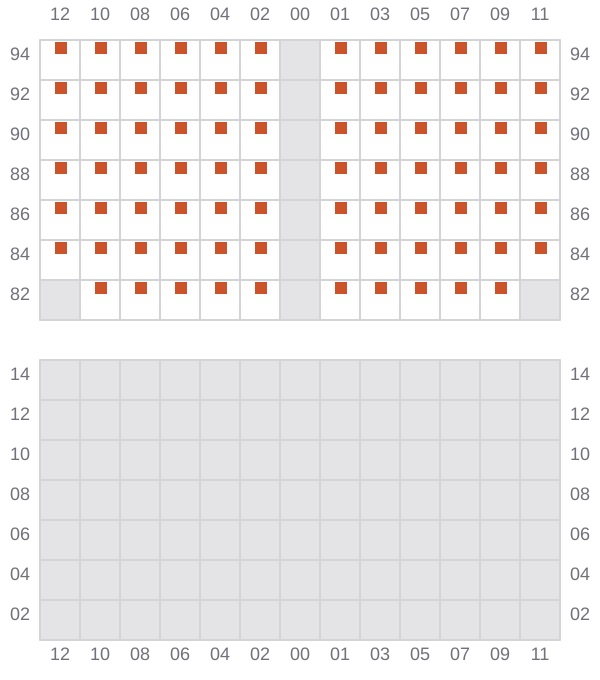

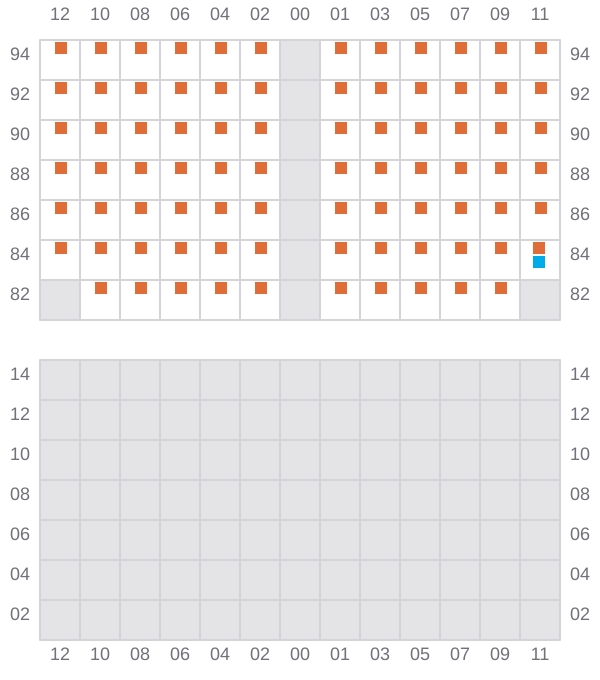

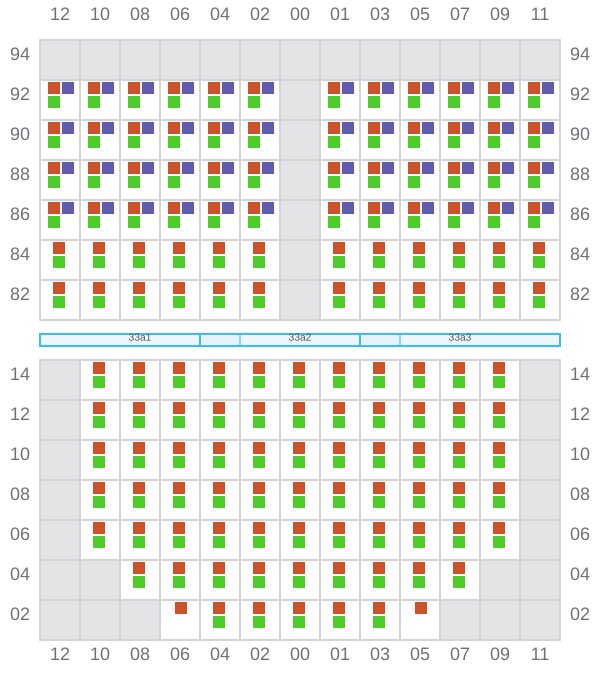

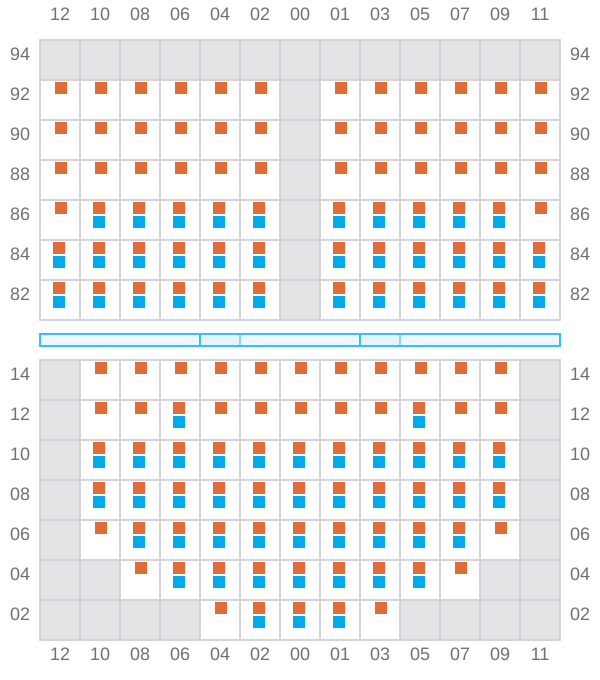

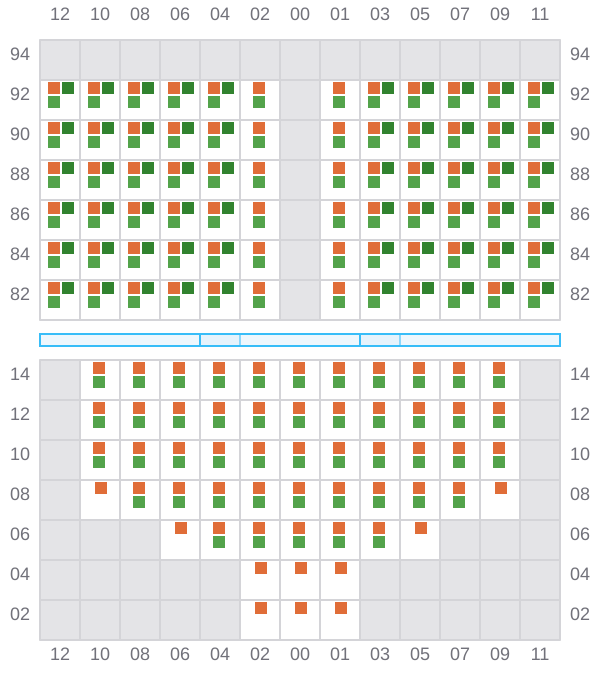

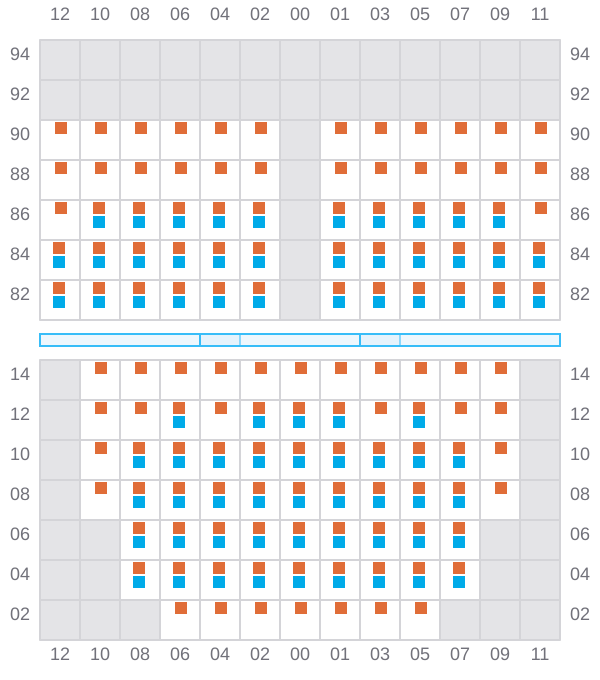

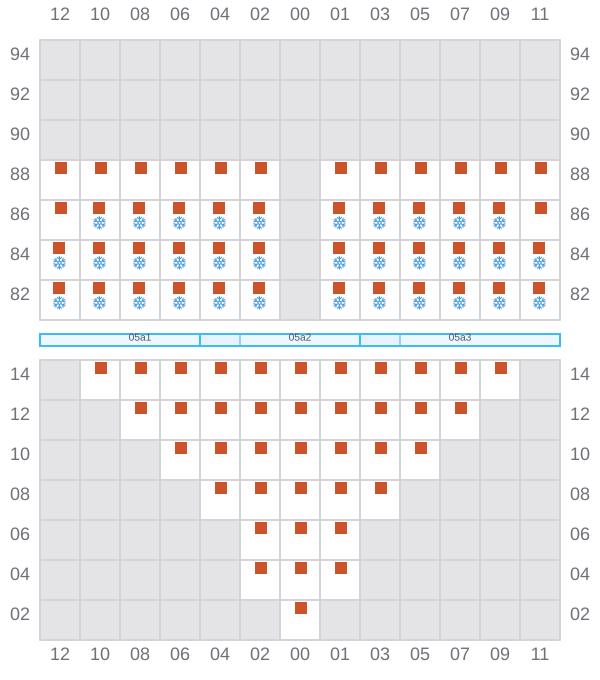

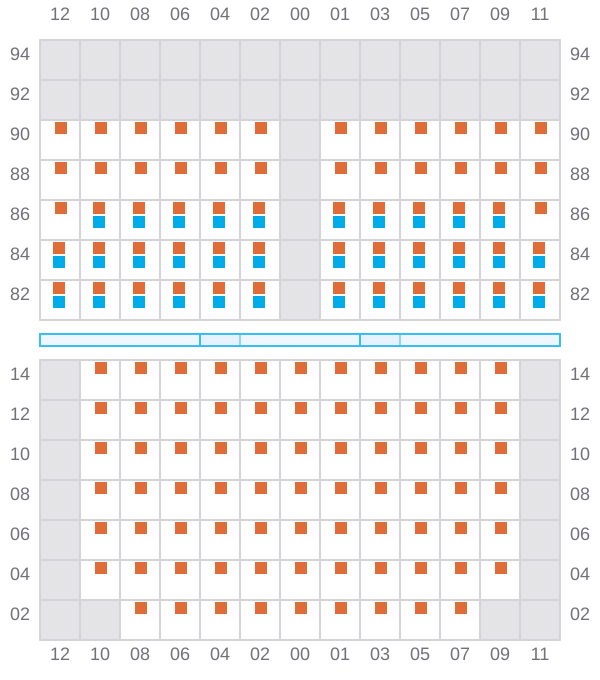

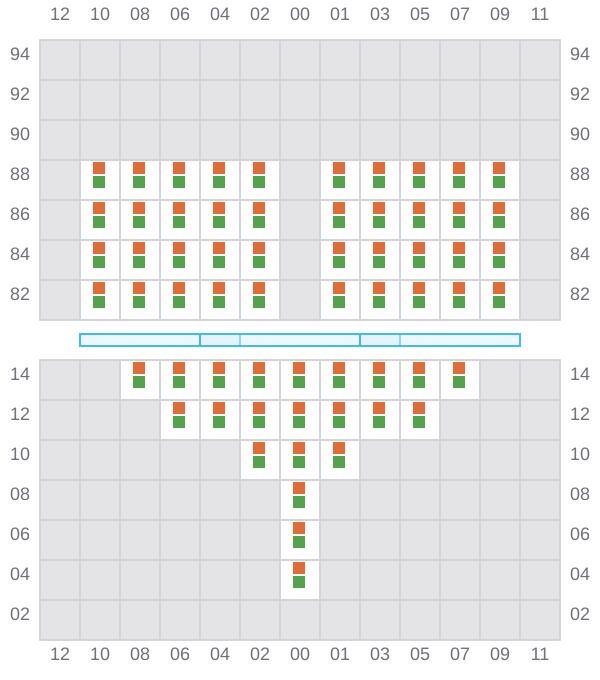

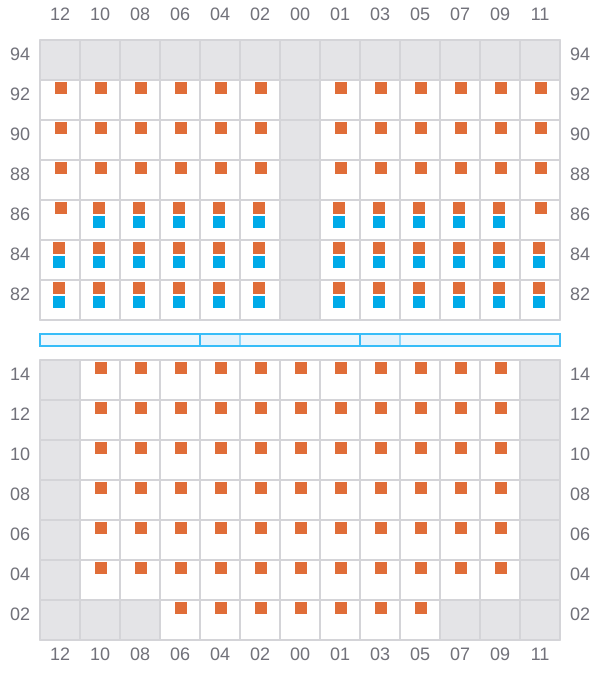

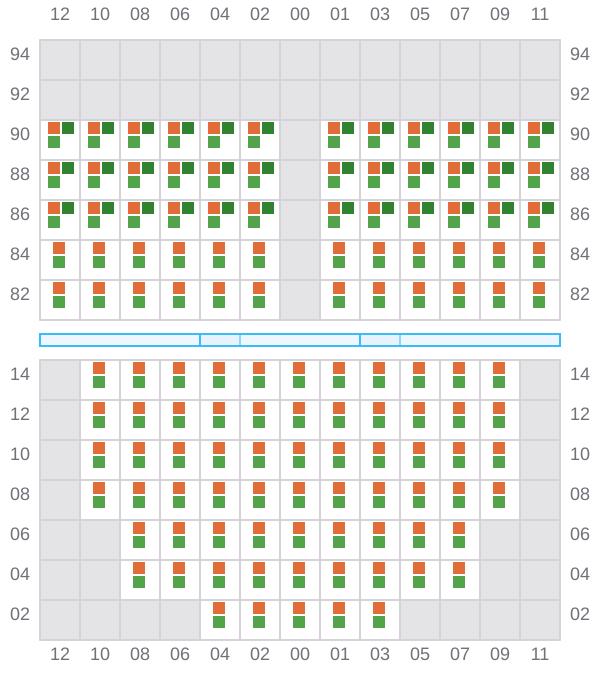

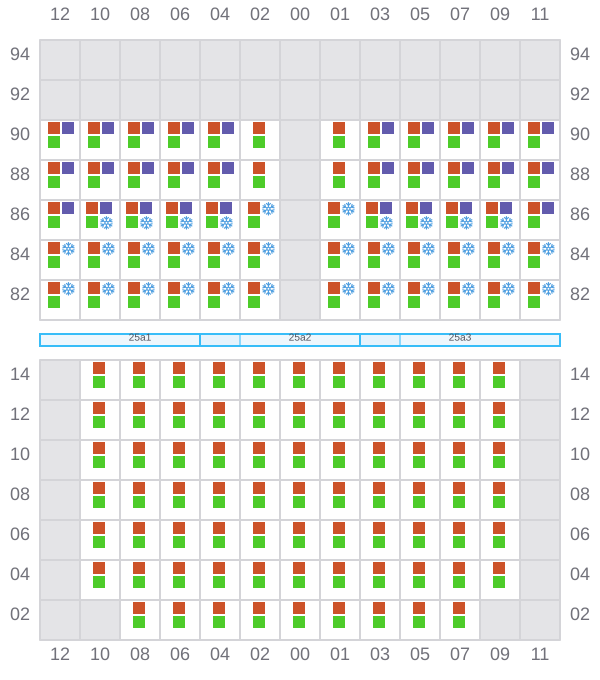

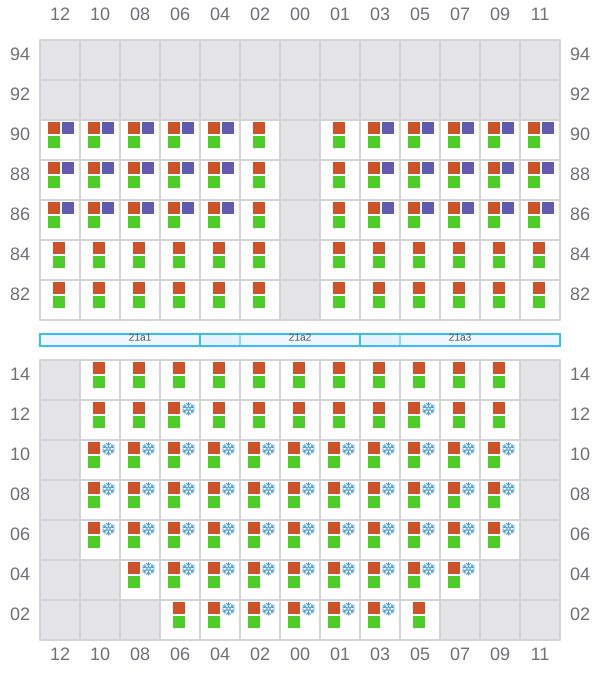

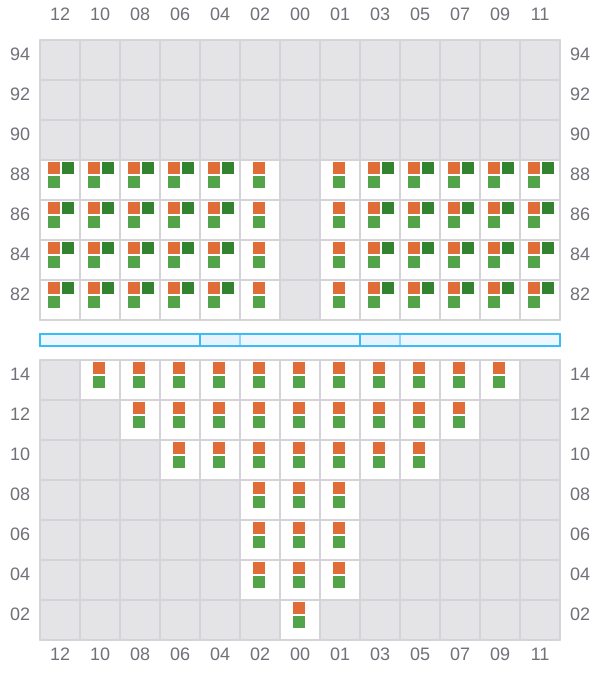

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

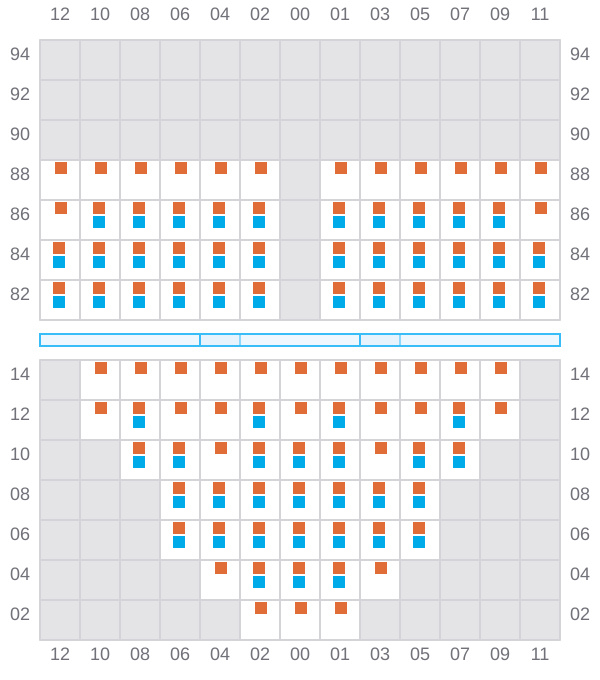

001 (002)
- →
- → / ?
- →

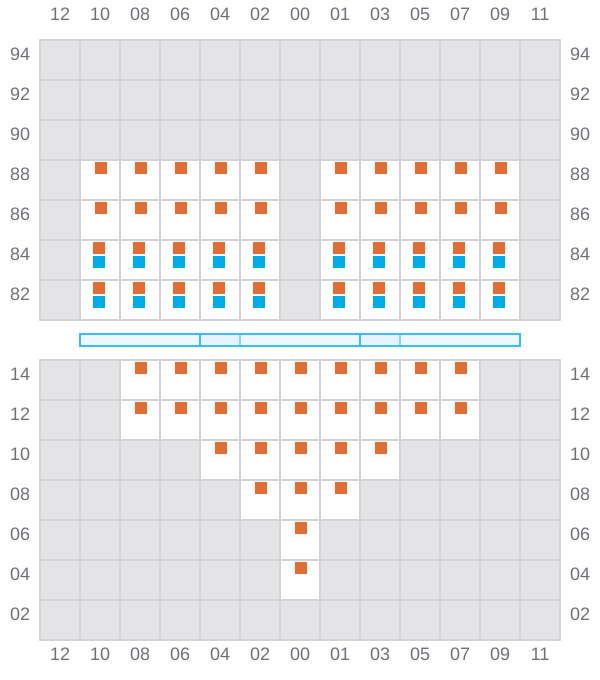

003
- ←
- → / ?
- →

005 (006)
- →
- →

007
- ←
- → / ?
- →

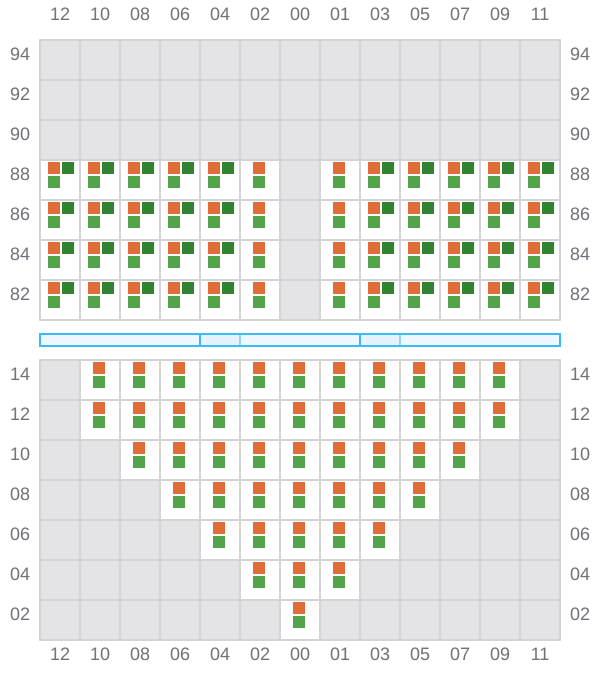

009 (010)
- →
- →

011
- ←
- →
- →

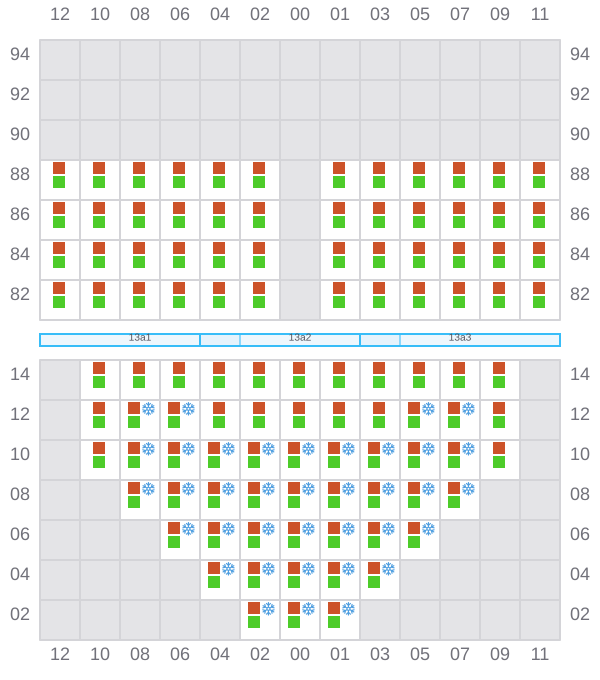

013 (014)
- →
- ? / ←
- →

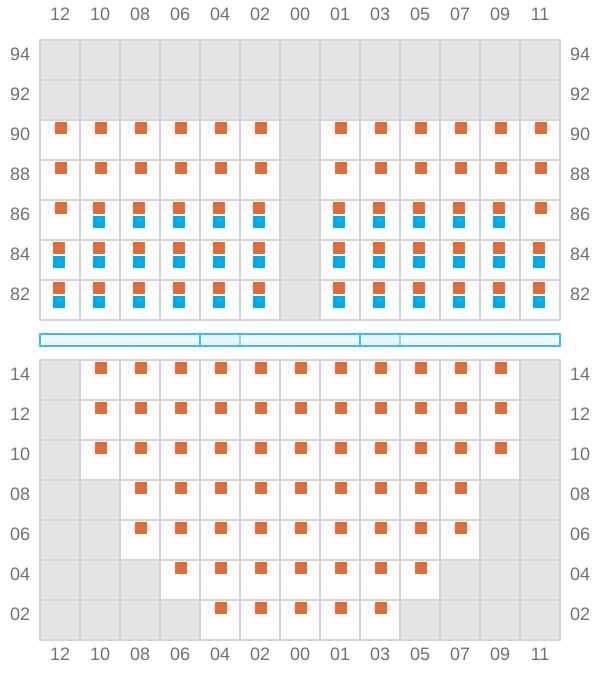

015
- ←
- → / ?
- →

017 (018)
- →
- →

019
- ←
- →
- →

021 (022)
- →
- ? / ←
- →

023
- ←
- → / ?
- →

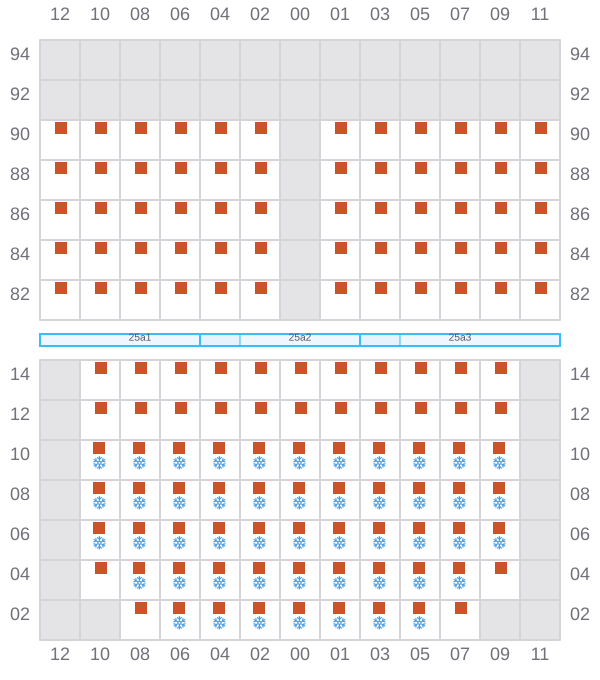

025 (026)
- →
- ← / ?
- →

027
- ←
- ? / →
- →

029 (030)
- →
- ? / ←
- →

031
- ←
- → / ?
- →

033 (034)
- →
- →

035
- ←
- →
- →

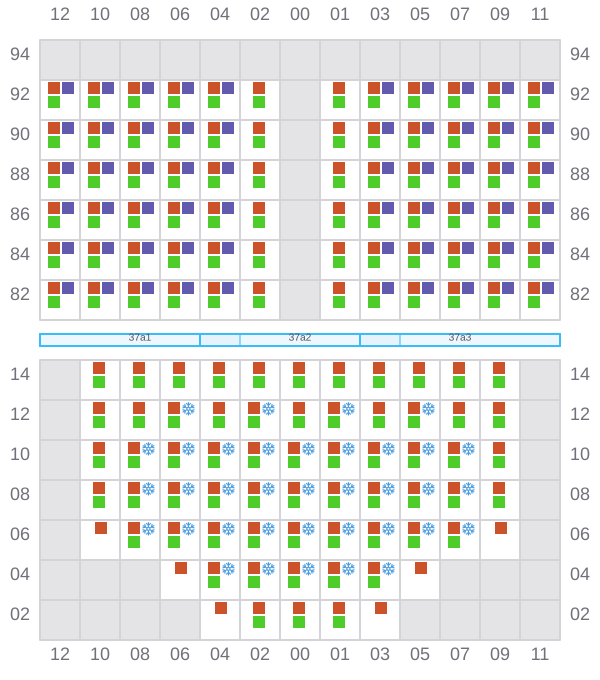

037 (038)
- →
- ? / ←
- →

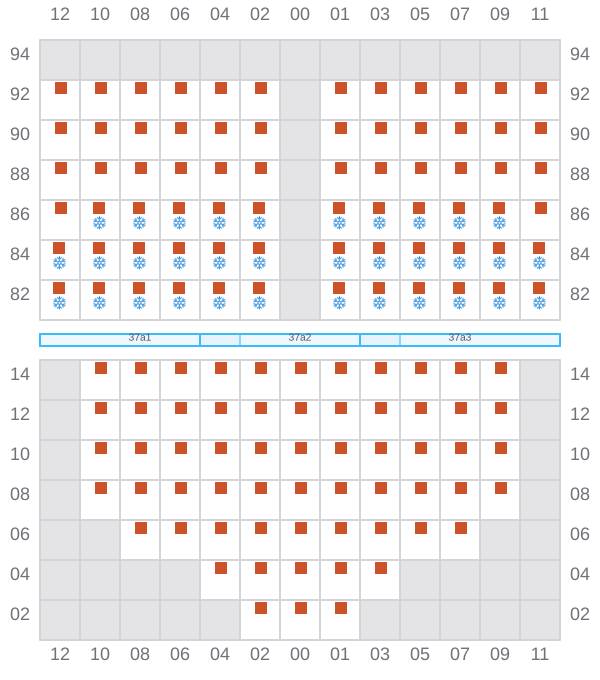

039
- ←
- → / ?
- →

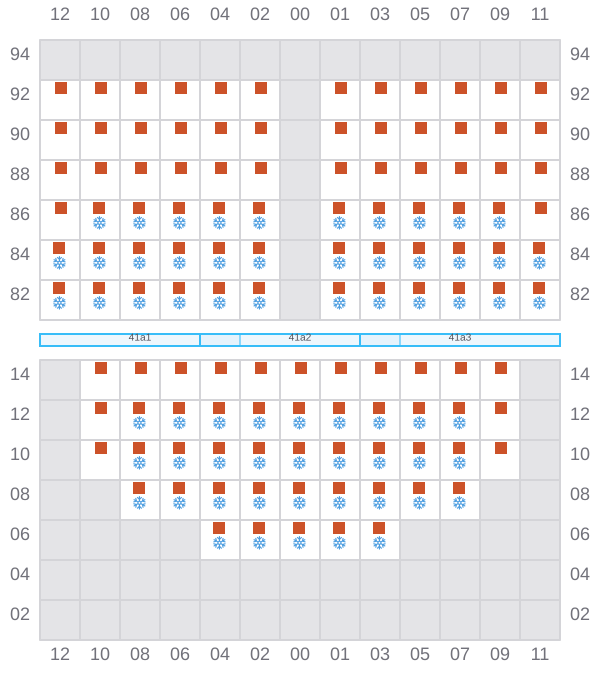

041 (042)
- →
- →

043
- ←
- →
- →

045
- → / ?

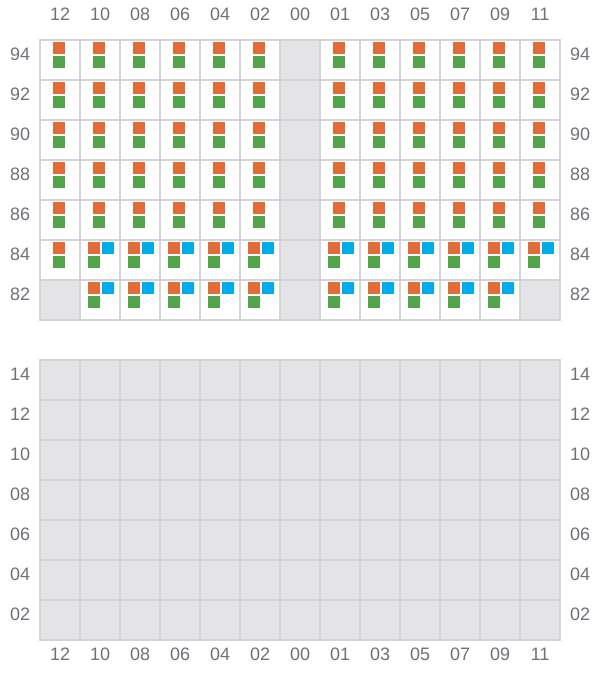

047 (048)
- → / ?
- ← / ?
- → / ?

049
- ← / ?
- → / ?
