CHIQUITA VOYAGER
9304978 | 5LKK3 | 93049 by ********* Last update: Thu Apr 04 2024
General Info
Ship Name:CHIQUITA VOYAGER
IMO Code:9304978
Call Sign:5LKK3
Line Operator:93049
Class Name for Sister Ships:APL
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,750
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

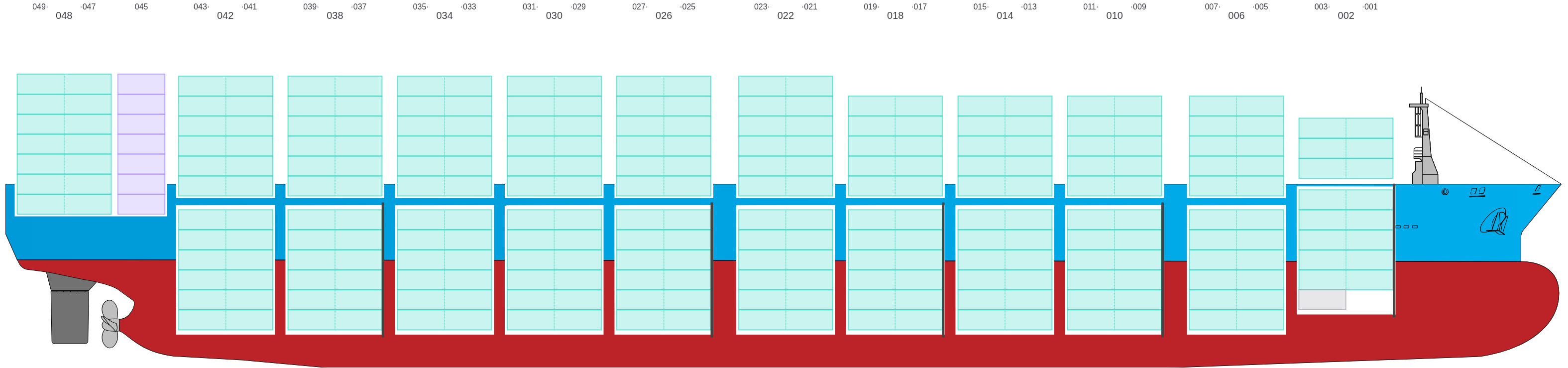

Side View
![Side view of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-sideView.png?v=1712258506995)
Hatch-Covers View
![Deck view of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-deckView.png?v=1712258506995)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

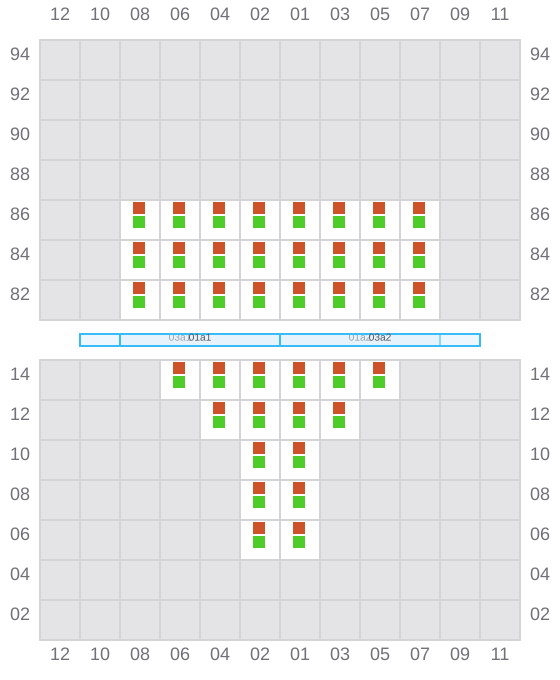

001 (002)
- →
![Bay 001 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b001.png?v=1712258506995)
003
- ←
- → / ?
![Bay 003 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b003.png?v=1712258506995)

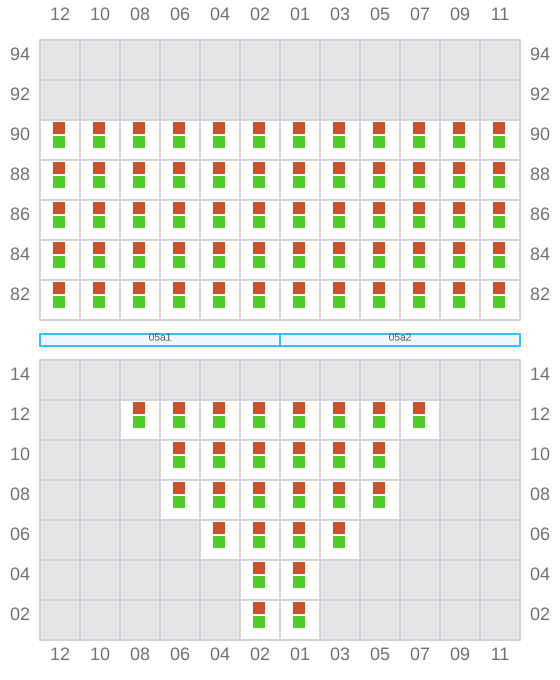

005 (006)
- →
![Bay 005 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b005.png?v=1712258506995)

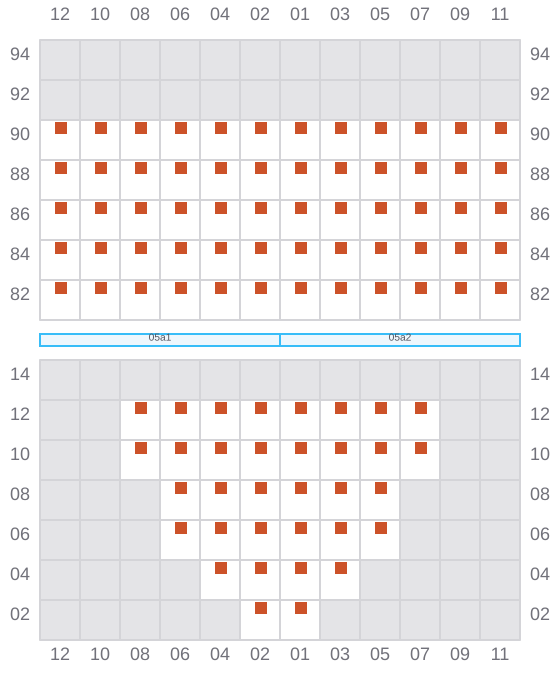

007
- ←
- → / ?
![Bay 007 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b007.png?v=1712258506995)

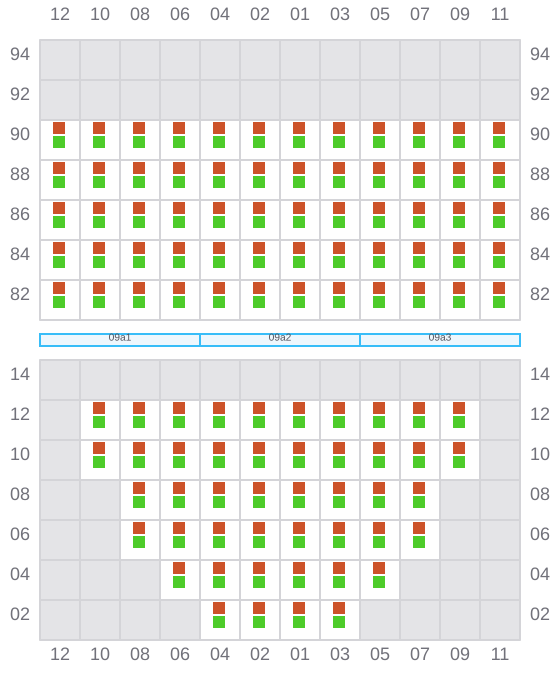

009 (010)
- →
![Bay 009 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b009.png?v=1712258506995)
011
- ←
- → / ?
![Bay 011 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b011.png?v=1712258506995)
013 (014)
- →
![Bay 013 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b013.png?v=1712258506995)

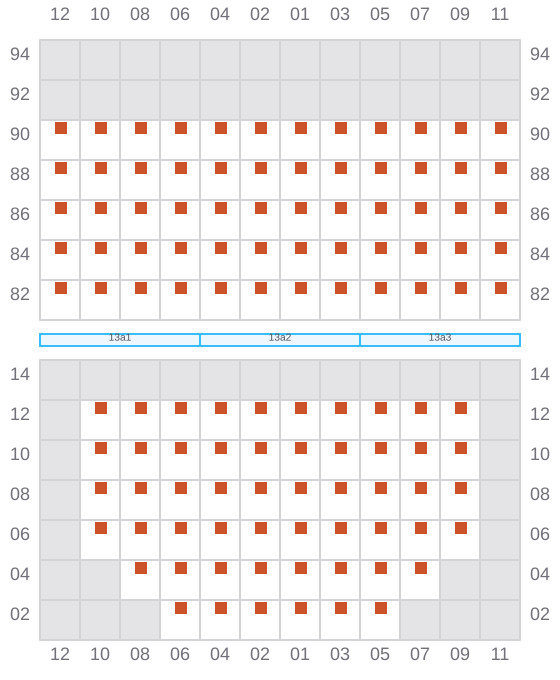

015
- ←
- → / ?
![Bay 015 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b015.png?v=1712258506995)

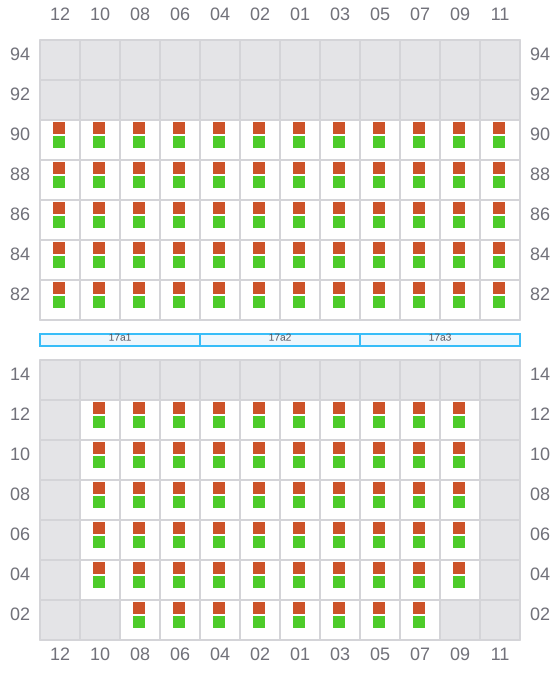

017 (018)
- →
![Bay 017 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b017.png?v=1712258506995)

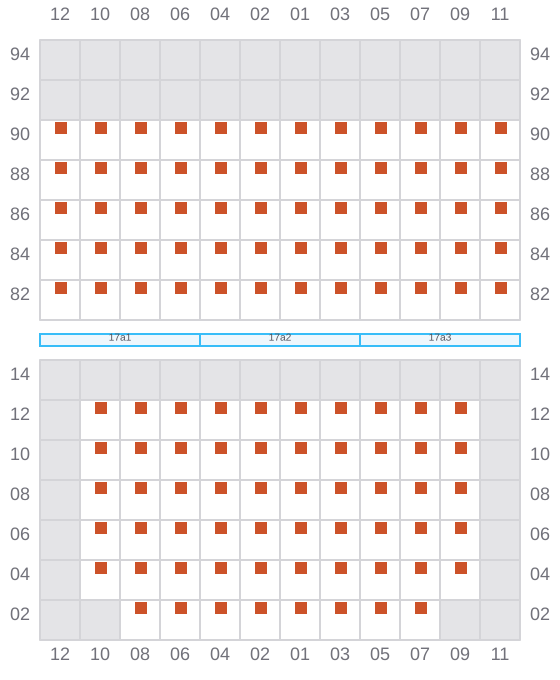

019
- ←
- → / ?
![Bay 019 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b019.png?v=1712258506995)

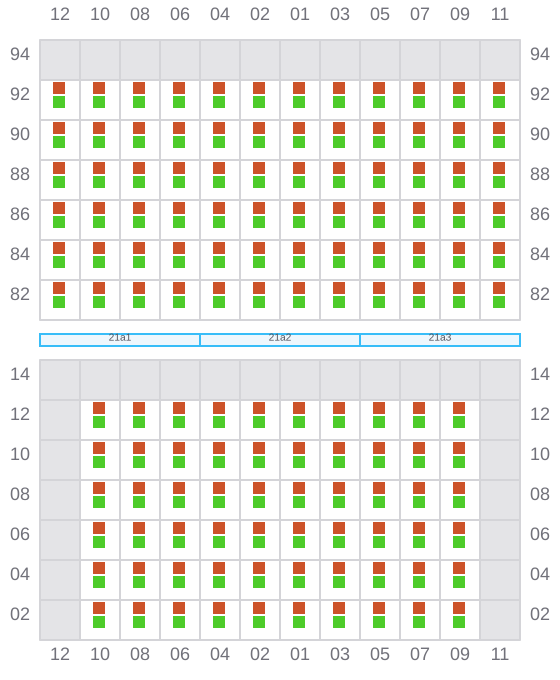

021 (022)
- →
![Bay 021 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b021.png?v=1712258506995)
023
- ←
- → / ?
![Bay 023 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b023.png?v=1712258506995)
025 (026)
- →
![Bay 025 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b025.png?v=1712258506995)
027
- ←
- → / ?
![Bay 027 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b027.png?v=1712258506995)
029 (030)
- →
![Bay 029 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b029.png?v=1712258506995)
031
- ←
- → / ?
![Bay 031 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b031.png?v=1712258506995)

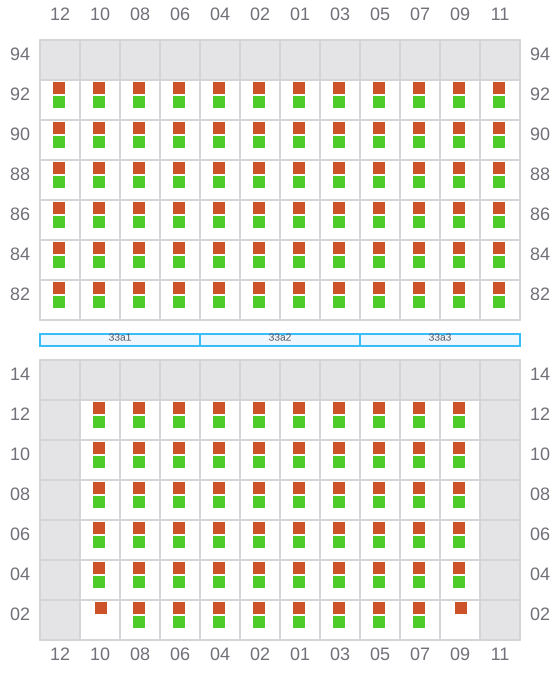

033 (034)
- →
![Bay 033 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b033.png?v=1712258506995)
035
- ←
- → / ?
![Bay 035 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b035.png?v=1712258506995)

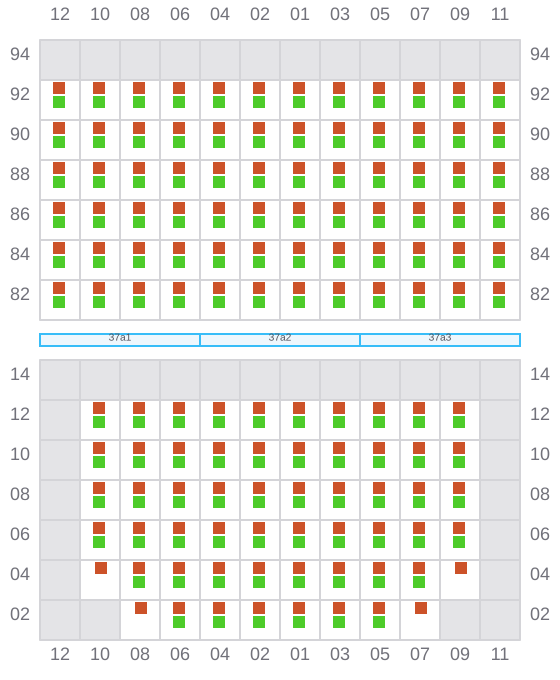

037 (038)
- →
![Bay 037 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b037.png?v=1712258506995)

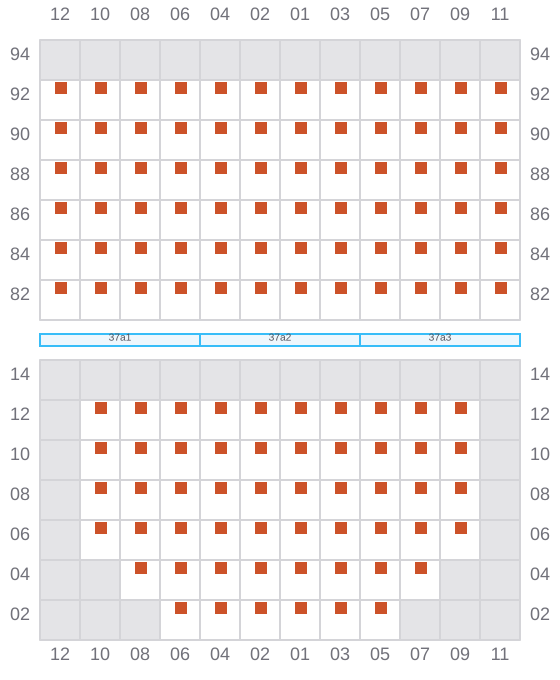

039
- ←
- → / ?
![Bay 039 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b039.png?v=1712258506995)
041 (042)
- →
![Bay 041 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b041.png?v=1712258506995)

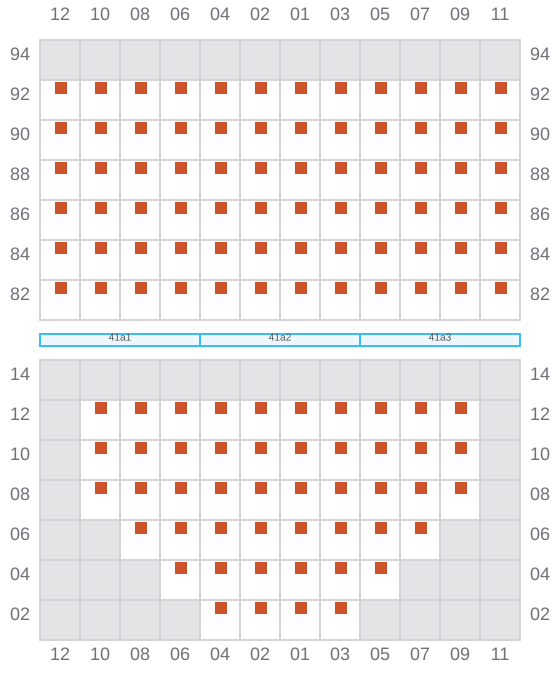

043
- ←
- → / ?
![Bay 043 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b043.png?v=1712258506995)

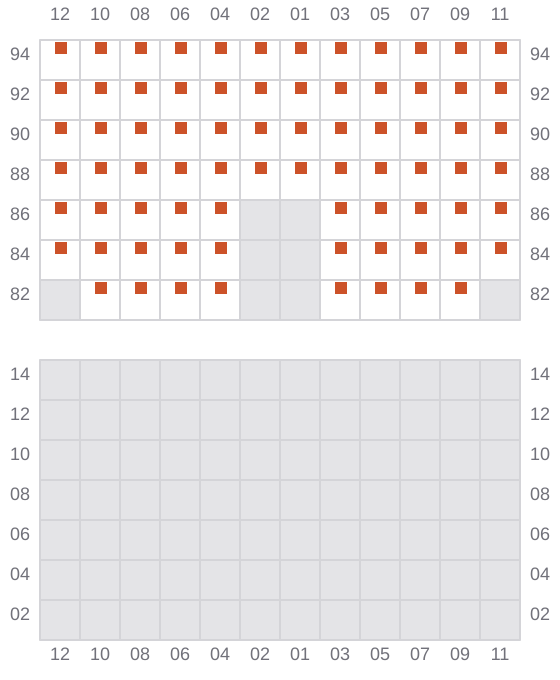

045
![Bay 045 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b045.png?v=1712258506995)

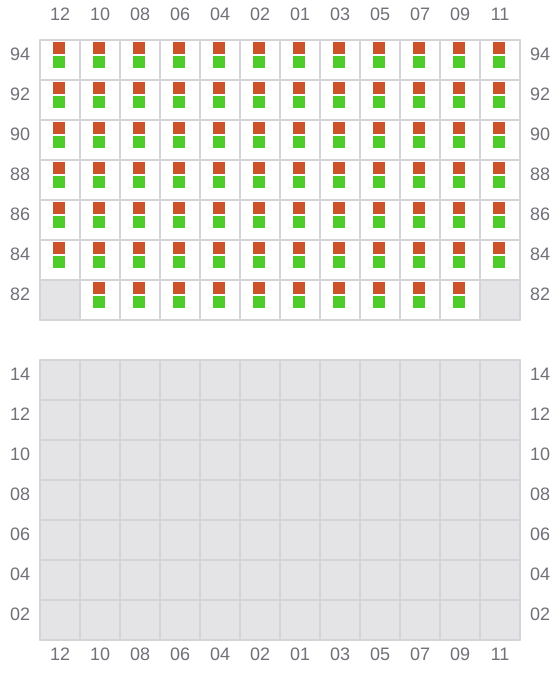

047 (048)
- → / ?
![Bay 047 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b047.png?v=1712258506995)

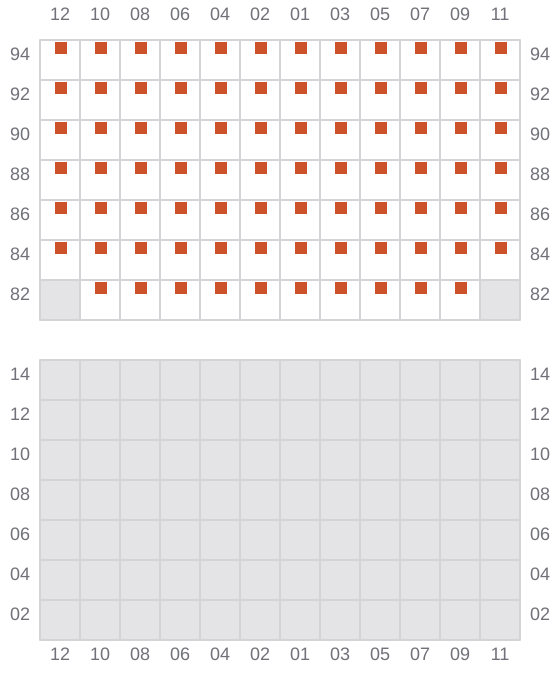

049
- ← / ?
- → / ?
![Bay 049 view and slots of CHIQUITA VOYAGER](/vessel-images/207b7c9d-ddbe-491c-af99-4c3c32c2be04-b049.png?v=1712258506995)
