CIELO DI RABAT
9141792 | CNA5005 | 9141792 by ********* Last update: Wed May 08 2024
General Info
Ship Name:CIELO DI RABAT
IMO Code:9141792
Call Sign:CNA5005
Line Operator:9141792
Class Name for Sister Ships:CMA CGM LAGOS
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:039
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,079
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

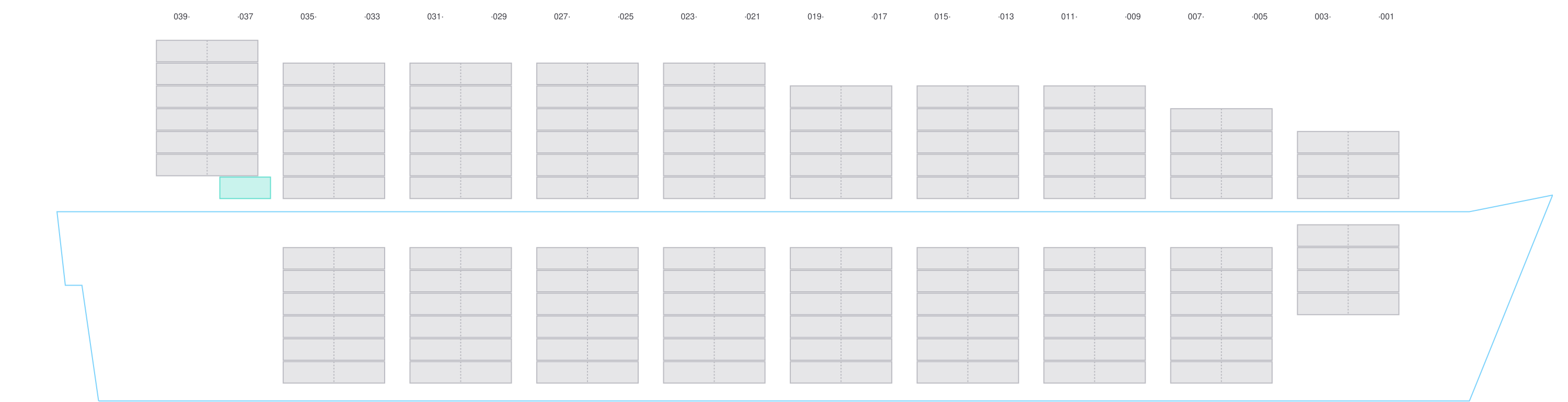

Side View
![Side view of CIELO DI RABAT](/vessel-images/24b23f82-5637-4156-8f16-e314a47e56b7-sideView.png?v=1715192665956)

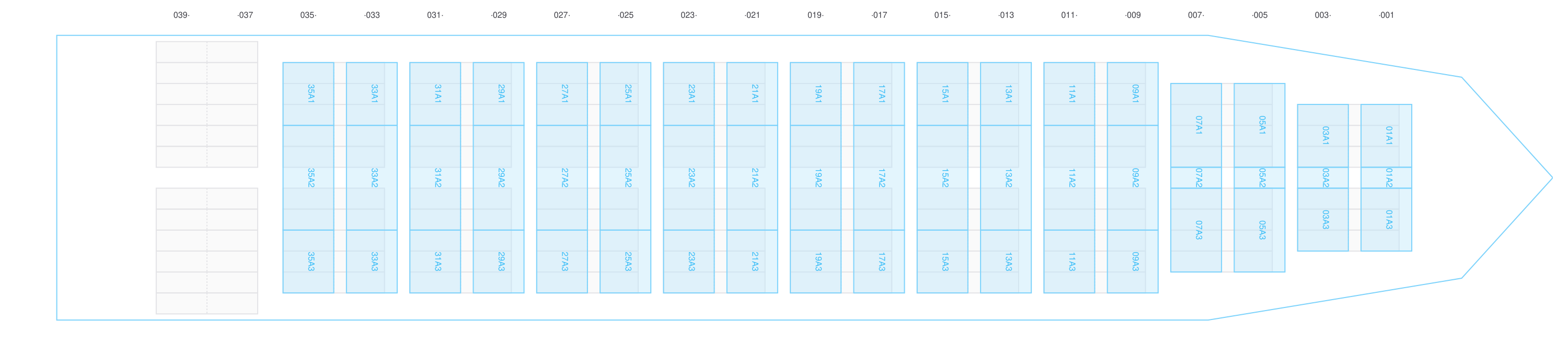

Hatch-Covers View
![Deck view of CIELO DI RABAT](/vessel-images/24b23f82-5637-4156-8f16-e314a47e56b7-deckView.png?v=1715192665956)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

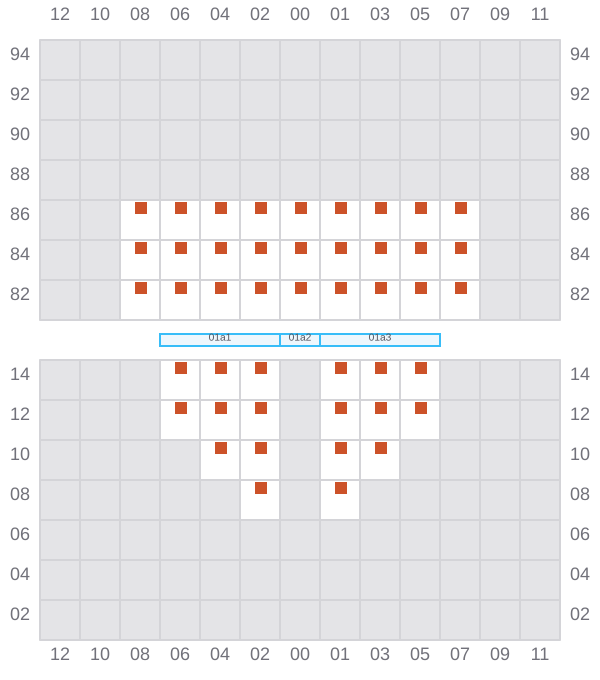

001
- →
![Bay 001 view and slots of CIELO DI RABAT](/vessel-images/24b23f82-5637-4156-8f16-e314a47e56b7-b001.png?v=1715192665956)

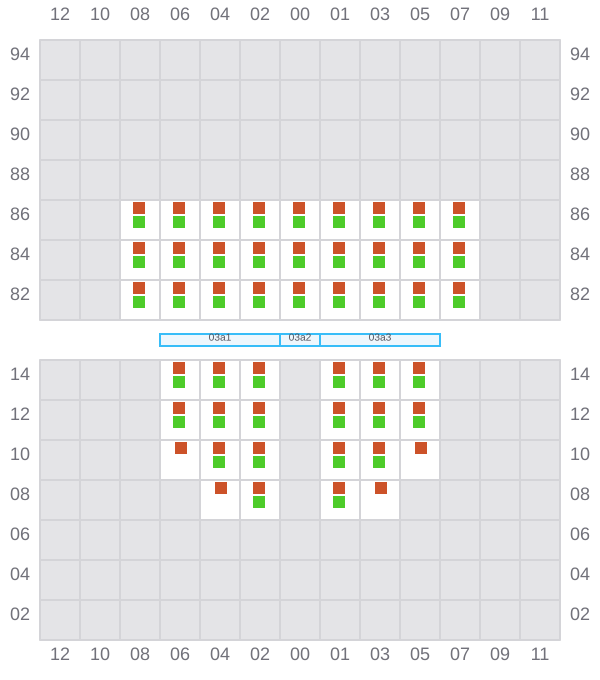

003 (002)
- ←
![Bay 003 view and slots of CIELO DI RABAT](/vessel-images/24b23f82-5637-4156-8f16-e314a47e56b7-b003.png?v=1715192665956)

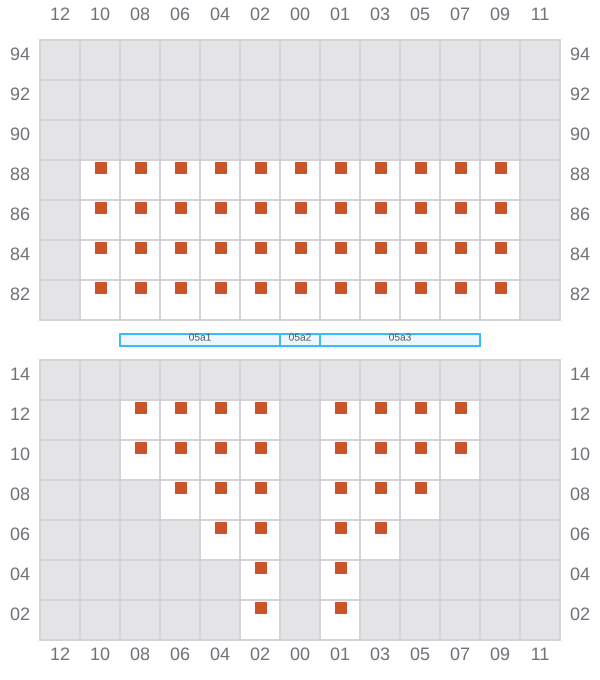

005
- →
![Bay 005 view and slots of CIELO DI RABAT](/vessel-images/24b23f82-5637-4156-8f16-e314a47e56b7-b005.png?v=1715192665956)

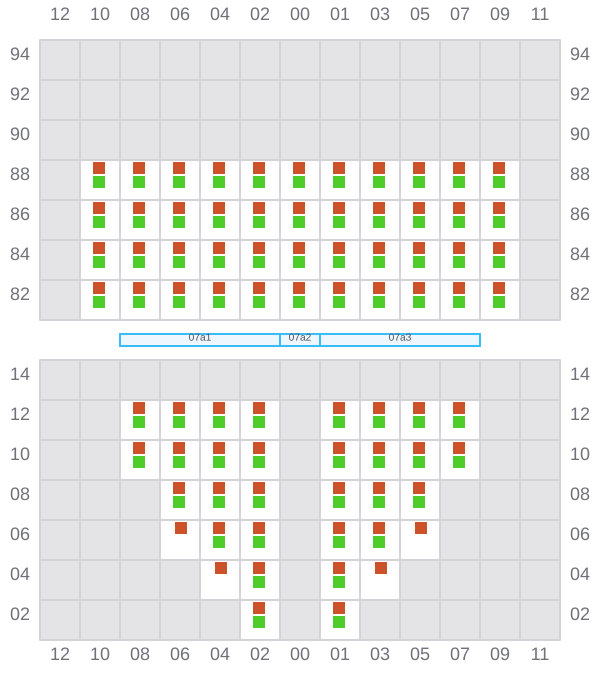

007 (006)
- ←
![Bay 007 view and slots of CIELO DI RABAT](/vessel-images/24b23f82-5637-4156-8f16-e314a47e56b7-b007.png?v=1715192665956)

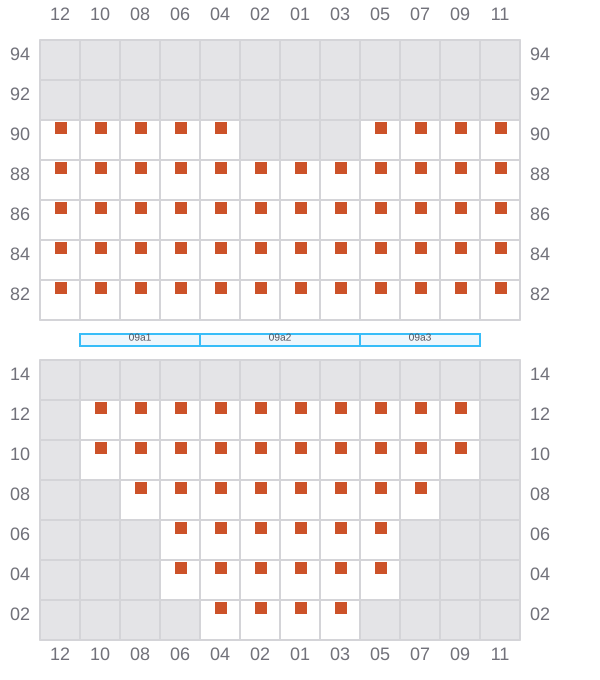

009
- →
![Bay 009 view and slots of CIELO DI RABAT](/vessel-images/24b23f82-5637-4156-8f16-e314a47e56b7-b009.png?v=1715192665956)

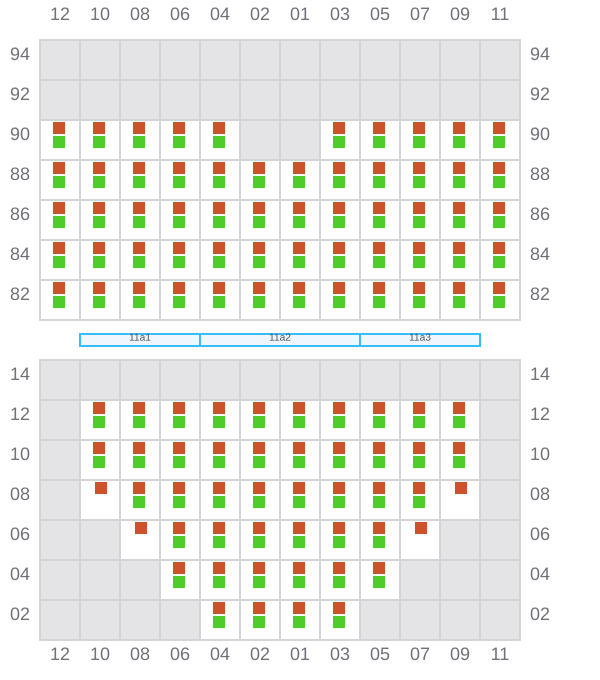

011 (010)
- ←
![Bay 011 view and slots of CIELO DI RABAT](/vessel-images/24b23f82-5637-4156-8f16-e314a47e56b7-b011.png?v=1715192665956)
013
- →
![Bay 013 view and slots of CIELO DI RABAT](/vessel-images/24b23f82-5637-4156-8f16-e314a47e56b7-b013.png?v=1715192665956)

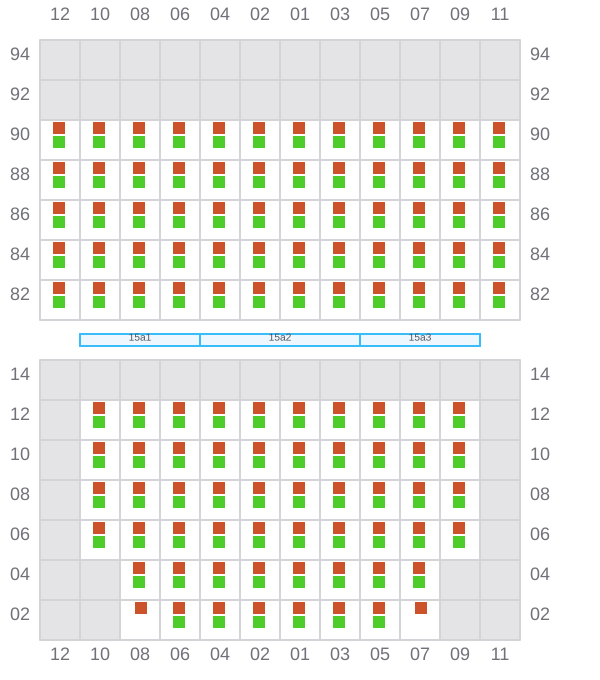

015 (014)
- ←
![Bay 015 view and slots of CIELO DI RABAT](/vessel-images/24b23f82-5637-4156-8f16-e314a47e56b7-b015.png?v=1715192665956)

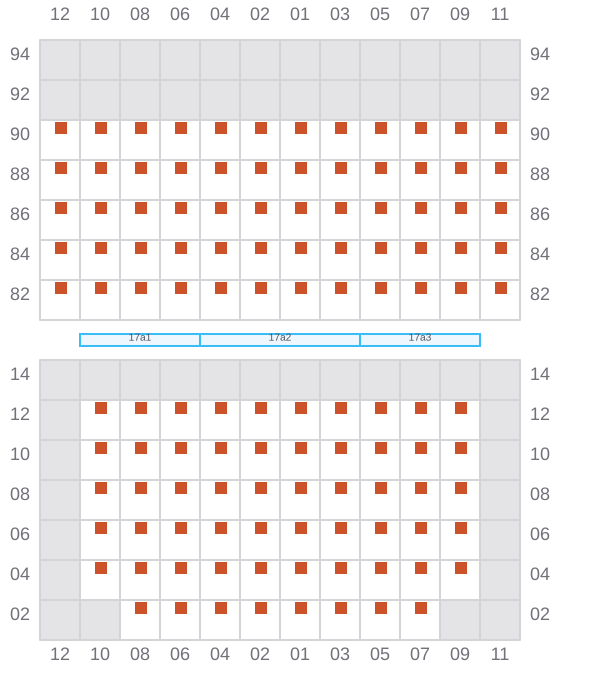

017
- →
![Bay 017 view and slots of CIELO DI RABAT](/vessel-images/24b23f82-5637-4156-8f16-e314a47e56b7-b017.png?v=1715192665956)
019 (018)
- ←
![Bay 019 view and slots of CIELO DI RABAT](/vessel-images/24b23f82-5637-4156-8f16-e314a47e56b7-b019.png?v=1715192665956)
021
- →
![Bay 021 view and slots of CIELO DI RABAT](/vessel-images/24b23f82-5637-4156-8f16-e314a47e56b7-b021.png?v=1715192665956)
023 (022)
- ←
![Bay 023 view and slots of CIELO DI RABAT](/vessel-images/24b23f82-5637-4156-8f16-e314a47e56b7-b023.png?v=1715192665956)

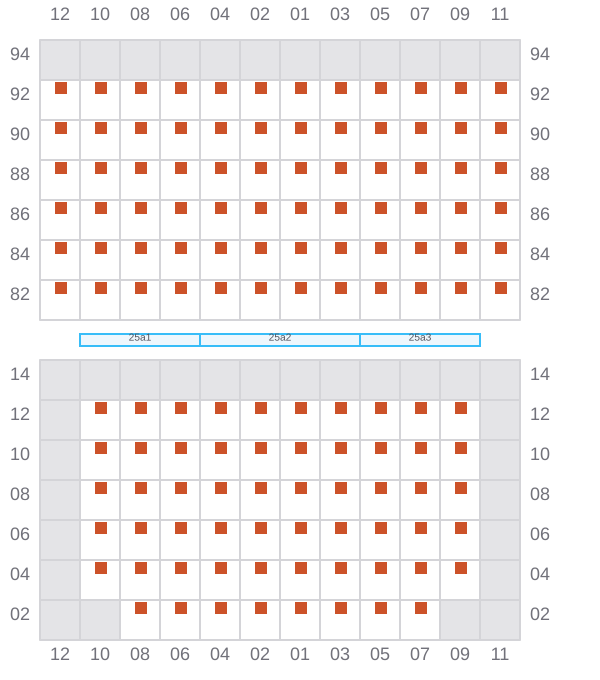

025
- →
![Bay 025 view and slots of CIELO DI RABAT](/vessel-images/24b23f82-5637-4156-8f16-e314a47e56b7-b025.png?v=1715192665956)

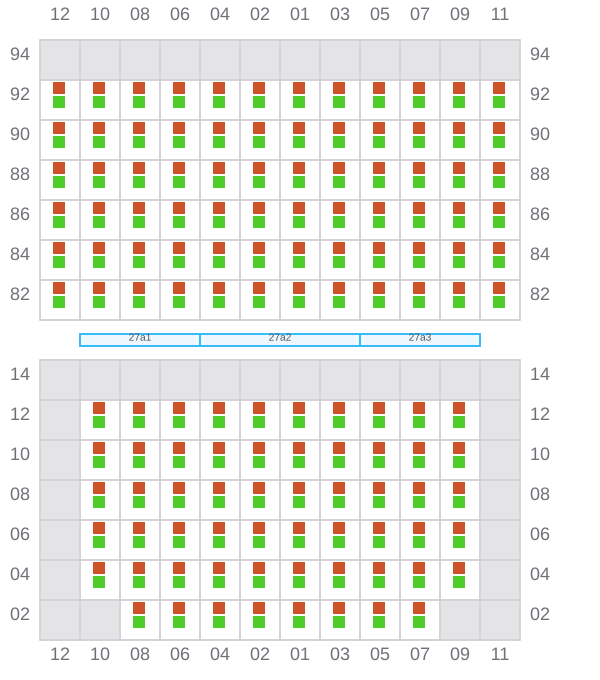

027 (026)
- ←
![Bay 027 view and slots of CIELO DI RABAT](/vessel-images/24b23f82-5637-4156-8f16-e314a47e56b7-b027.png?v=1715192665956)

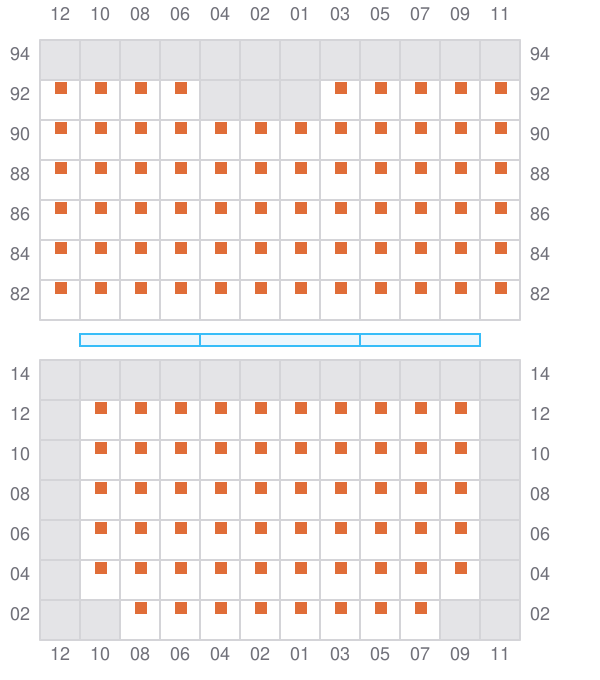

029
- →
![Bay 029 view and slots of CIELO DI RABAT](/vessel-images/24b23f82-5637-4156-8f16-e314a47e56b7-b029.png?v=1715192665956)

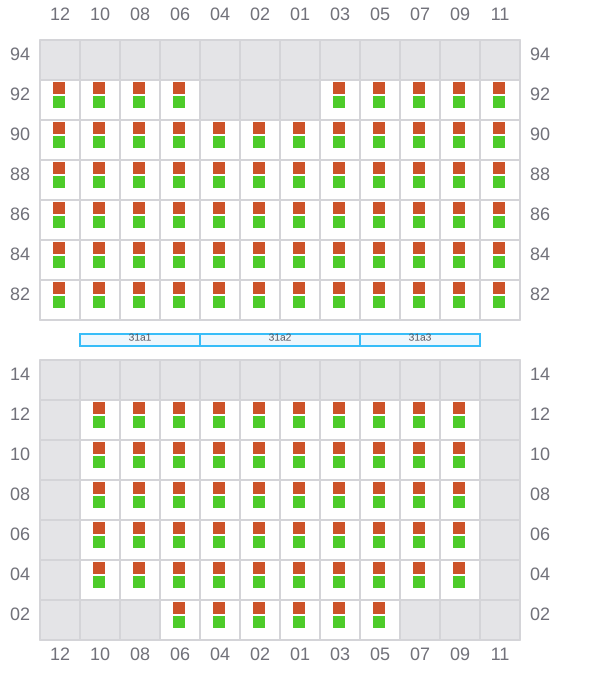

031 (030)
- ←
![Bay 031 view and slots of CIELO DI RABAT](/vessel-images/24b23f82-5637-4156-8f16-e314a47e56b7-b031.png?v=1715192665956)

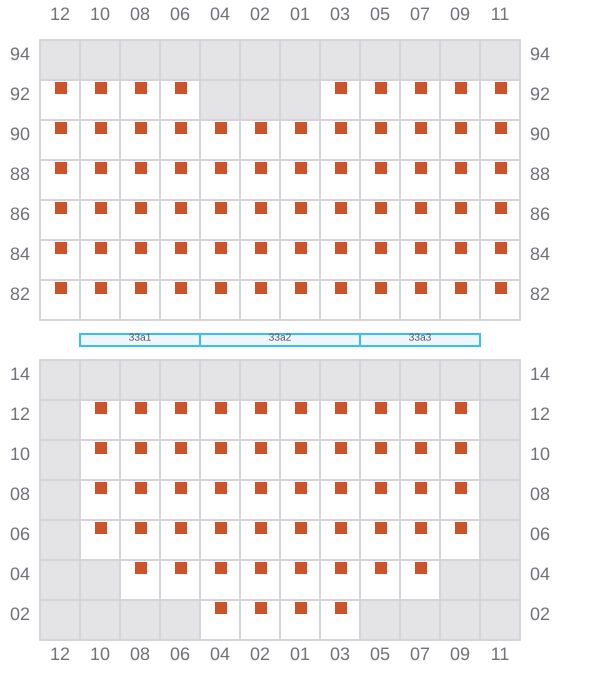

033
- →
![Bay 033 view and slots of CIELO DI RABAT](/vessel-images/24b23f82-5637-4156-8f16-e314a47e56b7-b033.png?v=1715192665956)

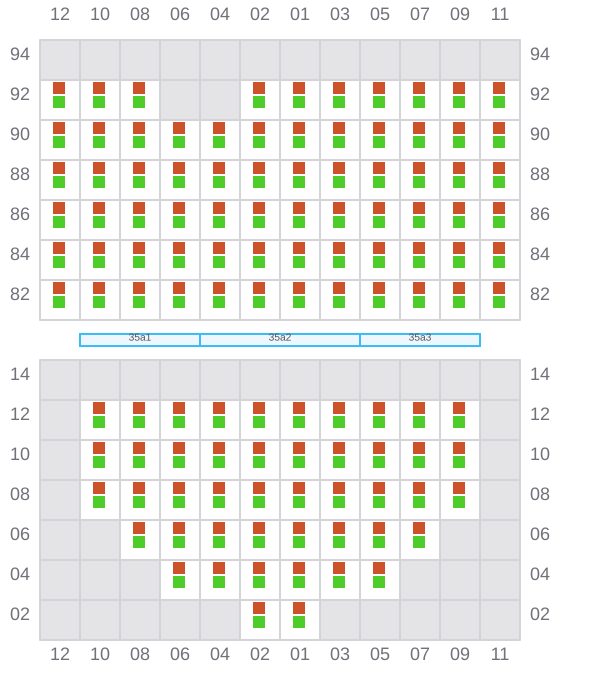

035 (034)
- ←
![Bay 035 view and slots of CIELO DI RABAT](/vessel-images/24b23f82-5637-4156-8f16-e314a47e56b7-b035.png?v=1715192665956)

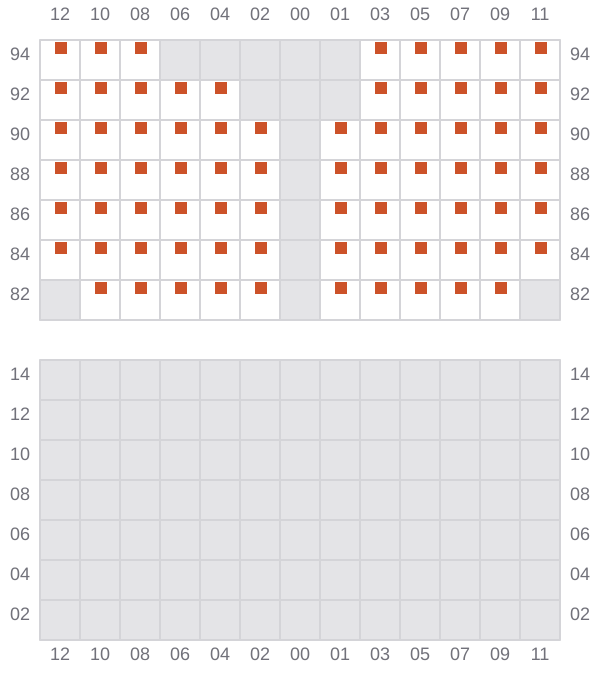

037
- → / ?
![Bay 037 view and slots of CIELO DI RABAT](/vessel-images/24b23f82-5637-4156-8f16-e314a47e56b7-b037.png?v=1715192665956)

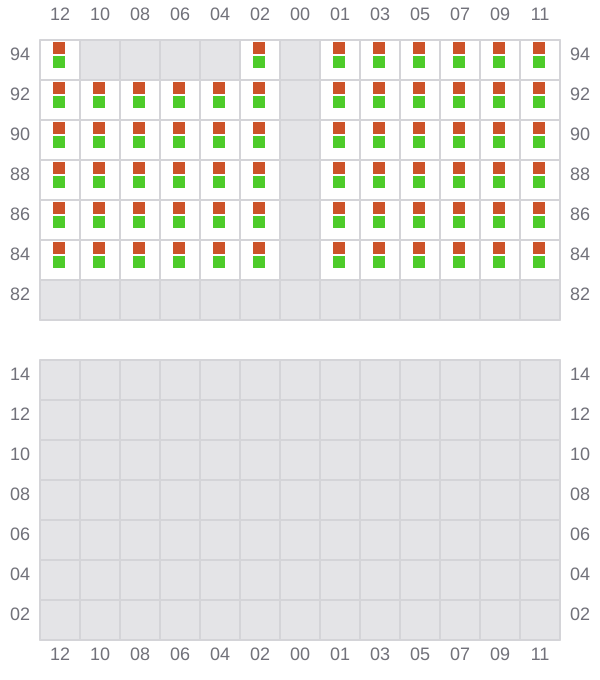

039 (038)
- ← / ?
![Bay 039 view and slots of CIELO DI RABAT](/vessel-images/24b23f82-5637-4156-8f16-e314a47e56b7-b039.png?v=1715192665956)
