CINZIA A
9226516 | 9HA5106 | CHI by ************************** Last update: Thu Jun 29 2023

General Info

Ship Name:CINZIA A
IMO Code:9226516
Call Sign:9HA5106
Line Operator:CHI
Class Name for Sister Ships:CSW
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:059
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,739

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

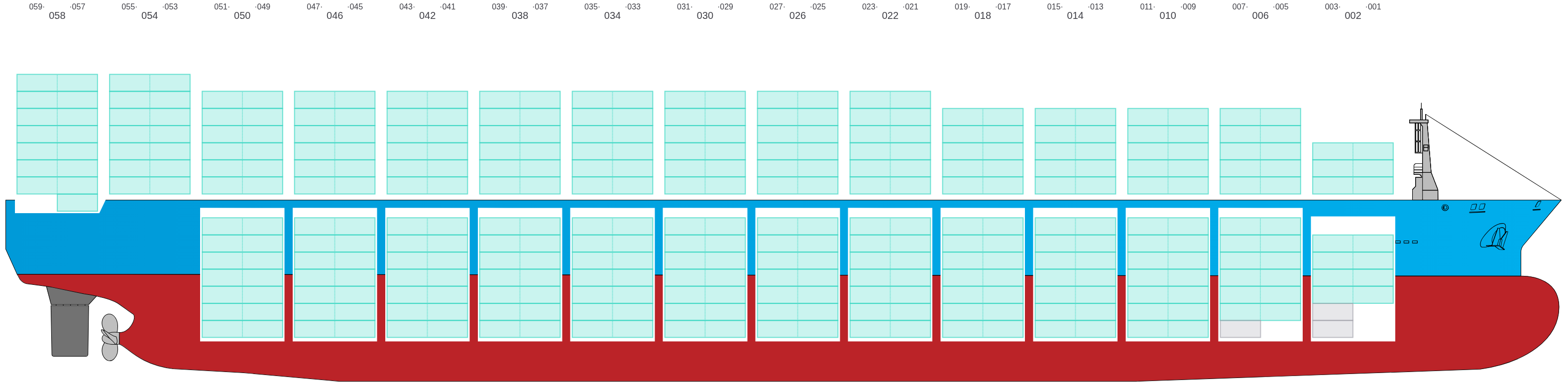

Side View

Side view of CINZIA A

Hatch-Covers View

Deck view of CINZIA A

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

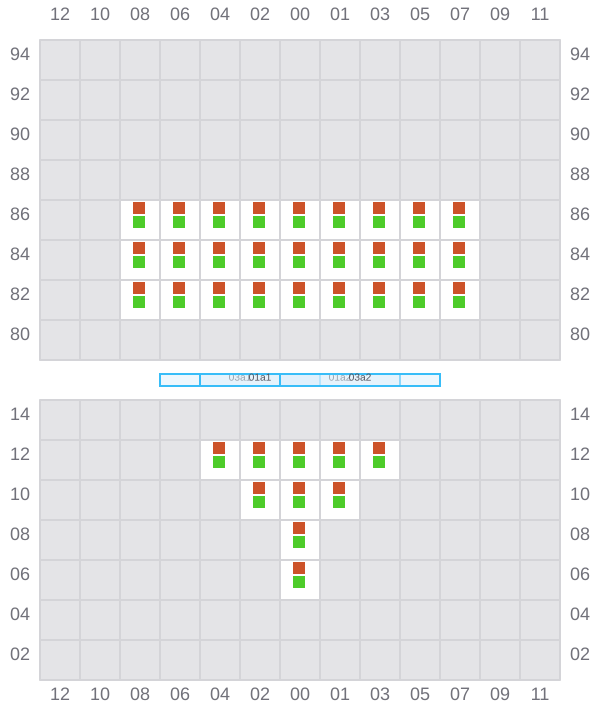

001 (002)

  • →
  • →
Bay 001 view and slots of CINZIA A

003

  • ←
  • →

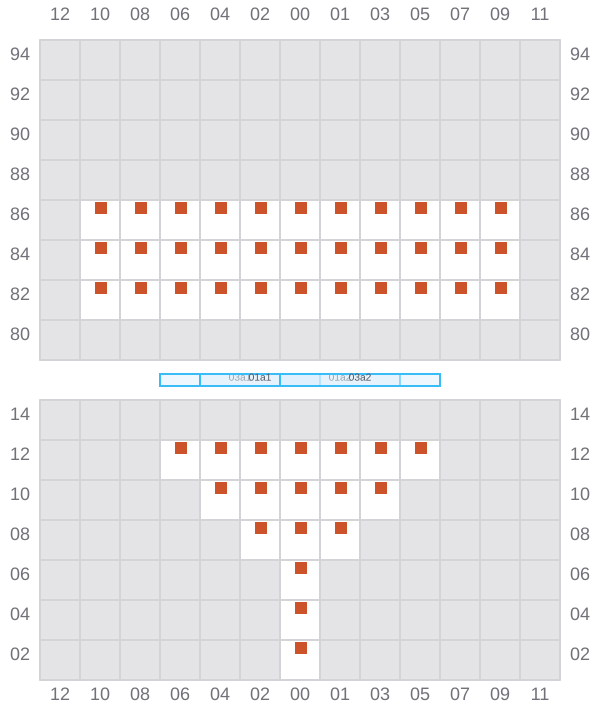

Bay 003 view and slots of CINZIA A

005 (006)

  • →
  • →

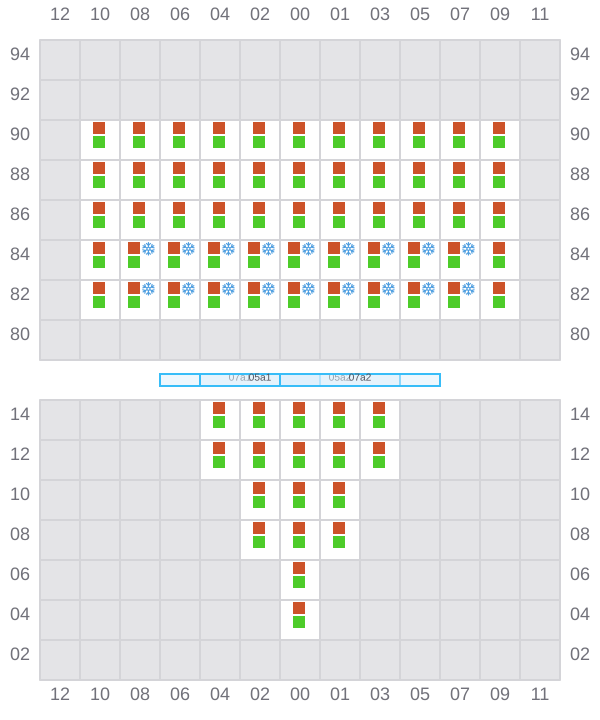

Bay 005 view and slots of CINZIA A

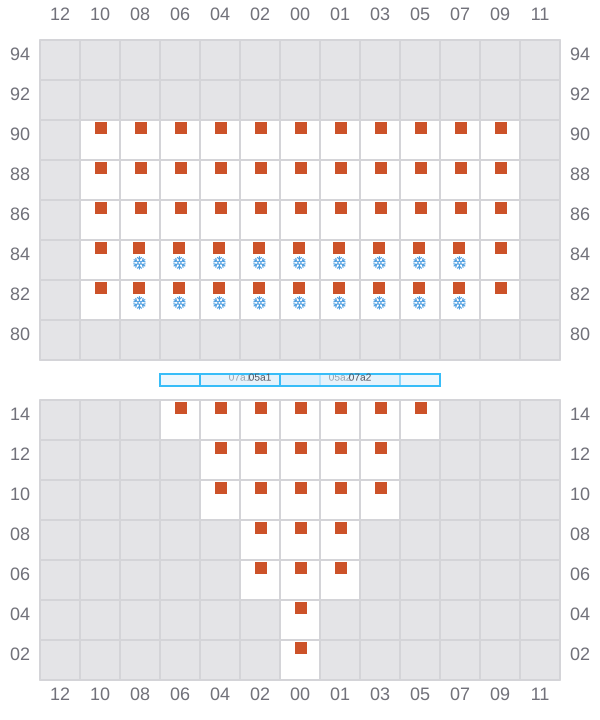

007

  • ←
  • →
Bay 007 view and slots of CINZIA A

009 (010)

  • →
  • →

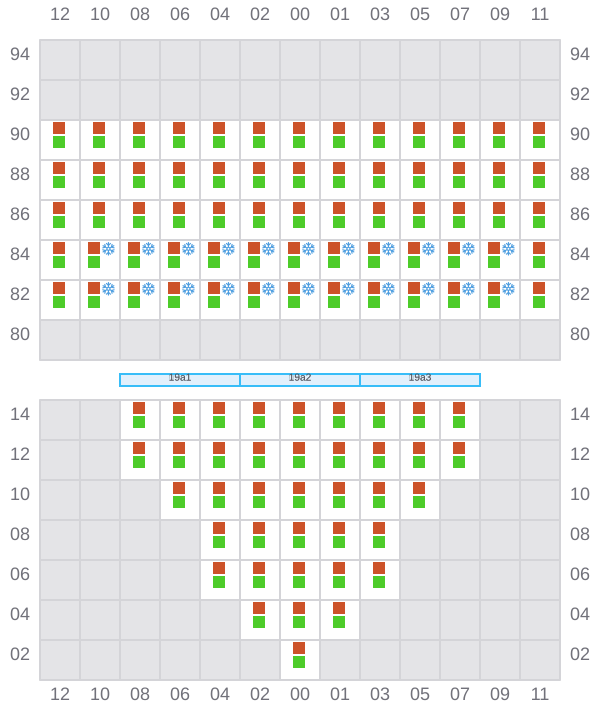

Bay 009 view and slots of CINZIA A

011

  • ←
  • →

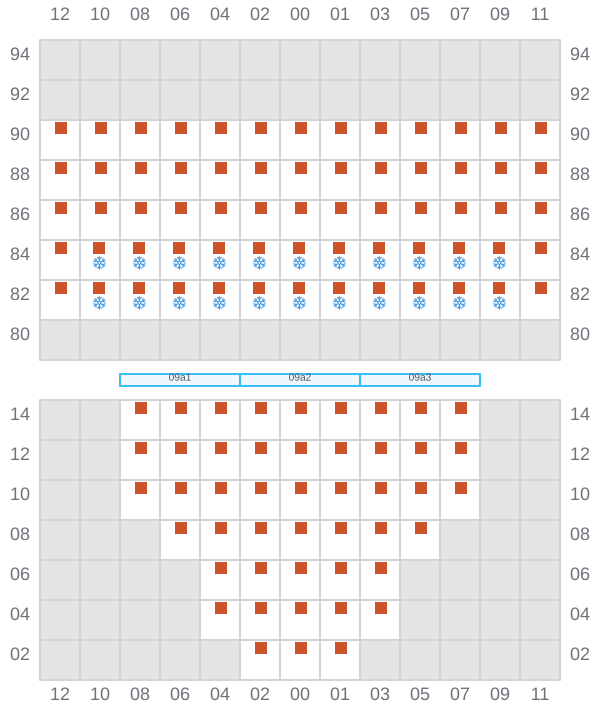

Bay 011 view and slots of CINZIA A

013 (014)

  • →
  • →

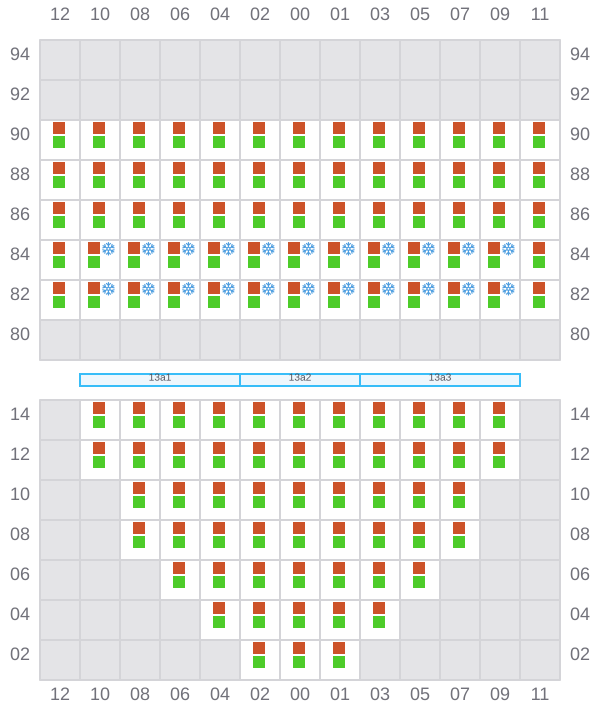

Bay 013 view and slots of CINZIA A

015

  • ←
  • →

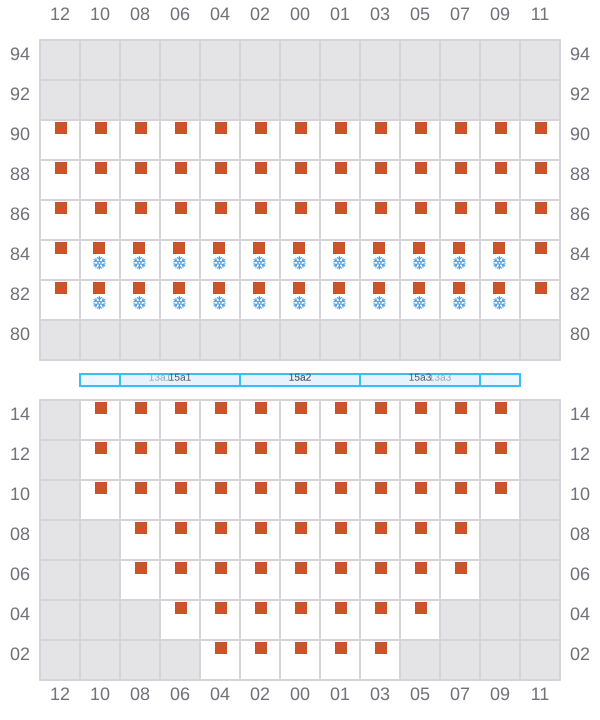

Bay 015 view and slots of CINZIA A

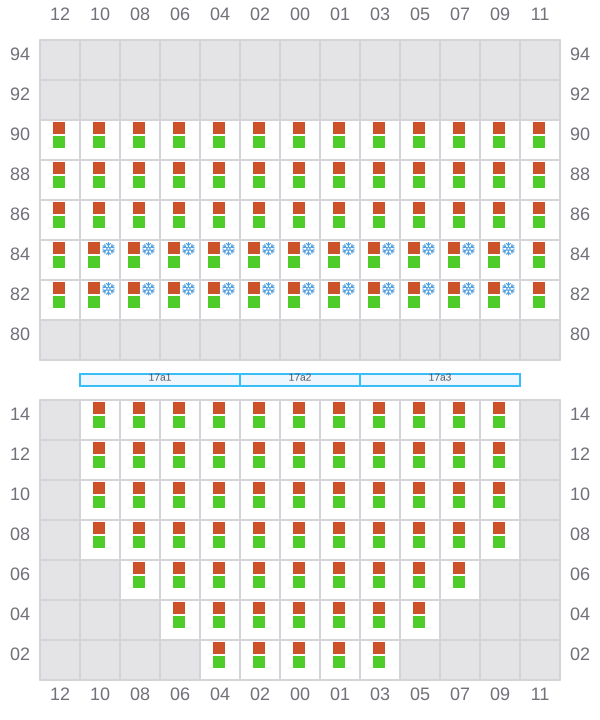

017 (018)

  • →
  • →
Bay 017 view and slots of CINZIA A

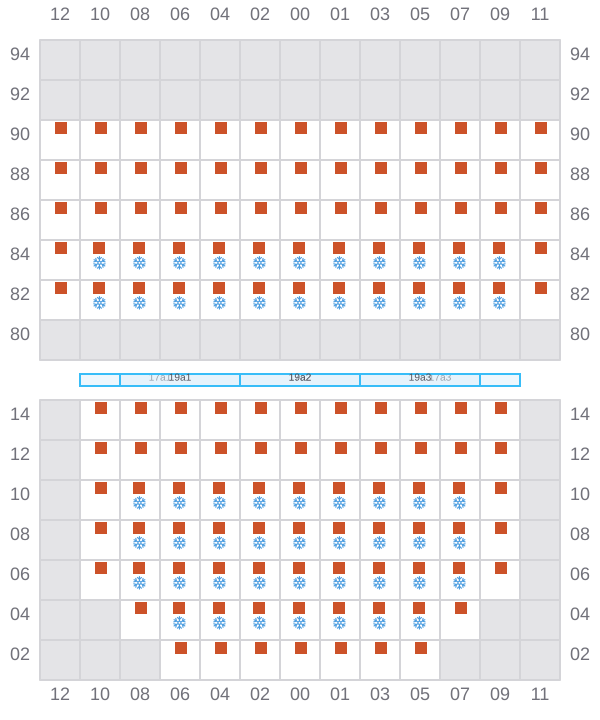

019

  • ←
  • →
Bay 019 view and slots of CINZIA A

021 (022)

  • →
  • →
Bay 021 view and slots of CINZIA A

023

  • ←
  • →
Bay 023 view and slots of CINZIA A

025 (026)

  • →
  • →

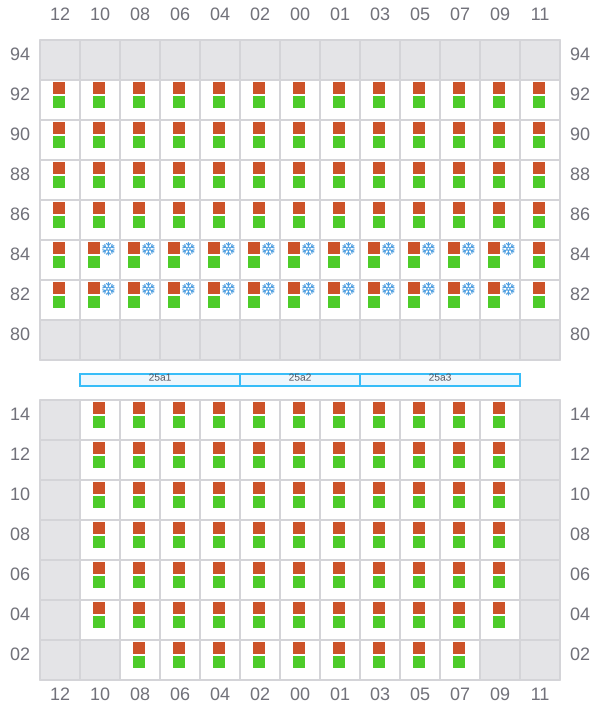

Bay 025 view and slots of CINZIA A

027

  • ←
  • →

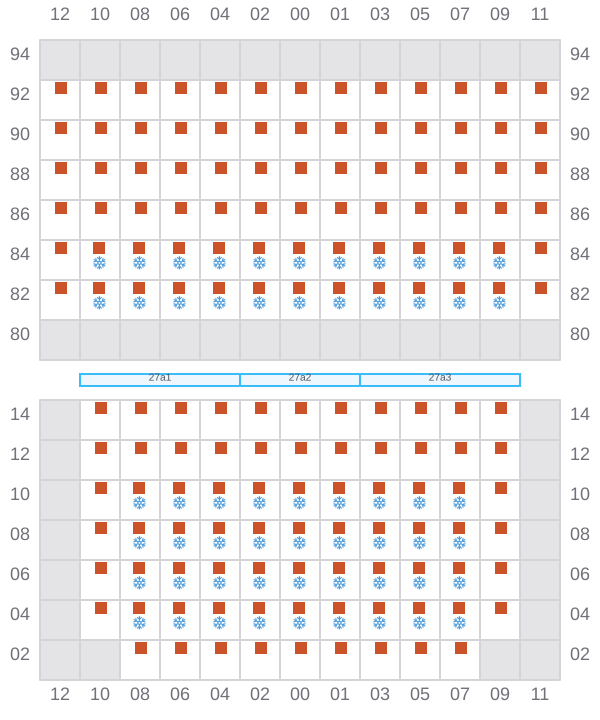

Bay 027 view and slots of CINZIA A

029 (030)

  • →
  • →
Bay 029 view and slots of CINZIA A

031

  • ←
  • →
Bay 031 view and slots of CINZIA A

033 (034)

  • →
  • →

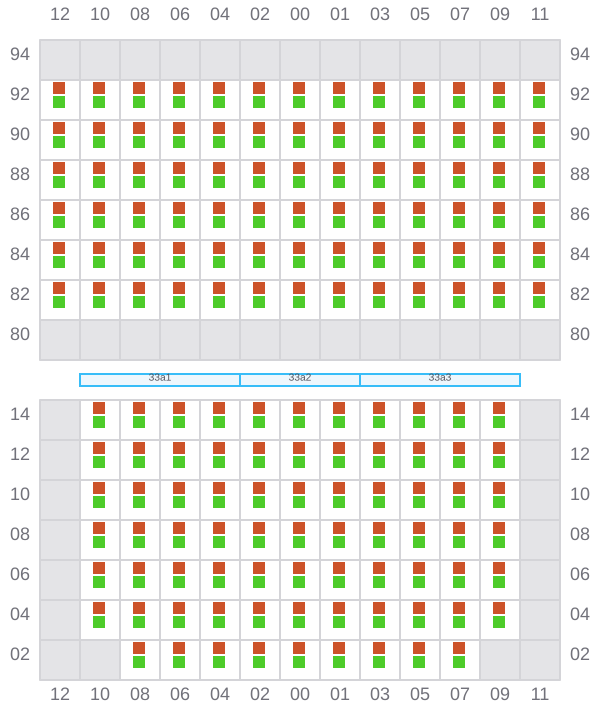

Bay 033 view and slots of CINZIA A

035

  • ←
  • →

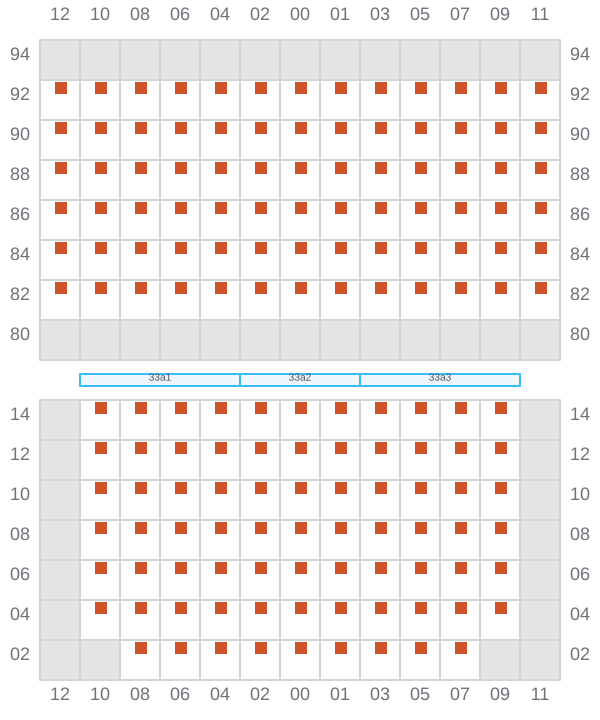

Bay 035 view and slots of CINZIA A

037 (038)

  • →
  • →
Bay 037 view and slots of CINZIA A

039

  • ←
  • →

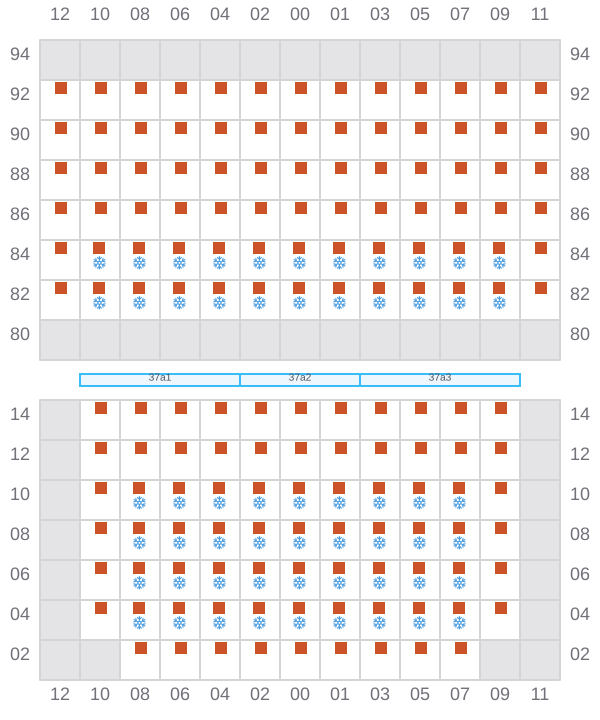

Bay 039 view and slots of CINZIA A

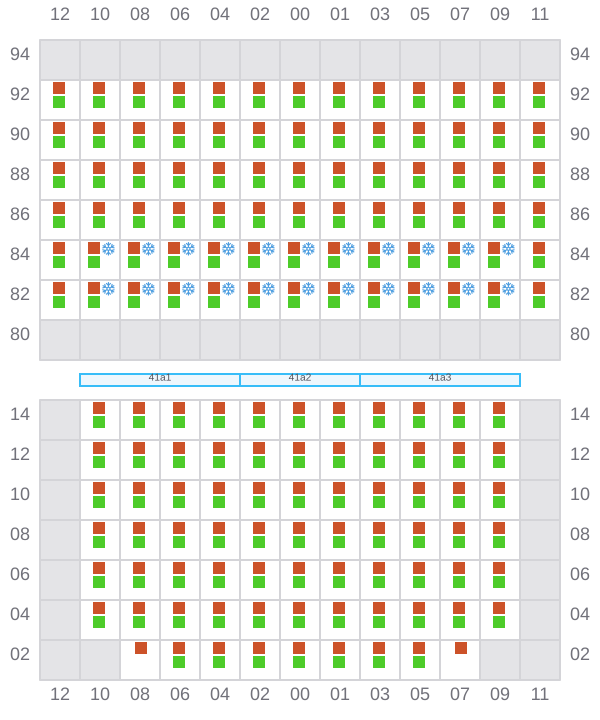

041 (042)

  • →
  • →
Bay 041 view and slots of CINZIA A

043

  • ←
  • →

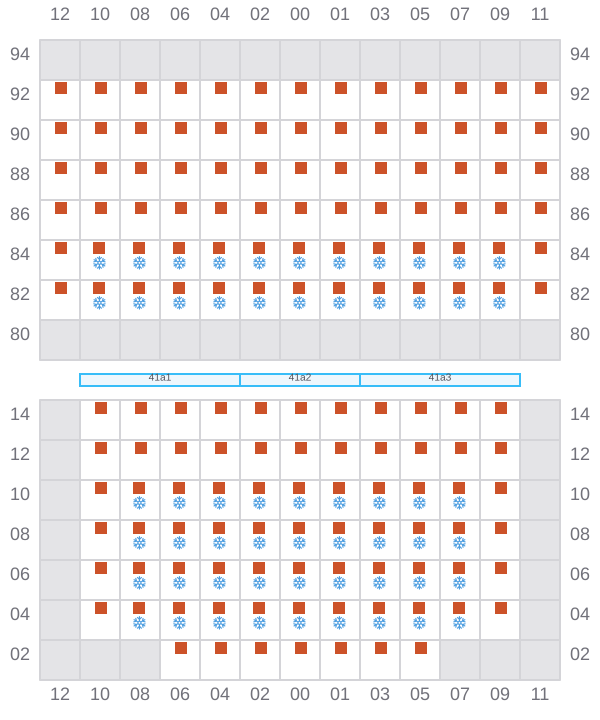

Bay 043 view and slots of CINZIA A

045 (046)

  • →
  • →

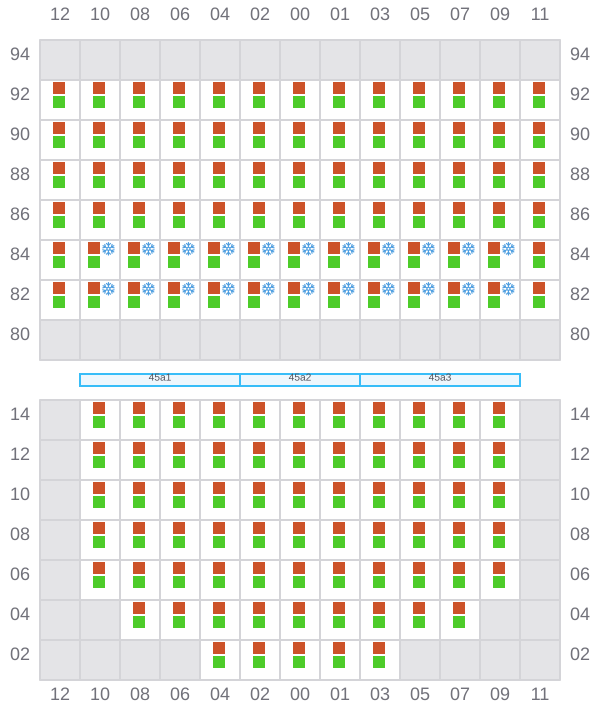

Bay 045 view and slots of CINZIA A

047

  • ←
  • →
Bay 047 view and slots of CINZIA A

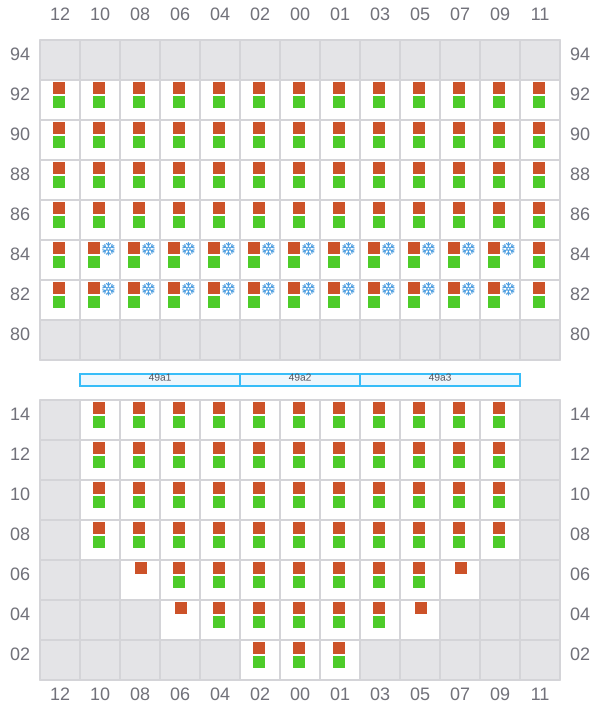

049 (050)

  • →
  • →
Bay 049 view and slots of CINZIA A

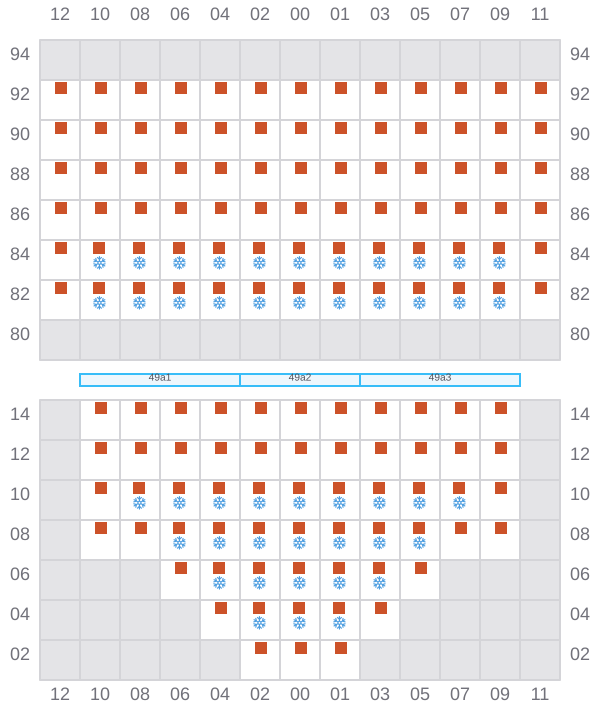

051

  • ←
  • →
Bay 051 view and slots of CINZIA A

053 (054)

  • → / ?
  • → / ?

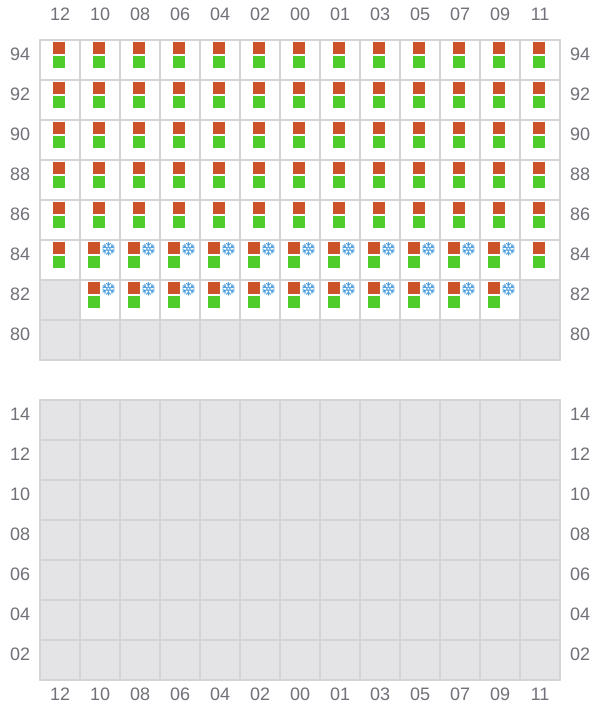

Bay 053 view and slots of CINZIA A

055

  • ← / ?
  • → / ?

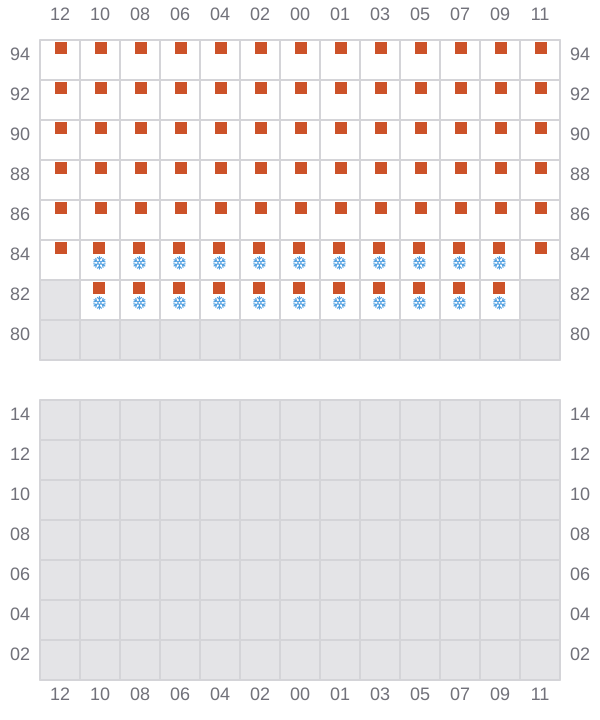

Bay 055 view and slots of CINZIA A

057 (058)

  • → / ?
  • → / ?

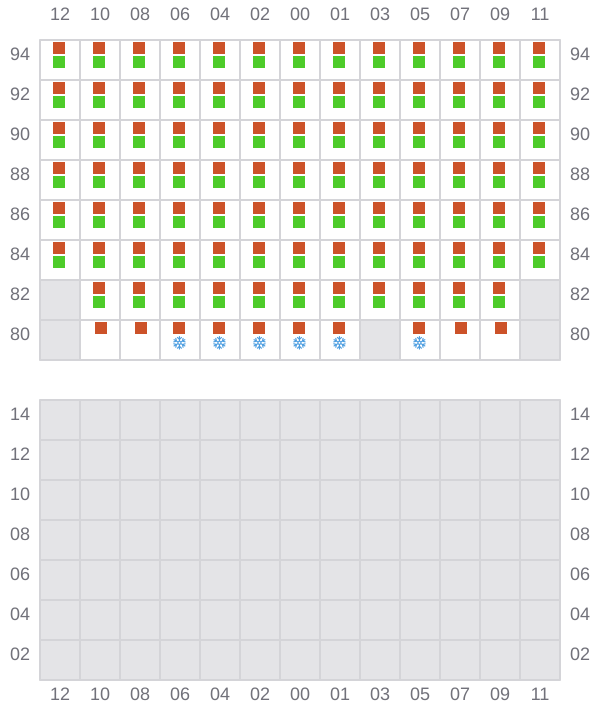

Bay 057 view and slots of CINZIA A

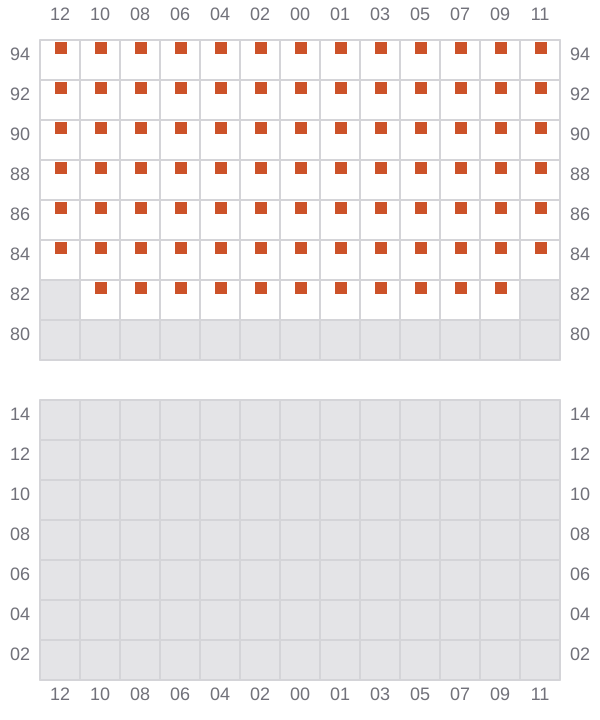

059

  • ← / ?
  • → / ?
Bay 059 view and slots of CINZIA A
