CITRUS VITA BRASIL
9491836 | D5LW3 | 9491836 by ********* Last update: Thu Mar 28 2024

General Info

Ship Name:CITRUS VITA BRASIL
IMO Code:9491836
Call Sign:D5LW3
Line Operator:9491836
Class Name for Sister Ships:15C
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,478

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

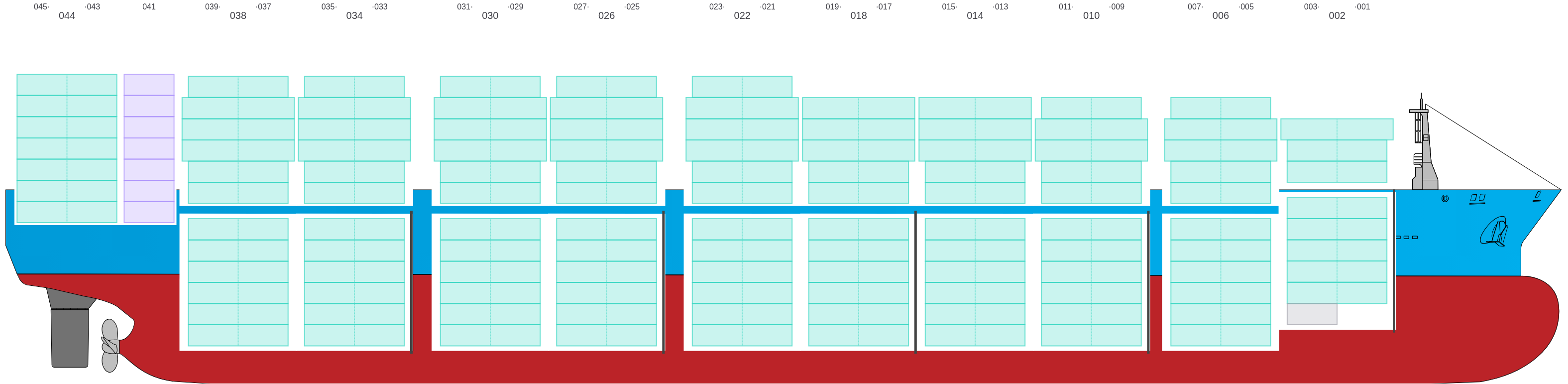

Side View

Side view of CITRUS VITA BRASIL

Hatch-Covers View

Deck view of CITRUS VITA BRASIL

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

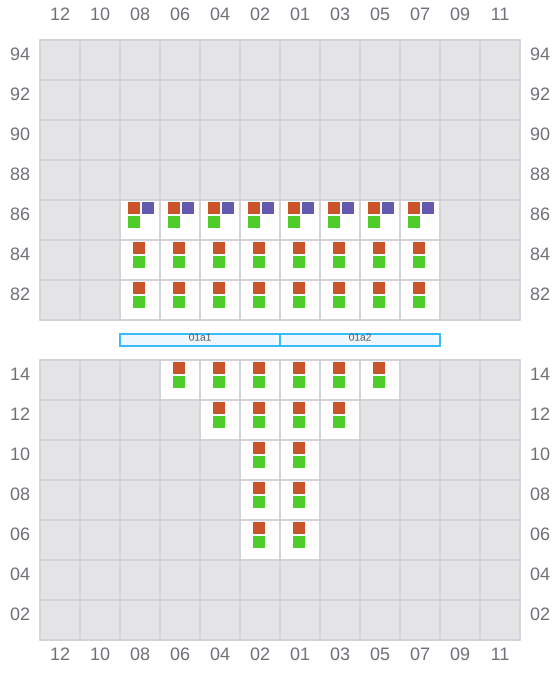

Bay 001 view and slots of CITRUS VITA BRASIL

003

  • ←
  • → / ?

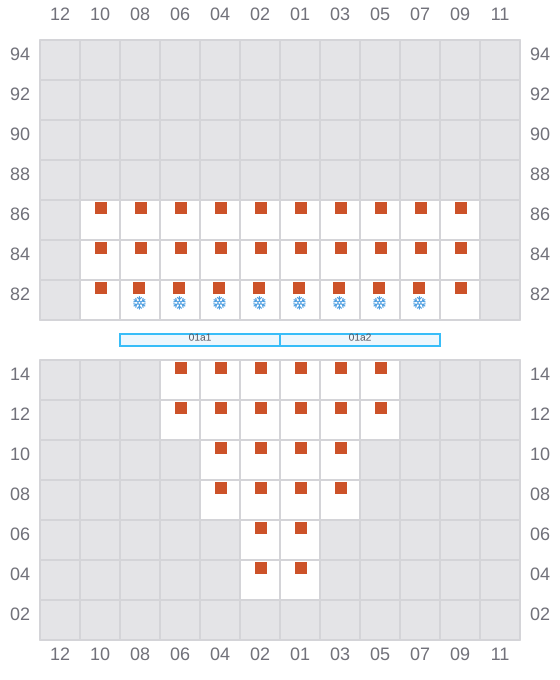

Bay 003 view and slots of CITRUS VITA BRASIL

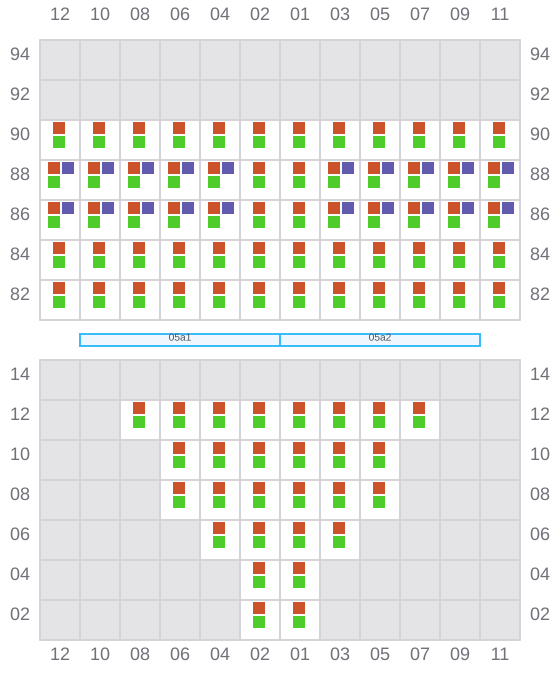

005 (006)

  • →

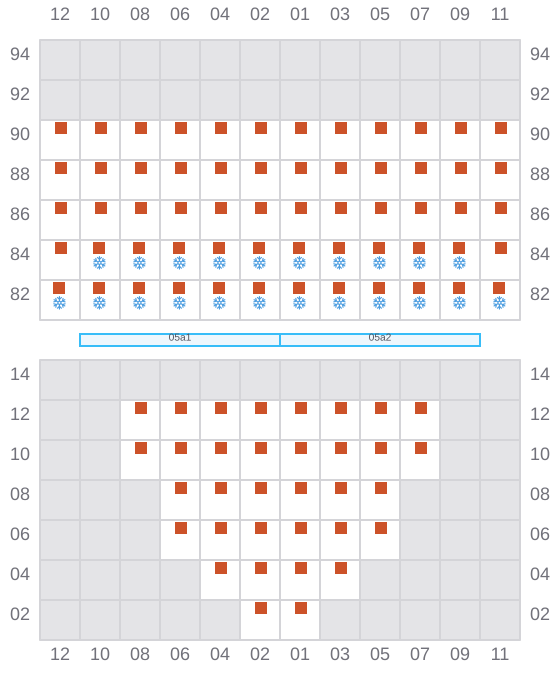

Bay 005 view and slots of CITRUS VITA BRASIL

007

  • ←
  • → / ?
Bay 007 view and slots of CITRUS VITA BRASIL

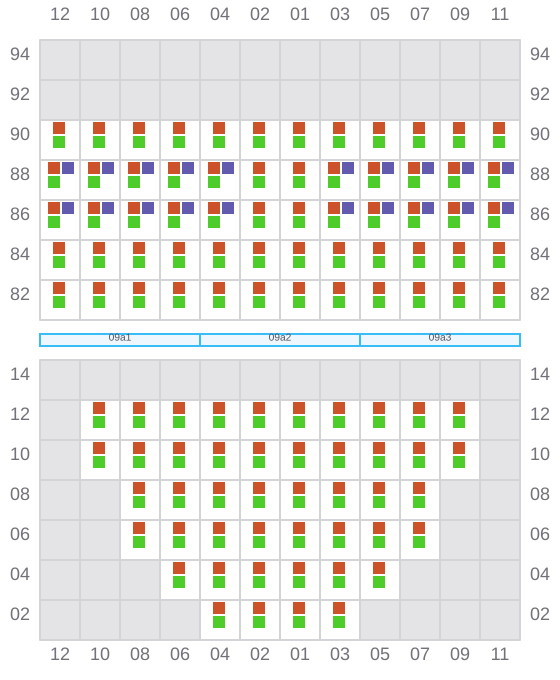

009 (010)

  • →
  • → / ?
Bay 009 view and slots of CITRUS VITA BRASIL

011

  • ←
  • → / ?

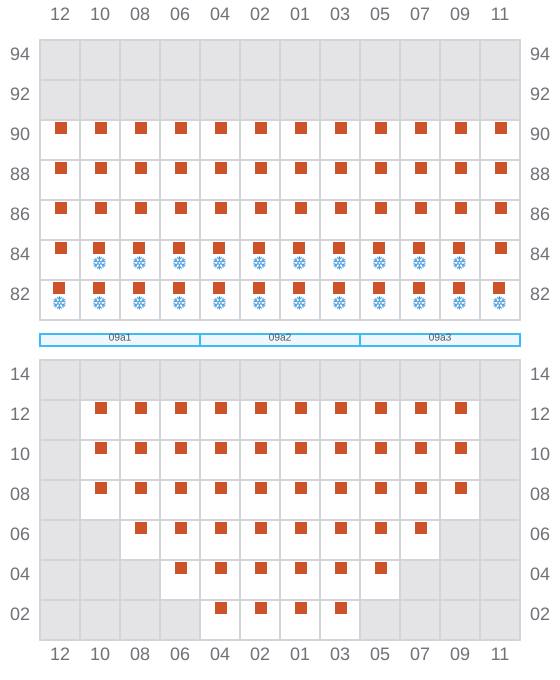

Bay 011 view and slots of CITRUS VITA BRASIL

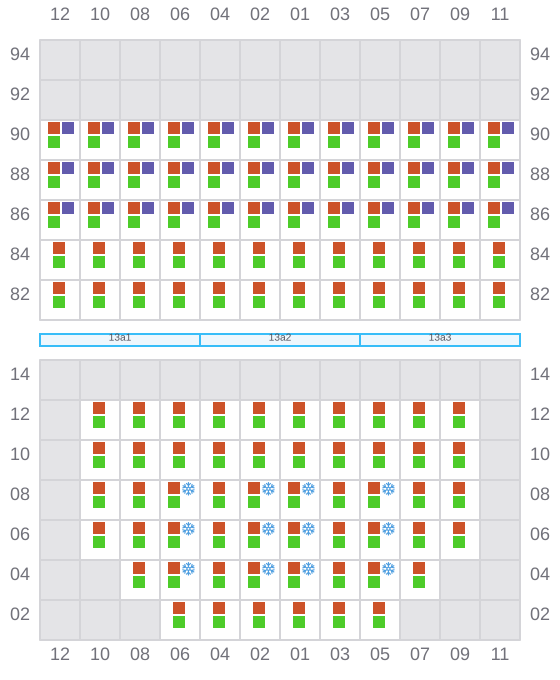

013 (014)

  • →
  • ? / ←
Bay 013 view and slots of CITRUS VITA BRASIL

015

  • ←
  • →

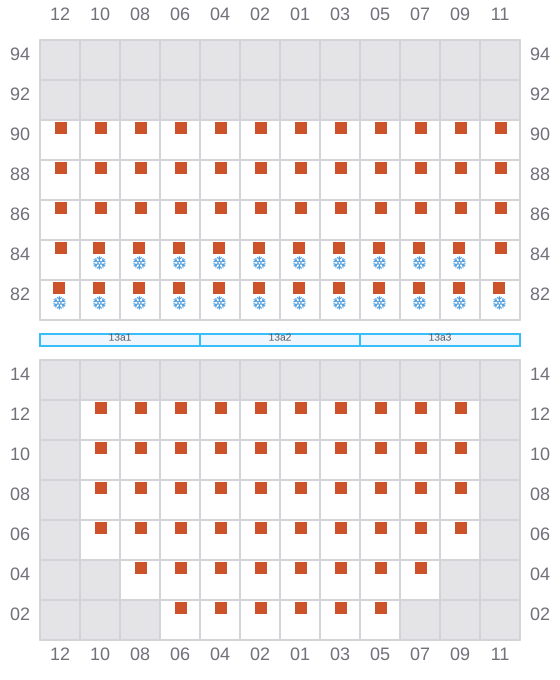

Bay 015 view and slots of CITRUS VITA BRASIL

017 (018)

  • →

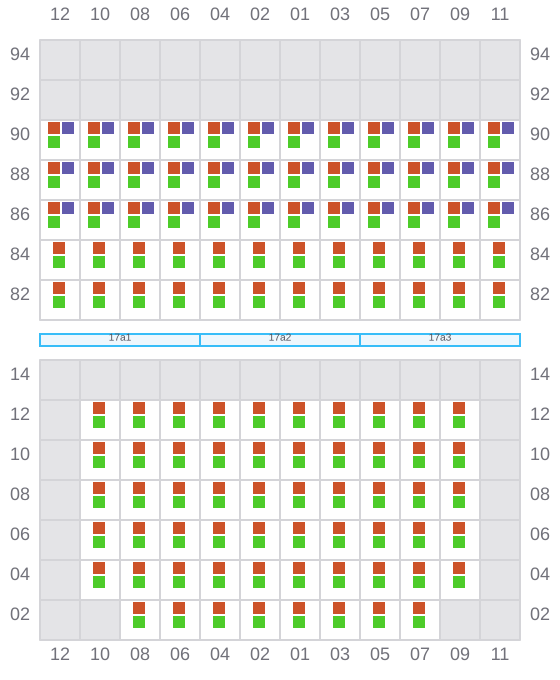

Bay 017 view and slots of CITRUS VITA BRASIL

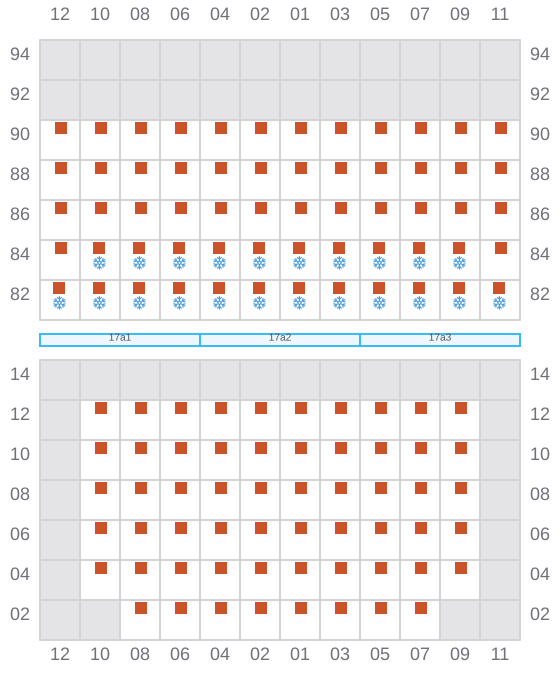

019

  • ←
  • →
Bay 019 view and slots of CITRUS VITA BRASIL

021 (022)

  • →
  • ←

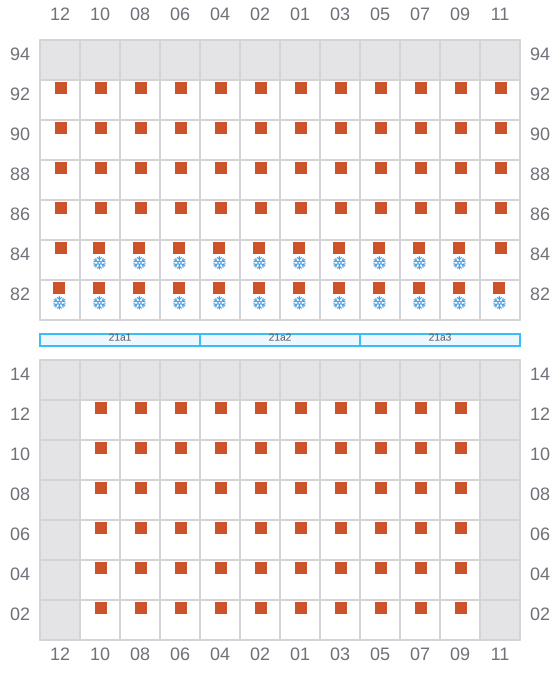

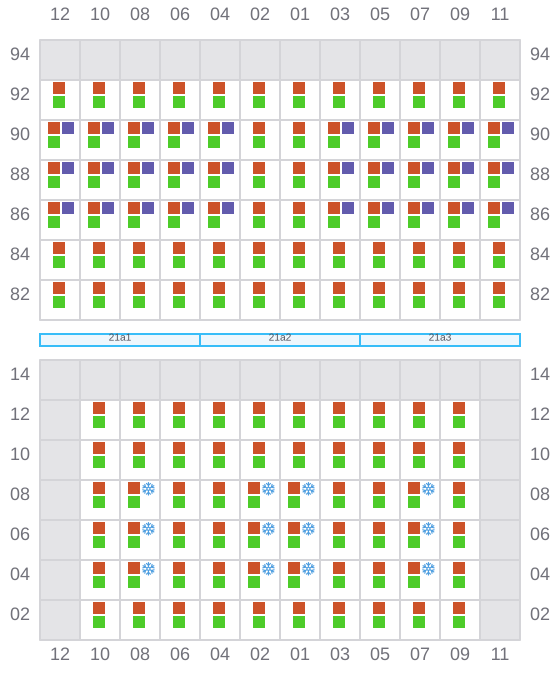

Bay 021 view and slots of CITRUS VITA BRASIL

023

  • ←
  • → / ?
Bay 023 view and slots of CITRUS VITA BRASIL

025 (026)

  • →
  • ← / ?

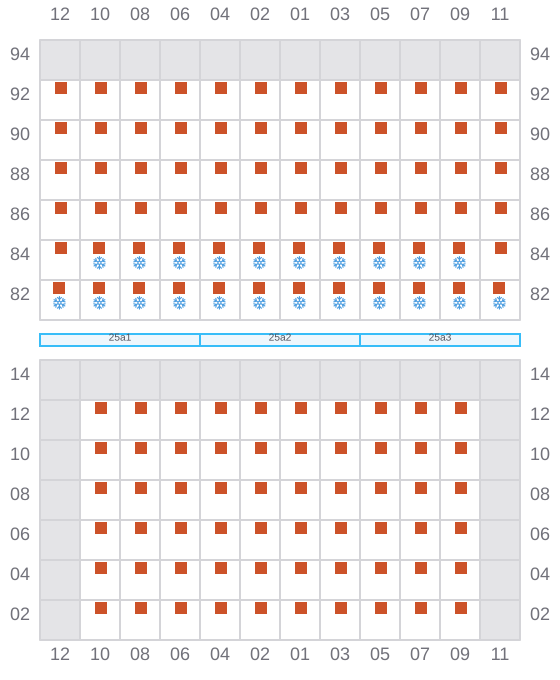

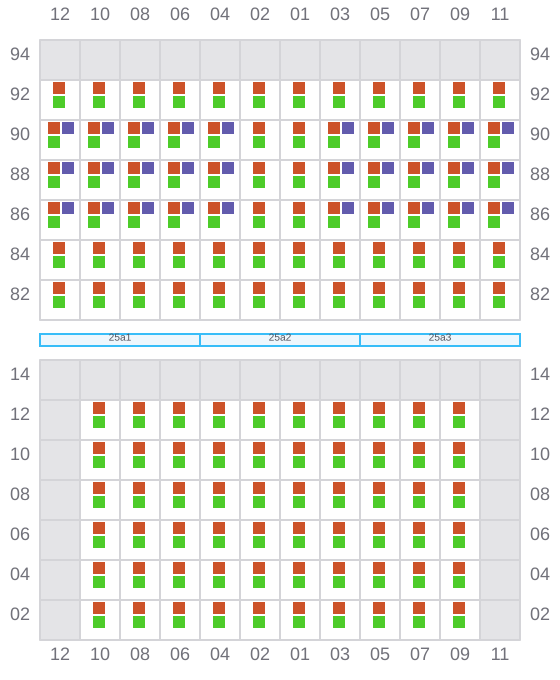

Bay 025 view and slots of CITRUS VITA BRASIL

027

  • ←
  • →
Bay 027 view and slots of CITRUS VITA BRASIL

029 (030)

  • →
  • ←

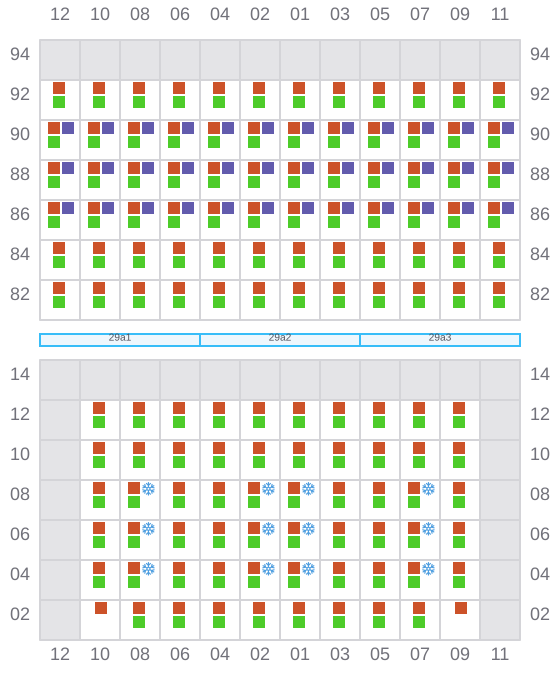

Bay 029 view and slots of CITRUS VITA BRASIL

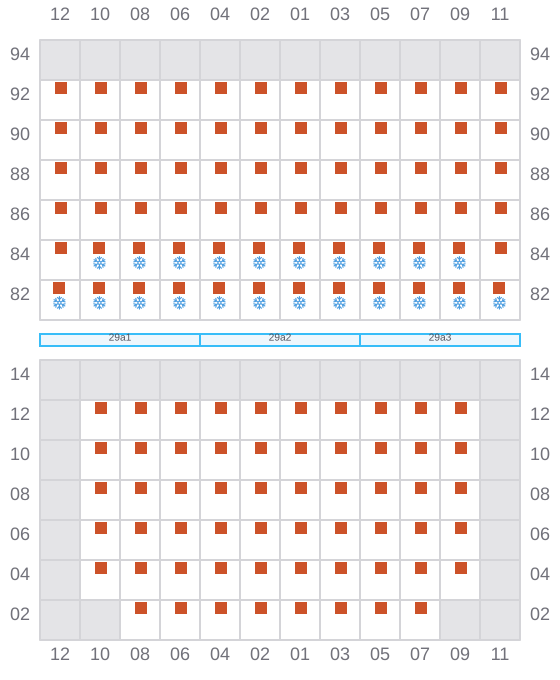

031

  • ←
  • →
Bay 031 view and slots of CITRUS VITA BRASIL

033 (034)

  • →
  • ← / ?

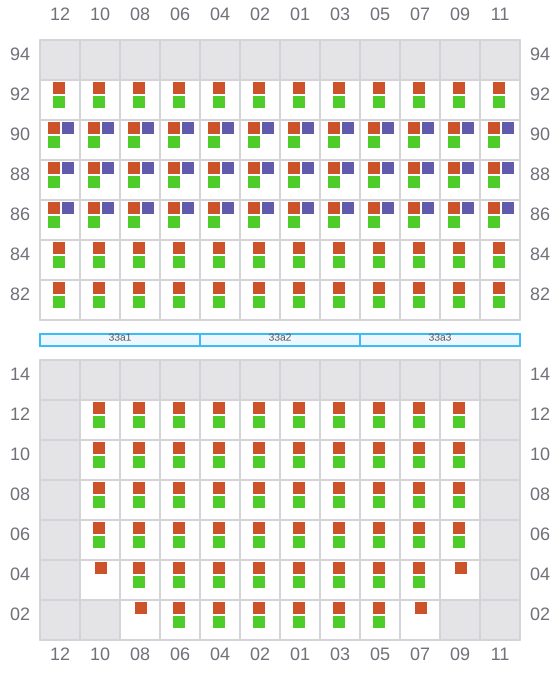

Bay 033 view and slots of CITRUS VITA BRASIL

035

  • ←
  • →

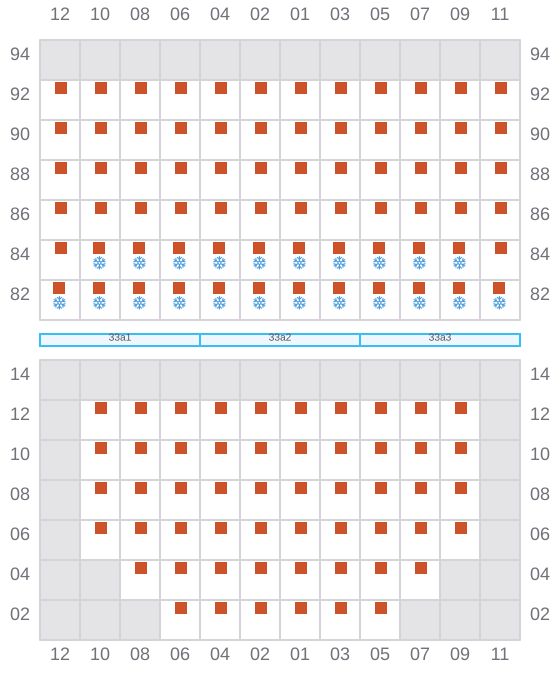

Bay 035 view and slots of CITRUS VITA BRASIL

037 (038)

  • →
  • ←

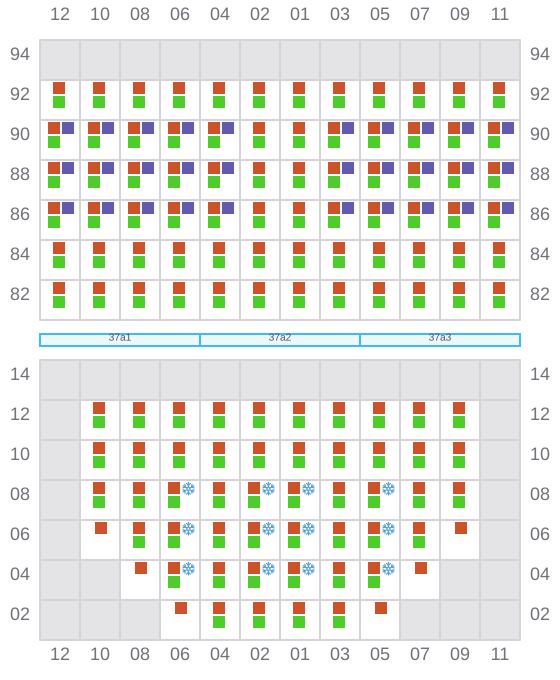

Bay 037 view and slots of CITRUS VITA BRASIL

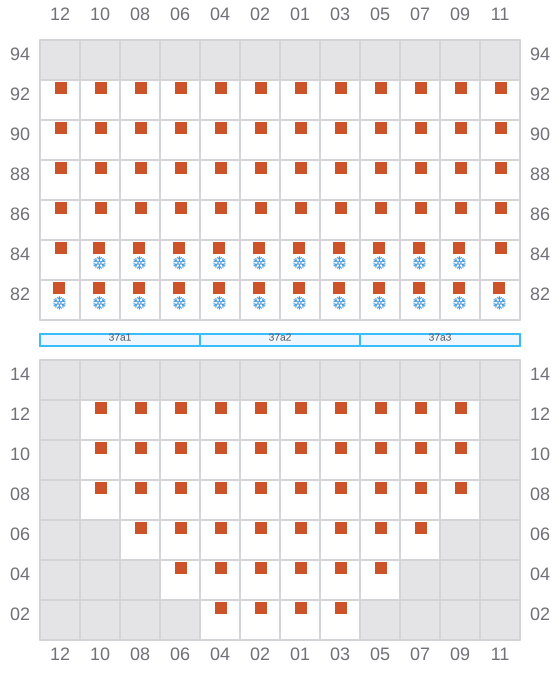

039

  • ←
  • → / ?
Bay 039 view and slots of CITRUS VITA BRASIL

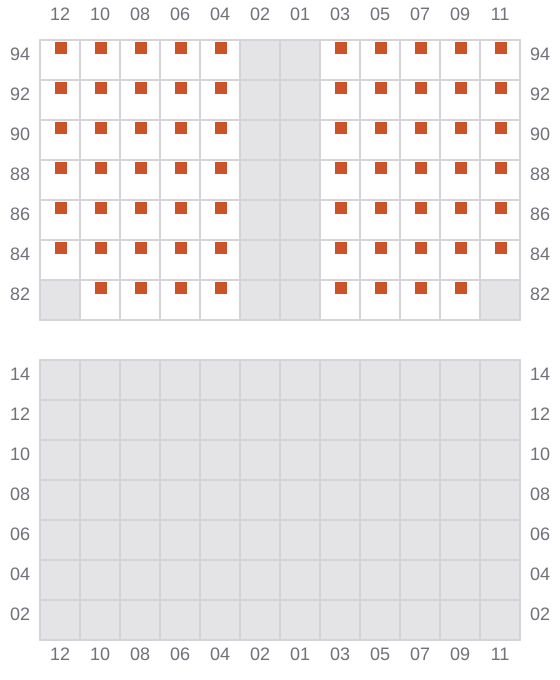

041

  • → / ?
Bay 041 view and slots of CITRUS VITA BRASIL

043 (044)

  • → / ?

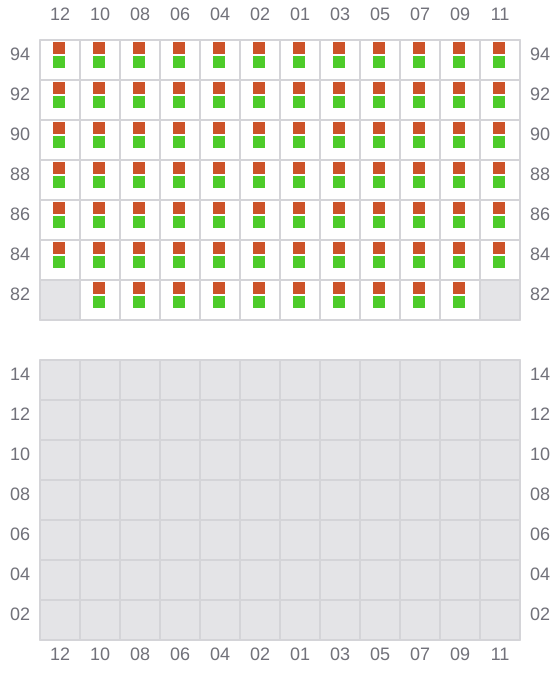

Bay 043 view and slots of CITRUS VITA BRASIL

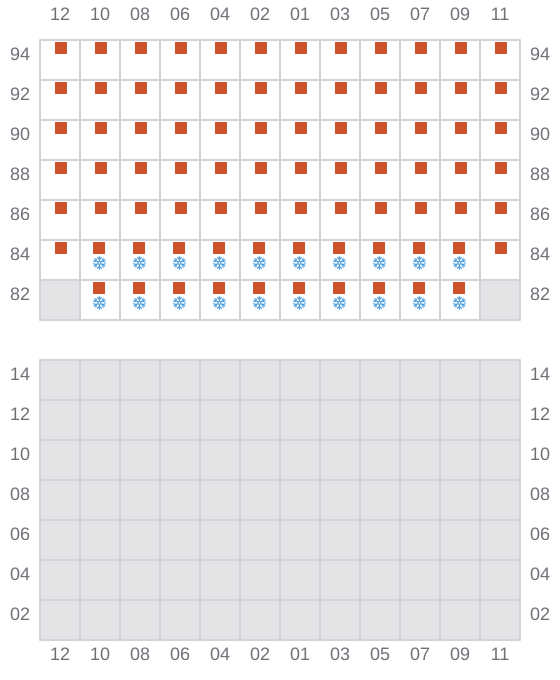

045

  • ← / ?
  • → / ?
Bay 045 view and slots of CITRUS VITA BRASIL
